Model Whirlpool RTSA154AAM REFRIGERATOR – Common Parts & Diagrams

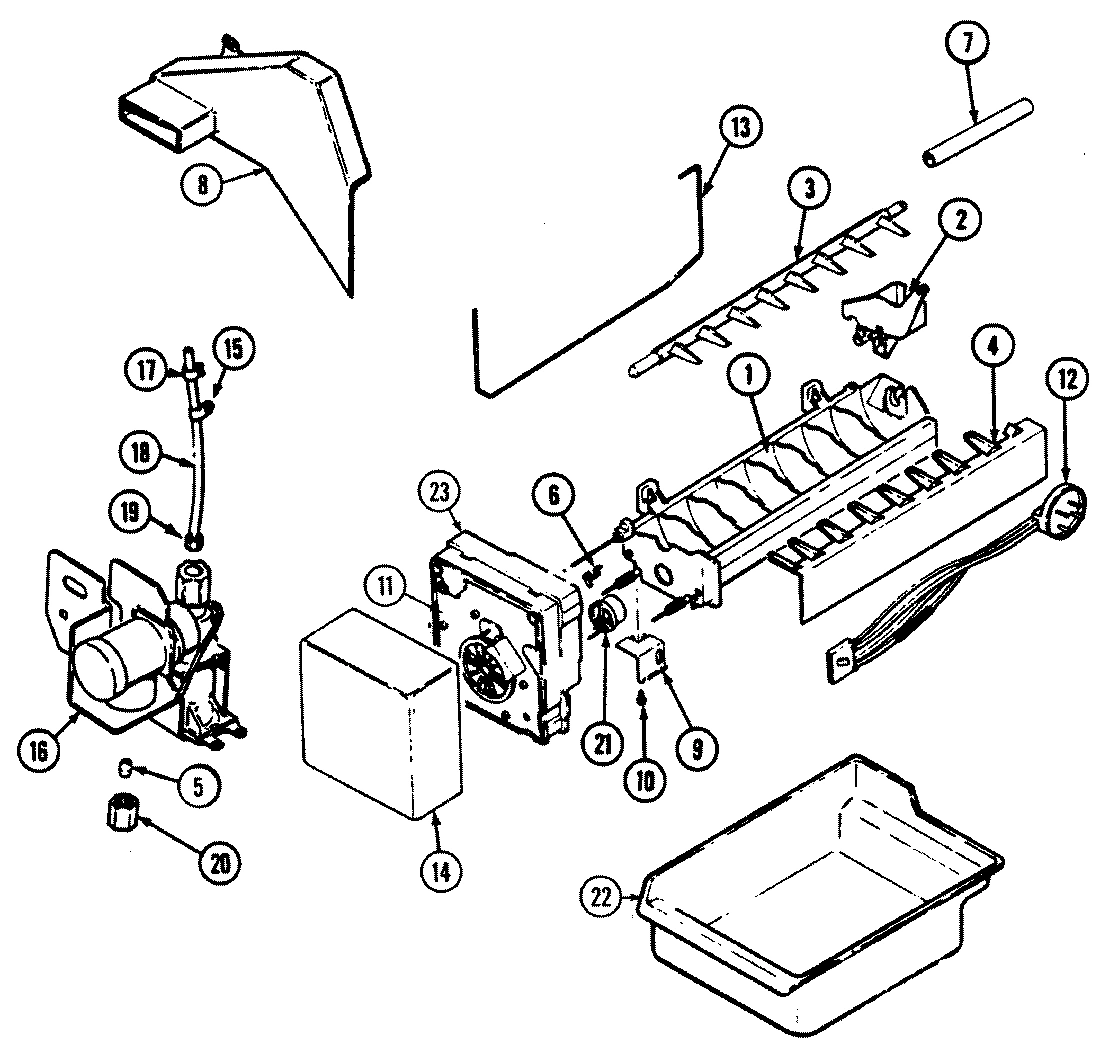

05 - OPTIONAL ICE MAKER KIT (ICE)

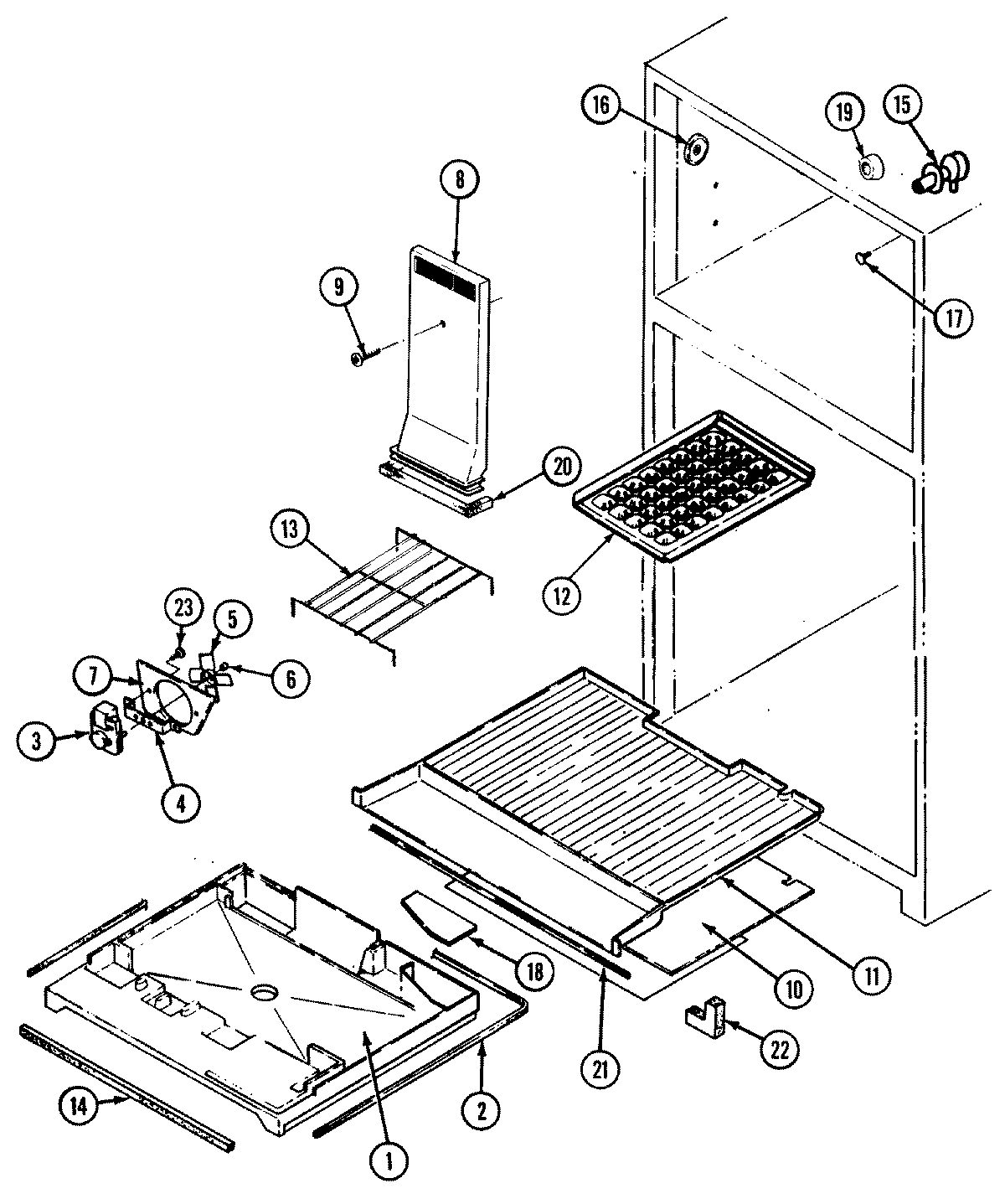

01 - FREEZER COMPARTMENT

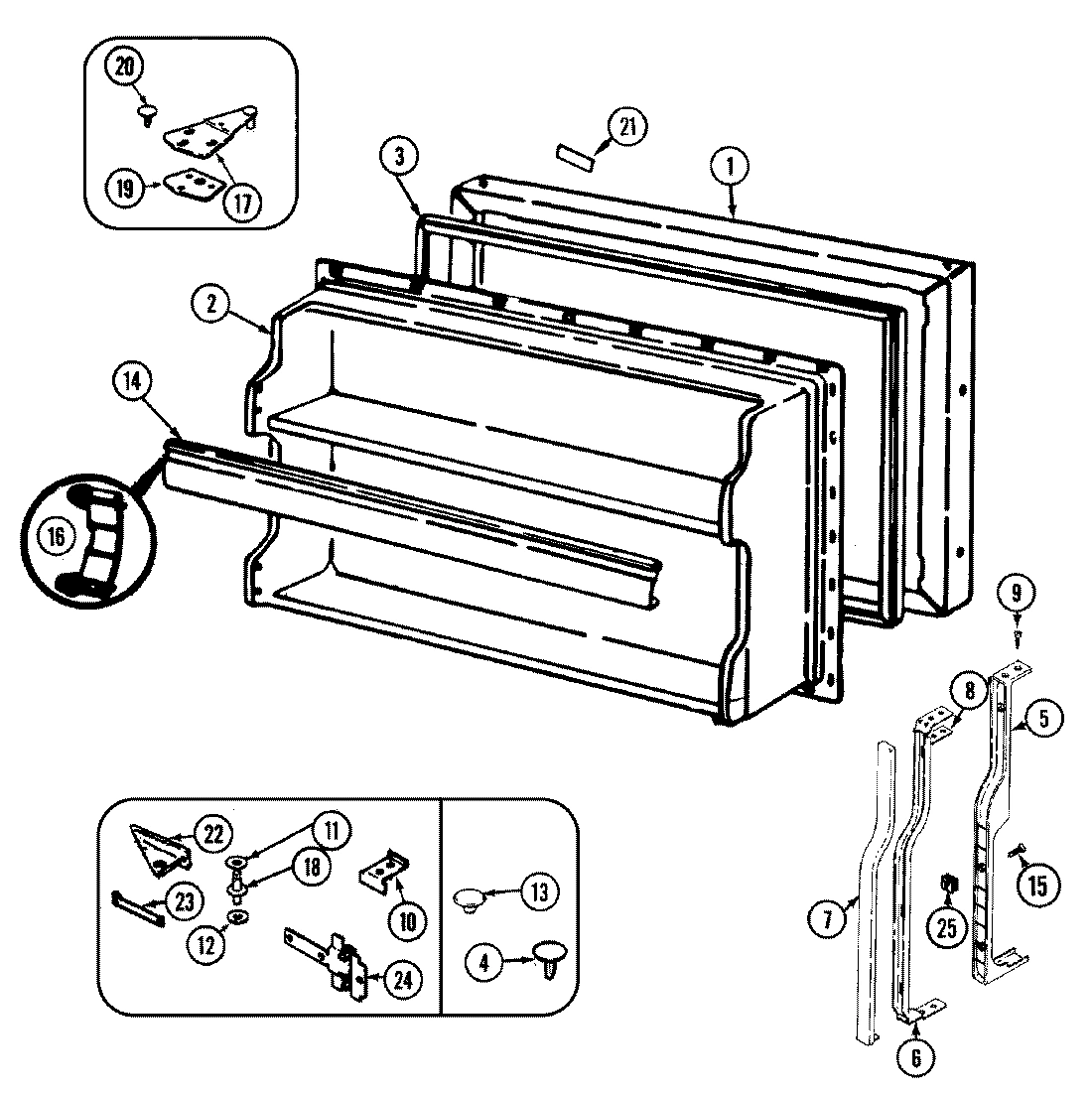

02 - FREEZER DOOR

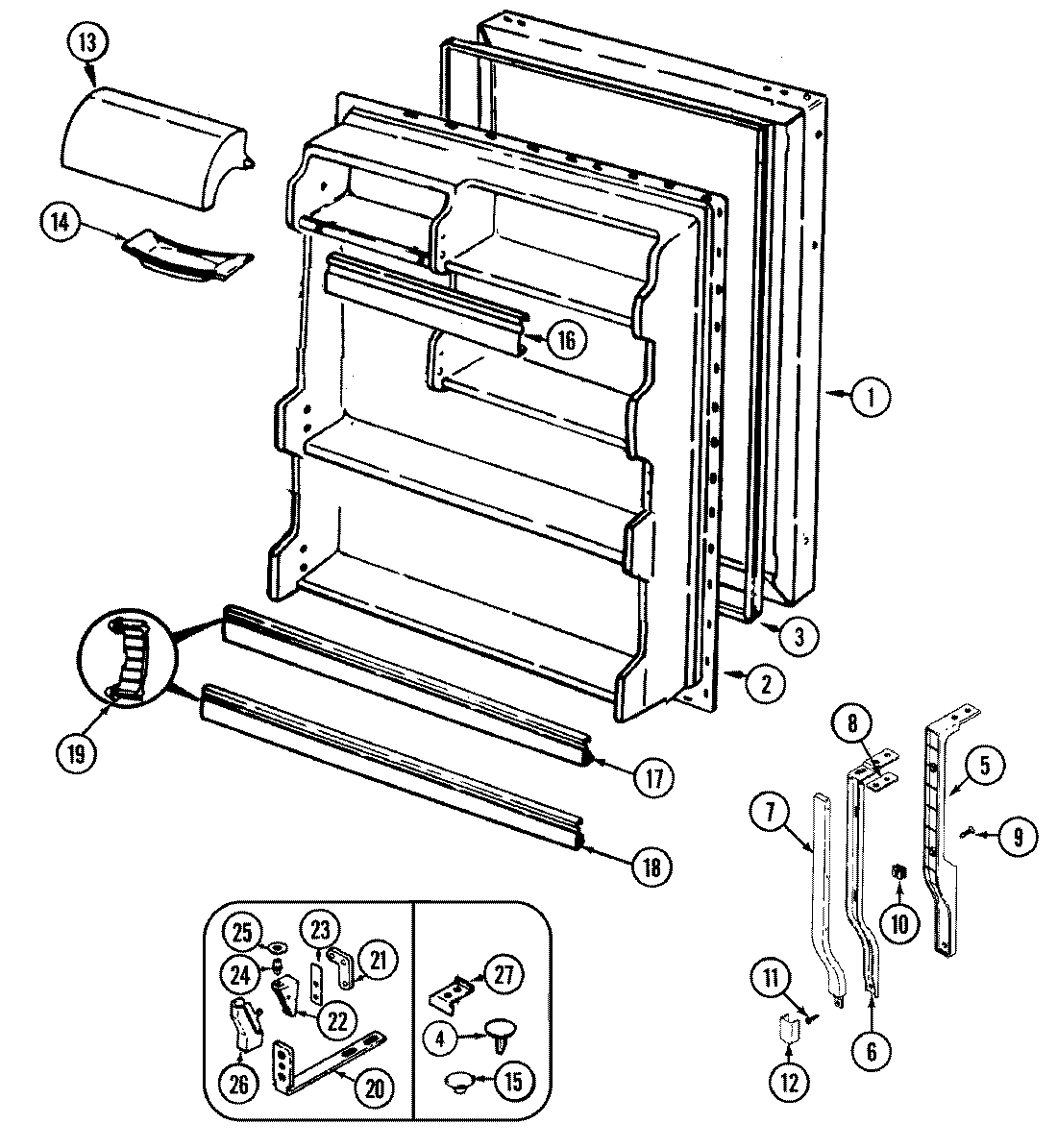

04 - FRESH FOOD DOOR

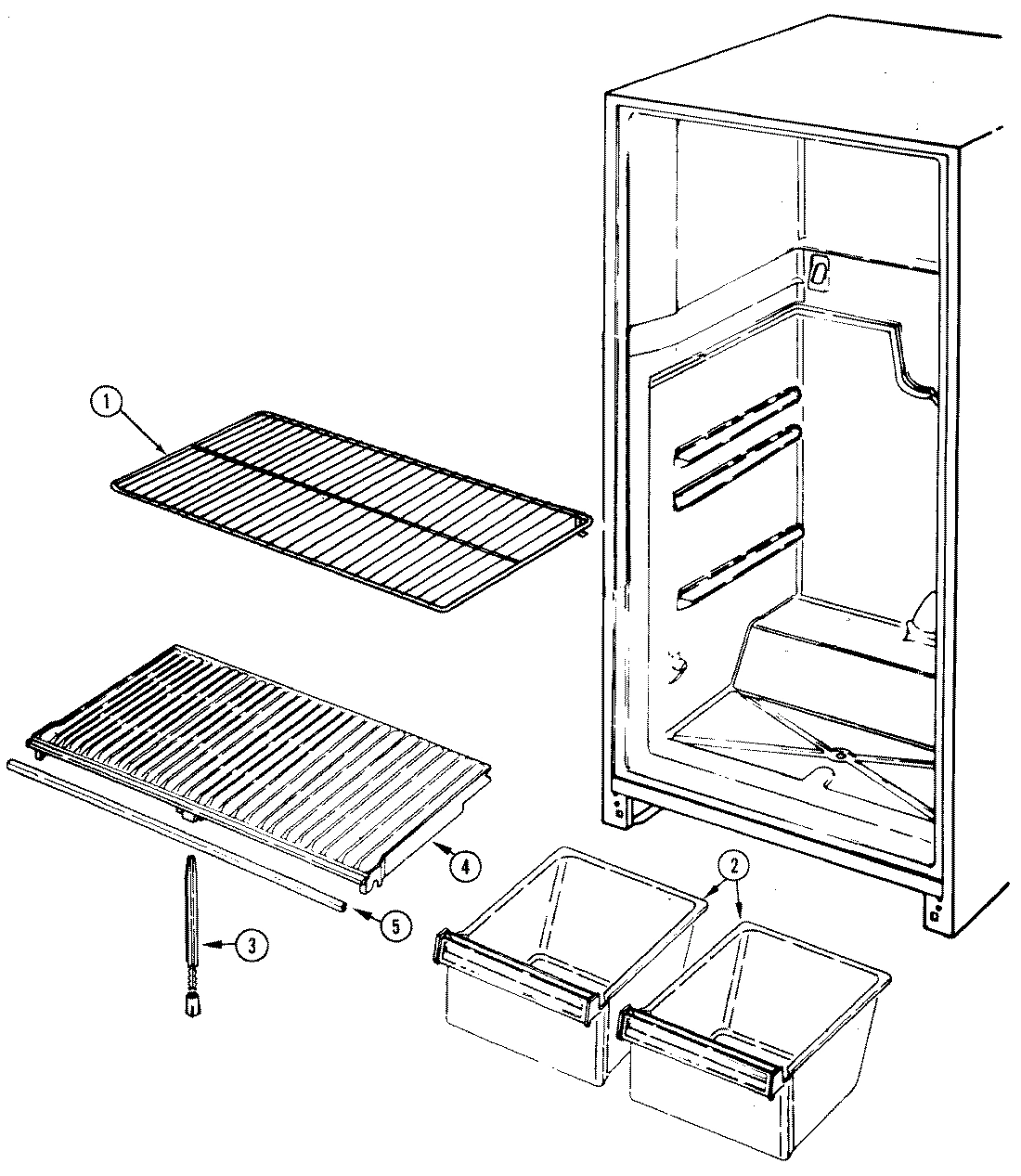

06 - SHELVES & ACCESSORIES

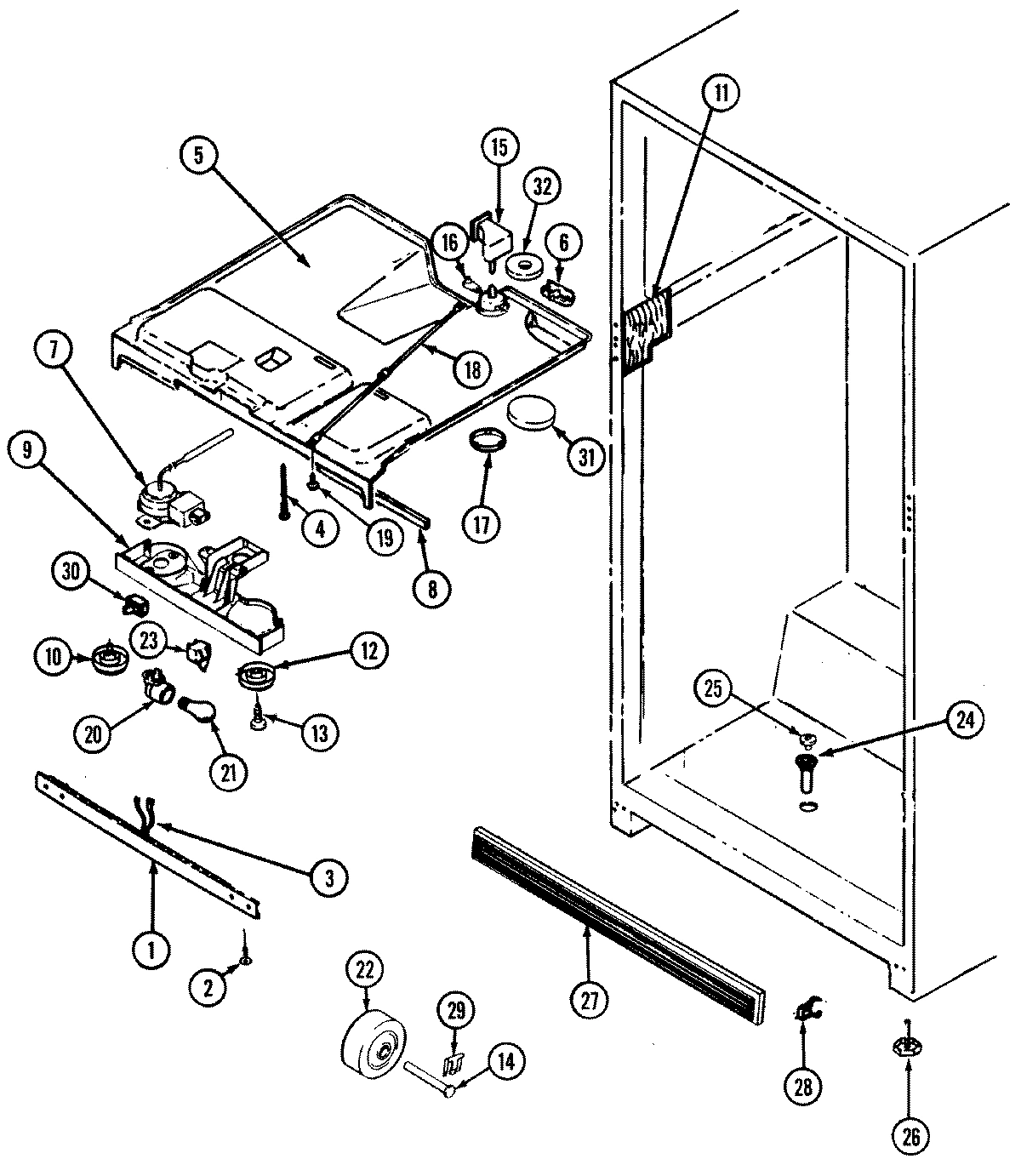

03 - FRESH FOOD COMPARTMENT

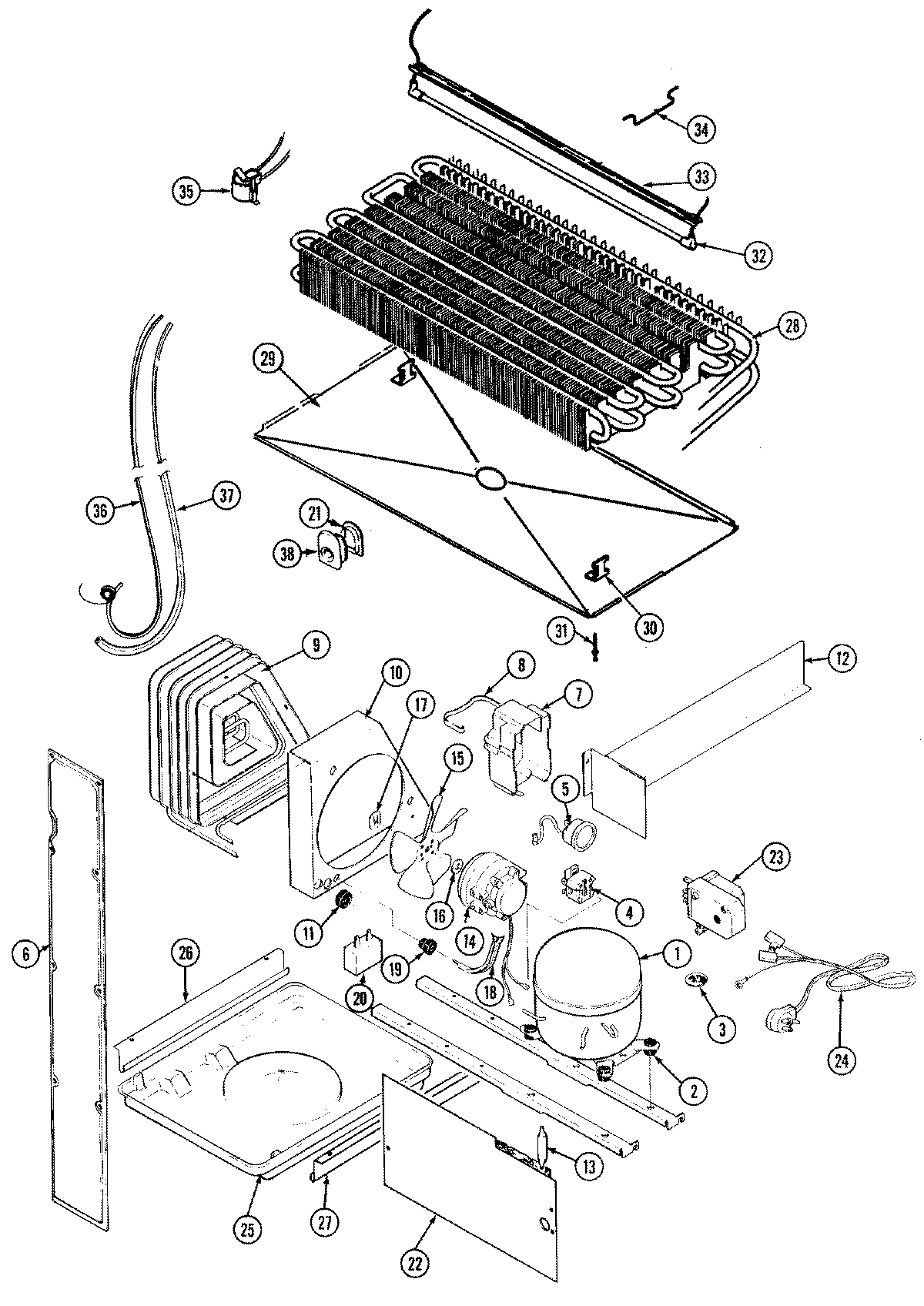

07 - UNIT COMPARTMENT & SYSTEM
Common parts from model Whirlpool RTSA154AAM REFRIGERATOR
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
TRAY, STYROFOAM MULLION WPL 694011 Contact Us For Availability
1
PANEL, FRZ. DOOR (ALM) WPL 72342101AM Contact Us For Availability
1
PANEL, F.F. DOOR (ALM) WPL 723422AM Contact Us For Availability
1
SHELF, SLIDE-OUT----NA WPL 700955 Contact Us For Availability
1
CHANNEL, MULLION DIVIDER (WHT) WPL 694201WW Contact Us For Availability
1
COMPRESSOR WPL RA10111 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SEAL, MULLION TRAY WPL 694141 Contact Us For Availability
2
SCREW WPL 652755 Contact Us For Availability
2
LINER WPL 694641 Contact Us For Availability
2
LINER, F.F. DOOR WPL 694431 Contact Us For Availability
2
PAN, CRISPER WPL 68221149 Contact Us For Availability
2
SCREW WPL 6527523 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 691062 Contact Us For Availability
3
GASKET, FRZ. DOOR WPL 700251 Contact Us For Availability
3
GASKET, F.F. DOOR WPL 700252 Contact Us For Availability
3
SUPPORT, CRISPER SHELF WPL 661051 Contact Us For Availability
3
HEATER, DIVIDER CHANNEL WPL 696171 Contact Us For Availability
3
SCREW, COMPRESSOR RAIL WPL 4140111 Contact Us For Availability
3
CLIP, COMPRESSOR WPL 61002970 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
4
PLUG BUTTON (ALM) WPL 694804 Contact Us For Availability
4
SHELF, CRISPER WPL 668341 Contact Us For Availability
4
SCREW WPL 6527578 Contact Us For Availability
4
WIRE HARNESS, MULLION WPL 701171 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
5
SLEEVE, BRASS WPL 694311 Contact Us For Availability
5
BLADE, EVAPORATOR FAN WPL 691071 Contact Us For Availability
5
HANDLE, FRZ. DOOR (ALM) WPL 61001148 Contact Us For Availability
5
SCREW WPL 6527522 Contact Us For Availability
5
HANDLE, F.F. DOOR (ALM) WPL 61001120 Contact Us For Availability
5
TRIM, CRISPER SHELF WPL 604549 Contact Us For Availability
5
TOP, F.F. COMPARTMENT WPL 694071 Contact Us For Availability
5
OVERLOAD WPL 6910510 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
WASHER, SPRING WPL 420092900 Contact Us For Availability
6
FRAME, HANDLE WPL 700522 Contact Us For Availability
6
FRAME, HANDLE WPL 700521 Contact Us For Availability
6
DEFLECTOR, AIR WPL 696231 Contact Us For Availability
6
WIRE COVER WPL 601101 Contact Us For Availability
6
SCREW WPL 6527550 Contact Us For Availability
7
TUBE, FILL WPL 676668 Contact Us For Availability
7
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
7
INSERT, HANDLE (ALM) WPL 700531 Contact Us For Availability
7
INSERT, HANDLE (ALM)----NA WPL 7005317 Contact Us For Availability
7
SCREW WPL 4060131 Contact Us For Availability
7
CONTROL, TEMPERATURE WPL 681196 Contact Us For Availability
7
COVER, TERMINAL WPL 61002020 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
COVER, TERMINAL WPL 697541 Contact Us For Availability
8
DUCT, AIR WPL 701981 Contact Us For Availability
8
DUCT, AIR WPL 701982 Contact Us For Availability
8
DUCT, AIR WPL 701983 Contact Us For Availability
8
TUNNEL, AIR WPL 702081 Contact Us For Availability
8
MAGNET WPL 694131 Contact Us For Availability
8
SHIM, HANDLE WPL 679341 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 595961 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 61002620 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SCREW WPL 40001531 Contact Us For Availability
9
SCREW WPL 4150331 Contact Us For Availability
9
SCREW WPL 4050121 Contact Us For Availability
9
COVER, TEMPERATURE CONTROL WPL 694215 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL 604343 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
COVER, EVAPORATOR WPL 664031 Contact Us For Availability
10
GROMMET WPL 697431 Contact Us For Availability
10
KNOB, TEMPERATURE CONTROL WPL 694179 Contact Us For Availability
10
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
SCREW WPL 4000211 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
BOTTOM, FRZ. WPL 693951 Contact Us For Availability
11
WASHER WPL 674836 Contact Us For Availability
11
SCREW WPL 6527580 Contact Us For Availability
11
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
11
SEAL, FOOD LINER (LT) WPL 694161 Contact Us For Availability
11
SEAL, FOOD LINER (RT) WPL 694162 Contact Us For Availability
11
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 700761 Contact Us For Availability
12
TRAY, ICE WPL 592812 Contact Us For Availability
12
WASHER WPL 542331 Contact Us For Availability
12
END CAP, HANDLE (ALM) WPL 700581 Contact Us For Availability
12
KNOB, FREEZER CONTROL WPL 6941710 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664931 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
TRIVET WPL 682597 Contact Us For Availability
13
DOOR, DAIRY WPL 6905829 Contact Us For Availability
13
SCREW WPL 405016103 Contact Us For Availability
14
COVER, ICE MAKER WPL 683282 Contact Us For Availability
14
SCREW WPL 4000191 Contact Us For Availability
14
SEAL, MULLION TRAY (FRONT) WPL 695621 Contact Us For Availability
14
TRAY, BUTTER WPL 299362 Contact Us For Availability
14
PIN, WHEEL WPL 298352 Contact Us For Availability
14
SCREW WPL 4080151 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 684453 Contact Us For Availability
15
SCREW WPL 4000161 Contact Us For Availability
15
CLAMP, TUBING WPL 535168 Contact Us For Availability
15
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
15
PLUG BUTTON, HINGE CUP (ALM) WPL 676343 Contact Us For Availability
15
ORIFICE ASSY., DAMPER WPL 698116 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 699581 Contact Us For Availability
16
SCREW WPL 4010171 Contact Us For Availability
16
VALVE, WATER WPL 693641 Contact Us For Availability
16
CAP, CONNECTOR WPL 681871 Contact Us For Availability
16
TRIM, DOOR WPL 7011131 Contact Us For Availability
16
CRANK, FRZ. CONTROL WPL 676362 Contact Us For Availability
16
WASHER, FAN BLADE WPL 690631 Contact Us For Availability
17
CLAMP, SPRING WPL 603334 Contact Us For Availability
17
PLUG BUTTON (ALM) WPL 701463 Contact Us For Availability
17
TRIM, SHELF WPL 7011143 Contact Us For Availability
17
HINGE, UPPER WPL 5370920 Contact Us For Availability
17
SCREW WPL 6527552 Contact Us For Availability
17
COVER, CRANK WPL 674931 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
18
TUBE WPL 675796 No Longer Available
18
COVER, PLENUM WPL 61664804 Contact Us For Availability
18
PIN, CENTER HINGE WPL 695172 Contact Us For Availability
18
TRIM, SHELF (22 11/16``) WPL 7011146 Contact Us For Availability
18
ROD, FRZ. CONTROL WPL 694183 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 691811 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 695831 Contact Us For Availability
19
CAP, GROMMET WPL 683871 Contact Us For Availability
19
RETAINER, SHELF TRIM WPL 701971 Contact Us For Availability
19
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
19
WASHER, CONTROL ROD WPL 4200051 Contact Us For Availability
19
SCREW WPL 6527513 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
20
SPACER WPL 604781 Contact Us For Availability
20
PLUG BUTTON, HINGE SCREW (ALM) WPL 561449 Contact Us For Availability
20
SCREW WPL 4140121 Contact Us For Availability
20
SCREW (No.10 X 1/2``) WPL 6527566 Contact Us For Availability
20
TAPPING PLATE, LOWER HINGE WPL 695111 Contact Us For Availability
20
RECEPTACLE, BULB WPL 689743 Contact Us For Availability
20
CAPACITOR, RUN WPL 658891 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
NAMEPLATE (ALM) WPL 6698230 Contact Us For Availability
21
SCREW WPL 6527559 Contact Us For Availability
21
TAPPING PLATE, LOWER HINGE WPL 678741 Contact Us For Availability
21
BULB, LIGHT WPL 681231 Contact Us For Availability
21
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
21
RETAINER, WIRE HARNESS WPL 601774 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 61001560 Contact Us For Availability
21
WIRE HARNESS, MAIN WPL 701621 Contact Us For Availability
22
PAN, ICE WPL 683271 Contact Us For Availability
22
PAN, ICE WPL 683461 Contact Us For Availability
22
SEAL, FROST CHEST BOTTOM WPL 695631 Contact Us For Availability
22
SCREW WPL 6527562 Contact Us For Availability
22
HINGE, CENTER WPL 695142 Contact Us For Availability
22
SCREW, LOWER HINGE WPL 6527551 Contact Us For Availability
22
HINGE, LOWER (ZINC) WPL 695164 Contact Us For Availability
22
WHEEL WPL 698121 Contact Us For Availability
22
COVER, UNIT COMPARTMENT WPL 663383 Contact Us For Availability
22
SCREW WPL 998645 Contact Us For Availability
23
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
23
SCREW WPL 951061 Contact Us For Availability
23
SCREW WPL 40001536 Contact Us For Availability
23
SHIM, CENTER HINGE WPL 695151 Contact Us For Availability
23
SHIM, LOWER HINGE WPL 695101 Contact Us For Availability
23
SWITCH, LIGHT WPL 669871 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TIMER, DEFROST WPL 682331 Contact Us For Availability
24
SCREW WPL 6527561 Contact Us For Availability
24
TAPPING PLATE, CENTER HINGE WPL 694191 Contact Us For Availability
24
PIN, LOWER HINGE WPL 698451 Contact Us For Availability
24
TUBE, DRAIN WPL 545317 Contact Us For Availability
24
CORD, POWER WPL 528902 Contact Us For Availability
25
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
25
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
25
PAN, DRAIN WPL 682361 Contact Us For Availability
26
COVER, LOWER HINGE (ALM) WPL 689783 Contact Us For Availability
26
LEG, LEVELING WPL 686641 Contact Us For Availability
26
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
27
SCREW WPL 6527548 Contact Us For Availability
27
STOP, DOOR WPL 692562 Contact Us For Availability
27
KICKPLATE ASSY. W/CLIPS (ALM) WPL 701283 Contact Us For Availability
27
SCREW WPL 4000171 Contact Us For Availability
27
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
28
CLIP, KICKPLATE WPL 699401 Contact Us For Availability
28
EVAPORATOR WPL 698221 Contact Us For Availability
29
SCREW WPL 4020131 Contact Us For Availability
29
CLIP WPL 602161 Contact Us For Availability
29
TRAY, DRIP WPL 691181 Contact Us For Availability
30
SWITCH, HEATER WPL 692831 Contact Us For Availability
30
BRACKET, EVAPORATOR WPL 601082 Contact Us For Availability
31
RIVET WPL 263979 Contact Us For Availability
31
DISC, CRANK COVER WPL 690371 Contact Us For Availability
32
SEAL, TOP TOWER WPL 689891 Contact Us For Availability
32
HEATER, DEFROST WPL 6010634 Contact Us For Availability
33
SHIELD, DEFROST HEATER WPL 601094 Contact Us For Availability
34
CLIP WPL 689351 Contact Us For Availability
35
THERMOSTAT, DEFROST WPL 5208528 Contact Us For Availability
36
HEAT EXCHANGER WPL 650134 Contact Us For Availability
36
WIRE TIE WPL 662231 Contact Us For Availability
37
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 1083403 Contact Us For Availability
× ![]()
Login and Registration Form
