Model Whirlpool RTP302UW GAS COOK-TOP – Common Parts & Diagrams

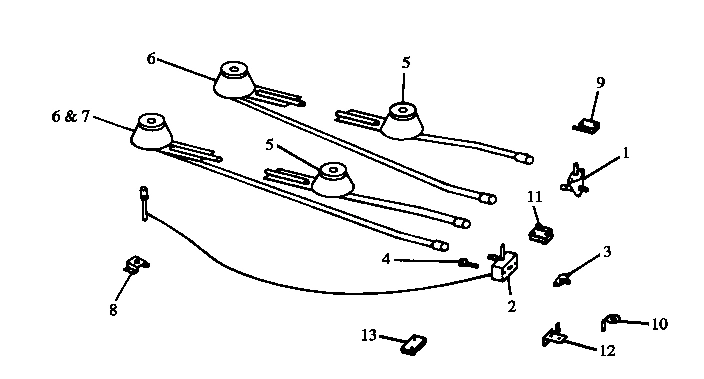

01 - BURNER

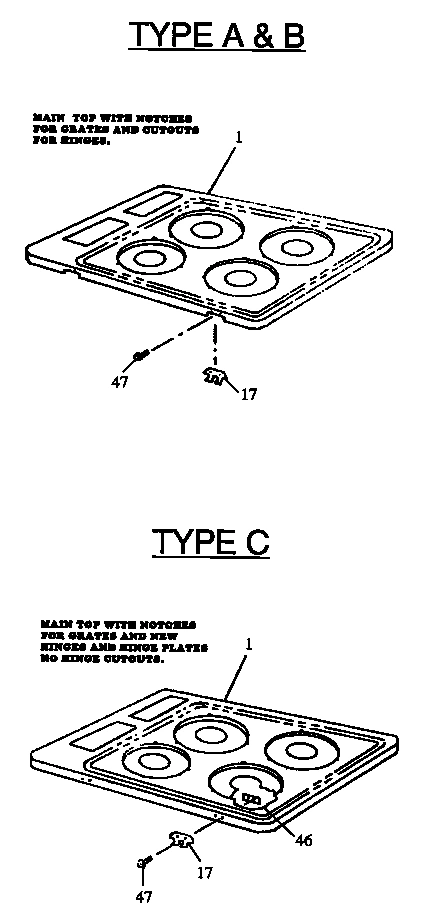

03 - MAIN TOP

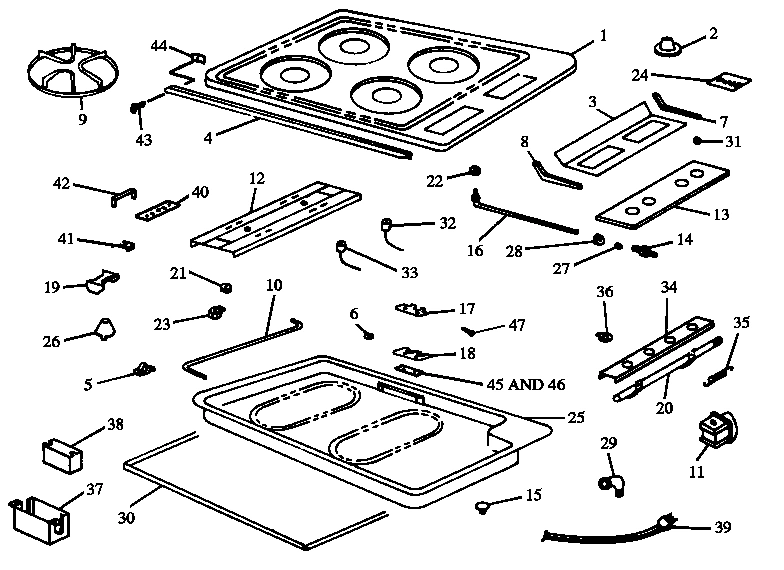

02 - MAIN BODY
Common parts from model Whirlpool RTP302UW GAS COOK-TOP
1
VALVE, TOP BURNER WPL 0308907 Contact Us For Availability
1
MAIN TOP, GOLD WPL 064586D Contact Us For Availability
1
MAIN TOP, SNOW WHITE WPL 064586F Contact Us For Availability
1
MAIN TOP, ALMOND WPL 064586N Contact Us For Availability
1
KIT, MAIN TOP, DARK COPPER WPL 087780C Contact Us For Availability
1
KIT, MAIN TOP, GOLD WPL 087780D Contact Us For Availability
1
KIT, MAIN TOP, ALMOND WPL 087780N Contact Us For Availability
1
KIT, MAIN TOP, AVOCADO WPL 087780V Contact Us For Availability
1
KIT, MAIN TOP, GOLD, W/GRATES WPL 087784D Contact Us For Availability
1
KIT, MAIN TOP, SN WT, W/GRATES WPL 087784F Contact Us For Availability
1
KIT, MAIN TOP, AMD, W/GRATES WPL 087784N Contact Us For Availability
1
MAIN TOP, DARK COPPER WPL Y064586C Contact Us For Availability
1
MAIN TOP, AVOCADO WPL Y064586V Contact Us For Availability
1
KIT, MAIN TOP, SN. WT. WPL Y087780F Contact Us For Availability
1
KIT, MAIN TOP, DK CP W/GRATES WPL Y087784C Contact Us For Availability
1
KIT, MAIN TOP, AVO, W/GRATES WPL Y087784V Contact Us For Availability
2
KNOB, TOP BURNER WPL Y0073103 Contact Us For Availability
5
BURNER ASSY, R.F. & R.R. WPL 0073127 Contact Us For Availability
5
ASSY, BURNER RF-RR WPL Y0308531 Contact Us For Availability
6
BURNER ASSY, L.F. & L.R. WPL Y0073128 Contact Us For Availability
6
ASSY, BURNER LF-LR WPL Y0308532 Contact Us For Availability
6
FLAT WASHER WPL Y0073119 Contact Us For Availability
9
GRATE, TOP BURNER WPL 305814B Contact Us For Availability
11
PRESSURE REGULATOR WPL Y0069636 Contact Us For Availability
12
BURNER SUPPORT WPL Y0073133 Contact Us For Availability
13
CONTROL PANEL WPL 0069971 Contact Us For Availability
14
FILTER ASSEMBLY WPL Y0076499 Contact Us For Availability
16
SUB 312896, KIT PILOT TUBE WPL 0076159 Contact Us For Availability
17
HINGE WING, TYPE C WPL 0064588 Contact Us For Availability
17
SUB 64588 HINGE WING WPL 0073130 Contact Us For Availability
18
HIGNE, FIXED-MAIN TOP, TYPE C WPL 0064589 Contact Us For Availability
18
FIXED HINGE, MAIN TOP WPL 0073129 Contact Us For Availability
19
PILOT SHIELD WPL 0073122 Contact Us For Availability
20
MANIFOLD WPL Y0073123 Contact Us For Availability
24
NAMEPLATE WPL 0073111 Contact Us For Availability
25
BURNER BOX WPL 69639CG Contact Us For Availability
26
TOP PILOT LIGHTER CUP WPL Y0020069 Contact Us For Availability
27
1/8`` SLEEVE WPL Y0096789 Contact Us For Availability
28
1/8`` COMPRESSION NUT WPL Y0097930 Contact Us For Availability
29
ELBOW WPL 0073084 Contact Us For Availability
30
SHIELD, BOTTOM WPL Y0077031 Contact Us For Availability
46
HINGE PLATE WPL Y0064587 Contact Us For Availability
47
SCREW WPL 0071798 Contact Us For Availability
47
SCREW 6-32X1/2``PH PN HD WPL Y0078419 Contact Us For Availability
NI
SCREW WPL Y0071911 Contact Us For Availability
× ![]()
