Model Electrolux RTG216JCF3B REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

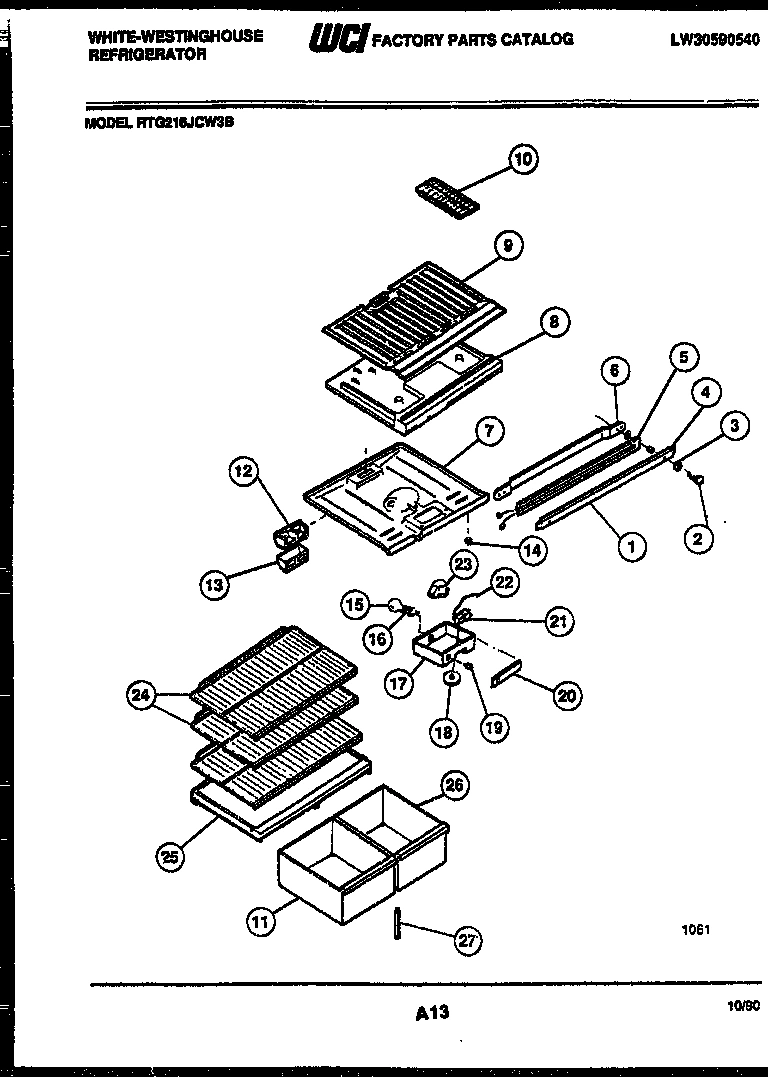

04 - SHELVES AND SUPPORTS

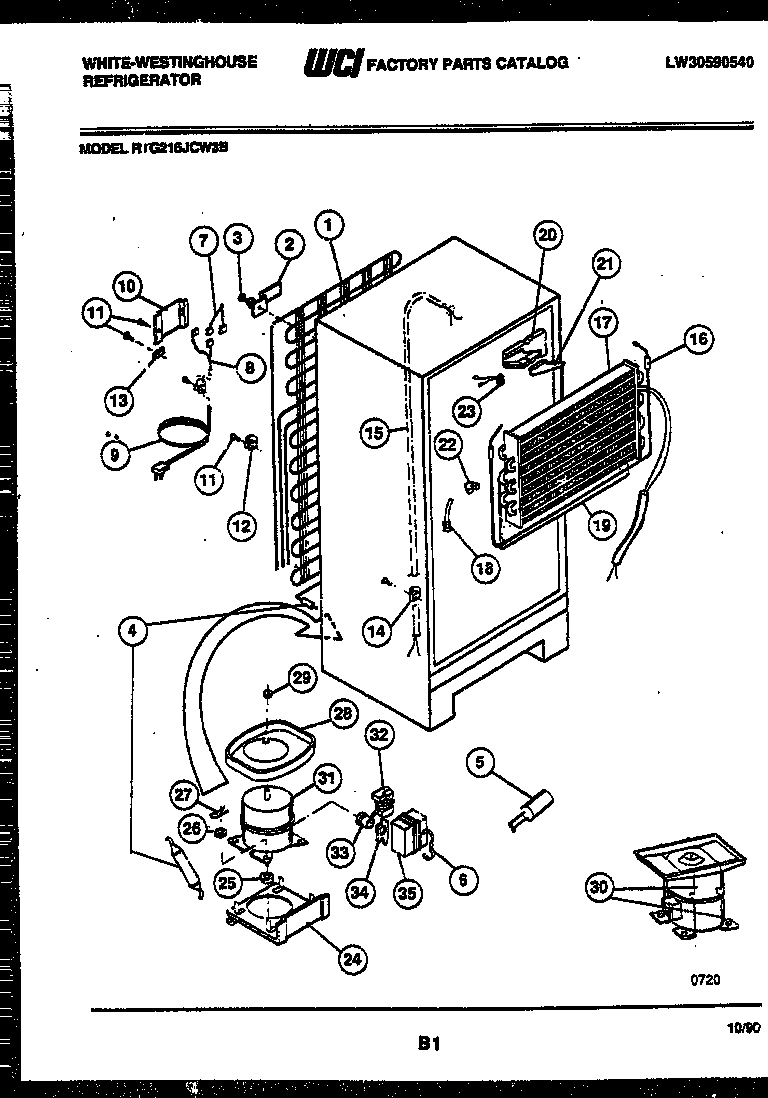

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RTG216JCF3B REFRIGERATOR
*40166
PLUG, FREEZER LINER (3) WCI 5308016571 Contact Us For Availability
1
WCI 5303200369 WCI 5303200369 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
1A
HOT TUBE REPAIR KIT, SERVICE (NON-ILLUSTRATED WCI 5300189383 Contact Us For Availability
2
WCI 5308012258 WCI 5308012258 Contact Us For Availability
2
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
2A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
3
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
4
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
5
WCI 5308000124 WCI 5308000124 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
CAPACITOR WCI 5303916391 Contact Us For Availability
6
SUPPORT-RACK LH (4) WCI 5303007297 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
STRAP-COVER MTG WCI 5303211232 Contact Us For Availability
7
TOP PANEL-REFR WCI 5303001651 Contact Us For Availability
7
WIRING HARNESS-CONTROL WCI 3001475 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5308013674 WCI 5308013674 Contact Us For Availability
8
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
9
WCI 5303210641 WCI 5303210641 Contact Us For Availability
9
CORD-SERVICE WCI 5316254901 Contact Us For Availability
10
WCI 5303001197 WCI 5303001197 Contact Us For Availability
11
PAN-CRISPER SMALL-LH WCI 5349001501 Contact Us For Availability
11B
WCI G000180137 WCI G000180137 Contact Us For Availability
12
WCI 5308000071 WCI 5308000071 Contact Us For Availability
12
WCI 5303202339 WCI 5303202339 Contact Us For Availability
13
WCI 5308012843 WCI 5308012843 Contact Us For Availability
13
WCI 5303001546 WCI 5303001546 Contact Us For Availability
13B
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
14
WASHER-HINGE (3) WCI 5308000007 Contact Us For Availability
15
WCI 5303001037 WCI 5303001037 Contact Us For Availability
15
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
16
WASHER - CENTER HINGE WCI 5308000186 Contact Us For Availability
16
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
17
WCI 5308000184 WCI 5308000184 Contact Us For Availability
17
WCI 5308009730 WCI 5308009730 Contact Us For Availability
17
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
18
WCI 5303001369 WCI 5303001369 Contact Us For Availability
18
KNOB-TEMPERATURE CONTROL WCI 08006978 Contact Us For Availability
19
WCI 5316651102 WCI 5316651102 Contact Us For Availability
19
WCI 5303001670 WCI 5303001670 Contact Us For Availability
20
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
20
LABEL-CONTROL BOX WCI 3205689 Contact Us For Availability
20
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
21
WCI 5303200810 WCI 5303200810 Contact Us For Availability
21
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
21
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
23
BRACKET-BOTTOM HINGE WITH PIN WCI 5303212489 Contact Us For Availability
23A
WCI 5303212596 WCI 5303212596 Contact Us For Availability
23B
WCI 5303212597 WCI 5303212597 Contact Us For Availability
24
SHELF-REFRIGERATOR (2) WCI 5319166501 Contact Us For Availability
24
WCI 5308013663 WCI 5308013663 Contact Us For Availability
24A
CAP-SHELF PROTECTOR (4) (NON-ILLUSTRATED) WCI 3201150 No Longer Available
25
SHIM, BOTTOM HINGE WCI 5303212488 Contact Us For Availability
25
COVER-PAN WCI 5303007603 Contact Us For Availability
26
PLUG-BUTTON (2) WCI 5303212923 Contact Us For Availability
26
PAN-STORAGE LARGE RH WCI G176639-22 Contact Us For Availability
26
WASHER (4) WCI 5308003633 Contact Us For Availability
27
LEVELING LEG (2) WCI 5303212922 Contact Us For Availability
27
SUPPORT-PAN COVER ADJ WCI 5303206507 Contact Us For Availability
27
WCI 5308003596 WCI 5308003596 Contact Us For Availability
28
DRAIN TUBE WCI 5303210377 Contact Us For Availability
28
PAN-DEFROST DRAIN ORIG COMPR WCI 5300171129 Contact Us For Availability
28A
SPOUT-DRAIN TUBE (NON-ILLUSTRATED) WCI 5308000056 Contact Us For Availability
28A
PAN-DEFROST DRAIN, SVCE COMPR (NON-ILLUSTRATE WCI 5300184715 Contact Us For Availability
28B
WCI 5303001361 WCI 5303001361 Contact Us For Availability
28C
RING-SEAL DRAIN TUBE (NON-ILLUSTRATED) WCI 5303207353 Contact Us For Availability
29
CABINET BASE WCI 5303212487 Contact Us For Availability
29
WCI 5303001348 WCI 5303001348 Contact Us For Availability
30
PLUG - HINGE - COFFEE WCI 5303001679 Contact Us For Availability
30
PAN RETAINER KIT-SERVICE WCI 3916001 Contact Us For Availability
31
WCI 5303001286 WCI 5303001286 Contact Us For Availability
31
COMPRESSOR WITH ELECTRICALS WCI 5303916012 Contact Us For Availability
32
RELAY-TI WCI 5303007173 Contact Us For Availability
32
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
WCI 5303001198 WCI 5303001198 Contact Us For Availability
33
WCI 3206096 WCI 3206096 Contact Us For Availability
34
COVER, EVAPORATOR COIL WCI 5308013665 Contact Us For Availability
34
CLIP-OVERLOAD WCI 3202891 Contact Us For Availability
34B
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
34C
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 5303203044 Contact Us For Availability
35
SUPPORT, COVER (2) WCI 5308000097 Contact Us For Availability
35
WCI 5303209254 WCI 5303209254 Contact Us For Availability
× ![]()
