Model Electrolux RTG216JCD3A REFRIGERATOR – Common Parts & Diagrams

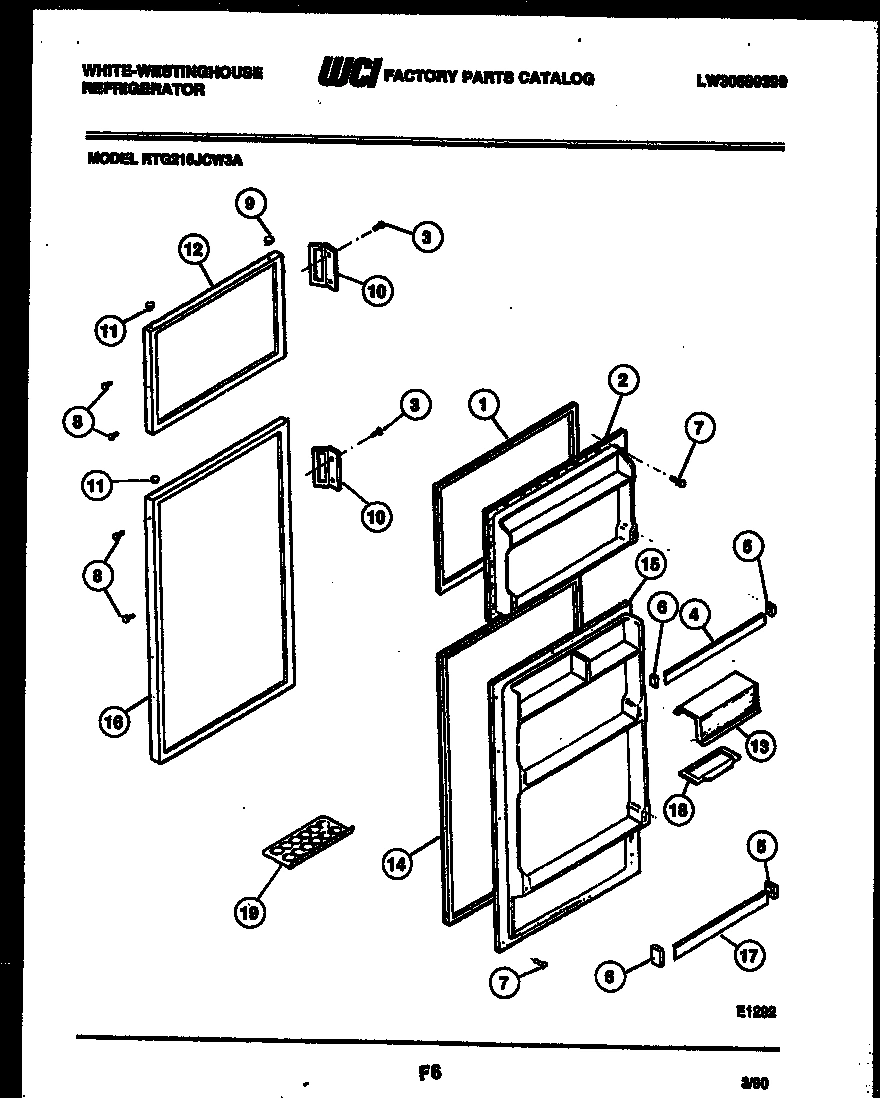

02 - DOOR PARTS

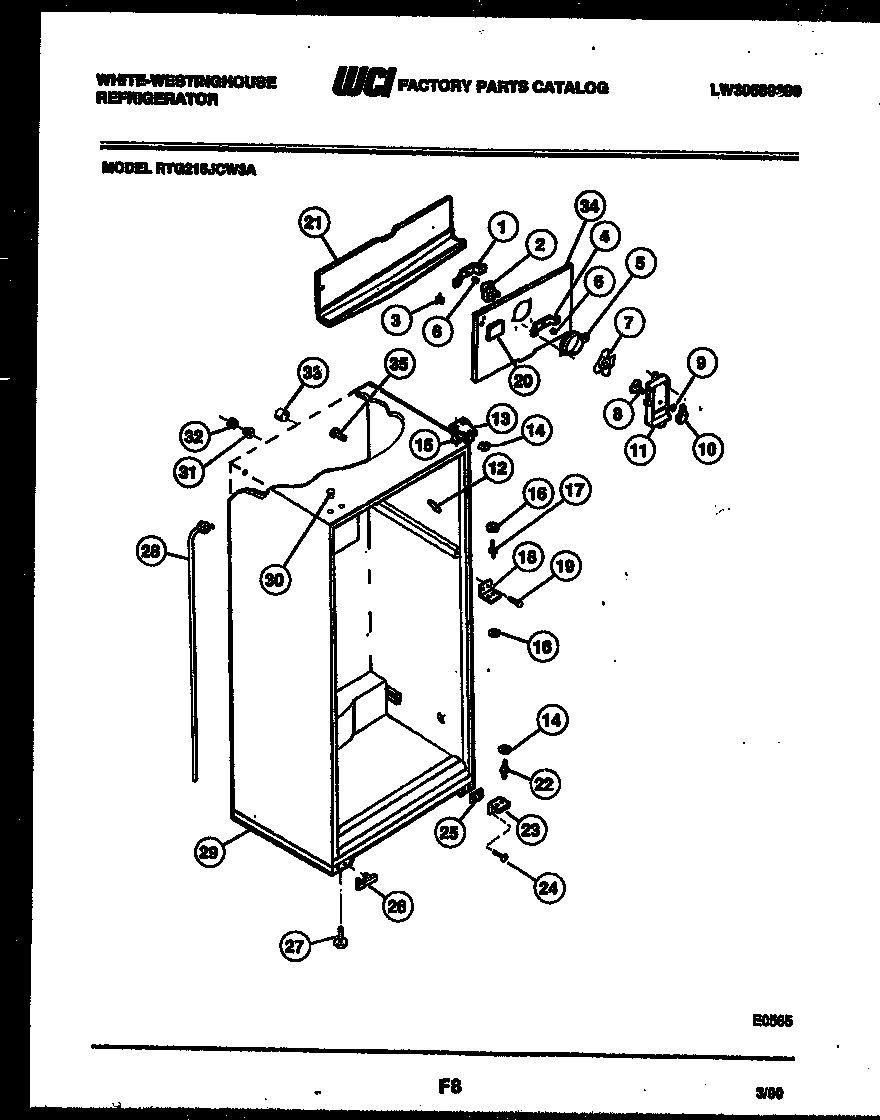

03 - CABINET PARTS

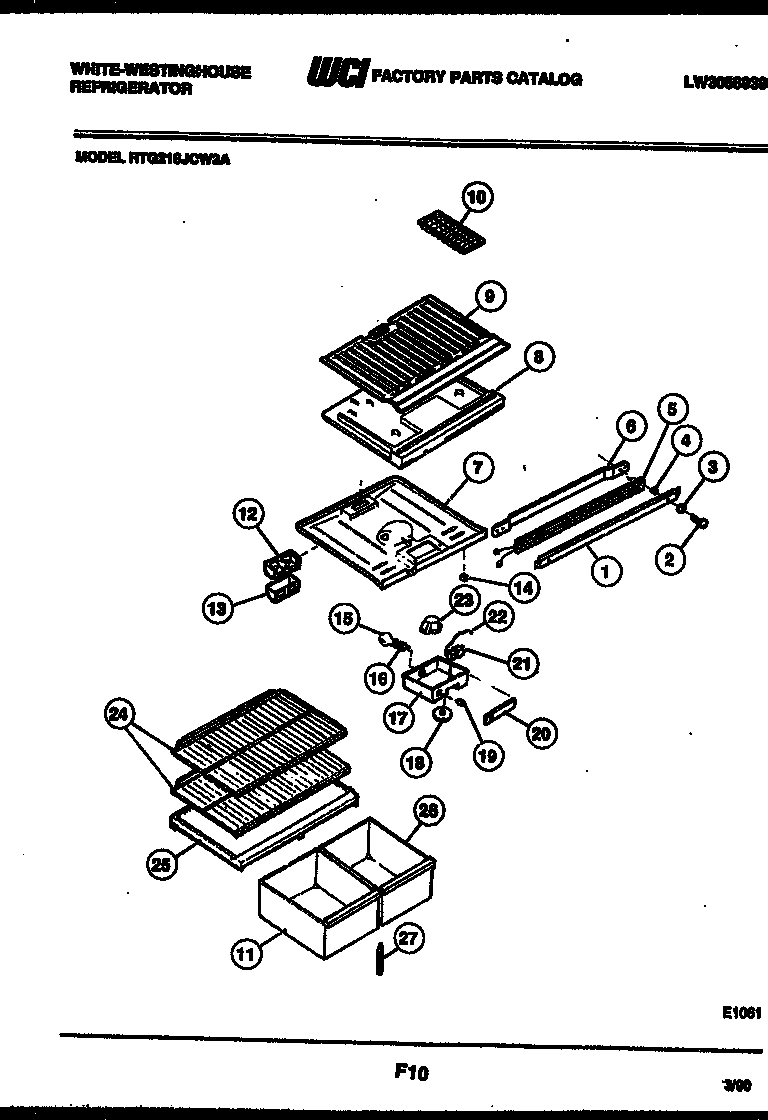

04 - SHELVES AND SUPPORTS

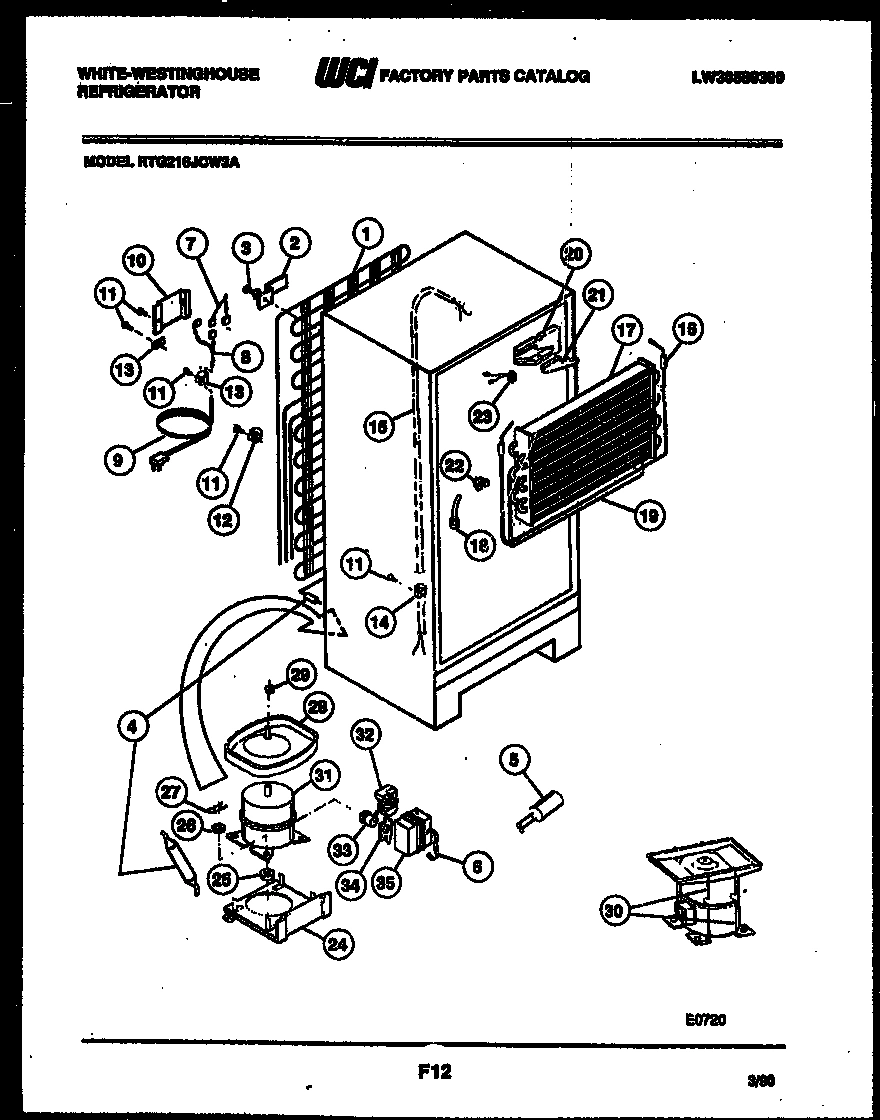

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RTG216JCD3A REFRIGERATOR
*26337
PLUG-FREEZER LINER (3) WCI G187599 Contact Us For Availability
1
WCI G185303 WCI G185303 Contact Us For Availability
1
WCI 5303200370 WCI 5303200370 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
1A
HOT TUBE REPAIR KIT, SERVICE (NON-ILLUSTRATED WCI 5300189383 Contact Us For Availability
2
SCREW-MULLION (4) WCI G183103 Contact Us For Availability
2
WCI G164637 WCI G164637 Contact Us For Availability
2A
WCI G164820 WCI G164820 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
4
WCI G185302 WCI G185302 Contact Us For Availability
4
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
WCI 5303018916 WCI 5303018916 Contact Us For Availability
5
CAPACITOR WCI 5303916391 Contact Us For Availability
6
SUPPORT-RACK-LS (4) WCI 5303007297 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
STRAP-COVER MTG WCI 08016584 Contact Us For Availability
7
TOP PANEL-REFR WCI 5303001651 Contact Us For Availability
7
WIRING HARNESS-CONTROL WCI G184904 Contact Us For Availability
7A
WCI G162673 WCI G162673 Contact Us For Availability
8
DAMPER WCI G162661 Contact Us For Availability
8
WCI 5308013674 WCI 5308013674 Contact Us For Availability
8
WCI G166062-01 WCI G166062-01 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
BOTTOM PANEL-FRZR WCI 5303001472 Contact Us For Availability
9
WCI 5316254901 WCI 5316254901 Contact Us For Availability
10
KNOB-DAMPER CONTROL WCI 5316266313 Contact Us For Availability
10
WCI G183584 WCI G183584 Contact Us For Availability
11
WCI 5303208889 WCI 5303208889 Contact Us For Availability
11
PAN-CRISPER SMALL-LS WCI 5349001501 Contact Us For Availability
11B
WCI G000180137 WCI G000180137 Contact Us For Availability
12
WCI 5308000071 WCI 5308000071 Contact Us For Availability
12
CORNER TRIM-ALMOND WCI 5303202340 Contact Us For Availability
13
WCI 5303001546 WCI 5303001546 Contact Us For Availability
13
WCI G183714 WCI G183714 Contact Us For Availability
14
WCI G103903 No Longer Available
15
WCI G183861 WCI G183861 Contact Us For Availability
15
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
16
WASHER-CENTER HINGE WCI G164355 Contact Us For Availability
16
WCI G168302 WCI G168302 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
WCI 5308009730 WCI 5308009730 Contact Us For Availability
17
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
18
KNOB-TEMPERATURE CONTROL WCI 08006978 Contact Us For Availability
19
SWITCH-ENERGY SAVER WCI 3001338 Contact Us For Availability
19
WCI 5303206601 WCI 5303206601 Contact Us For Availability
20
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
20
LABEL-CONTROL BOX WCI 3205689 Contact Us For Availability
20
WCI G185299 WCI G185299 Contact Us For Availability
21
WCI 5303200810 WCI 5303200810 Contact Us For Availability
21
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
21
WCI G185276 WCI G185276 Contact Us For Availability
21A
WCI G107080 WCI G107080 Contact Us For Availability
22
WCI G188375 WCI G188375 Contact Us For Availability
23
BRACKET, BOTTOM HINGE WCI 5303202834 Contact Us For Availability
23A
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
24
WCI G191665-01 WCI G191665-01 Contact Us For Availability
24
PLATE-COMPR MTG WCI 3001462 Contact Us For Availability
24A
CAP-SHELF PROTECTOR (4) (NON-ILLUSTRATED) WCI 3201150 No Longer Available
25
WCI G163203 WCI G163203 Contact Us For Availability
25
COVER-PAN WCI 5303007603 Contact Us For Availability
26
WCI G166912 WCI G166912 Contact Us For Availability
26
PAN-STORAGE LARGE RS WCI G176639-22 Contact Us For Availability
26
WASHER (4) WCI G164634 Contact Us For Availability
27
LEVELING LEG (2) WCI G185713 Contact Us For Availability
27
SUPPORT-PAN COVER ADJ WCI 5303206507 Contact Us For Availability
27
WCI G163204 WCI G163204 Contact Us For Availability
27A
ANCHOR NUT (2) (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
28
WCI 5303001458 WCI 5303001458 Contact Us For Availability
28
PAN-DEFROST DRAIN ORIG COMPR WCI G171778 Contact Us For Availability
28A
WCI 5308000056 WCI 5308000056 Contact Us For Availability
28A
PAN-DEFROST DRAIN SVCE COMPR (NON-ILLUSTRATED WCI G184715 Contact Us For Availability
28B
WCI 5303001361 WCI 5303001361 Contact Us For Availability
28C
RING-SEAL DRAIN TUBE (NON-ILLUSTRATED) WCI 5303207353 Contact Us For Availability
29
CABINET BASE WCI 5308010092 Contact Us For Availability
29
WCI G164958 WCI G164958 Contact Us For Availability
30
WCI G174747-11 WCI G174747-11 Contact Us For Availability
30
PAN RETAINER KIT-SERVICE WCI 3916001 Contact Us For Availability
31
WCI 3916012 WCI 3916012 Contact Us For Availability
32
WCI 5303007173 WCI 5303007173 Contact Us For Availability
32
WCI G174734 WCI G174734 Contact Us For Availability
33
WCI G85642 WCI G85642 Contact Us For Availability
33
WCI 3202863 WCI 3202863 Contact Us For Availability
34
COVER, EVAPORATOR COIL WCI 5308013665 Contact Us For Availability
34
CLIP-OVERLOAD WCI 3202891 Contact Us For Availability
34B
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
34C
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 5303203044 Contact Us For Availability
35
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
35
WCI 08016583 WCI 08016583 Contact Us For Availability
× ![]()
