Model Electrolux RTG163GCH3C REFRIGERATOR – Common Parts & Diagrams

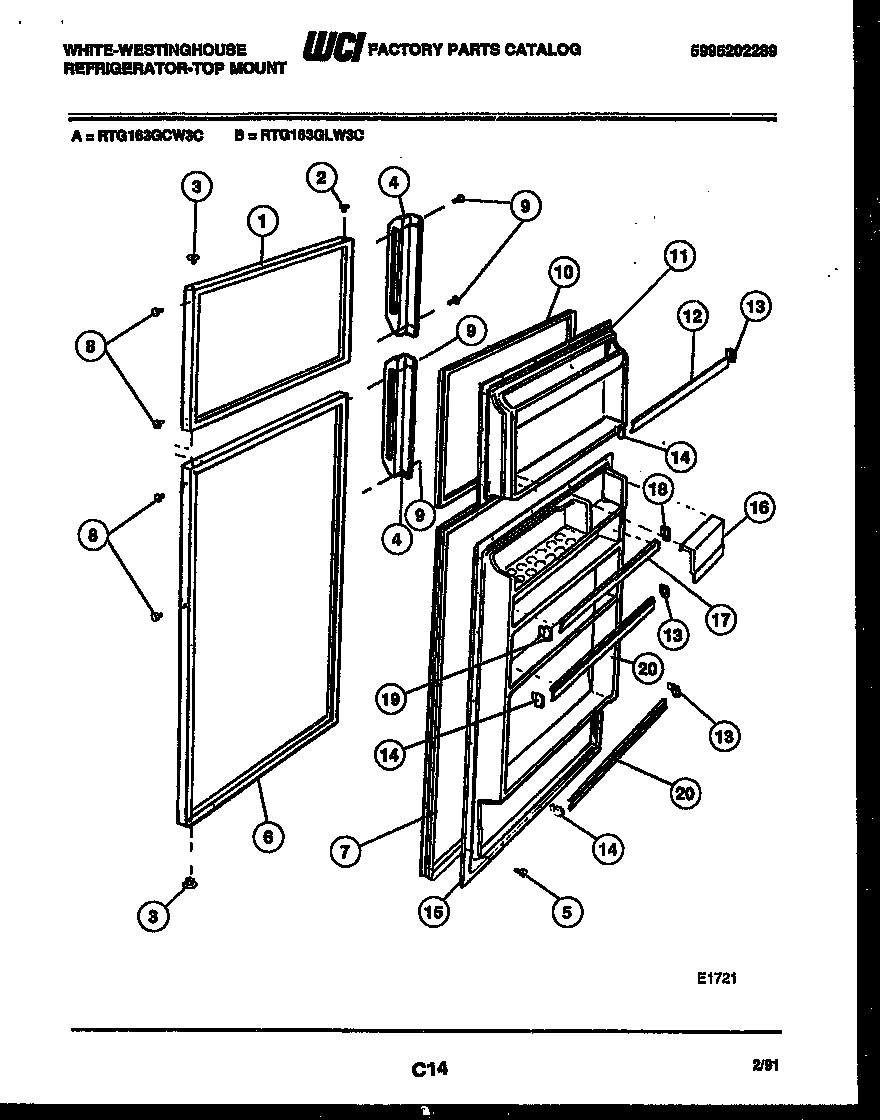

02 - DOOR PARTS

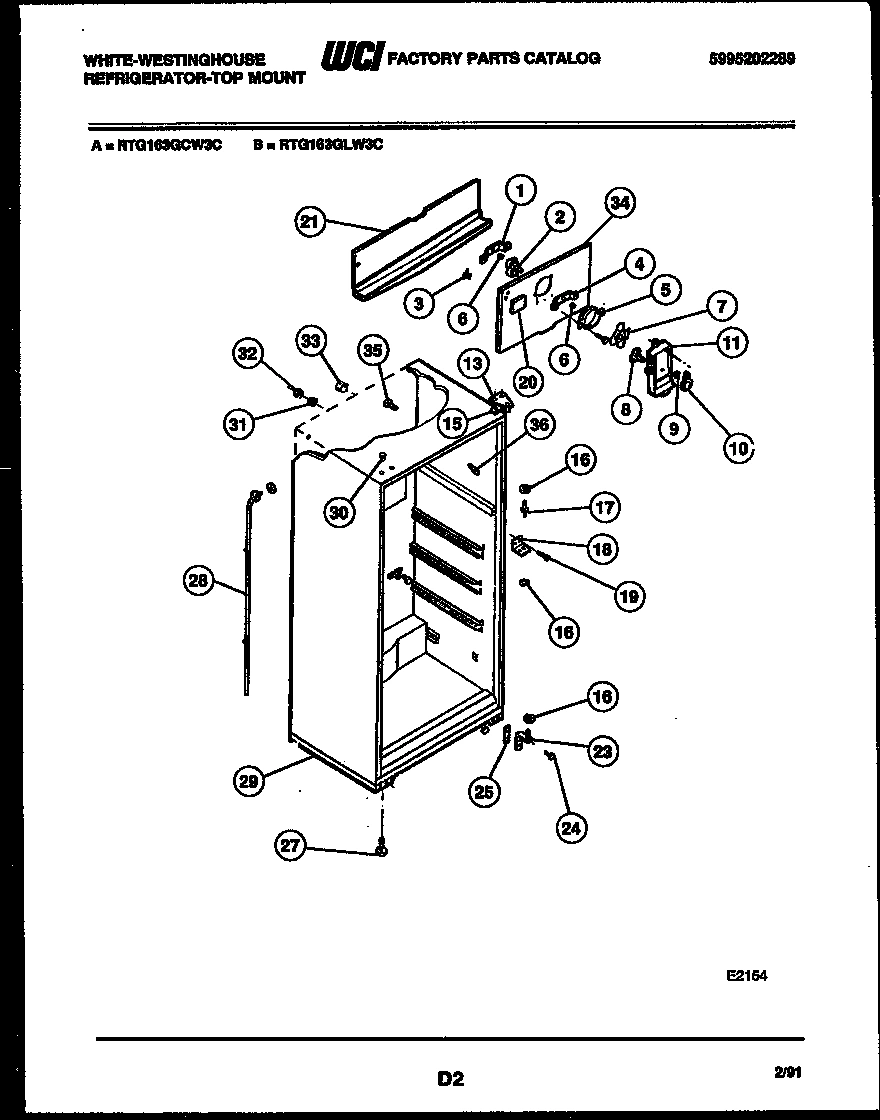

03 - CABINET PARTS

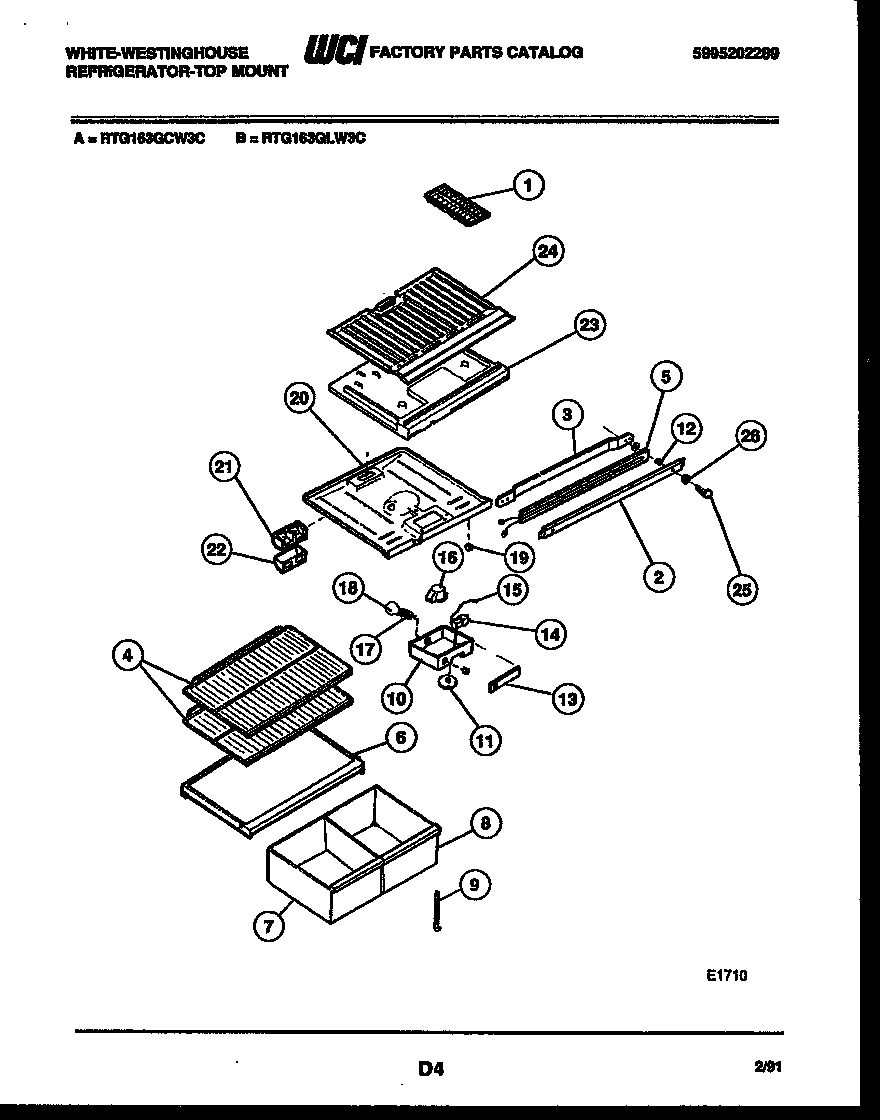

04 - SHELVES AND SUPPORTS

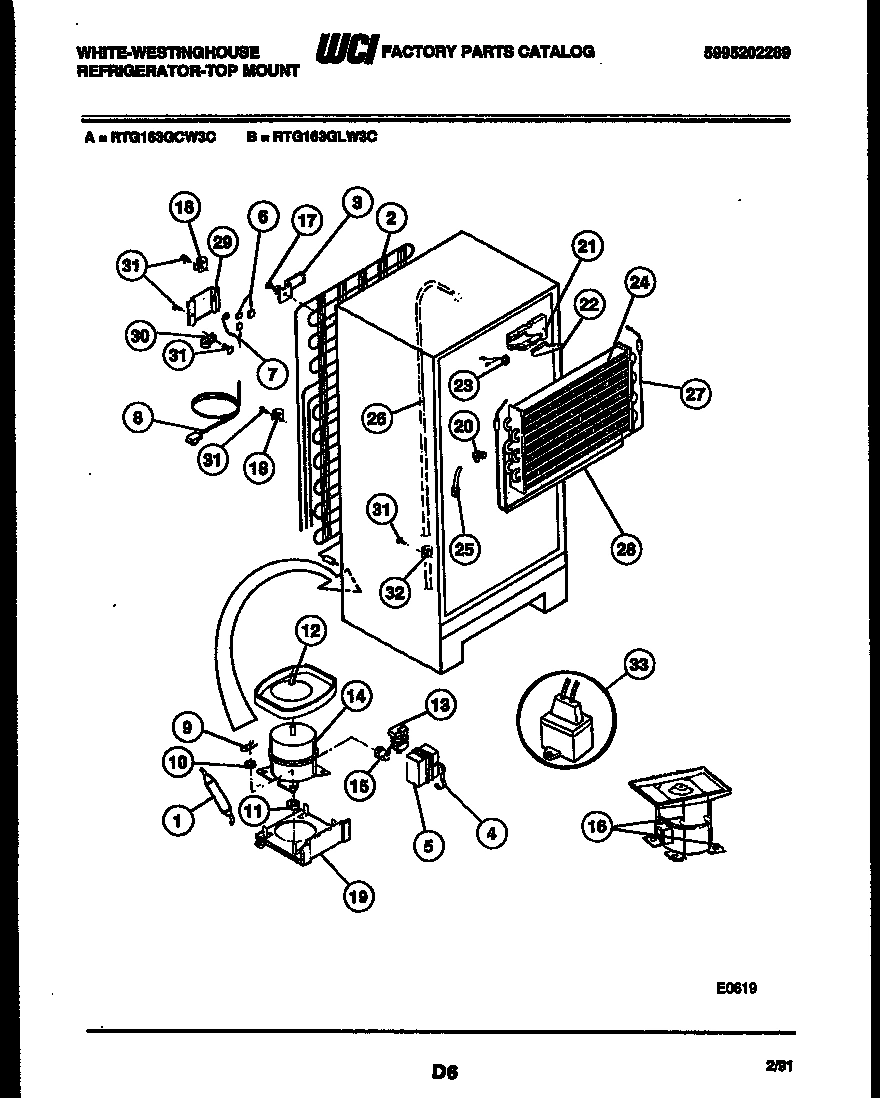

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RTG163GCH3C REFRIGERATOR
*41968
BUTTON-PLUG FRZR (6) WCI 5308016571 Contact Us For Availability
*41976
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
2
WCI 3916132 WCI 3916132 Contact Us For Availability
2
WCI 5303001341 WCI 5303001341 Contact Us For Availability
3
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
3
WCI 5308003604 WCI 5308003604 Contact Us For Availability
3
BRACKET-MTG (4) WCI 5303001342 Contact Us For Availability
3A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
4
SHELF - REFRIGERATOR (2) WCI 5317941501 Contact Us For Availability
5
WCI 5308000124 WCI 5308000124 Contact Us For Availability
5
WCI 5303209254 WCI 5303209254 Contact Us For Availability
6
COVER-PAN WCI 5349001603 Contact Us For Availability
6
WIRING HARNESS-CONT WCI 3001383 Contact Us For Availability
7
WCI 5303001347 WCI 5303001347 Contact Us For Availability
8
PAN-RH CRISPER WCI 3016760 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
SUPPORT-PAN COVER WCI 5303205987 Contact Us For Availability
9
PUSH NUT - DAMPER WCI 5303001028 Contact Us For Availability
9
CLIP-COMPR MTG (4) WCI 5308003596 Contact Us For Availability
10
KNOB-DAMPER CONTROL WCI 5316266313 Contact Us For Availability
10
WCI 5308009730 WCI 5308009730 Contact Us For Availability
10
WASHER-COMPR MTG (4) WCI 5308003633 Contact Us For Availability
10B
SWITCH-ENERGY SAVER (NON-ILLUSTRATED) WCI 5303200998 Contact Us For Availability
11
FAN COVER WCI 3205739 Contact Us For Availability
11
KNOB-TEMP CONTROL WCI 08006978 Contact Us For Availability
11B
LABEL-FAN COVER (NON-ILLUSTRATED) WCI G176893 Contact Us For Availability
12
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
12
DEFROST PAN/SERVICE COMP WCI 5300184715 Contact Us For Availability
12B
LOCK NUT-PAN (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
HINGE-BRACKET UPPER WCI 5308012843 Contact Us For Availability
13
LABEL-CONTROL BOX WCI 3205689 Contact Us For Availability
14
WCI 5303200810 WCI 5303200810 Contact Us For Availability
14
COMPRESSOR W/ ELECTRICALS WCI 5303916012 Contact Us For Availability
14A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
15
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
15
WCI 5303270294 WCI 5303270294 Contact Us For Availability
16
WASHER-HINGE (3) WCI 5308000186 No Longer Available
16
PAN-RETAINER CLIP WCI 5300171129 Contact Us For Availability
17
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
17
WCI 5308000184 WCI 5308000184 Contact Us For Availability
18
WCI 5303001369 WCI 5303001369 Contact Us For Availability
19
WCI 08012258 WCI 08012258 Contact Us For Availability
19
PLATE, COMPRESSOR MOUNTING WCI 5308013663 Contact Us For Availability
20
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
20
TOP-REFRIGERATOR WCI 5303016378 Contact Us For Availability
20
INSULATION-LH WCI 5308017227 Contact Us For Availability
20A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
21
WCI 5308000071 WCI 5308000071 Contact Us For Availability
21
WCI 08010005 WCI 08010005 Contact Us For Availability
21
INSULATION-RH WCI 5308013648 Contact Us For Availability
22
WCI 5303001546 WCI 5303001546 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
23
WCI 5303212489 WCI 5303212489 Contact Us For Availability
23
WCI 5308009750 WCI 5308009750 Contact Us For Availability
23A
WCI 5303212596 WCI 5303212596 Contact Us For Availability
23B
WCI 5303212597 WCI 5303212597 Contact Us For Availability
24
BOTTOM-FREEZER WCI 5303001537 Contact Us For Availability
24
WCI 5308009756 WCI 5308009756 Contact Us For Availability
24A
WCI 5308012296 WCI 5308012296 Contact Us For Availability
25
WCI 5303212488 WCI 5303212488 Contact Us For Availability
25
WCI 5308012258 WCI 5308012258 Contact Us For Availability
26
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
WCI 5308009754 WCI 5308009754 Contact Us For Availability
27
WCI 5303212922 WCI 5303212922 Contact Us For Availability
28
INSULATION-EVAP WCI 5316651102 Contact Us For Availability
28
DRAIN TUBE & SEAL RING ASSY WCI 5303210377 Contact Us For Availability
28A
PIN-PUSH DRAIN TUBE (2) (NON-ILLUSTRATED) WCI 5303001361 Contact Us For Availability
28B
SPOUT-DRAIN TUBE (NON-ILLUSTRATED) WCI 5308000056 Contact Us For Availability
28C
RING-SEAL DRAIN TUBE (NON-ILLUSTRATED) WCI 5303207353 Contact Us For Availability
29
WCI 5303269889 WCI 5303269889 Contact Us For Availability
29
WCI 5303001197 WCI 5303001197 Contact Us For Availability
30
PLUG - HINGE - WHEAT (2) WCI 5303001678 Contact Us For Availability
31
WCI 5303001286 WCI 5303001286 Contact Us For Availability
32
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
WCI 5303001198 WCI 5303001198 Contact Us For Availability
33
CAPACITOR-RUN KIT WCI 5303916391 Contact Us For Availability
34
COVER - EVAPORATOR COIL WCI 3001527 Contact Us For Availability
34B
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
35
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
36
CORNER TRIM, WHEAT WCI 5303202338 Contact Us For Availability
× ![]()
