Model Whirlpool RTD19A REFRIGERATOR – Common Parts & Diagrams
01 - CARTONS

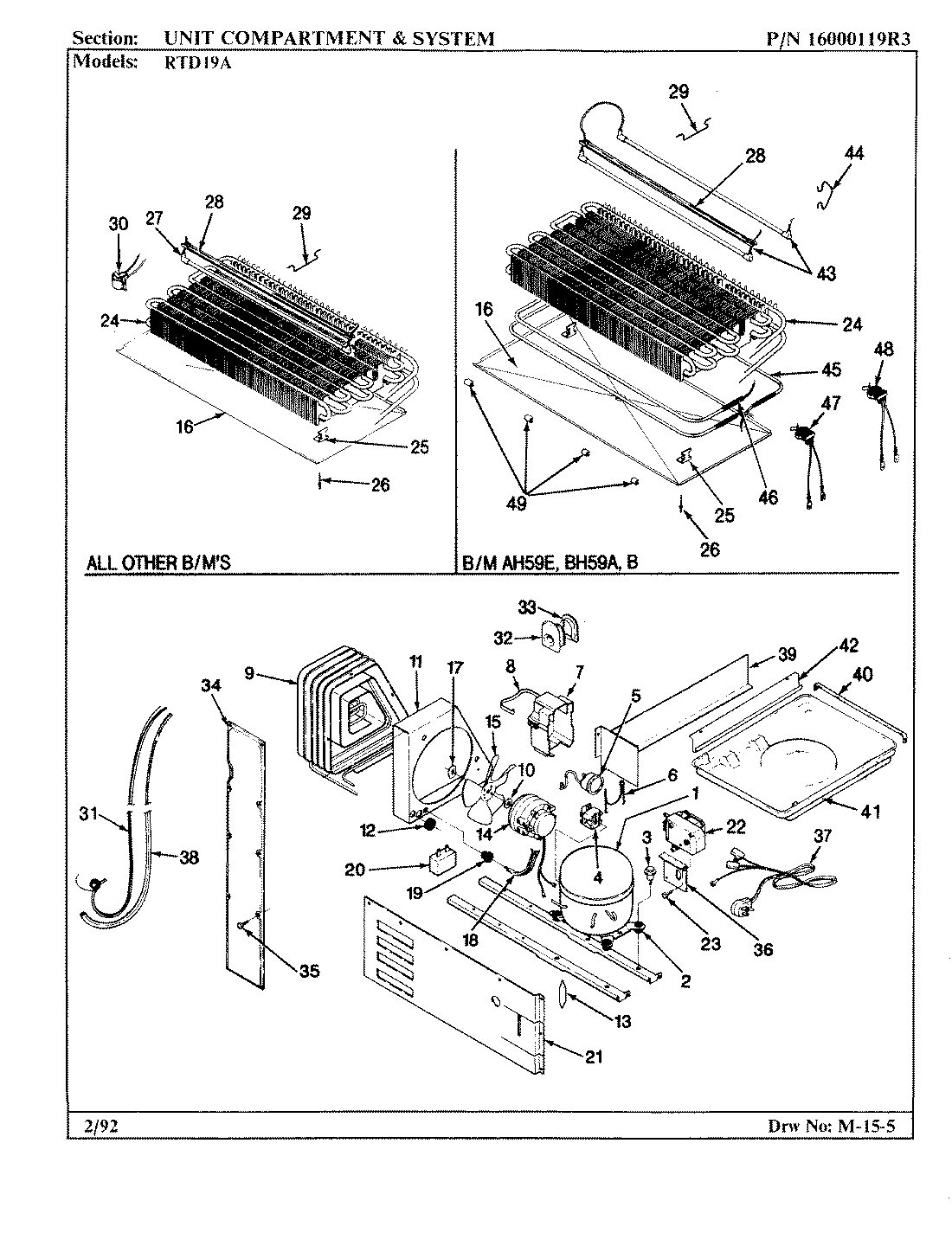

08 - UNIT COMPARTMENT & SYSTEM

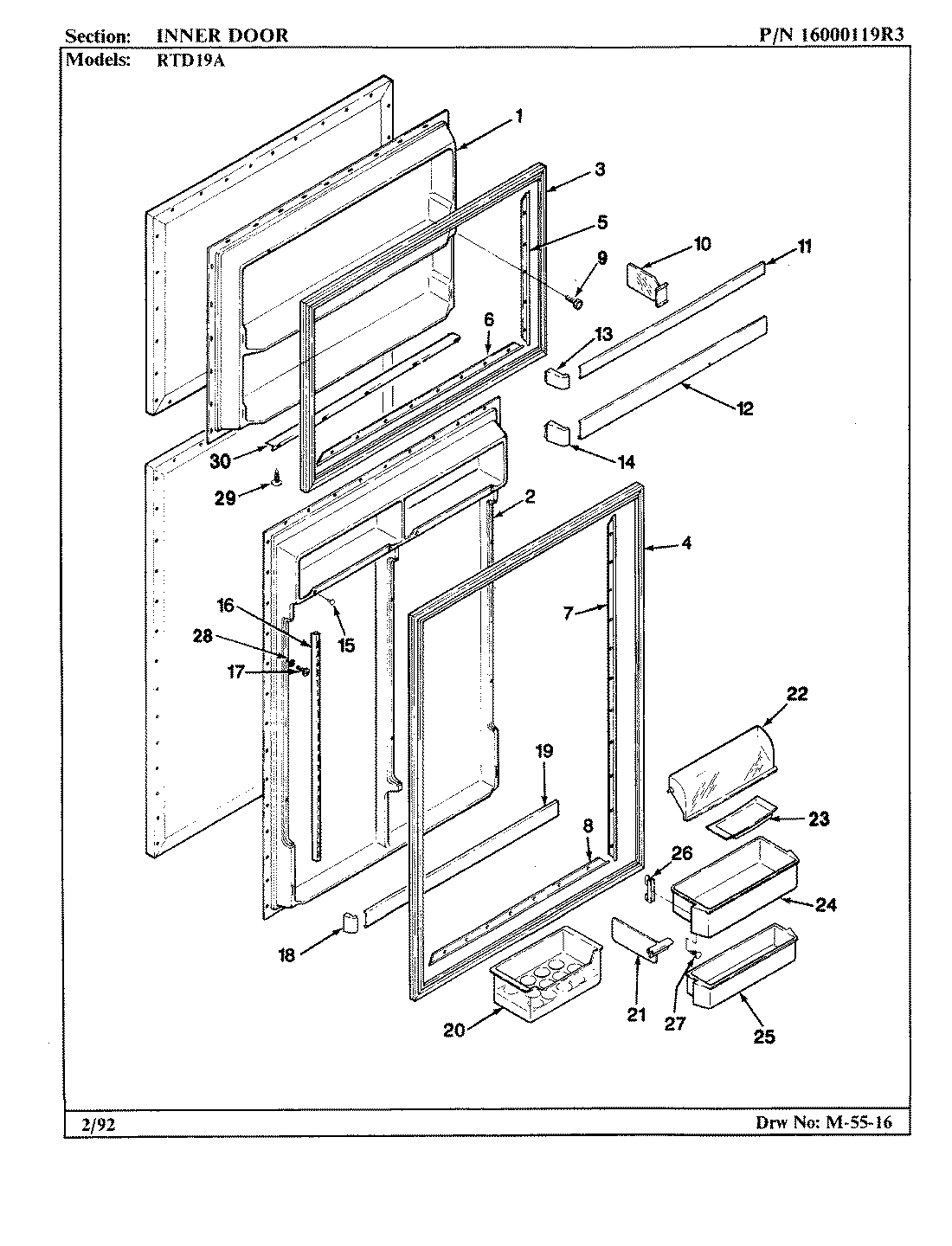

04 - INNER DOOR

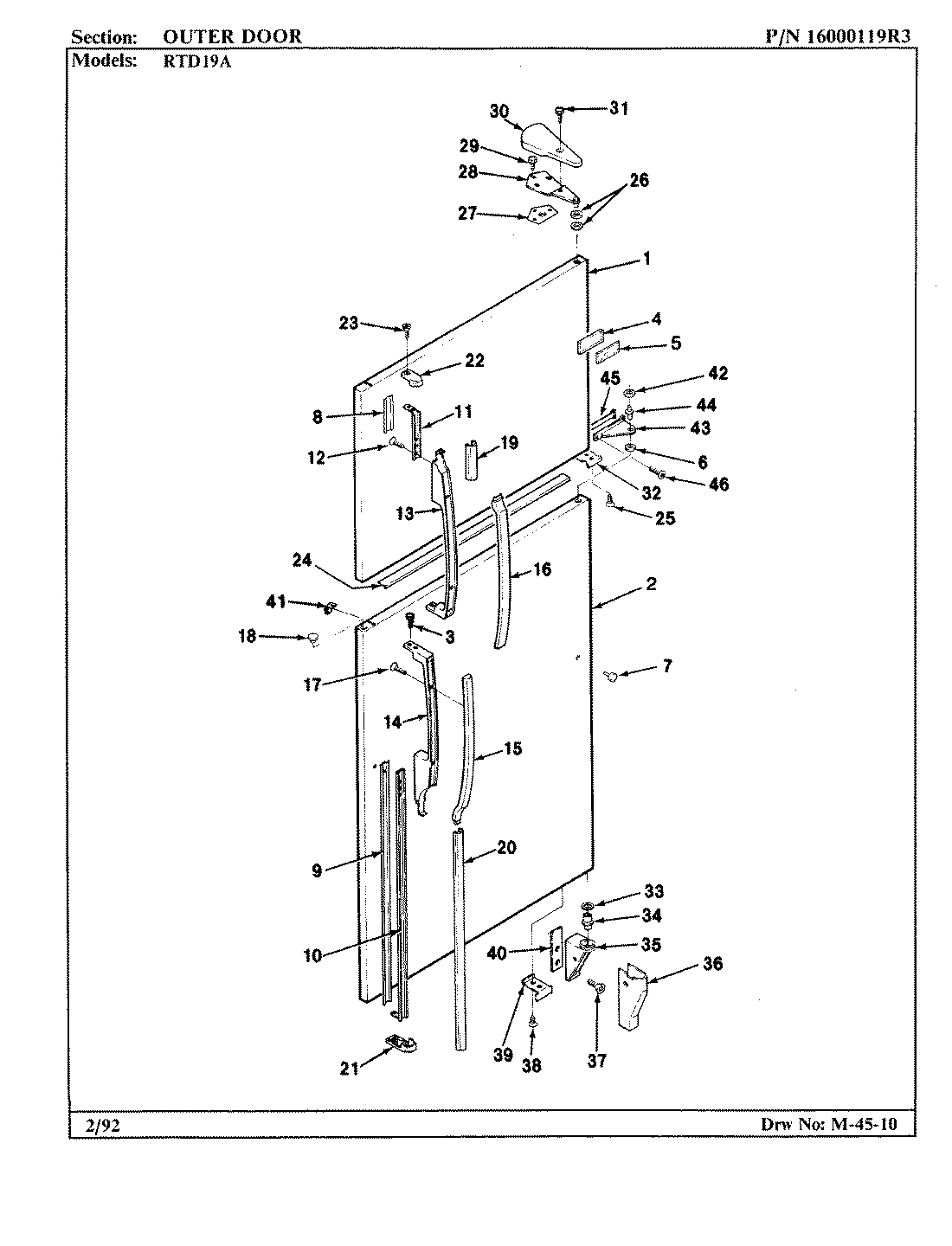

06 - OUTER DOOR

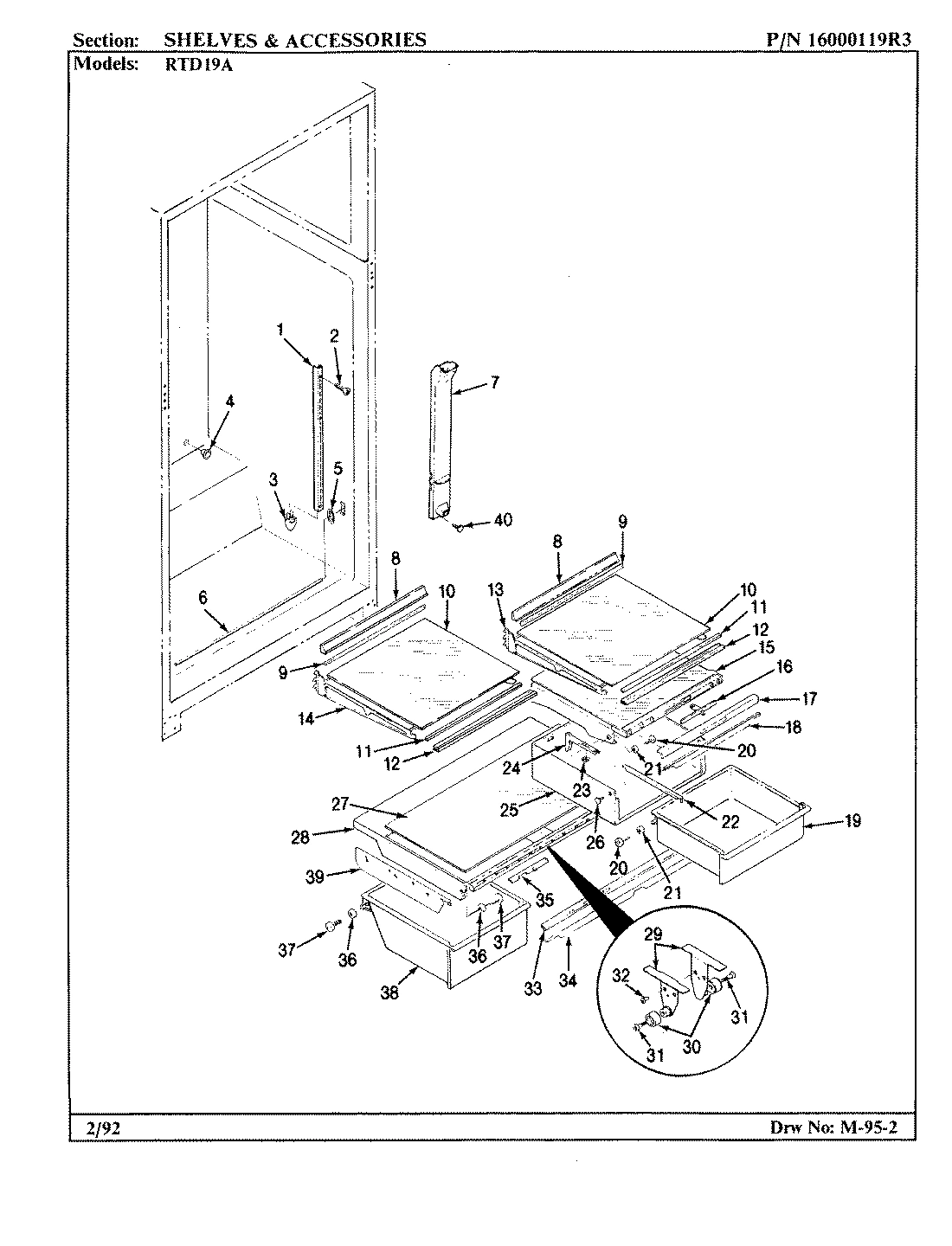

07 - SHELVES & ACCESSORIES

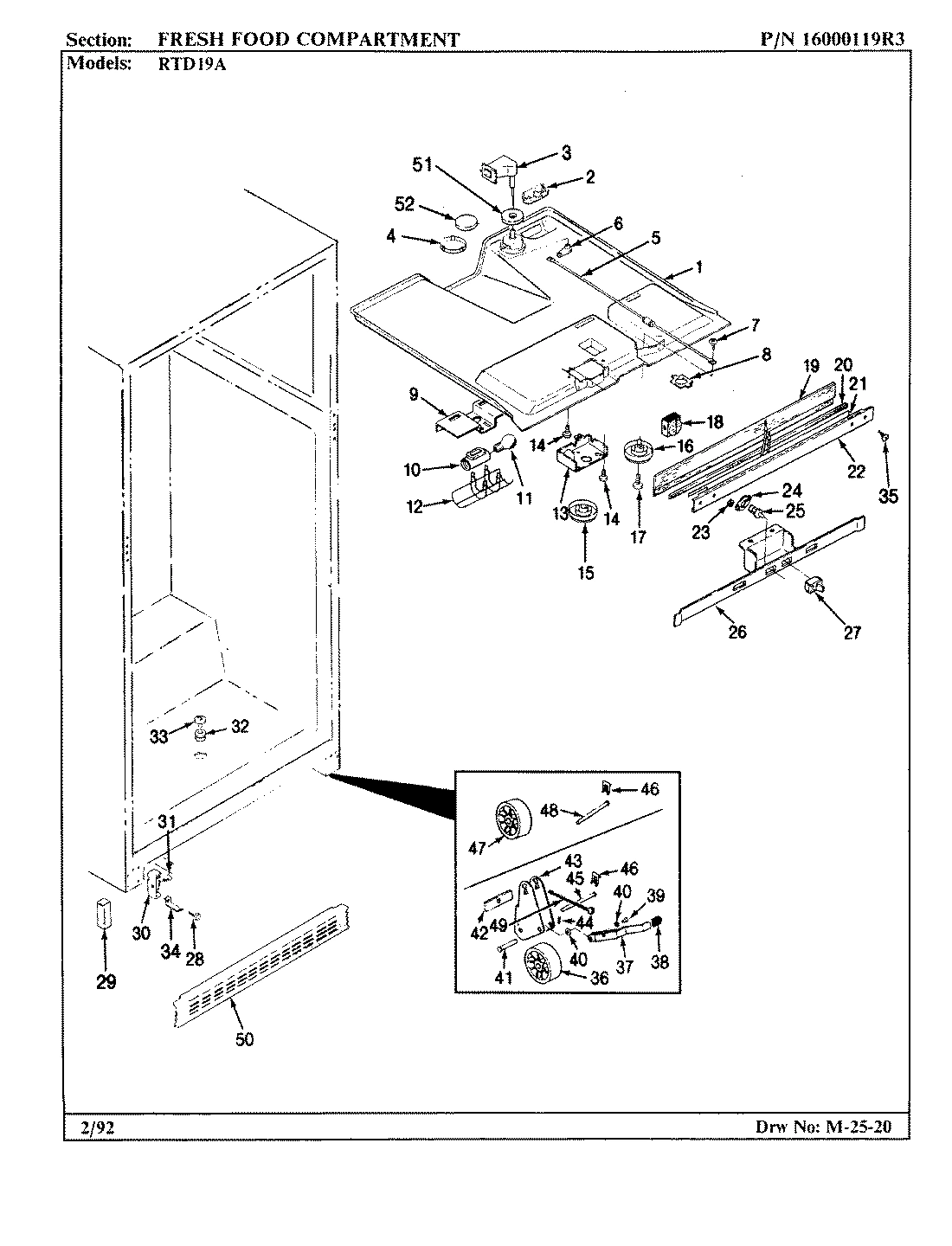

03 - FRESH FOOD COMPARTMENT

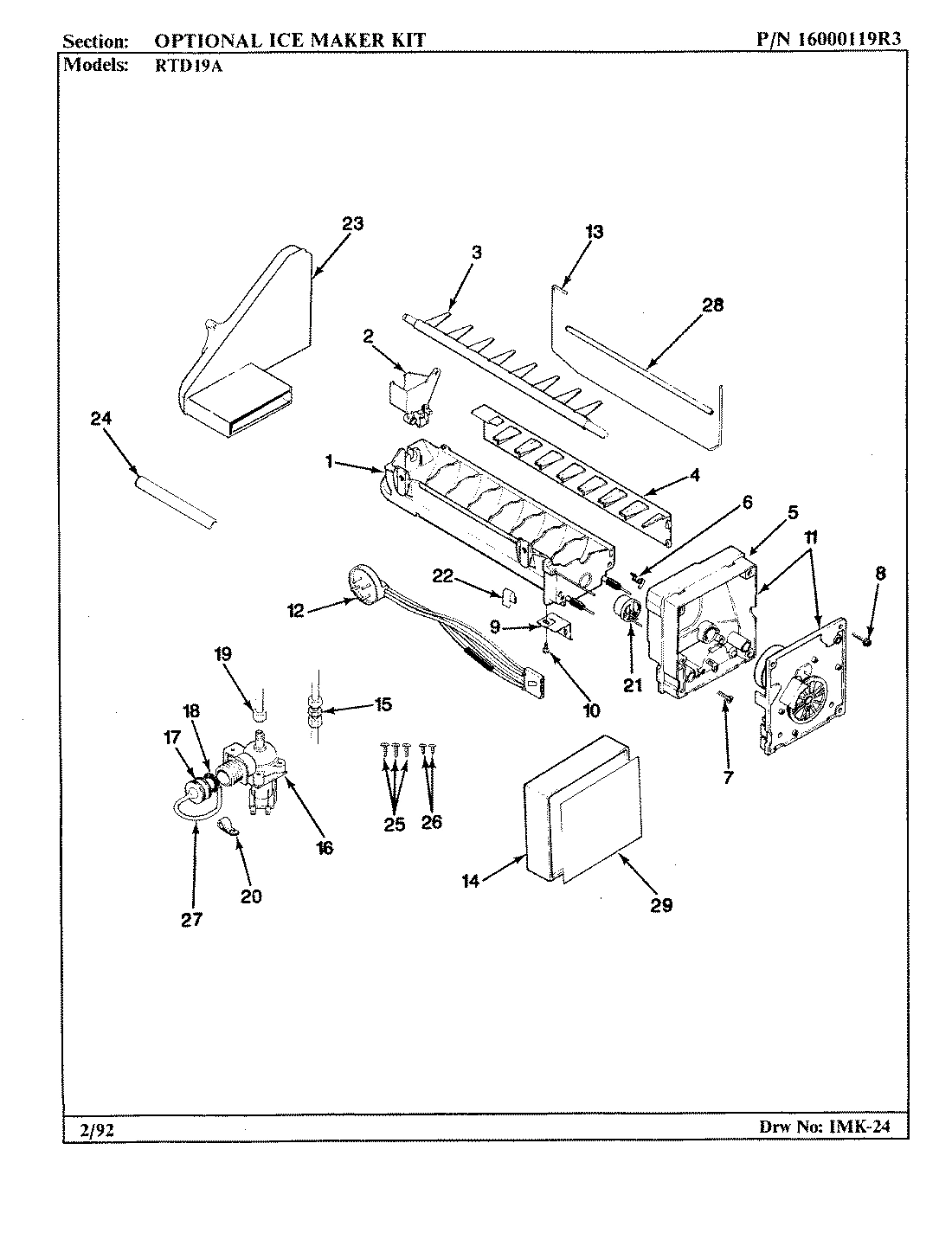

05 - OPTIONAL ICE MAKER KIT
02 - FREEZER COMPARTMENT
Common parts from model Whirlpool RTD19A REFRIGERATOR
1
LINER, DOOR WPL 670061 Contact Us For Availability
1
PANEL, FRZ. DOOR (WHT) WPL 720423WW Contact Us For Availability
1
RAIL, SHELF SUPPORT (LT) WPL 600967 Contact Us For Availability
1
RAIL, SHELF SUPPORT (RT) WPL 600968 Contact Us For Availability
1
RAIL, SHELF SUPPORT (CENTER) WPL 600969 Contact Us For Availability
1
TOP, F.F. COMPARTMENT WPL 671091 Contact Us For Availability
1
MOLD & HEATER ASSY. WPL 950981 Contact Us For Availability
1
GREASE, SILICONE WPL 950991 Contact Us For Availability
1
TRAY FOAM MULLION WPL 675191 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
LINER, F.F. DOOR WPL 670081 Contact Us For Availability
2
PANEL, F.F. DOOR (WHT) WPL 720428WW Contact Us For Availability
2
SCREW WPL 40003728 Contact Us For Availability
2
DEFLECTOR WPL 601202 Contact Us For Availability
2
INLET, WATER WPL 951001 Contact Us For Availability
2
SEAL, MULLION DIVIDER WPL 6632525 Contact Us For Availability
2
SEAL, FRONT CORNER WPL 677301 Contact Us For Availability
3
GASKET WPL 675582 Contact Us For Availability
3
SCREW, COMPRESSOR MOUNTING WPL 652759 Contact Us For Availability
3
GASKET, FRZ. DOOR WPL 677815 Contact Us For Availability
3
END CAP, CENTER RAIL WPL 603401 Contact Us For Availability
3
EJECTOR, ICE WPL 951011 Contact Us For Availability
3
SCREW WPL 4060621 Contact Us For Availability
3
MOTOR, EVAPORATOR FAN WPL 5448210 Contact Us For Availability
4
RELAY, START WPL 665881 Contact Us For Availability
4
GASKET, F.F. DOOR WPL 677816 Contact Us For Availability
4
BEZEL, NAMEPLATE WPL 676731 Contact Us For Availability
4
GROMMET, CRISPER SHELF WPL 671631 Contact Us For Availability
4
COVER, CRANK WPL 674931 Contact Us For Availability
4
STRIPPER, ICE WPL 951021 Contact Us For Availability
4
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
5
OVERLOAD WPL 6329417 Contact Us For Availability
5
RETAINER, FRZ. GASKET SIDE WPL 670338 Contact Us For Availability
5
INSERT, NAMEPLATE WPL 671941 Contact Us For Availability
5
CUP SHELF SUPPORT WPL 672051 Contact Us For Availability
5
ROD PAD CONTROL WPL 674991 Contact Us For Availability
5
SUPPORT, MODULE HOUSING WPL 951031 Contact Us For Availability
5
SCREW WPL 40001512 Contact Us For Availability
6
CLIP, OVERLOAD WPL 658871 Contact Us For Availability
6
WASHER WPL 542332 Contact Us For Availability
6
ROD, CRISPER SHELF WPL 677823 Contact Us For Availability
6
CRANK, FRZ. CONTROL WPL 676361 Contact Us For Availability
6
RETAINER, THERMOSTAT WPL 951041 Contact Us For Availability
6
BLADE, EVAPORATOR FAN WPL 643591 Contact Us For Availability
7
COVER, TERMINAL WPL 665892 Contact Us For Availability
7
RETAINER, F.F. DOOR GASKET WPL 670335 Contact Us For Availability
7
PLUG BUTTON (WHT) WPL 676782 Contact Us For Availability
7
PLUG BUTTON, HANDLE TOP (ALM) WPL 676783 Contact Us For Availability
7
TUNNEL, AIR MEAT WPL 675251 Contact Us For Availability
7
SCREW WPL 6527513 Contact Us For Availability
7
WASHER, SPRING WPL 420092900 Contact Us For Availability
7
SCREW WPL 951051 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 658861 Contact Us For Availability
8
RIVET WPL 263979 Contact Us For Availability
8
RETAINER, FRZ. DOOR GASKET WPL 670336 Contact Us For Availability
8
SHIM, TRIM WPL 677463 Contact Us For Availability
8
TRIM, CANTILEVER WPL 6730913 Contact Us For Availability
8
TRIM, CANTILEVER WPL 673092 Contact Us For Availability
8
BRACKET, LIGHT WPL 677031 Contact Us For Availability
8
SCREW WPL 951061 Contact Us For Availability
8
ORIFICE, FAN BLADE WPL 606082 Contact Us For Availability
9
SCREW WPL 4140011 Contact Us For Availability
9
U-NUT, CONDENSER WPL 604082 Contact Us For Availability
9
CONDENSER WPL RA438711 Contact Us For Availability
9
SCREW WPL 652755 Contact Us For Availability
9
SHIM, TRIM WPL 677465 Contact Us For Availability
9
SEAL, SHELF (REAR) WPL 672662 Contact Us For Availability
9
SHIELD HEAT WPL 674812 Contact Us For Availability
9
BRACKET, MODULE & HEATER WPL 951071 Contact Us For Availability
9
SEAL, TUNNEL WPL 6632529 Contact Us For Availability
9
TUNNEL, AIR (FRZ.) WPL 671153 Contact Us For Availability
10
WASHER WPL 199134 Contact Us For Availability
10
ORGANIZER WPL 671952 Contact Us For Availability
10
BRACKET, HANDLE WPL 671575 Contact Us For Availability
10
GLASS, CANTILEVER WPL 672672 Contact Us For Availability
10
HOLDER, LAMP WPL 673691 Contact Us For Availability
10
SCREW, BRACKET WPL 951081 Contact Us For Availability
10
PIN, AIR TUNNEL MTG. WPL 660451 Contact Us For Availability
11
SHROUD, CONDENSER WPL 662281 Contact Us For Availability
11
TRIM, DOOR SHELF WPL 677187 Contact Us For Availability
11
BRACKET, HANDLE WPL 671573 Contact Us For Availability
11
SEAL, SHELF (FRONT) WPL 672652 Contact Us For Availability
11
ICEMAKER WPL 951091 Contact Us For Availability
11
COVER, EVAPORATOR WPL 664039 Contact Us For Availability
12
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
12
TRIM, DOOR SHELF WPL 6771813 Contact Us For Availability
12
SCREW, BRACKET TO HANDLE WPL 6527531 Contact Us For Availability
12
TRIM WPL 677832 Contact Us For Availability
12
GUARD, LIGHT WPL 671901 Contact Us For Availability
12
RETAINER LIGHT----NA WPL 675411 Contact Us For Availability
12
WIRE HARNESS, ICE MAKER WPL 676721 Contact Us For Availability
12
BOTTOM FROST CHEST WPL 671291 Contact Us For Availability
13
ENDCAP, SHELF TRIM (SAND BEIGE WPL 672131 Contact Us For Availability
13
FRAME, SHELF WPL 672692 Contact Us For Availability
13
COVER THERMOSTAT WPL 671691 Contact Us For Availability
13
ARM, SENSOR WPL 681121 Contact Us For Availability
13
SHELF, FRZ. (PLASTIC) WPL 671423 Contact Us For Availability
14
SCREW WPL 6527533 Contact Us For Availability
14
MOTOR, CONDENSER FAN WPL 675604 Contact Us For Availability
14
ENDCAP, SHELF TRIM WPL 672081 Contact Us For Availability
14
HANDLE, DOOR WPL 677781 Contact Us For Availability
14
SCREW,HANDLE BOTTOM (HEX HEAD) WPL 6527529 Contact Us For Availability
14
CLIP, HANDLE SCREW WPL 667993 Contact Us For Availability
14
SHELF, FRZ. (WIRE) WPL 676964 Contact Us For Availability
14
SHIM HANDLE WPL 676972 Contact Us For Availability
14
SHIM HANDLE WPL 676973 Contact Us For Availability
14
FRAME, SPLIT SHELF WPL 672702 Contact Us For Availability
14
ANCHOR WPL 603193 Contact Us For Availability
14
COVER ICE MAKER WPL 681131 Contact Us For Availability
14
TRIM, FRZ SHELF WPL 671763 Contact Us For Availability
15
BLADE, CONDENSER FAN WPL 606831 Contact Us For Availability
15
BUMPER, DOOR WPL 282726 Contact Us For Availability
15
MEAT KEEPER RAIL WPL 676491 Contact Us For Availability
15
KNOB, CONTROL WPL 672451 Contact Us For Availability
15
UNION, COMPRESSION WPL 542671 Contact Us For Availability
15
DIVIDER WPL 674191 Contact Us For Availability
16
TRAY, DRIP WPL 6010112 Contact Us For Availability
16
RAIL, P.O. SHELF WPL 673171 Contact Us For Availability
16
INSERT, HANDLE (FREEZER) WPL 671531 Contact Us For Availability
16
CONTROL, MEAT KEEPER WPL 670741 Contact Us For Availability
16
KNOB CONTROL WPL 672441 Contact Us For Availability
16
VALVE, WATER WPL 601843 Contact Us For Availability
16
SCREW WPL 4060081 Contact Us For Availability
17
CLIP WPL 199140 Contact Us For Availability
17
SCREW WPL 40002728 Contact Us For Availability
17
SCREW WPL 6527544 Contact Us For Availability
17
TRIM, MEAT KEEPER WPL 670712 Contact Us For Availability
17
SCREW WPL 405016103 Contact Us For Availability
17
NUT, INLET TUBING WPL 246851 Contact Us For Availability
17
FREEZER SHELF CUP WPL 655701 Contact Us For Availability
18
BRACKET, FAN MOTOR WPL 662251 Contact Us For Availability
18
ENDCAP, SHELF TRIM WPL 672111 Contact Us For Availability
18
PLUG BUTTON, HDLE & DOOR STOP WPL 5578210 Contact Us For Availability
18
PLUG BUTTON, HINGE CUP (WHT) WPL 676342 Contact Us For Availability
18
SEAL, MEAT PAN WPL 676772 Contact Us For Availability
18
GROUND WIRE, CONTROL WPL 2967533 Contact Us For Availability
18
SCREW WPL 4060131 Contact Us For Availability
18
CONTROL, TEMPERATURE WPL 681195 Contact Us For Availability
18
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
18
FRZ. SHELF WPL 676961 Contact Us For Availability
19
GROMMET, BRACKET WPL 569331 Contact Us For Availability
19
TRIM, DOOR SHELF WPL 6771817 Contact Us For Availability
19
TRIM HANDLE (FRZ) WPL 678053 Contact Us For Availability
19
MEAT PAN ASSY. WPL 676501 Contact Us For Availability
19
INSULATION MULLION WPL 674822 Contact Us For Availability
19
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
19
SUPPORT, DIVIDER WPL 674201 Contact Us For Availability
20
CAPACITOR, RUN WPL 658892 Contact Us For Availability
20
TRAY, EGG WPL 672151 Contact Us For Availability
20
TRIM, EXTENSION WPL 678055 Contact Us For Availability
20
SEAL, MULLION WPL 674782 Contact Us For Availability
20
GUIDE, DIVIDER WPL 676573 Contact Us For Availability
21
SCREW WPL 6527549 Contact Us For Availability
21
COVER, UNIT COMPARTMENT WPL 677852 Contact Us For Availability
21
ORGANIZER,P.O. SHELF WPL 670271 Contact Us For Availability
21
ENDCAP, HANDLE (F.F. DOOR) WPL 688181 Contact Us For Availability
21
WIRE HARNESS WPL 674032 Contact Us For Availability
21
MULLIAN HEATER WPL 675322 Contact Us For Availability
21
THERMOSTAT WPL 950921 Contact Us For Availability
21
CEMENT, ALUMILASTIC (4 OZ.) WPL 950931 Contact Us For Availability
21
SEAL, FROST CHEST WPL 6632510 Contact Us For Availability
22
TIMER, DEFROST WPL 665568 Contact Us For Availability
22
DOOR, DAIRY WPL 670412 Contact Us For Availability
22
ENDCAP, HANDLE (FRZ.) WPL 673821 Contact Us For Availability
22
LINKAGE, MEAT KEEPER WPL 670731 Contact Us For Availability
22
MULLION FRONT WPL 672475AM Contact Us For Availability
22
MULLION FRONT WPL 672475WW Contact Us For Availability
22
SEAL, FLANGE WPL 673962 Contact Us For Availability
22
CLAMP, WIRE HARNESS WPL 681181 Contact Us For Availability
22
TUBE, FILL WPL 676663 Contact Us For Availability
22
PLUG FILL TUBE WPL 675932 Contact Us For Availability
23
SCREW WPL 4050071 Contact Us For Availability
23
TRAY, BUTTER WPL 672161 Contact Us For Availability
23
SCREW WPL 6527522 Contact Us For Availability
23
NUT WPL 431019511 Contact Us For Availability
23
NUT, PUSH-ON WPL 431041505 Contact Us For Availability
23
DUCT, AIR (15` & 17` MODELS) WPL 670611 Contact Us For Availability
23
DUCT, AIR (19` & 21` MODELS) WPL 670612 Contact Us For Availability
23
DUCT, AIR WPL 670613 Contact Us For Availability
23
COVER, PLENUM WPL 664805 Contact Us For Availability
24
EVAPORATOR WPL RA4362011 Contact Us For Availability
24
SHELF, PICK OFF WPL 670655 Contact Us For Availability
24
TRIM, FRESH FOOD DOOR WPL 666516 Contact Us For Availability
24
ACTUATOR MEAT KEEPER WPL 670725 Contact Us For Availability
24
GROUND PLATE WPL 673601 Contact Us For Availability
24
SWITCH, LIGHT WPL 669871 Contact Us For Availability
25
BRACKET, COIL TO TRAY WPL 601081 Contact Us For Availability
25
SHELF, PICK OFF WPL 670651 Contact Us For Availability
25
SHELF, PICK OFF WPL 670652 Contact Us For Availability
25
SCREW, FREEZER STOP WPL 6527518 Contact Us For Availability
25
HOUSING, MEAT PAN WPL 670691 Contact Us For Availability
25
SWITCH, PLUN WPL 677241 Contact Us For Availability
25
SCREW WPL 4000211 Contact Us For Availability
25
SHIELD, LIGHT WPL 672401 Contact Us For Availability
26
HOOK,P.O.SHELF (RIGHT) WPL 670431 Contact Us For Availability
26
HOOK,P.O. SHELF (LEFT) WPL 670432 Contact Us For Availability
26
HOOK, PICK OFF SHELF WPL 670433 Contact Us For Availability
26
HOOK, PICK OFF SHELF WPL 670434 Contact Us For Availability
26
WASHER WPL 542331 Contact Us For Availability
26
PLUG BUTTON WPL 676882 Contact Us For Availability
26
SCREW WPL 400015103 Contact Us For Availability
26
SCREW, PANEL WPL 402020103 Contact Us For Availability
26
FACADE, CONTROL WPL 672521 Contact Us For Availability
26
SCREW WPL 4010171 Contact Us For Availability
26
BASE LAMP HOLDER WPL 672411 Contact Us For Availability
27
HEATER, DEFROST WPL 6010635 Contact Us For Availability
27
RIVET, P.O. HOOK WPL 599208 Contact Us For Availability
27
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
27
GLASS, CRISPER SHELF WPL 674892 Contact Us For Availability
27
SWITCH, MULLION WPL 673631 Contact Us For Availability
27
INLET TUBING ASSEMBLY WPL 602191 Contact Us For Availability
27
INLET TUBE ASSY WPL 602193 Contact Us For Availability
27
DEFLECTOR, LIGHT WPL 673611 Contact Us For Availability
28
SHIELD, DEFROST HEATER WPL 601095 Contact Us For Availability
28
GROMMET, PICK-OFF WPL 671441 Contact Us For Availability
28
PLUG BUTTON, UPPER HINGE (WHT) WPL 5614413 Contact Us For Availability
28
HINGE, TOP WPL 674562 Contact Us For Availability
28
SHELF, CRISPER WPL 671052 Contact Us For Availability
28
SLEEVE, SENSOR ARM WPL 675561 Contact Us For Availability
28
SCREW WPL 400017103 Contact Us For Availability
28
HOLDER, LAMP WPL 673681 Contact Us For Availability
29
CLIP, DEFROST HEATER WPL 602631 Contact Us For Availability
29
CLIP WPL 689351 Contact Us For Availability
29
SCREW WPL 998687 Contact Us For Availability
29
BRACKET, CENTER ROLLER WPL 674642 Contact Us For Availability
29
COVER HINGE WPL 671173 Contact Us For Availability
29
SCREW WPL 4000161 Contact Us For Availability
29
CLAMP, TUBING WPL 535168 Contact Us For Availability
29
TRIM, ICE MAKER COVER WPL 674281 Contact Us For Availability
30
THERMOSTAT, DEFROST WPL 5208524 Contact Us For Availability
30
SCREW WPL 4000171 Contact Us For Availability
30
COVER, UPPER HINGE(WHT.) WPL 672294 Contact Us For Availability
30
END CAP, KICKPLATE WPL 671164 Contact Us For Availability
31
WIRE TIE WPL 662231 Contact Us For Availability
31
HEAT EXCHANGER WPL RA4364514 Contact Us For Availability
31
SCREW, HINGE COVER WPL 4030601 Contact Us For Availability
31
SCREW WPL 4000611 Contact Us For Availability
31
TRAY, ICE WPL 592815 Contact Us For Availability
32
GROMMET, TUBE ENTRY WPL 600681 Contact Us For Availability
32
STOP, DOOR WPL 676621 Contact Us For Availability
32
RIVET WPL 263976 Contact Us For Availability
32
TUBE, DRAIN WPL 545317 Contact Us For Availability
32
SHELF, ICE TRAY WPL 671142 Contact Us For Availability
33
RETAINER, ENTRY GROMMET WPL 600691 Contact Us For Availability
33
WIRE HARNESS WPL 673561 Contact Us For Availability
33
WIRE HARNESS (MAIN) WPL 677891 Contact Us For Availability
33
WASHER, LOWER HINGE WPL 674832 Contact Us For Availability
33
TRIM CRISPER WPL 672044 Contact Us For Availability
33
CAP, DRAIN TUBE WPL 650391 Contact Us For Availability
33
PAN, ICE WPL 671411 Contact Us For Availability
34
COVER, WIRE HARNESS WPL 601102 Contact Us For Availability
34
PIN LOWER HINGE WPL 674851 Contact Us For Availability
34
SEAL, CRISPER SHELF WPL 677312 Contact Us For Availability
34
CLIP, KICKPLATE WPL 672591 Contact Us For Availability
34
GROMMET, WATER ENTRY WPL 683071 Contact Us For Availability
35
SCREW WPL 6527550 Contact Us For Availability
35
SCREW, TAPPING PLATE WPL 6527510 Contact Us For Availability
35
TAPPING PLATE WPL 671031 Contact Us For Availability
35
HINGE, LOWER WPL 677721 Contact Us For Availability
35
SCREW, CENTER HINGE WPL 6527521 Contact Us For Availability
35
HUMIDITY CONTROL WPL 674911 Contact Us For Availability
36
BRACKET, DEFROST TIMER WPL 673922 Contact Us For Availability
36
WIRE HARNESS WPL 675061 Contact Us For Availability
36
SCREW, COVER WPL 4010054 Contact Us For Availability
36
COVER,LOWER HINGE WPL 671172 Contact Us For Availability
36
ROLLER, CRISPER PAN WPL 674231 Contact Us For Availability
36
WHEEL FRONT WPL 674551 Contact Us For Availability
36
CLAMP, SPRING WPL 603334 Contact Us For Availability
37
CORD, POWER WPL 528903 Contact Us For Availability
37
SCREW WPL 6527525 Contact Us For Availability
37
SCREW WPL 652756 Contact Us For Availability
37
LEVER, LOCK (LEFT) WPL 676811 Contact Us For Availability
37
LEVER, LOCK (RIGHT) WPL 676812 Contact Us For Availability
37
PLUG BUTTON WPL 675571 Contact Us For Availability
37
DUCT, AIR WPL 676251 Contact Us For Availability
37
CAP, CONNECTOR WPL 681871 Contact Us For Availability
38
COVER, HEAT EXCHANGER WPL 653981 Contact Us For Availability
38
SCREW (No.12 X 5/8``) WPL 6527526 Contact Us For Availability
38
PAN, CRISPER WPL 676507 Contact Us For Availability
38
HANDLE, LOCK LEVER WPL 675281 Contact Us For Availability
39
BAFFLE WPL 664933 Contact Us For Availability
39
DOOR STOP, FRESH FOOD WPL 677701 Contact Us For Availability
39
SCREW WPL 6527528 Contact Us For Availability
39
BRACKET SIDE CRISPER WPL 6746511 Contact Us For Availability
39
BRACKET SIDE CRISPER WPL 6746512 Contact Us For Availability
39
SCREW WPL 4060461 Contact Us For Availability
40
SUPPORT WPL 675961 Contact Us For Availability
40
SHIM, LOWER HINGE WPL 673231 Contact Us For Availability
40
WASHER WPL 420007400 Contact Us For Availability
41
PAN, DRAIN WPL 682362 Contact Us For Availability
41
CLIP, HANDLE WPL 673861 Contact Us For Availability
41
AXLE WHEEL WPL 675291 Contact Us For Availability
42
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
42
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
42
WASHER, CENTER HINGE (UPPER) WPL 674831 Contact Us For Availability
42
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
43
HINGE, CENTER WPL 677751 Contact Us For Availability
43
BRACKET, WHEEL WPL 675301 Contact Us For Availability
44
PIN, CENTER HINGE WPL 673221 Contact Us For Availability
44
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
45
TAPPING PLATE WPL 674751 Contact Us For Availability
45
SHIM, CENTER HING WPL 674841 Contact Us For Availability
46
CLIP WPL 602161 Contact Us For Availability
47
WHEEL, ROLLER WPL 674552 Contact Us For Availability
48
PIN, WHEEL WPL 298352 Contact Us For Availability
49
MANUAL, USE & CARE WPL 1045811 Contact Us For Availability
49
TIP, ADJUSTMENT SCREW WPL 245804 Contact Us For Availability
49
SCREW, WHEEL ADJUSTMENT WPL 4060831 Contact Us For Availability
50
GRILL, KICKPLATE WPL 670233 Contact Us For Availability
NI
CAP CARTON WPL 671992 Contact Us For Availability
NI
RAIL FOAM PACKING WPL 673791 Contact Us For Availability
NI
PAD, GLASS SHELF WPL 674321 Contact Us For Availability
NI
PAD, FRZ. TUNNEL WPL 674362 Contact Us For Availability
NI
PAD, FRZ. SHELF WPL 674383 Contact Us For Availability
NI
CARTON TOP WPL 6776013 Contact Us For Availability
NI
CRATE BASE WPL 678881 Contact Us For Availability
NI
PAD FREEZER SHELF WPL 679171 Contact Us For Availability
NI
SCREW, CRATE BASE WPL 9986119 Contact Us For Availability
NI
SUPPORT CRATE WPL 603871 Contact Us For Availability
NI
CLIP SHIPPING WPL 649352 Contact Us For Availability
NI
SPACER FRONT WPL 671971 Contact Us For Availability
× ![]()
Login and Registration Form
