Model Whirlpool RT25BKXZW01 – Common Parts & Diagrams

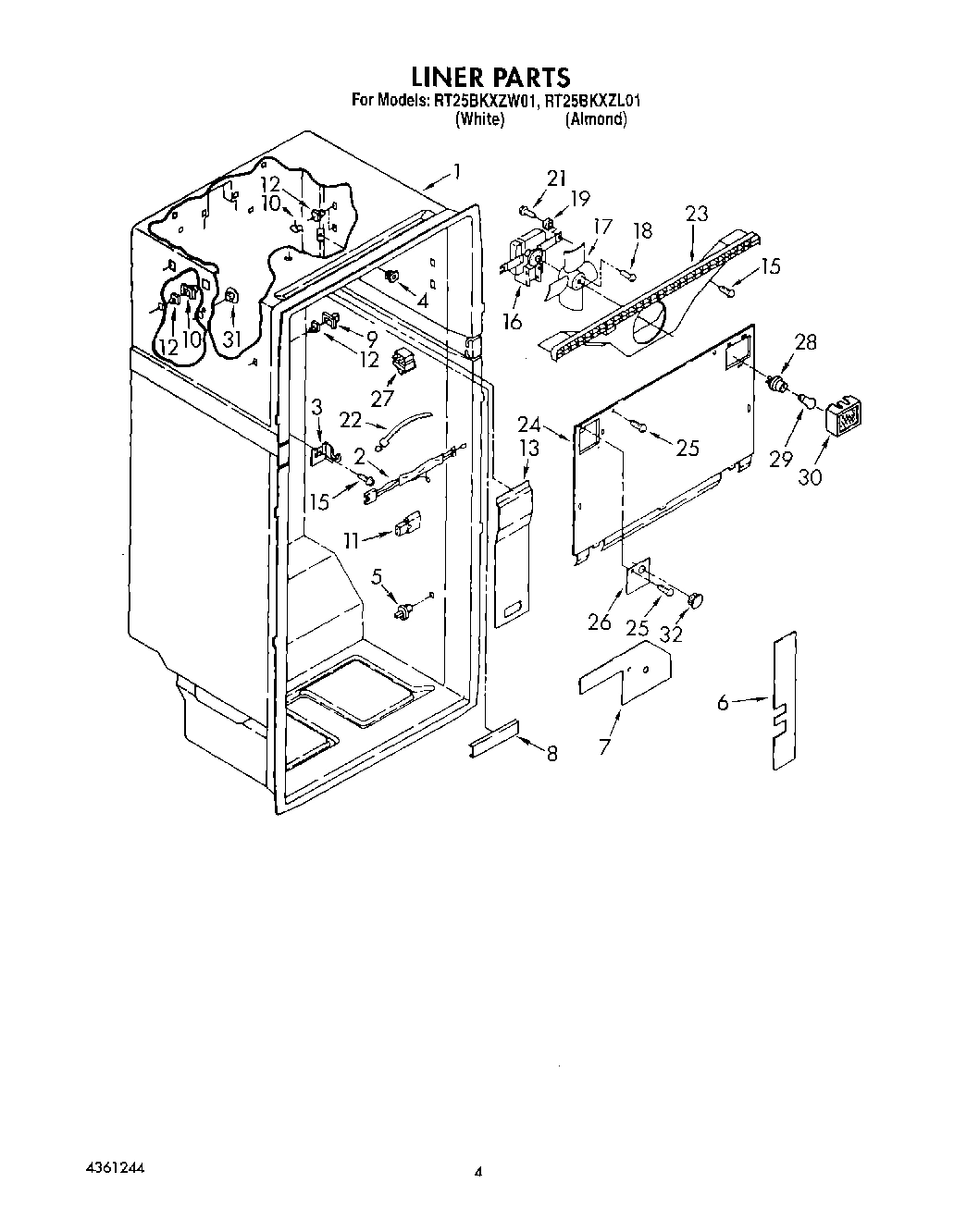

02 - LINER

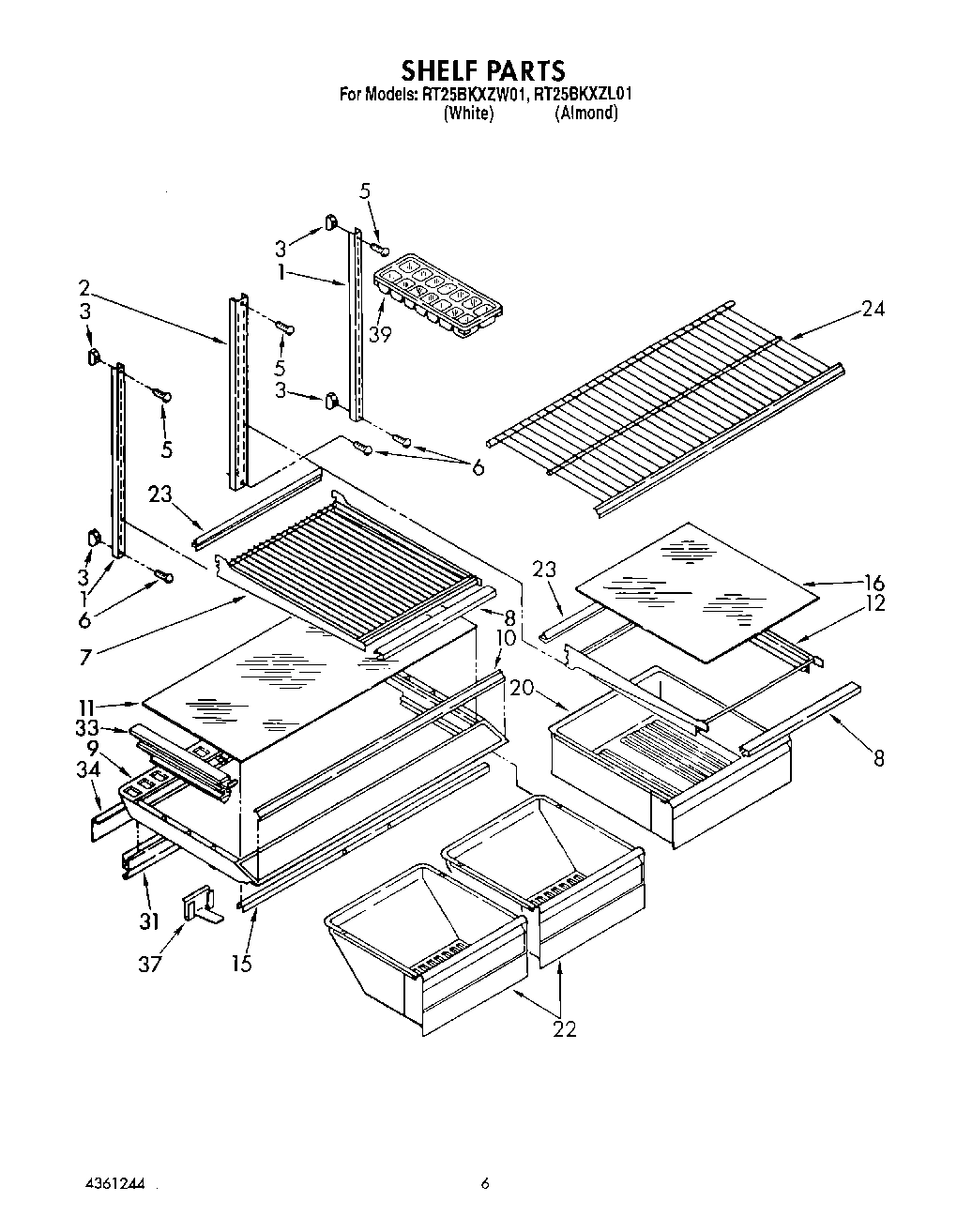

04 - SHELF, LIT/OPTIONAL

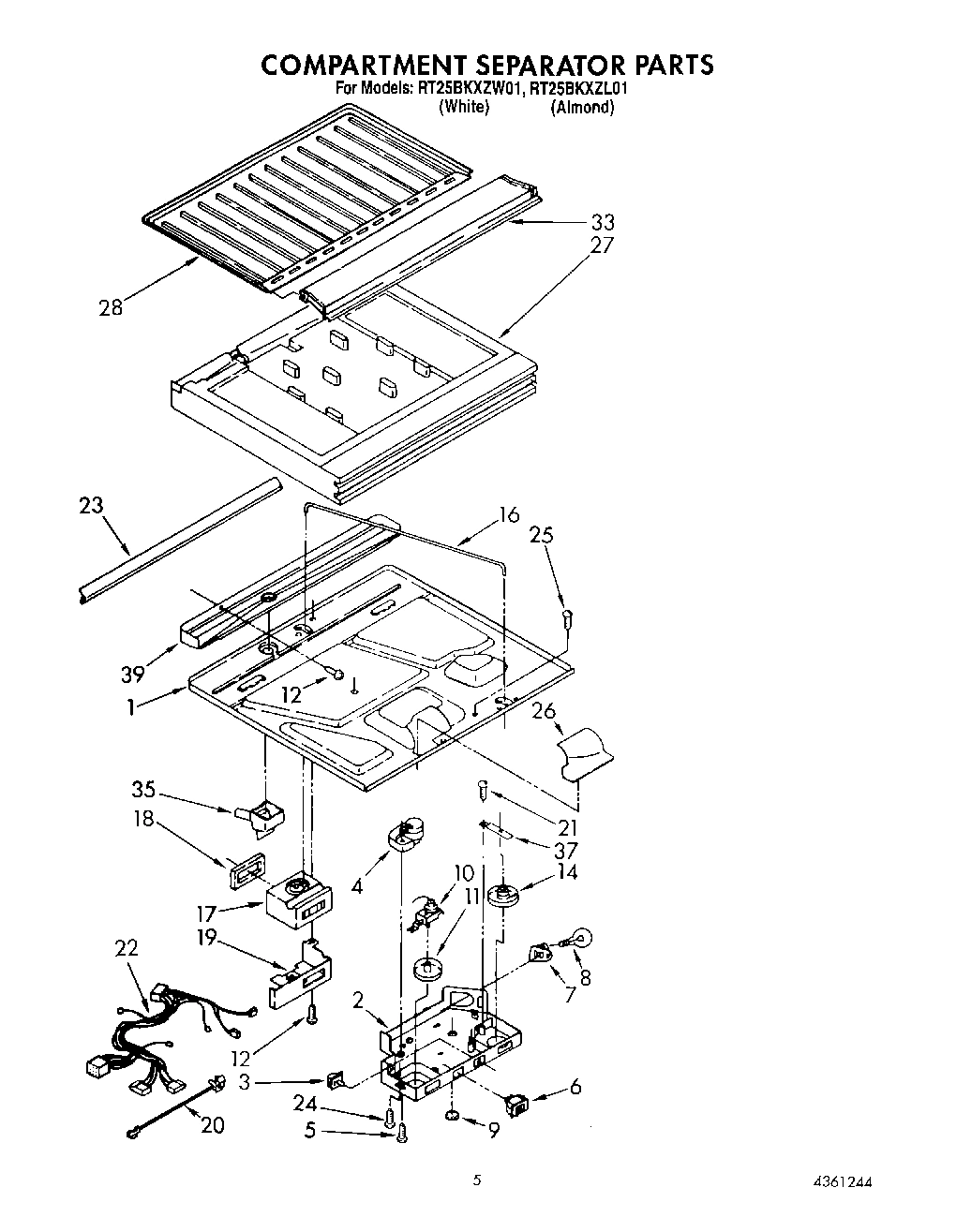

03 - COMPARTMENT SEPARATOR

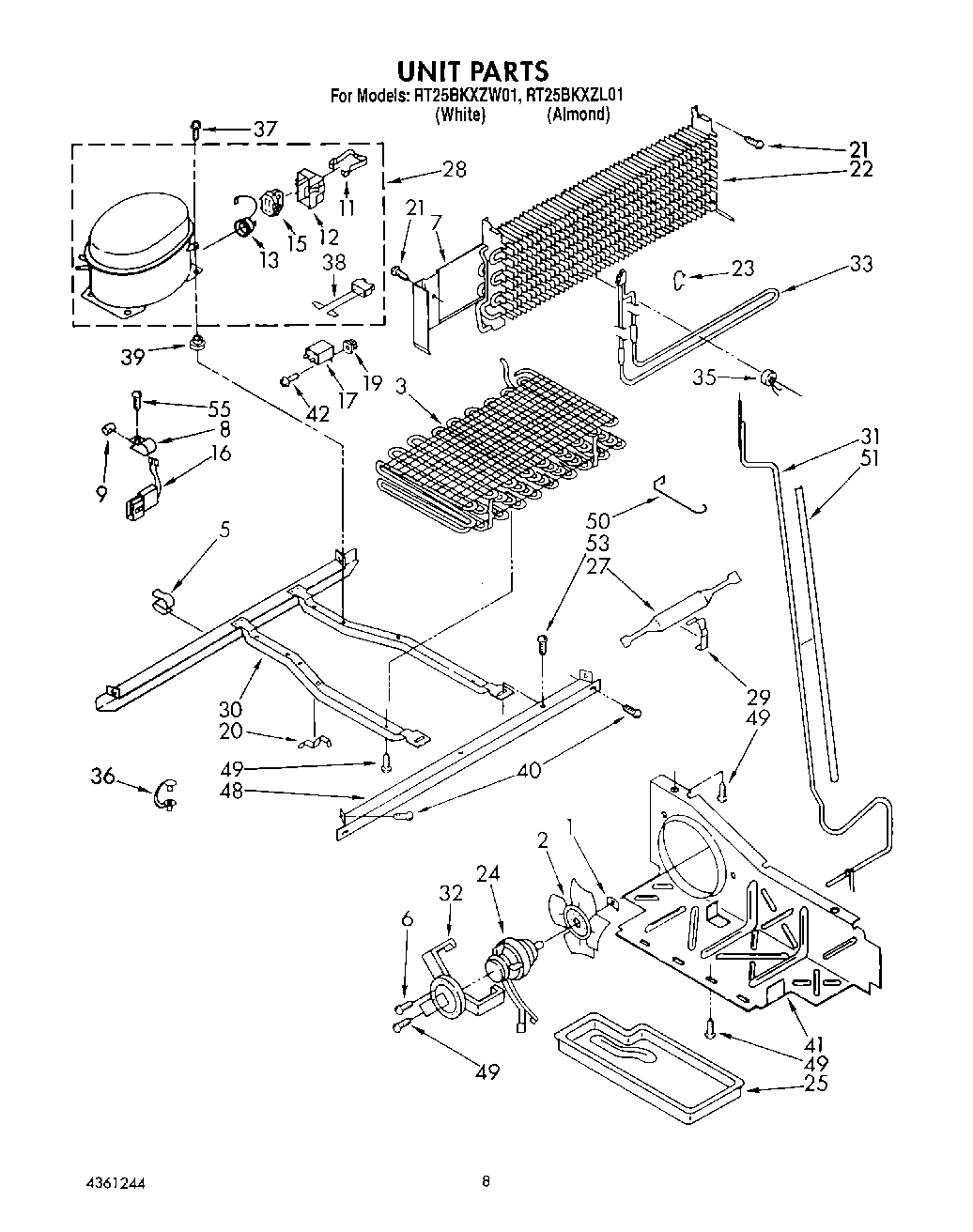

05 - UNIT

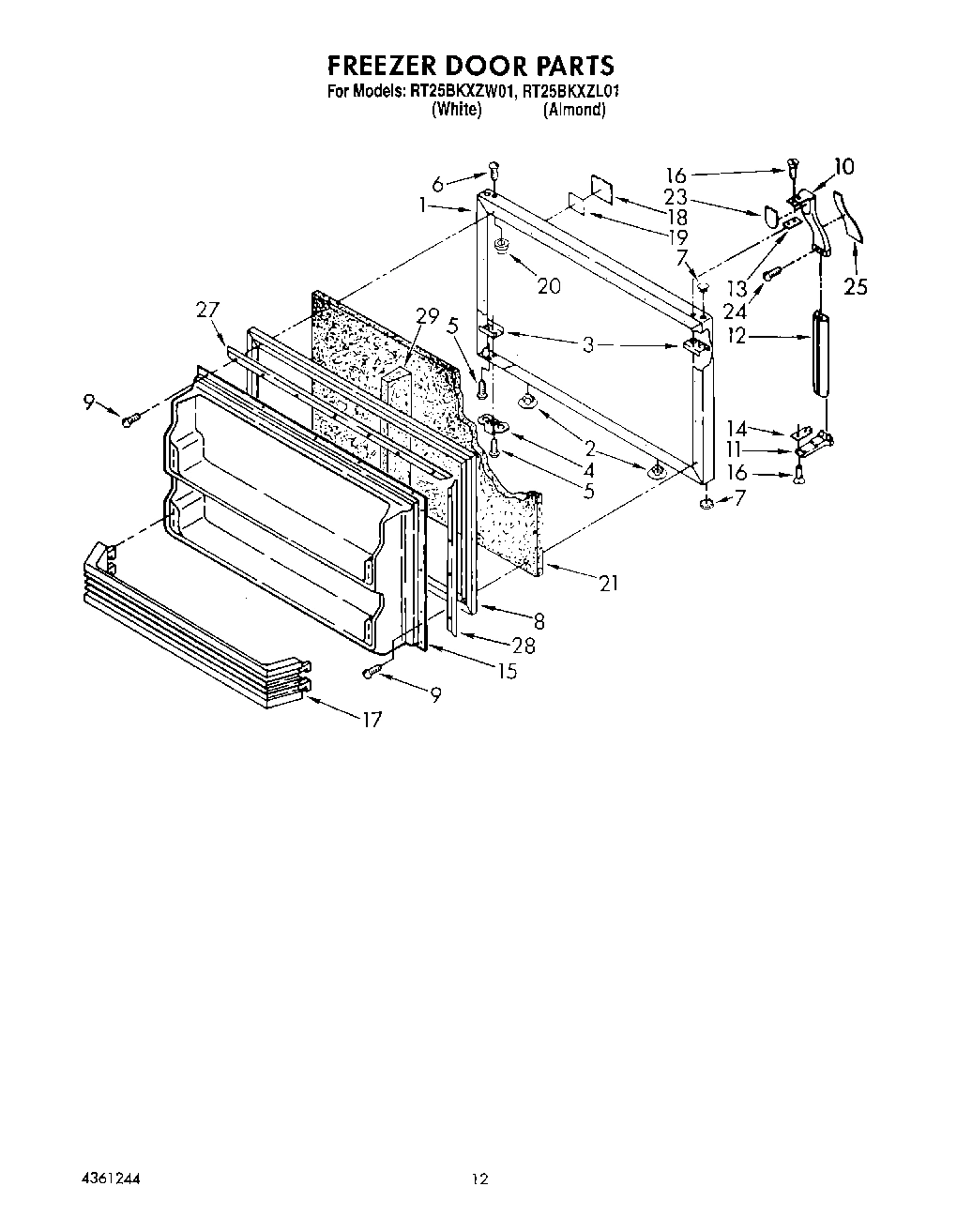

07 - FREEZER DOOR

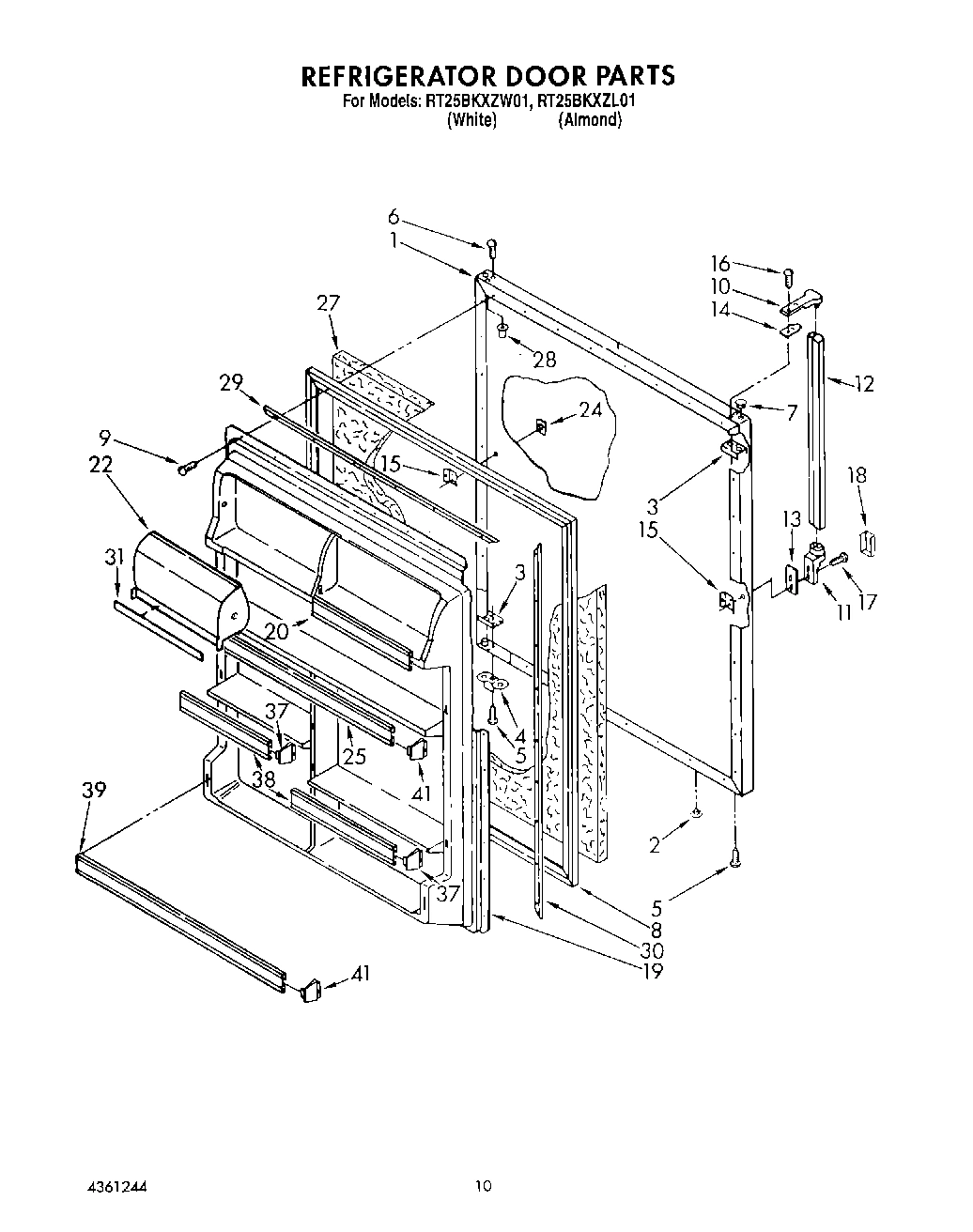

06 - REFRIGERATOR DOOR

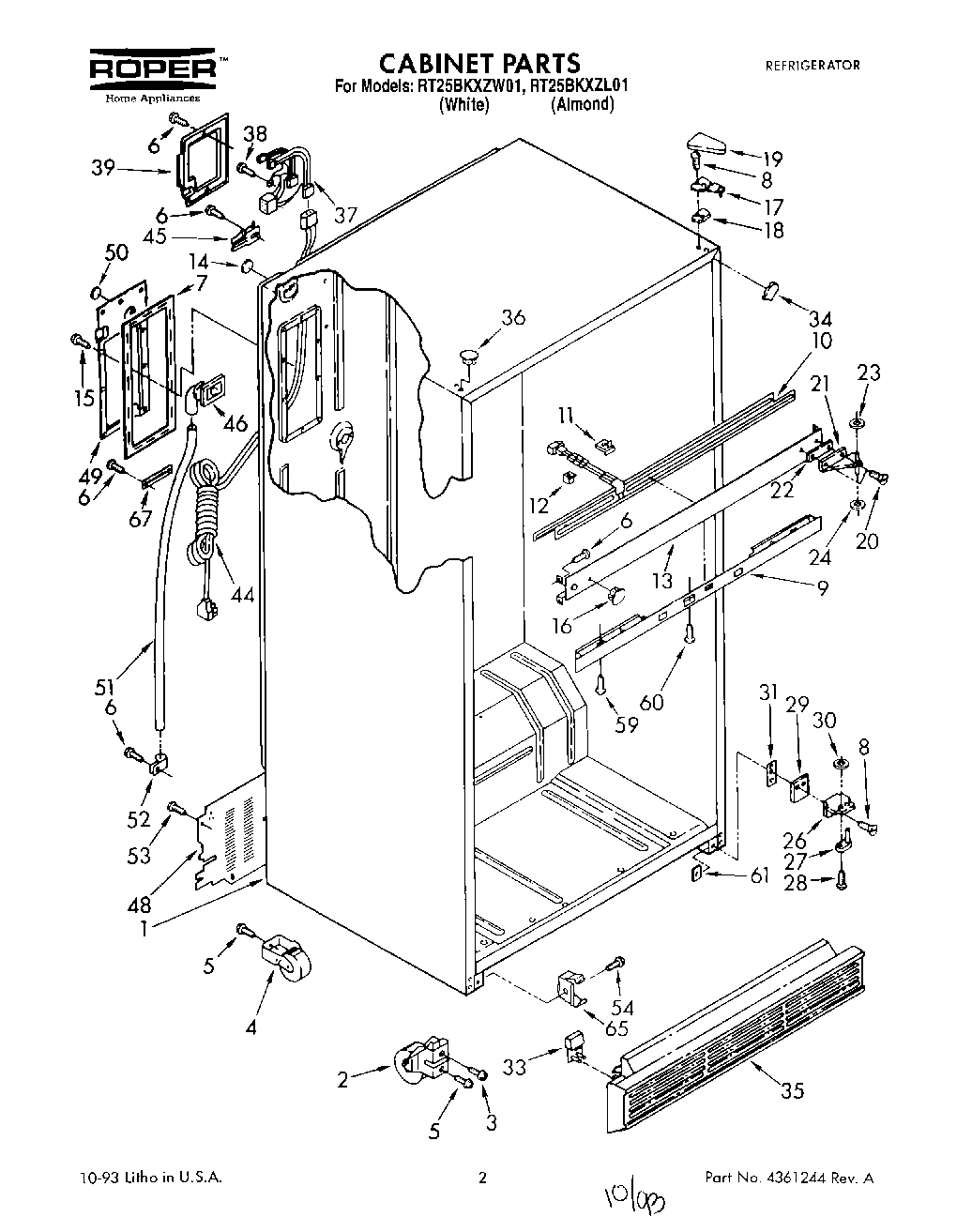

01 - CABINET
Common parts from model Whirlpool RT25BKXZW01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1114559 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1114585 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1114588 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1114573 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1114576 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI128305A Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 1105455 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
3
Condenser Assembly WPL 1105640 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability
4
Timer, Defrost (10 Hour) WPL 1127570 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Roller, Rear (2) WPL 2147324 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
7
Heat Shield, Evaporator WPL 1116511 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Sealing Gasket WPL 1114548 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1121202 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1121176 Contact Us For Availability
8
Screw WPL 489327 Contact Us For Availability
9
Dampener WPL 510769 Contact Us For Availability
9
Control, Front Cover WPL 2148419 Contact Us For Availability
10
Handle End, Top WPL 944163 Contact Us For Availability
10
Handle End, Top WPL 944157 Contact Us For Availability
10
Heater, Mullion WPL 1114550 Contact Us For Availability
11
Knob, Thermostat WPL 2148150 Contact Us For Availability
11
Strap (Service) WPL 938384 Contact Us For Availability
11
Strap (Production) WPL 943322 Contact Us For Availability
11
End Cap, Handle (Bottom) WPL 935105 Contact Us For Availability
11
Clip, Mullion (4) WPL 2149060 Contact Us For Availability
12
Cover (Production) WPL 1105055 Contact Us For Availability
12
Cover (Service) WPL 1108115 Contact Us For Availability
12
Handle, Center WPL 1118084 Contact Us For Availability
12
Handle, Center WPL 1109181 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Overload (Production (Includes Relay)) WPL 2154794 Contact Us For Availability
13
Overload (Service (Includes Relay)) WPL 2162362 Contact Us For Availability
13
Shim, Handle WPL 935076 Contact Us For Availability
13
Center Rail (White) WPL 1114538 Contact Us For Availability
13
Center Rail (Almond) WPL 1114541 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 2148151 Contact Us For Availability
14
Hole Seal WPL 1129056 Contact Us For Availability
15
Relay (See Overload) WPL ARI128307A Contact Us For Availability
15
Interior Door Panel WPL 1125739 Contact Us For Availability
16
Rod, Connecting WPL 1118057 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Hole Plug (White) WPL 1129062 Contact Us For Availability
16
Hole Plug (Almond) WPL 1129063 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157416 Contact Us For Availability
17
Capacitor (Service) WPL 2154565 Contact Us For Availability
17
Shelf Bin WPL 2157113 Contact Us For Availability
17
Hinge, Top WPL 1123514 Contact Us For Availability
18
Shim, Hinge Top WPL 1123515 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Nameplate WPL 2160005 Contact Us For Availability
18
End Cap Cover WPL 987873 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Strip, Tape WPL 991259 Contact Us For Availability
19
Interior Door Panel WPL 2155999 Contact Us For Availability
20
Ground Wire WPL 1114482 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Trim, Door Compartment WPL 2152562 Contact Us For Availability
20
Screw WPL 489179 Contact Us For Availability
21
Hinge, Center WPL 836153 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2154415 Contact Us For Availability
22
Evaporator WPL 1115146 Contact Us For Availability
22
Compartment Door WPL 2148289 Contact Us For Availability
22
Shim, Hinge Center WPL 2151688 Contact Us For Availability
22
Shim, Center (Repair) WPL 841604 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1116698 Contact Us For Availability
23
Support, Heater WPL 2149120 Contact Us For Availability
23
Shim, EndCap (Top) WPL 935074 Contact Us For Availability
24
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Insert, Handle WPL 1114390 Contact Us For Availability
25
Trim, Shelf WPL 2152563 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1114561 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Separator, Compartment (Top) (Rear) WPL 1114562 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 38 WPL 2149958 Contact Us For Availability
28
Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability
28
Gasket Retainer, Side (2) WPL 1121120 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Gasket Retainer, Top & Bottom (2) WPL 1121119 Contact Us For Availability
29
Door Dike, Center WPL 1125577 Contact Us For Availability
29
Shim, Bottom WPL 836196 Contact Us For Availability
30
Gasket Retainer, Side (2) WPL 1123245 Contact Us For Availability
30
Washer, 9/32 WPL 489295 Contact Us For Availability
31
Exchanger, Heat WPL 2154440 Contact Us For Availability
31
Trim, Door WPL 1118208 Contact Us For Availability
31
Spacer WPL 1129868 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Crisper Track, Center WPL 1118092 Contact Us For Availability
33
Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability
33
Heater, Defrost WPL 2149173 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
34
Support Bar WPL 2147047 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1110708 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1110709 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille WPL 1129002 Contact Us For Availability
36
Clip, Wire WPL 1115141 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 2151653 Contact Us For Availability
37
Clip (3) WPL 2149078 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Cabinet, Wiring Assembly WPL 2149634 Contact Us For Availability
38
Trim, Door Shelf WPL 2152564 Contact Us For Availability
39
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
39
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
39
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
39
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
39
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
39
WPL 978883 WPL 978883 Contact Us For Availability
39
Drain Pan WPL 1114597 Contact Us For Availability
39
Trim, Door Shelf WPL 2152565 Contact Us For Availability
39
Cover, Wiring WPL 1105606 Contact Us For Availability
41
End Cap, Trim (4) WPL 1115364 Contact Us For Availability
41
See Complete Cross-Reference Listing Film Car WPL 4314268 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Fitting, Drain WPL 937062 Contact Us For Availability
48
Cover, Unit WPL 2147323 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
Cover, Plug WPL 1105527 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
50
Hole Seal WPL 1120224 Contact Us For Availability
52
Clamp WPL 836077 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
67
Tube Clamp WPL 1105607 Contact Us For Availability
× ![]()
