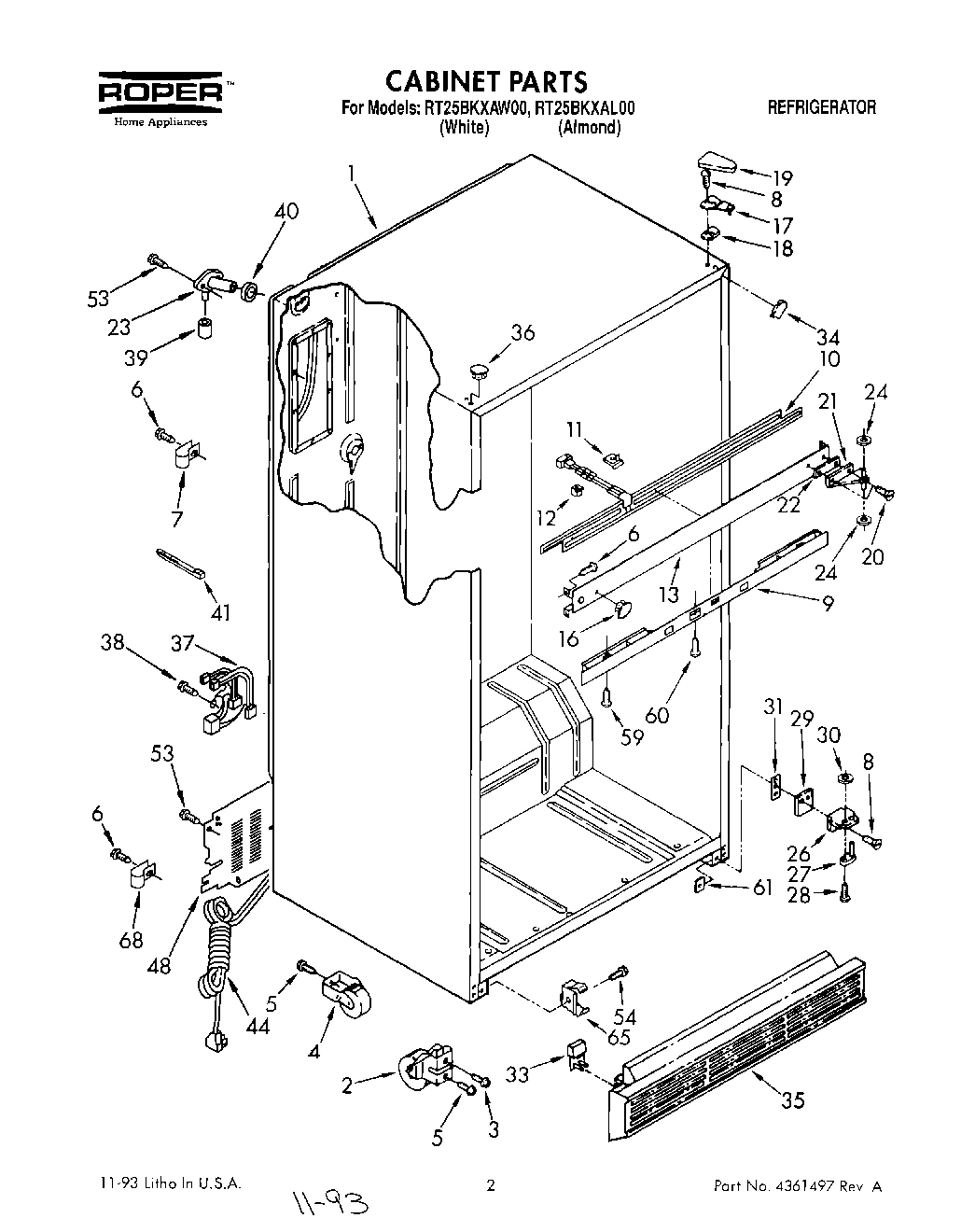

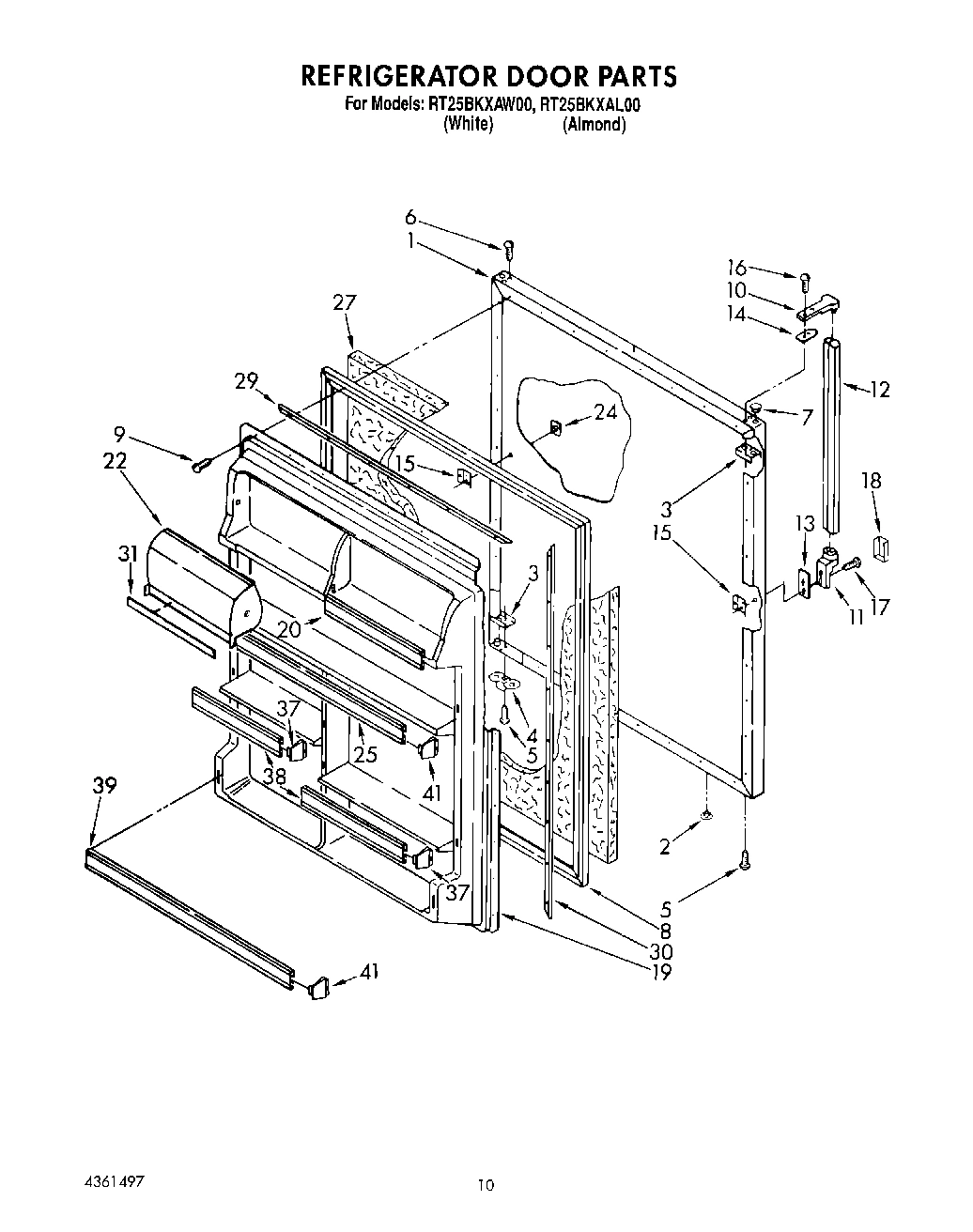

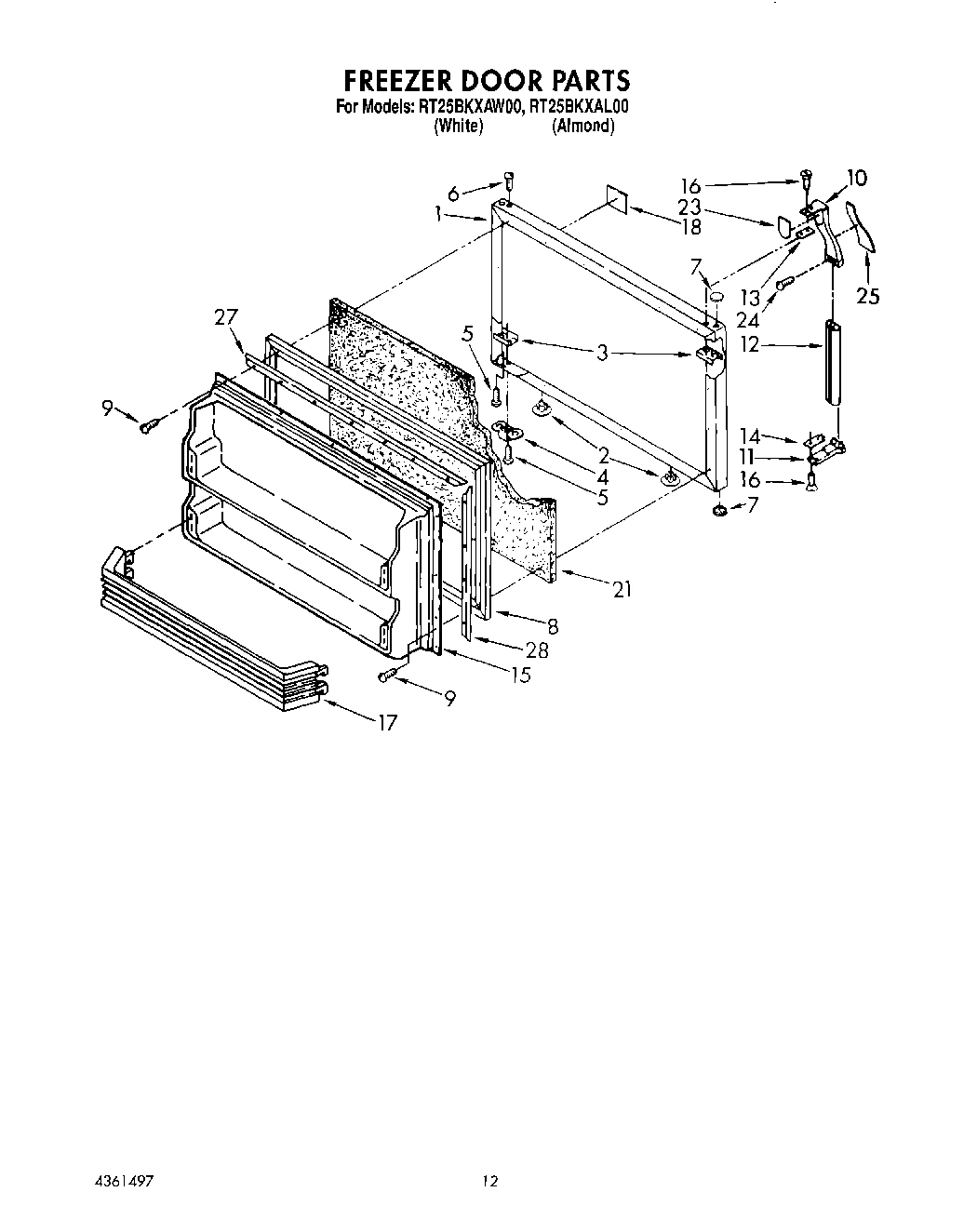

Model Whirlpool RT25BKXAL00 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2154076 WPL LIT2154076 Contact Us For Availability

WPL LIT2163451 WPL LIT2163451 Contact Us For Availability

WPL LIT2163500 WPL LIT2163500 Contact Us For Availability

WPL LIT677969 WPL LIT677969 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Cabinet (Not A Serviceable Part) WPL ARI162455A Contact Us For Availability

1

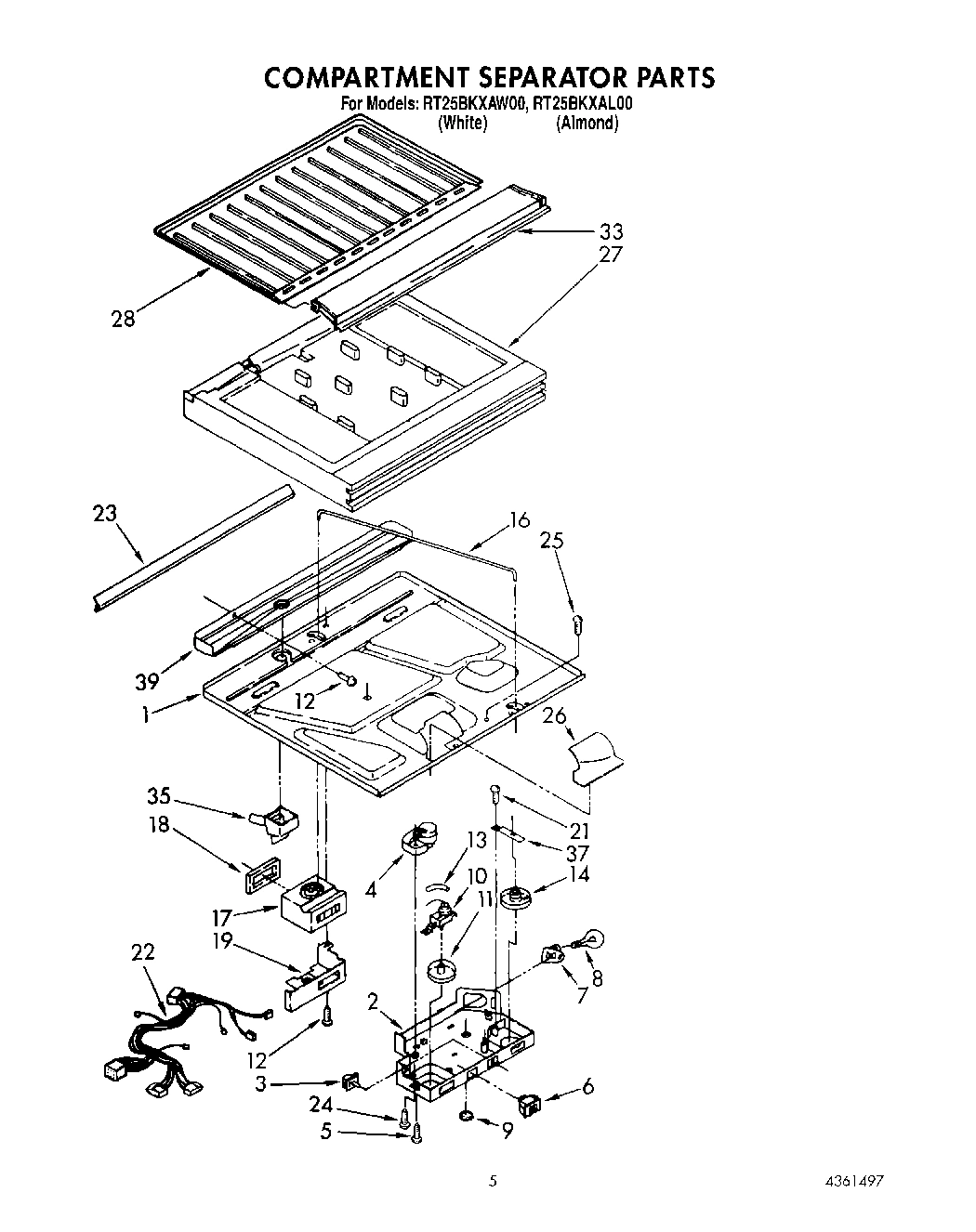

Bottom, Compartment Separator WPL 1114559 Contact Us For Availability

1

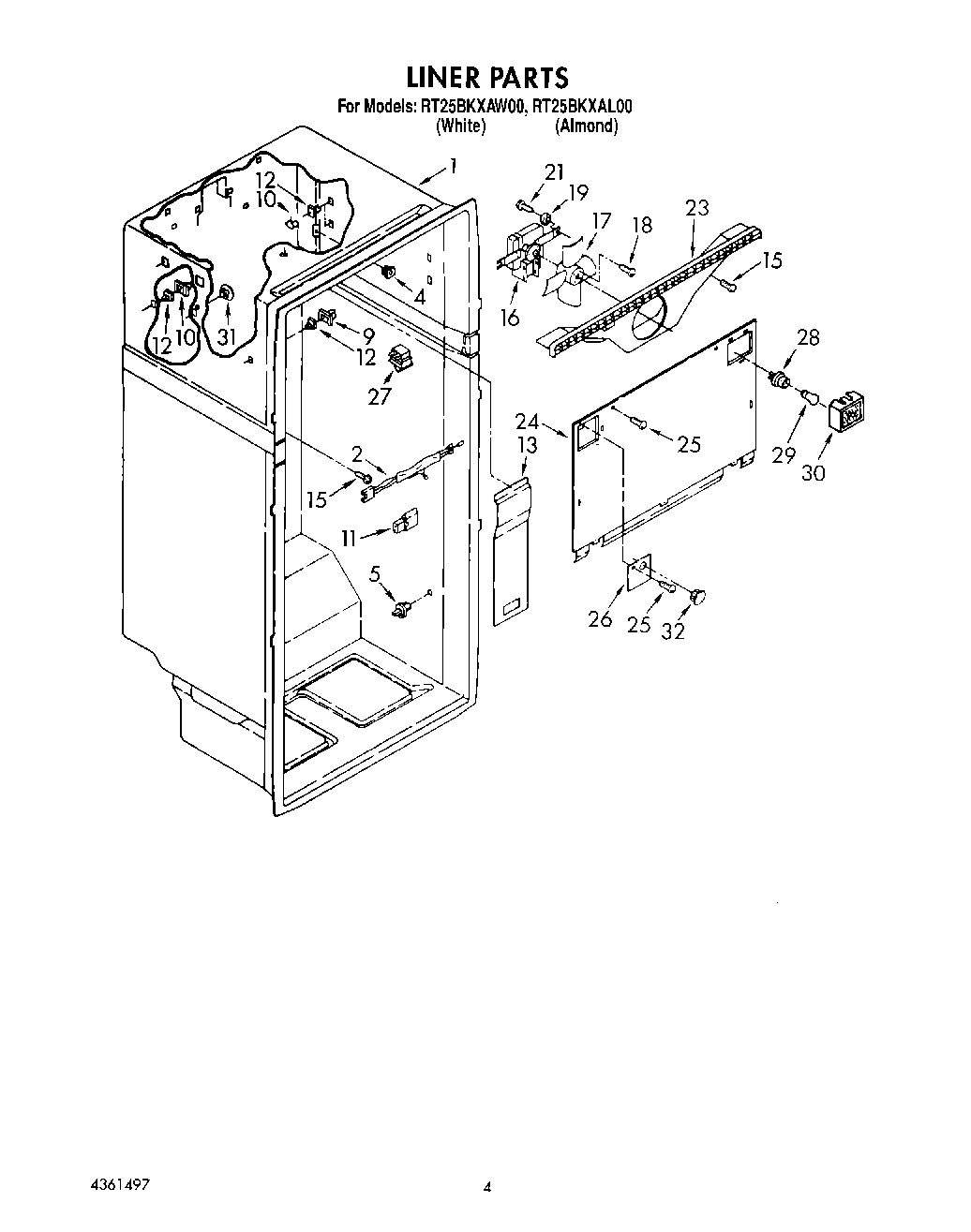

Liner (Not A Serviceable Part) WPL ARI162456A Contact Us For Availability

1

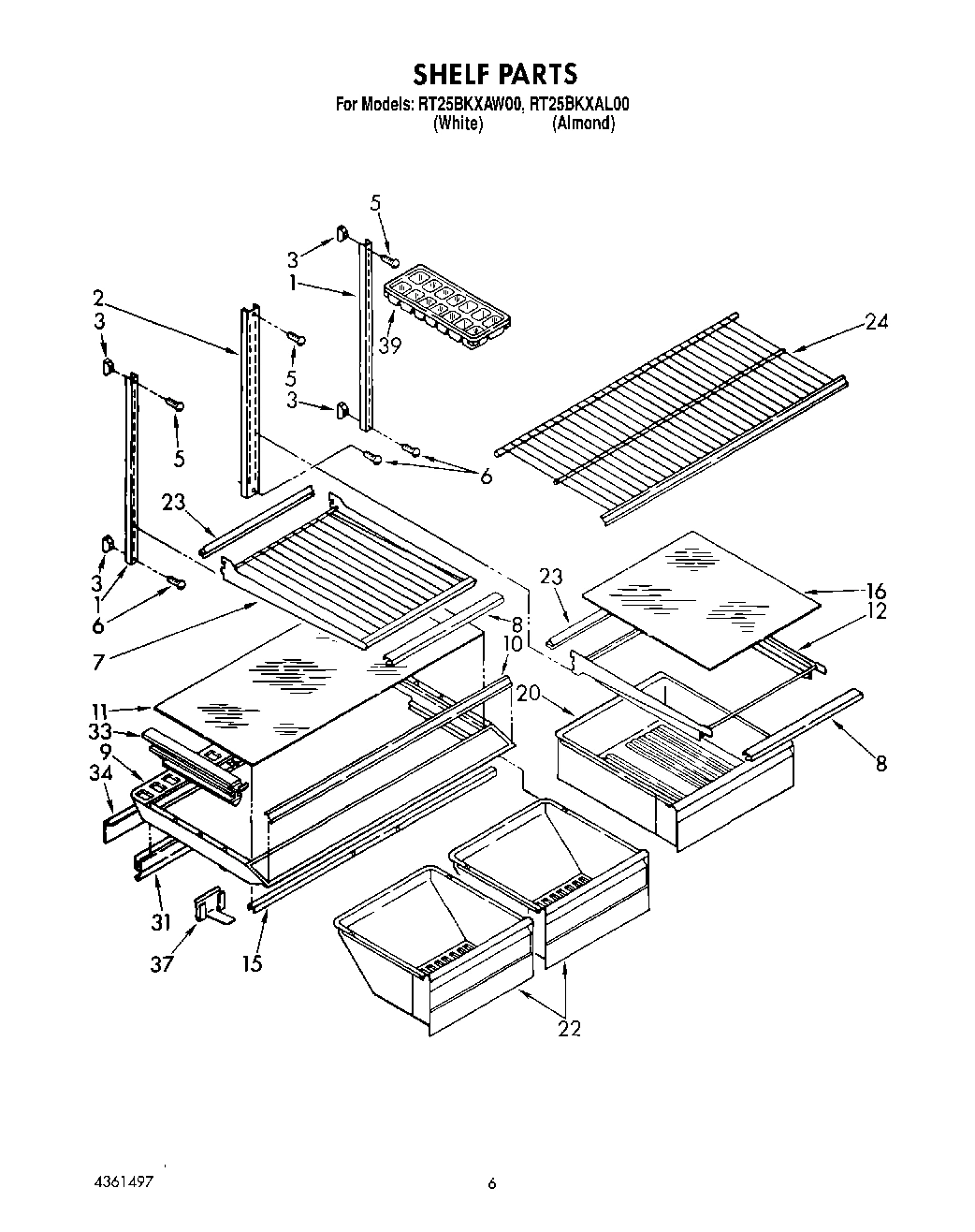

Shelf, Ladder (2) WPL 1118102 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Fan, Blade WPL 851732 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Box, Control WPL 2151992 Contact Us For Availability

2

Shelf Ladder, Center WPL 1118101 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

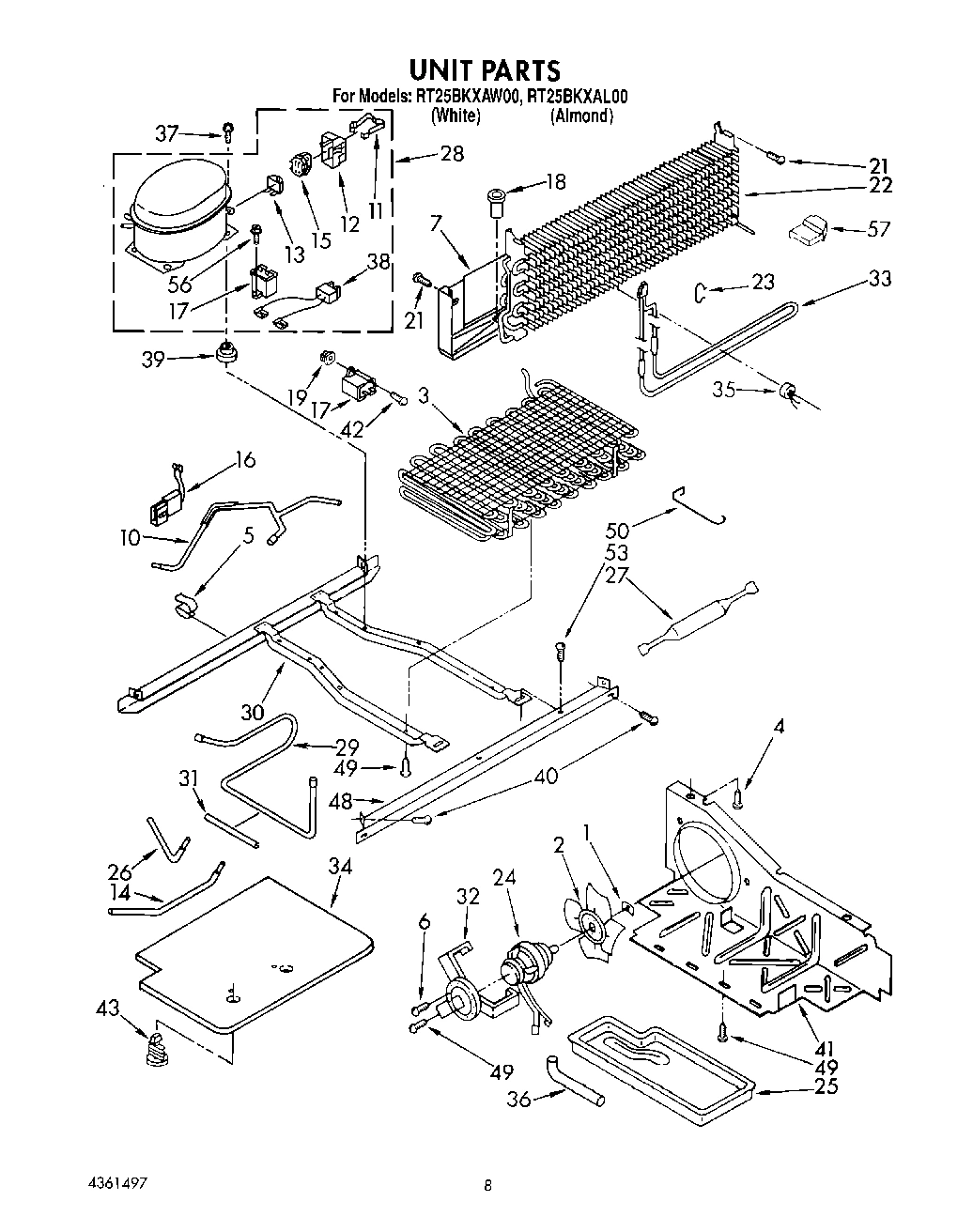

Condenser Assembly WPL 2154011 Contact Us For Availability

3

Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability

4

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $46.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet (2) WPL 848445 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Clip, Wire (2) WPL 548745 Contact Us For Availability

5

Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability

5

Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

7

Heat Shield, Evaporator WPL 1116511 Contact Us For Availability

7

Shelf, Cantilever WPL 2152542 Contact Us For Availability

8

Trim, Shelf WPL 2152569 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

Control, Front Cover WPL 2163491 Contact Us For Availability

9

Stud (3) WPL 946356 Contact Us For Availability

9

Crisper Cover WPL 2152583 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

Handle End, Top WPL 944163 Contact Us For Availability

Tube, Discharge WPL 2162475 Contact Us For Availability

Heater, Mullion WPL 2154069 Contact Us For Availability

Trim, Crisper Cover WPL 1121136 Contact Us For Availability

Strap (Service) WPL 938384 Contact Us For Availability

Clip, Mullion (4) WPL 2149060 Contact Us For Availability

Knob, Thermostat WPL 2148150 Contact Us For Availability

Housing Plug WPL 2149732 Contact Us For Availability

Glass, Crisper Cover WPL 2152572 Contact Us For Availability

Cover, Terminal WPL 1108115 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Pan Shelf, Cantilever WPL 2147577 Contact Us For Availability

4388953 Whirlpool Overload Relay Backorder WPL 4388953 $70.86

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Shim, Handle WPL 943187 Contact Us For Availability

Center Rail (White) WPL 2154187 Contact Us For Availability

Cover, Air Duct WPL 2159578 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Tube, Condenser To Heat Loop WPL 2154032 Contact Us For Availability

14

Knob, Air Control WPL 2148151 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Relay (See Overload) WPL ARI162457A Contact Us For Availability

Support, Cover WPL 1114568 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

Housing Plug WPL 1118850 Contact Us For Availability

Hole Plug WPL 1129062 Contact Us For Availability

Rod, Connecting WPL 1118057 Contact Us For Availability

Shelf, Glass WPL 2152568 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP2189412 Whirlpool Refrigerator Door Hinge Backorder WPL WP2189412 $37.95

Running Capacitor WPL 2154565 Contact Us For Availability

Air Diffuser Assembly WPL 2157253 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Drain Fitting WPL 981629 Contact Us For Availability

Shim, Hinge Top WPL 2157269 Contact Us For Availability

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

Screw Grommet WPL 509812 Contact Us For Availability

Hinge Cover (Almond) WPL 2160404 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

20

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

20

Pan, Meat WPL 2152570 Contact Us For Availability

21

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

21

Hinge, Center WPL 2147335 Contact Us For Availability

21

Screw WPL 489168 Contact Us For Availability

Evaporator WPL 2153980 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

Pan, Crisper WPL 2152582 Contact Us For Availability

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

Support, Heater WPL 2149120 Contact Us For Availability

Gasket, Bottom Separator WPL 2159734 Contact Us For Availability

Scroll, Fan WPL 1114593 Contact Us For Availability

Reflector, Shelf WPL 1125754 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

Evaporator Cover WPL 1123399 Contact Us For Availability

Shelf, Freezer WPL 1121154 Contact Us For Availability

25

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

25

Insert, Handle WPL 1114390 Contact Us For Availability

25

Tray, Evaporator WPL 1110674 Contact Us For Availability

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

Insulation, Filler WPL 1108196 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Gasket Retainer, Top & Bottom (2) WPL 1121119 Contact Us For Availability

Insulation, Compartment Separator WPL 1114561 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1121120 Contact Us For Availability

Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154558 Contact Us For Availability

Separator, Compartment (Top) (Rear) WPL 1114562 Contact Us For Availability

29

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

29

Tube, Suction WPL 2162473 Contact Us For Availability

29

Shim, Bottom WPL 1123379 Contact Us For Availability

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

30

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

30

Lens, Light WPL 981365 Contact Us For Availability

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Spacer WPL 1121117 Contact Us For Availability

Crisper, Gasket Rear WPL 1116666 Contact Us For Availability

32

Fan, Motor Bracket WPL 2162062 Contact Us For Availability

32

Hole Plug WPL 1103725 Contact Us For Availability

Heater, Defrost WPL 2162021 Contact Us For Availability

Corner Filler, Grille WPL 1118078 Contact Us For Availability

Separator, Compartment (Top) (Front) WPL 1115189 Contact Us For Availability

Crisper Track, Center WPL 1118092 Contact Us For Availability

Cover, Unit Bottom WPL 2157369 Contact Us For Availability

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

Support Bar WPL 2147047 Contact Us For Availability

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

35

Grille WPL 1129002 Contact Us For Availability

35

Cup, Drain WPL 937065 Contact Us For Availability

36

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

36

Drain Tube WPL 2154119 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 2151653 Contact Us For Availability

37

Wire Assembly Intermediate WPL 2153994 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

37

Clip (3) WPL 2149078 Contact Us For Availability

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Drain Pan WPL 1114597 Contact Us For Availability

Door Reversal Instructions WPL 2148985 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

41

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

41

Air Baffle WPL 2162457 Contact Us For Availability

43

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Cord, Service WPL 937360 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

48

Cover, Unit WPL 2160508 Contact Us For Availability

49

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

50

Guard, Fan WPL 1110663 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

56

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Wedge, Air Baffle WPL 1118017 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
