Model Electrolux RT21F6WV3C REFRIGERATOR – Common Parts & Diagrams

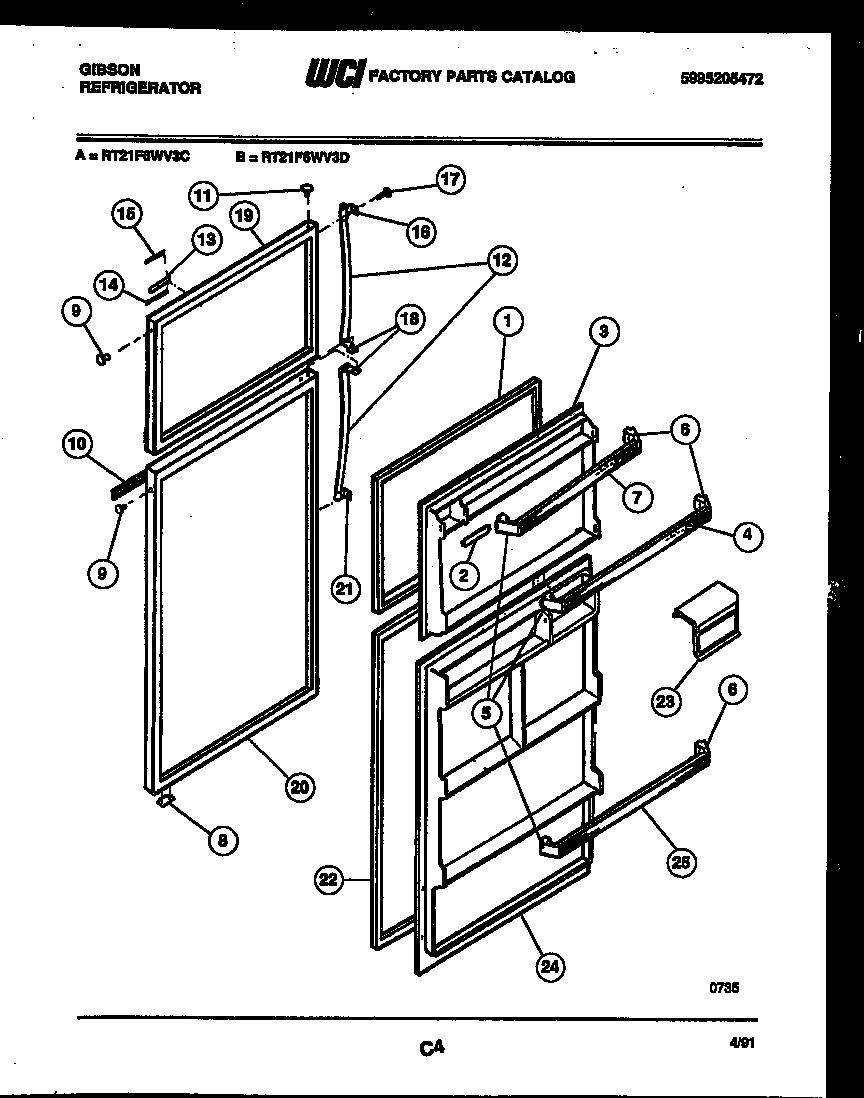

02 - DOOR PARTS

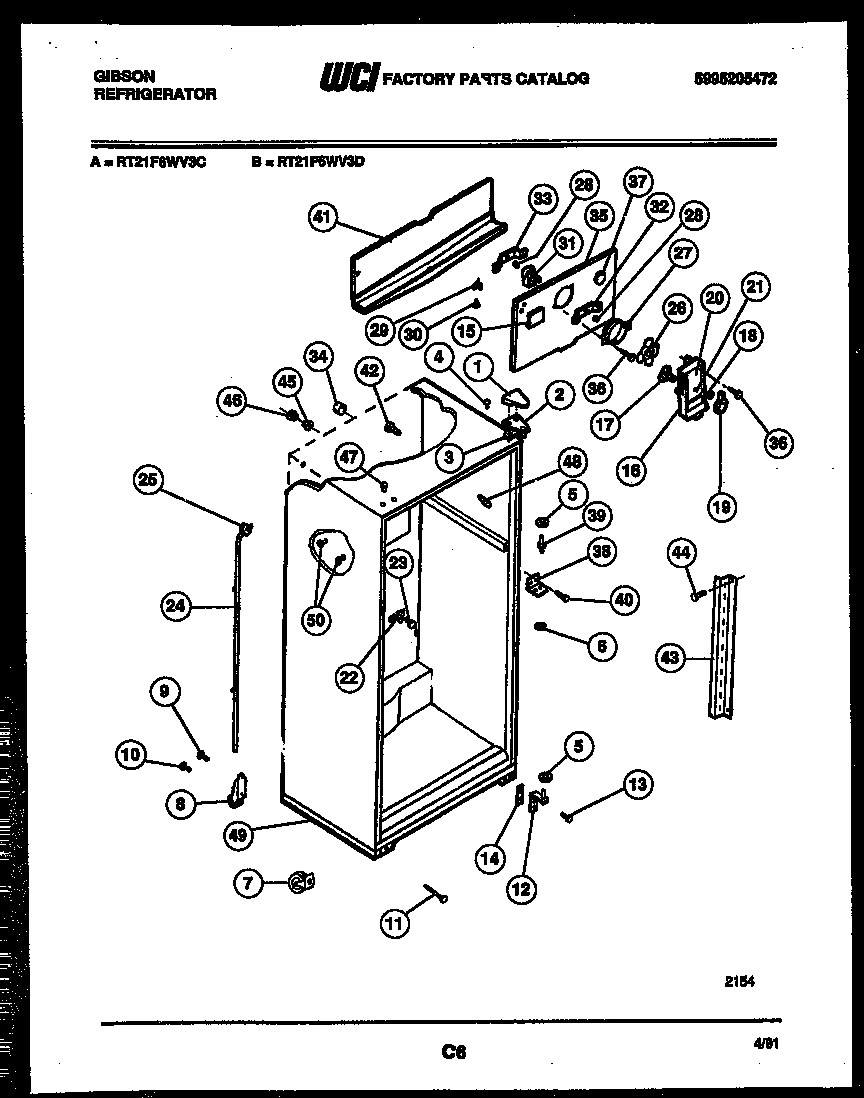

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT21F6WV3C REFRIGERATOR
*43637
PLUG-FREEZER LINER (5) WCI 5308016571 Contact Us For Availability
*43637
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*43653
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
WCI 5303001664 WCI 5303001664 Contact Us For Availability
1
WCI 5303001665 WCI 5303001665 Contact Us For Availability
1
WCI 5303001666 WCI 5303001666 Contact Us For Availability
1
WCI 5308012820 WCI 5308012820 Contact Us For Availability
1
WCI 5308012933 WCI 5308012933 Contact Us For Availability
2
HINGE-BRACKET UPPER WCI 5308012843 Contact Us For Availability
2
WCI 5303270836 WCI 5303270836 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
SHIM-BRACKET-UPPER WCI 5303001037 Contact Us For Availability
3
WCI 5317663928 WCI 5317663928 Contact Us For Availability
3
WCI 5303001342 WCI 5303001342 Contact Us For Availability
4
COVER-CRISPER WCI 5349006408 Contact Us For Availability
4A
WASHER - NO. 10 EXT TOOTH LOCK (2) (NON-ILLUS WCI 5308009617 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
GASKET - CRISPER COVER WCI 5303200329 Contact Us For Availability
6
SUPPORT-CRISPER COVER WCI 5303205987 Contact Us For Availability
6
WASHER-NYLON (2) WCI 5308000186 Contact Us For Availability
6
WIRING HARNESS-DIV WCI 3019040 Contact Us For Availability
7
WCI 5303212490 WCI 5303212490 Contact Us For Availability
7
WCI 5303270556 WCI 5303270556 Contact Us For Availability
7
WCI 5303001347 WCI 5303001347 Contact Us For Availability
8
WCI 5308009773 WCI 5308009773 Contact Us For Availability
8
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
8
CLIP-COMPRESSOR (4) WCI 5308003596 Contact Us For Availability
8A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
9
COVER-DEFLECTOR WCI 5303001448 Contact Us For Availability
9
WASHER-COMPR (4) WCI 5308003633 Contact Us For Availability
10
BOLT-1/4-28 X 1/2 (2) WCI 5308009762 Contact Us For Availability
10
WCI 5308014667 WCI 5308014667 Contact Us For Availability
10A
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
11
PLUG, HINGE, ALMOND WCI 5303001308 Contact Us For Availability
11
PLUG, HINGE, WHITE WCI 5308000134 Contact Us For Availability
11
BOLT-ROLLER ADJ 1/4-20 (2) WCI 5303271412 Contact Us For Availability
11
FRAME-SHELF (2) WCI 3200616 Contact Us For Availability
11
COMPRESSOR W/ELECTRICALS-SERVICE WCI 5303916012 Contact Us For Availability
12
HINGE BRACKET-LOWER WCI 5303212489 Contact Us For Availability
12
TRIM-REAR (3) WCI 5303206576 Contact Us For Availability
12
PLATE-COMPRESSOR MTG WCI 5308013663 Contact Us For Availability
13
RETAINER-GLASS (2) WCI 3018724 Contact Us For Availability
13
WCI 5300171129 WCI 5300171129 Contact Us For Availability
13A
GUSSET-TAPPING PLATE RH (NON-ILLUSTRATED) WCI 5303212597 Contact Us For Availability
13A
DEFROST PAN-SVCE COMPR WCI 5300184715 Contact Us For Availability
13B
GUSSET-TAPPING PLATE (LH) (NON-ILLUSTRATED) WCI 5303212596 Contact Us For Availability
14
SHIM-BRACKET-LOWER WCI 5303212488 Contact Us For Availability
14
WCI 5303206577 WCI 5303206577 Contact Us For Availability
14
LOCK NUT-PAN WCI 5303001348 Contact Us For Availability
15
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
15
SUPPORT-GLASS (3) WCI 3200901 Contact Us For Availability
15
WCI 5308017532 WCI 5308017532 Contact Us For Availability
16
WCI 5303201444 WCI 5303201444 Contact Us For Availability
16
TRIM-FRONT (3) WCI 5303206578 Contact Us For Availability
17
WCI 5303007173 WCI 5303007173 Contact Us For Availability
17
DAMPER WCI 5303001331 Contact Us For Availability
17
FRAME-SHELF WCI 3203094 Contact Us For Availability
18
WCI 5303001296 WCI 5303001296 Contact Us For Availability
18
WCI 5303001028 WCI 5303001028 Contact Us For Availability
18
RETAINER-GLASS WCI 3203087 Contact Us For Availability
19
FREEZER DOOR-WHEAT WCI G188158-09 Contact Us For Availability
19
FREEZER DOOR-COFFEE WCI G188158-10 Contact Us For Availability
19
FREEZER DOOR-ALMOND WCI G188158-11 Contact Us For Availability
19
KNOB-DAMPER WCI 5308011763 Contact Us For Availability
20
REFRIGERATOR DOOR - WHITE WCI 5300178694 Contact Us For Availability
20
REFRIGERATOR DOOR-AVOC WCI 5317869408 Contact Us For Availability
20
REFRIGERATOR DOOR - WHEAT WCI 5317869409 Contact Us For Availability
20
REFRIGERATOR DOOR - COFFEE WCI 5317869410 Contact Us For Availability
20
REFRIGERATOR DOOR-ALMD WCI 5317869411 Contact Us For Availability
20
LABEL - UPPER WCI G185863 Contact Us For Availability
20
KNOB - CONTROL WCI 5303201777 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20A
BEARING-HINGE (4) (NON-ILLUSTRATED) WCI 5308012007 Contact Us For Availability
21
WCI 5303001295 WCI 5303001295 Contact Us For Availability
21
LABEL - LOWER WCI G185864 Contact Us For Availability
21
TUBE (PLASTIC) WCI 3018891 Contact Us For Availability
21
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
22
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
22
GASKET-REFRIGERATOR WCI 5308015544 Contact Us For Availability
22
CONTROL WCI 5303018894 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
22A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
23
DAIRY DOOR WCI 5303270562 Contact Us For Availability
23
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
24
DRAIN TUBE W/ RING SEAL WCI 5303210377 Contact Us For Availability
24
INNER PANEL-REFR WCI G187564-02 Contact Us For Availability
24
BOX-CONTROL WCI 5303206574 Contact Us For Availability
24
WCI 5303271578 WCI 5303271578 Contact Us For Availability
25
RING - SEAL WCI 5303207353 Contact Us For Availability
25
RACK (2) WCI 5303270439 Contact Us For Availability
25
SWITCH-SLIDE WCI 5303206872 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
RING, ORIFICE WCI 5308000124 Contact Us For Availability
27
WCI 5303210351 WCI 5303210351 Contact Us For Availability
28
WCI 5316651102 WCI 5316651102 Contact Us For Availability
28
WCI 5303200366 WCI 5303200366 Contact Us For Availability
28
MULLION, AVOC WCI 5303200367 Contact Us For Availability
28
WCI 5303200368 WCI 5303200368 Contact Us For Availability
28
WCI 5303200369 WCI 5303200369 Contact Us For Availability
28
WCI 5303200370 WCI 5303200370 Contact Us For Availability
29
WCI 5308000107 WCI 5308000107 Contact Us For Availability
29
STRAP-MULLION WCI 5308010008 Contact Us For Availability
29
WCI 5303001197 WCI 5303001197 Contact Us For Availability
30
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
31
WASHER-MULLION (2) WCI 5303206754 Contact Us For Availability
32
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
32
WCI 5308012258 WCI 5308012258 Contact Us For Availability
33
WCI 5303205119 WCI 5303205119 Contact Us For Availability
33
WCI 5316254901 WCI 5316254901 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
34
BOTTOM, FREEZER WCI 5303210641 Contact Us For Availability
34
CAPACITOR-COMPR RUN WCI 5303916391 Contact Us For Availability
35
COVER, COIL WCI 5308013665 Contact Us For Availability
35
WCI 5303019039 WCI 5303019039 Contact Us For Availability
35A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
36
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
36
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
36A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
37
FREEZER-SHELF WCI G177059-07 Contact Us For Availability
38
CAP PROTECTOR (2) WCI 3201150 No Longer Available
38
HINGE-BRACKET CENTER WCI 5303001369 Contact Us For Availability
39
PIN-BRACKET CENTER WCI 5308000184 Contact Us For Availability
41
WCI 5303001470 WCI 5303001470 Contact Us For Availability
42
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
43
CHANNEL (2) WCI 5308000302 Contact Us For Availability
45
WCI 5303001286 WCI 5303001286 Contact Us For Availability
46
WCI 5303001287 WCI 5303001287 Contact Us For Availability
47
PLUG-BUTTON, ALMOND WCI 5303001389 Contact Us For Availability
47
PLUG-BUTTON, WHITE WCI 5303001388 Contact Us For Availability
47
PLUG-BUTTON-AVOC WCI 5303001677 Contact Us For Availability
47
PLUG-BUTTON-WHEAT WCI 5303001678 Contact Us For Availability
47
PLUG-BUTTON-COFFEE WCI 5303001679 Contact Us For Availability
48
TRIM-CORNER (WHITE) WCI 5303202336 Contact Us For Availability
48
TRIM-CORNER-AVOC WCI 5303202337 Contact Us For Availability
48
TRIM-CORNER-WHEAT WCI 5303202338 Contact Us For Availability
48
TRIM-CORNER-COFFEE WCI 5303202339 Contact Us For Availability
48
TRIM-CORNER-ALMOND WCI 5303202340 Contact Us For Availability
49
WCI 5303212487 WCI 5303212487 Contact Us For Availability
× ![]()
