Model Electrolux RT218JCV0 REFRIGERATOR – Common Parts & Diagrams

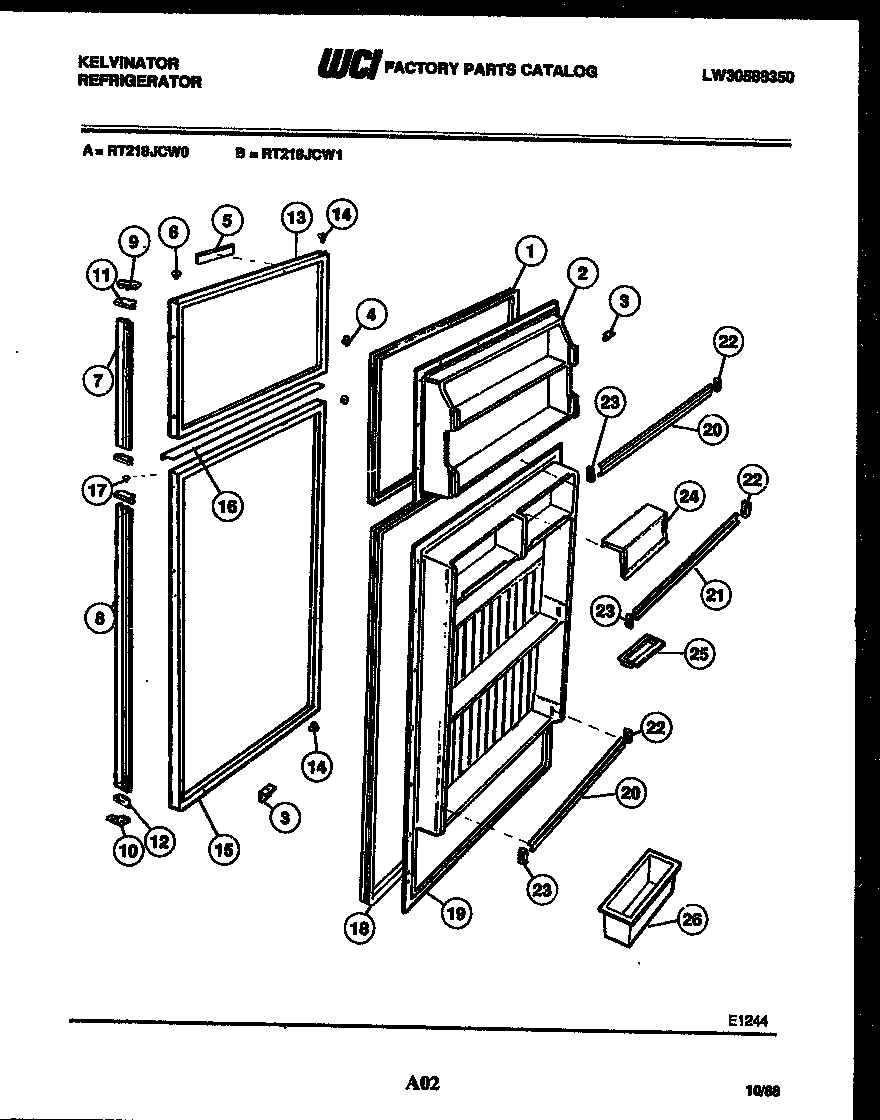

02 - DOOR PARTS
03 - CABINET PARTS
04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT218JCV0 REFRIGERATOR
*16754
BTN-PLUG LINER (2) WCI G162892-01 Contact Us For Availability
*16754
BASE, CABINET WCI G490004-02 Contact Us For Availability
*16759
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
1
ROLLER ASSY (2) WCI G177021 Contact Us For Availability
1
WCI G179793-02 WCI G179793-02 Contact Us For Availability
1A
WCI 187363 WCI 187363 Contact Us For Availability
2
PANEL-INNER-FRZR WCI R901095 Contact Us For Availability
2
SPRING-RLR ADJ (2) WCI G178494 Contact Us For Availability
2
KNOB-DMPR CONTROL WCI G162663-13 Contact Us For Availability
3
DOOR STOP (2) WCI G155072 Contact Us For Availability
3
WCI G177302 WCI G177302 Contact Us For Availability
3
NUT, PUSH WCI G162662 Contact Us For Availability
4
WCI G162977-08 WCI G162977-08 Contact Us For Availability
4
BOLT-RLR ADJ (2) WCI G177024 Contact Us For Availability
4
DAMPER WCI G162661 Contact Us For Availability
5
NAMEPLATE ASSY WCI G176985 Contact Us For Availability
5
WASHER NYLON (2) WCI G182799 Contact Us For Availability
5
LABEL-FAN COV WCI G180298 Contact Us For Availability
5A
SCREW-LEVLNG (2) (NON-ILLUSTRATED) WCI G185713 Contact Us For Availability
5B
ANCHOR NUT (2) (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
6
WCI G169332-08 WCI G169332-08 Contact Us For Availability
6
ROLLER ASSY (2) WCI G183407 Contact Us For Availability
7
HANDLE-FRZR DOOR WCI G177141-07 Contact Us For Availability
7
BOLT-RLR MTG (2) WCI G177025 Contact Us For Availability
8
WCI G177141-04 WCI G177141-04 Contact Us For Availability
8
WCI G183714 WCI G183714 Contact Us For Availability
8
RING-ORIFICE WCI G167217 Contact Us For Availability
8A
WCI G185566 WCI G185566 Contact Us For Availability
9
TRIM-HANDLE TOP (2) WCI G179270 Contact Us For Availability
9
COVER-EVAP COIL WCI R901126 Contact Us For Availability
10
WCI G103903 No Longer Available
10
TRIM-HANDLE BOTTOM (2) WCI G179271 Contact Us For Availability
11
END-HANDLE TOP (2) WCI G177142 Contact Us For Availability
11
WCI G183861 WCI G183861 Contact Us For Availability
11
NUT-U TYPE (2) WCI G167542 Contact Us For Availability
12
END-HANDLE BOTTOM (2) WCI G177143 Contact Us For Availability
12
WCI G174747-08 WCI G174747-08 Contact Us For Availability
12
BUTTON-DEC. PLUG WCI G162827-13 Contact Us For Availability
12A
CLIP-HANDLE (8) (NON-ILLUSTRATED) WCI G177144 Contact Us For Availability
13
PANEL-OUTER-AVOCADO WCI G187355-08 Contact Us For Availability
13
COVER HINGE, AVOCADO WCI G183558-08 Contact Us For Availability
13
WCI G185302 WCI G185302 Contact Us For Availability
14
BEARING HINGE (8) WCI G183138 Contact Us For Availability
14
TRIM, CORNER, AVOCADO WCI G179684-08 Contact Us For Availability
15
PANEL-OUTER-AVOCADO WCI G187356-08 Contact Us For Availability
15
HINGE-BRKT-CENTER WCI G163207 Contact Us For Availability
16
WCI G178328-02 WCI G178328-02 Contact Us For Availability
16
WCI G142220 WCI G142220 Contact Us For Availability
16
WCI G185303 WCI G185303 Contact Us For Availability
16A
WCI G153407-60 WCI G153407-60 Contact Us For Availability
17
BUTTON-HNG WCI G162892-14 Contact Us For Availability
17
SCREW-MTG (4) WCI G183103 Contact Us For Availability
17
BRACKET-CONN WCI G164571 Contact Us For Availability
17A
WASHER-STEEL (4) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
18
GASKET-REFR WCI G186932-13 Contact Us For Availability
18
WASHER (NYLON) WCI G164355 Contact Us For Availability
19
PANEL-INNER-REFR WCI R901099 Contact Us For Availability
19
HINGE-BRKT-BTM WCI G181019 Contact Us For Availability
20
RACK-DOOR (3) WCI G161019-51 Contact Us For Availability
20
WCI R901138 WCI R901138 Contact Us For Availability
21
RACK-DOOR WCI G161019-52 Contact Us For Availability
21
BRACKET-MTG (4) WCI G164637 Contact Us For Availability
22
SUPPORT-RK RS (4) WCI G185363-01 Contact Us For Availability
22
SHIM-BTM HNG WCI G163203 Contact Us For Availability
23
SUPPORT-RK LS (4) WCI G185364-01 Contact Us For Availability
23
WCI G161015-13 WCI G161015-13 Contact Us For Availability
24
DOOR-DAIRY (2) WCI R901100 Contact Us For Availability
24
WCI G166052 WCI G166052 Contact Us For Availability
24A
RACK-ICE TRAY (NON-ILLUSTRATED) WCI R901110 Contact Us For Availability
25
SHELF-FRZR WCI R901101 Contact Us For Availability
25
RETAINER-OVLD WCI G188957 Contact Us For Availability
26
WCI G173948-22 WCI G173948-22 Contact Us For Availability
26
END CAP-SHELF (2) WCI G166495-01 Contact Us For Availability
26
WCI G182225-02 WCI G182225-02 Contact Us For Availability
27
TRIM (CUT TO SIZE) WCI G187267-10 Contact Us For Availability
27
COMPR W/ ELEC WCI C620100 Contact Us For Availability
27A
WIRING HARNESS-COMPRESSOR (NON-ILLUSTRATED) WCI G162733-02 Contact Us For Availability
29
FRAME-SHELF M/K WCI G187217-01 Contact Us For Availability
30
TRIM, REAR WCI G172409-09 Contact Us For Availability
30
WCI G184599 WCI G184599 Contact Us For Availability
31
WCI G187215-01 WCI G187215-01 Contact Us For Availability
32
HANGER-PAN RS WCI G187216-01 Contact Us For Availability
32
WCI G168120 WCI G168120 Contact Us For Availability
32A
SCREW-HGR MTG (2) (NON-ILLUSTRATED) WCI G184823 Contact Us For Availability
33
WCI G177013-01 WCI G177013-01 Contact Us For Availability
33
CLIP (4) WCI G163204 Contact Us For Availability
34
TRIM (CUT TO SIZE) WCI G177343-06 Contact Us For Availability
34
PAN, DEFROST WCI G184715 Contact Us For Availability
35
WCI R901114 WCI R901114 Contact Us For Availability
35
NUT, LOCK WCI G164958 Contact Us For Availability
36
WCI R901115 WCI R901115 Contact Us For Availability
36
WCI G183584 WCI G183584 Contact Us For Availability
37
SUPPORT-CRISPER WCI R901111 Contact Us For Availability
37
CORD, SERVICE WCI G162549-01 Contact Us For Availability
38
WCI R901113 WCI R901113 Contact Us For Availability
38
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
38A
SEAL RING (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
39
GASKET-CRISPER WCI R901112 Contact Us For Availability
39
SPOUT, DRAIN WCI G162179 Contact Us For Availability
40
HALF SHELF-GLASS WCI G171654-27 Contact Us For Availability
40
WCI G185279 WCI G185279 Contact Us For Availability
41
FRAME, HALF SHELF WCI G178323-03 Contact Us For Availability
42
TRIM, REAR WCI G172409-10 Contact Us For Availability
42
HEAT EXCHANGER WCI G147918 Contact Us For Availability
43
CHANNEL-RS AND LS WCI G170695 Contact Us For Availability
44
CHANNEL, CTR. WCI G175612 Contact Us For Availability
44A
SCREW-MTG (3) (NON-ILLUSTRATED) WCI G187449 Contact Us For Availability
45
WCI G163021 WCI G163021 Contact Us For Availability
45
EVAPORATOR WCI G164572 Contact Us For Availability
46
WCI R901145 WCI R901145 Contact Us For Availability
46
BLOCK-INSUL RS WCI G185299 Contact Us For Availability
46A
WCI R901142 WCI R901142 Contact Us For Availability
47
WCI R901143 WCI R901143 Contact Us For Availability
47
BLOCK-INSUL LS WCI G188375 Contact Us For Availability
47A
PLUG-BLOCK (NON-ILLUSTRATED) WCI G185276 Contact Us For Availability
48
WCI R901144 WCI R901144 Contact Us For Availability
48
WCI G177534 WCI G177534 Contact Us For Availability
48A
WCI R901141 WCI R901141 Contact Us For Availability
49
WCI R901146 WCI R901146 Contact Us For Availability
49
INSULATION WCI G166511-02 Contact Us For Availability
50
WCI G186709 WCI G186709 Contact Us For Availability
50
WCI G167234 WCI G167234 Contact Us For Availability
51
WCI R901147 WCI R901147 Contact Us For Availability
52
BULB-LIGHT WCI Q63749 Contact Us For Availability
53
SOCKET LIGHT WCI G168302 Contact Us For Availability
54
WCI G176722-01 WCI G176722-01 Contact Us For Availability
55
LABEL-CONT BOX WCI G180197 Contact Us For Availability
56
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
57
WCI G178402-02 WCI G178402-02 Contact Us For Availability
58
CONTROL, TEMP. WCI G162667-07 Contact Us For Availability
58A
WCI G107080 WCI G107080 Contact Us For Availability
62
WCI G180373-08 WCI G180373-08 Contact Us For Availability
63
WCI G177254 WCI G177254 Contact Us For Availability
64
SPACER (2) WCI G490082 Contact Us For Availability
65
WCI R901118 WCI R901118 Contact Us For Availability
66
TOP-REFR WCI 3001651 Contact Us For Availability
67
BOTTOM-FRZR WCI R901120 Contact Us For Availability
68
WCI R901121 WCI R901121 Contact Us For Availability
69
SCREW-MTG (3) WCI G162673 Contact Us For Availability
69A
HARNESS-DIVIDER (NON-ILLUSTRATED) WCI R901122 Contact Us For Availability
71
SPRT-COI WCI G163669 Contact Us For Availability
72
WCI G187599 WCI G187599 Contact Us For Availability
73
WCI G174734 WCI G174734 Contact Us For Availability
74
WCI G174733 WCI G174733 Contact Us For Availability
75
WCI G85642 WCI G85642 Contact Us For Availability
76
WCI G166912 WCI G166912 Contact Us For Availability
× ![]()
