Model Electrolux RT218JCF2 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

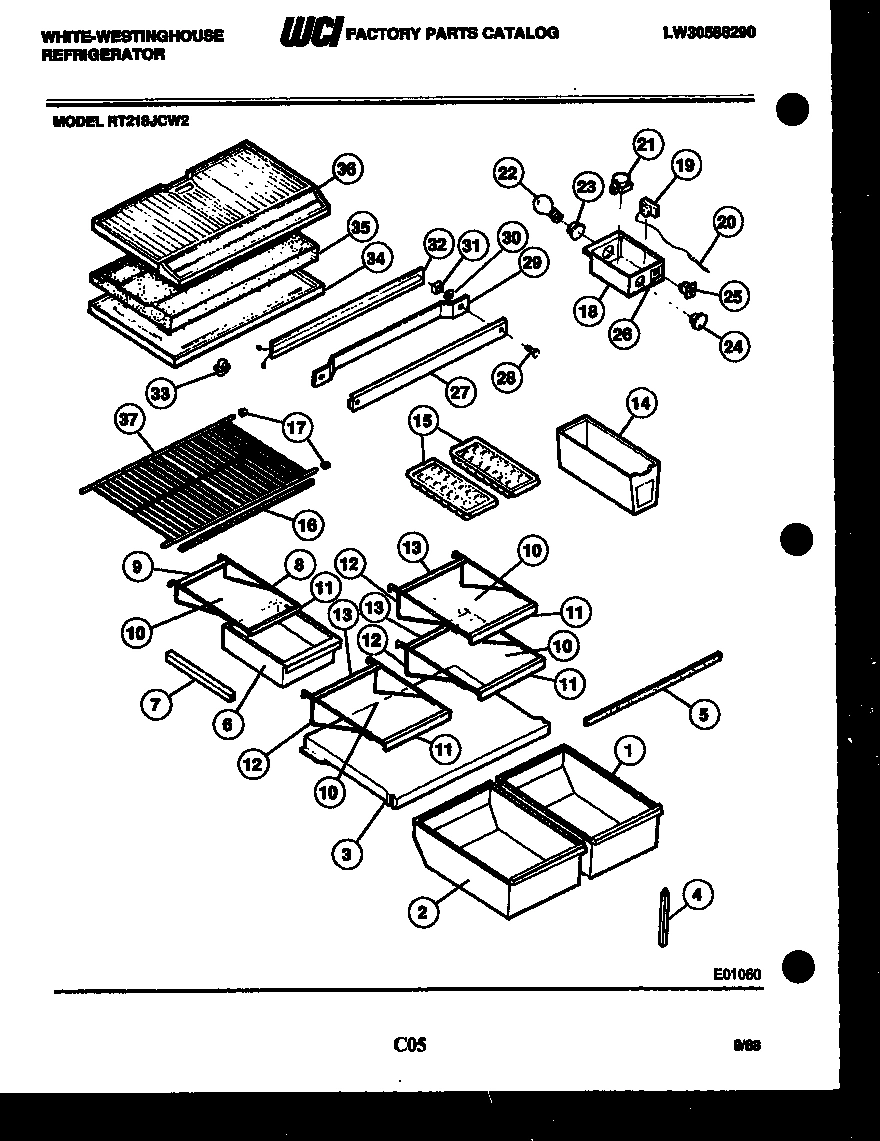

04 - SHELVES AND SUPPORTS

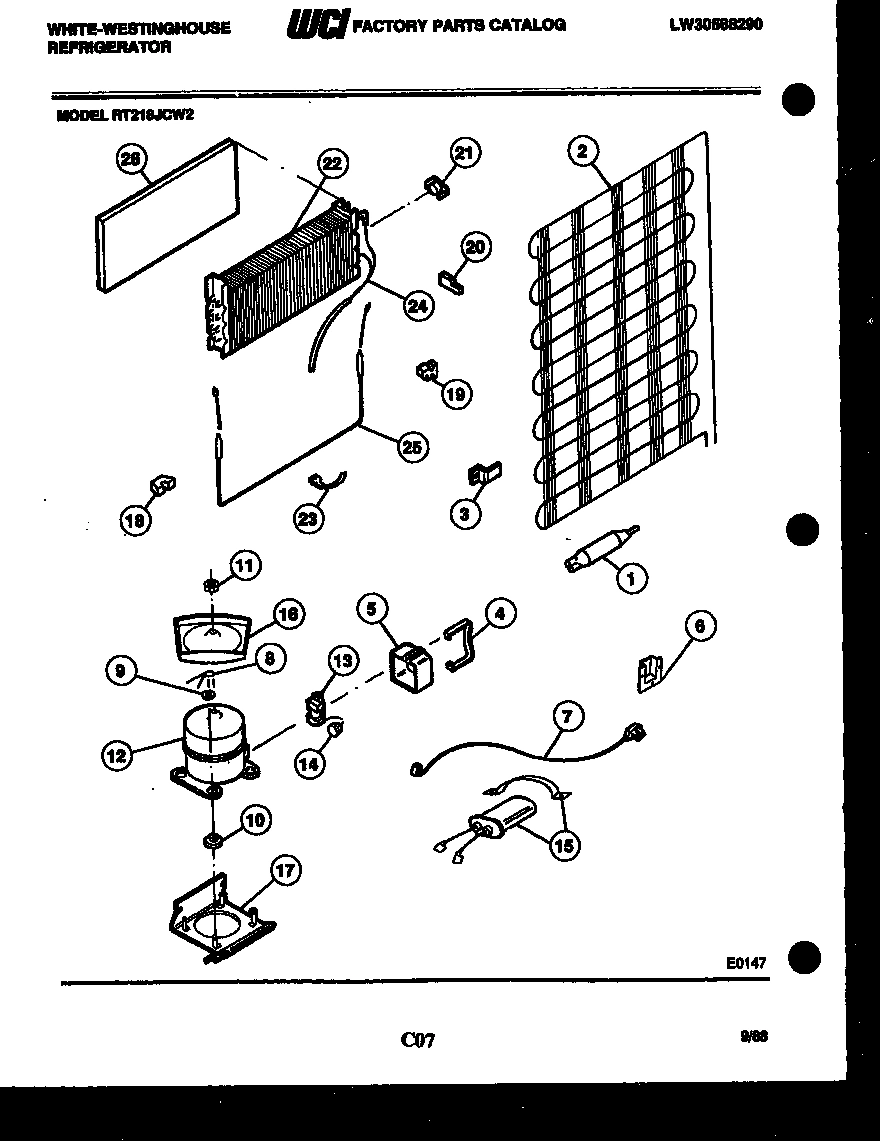

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT218JCF2 REFRIGERATOR
*14572
RACK-ICE TRAY WCI G186095-02 Contact Us For Availability
*14575
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
*14575
WCI G167234 WCI G167234 Contact Us For Availability
*14575
HARNESS - WIRING WCI G184904 Contact Us For Availability
*14575
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
1
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
1
PAN-CRISPER RS WCI R901114 Contact Us For Availability
2
PANEL-INNER-FREEZER WCI 3001613 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
WCI 3001642 WCI 3001642 Contact Us For Availability
2
WCI G163133 WCI G163133 Contact Us For Availability
3
DOOR STOP (2) WCI G155072 Contact Us For Availability
3
WCI G183861 WCI G183861 Contact Us For Availability
3
COVER-CRISPER WCI G490064-09 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI G164637 Contact Us For Availability
4
WCI G162977-10 WCI G162977-10 Contact Us For Availability
4
SUPPORT-COVER WCI G166310-06 Contact Us For Availability
5
WCI G103903 No Longer Available
5
NAMEPLATE WCI G176986 Contact Us For Availability
5
GASKET, COVER WCI G180108-07 Contact Us For Availability
5A
LABEL-NAMEPLATE (NON-ILLUSTRATED) WCI G177218-01 Contact Us For Availability
6
WCI G169332-10 WCI G169332-10 Contact Us For Availability
6
WASHER, HINGE WCI G164355 Contact Us For Availability
6
WCI G177013-01 WCI G177013-01 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
6A
TRIM-PAN (NON-ILLUSTRATED) WCI G177343-06 Contact Us For Availability
7
WCI G177141-07 WCI G177141-07 Contact Us For Availability
7
ROLLER ASSEMBLY (2) WCI G177021 Contact Us For Availability
7
WCI G187215-01 WCI G187215-01 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
7A
WCI G187216-01 WCI G187216-01 Contact Us For Availability
7B
SCREW-MOUNTING (2) (NON-ILLUSTRATED) WCI G184823 Contact Us For Availability
8
WCI G177141-04 WCI G177141-04 Contact Us For Availability
8
ROLLER ASSEMBLY (2) WCI G183407 Contact Us For Availability
8
FRAME-M/K WCI G187217-01 Contact Us For Availability
8
CLIP (4) WCI G163204 Contact Us For Availability
8A
WCI G185566 WCI G185566 Contact Us For Availability
9
TRIM-HANDLE TOP (2) WCI G179270 Contact Us For Availability
9
TRIM, REAR WCI G172409-09 Contact Us For Availability
9
WASHER (4) WCI G164634 Contact Us For Availability
10
TRIM-HANDLE BOT (2) WCI G179271 Contact Us For Availability
10
WCI G177025 WCI G177025 Contact Us For Availability
10
SHELF-GLASS (5) WCI G171654-27 Contact Us For Availability
11
END-HANDLE TOP (2) WCI G177142 Contact Us For Availability
11
WCI G178494 WCI G178494 Contact Us For Availability
11
TRIM-FRONT (5) WCI G187267-11 Contact Us For Availability
11
NUT, LOCK WCI G164958 Contact Us For Availability
12
END-HANDLE, BOT (2) WCI G177143 Contact Us For Availability
12
WCI G177024 WCI G177024 Contact Us For Availability
12
FRAME-SHELF (4) WCI G178323-03 Contact Us For Availability
12
WCI G190381 WCI G190381 Contact Us For Availability
12A
CLIP-HANDLE (8) (NON-ILLUSTRATED) WCI G177144 Contact Us For Availability
13
PANEL-FREEZE-COFFEE WCI G187355-10 Contact Us For Availability
13
WCI G182799 WCI G182799 Contact Us For Availability
13
TRIM-REAR (4) WCI G172409-10 Contact Us For Availability
13
WCI G182225-18 WCI G182225-18 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
14
CONTAINER ICE WCI G161015-13 Contact Us For Availability
14
WCI G189006 WCI G189006 Contact Us For Availability
15
PANEL-OUTER-COFFEE WCI R901133 Contact Us For Availability
15
HINGE BRACKET-BOT WCI G191474 Contact Us For Availability
15
CAPACITOR, RUN WCI G188885-02 Contact Us For Availability
15A
BEARING, HINGE (4) (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
15A
STRAP-CAPACITOR (NON-ILLUSTRATED) WCI G188897 Contact Us For Availability
16
WCI G178328-02 WCI G178328-02 Contact Us For Availability
16
WCI G163203 WCI G163203 Contact Us For Availability
16
TRIM-FRONT FREEZER WCI 3001636 Contact Us For Availability
16
PAN, DEFROST WCI G184715 Contact Us For Availability
16A
WCI G153407-60 WCI G153407-60 Contact Us For Availability
17
BUTTON-HINGE WCI G162892-14 Contact Us For Availability
17
CAP PROTECTOR (2) WCI G166495-01 Contact Us For Availability
17
PLATE-COMPRESSOR MTG WCI G184599 Contact Us For Availability
18
GASKET-REFR WCI G186932-13 Contact Us For Availability
18
WCI G176722-01 WCI G176722-01 Contact Us For Availability
18
BLOCK-INSULATION LS WCI G188375 Contact Us For Availability
19
PANEL-INNER-REFR WCI 3001614 Contact Us For Availability
19
WCI G490004-02 WCI G490004-02 Contact Us For Availability
19
WCI G162205-12 WCI G162205-12 Contact Us For Availability
19
BLOCK-INSULATION RS WCI G185299 Contact Us For Availability
19A
WCI G107080 WCI G107080 Contact Us For Availability
20
RACK-DOOR (3) WCI G161019-51 Contact Us For Availability
20
WCI G184632 WCI G184632 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
21
RACK-DOOR WCI G161019-52 Contact Us For Availability
22
SUPPORT-RACK RS (4) WCI G185363-01 Contact Us For Availability
22
WCI G166912 WCI G166912 Contact Us For Availability
22
EVAPORATOR WCI G164572 Contact Us For Availability
23
SUPPORT-RACK LS (4) WCI G185364-01 Contact Us For Availability
23
WCI G174733 WCI G174733 Contact Us For Availability
23
SOCKET LIGHT WCI G168302 Contact Us For Availability
24
DOOR-DAIRY (2) WCI R901100 Contact Us For Availability
24
WCI G174734 WCI G174734 Contact Us For Availability
24
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
24
HEAT EXCHANGER WCI G147918 Contact Us For Availability
25
WCI G162827-13 WCI G162827-13 Contact Us For Availability
25
WCI G178402-02 WCI G178402-02 Contact Us For Availability
26
WCI G173948-22 WCI G173948-22 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
LABEL-CONTROL BOX WCI G180197 Contact Us For Availability
26
INSULATOR WCI G166511-01 Contact Us For Availability
27
NUT, PUSH WCI G162662 Contact Us For Availability
27
WCI G180373-10 WCI G180373-10 Contact Us For Availability
28
KNOB-DAMPER CNTRL WCI G162663-15 Contact Us For Availability
28
SCREW-MOUNTING (4) WCI G183103 Contact Us For Availability
29
WCI G179793-02 WCI G179793-02 Contact Us For Availability
29
STRAP, MULLION MTG WCI G490087 Contact Us For Availability
30
WCI G180298 WCI G180298 Contact Us For Availability
30
WASHER-STEEL (4) WCI G166847 Contact Us For Availability
31
SPOUT, DRAIN WCI G162179 Contact Us For Availability
31
SPACER (2) WCI G490082 Contact Us For Availability
32
WCI G185279 WCI G185279 Contact Us For Availability
32
WCI 3018916 WCI 3018916 Contact Us For Availability
33
TUBE-DRAIN WCI G184290-01 Contact Us For Availability
33A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
34
TOP-REFRIGERATOR WCI 3001651 Contact Us For Availability
34A
SCREW-MOUNTING (3) WCI G162673 Contact Us For Availability
35
RING-ORIFICE WCI G167217 Contact Us For Availability
35
WCI G184683 WCI G184683 Contact Us For Availability
36
WCI G184604 WCI G184604 Contact Us For Availability
37
WCI G177059-05 WCI G177059-05 Contact Us For Availability
38
WCI G185302 WCI G185302 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
40
WCI G85642 WCI G85642 Contact Us For Availability
41
WCI G184609 WCI G184609 Contact Us For Availability
41A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
42
HINGE-BRACKET CENTER WCI G163207 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
WCI G177534 WCI G177534 Contact Us For Availability
46
WCI G170695 WCI G170695 Contact Us For Availability
48
WCI G189341 WCI G189341 Contact Us For Availability
50
WCI G163669 WCI G163669 Contact Us For Availability
51
WCI G174747-10 WCI G174747-10 Contact Us For Availability
53
WCI G179684-10 WCI G179684-10 Contact Us For Availability
53A
BUTTON, I/M HOLE (NON-ILLUSTRATED) WCI G187599 Contact Us For Availability
53B
TAPPING PLATE (4) (NON-ILLUSTRATED) WCI G179797 Contact Us For Availability
54
WCI G177388 WCI G177388 Contact Us For Availability
55
WCI G177426-03 WCI G177426-03 Contact Us For Availability
56
WCI 3200860 WCI 3200860 Contact Us For Availability
57
SCREW WCI G187449 Contact Us For Availability
58
WCI G177427-01 WCI G177427-01 Contact Us For Availability
59
WCI G177425-02 WCI G177425-02 Contact Us For Availability
60
WCI G177378 WCI G177378 Contact Us For Availability
60A
EXTENSION-AIR DEFLECTOR (NON-ILLUSTRATED) WCI 3200590 Contact Us For Availability
60B
ANCHOR NUT (2) (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
61
SCREW, LEVELING (2) WCI G185713 Contact Us For Availability
× ![]()
