Model Electrolux RT217MCW2 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

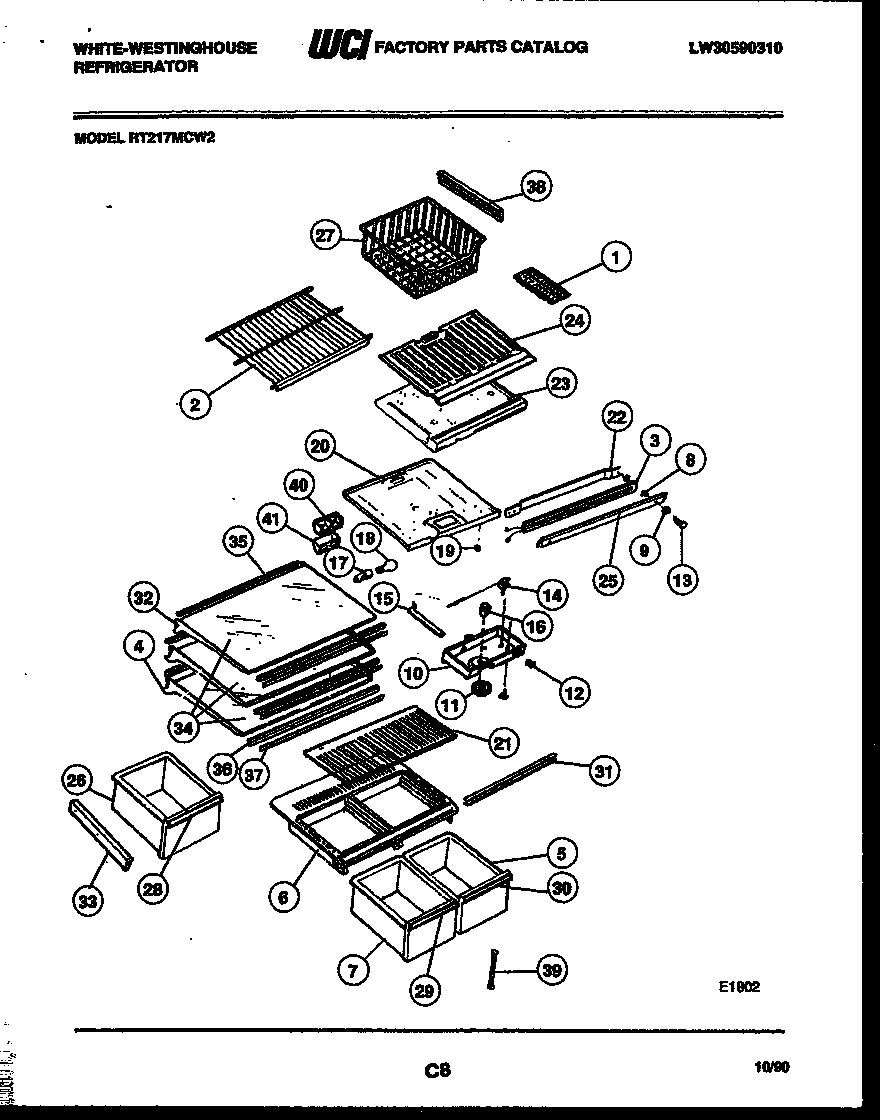

04 - SHELVES AND SUPPORTS

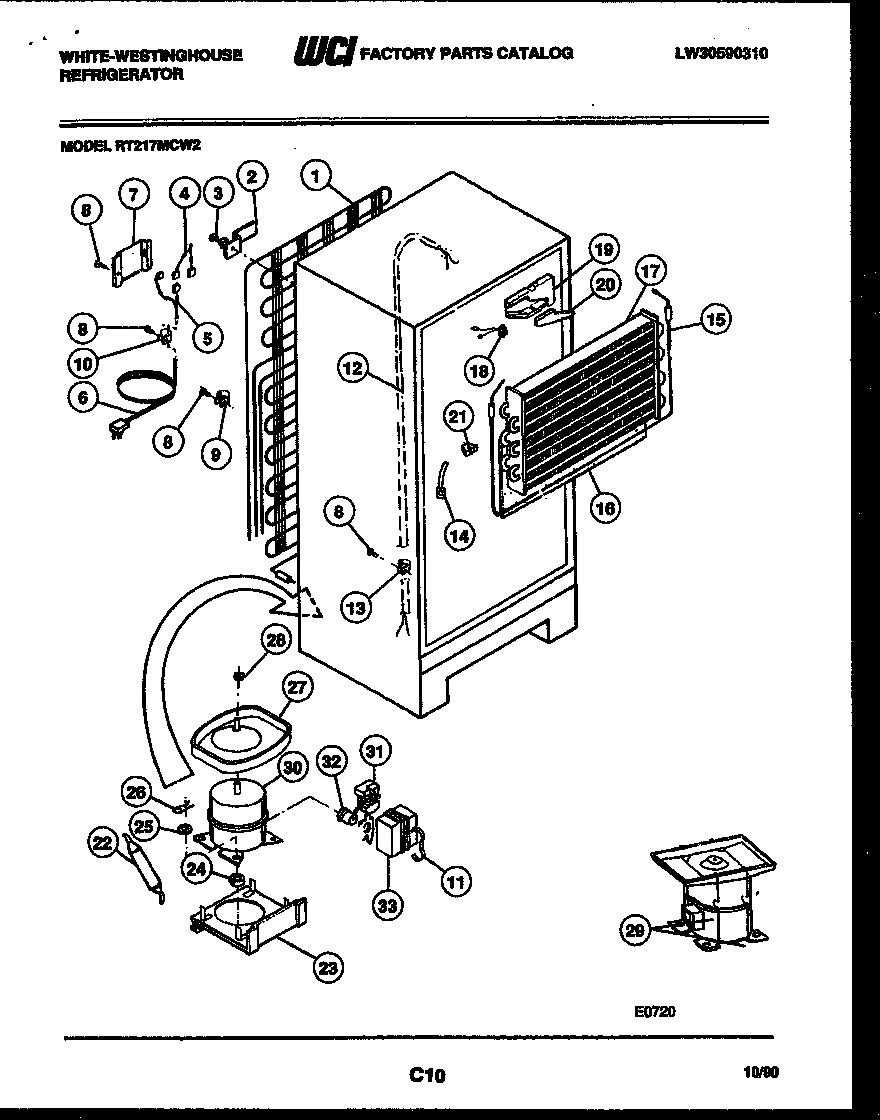

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT217MCW2 REFRIGERATOR
*35375
TAPPING PLATE (4) WCI 08012296 Contact Us For Availability
*35375
WCI G174733 WCI G174733 Contact Us For Availability
*35375
WCI G174734 WCI G174734 Contact Us For Availability
*35375
PLUG-LINER (2) WCI G187599 Contact Us For Availability
*35386
RACK - HANGING - EGG WCI 5303206533 Contact Us For Availability
*35386
CLIP-CANTILEVER SHELF-SHIPPING (6) WCI G170910 Contact Us For Availability
*35387
WCI G186095-01 WCI G186095-01 Contact Us For Availability
*35396
HOT TUBE REPAIR KIT-SVCE WCI G189383 Contact Us For Availability
1
WCI 3205119 WCI 3205119 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5303206520 WCI 5303206520 Contact Us For Availability
2
BRACKET-CONDENSER MTG (4) WCI 3001342 Contact Us For Availability
2A
CAP-PROTECTOR (2) (NON-ILLUSTRATED) WCI 3201150 No Longer Available
2B
WCI 5303206523 WCI 5303206523 Contact Us For Availability
3
WCI 08012007 WCI 08012007 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
WCI 3018916 WCI 3018916 Contact Us For Availability
3A
WASHER-NO. 10 EXT TOOTH LOCK (NON-ILLUSTRATED WCI G164820 Contact Us For Availability
4
NAMEPLATE WCI 3206159 Contact Us For Availability
4
WCI 3205118 WCI 3205118 Contact Us For Availability
4
FRAME-CANTILEVER (2) WCI 3200616 Contact Us For Availability
4
WIRING HARN-CONTROL WCI 3019040 Contact Us For Availability
5
DOOR STOP (2) WCI 08000255 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
WCI 5303206354 WCI 5303206354 Contact Us For Availability
5
WCI 3001347 WCI 3001347 Contact Us For Availability
6
COVER-CRISPER WCI 5303206538 Contact Us For Availability
6
WCI G162549-01 WCI G162549-01 Contact Us For Availability
6A
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 3200329 Contact Us For Availability
7
PAN - CRISPER - LH WCI 3206311 Contact Us For Availability
7
WCI G183584 WCI G183584 Contact Us For Availability
8
WCI 3001331 WCI 3001331 Contact Us For Availability
8
WCI 3200464 WCI 3200464 Contact Us For Availability
9
WCI G185566 WCI G185566 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
WCI G166847 WCI G166847 Contact Us For Availability
10
WCI G186803-14 WCI G186803-14 Contact Us For Availability
10
WCI 3206381 WCI 3206381 Contact Us For Availability
10
CONTROL BOX WCI 3206130 Contact Us For Availability
11
PANEL-FREEZER-INNER WCI 5303206509 Contact Us For Availability
11
WCI 5303206544 WCI 5303206544 Contact Us For Availability
11
KNOB-TEMPERATURE CONTROL WCI 3201777 Contact Us For Availability
11
STRAP-TERM COVER WCI 5303211232 Contact Us For Availability
11B
WCI 5303206545 WCI 5303206545 Contact Us For Availability
12
RACK-FREEZER WCI 5303206510 Contact Us For Availability
12
HINGE COVER-WHITE WCI 08012820 Contact Us For Availability
12
WCI 3206129 WCI 3206129 Contact Us For Availability
12
WCI G177531 WCI G177531 Contact Us For Availability
13
SUPPORT-RACK RH WCI 3206161 Contact Us For Availability
13
WCI 08012843 WCI 08012843 Contact Us For Availability
13
WCI 08012258 WCI 08012258 Contact Us For Availability
13A
SUPPORT-RACK-LH WCI 3206162 Contact Us For Availability
14
WCI G103903 WCI G103903 Contact Us For Availability
14
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
14A
WCI G107080 WCI G107080 Contact Us For Availability
15
WCI 3206191 WCI 3206191 Contact Us For Availability
15
WCI 3202336 WCI 3202336 Contact Us For Availability
15
WCI 3018891 WCI 3018891 Contact Us For Availability
16
WCI 3206302 WCI 3206302 Contact Us For Availability
16
WASHER-HINGE WCI 3001038 Contact Us For Availability
16
WCI G166511-02 WCI G166511-02 Contact Us For Availability
17
WCI 5303206512 WCI 5303206512 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
WCI G162506 WCI G162506 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
19
WCI G186803-13 WCI G186803-13 Contact Us For Availability
19
INSULATION BLOCK-RH WCI G185299 Contact Us For Availability
20
RACK-REFRIGERATOR WCI 5303206518 Contact Us For Availability
20
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
20
INSULATION PLUG-RH WCI G185276 Contact Us For Availability
20A
WCI G162673 WCI G162673 Contact Us For Availability
21
PANEL-REFRIGERATOR-INNER WCI 5303206513 Contact Us For Availability
21
GLASS-CRISPER COVER WCI 5303206539 Contact Us For Availability
21
INSULATION BLOCK-LH WCI G188375 Contact Us For Availability
22
WCI G187356 WCI G187356 Contact Us For Availability
22
STRAP-MULLION MTG WCI 08010008 Contact Us For Availability
23
WCI G177143 WCI G177143 Contact Us For Availability
23
WCI 3202834 WCI 3202834 Contact Us For Availability
23
WCI 3019039 WCI 3019039 Contact Us For Availability
23
PLATE-COMPR MTG WCI 08013663 Contact Us For Availability
23B
TRIM-HANDLE END-BOTTOM (2) (NON-ILLUSTRATED) WCI G179271 Contact Us For Availability
24
RACK-FRZR WCI 5303206511 Contact Us For Availability
24
BOTTOM-FREEZER WCI 3001472 Contact Us For Availability
25
WCI 3206189 WCI 3206189 Contact Us For Availability
25
WCI 3203044 WCI 3203044 Contact Us For Availability
25
WCI 3200366 WCI 3200366 Contact Us For Availability
25
WASHER (4) WCI G164634 Contact Us For Availability
26
WCI 5303206516 WCI 5303206516 Contact Us For Availability
26
COVER-HINGE HOLES WCI 3001478 Contact Us For Availability
26
MEAT PAN WCI 5303206542 Contact Us For Availability
26
CLIP (4) WCI G163204 Contact Us For Availability
26A
WCI 5303206517 WCI 5303206517 Contact Us For Availability
27
RACK-REFR WCI 5303206515 Contact Us For Availability
27
WASHER-NYLON (2) WCI 08011326 Contact Us For Availability
27
BASKET-FRZR WCI 5303206524 Contact Us For Availability
27
PAN-DEFROST-SVCE COMPR WCI G184715 Contact Us For Availability
27A
PAN-DEFROST-ORIG COMPR (NON-ILLUSTRATED) WCI 5300171129 Contact Us For Availability
28
WCI 3001458 WCI 3001458 Contact Us For Availability
28
WCI 5303206541 WCI 5303206541 Contact Us For Availability
28
WCI G164958 WCI G164958 Contact Us For Availability
29
WCI 5303206519 WCI 5303206519 Contact Us For Availability
29
SHIM-BOTTOM HINGE WCI 3001323 Contact Us For Availability
29
TRIM-CRISPER PAN-LH WCI 3206308 Contact Us For Availability
29
PAN RETAINER KIT-SERVICE COMPR WCI 3916001 Contact Us For Availability
30
WCI G177142 WCI G177142 Contact Us For Availability
30
WCI G174747-01 WCI G174747-01 Contact Us For Availability
30
TRIM-CRISPER PAN-RH WCI 3206317 Contact Us For Availability
30
COMPRESSOR W/ELECTRICALS-SERVICE WCI 5303916012 Contact Us For Availability
30A
CLIP-DOOR HANDLE (2) (NON-ILLUSTRATED) WCI G177144 Contact Us For Availability
30A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30B
TRIM-HANDLE END-TOP (2) (NON-ILLUSTRATED) WCI G179270 Contact Us For Availability
31
WCI 5303007173 WCI 5303007173 Contact Us For Availability
31
WCI 3206418 WCI 3206418 Contact Us For Availability
31
WCI 08000056 WCI 08000056 Contact Us For Availability
31
WCI 5303206540 WCI 5303206540 Contact Us For Availability
32
PUSH PIN-DRAIN SPOUT WCI 3001361 Contact Us For Availability
32
FRAME-MEAT KEEP SHELF WCI 5303211349 Contact Us For Availability
32
WCI 3202863 WCI 3202863 Contact Us For Availability
32A
WCI 3202891 WCI 3202891 Contact Us For Availability
33
WCI G85642 WCI G85642 Contact Us For Availability
33
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
33
WCI 5303209254 WCI 5303209254 Contact Us For Availability
33A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
33B
SCREW (2) (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
34
COVER-EVAPORATOR COIL WCI 08013665 Contact Us For Availability
34
WCI 5303211350 WCI 5303211350 Contact Us For Availability
34A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
35
WCI 5303211348 WCI 5303211348 Contact Us For Availability
35A
CLIP-TRIM REAR (6) (NON-ILLUSTRATED) WCI 5303211351 Contact Us For Availability
36
WCI 3018193 WCI 3018193 Contact Us For Availability
36
RETAINER-GLASS (3) WCI 5303209274 Contact Us For Availability
37
DRAIN TROUGH WCI 3001470 Contact Us For Availability
37
TRIM-SHELF (3) WCI 5303206537 Contact Us For Availability
38
WCI G183861 WCI G183861 Contact Us For Availability
38
HANGER-FRZR BSKT-RH WCI 5303206521 Contact Us For Availability
38A
HANGER-FRZR BSKT-LH WCI 5303206522 Contact Us For Availability
39
RING, SEAL WCI G176853 Contact Us For Availability
39
SUPPORT-CRISPER COVER-ADJ WCI 3205987 Contact Us For Availability
40
DEFLECTOR - AIR WCI 3204206 Contact Us For Availability
41
CHANNEL-SHELF MTG (2) WCI 08000302 Contact Us For Availability
41
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
42
WCI 08009773 WCI 08009773 Contact Us For Availability
42B
SCREW-ROLLER MTG (2) (NON-ILLUSTRATED) WCI 08009762 Contact Us For Availability
43
ROLLER ASSY-FRONT (2) WCI 08009760 Contact Us For Availability
44
SPRING-ADJ (2) WCI 08009790 Contact Us For Availability
45
BOLT-ADJ (2) WCI 08009761 Contact Us For Availability
46
SUPPORT-CAB BASE (2) WCI 08013678 Contact Us For Availability
47
WCI 3205540 WCI 3205540 Contact Us For Availability
48
NUT-ANCHOR (2) WCI 08003584 Contact Us For Availability
49
BASE-CABINET WCI 08010092 Contact Us For Availability
× ![]()
