Model Electrolux RT217JCD1 REFRIGERATOR – Common Parts & Diagrams

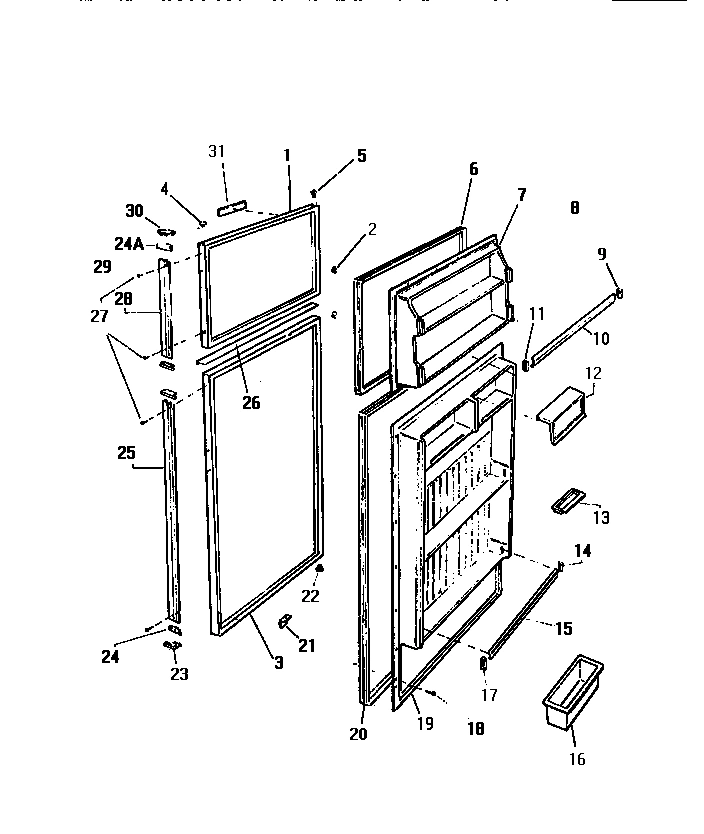

02 - DOOR

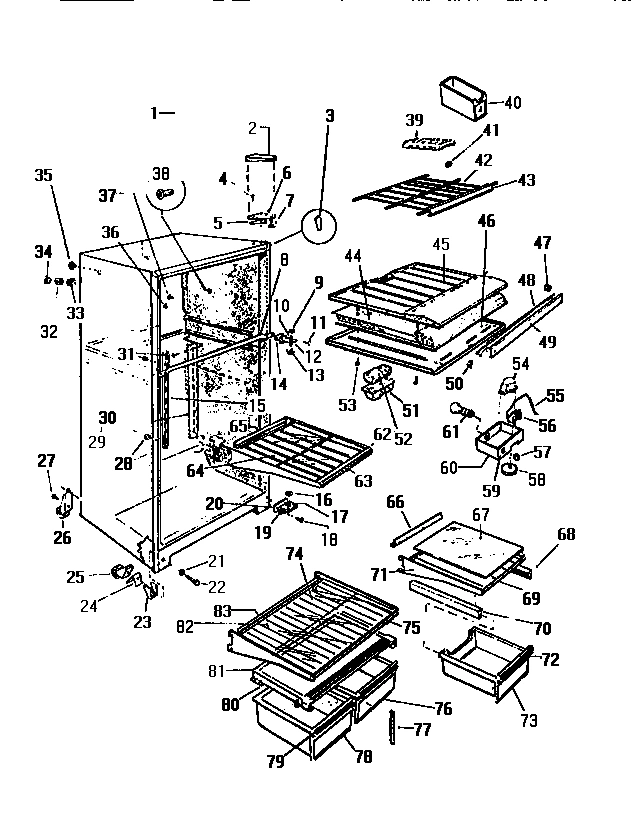

03 - CABINET, SHELVES, DIVIDER, FAN ASSE
04 - COOLING SYSTEM
Common parts from model Electrolux RT217JCD1 REFRIGERATOR
*95361
WCI C168328 WCI C168328 Contact Us For Availability
*95362
INSULATION, FIBERGLASS 34`` X 48`` X 1`` THIC WCI C69110 Contact Us For Availability
*95363
INSULATION, FIBERGLASS 34`` X 48`` X 2`` THIC WCI C69111 Contact Us For Availability
*95364
TAPE WCI C460947 Contact Us For Availability
*95365
CLEANING FLUID WCI 467B372H36 Contact Us For Availability
*95366
WCI R901122 WCI R901122 Contact Us For Availability
*95367
ICE TRAY WCI R2901 Contact Us For Availability
*95368
WCI A12136 WCI A12136 Contact Us For Availability
*95369
HARNESS, COMPRESSOR WIRING WCI G162733-02 Contact Us For Availability
*95370
HEAT EXCHANGER REPAIR KIT WCI G161672 Contact Us For Availability
*95371
WCI G179024 WCI G179024 Contact Us For Availability
1
WCI R901088 WCI R901088 Contact Us For Availability
1
WCI G174747-11 WCI G174747-11 Contact Us For Availability
1
WCI G163133 WCI G163133 Contact Us For Availability
2
WCI G162977-11 WCI G162977-11 Contact Us For Availability
2
COVER, TOP HINGE, ALMOND WCI G183558-11 Contact Us For Availability
2
BRACKET, CONDENSER MOUNTING WCI G164637 Contact Us For Availability
3
WCI R901134 WCI R901134 Contact Us For Availability
3
TRIM, CABINET CORNER (ALMOND) WCI G179684-11 Contact Us For Availability
3
DRIER, REGULAR WCI R900983 Contact Us For Availability
3A
DRIER, BURNED SYSTEM WCI R900125 Contact Us For Availability
4
WCI G169332-11 WCI G169332-11 Contact Us For Availability
4
WCI G185566 WCI G185566 Contact Us For Availability
5
SHIM WCI G183861 Contact Us For Availability
5
PLUG, RH BLOCK WCI G185276 Contact Us For Availability
6
WCI R901091 WCI R901091 Contact Us For Availability
6
HINGE WCI G183714 Contact Us For Availability
6
BLOCK RH WCI G185299 Contact Us For Availability
7
WCI R901095 WCI R901095 Contact Us For Availability
8
STRAP WCI G490087 Contact Us For Availability
8
EVAPORATOR LINE, HEATER WCI G164572 Contact Us For Availability
9
WCI G103903 No Longer Available
10
WCI G142220 WCI G142220 Contact Us For Availability
11
SCREW WCI G183103 Contact Us For Availability
11
HEAT EXCHANGER WCI G147918 Contact Us For Availability
12
WCI R901100 WCI R901100 Contact Us For Availability
12
BRACKET, HINGE WCI G163207 Contact Us For Availability
12
PIN, PUSH WCI G185279 Contact Us For Availability
13
CUP WCI G162179 Contact Us For Availability
14
SUPPORT, RH WCI G185363-01 Contact Us For Availability
14
SHIM WCI G162683 Contact Us For Availability
14
WCI G183584 WCI G183584 Contact Us For Availability
15
FRONT WCI G161019-51 Contact Us For Availability
15
STRINGER, CENTER WCI G175612 Contact Us For Availability
15
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
16
WCI G173948-19 WCI G173948-19 Contact Us For Availability
16
WASHER, HINGE WCI G164355 Contact Us For Availability
16
WCI G101747 WCI G101747 Contact Us For Availability
17
SUPPORT, LH WCI G185364-01 Contact Us For Availability
17
WCI G166506 WCI G166506 Contact Us For Availability
18
TROUGH WCI G177534 Contact Us For Availability
19
WCI R901099 WCI R901099 Contact Us For Availability
19
BRACKET, HINGE WCI G181019 Contact Us For Availability
19
INSULATION, FOAM WCI G166511-01 Contact Us For Availability
20
WCI R901098 WCI R901098 Contact Us For Availability
20
SHIM WCI G163203 Contact Us For Availability
21
WCI G155072 WCI G155072 Contact Us For Availability
21
WASHER, NYLON WCI G182799 Contact Us For Availability
22
BEARING WCI G183138 Contact Us For Availability
22
BOLT, ROLLER ADJ. WCI G177024 Contact Us For Availability
23
TRIM, BOTTOM WCI G179271 Contact Us For Availability
23
WCI R901108 WCI R901108 Contact Us For Availability
24
END CAP, BOTTOM WCI G177143 Contact Us For Availability
24
SPRING, ROLLER ADJ. WCI G178494 Contact Us For Availability
24A
END CAP, TOP WCI G177142 Contact Us For Availability
25
WCI R901137 WCI R901137 Contact Us For Availability
25
ROLLER ASSEMBLY, FRONT WCI G177021 Contact Us For Availability
25
BRACKET WCI G164571 Contact Us For Availability
26
TRIM WCI G178328-02 Contact Us For Availability
26
ROLLER, REAR WCI G183407 Contact Us For Availability
26
BRACKET WCI G185302 Contact Us For Availability
27
BOLT WCI G177025 Contact Us For Availability
27
RING WCI G167217 Contact Us For Availability
28
HANDLE WCI G177141-07 Contact Us For Availability
28
SPACER, CENTER STRINGER MOUNTING WCI G163201 Contact Us For Availability
29
CLIP, HANDLE WCI G177144 Contact Us For Availability
29
SCREW WCI G163989 Contact Us For Availability
30
TRIM, TOP WCI G179270 Contact Us For Availability
30
STRINGER (RT OR L SIDE) WCI G170695 Contact Us For Availability
31
WCI R304001 WCI R304001 Contact Us For Availability
31
LABEL, FAN COVER WCI G180298 Contact Us For Availability
32
TUBE WCI G85642 Contact Us For Availability
32
WCI G162663-13 WCI G162663-13 Contact Us For Availability
33
FERRULE WCI G174733 Contact Us For Availability
33
CLIP WCI G162662 Contact Us For Availability
34
FERRULE WCI G174734 Contact Us For Availability
34
WCI G179793-02 WCI G179793-02 Contact Us For Availability
35
WCI G141625 WCI G141625 Contact Us For Availability
35
DAMPER (AIR FLOW) WCI G162661 Contact Us For Availability
36
BUTTON, ICE MAKER HOLES (3) WCI G162659 Contact Us For Availability
37
SUPPORT, EVAPORATOR COVER WCI G163669 Contact Us For Availability
37
SPEED NUT WCI G167542 Contact Us For Availability
38
WCI R901126 WCI R901126 Contact Us For Availability
38A
GROMMET, SHELF MOUNTING LS WCI R901124 Contact Us For Availability
39
WCI R901110 WCI R901110 Contact Us For Availability
39
PLUG, DECORATIVE WCI G162827-13 Contact Us For Availability
40
WCI G161015-13 WCI G161015-13 Contact Us For Availability
40
DRAIN PAN WCI G184716 Contact Us For Availability
41
WCI G166495-01 WCI G166495-01 Contact Us For Availability
41
NUT WCI G164958 Contact Us For Availability
42
WCI R901101 WCI R901101 Contact Us For Availability
42
WCI G182225-18 WCI G182225-18 Contact Us For Availability
43
TRIM, SHELF (CUT TO SIZE) WCI R901102 Contact Us For Availability
43
RETAINER WCI G166053 Contact Us For Availability
44
DIVIDER, STYROFOAM WCI R901121 Contact Us For Availability
45
WCI R901120 WCI R901120 Contact Us For Availability
46
TOP, REFRIGERATOR WCI R901119 Contact Us For Availability
46
WCI G189006 WCI G189006 Contact Us For Availability
47
SPACER, MULLION MOUNTING WCI G490082 Contact Us For Availability
47
WCI R2001123 WCI R2001123 Contact Us For Availability
48
HEATER WCI G177254 Contact Us For Availability
49
WCI G180373 WCI G180373 Contact Us For Availability
49
WASHER, COMPRESSOR MOUNTING WCI G164634 Contact Us For Availability
50
CLIP, COMPRESSOR MOUNTING WCI G163204 Contact Us For Availability
51
COVER WCI G162178 Contact Us For Availability
51
WCI G162549-01 WCI G162549-01 Contact Us For Availability
52
BAFFLE WCI G162675 Contact Us For Availability
52
RUN CAPACITOR WCI G188885-02 Contact Us For Availability
53
SCREW WCI G162673 Contact Us For Availability
53
STRAP, CAPACITOR MOUNTING WCI G188897 Contact Us For Availability
54
MOUNTING PLATE, COMPRESSOR WCI R901125 Contact Us For Availability
56
WCI G162205-11 WCI G162205-11 Contact Us For Availability
57
SWITCH WCI G178402-02 Contact Us For Availability
58
KNOB WCI G490107-02 Contact Us For Availability
59
WCI G180197 WCI G180197 Contact Us For Availability
60
BOX WCI G176722-01 Contact Us For Availability
61
SOCKET WCI G168302 Contact Us For Availability
63
FRAME, HALF SHELF WCI G178323-03 Contact Us For Availability
65
TRIM, REAR WCI G172409-10 Contact Us For Availability
66
TRIM, REAR WCI G172409-09 Contact Us For Availability
67
SHELF, GLASS WCI G171654-27 Contact Us For Availability
68
HANGER, MEAT PAN RH WCI G187216-01 Contact Us For Availability
70
HANGER, MEAT PAN LH WCI G187215-01 Contact Us For Availability
71
FRAME, SHELF WCI G187217-01 Contact Us For Availability
73
PAN, MEAT WCI G176918-03 Contact Us For Availability
74
FRAME, SHELF WCI G178323-05 Contact Us For Availability
75
TRIM, FRONT (CUT TO SIZE) WCI G187267-10 Contact Us For Availability
76
WCI R901114 WCI R901114 Contact Us For Availability
77
WCI R901111 WCI R901111 Contact Us For Availability
78
WCI R901115 WCI R901115 Contact Us For Availability
79
TRIM, PANS (CUT TO SIZE) WCI G177343-06 Contact Us For Availability
80
WCI R901112 WCI R901112 Contact Us For Availability
81
WCI R901113 WCI R901113 Contact Us For Availability
82
SHELF, GLASS (FULL WIDTH) WCI G171654-29 Contact Us For Availability
83
TRIM, REAR WCI G172409-11 Contact Us For Availability
× ![]()
