Model Electrolux RT216JCV5 REFRIGERATOR – Common Parts & Diagrams

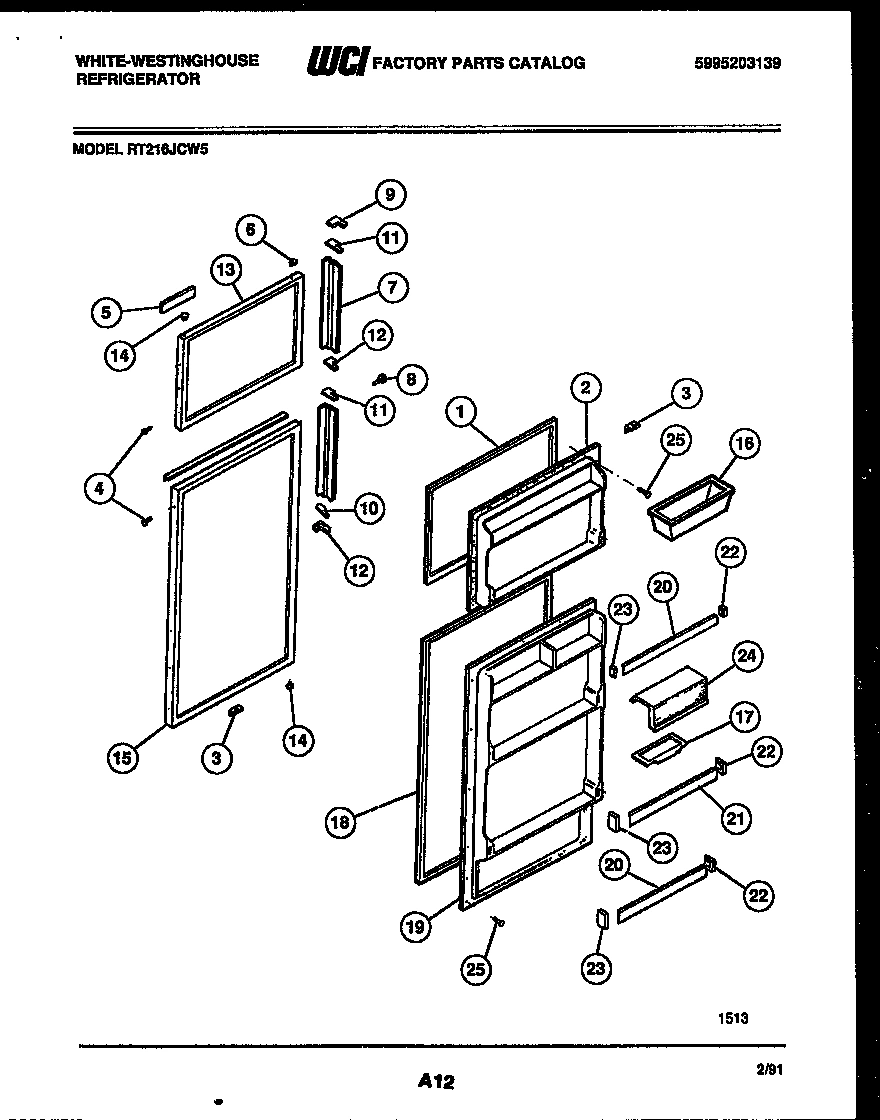

02 - DOOR PARTS

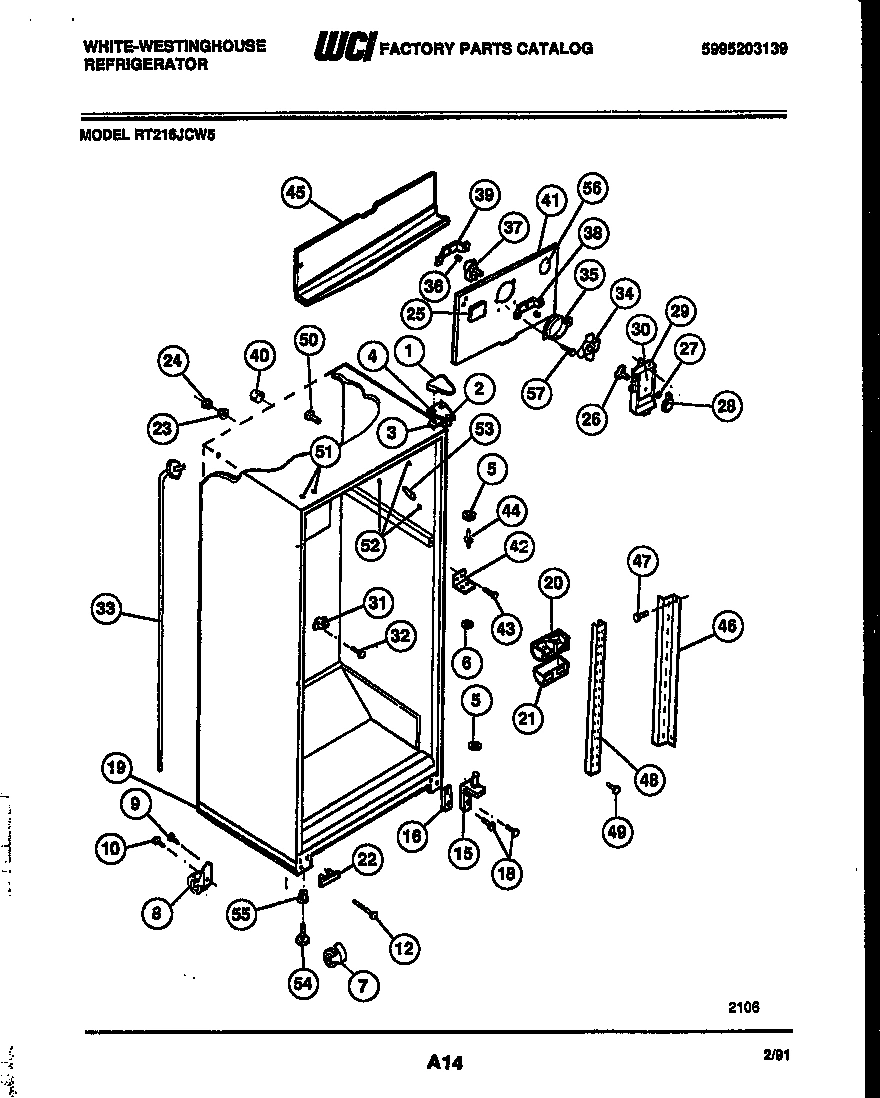

03 - CABINET PARTS

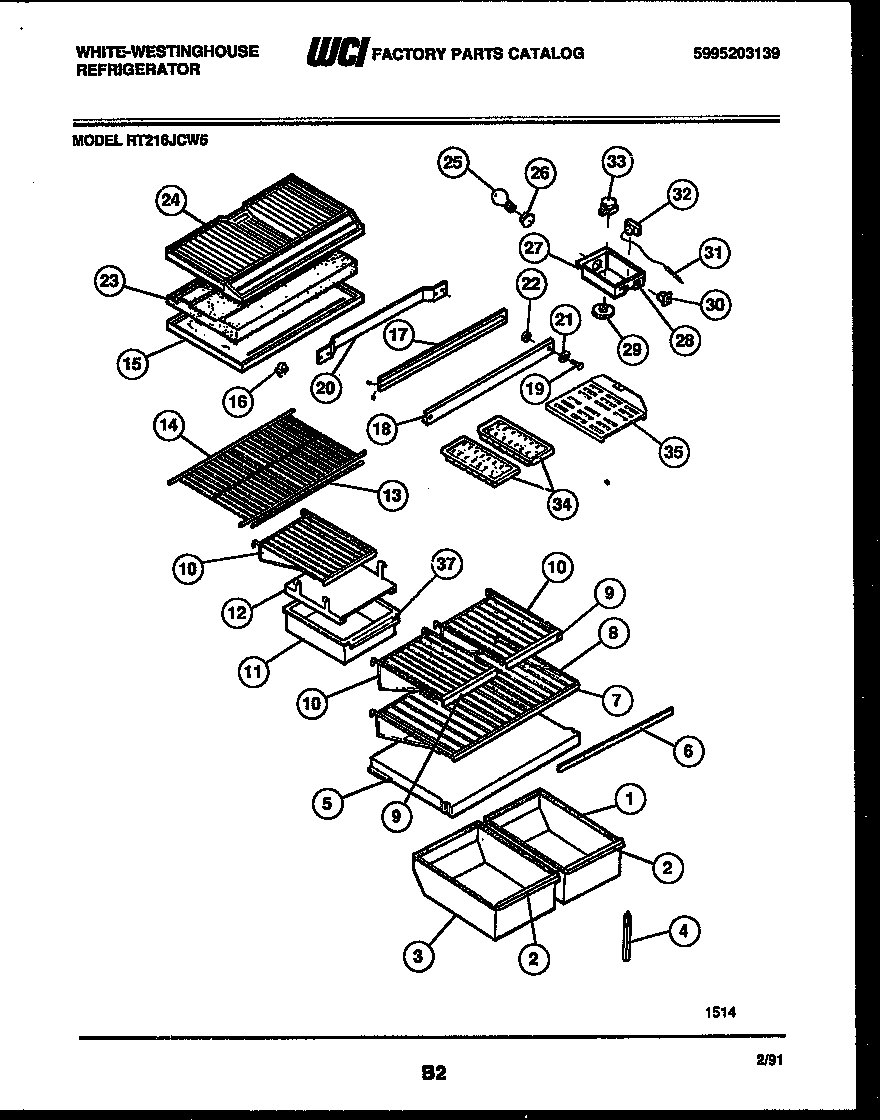

04 - SHELVES AND SUPPORTS

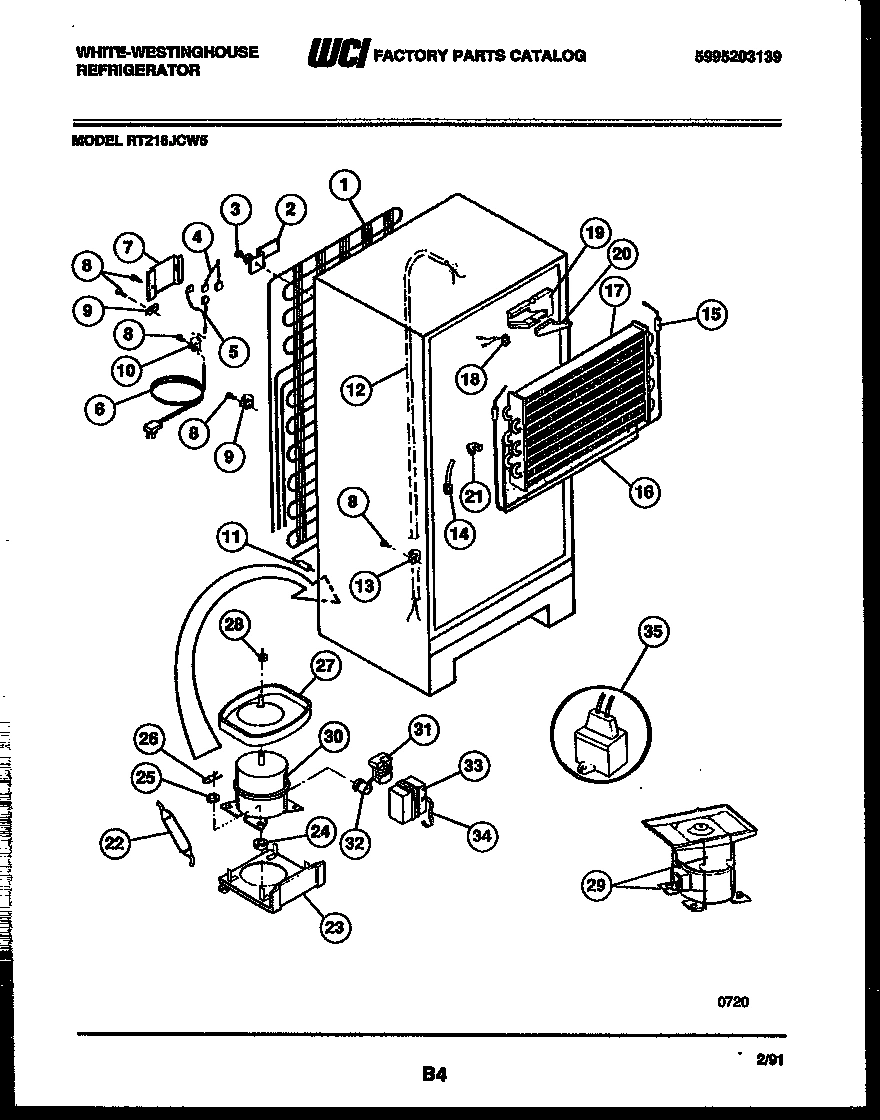

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT216JCV5 REFRIGERATOR
1
WCI 5303001642 WCI 5303001642 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
BRACKET-HINGE UPPER WCI 5308012843 Contact Us For Availability
2
WCI 5303001342 WCI 5303001342 Contact Us For Availability
2A
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
3
WCI 5303001037 WCI 5303001037 Contact Us For Availability
3
PAN-CRISPER LH WCI R000901114 Contact Us For Availability
3A
WCI 5308009617 WCI 5308009617 Contact Us For Availability
4
SUPPORT-COVER ADJ WCI 5303206505 Contact Us For Availability
4
WIRING HARN-CONTROL WCI 3001383 Contact Us For Availability
5
WASHER - NYLON 1/4 X 5/8 OD - (2) WCI 5308000007 Contact Us For Availability
5
WCI 5303007603 WCI 5303007603 Contact Us For Availability
5
WCI 5303001347 WCI 5303001347 Contact Us For Availability
6
WASHER-NYLON (1) WCI 5308000186 Contact Us For Availability
6
GASKET, COVER WCI 5303200329 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
7
ROLLER ASSEMBLY, FRONT (2) WCI 5303212490 Contact Us For Availability
7
WCI 5318726710 WCI 5318726710 Contact Us For Availability
7
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
ROLLER ASSEMBLY, REAR (2) WCI 5308009773 Contact Us For Availability
8
WCI 5303001639 WCI 5303001639 Contact Us For Availability
9
TRIM-FRONT (3) WCI 3018156 Contact Us For Availability
10
BOLT-1/4-28 X 1/2 (2) WCI 5308009762 Contact Us For Availability
10
WCI R000901104 WCI R000901104 Contact Us For Availability
11
WCI 5317691803 WCI 5317691803 Contact Us For Availability
11
SPACER-TUBE (3) WCI G103457 Contact Us For Availability
12
SCREW-1/4-28 X 2-3/8`` WCI 5303212598 Contact Us For Availability
12
WCI 5303200492 WCI 5303200492 Contact Us For Availability
12
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
13
TRIM-FRONT WCI 3001636 Contact Us For Availability
14
WCI 3916129 WCI 3916129 Contact Us For Availability
14A
END CAP-SHELF (2) (NON-ILLUSTRATED) WCI 3201150 No Longer Available
15
BRACKET-HINGE LOWER WCI 5303212489 Contact Us For Availability
15
TOP-REFRIGERATOR WCI 5303001651 Contact Us For Availability
15A
TAPPING PLATE / GUSSET, RH WCI 5303212597 Contact Us For Availability
15A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
15B
TAPPING PLATE / GUSSET, LH WCI 5303212596 Contact Us For Availability
16
WCI 5316651102 WCI 5316651102 Contact Us For Availability
16
WCI 5303212488 WCI 5303212488 Contact Us For Availability
17
WCI 5303210351 WCI 5303210351 Contact Us For Availability
17
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
18
WCI 5303200367 WCI 5303200367 Contact Us For Availability
19
CABINET BASE WCI 5303212487 Contact Us For Availability
19
WCI 5308012258 WCI 5308012258 Contact Us For Availability
19
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
20
WCI 5308000071 WCI 5308000071 Contact Us For Availability
20
STRAP, MULLION MOUNTING WCI 5308010008 Contact Us For Availability
20
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
21
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
21
WASHER-STEEL WCI 5303206754 Contact Us For Availability
21
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
22
SPACER WCI 5303200464 Contact Us For Availability
23
SUPPORT-RACK LH (4) WCI 5303007297 Contact Us For Availability
23
WCI 5303001286 WCI 5303001286 Contact Us For Availability
23
WCI 5308013674 WCI 5308013674 Contact Us For Availability
23
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23A
WIRING HARNESS-DIVIDER (NON-ILLUSTRATED) WCI 3001475 Contact Us For Availability
24
WCI 5303001287 WCI 5303001287 Contact Us For Availability
24
BOTTOM, FREEZER WCI 5303210641 Contact Us For Availability
25
PLUG-BUTTON DECORATIVE WCI 5308013636 Contact Us For Availability
25
WASHER-COMPR (4) WCI 5308003633 Contact Us For Availability
26
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
26
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
26
CLIP-COMP MTG (4) WCI 5308003596 Contact Us For Availability
27
NUT, PUSH WCI 5303001028 Contact Us For Availability
27
BOX-CONTROL WCI 5317672201 Contact Us For Availability
27
PAN-DEFROST DRAIN RIGHT WCI 5300171129 Contact Us For Availability
27A
DEFROST PAN-SERVICE COMPRESSOR (NON-ILLUSTRAT WCI 5300184715 Contact Us For Availability
28
WCI 5316266315 WCI 5316266315 Contact Us For Availability
28
WCI G000180197 WCI G000180197 Contact Us For Availability
28
WCI 5303001348 WCI 5303001348 Contact Us For Availability
29
PAN RETAINER KIT-SERVICE COMPR WCI 5303916001 Contact Us For Availability
29
WCI 5317979302 WCI 5317979302 Contact Us For Availability
29
KNOB-CONTROL WCI 5308010011 Contact Us For Availability
30
WCI 5300180298 WCI 5300180298 Contact Us For Availability
30
SWITCH-SLIDE WCI 5303001670 Contact Us For Availability
30
COMPRESSOR W/ELECTRICALS-SERVICE WCI 5303916012 Contact Us For Availability
31
WCI 5303007173 WCI 5303007173 Contact Us For Availability
31
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
32
WCI 5303200810 WCI 5303200810 Contact Us For Availability
32
PIN-PUSH WCI 5303001361 Contact Us For Availability
32
WCI 5303270294 WCI 5303270294 Contact Us For Availability
32A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
33
DRAIN TUBE & SEAL WCI 5303210377 Contact Us For Availability
33
WCI 5303209254 WCI 5303209254 Contact Us For Availability
33A
SEAL-RING (NON-ILLUSTRATED) WCI 5303207353 Contact Us For Availability
34
STRAP-TERMINAL COVER WCI 5303211232 Contact Us For Availability
34A
HOT TUBE REPAIR KIT-SVC (NON-ILLUSTRATED) WCI 5300189383 Contact Us For Availability
35
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
35
WCI G186095-02 WCI G186095-02 Contact Us For Availability
35
CAPACITOR WCI 5303916391 Contact Us For Availability
37
TRIM-MEAT PAN WCI 5317734306 Contact Us For Availability
38
BRACKET-MOTOR MTG (FRONT) WCI 5303001226 Contact Us For Availability
39
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
39A
BRACKET-CONNECTOR (NON-ILLUSTRATED) WCI 5308000107 Contact Us For Availability
40
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
41
COVER, COIL WCI 5308013665 Contact Us For Availability
41B
NUT-NO. 8 (A) U-TYPE (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
42
WCI 5303001369 WCI 5303001369 Contact Us For Availability
44
WCI 5308000184 WCI 5308000184 Contact Us For Availability
45
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
46
CHANNEL-SHELF RH-LH WCI 5308000302 Contact Us For Availability
48
WCI 5303015409 WCI 5303015409 Contact Us For Availability
49
SCREW 8A X 1-1/2 (3) WCI 5308016568 Contact Us For Availability
50
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
51A
BUTTON-PLUG-AVOCADO (NON-ILLUSTRATED) WCI 5303001677 Contact Us For Availability
53A
TRIM-CORNER-AVOCADO (NON-ILLUSTRATED) WCI 5303202337 Contact Us For Availability
56A
BUTTON PLUG-1/M HOLE (3) (NON-ILLUSTRATED) WCI 5308016571 Contact Us For Availability
× ![]()
