Model Electrolux RT216JCD3 REFRIGERATOR – Common Parts & Diagrams

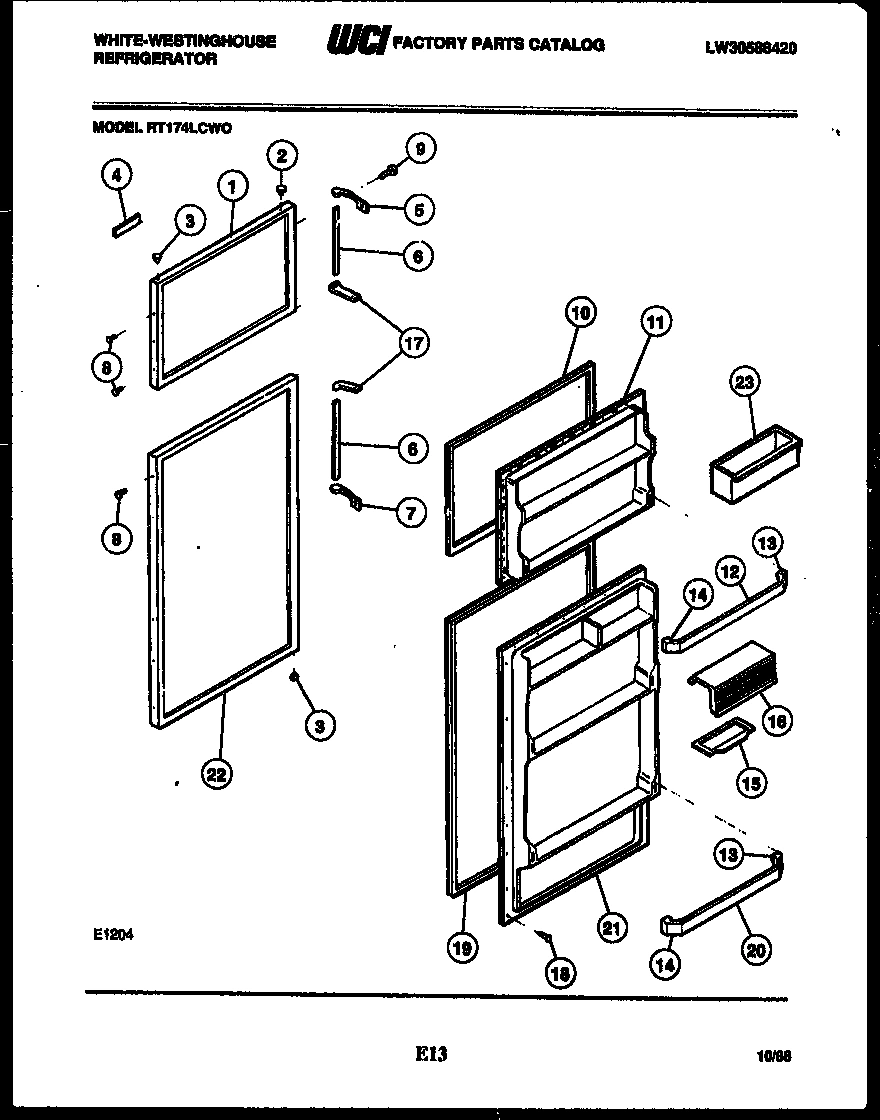

02 - DOOR PARTS

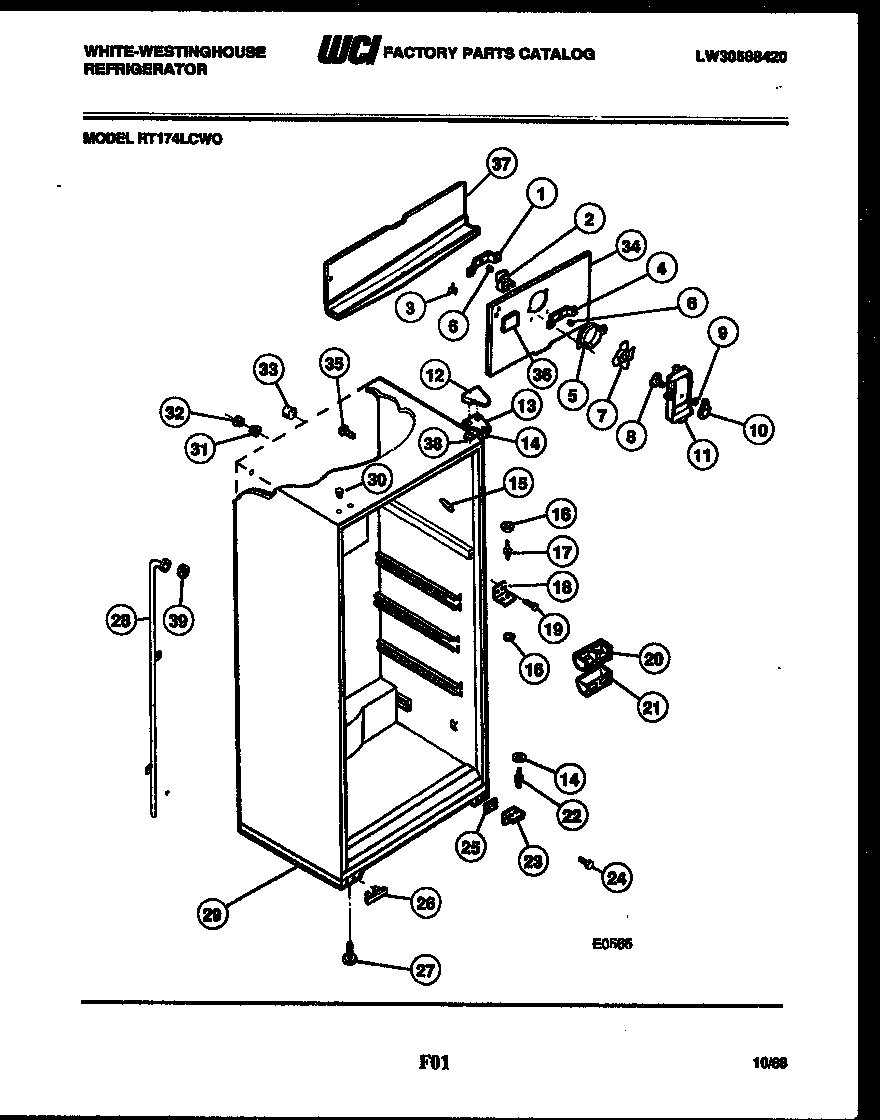

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT216JCD3 REFRIGERATOR
*17227
TAPPING PLATE (4) WCI G179797 Contact Us For Availability
*17227
BUTTON-I/M HOLE (3) WCI G187599 Contact Us For Availability
*17233
WIRING HARNESS-COMPR WCI G166062-01 Contact Us For Availability
*17234
DEFROST PAN RETAINER KIT WCI G167234 Contact Us For Availability
*17234
WIRING HARNESS-CONTROL WCI G184904 Contact Us For Availability
*17234
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
1
COVER HINGE, ALMOND WCI G183558-11 Contact Us For Availability
1
PAN-CRISPER RH WCI 3001642 Contact Us For Availability
2
PANEL-INNER-FREEZER WCI 3001613 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
TRIM-PAN RH WCI G177343-01 Contact Us For Availability
2
WCI G163133 WCI G163133 Contact Us For Availability
3
WCI G155072 WCI G155072 Contact Us For Availability
3
WCI G183861 WCI G183861 Contact Us For Availability
3
PAN-CRISPER LH WCI R000901114 Contact Us For Availability
3
BRACKET-MTG (4) WCI G164637 Contact Us For Availability
4
WCI G162977-11 WCI G162977-11 Contact Us For Availability
4
SUPPORT-COVER WCI G166310-06 Contact Us For Availability
4
STRAP BALE WCI G185790 Contact Us For Availability
5
WCI G103903 WCI G103903 Contact Us For Availability
5
NAMEPLATE ASSY WCI G176985 Contact Us For Availability
5
WCI 3007603 WCI 3007603 Contact Us For Availability
5
WCI G185792 WCI G185792 Contact Us For Availability
6
WCI G169332-11 WCI G169332-11 Contact Us For Availability
6
WASHER, HINGE WCI G164355 Contact Us For Availability
6
GASKET, COVER WCI G180108-07 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
HANDLE-DOOR (2) WCI G177141-07 Contact Us For Availability
7
ROLLER ASSEMBLY (2) WCI G177021 Contact Us For Availability
7
TRIM-FRONT WCI G187267-10 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
8
WCI G185566 WCI G185566 Contact Us For Availability
8
ROLLER ASSEMBLY (2) WCI G183407 Contact Us For Availability
8
WCI 3001639 WCI 3001639 Contact Us For Availability
8
CLIP (4) WCI G163204 Contact Us For Availability
9
TRIM-HANDLE TOP (2) WCI G179270 Contact Us For Availability
9
TRIM-FRONT (3) WCI 3018156 Contact Us For Availability
9
WASHER (4) WCI G164634 Contact Us For Availability
10
TRIM-HANDLE BOTTOM (2) WCI G179271 Contact Us For Availability
10
WCI G177025 WCI G177025 Contact Us For Availability
10
WCI R000901104 WCI R000901104 Contact Us For Availability
11
END-HANDLE TOP (2) WCI G177142 Contact Us For Availability
11
WCI G178494 WCI G178494 Contact Us For Availability
11
PAN, MEAT WCI G176918-03 Contact Us For Availability
11
NUT, LOCK WCI G164958 Contact Us For Availability
12
END-HANDLE BOTTOM (2) WCI G177143 Contact Us For Availability
12
WCI G177024 WCI G177024 Contact Us For Availability
12
COVER-MEAT PAN WCI G177106-06 Contact Us For Availability
12
COMPR W/ ELECTRICALS WCI G190381 Contact Us For Availability
12A
CLIP-HANDLE (8) WCI G177144 Contact Us For Availability
13
WCI G187355-11 WCI G187355-11 Contact Us For Availability
13
WASHER (2) WCI 3001404 Contact Us For Availability
13
TRIM-FRONT WCI 3001636 Contact Us For Availability
13
WCI G182225-18 WCI G182225-18 Contact Us For Availability
14
BEARING HINGE (8) WCI G183138 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
14
WCI G177059-05 WCI G177059-05 Contact Us For Availability
14
WCI 3202863 WCI 3202863 Contact Us For Availability
14A
END CAP-SHELF (2) (NON-ILLUSTRATED) WCI 3201150 No Longer Available
14A
WCI 3202891 WCI 3202891 Contact Us For Availability
15
WCI G187402-11 WCI G187402-11 Contact Us For Availability
15
HINGE-BRACKET-BTTM WCI 3202834 Contact Us For Availability
15
TOP-REFRIGERATOR WCI 3001651 Contact Us For Availability
15
CAPACITOR, RUN WCI G188885-02 Contact Us For Availability
15A
WCI G162673 WCI G162673 Contact Us For Availability
15A
STRAP-CAPACITOR (NON-ILLUSTRATED) WCI G188897 Contact Us For Availability
16
CONTAINER-EGG WCI G173948-19 Contact Us For Availability
16
WCI G163203 WCI G163203 Contact Us For Availability
16
DEFROST PAN (SVC COMP) WCI G184715 Contact Us For Availability
16A
WCI G171778 WCI G171778 Contact Us For Availability
17
WCI 3018916 WCI 3018916 Contact Us For Availability
17
PLATE-COMPRESSOR MTG WCI G184599 Contact Us For Availability
18
GASKET-REFRIGERATOR WCI G186932-13 Contact Us For Availability
18
WCI 3200370 WCI 3200370 Contact Us For Availability
18
BLOCK-INSULATION LH WCI G188375 Contact Us For Availability
19
PANEL-INNER REFRIGERATOR WCI 3001614 Contact Us For Availability
19
WCI G490004-02 WCI G490004-02 Contact Us For Availability
19
SCREW-MOUNTING WCI G183103 Contact Us For Availability
19
BLOCK-INSULATION RH WCI G185299 Contact Us For Availability
20
RACK-DOOR (3) WCI G161019-51 Contact Us For Availability
20
DEFLECTOR AIR WCI G162675 Contact Us For Availability
20
STRAP, MULLION MOUNTING WCI G490087 Contact Us For Availability
20
HEAT EXCHANGER WCI G147918 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
21
RACK-REFR DOOR UPPER WCI G161019-52 Contact Us For Availability
21
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
21
WASHER-STEEL WCI G166847 Contact Us For Availability
22
SUPPORT-RACK RS (4) WCI G185363-01 Contact Us For Availability
22
WCI G166912 WCI G166912 Contact Us For Availability
22
SPACER WCI 3200464 Contact Us For Availability
22
EVAPORATOR WCI G164572 Contact Us For Availability
23
SUPPORT-RACK LS (4) WCI G185364-01 Contact Us For Availability
23
WCI G174733 WCI G174733 Contact Us For Availability
23
WCI G184683 WCI G184683 Contact Us For Availability
24
DOOR-DAIRY (2) WCI R000901100 Contact Us For Availability
24
WCI G174734 WCI G174734 Contact Us For Availability
24
WCI G184604 WCI G184604 Contact Us For Availability
25
BUTTON, DECOR , PLUG WCI G162827-13 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
SOCKET LIGHT WCI G168302 Contact Us For Availability
26
INSULATOR WCI G166511-01 Contact Us For Availability
27
NUT, PUSH WCI G162662 Contact Us For Availability
27
WCI G176722-01 WCI G176722-01 Contact Us For Availability
28
KNOB-DAMPER CNTRL WCI G162663-15 Contact Us For Availability
28
LABEL-CONTROL BOX WCI G180197 Contact Us For Availability
29
WCI G179793-02 WCI G179793-02 Contact Us For Availability
29
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
30
WCI G180298 WCI G180298 Contact Us For Availability
30
WCI G178402-02 WCI G178402-02 Contact Us For Availability
31
SPOUT, DRAIN WCI G162179 Contact Us For Availability
32
PIN-PUSH (3) WCI G185279 Contact Us For Availability
32
WCI 3200810 WCI 3200810 Contact Us For Availability
32A
WCI G107080 WCI G107080 Contact Us For Availability
33
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
33A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
35
RING-ORIFICE WCI G167217 Contact Us For Availability
35
WCI G186095-02 WCI G186095-02 Contact Us For Availability
36
TRIM-PAN LH WCI G177343-07 Contact Us For Availability
37
WCI G177343-02 WCI G177343-02 Contact Us For Availability
38
WCI G185302 WCI G185302 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
39A
BRACKET-CONN (FAN) (NON-ILLUSTRATED) WCI G164571 Contact Us For Availability
40
WCI G85642 WCI G85642 Contact Us For Availability
41
WCI G184609 WCI G184609 Contact Us For Availability
41A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
42
HINGE-BRACKET CENTER WCI G163207 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
WCI G177534 WCI G177534 Contact Us For Availability
46
CHANNEL-RS AND LS WCI G170695 Contact Us For Availability
48
WCI G189341 WCI G189341 Contact Us For Availability
49
WCI G187449 WCI G187449 Contact Us For Availability
50
WCI G163669 WCI G163669 Contact Us For Availability
51
WCI G174747-11 WCI G174747-11 Contact Us For Availability
53
WCI 3202340 WCI 3202340 Contact Us For Availability
54
SCREW, LEVELING (2) WCI G185713 Contact Us For Availability
55
NUT, ANCHOR (2) WCI G183073 Contact Us For Availability
56
WCI 3203044 WCI 3203044 Contact Us For Availability
× ![]()
