Model Electrolux RT216JCD1 REFRIGERATOR – Common Parts & Diagrams

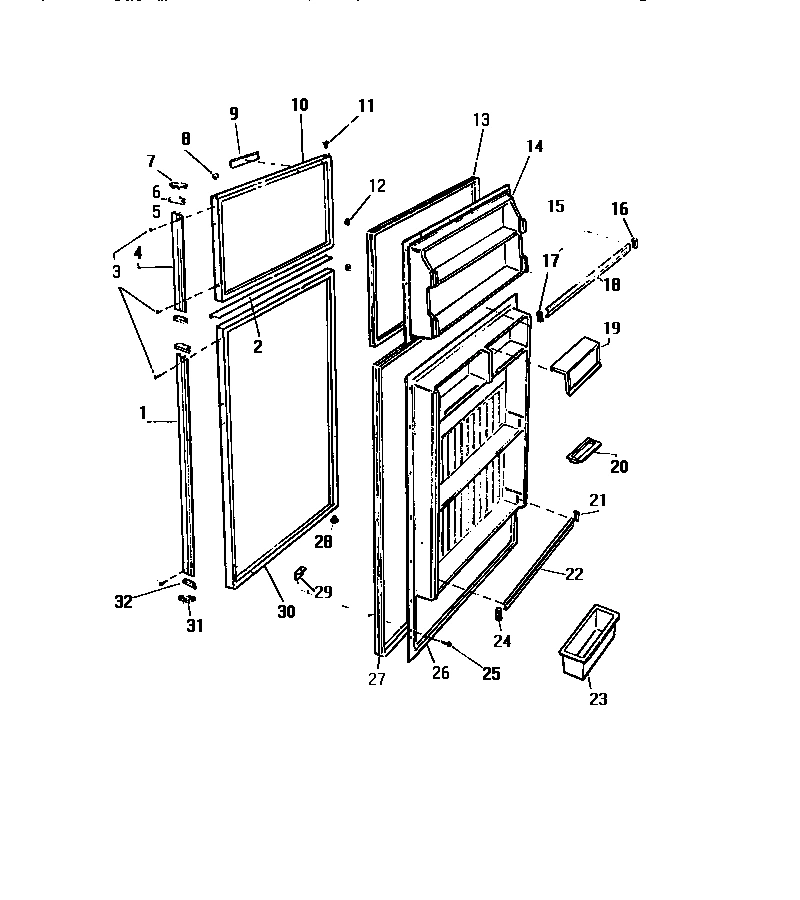

02 - DOOR

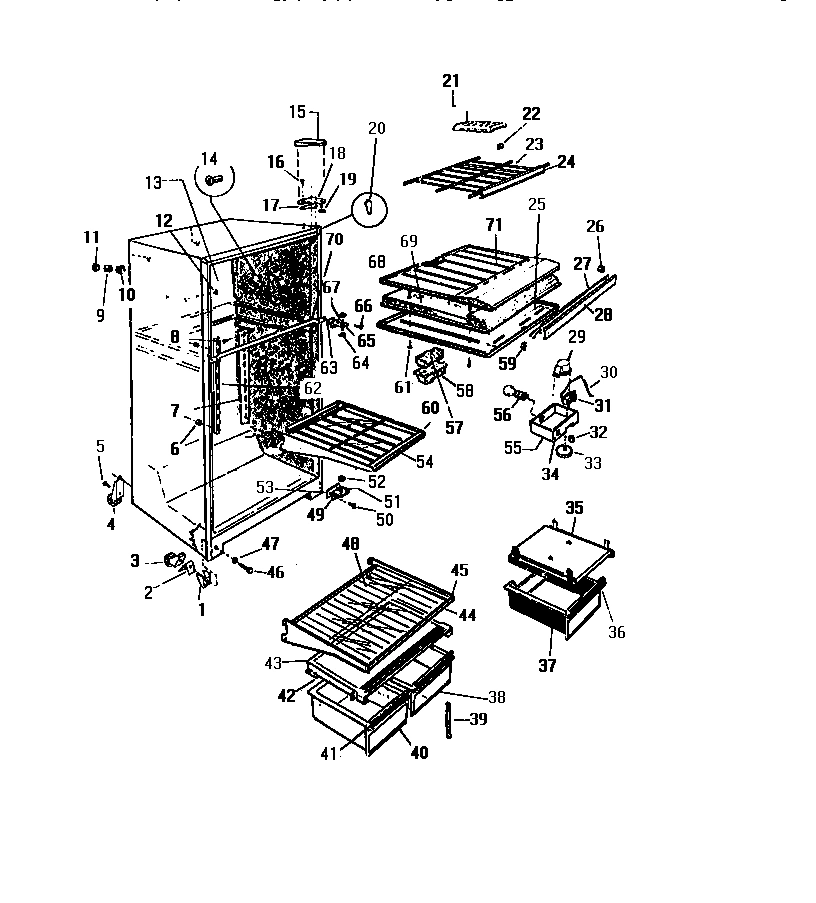

03 - CABINET, SHELVES, DIVIDER, FAN ASSE

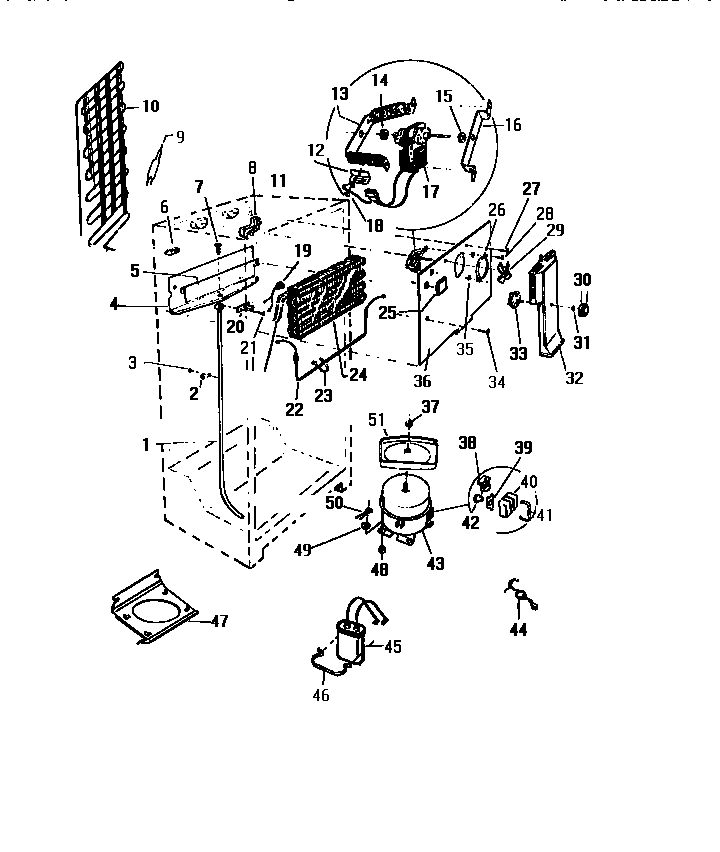

04 - COOLING SYSTEM
Common parts from model Electrolux RT216JCD1 REFRIGERATOR
*49441
EPOXY, WHITE WCI S900113 Contact Us For Availability
*49442
INSULATION FIBERGLASS CUT TO SIZE, 34`` X 48` WCI C69110 Contact Us For Availability
*49443
INSULATION FIBERGLASS CUT TO SIZE, 34`` X 48` WCI C69111 Contact Us For Availability
*49448
WCI G174747-11 WCI G174747-11 Contact Us For Availability
*49449
WCI R901122 WCI R901122 Contact Us For Availability
*49450
WCI G183584 WCI G183584 Contact Us For Availability
*49451
HARNESS, COMPR WIRING WCI G162733-02 Contact Us For Availability
1
WCI R901137 WCI R901137 Contact Us For Availability
1
WCI R901108 WCI R901108 Contact Us For Availability
1
WCI G1849250-01 WCI G1849250-01 Contact Us For Availability
2
TRIM WCI G178328-02 Contact Us For Availability
2
SPRING, ROLLER ADJ. WCI G178494 Contact Us For Availability
2
WCI G101747 WCI G101747 Contact Us For Availability
2A
TAPE WCI C460947 Contact Us For Availability
2B
CLEANING FLUID WCI 467B372H36 Contact Us For Availability
3
ROLLER, ASSY FRONT WCI G177021 Contact Us For Availability
4
HANDLE WCI G177141-07 Contact Us For Availability
4
ROLLER, REAR WCI G183407 Contact Us For Availability
4
TROUGH WCI G177534 Contact Us For Availability
5
CLIP, HANDLE WCI G177144 Contact Us For Availability
5
BOLT WCI G177025 Contact Us For Availability
5
INSULATION, FOAM WCI G166511-01 Contact Us For Availability
6
SPACER, CANTER STRINGER MTG WCI G163201 Contact Us For Availability
6
WCI 162807 WCI 162807 Contact Us For Availability
7
TRIM, TOP WCI G179270 Contact Us For Availability
7
STRINGER (RT OR L SIDE) WCI G170695 Contact Us For Availability
7
WCI G101620 WCI G101620 Contact Us For Availability
7A
WCI G106567 WCI G106567 Contact Us For Availability
8
WCI G169332-11 WCI G169332-11 Contact Us For Availability
8
PLUG, RH BLOCK WCI G185276 Contact Us For Availability
9
WCI R304001 WCI R304001 Contact Us For Availability
9
TUBE WCI G85642 Contact Us For Availability
9
DRIER-REGULAR WCI C101601 Contact Us For Availability
9
BURNOUT WCI R900125 Contact Us For Availability
10
WCI R901088 WCI R901088 Contact Us For Availability
10
FERRULE WCI G174733 Contact Us For Availability
10A
BRKT. COND. MTG WCI G164637 Contact Us For Availability
10B
WCI G179024 WCI G179024 Contact Us For Availability
11
FERRULE WCI G174734 Contact Us For Availability
11
BLOCK RH WCI G185299 Contact Us For Availability
12
WCI G162977-11 WCI G162977-11 Contact Us For Availability
12
BUTTON, ICE MAKER HOLES (3) WCI G162659 Contact Us For Availability
12
BRACKET WCI G164571 Contact Us For Availability
13
WCI R901091 WCI R901091 Contact Us For Availability
13
WCI G163699 WCI G163699 Contact Us For Availability
13
BRACKET WCI G185303 Contact Us For Availability
14
WCI R901095 WCI R901095 Contact Us For Availability
14
WCI G167585 WCI G167585 Contact Us For Availability
14A
WCI R901124 WCI R901124 Contact Us For Availability
15
COVER, TOP HINGE, ALMOND WCI G183558-11 Contact Us For Availability
16
WCI G185566 WCI G185566 Contact Us For Availability
16
BRACKET WCI G185302 Contact Us For Availability
17
SHIM WCI G183861 Contact Us For Availability
18
HINGE WCI G183714 Contact Us For Availability
18
WCI Q401601 WCI Q401601 Contact Us For Availability
19
WCI R901100 WCI R901100 Contact Us For Availability
20
TRIM CAB CORNER, ALMOND WCI G179684-11 Contact Us For Availability
20
CUP WCI G162179 Contact Us For Availability
21
SUPPORT, RH WCI G185363-01 Contact Us For Availability
21
ICE TRAY WCI R2901 Contact Us For Availability
21
WCI Q4041601 WCI Q4041601 Contact Us For Availability
21A
WCI R901110 WCI R901110 Contact Us For Availability
21A
WCI G147918 WCI G147918 Contact Us For Availability
21B
HEAT EXCH. REPAIR KIT WCI G161672 Contact Us For Availability
22
FRONT WCI G161019-51 Contact Us For Availability
22
WCI G166495-01 WCI G166495-01 Contact Us For Availability
23
WCI G173948-19 WCI G173948-19 Contact Us For Availability
23
WCI R901101 WCI R901101 Contact Us For Availability
23
WCI G165548 WCI G165548 Contact Us For Availability
24
SUPPORT, LH WCI G185364-01 Contact Us For Availability
24
EVAPORATOR L/HEATER WCI G164572 Contact Us For Availability
25
WCI R901119 WCI R901119 Contact Us For Availability
25
PLUG, DECORATIVE WCI G162827-13 Contact Us For Availability
26
WCI R901099 WCI R901099 Contact Us For Availability
26
SPACER MULLION MTG WCI G490082 Contact Us For Availability
26
RING WCI G167217 Contact Us For Availability
27
WCI R901098 WCI R901098 Contact Us For Availability
27
HEATER WCI G177254 Contact Us For Availability
28
BEARING WCI G183138 Contact Us For Availability
28
WCI G180373 WCI G180373 Contact Us For Availability
29
WCI G155072 WCI G155072 Contact Us For Availability
30
WCI R901134 WCI R901134 Contact Us For Availability
30
WCI G14217641 WCI G14217641 Contact Us For Availability
30
LABEL, FAN COVER WCI G180298 Contact Us For Availability
30A
WCI 162663-13 WCI 162663-13 Contact Us For Availability
31
TRIM, BTM WCI G179271 Contact Us For Availability
31
WCI G16220511 WCI G16220511 Contact Us For Availability
31
CLIP WCI G162662 Contact Us For Availability
32
END CAP, TOP WCI G177142 Contact Us For Availability
32
END CAP BTM WCI G177143 Contact Us For Availability
32
SWITCH WCI G178402-02 Contact Us For Availability
32
WCI G179793-02 WCI G179793-02 Contact Us For Availability
33
KNOB WCI G490107-02 Contact Us For Availability
33
DAMPER (AIR FLOW) WCI G162661 Contact Us For Availability
34
WCI G180197 WCI G180197 Contact Us For Availability
35
WCI R901109 WCI R901109 Contact Us For Availability
35
SPEED NUT WCI G167542 Contact Us For Availability
36
WCI R901126 WCI R901126 Contact Us For Availability
37
PAN, MEAT WCI G176918-03 Contact Us For Availability
37
NUT WCI G164958 Contact Us For Availability
38
WCI R901114 WCI R901114 Contact Us For Availability
38
WCI G182225-18 WCI G182225-18 Contact Us For Availability
39
WCI R901111 WCI R901111 Contact Us For Availability
39
RETAINER WCI G166053 Contact Us For Availability
40
WCI R901115 WCI R901115 Contact Us For Availability
41
TRIM, PANS (CUT TO SIZE) WCI G177343-06 Contact Us For Availability
42
WCI R901112 WCI R901112 Contact Us For Availability
42
WCI G189006 WCI G189006 Contact Us For Availability
43
WCI R901113 WCI R901113 Contact Us For Availability
43
WCI R2001123 WCI R2001123 Contact Us For Availability
44
WCI G162549-01 WCI G162549-01 Contact Us For Availability
45
WCI R901102 WCI R901102 Contact Us For Availability
45
CAPACITOR, RUN WCI G188885-02 Contact Us For Availability
46
BOLT, ROLLER ADJ. WCI G177024 Contact Us For Availability
46
WCI G188897 WCI G188897 Contact Us For Availability
47
WASHER, NYLON WCI G182799 Contact Us For Availability
47
MTG PLATE, COMPR. WCI R901125 Contact Us For Availability
48
WCI R901103 WCI R901103 Contact Us For Availability
49
BRKT, HINGE WCI G181019 Contact Us For Availability
49
WASHER COMPR. MTG WCI G164634 Contact Us For Availability
50
CLIP, COMPR MTG WCI G163204 Contact Us For Availability
51
WCI G166506 WCI G166506 Contact Us For Availability
51
DRAIN PAN WCI G184716 Contact Us For Availability
52
WASHER, HINGE WCI G164355 Contact Us For Availability
53
SHIM WCI G163203 Contact Us For Availability
54
WCI R901104 WCI R901104 Contact Us For Availability
55
BOX WCI G176722-01 Contact Us For Availability
56
SOCKET WCI G168302 Contact Us For Availability
57
DEFLECTOR WCI G162675 Contact Us For Availability
58
COVER WCI G162178 Contact Us For Availability
60
TRIM, FRONT (CUT TO SIZE) WCI G187267-10 Contact Us For Availability
62
STRINGER, CENTER WCI G175612 Contact Us For Availability
63
WCI R1121970 WCI R1121970 Contact Us For Availability
64
WCI G103903 No Longer Available
65
BRKT, HINGE WCI G163207 Contact Us For Availability
66
SCREW WCI G183103 Contact Us For Availability
67
WCI G142220 WCI G142220 Contact Us For Availability
68
WCI G164356 WCI G164356 Contact Us For Availability
69
WCI R901121 WCI R901121 Contact Us For Availability
70
WCI C490087 WCI C490087 Contact Us For Availability
71
WCI R901120 WCI R901120 Contact Us For Availability
× ![]()
