Model Electrolux RT211ZCF0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR
03 - SHELVING

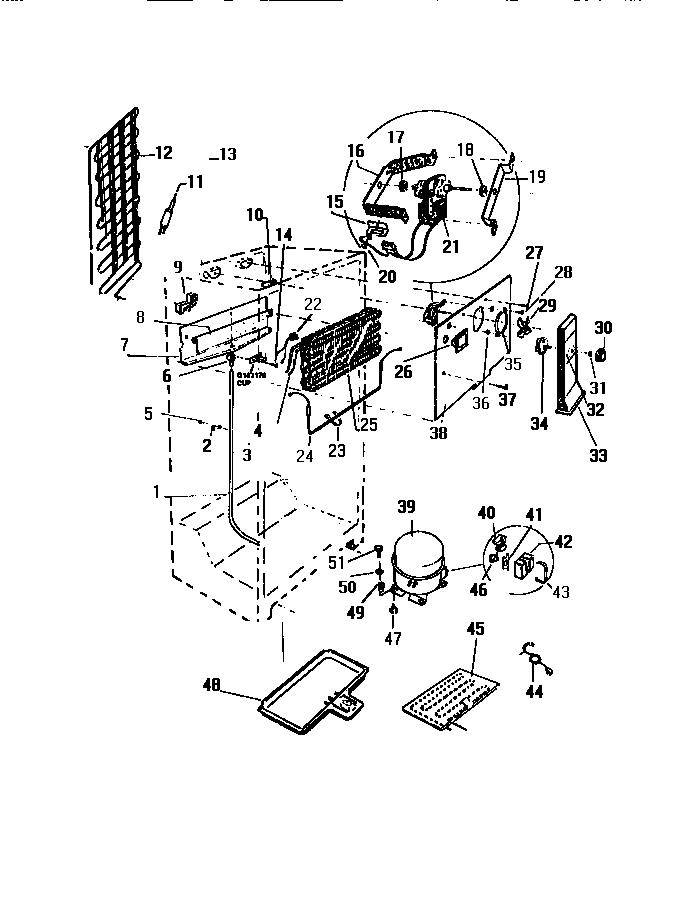

04 - COOLING SYSTEM
Common parts from model Electrolux RT211ZCF0 REFRIGERATOR
*37440
34`` X 48`` X 1`` THK WCI C69110 Contact Us For Availability
*37441
34`` X 48`` X 2`` THK WCI C69111 Contact Us For Availability
*37442
PLASTIC BAG WCI C35536 Contact Us For Availability
*37443
WCI G168338 WCI G168338 Contact Us For Availability
*37444
WCI 467B371H22 WCI 467B371H22 Contact Us For Availability
*37446
BRKT. COND. WCI G169666-01 Contact Us For Availability
*37447
WCI G183584 WCI G183584 Contact Us For Availability
*37448
WIRING HARNESS COMPRESSOR WCI G162733-02 Contact Us For Availability
*37449
34`` X48`` X 1/2`` THK WCI C69109 Contact Us For Availability
*37450
WCI G176589 WCI G176589 Contact Us For Availability
*37451
TAPE, DBLE FACE WCI C460947 Contact Us For Availability
1
CLIP, HANDLE WCI G177144 Contact Us For Availability
1
STRINGER (RT OR L SIDE) WCI G170695 Contact Us For Availability
1
WCI G166529-05 WCI G166529-05 Contact Us For Availability
2
HANDLE ( 40 ``) WCI G177141-08 Contact Us For Availability
2
STRAP WCI G165781 Contact Us For Availability
2
WCI G101747 WCI G101747 Contact Us For Availability
3
TRIM, TOP WCI G178328-02 Contact Us For Availability
3
HEAT EXCH. REPAIR KIT WCI G161672 Contact Us For Availability
3B
CLEANING FLUID WCI 467B372H36 Contact Us For Availability
4
TUBE WCI G85642 Contact Us For Availability
5
HANDLE WCI G177141-07 Contact Us For Availability
5
FERRULE WCI G174733 Contact Us For Availability
6
FERRULE WCI G174734 Contact Us For Availability
6
WCI G162180 WCI G162180 Contact Us For Availability
7
TRIM, TOP WCI G179270 Contact Us For Availability
7
PLUG BUTTON (6 REQ) WCI G162659 Contact Us For Availability
7
TROUGH WCI G170071 Contact Us For Availability
8
WCI G169332-10 WCI G169332-10 Contact Us For Availability
8
SUPPORT EVAP. COVER WCI G163669 Contact Us For Availability
8
INSULATION, FOAM WCI G166511-01 Contact Us For Availability
9
WCI R304001 WCI R304001 Contact Us For Availability
9
SCREW WCI G163104 Contact Us For Availability
9
WCI G186277 WCI G186277 Contact Us For Availability
10
PANEL,OUTER DOOR COFFEE (INCL. THIMBLE & SEAL WCI G180260-10 Contact Us For Availability
10
SUPPORT (8) WCI G163105 Contact Us For Availability
10
BLOCK, LH WCI G185298 Contact Us For Availability
10A
BLOCK, RH WCI G163099 Contact Us For Availability
11
WCI G174747-10 WCI G174747-10 Contact Us For Availability
11
DRIER-REGULAR WCI C101601 Contact Us For Availability
11A
WCI R900125 WCI R900125 Contact Us For Availability
12
WCI G162977-10 WCI G162977-10 Contact Us For Availability
12
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
12
CONDENSER WCI G183612 Contact Us For Availability
13
GASKET WCI G186932-08 Contact Us For Availability
13
WCI G176210 WCI G176210 Contact Us For Availability
14
INNER PANEL WCI G179979-01 Contact Us For Availability
14
SHIM WCI G183861 Contact Us For Availability
14
PIN, PUSH (2 REQ) WCI G185279 Contact Us For Availability
15
HINGE WCI G183714 Contact Us For Availability
15
BRACKET WCI G164571 Contact Us For Availability
16
CONTAINER ICE WCI G161015-13 Contact Us For Availability
16
BRACKET WCI G162048 Contact Us For Availability
17
FRONT WCI G490079-09 Contact Us For Availability
17
ICE TRAY WCI R2901 Contact Us For Availability
18
DOOR (2) WCI G179967-02 Contact Us For Availability
18
WCI G177415-03 WCI G177415-03 Contact Us For Availability
19
TRIM WCI G187267-03 Contact Us For Availability
19
BRACKET WCI G162049 Contact Us For Availability
20
END CAP RH WCI G176891-01 Contact Us For Availability
20
DIVIDER, TOP OF REF (METAL) WCI G174757 Contact Us For Availability
21
FRONT (2) WCI G490079-07 Contact Us For Availability
21
DIVIDER BTM WCI G174744 Contact Us For Availability
22
END CAP LH WCI G176892-01 Contact Us For Availability
22
WASHER, NYLON WCI G101970 Contact Us For Availability
23
CENTER (STYRO) WCI G174758 Contact Us For Availability
24
WCI G173948-19 WCI G173948-19 Contact Us For Availability
24
SCREW WCI G183103 Contact Us For Availability
25
INNER PANEL WCI G179874-01 Contact Us For Availability
25
WCI G142220 WCI G142220 Contact Us For Availability
25
EVAPORATOR L/HEATER WCI G164572 Contact Us For Availability
26
GASKET WCI G186932-09 Contact Us For Availability
26
HINGE WCI G162384 Contact Us For Availability
26
BUTTON, DECOR , PLUG WCI G162827-13 Contact Us For Availability
27
BEARING, HINGE WCI G183138 Contact Us For Availability
28
STOP,DOOR WCI G155072 Contact Us For Availability
28
SHIM WCI G162683 Contact Us For Availability
29
STRINGER, CENTER WCI G175612 Contact Us For Availability
29A
SCREW WCI G187449 Contact Us For Availability
30
PANEL OUTER DOOR COFFEE WCI G180265-10 Contact Us For Availability
30
TRIM WCI G172409-10 Contact Us For Availability
30
WCI G162663-13 WCI G162663-13 Contact Us For Availability
31
END CAP BTM WCI G177143 Contact Us For Availability
31
END CAP, TOP WCI G177142 Contact Us For Availability
31
WCI G178323-04 WCI G178323-04 Contact Us For Availability
31
CLIP WCI G162662 Contact Us For Availability
32
WCI G185566 WCI G185566 Contact Us For Availability
32
WASHER (NYLON) WCI G164355 Contact Us For Availability
32
LABEL WCI G180298 Contact Us For Availability
33
TRIM, BTM WCI G179271 Contact Us For Availability
33
SHIM WCI G162903 Contact Us For Availability
33
COVER WCI G179793-02 Contact Us For Availability
34
VINYL TAPE, HANDLE, ELM BURL FINISH WCI R900622 Contact Us For Availability
34
WCI G162681 WCI G162681 Contact Us For Availability
35
PIN WCI G162809 Contact Us For Availability
35
RING WCI G167217 Contact Us For Availability
36
ROLLER, REAR WCI G162808 Contact Us For Availability
36
SPEED NUT WCI G167542 Contact Us For Availability
37
WCI G141673 WCI G141673 Contact Us For Availability
37
WCI G187383 WCI G187383 Contact Us For Availability
38
WCI G142361 WCI G142361 Contact Us For Availability
38
COVER WCI G162050-02 Contact Us For Availability
39
CLIP WCI G162994 Contact Us For Availability
39
WCI R2001073 WCI R2001073 Contact Us For Availability
39A
SEE NOTE (4`` X 6 1/2``) WCI C620102 Contact Us For Availability
40
NUT, PIN WCI G77210 Contact Us For Availability
40
WCI G182225-17 WCI G182225-17 Contact Us For Availability
40A
ROLLER ASSY WCI G186731 Contact Us For Availability
41
BOLT WCI G145103 Contact Us For Availability
41
RETAINER O.L. WCI G166053 Contact Us For Availability
42
WCI G178323-06 WCI G178323-06 Contact Us For Availability
43
COVER WCI G162840-01 Contact Us For Availability
44
GASKET WCI G180108-02 Contact Us For Availability
44
WCI G162548-01 WCI G162548-01 Contact Us For Availability
45
WCI G187875 WCI G187875 Contact Us For Availability
46
WCI G179706-03 WCI G179706-03 Contact Us For Availability
46
WCI G187874 WCI G187874 Contact Us For Availability
47
SUPPORT WCI G166310-01 Contact Us For Availability
48
WCI G179706-02 WCI G179706-02 Contact Us For Availability
48
PAN WCI G162890 Contact Us For Availability
49
SLEEVE WCI G154588 Contact Us For Availability
50
PAN, MEAT WCI G176918-03 Contact Us For Availability
50
WASHER WCI G168120 Contact Us For Availability
51
TRIM, PAN (CUT TO SIZE) WCI G177343-06 Contact Us For Availability
51
WCI G154589 WCI G154589 Contact Us For Availability
52
HANGER, LH WCI G187215-02 Contact Us For Availability
54
HANGER, RH WCI G187216-02 Contact Us For Availability
55
WCI G178324-03 WCI G178324-03 Contact Us For Availability
56
LABEL WCI G180694 Contact Us For Availability
57
KNOB WCI G490107-02 Contact Us For Availability
58
CONTROL TEMP. WCI G162205-11 Contact Us For Availability
61
HEATER WCI G177254 Contact Us For Availability
62
MULLION, WHITE WCI G162051 Contact Us For Availability
64
COVER WCI G162178 Contact Us For Availability
65
SCREW WCI G162673 Contact Us For Availability
66
TRIM SHELF (CUT TO SIZE) WCI G187267-10 Contact Us For Availability
67
SOCKET WCI G168302 Contact Us For Availability
68
BOX WCI G176722-02 Contact Us For Availability
70
BAFFLE WCI G162675 Contact Us For Availability
71
WCI G171654-28 WCI G171654-28 Contact Us For Availability
72
HINGE WCI G162383 Contact Us For Availability
73
SCREW WCI G99167 Contact Us For Availability
74
TRIM, REAR WCI G172409-09 Contact Us For Availability
75
WCI G171654-30 WCI G171654-30 Contact Us For Availability
76
WCI G172409-11 WCI G172409-11 Contact Us For Availability
77
TOE GRILL (LESS CLIPS) WCI G163080-03 Contact Us For Availability
× ![]()
