Model Whirlpool RT20CKXWW01 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2148883 WPL LIT2148883 Contact Us For Availability

WPL LIT2149859 WPL LIT2149859 Contact Us For Availability

WPL LIT2150256 WPL LIT2150256 Contact Us For Availability

WPL LIT4361010 WPL LIT4361010 Contact Us For Availability

1

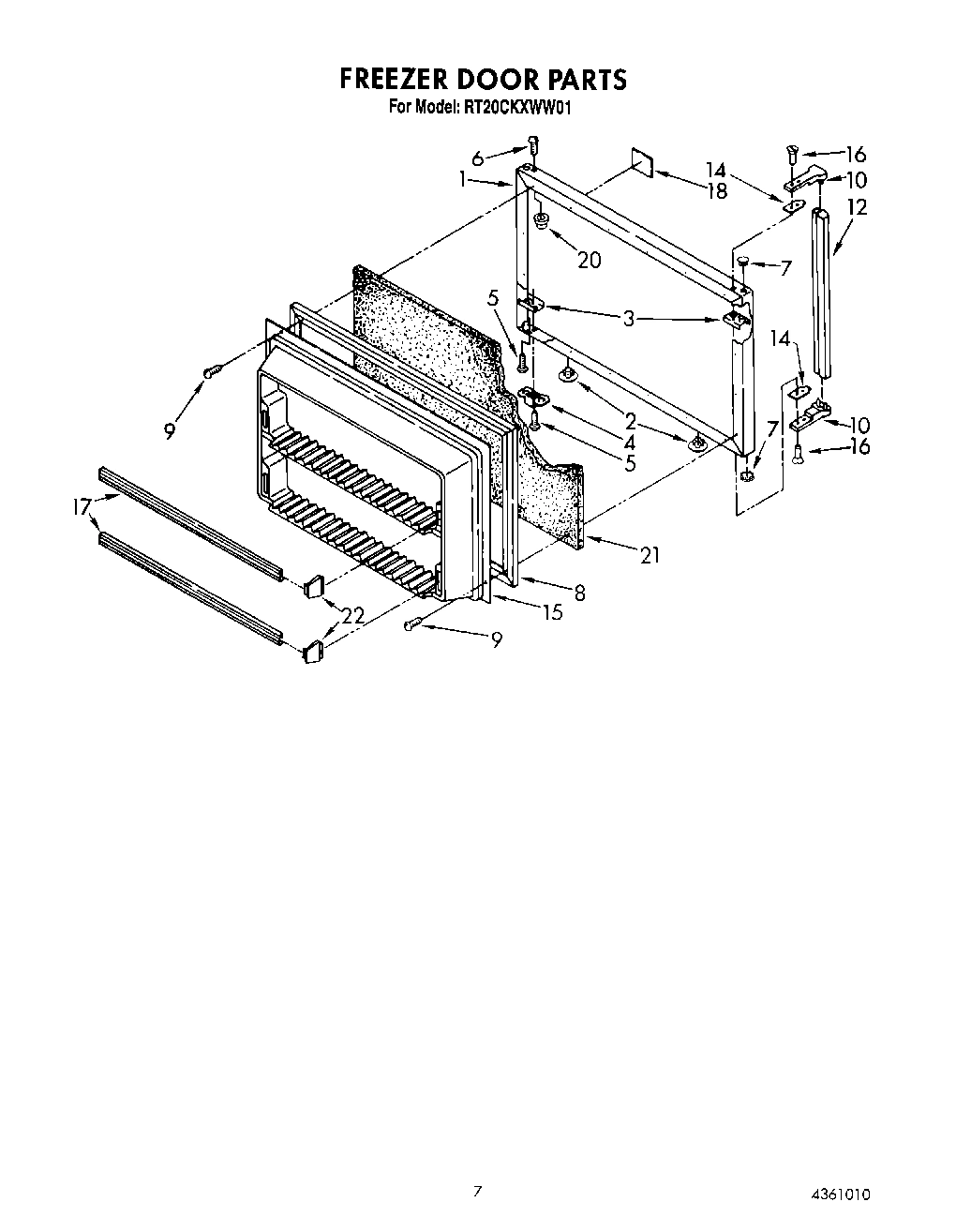

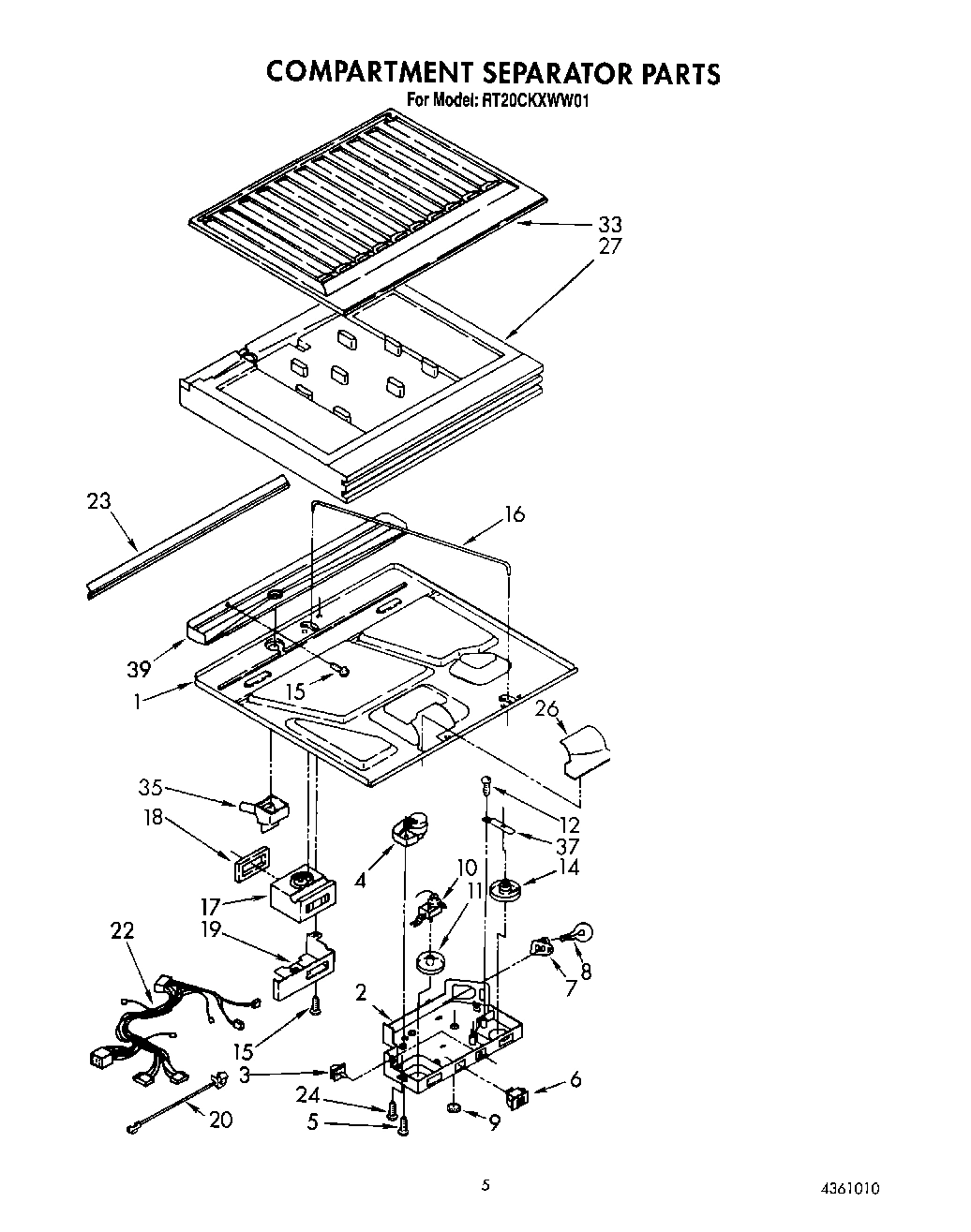

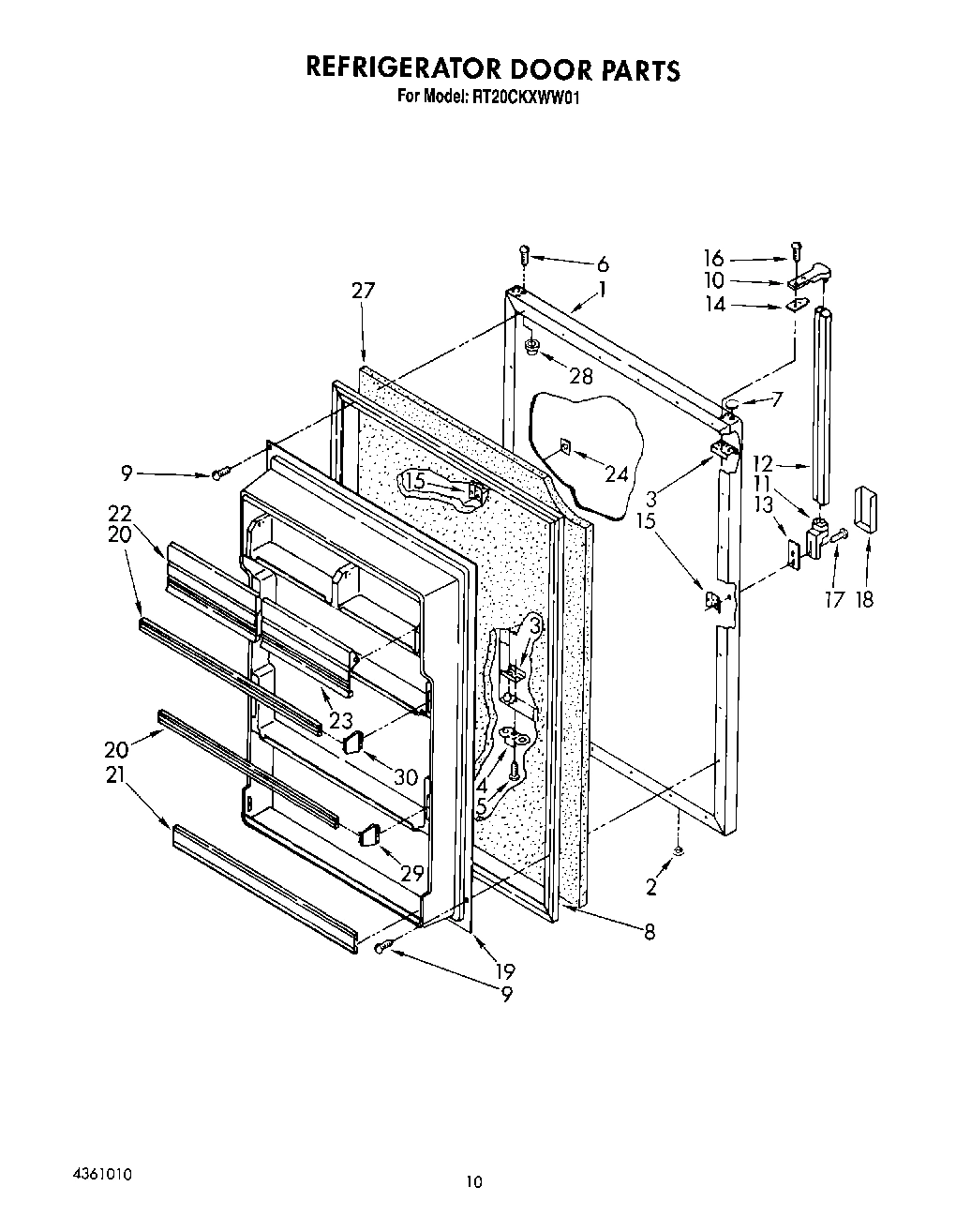

Panel, Refrigerator Door (Also Order Item 27) WPL 1105500 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1105502 Contact Us For Availability

1

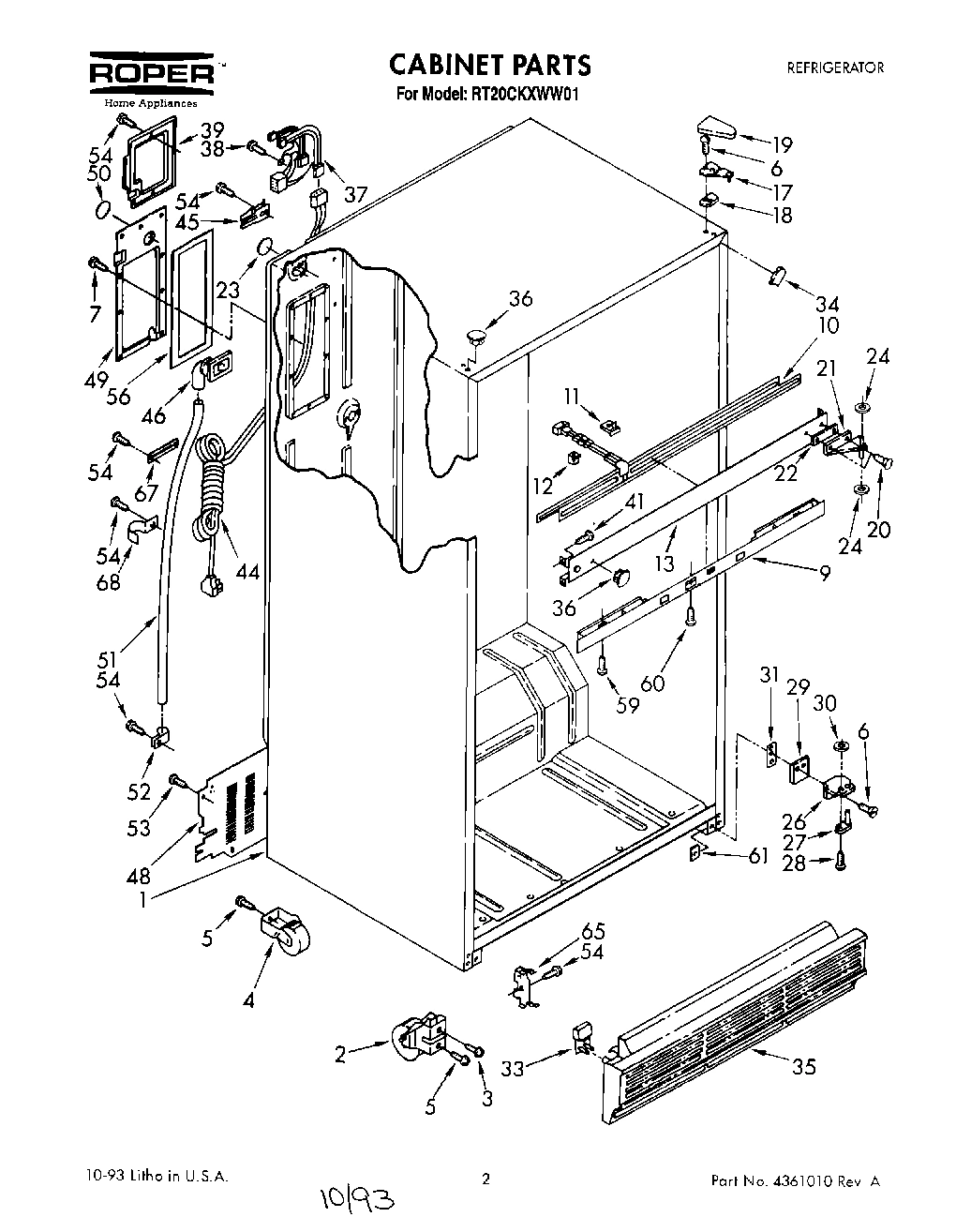

Cabinet (Not A Serviceable Part) WPL ARI127696A Contact Us For Availability

1

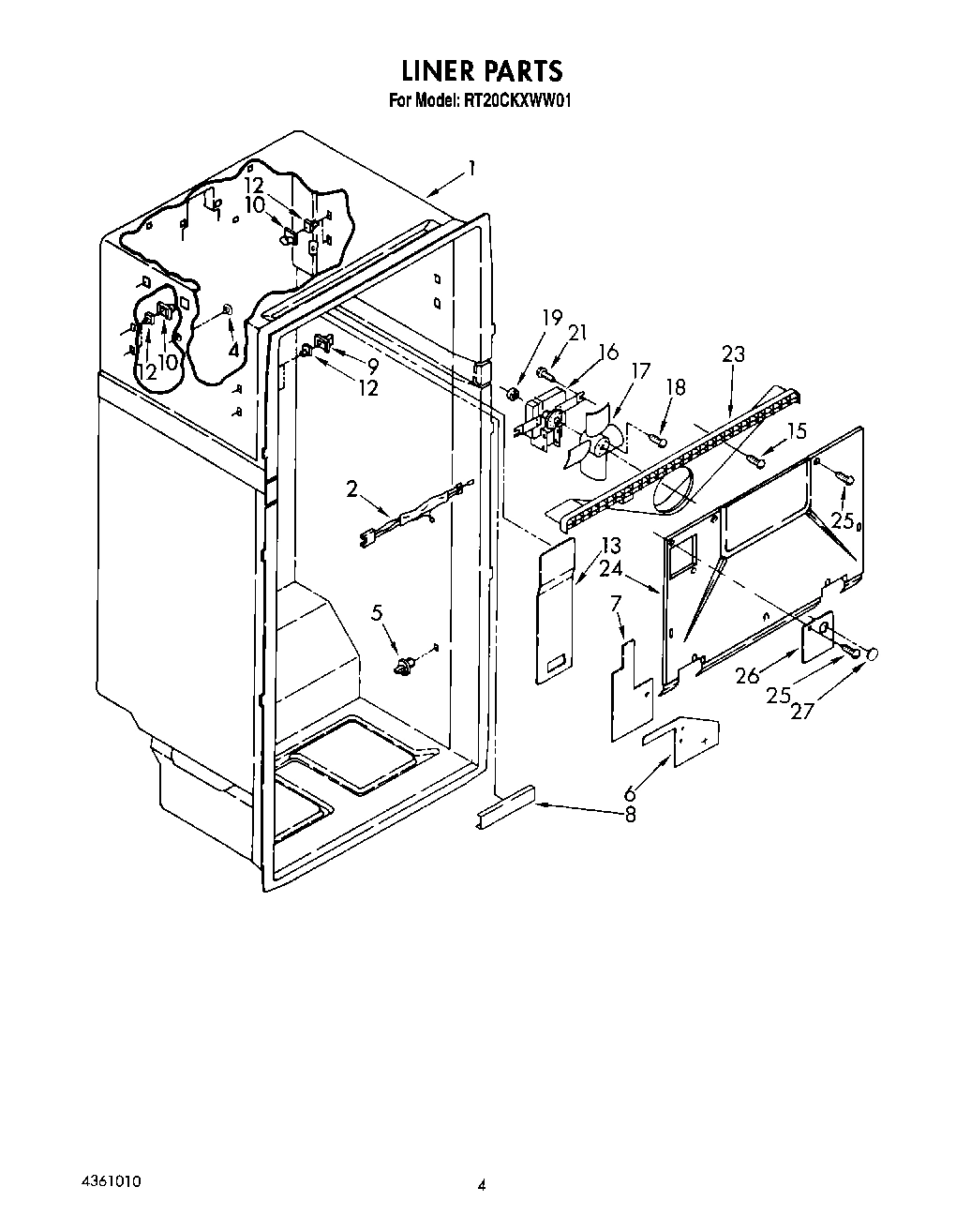

Liner (Not A Serviceable Part) WPL ARI127697A Contact Us For Availability

1

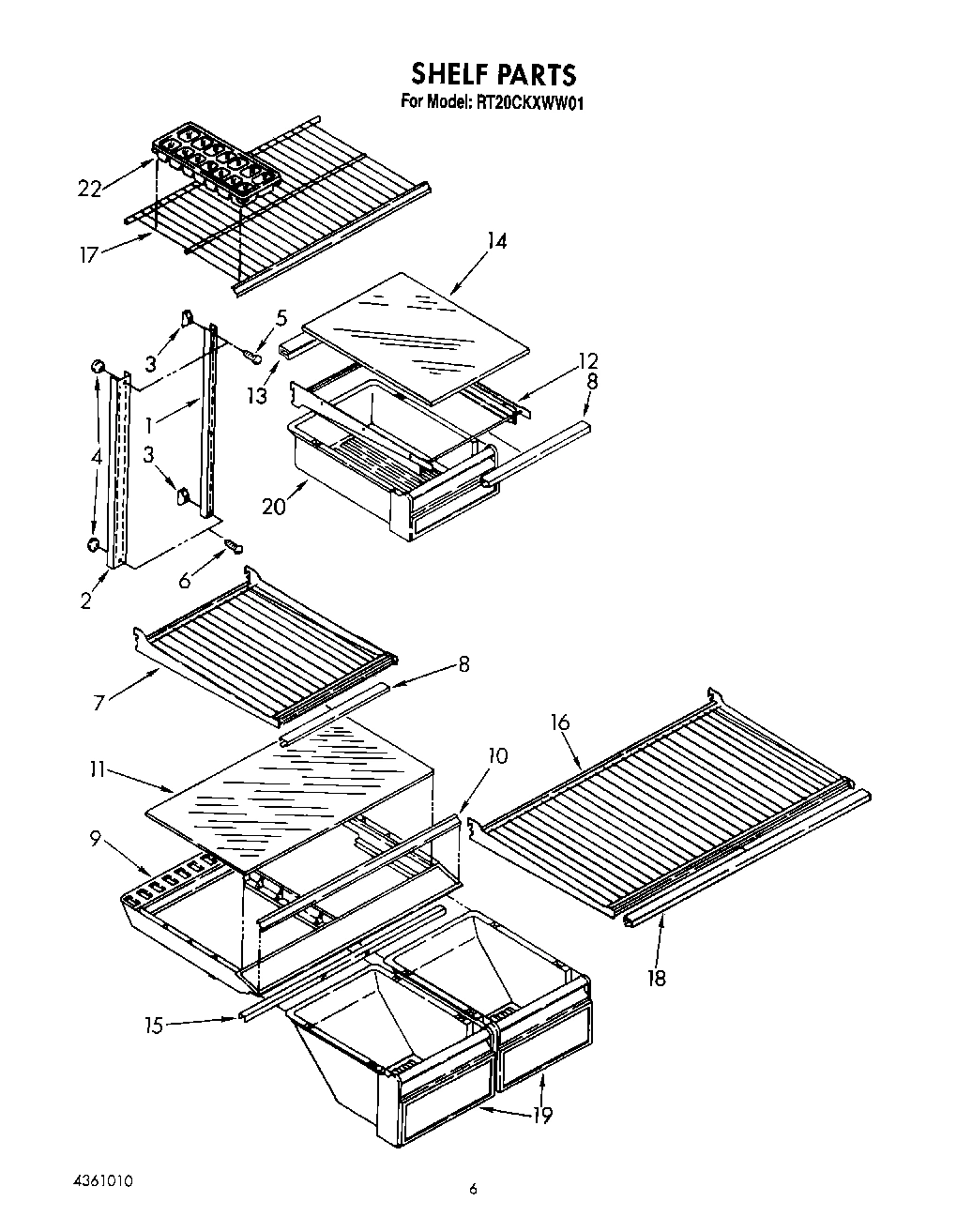

Shelf, Ladder (2) WPL 1114466 Contact Us For Availability

1

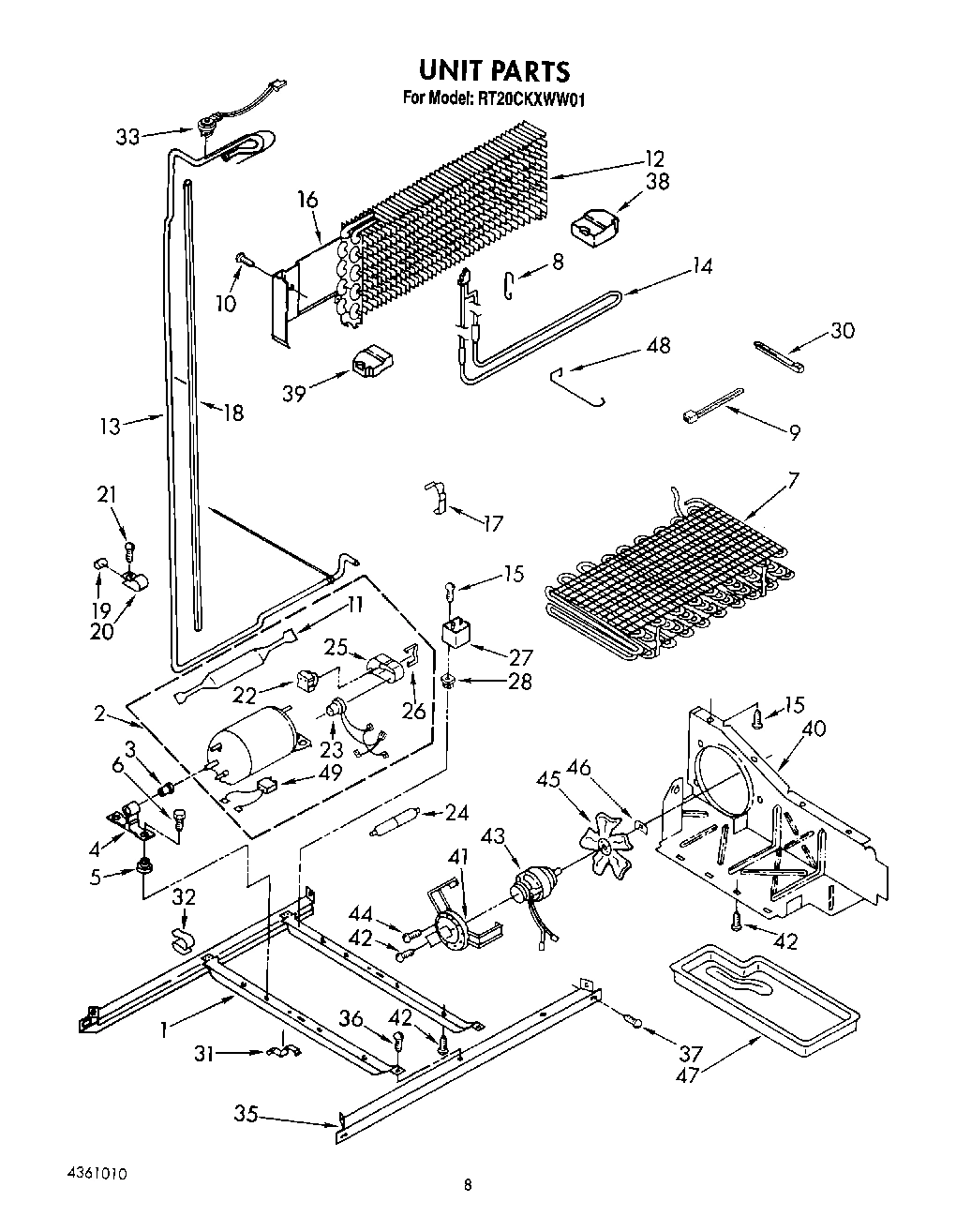

Unit, Frame WPL 2154451 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Roller, Front WPL 2152011 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

2

Compressor Kit (Includes Items 11, 22, 23, 25 WPL 4318250 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

Screw, 5/16-24 x 1-1/4 WPL 489333 Contact Us For Availability

3

Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

4

Screw, Support Center (2) WPL 520959 Contact Us For Availability

4

Bracket, Mounting WPL 1105220 Contact Us For Availability

5

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Screw (3) WPL 489345 Contact Us For Availability

5

Grommet, Compressor (4) (Production) WPL 1105200 Contact Us For Availability

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

Electrical Shield WPL 2151521 Contact Us For Availability

6

Screw (4) WPL 489334 Contact Us For Availability

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

7

Electrical Shield WPL 1106696 Contact Us For Availability

7

Shelf, Cantilever (3) WPL 1110738 Contact Us For Availability

7

Condenser Assembly WPL 2149613 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

8

Electrical, Shield WPL 1106892 Contact Us For Availability

8

Trim, Shelf WPL 1124366 Contact Us For Availability

8

Support, Heater WPL 2149120 Contact Us For Availability

9

WP2151749 Whirlpool Refrigerator Cover Backorder WPL WP2151749 $124.51

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Control, Front Cover WPL 1114312 Contact Us For Availability

9

Stud (2) WPL 946356 Contact Us For Availability

9

Strap, Mtg. WPL 1123230 Contact Us For Availability

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

End Cap, Top WPL 944157 Contact Us For Availability

Heater, Mullion WPL 1105433 Contact Us For Availability

Trim, Crisper Cover WPL 1119480 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

Handle End, Center WPL 935105 Contact Us For Availability

Clip, Rail (4) WPL 1129018 Contact Us For Availability

Glass, Crisper Cover WPL 1124363 Contact Us For Availability

Handle, Center WPL 1109181 Contact Us For Availability

Spacer (3) WPL 2149077 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability

Evaporator Assembly WPL 1118548 Contact Us For Availability

Shim, Handle WPL 935076 Contact Us For Availability

Center Rail (White) WPL 1105424 Contact Us For Availability

Center Rail (Almond) WPL 1105427 Contact Us For Availability

Cover, Air Duct WPL 1105447 Contact Us For Availability

Retainer, Glass WPL 1110744 Contact Us For Availability

Heat, Exchanger WPL 2149616 Contact Us For Availability

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Glass, Shelf WPL 1124367 Contact Us For Availability

14

Heater, Defrost WPL 2149645 Contact Us For Availability

15

WP2172748 Whirlpool Drawer Support Backorder WPL WP2172748 $50.82

15

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Shelf, Full Cantilever WPL 1120135 Contact Us For Availability

Heat Shield WPL 1105545 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Trim, Door Shelf (2) WPL 1120833 Contact Us For Availability

Hinge, Top WPL 1123514 Contact Us For Availability

Shelf, Freezer WPL 1106615 Contact Us For Availability

Clamp, Dryer WPL 1127590 Contact Us For Availability

WP2002171 Whirlpool Refrigerator Sleeve Backorder WPL WP2002171 $10.19

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Shim, Hinge Top WPL 1123515 Contact Us For Availability

Nameplate WPL 1124315 Contact Us For Availability

Cover WPL 987873 Contact Us For Availability

Trim, Shelf WPL 2152284 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Interior Door Panel WPL 1106856 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Pan, Crisper WPL 1124364 Contact Us For Availability

Dampener WPL 510769 Contact Us For Availability

Trim, Door (2) WPL 1120825 Contact Us For Availability

Screw WPL 489179 Contact Us For Availability

Pan, Meat WPL 1124369 Contact Us For Availability

Tube Clamp WPL 510716 Contact Us For Availability

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Trim, Door WPL 1120826 Contact Us For Availability

Hinge, Center WPL 2151685 Contact Us For Availability

Screw WPL 489168 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Compartment Door, Utility WPL 1124374 Contact Us For Availability

Shim, Hinge Center WPL 2151688 Contact Us For Availability

Shim, Center (Repair) WPL 841604 Contact Us For Availability

Relay (See Overload) WPL ARI127698A Contact Us For Availability

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

Compartment, Butter Door WPL 1124373 Contact Us For Availability

Hole Seal WPL 1129056 Contact Us For Availability

Scroll, Fan WPL 1127100 Contact Us For Availability

Overload (Production (Includes Relay)) WPL 1116635 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Evaporator Cover WPL 1118711 Contact Us For Availability

Muffler WPL 2149654 Contact Us For Availability

25

Terminal Cover (Production) WPL 1105221 Contact Us For Availability

25

Terminal Cover (Service) WPL 1108115 Contact Us For Availability

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

Hinge Butt, Bottom WPL 1115908 Contact Us For Availability

Strap, Cover (Production) WPL 1105222 Contact Us For Availability

Strap, Cover (Service) WPL 938384 Contact Us For Availability

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

Hole Plug WPL 1103725 Contact Us For Availability

Running Capacitor (Service) WPL 2154565 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Cap, Hinge Sleeve (4) WPL 509929 Contact Us For Availability

28

Screw Grommet WPL 509812 Contact Us For Availability

29

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

29

Shim, Bottom WPL 836196 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4318297 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4318297 $10.39

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

CEMEN WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Strap WPL 851095 Contact Us For Availability

31

Spacer WPL 1129868 Contact Us For Availability

31

Clip, Unit Cover WPL 548744 Contact Us For Availability

32

Clip, Wire (2) WPL 548745 Contact Us For Availability

33

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

33

Corner Filler, Grille WPL 1118078 Contact Us For Availability

34

Filler, Wrap Corner (White) WPL 1110708 Contact Us For Availability

34

Filler, Wrap Corner (Almond) WPL 1110709 Contact Us For Availability

35

Grille WPL 1129001 Contact Us For Availability

35

Unit, Rail WPL 2149717 Contact Us For Availability

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

36

Hole Plug (5) (White) WPL 1129062 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

37

Cabinet, Wiring Assembly WPL 2149633 Contact Us For Availability

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

38

Support (R.S.) WPL 1118550 Contact Us For Availability

39

Cover, Wiring WPL 1105606 Contact Us For Availability

39

Support, Evaporator (L.S.) WPL 1118551 Contact Us For Availability

40

Air, Baffle WPL 1127938 Contact Us For Availability

41

Screw, 8 x 1/2 WPL 489327 Contact Us For Availability

41

Fan, Mounting Bracket WPL 548695 Contact Us For Availability

42

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

43

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

44

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

44

Cord, Service WPL 937360 Contact Us For Availability

45

Fan, Blade WPL 1108179 Contact Us For Availability

45

Clamp WPL 937357 Contact Us For Availability

46

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

46

Fitting, Drain WPL 937062 Contact Us For Availability

47

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

48

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

48

Cover, Unit WPL 1105531 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

Cover, Plug WPL 1105527 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

50

Hole Seal WPL 1120224 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

52

Clamp WPL 836077 Contact Us For Availability

56

Gasket, Cover WPL 1114548 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

67

Tube Clamp WPL 1105607 Contact Us For Availability

68

Clamp WPL 1110564 Contact Us For Availability
