Model Whirlpool RT20CKXAW01 – Common Parts & Diagrams
06 - UNIT
07 - REFRIGERATOR DOOR, LIT/OPTIONAL

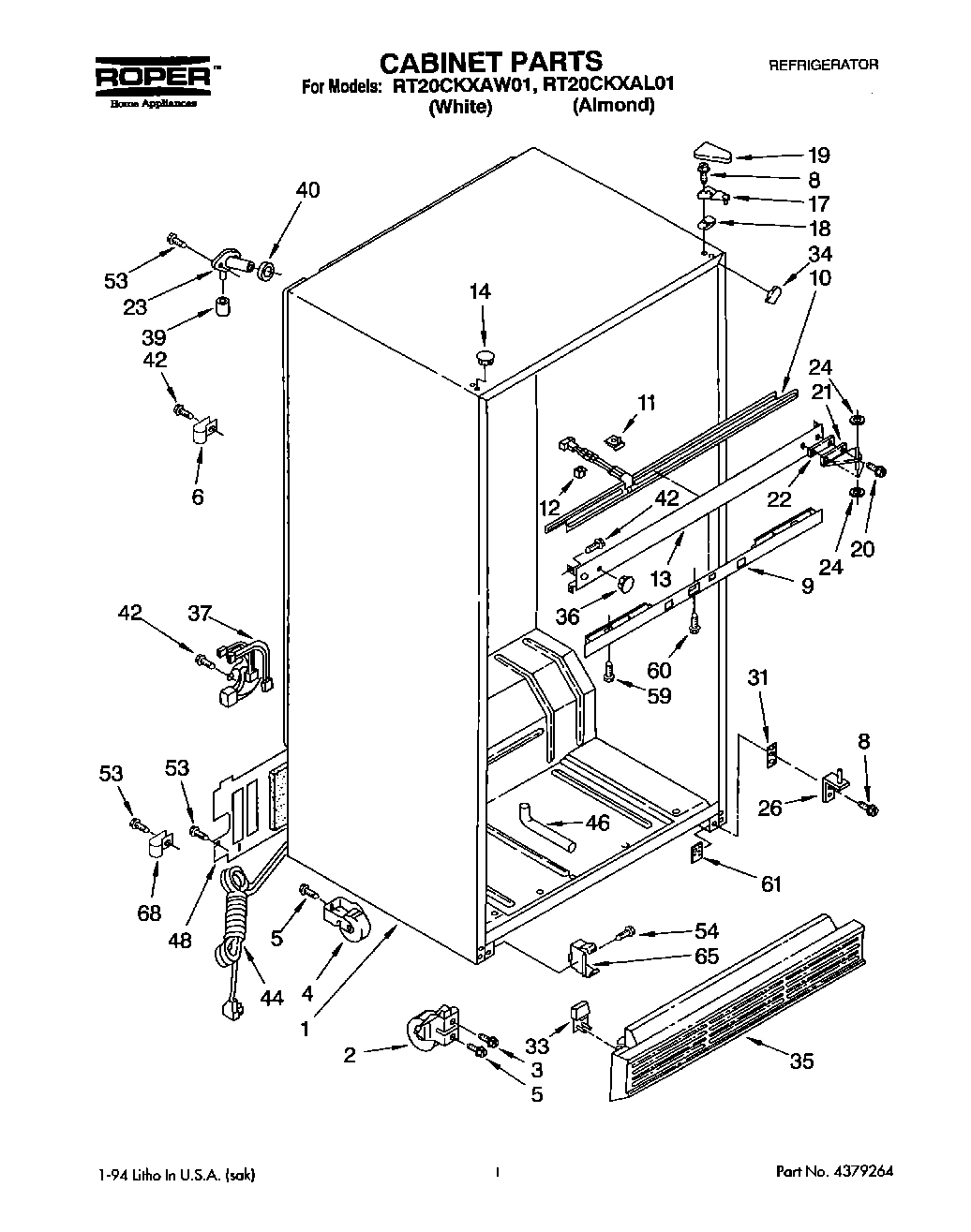

01 - CABINET

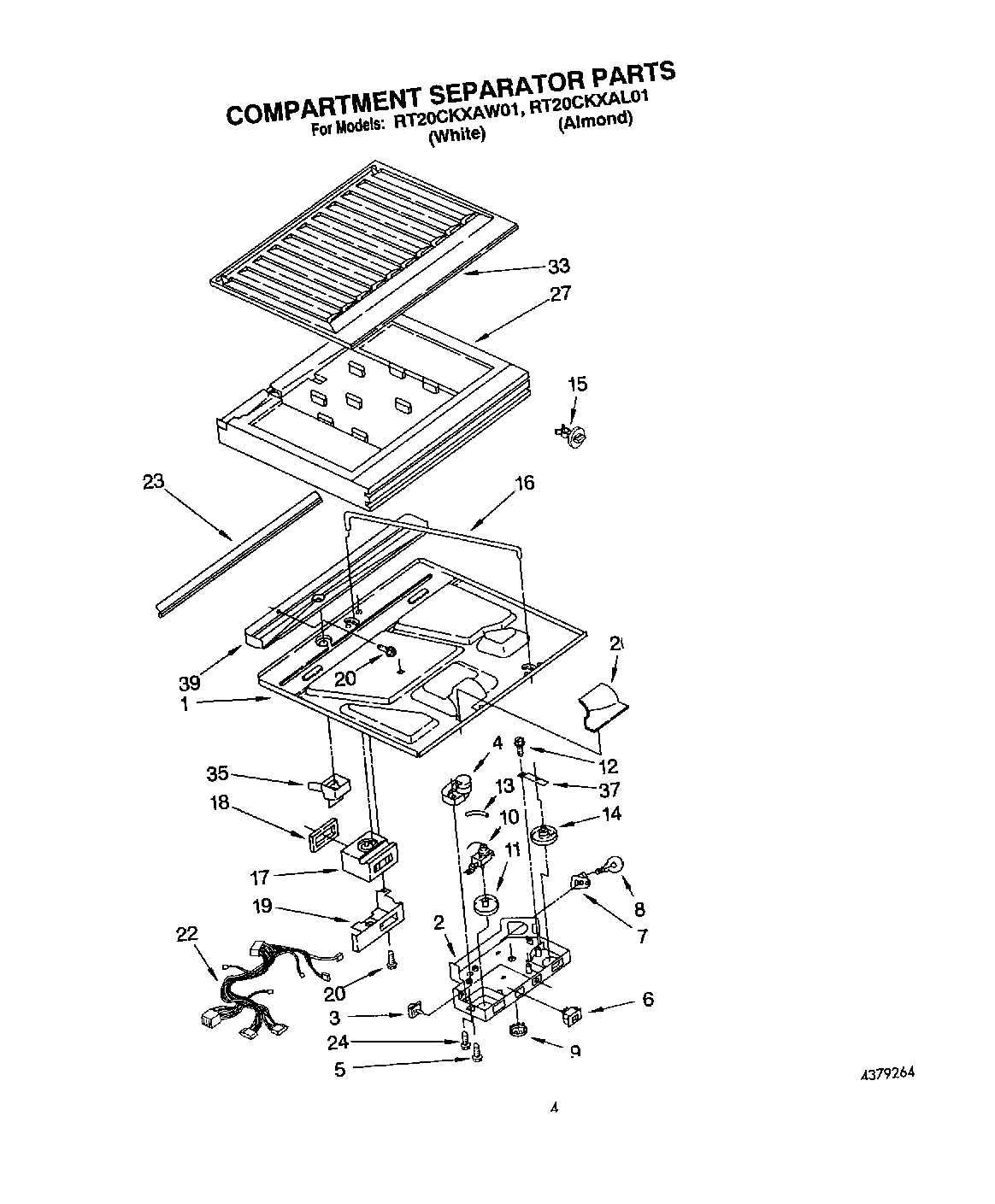

03 - COMPARTMENT SEPARATOR

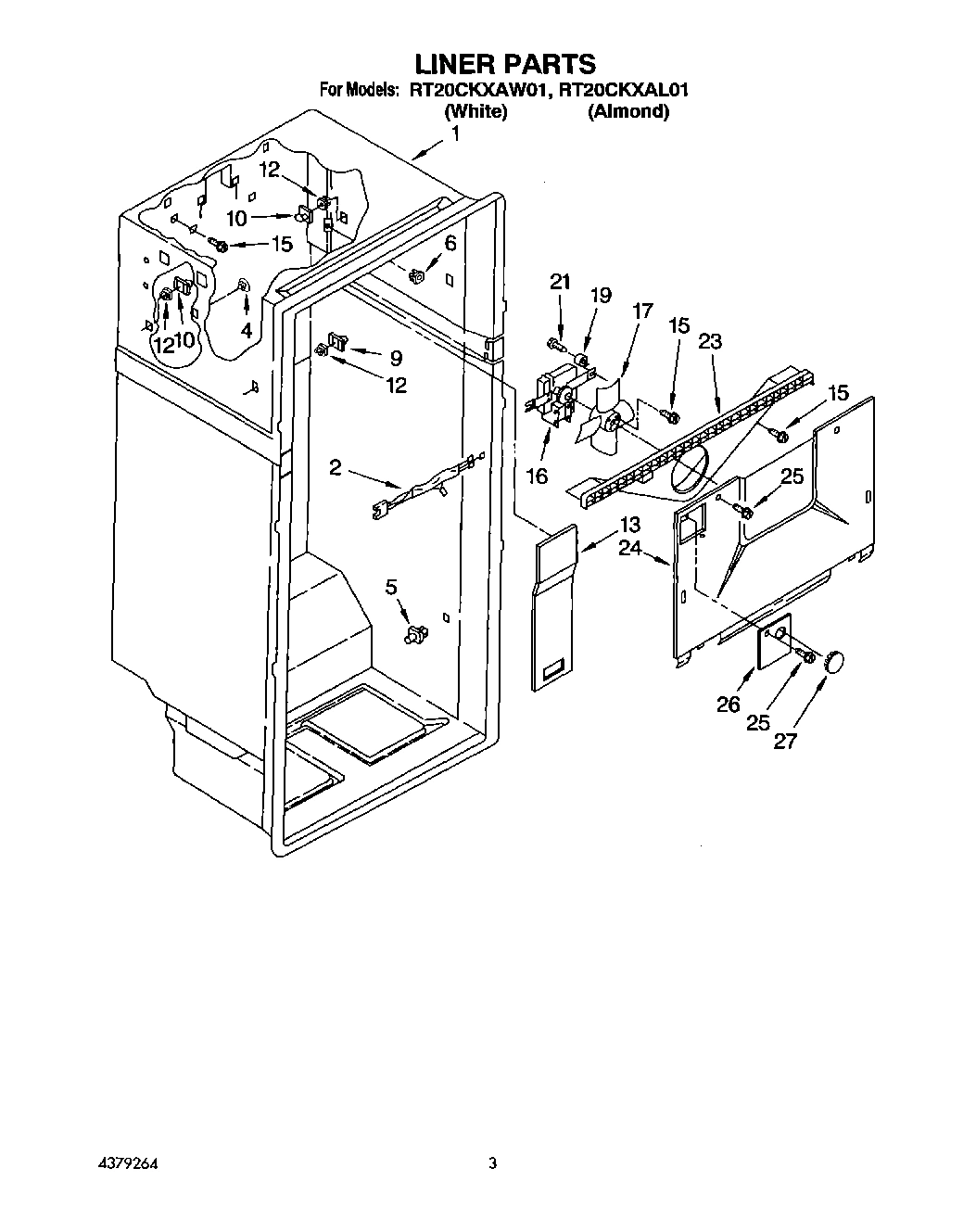

02 - LINER

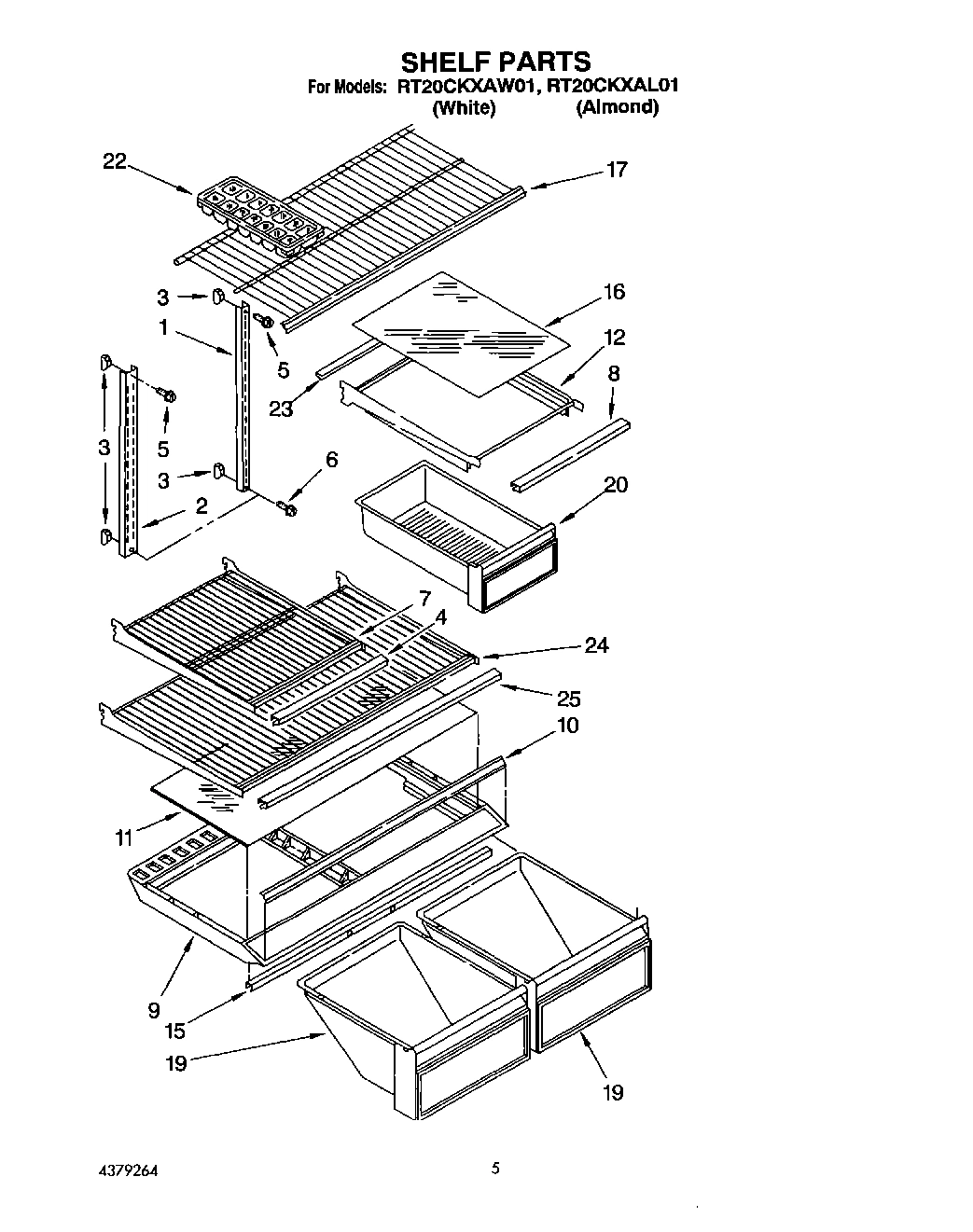

04 - SHELF

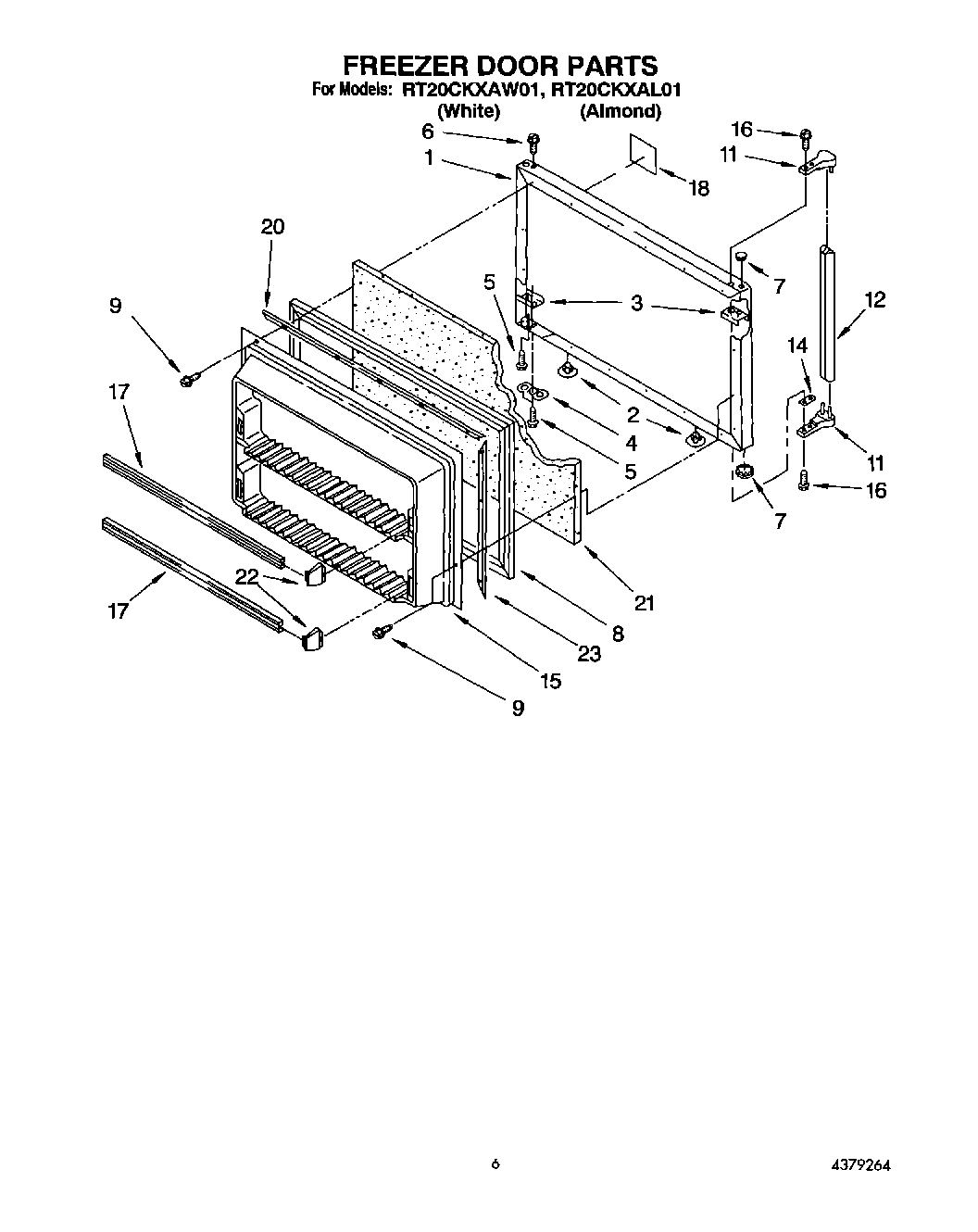

05 - FREEZER DOOR
Common parts from model Whirlpool RT20CKXAW01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (Almond (Also Order WPL 1122658 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI127687A Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172816 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI127688A Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 2159160 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 2159163 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Hole Plug (2) (White) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
6
Plate, Screw WPL 983604 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 1110738 Contact Us For Availability
8
Trim, Shelf WPL 1124366 Contact Us For Availability
9
Control, Front Cover WPL 2163297 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
10
Heater, Mullion WPL 2157307 Contact Us For Availability
10
Trim, Crisper Cover WPL 2172711 Contact Us For Availability
11
Handle End WPL 944157 Contact Us For Availability
11
Handle End, Side WPL 935105 Contact Us For Availability
11
Clip, Center Rail (4) WPL 1129018 Contact Us For Availability
11
Knob, Thermostat WPL 2148150 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124363 Contact Us For Availability
12
Handle, Center WPL 1109181 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1110756 Contact Us For Availability
12
Handle, Center WPL 2163218 Contact Us For Availability
13
Shim, Handle WPL 935076 Contact Us For Availability
13
Center Rail WPL 2172705 Contact Us For Availability
13
Cover, Air Duct WPL 2157411 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
14
Knob, Air Control WPL 2148151 Contact Us For Availability
15
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
15
Interior Door Panel WPL 1122575 Contact Us For Availability
16
Rod, Connecting WPL 1105459 Contact Us For Availability
16
Glass, Shelf WPL 1124367 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Shelf, Freezer WPL 1106615 Contact Us For Availability
18
Screw, Cover WPL 987873 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Nameplate WPL 2160005 Contact Us For Availability
19
Interior Door Panel WPL 2156205 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Pan, Crisper WPL 2163279 Contact Us For Availability
20
Trim, Door (2) WPL 1120825 Contact Us For Availability
20
Retainer, Gasket WPL 1122552 Contact Us For Availability
20
Pan, Meat WPL 2163288 Contact Us For Availability
21
Trim, Door WPL 1120826 Contact Us For Availability
21
Kit, Foam Slab (Required When Replacing Exter WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
EndCap, Trim WPL 1106862 Contact Us For Availability
22
Compartment Door WPL 2163278 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
23
Retainer, Gasket WPL 1122553 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159684 Contact Us For Availability
23
Scroll, Fan WPL 2160644 Contact Us For Availability
23
Retainer, Glass WPL 1110744 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2157428 Contact Us For Availability
24
Shelf, Full Cantilever WPL 1120135 Contact Us For Availability
25
Trim, Shelf WPL 2152284 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1105463 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Retainer, Gasket WPL 1122551 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
Door Reversal Instructions WPL 2148984 Contact Us For Availability
31
PAINT xEnamel, Golden Harvest (13 Oz. Spray C WPL 261891 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
WPL 542639 WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1129022 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
36
Hole Plug WPL 1129062 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
39
Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
46
Tube, Drain Extension WPL 2154119 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
54
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
