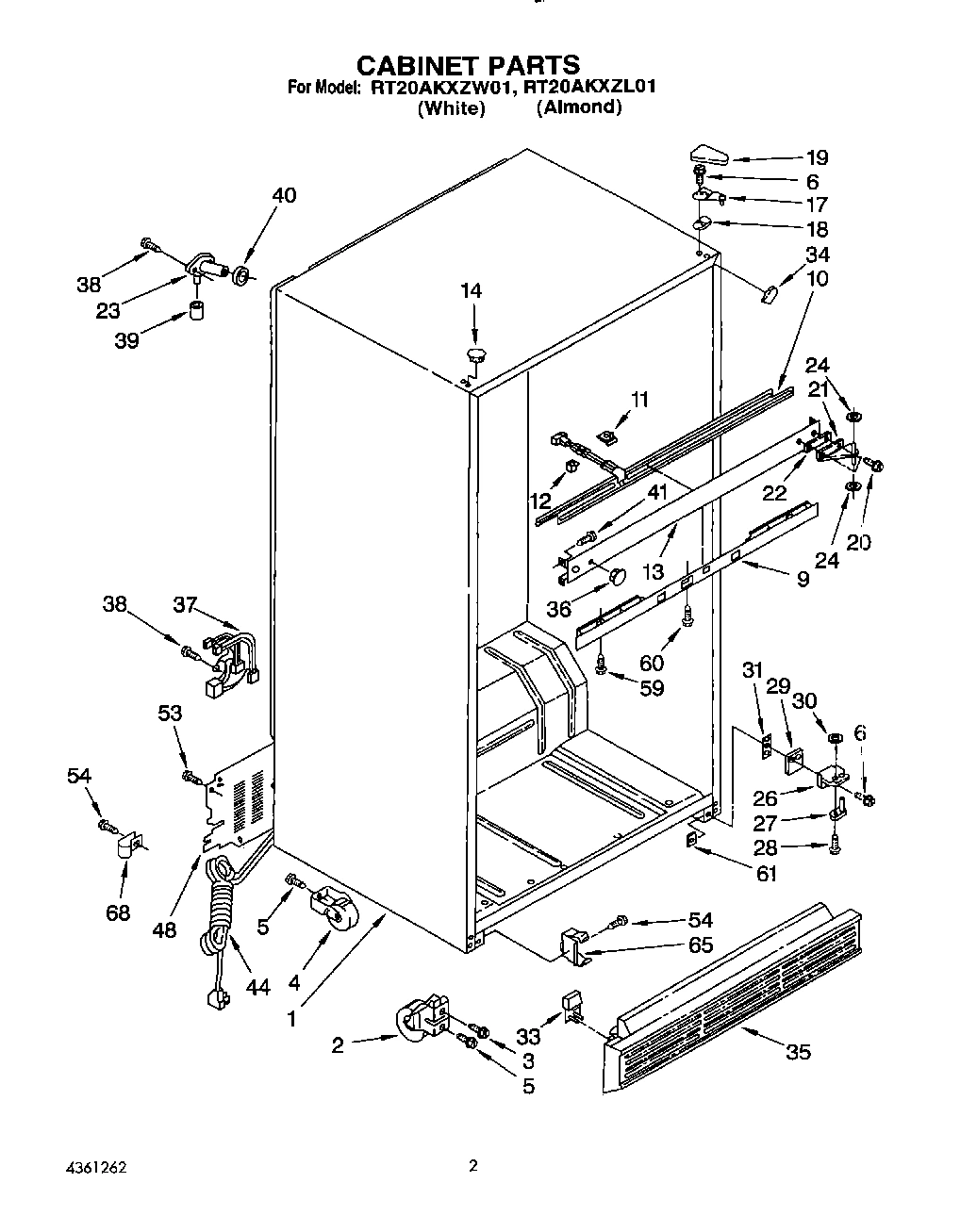

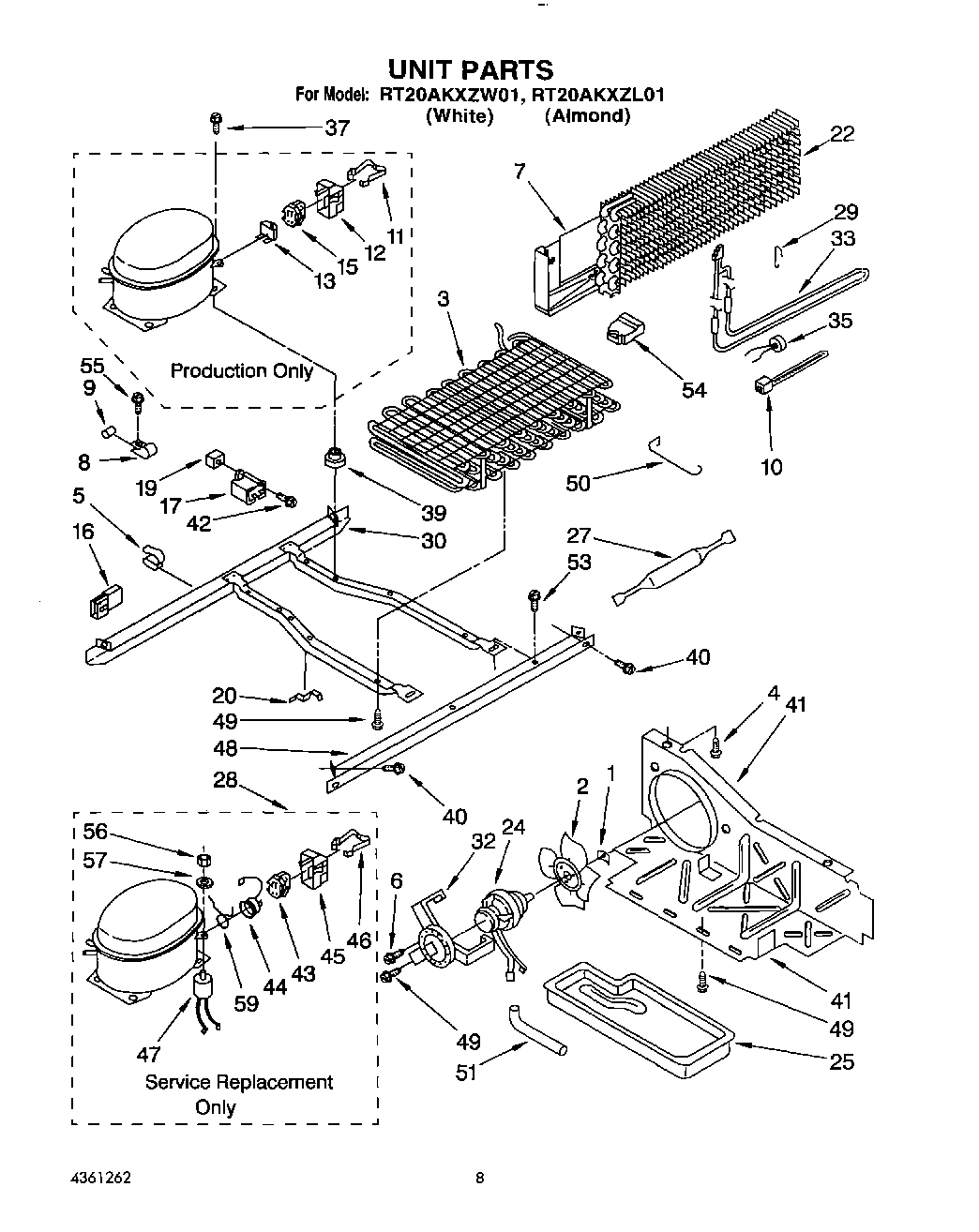

Model Whirlpool RT20AKXZW01 – Common Parts &amp; Diagrams

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL LIT2150256 WPL LIT2150256 Contact Us For Availability

WPL LIT2152543 WPL LIT2152543 Contact Us For Availability

WPL LIT2154075 WPL LIT2154075 Contact Us For Availability

WPL LIT4361262 WPL LIT4361262 Contact Us For Availability

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

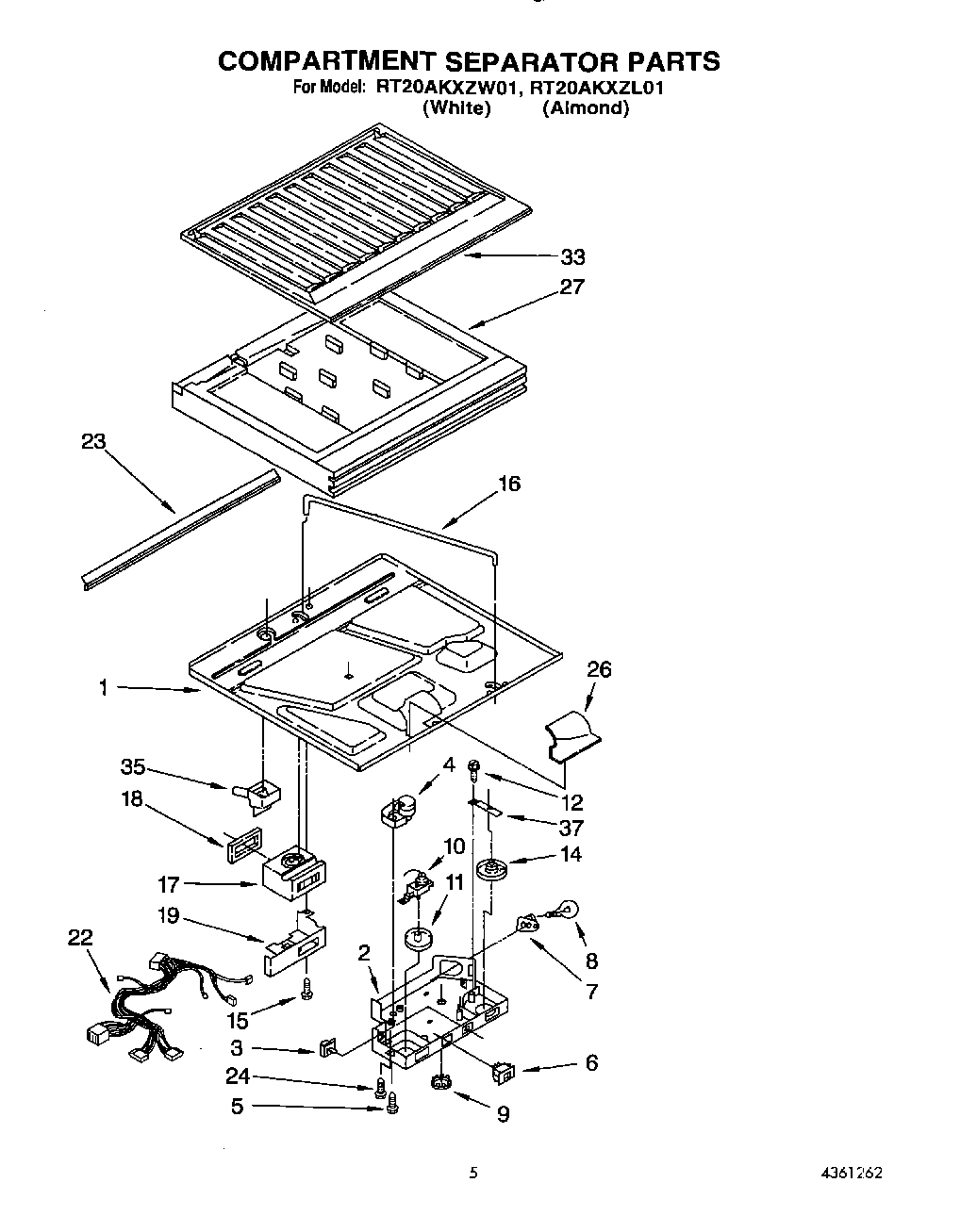

Bottom, Compartment Separator WPL 1122715 Contact Us For Availability

1

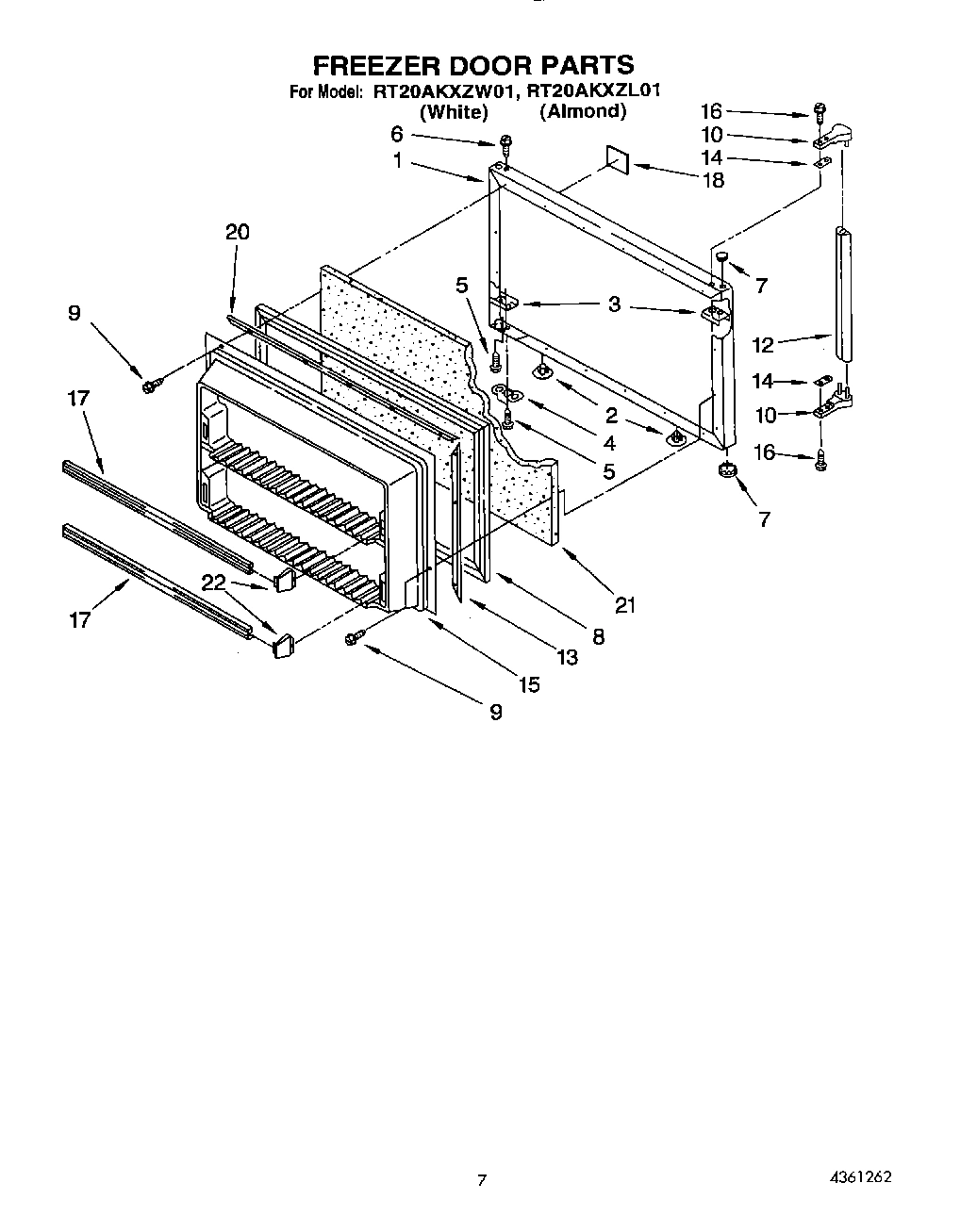

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1122550 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1122663 Contact Us For Availability

1

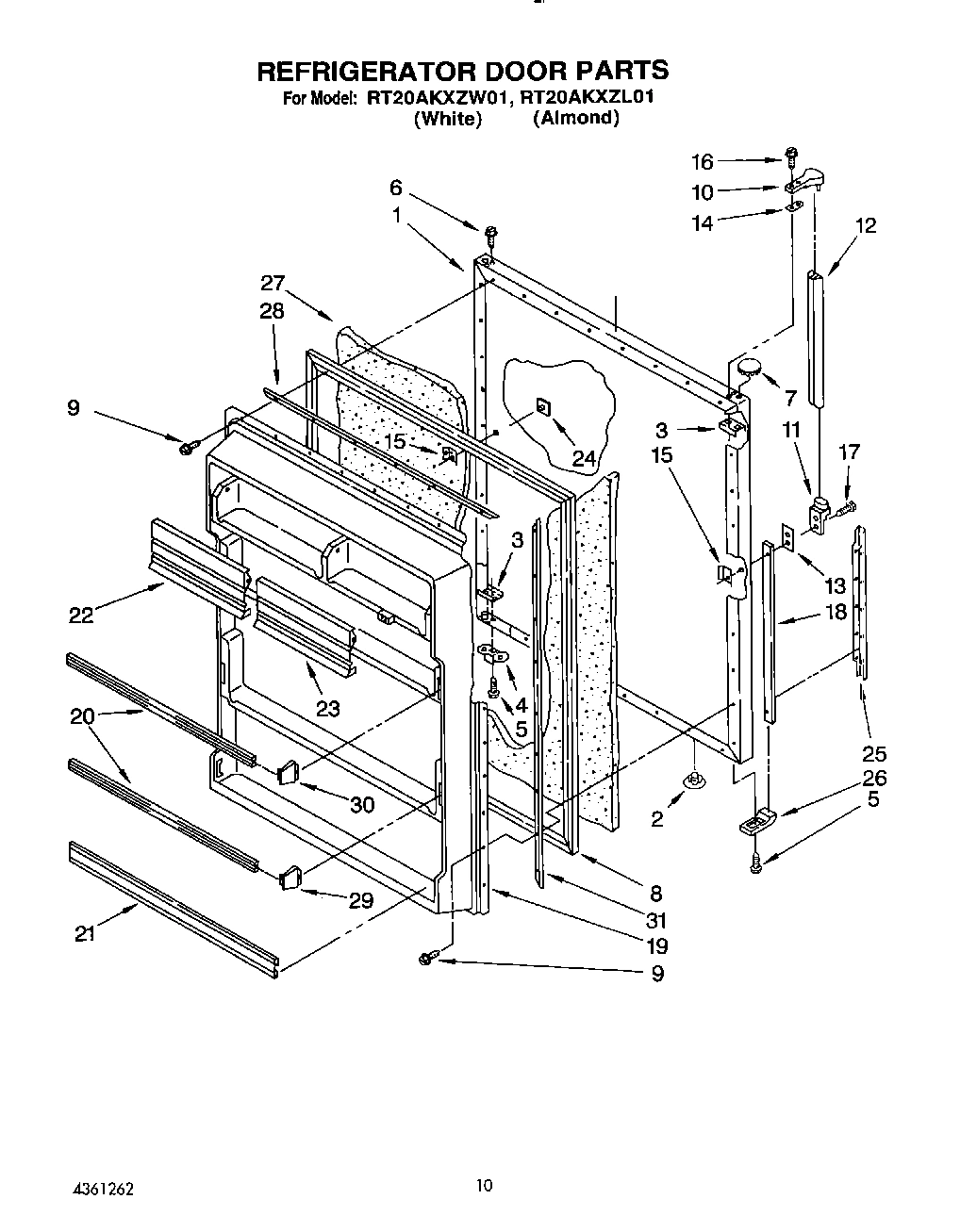

Panel, Refrigerator Door (Also Order Item 27) WPL 1122549 Contact Us For Availability

1

Panel, Refrigerator Door (Also Order Item 27) WPL 1122658 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Box, Control WPL 1105455 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

Condenser Assembly WPL 2154010 Contact Us For Availability

4

WP2183400 Whirlpool Defrost Timer In Stock WPL WP2183400 $46.85

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

5

W10854959 Whirlpool Refrigerator Shelf Stud Backorder WPL W10854959 $4.23

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Clip, Wire WPL 548745 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Drain Pan/ Heat Shield WPL 2153974 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

2188450A Whirlpool Refrigerator Door Gasket Backorder WPL 2188450A $108.53

8

2188460A Whirlpool Refrigerator Door Gasket Backorder WPL 2188460A $89.09

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

Tube Clamp WPL 510716 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

Dampener WPL 2149670 Contact Us For Availability

10

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

10

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

10

End Cap, Top WPL 944157 Contact Us For Availability

11

Knob, Thermostat WPL 2148150 Contact Us For Availability

11

Spring, Relay Case WPL 943322 Contact Us For Availability

11

Handle End, Center WPL 936930 Contact Us For Availability

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Case, Relay WPL 1105055 Contact Us For Availability

Handle, Center WPL 1120835 Contact Us For Availability

Handle, Center WPL 1124376 Contact Us For Availability

13

Retainer, Gasket WPL 1122553 Contact Us For Availability

13

Overload WPL 2154140 Contact Us For Availability

13

Shim, Handle WPL 935076 Contact Us For Availability

14

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

14

Spacer, Handle Door WPL 943188 Contact Us For Availability

14

Knob, Air Control WPL 2148151 Contact Us For Availability

15

2154436 Whirlpool Refrigerator Start Relay Backorder WPL 2154436 $53.64

15

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

15

Interior Door Panel WPL 1122575 Contact Us For Availability

16

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

16

Rod, Connecting WPL 1105459 Contact Us For Availability

16

Housing Plug WPL 1118850 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Air Diffuser Assembly WPL 2157256 Contact Us For Availability

Trim, Door Shelf (2) WPL 1120833 Contact Us For Availability

18

Gasket, Air Diffuser WPL 2157255 Contact Us For Availability

18

Nameplate WPL 2160005 Contact Us For Availability

18

Retainer, Insert WPL 1118080 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Grommet, Screw WPL 509812 Contact Us For Availability

Interior Door Panel WPL 2156205 Contact Us For Availability

20

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

20

Clip, Unit Cover WPL 548744 Contact Us For Availability

20

Trim, Door (2) WPL 1120825 Contact Us For Availability

21

Trim, Door WPL 1120826 Contact Us For Availability

21

Hinge, Center WPL 2147335 Contact Us For Availability

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability

Evaporator WPL 2153978 Contact Us For Availability

Compartment Door, Utility WPL 1124374 Contact Us For Availability

23

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

23

Gasket, Bottom Separator WPL 1114382 Contact Us For Availability

23

Compartment, Butter Door WPL 1124373 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

25

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

25

Insert, Handle WPL 1124378 Contact Us For Availability

26

Hinge Butt, Bottom WPL 1123378 Contact Us For Availability

26

Insulation, Filler WPL 1108196 Contact Us For Availability

26

Endcap, Retainer WPL 1105804 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

27

Insulation, Compartment Separator WPL 1105463 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Compressor (Includes Items 43, 44, 45, 46, 47 WPL 4317959 Contact Us For Availability

28

Gasket, Retainer WPL 1122552 Contact Us For Availability

29

4318297 Whirlpool Refrigerator Shelf Bar Endc In Stock WPL 4318297 $10.39

29

Shim, Bottom WPL 1123379 Contact Us For Availability

29

Support, Heater WPL 2149120 Contact Us For Availability

30

4386917 Whirlpool Endcap Kit In Stock WPL 4386917 $6.84

30

WP489200 Whirlpool Refrigerator Washer Backorder WPL WP489200 $4.61

30

Unit Mounting Frame WPL 1127942 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Spacer WPL 1121117 Contact Us For Availability

Gasket, Retainer WPL 1122551 Contact Us For Availability

Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

32

Fan, Motor Bracket WPL 548695 Contact Us For Availability

33

Corner Filler, Grille WPL 1118078 Contact Us For Availability

33

Separator, Compartment (Top) WPL 1129022 Contact Us For Availability

33

Heater, Defrost WPL 2154736 Contact Us For Availability

34

Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability

34

Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability

35

WP4387503 Whirlpool Refrigerator Bimetal Defr In Stock WPL WP4387503 $16.40

35

Grille WPL 1129001 Contact Us For Availability

35

Cup, Drain WPL 937065 Contact Us For Availability

36

Hole Plug (5) (White) WPL 1129062 Contact Us For Availability

36

Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability

37

Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability

37

Bracket, Control Knob WPL 1105457 Contact Us For Availability

38

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP487996 Whirlpool Refrigerator Cap Tube Backorder WPL WP487996 $4.48

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

41

Air, Baffle WPL 1127938 Contact Us For Availability

42

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

43

WP2262181 Whirlpool Refrigerator Start Relay In Stock WPL WP2262181 $50.51

44

Cord, Service WPL 937360 Contact Us For Availability

44

Overload WPL 1118841 Contact Us For Availability

45

Cover WPL 1108115 Contact Us For Availability

46

Strap WPL 938384 Contact Us For Availability

48

Cover, Unit WPL 1105531 Contact Us For Availability

48

Unit Mounting Rail WPL 2149717 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

51

Drain Extension WPL 2154119 Contact Us For Availability

53

Screw, WPL 488454 Contact Us For Availability

54

Support, Evaporator (R.S.) WPL 1118805 Contact Us For Availability

54

Support, Evaporator (L.S.) WPL 1118806 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

56

Nut WPL 489142 Contact Us For Availability

57

Washer WPL 489143 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Overload Spring WPL 1114190 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

60

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

61

Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability

65

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

68

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94
