Model Electrolux RT19F9WU3E REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

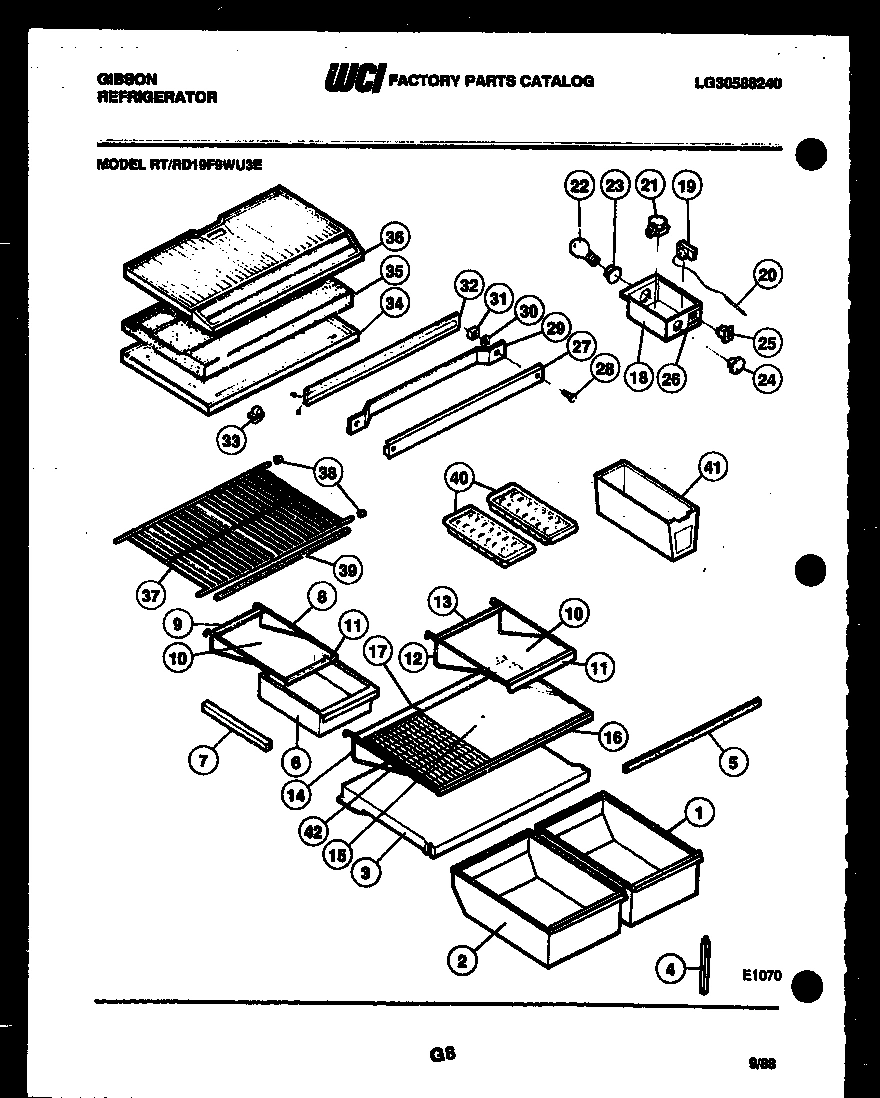

04 - SHELVES AND SUPPORTS

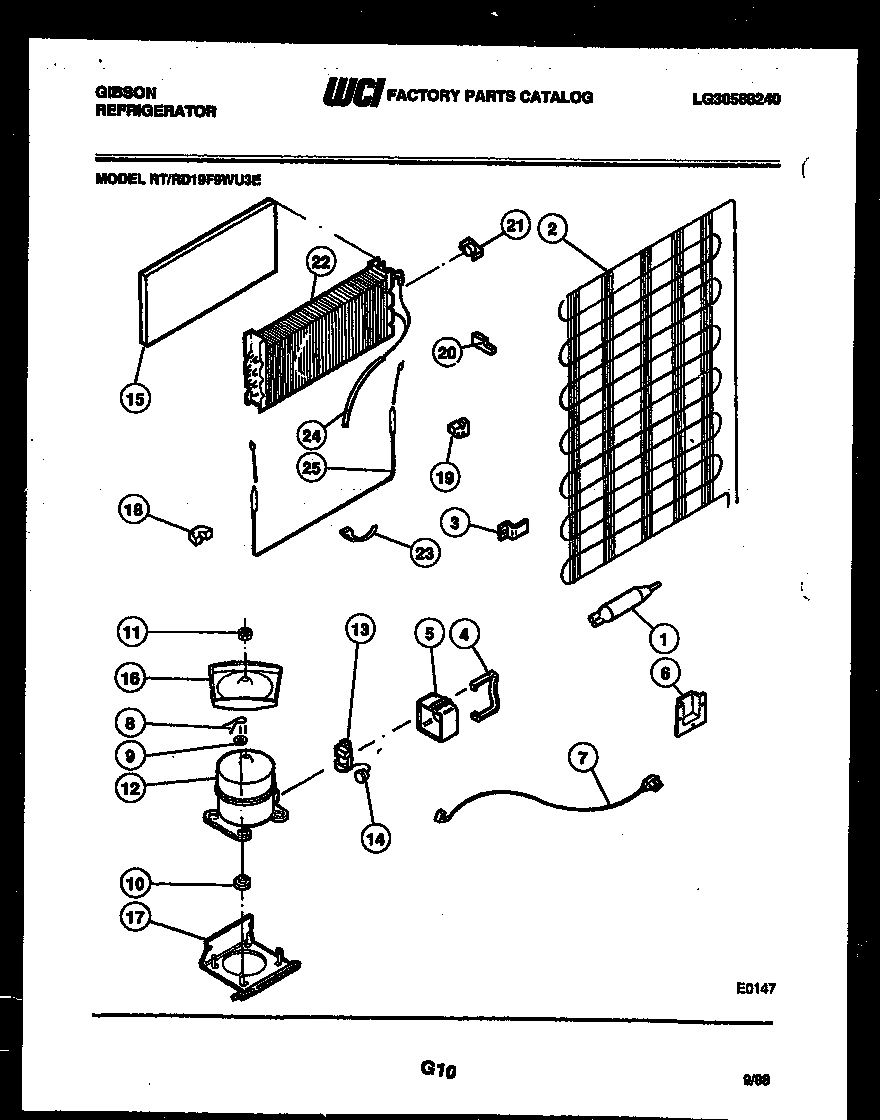

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT19F9WU3E REFRIGERATOR
*83676
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
*83677
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
*83679
WCI G167234 WCI G167234 Contact Us For Availability
*83681
HARNESS, WIRING WCI G174818 Contact Us For Availability
1
COVER HINGE, WHITE WCI G183558-01 Contact Us For Availability
1
COVER HINGE, AVOCADO WCI G183558-08 Contact Us For Availability
1
COVER HINGE, WHEAT WCI G183558-09 Contact Us For Availability
1
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
1
COVER HINGE, ALMOND WCI G183558-11 Contact Us For Availability
1
PAN-CRISPER RS WCI G176639-29 Contact Us For Availability
1A
TRIM-PAN (NON-ILLUSTRATED) WCI G177343-18 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
PAN-CRISPER LS WCI G490015-49 Contact Us For Availability
2
WCI G163133 WCI G163133 Contact Us For Availability
2A
TRIM-PAN (NON-ILLUSTRATED) WCI 3201093 Contact Us For Availability
3
PANEL, INNER WCI G187493-02 Contact Us For Availability
3
WCI G183861 WCI G183861 Contact Us For Availability
3
COVER, CRISPER WCI G490064-01 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI G164637 Contact Us For Availability
4
WCI G161019-62 WCI G161019-62 Contact Us For Availability
4
SUPPORT, COVER WCI G166310-02 Contact Us For Availability
5
WCI G103903 No Longer Available
5
SUPPORT-LH (4) WCI G178284-02 Contact Us For Availability
5
GASKET, COVER WCI G180108-07 Contact Us For Availability
6
SUPPORT-RH (4) WCI G178287-02 Contact Us For Availability
6
WASHER, HINGE WCI G164355 Contact Us For Availability
6
WCI G187181-02 WCI G187181-02 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
6A
TRIM-PAN (NON-ILLUSTRATED) WCI G177343-19 Contact Us For Availability
7
WCI G161019-61 WCI G161019-61 Contact Us For Availability
7
WCI G177021 WCI G177021 Contact Us For Availability
7
HANGER, PAN LS WCI G187215-03 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
7A
HANGER, PAN RS (NON-ILLUSTRATED) WCI G187216-03 Contact Us For Availability
7B
SCREW-MOUNTING (2) (NON-ILLUSTRATED) WCI G184823 Contact Us For Availability
8
STOP,DOOR WCI G155072 Contact Us For Availability
8
WCI G183407 WCI G183407 Contact Us For Availability
8
WCI G187218-10 WCI G187218-10 Contact Us For Availability
8
CLIP (4) WCI G163204 Contact Us For Availability
9
WCI G162977-08 WCI G162977-08 Contact Us For Availability
9
WCI G162977-09 WCI G162977-09 Contact Us For Availability
9
WCI G162977-10 WCI G162977-10 Contact Us For Availability
9
WCI G162977-11 WCI G162977-11 Contact Us For Availability
9
TRIM-REAR WCI G172436-13 Contact Us For Availability
9
WASHER (4) WCI G164634 Contact Us For Availability
10
WCI G167404-12 WCI G167404-12 Contact Us For Availability
10
WCI G177025 WCI G177025 Contact Us For Availability
10
WCI G171654-51 WCI G171654-51 Contact Us For Availability
11
WCI G169332-01 WCI G169332-01 Contact Us For Availability
11
WCI G169332-08 WCI G169332-08 Contact Us For Availability
11
WCI G169332-09 WCI G169332-09 Contact Us For Availability
11
WCI G169332-10 WCI G169332-10 Contact Us For Availability
11
WCI G169332-11 WCI G169332-11 Contact Us For Availability
11
SPRING-ADJUSTMENT (2) WCI G178494 Contact Us For Availability
11
TRIM-FRONT (3) WCI G172410-05 Contact Us For Availability
11
NUT, LOCK WCI G164958 Contact Us For Availability
12
HANDLE ASSEMBLY WCI G168506-01 Contact Us For Availability
12
BOLT-ROLLER ADJUSTMENT WCI G177024 Contact Us For Availability
12
FRAME-SHELF (2) WCI G171608-14 Contact Us For Availability
12
COMPRESSOR-SERVICE WCI 3916020 Contact Us For Availability
13
NAMEPLATE WCI G175117-02 Contact Us For Availability
13
WASHER WCI G182799 Contact Us For Availability
13
TRIM-REAR (2) WCI G172436-14 Contact Us For Availability
13
RELAY-SERVICE WCI 3007171 Contact Us For Availability
14
LABEL-LOWER WCI 3019041 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
14
FRAME-FULL WCI G186665-02 Contact Us For Availability
14
OVERLOAD-SERVICE WCI 3007416 Contact Us For Availability
15
LABEL-UPPER FREEZER WCI G188378-02 Contact Us For Availability
15
HINGE BRACKET-BOTTOM WCI G191474 Contact Us For Availability
15
SHELF-GLASS FULL WCI G171654-54 Contact Us For Availability
15
INSULATOR-PLASTIC WCI G166511-01 Contact Us For Availability
16
PANEL-FREEZER-WHITE WCI G189031 Contact Us For Availability
16
PANEL-FREEZER-AVOCADO WCI G189031-08 Contact Us For Availability
16
WCI G189031-09 WCI G189031-09 Contact Us For Availability
16
PANEL-FREEZER-COFFEE WCI G189031-10 Contact Us For Availability
16
PANEL-FREEZER-ALMOND WCI G189031-11 Contact Us For Availability
16
WCI G163203 WCI G163203 Contact Us For Availability
16
TRIM-FRONT WCI G172410-07 Contact Us For Availability
16
PAN, DEFROST WCI G184715 Contact Us For Availability
17
GASKET-REFRIGERATOR WCI G186932-13 Contact Us For Availability
17
WCI G172436-19 WCI G172436-19 Contact Us For Availability
17
PLATE-COMPRESSOR WCI G184599 Contact Us For Availability
18
DOOR, DAIRY (2) WCI G187460-02 Contact Us For Availability
18
WCI G176722-03 WCI G176722-03 Contact Us For Availability
18
BLOCK-INSULATION LS WCI G188375 Contact Us For Availability
19
WCI G187537-02 WCI G187537-02 Contact Us For Availability
19
WCI G490004-02 WCI G490004-02 Contact Us For Availability
19
WCI 3200810 WCI 3200810 Contact Us For Availability
19
BLOCK-INSULATION RS WCI G185299 Contact Us For Availability
19A
WCI G107080 WCI G107080 Contact Us For Availability
20
WCI G161019-65 WCI G161019-65 Contact Us For Availability
20
DEFLECTOR AIR WCI G162675 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
20A
SNUGGER-SHELF (2) (NON-ILLUSTRATED) WCI 3017719 Contact Us For Availability
21
TRIM (2) WCI G167150-11 Contact Us For Availability
21
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
22
HANDLE ASSEMBLY WCI G168505-01 Contact Us For Availability
22
WCI G166912 WCI G166912 Contact Us For Availability
22
EVAPORATOR WCI G164572 Contact Us For Availability
22A
WCI G185566 WCI G185566 Contact Us For Availability
23
PANEL-REFRIGERATOR-WHITE WCI G188239 Contact Us For Availability
23
PANEL-REFRIGERATOR-AVOCADO WCI G188239-08 Contact Us For Availability
23
WCI G188239-09 WCI G188239-09 Contact Us For Availability
23
PANEL-REFRIGERATOR-COFFEE WCI G188239-10 Contact Us For Availability
23
PANEL-REFRIGERATOR-ALMOND WCI G188239-11 Contact Us For Availability
23
WCI G174733 WCI G174733 Contact Us For Availability
23
SOCKET LIGHT WCI G168302 Contact Us For Availability
23A
BEARING, HINGE (4) (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
24
TRAY, UTILITY WCI G187461-01 Contact Us For Availability
24
WCI G174734 WCI G174734 Contact Us For Availability
24
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
24
HEAT EXCHANGER WCI G147918 Contact Us For Availability
25
WCI G162827-13 WCI G162827-13 Contact Us For Availability
25
WCI G178402-02 WCI G178402-02 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
LABEL-CONTROL BOX WCI G188379-02 Contact Us For Availability
27
NUT, PUSH WCI G162662 Contact Us For Availability
27
MULLION, WHITE WCI G180373-01 Contact Us For Availability
27
WCI G180373-08 WCI G180373-08 Contact Us For Availability
27
WCI G180373-09 WCI G180373-09 Contact Us For Availability
27
WCI G180373-10 WCI G180373-10 Contact Us For Availability
27
WCI G180373-11 WCI G180373-11 Contact Us For Availability
28
WCI G162747-06 WCI G162747-06 Contact Us For Availability
28
SCREW-MOUNTING (4) WCI G183103 Contact Us For Availability
29
WCI G163061-76 WCI G163061-76 Contact Us For Availability
29
STRAP, MULLION MOUNTING WCI G490087 Contact Us For Availability
30
LABEL, COVER WCI G186232 Contact Us For Availability
30
WASHER-STEEL (4) WCI G166847 Contact Us For Availability
31
SPOUT, DRAIN WCI G162179 Contact Us For Availability
31
SPACER (2) WCI G490082 Contact Us For Availability
32
WCI G185279 WCI G185279 Contact Us For Availability
32
WCI G168722 WCI G168722 Contact Us For Availability
33
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
33A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
34
TOP-REFRIGERATOR WCI 3016367 Contact Us For Availability
34A
SCREW MOUNTING (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
35
RING-ORIFICE WCI G167217 Contact Us For Availability
35
DIVIDER, STYROFOAM WCI G176777 Contact Us For Availability
36
WCI G185912 WCI G185912 Contact Us For Availability
37
WCI G177059-09 WCI G177059-09 Contact Us For Availability
38
END CAP (2) WCI 3201150 No Longer Available
38
WCI G185302 WCI G185302 Contact Us For Availability
39
WCI G185303 WCI G185303 Contact Us For Availability
39
TRIM-FRONT WCI G172410-08 Contact Us For Availability
40
WCI G85642 WCI G85642 Contact Us For Availability
41
WCI G177529 WCI G177529 Contact Us For Availability
41
WCI G163022-03 WCI G163022-03 Contact Us For Availability
41A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
42
HINGE-BRACKET CENTER WCI G163207 Contact Us For Availability
42
WCI G186661-02 WCI G186661-02 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
WCI G177534 WCI G177534 Contact Us For Availability
46
WCI G170695 WCI G170695 Contact Us For Availability
48
WCI G189341 WCI G189341 Contact Us For Availability
49
WCI G187449 WCI G187449 Contact Us For Availability
50
WCI G163669 WCI G163669 Contact Us For Availability
51
WCI G174747-01 WCI G174747-01 Contact Us For Availability
51
WCI G174747-08 WCI G174747-08 Contact Us For Availability
51
WCI G174747-09 WCI G174747-09 Contact Us For Availability
51
WCI G174747-10 WCI G174747-10 Contact Us For Availability
51
WCI G174747-11 WCI G174747-11 Contact Us For Availability
53
WCI G179684-01 WCI G179684-01 Contact Us For Availability
53
WCI G179684-08 WCI G179684-08 Contact Us For Availability
53
WCI G179684-09 WCI G179684-09 Contact Us For Availability
53
WCI G179684-10 WCI G179684-10 Contact Us For Availability
53
WCI G179684-11 WCI G179684-11 Contact Us For Availability
53A
BUTTON, I/M HOLE (5) (NON-ILLUSTRATED) WCI G187599 Contact Us For Availability
53B
TAPPING PLATE (4) (NON-ILLUSTRATED) WCI G179797 Contact Us For Availability
54
SCREW, LEVELING (2) WCI G185713 Contact Us For Availability
55
NUT, ANCHOR (2) WCI G183073 Contact Us For Availability
× ![]()
