Model Electrolux RT19F9WT3A REFRIGERATOR – Common Parts & Diagrams

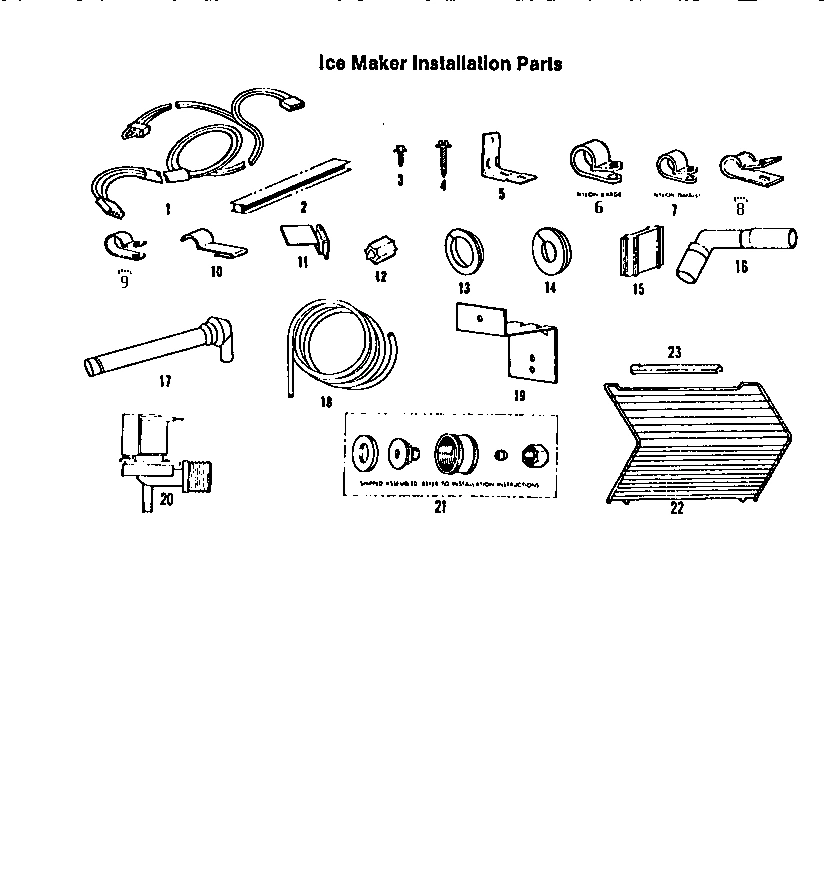

01 - ICE MAKER INSTALLATION

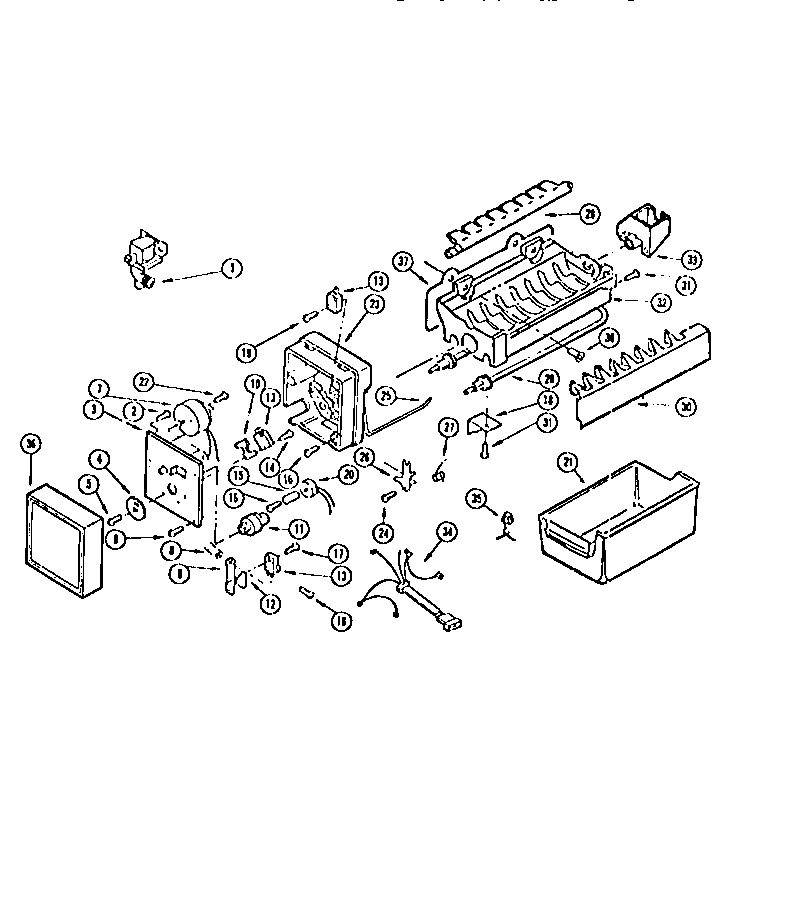

02 - ICE MAKER

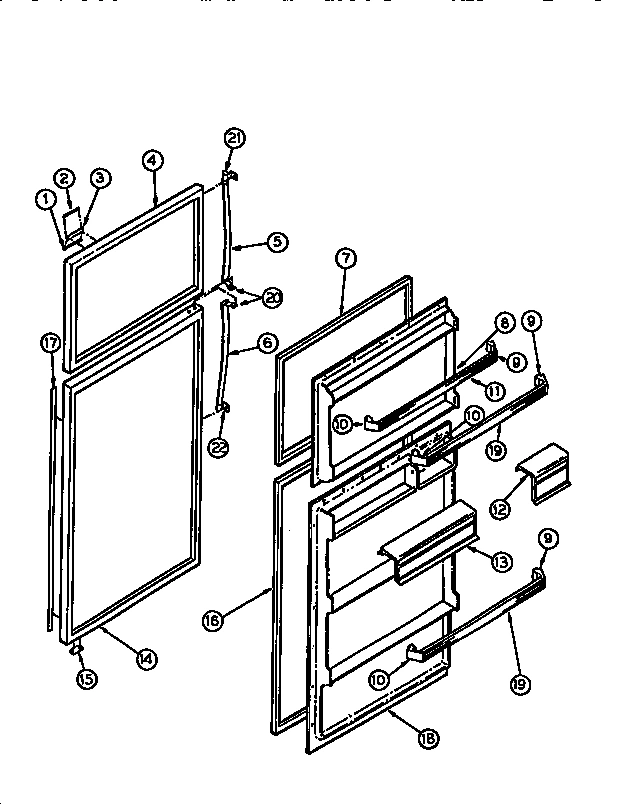

07 - DOOR PARTS
08 - CABINET PARTS

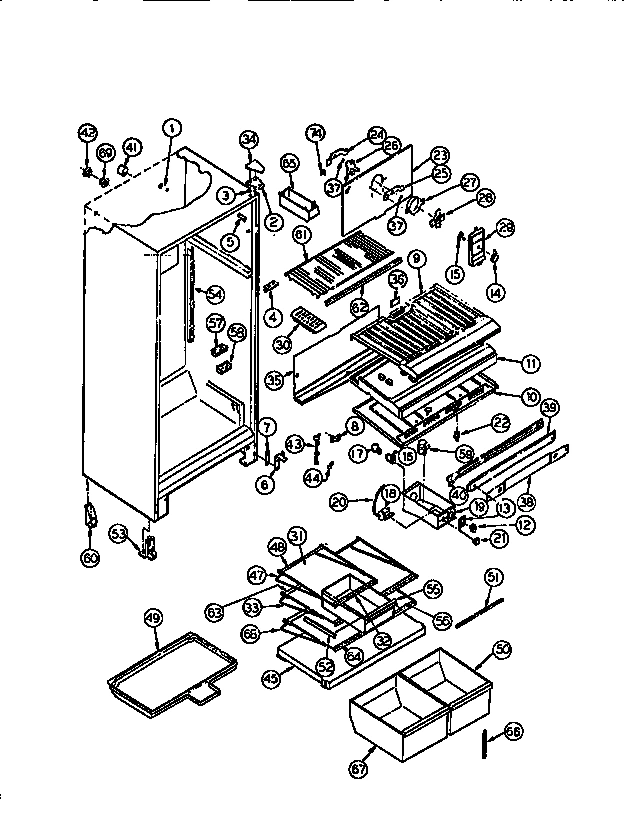

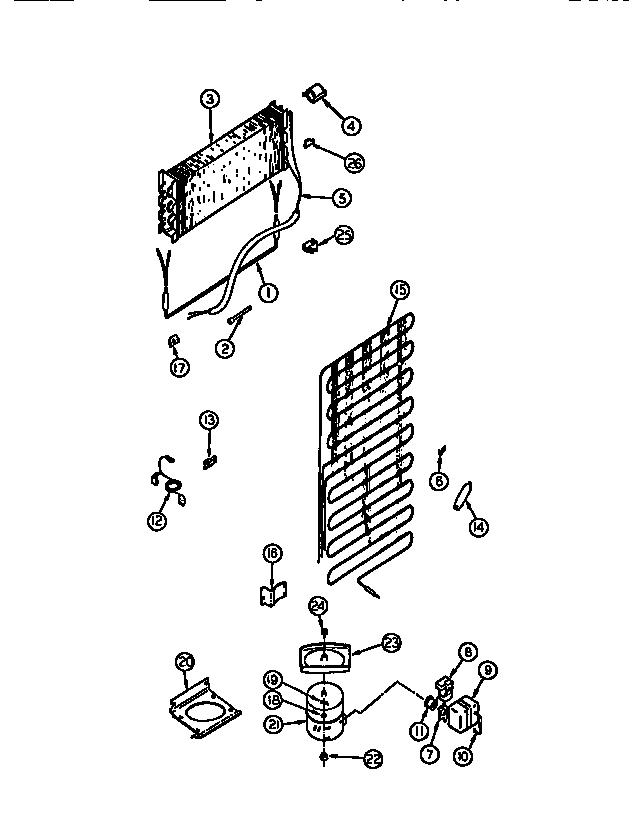

11 - SYSTEM & AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT19F9WT3A REFRIGERATOR
*24052
KIT, DOOR CONVERSION WCI G168981-01 Contact Us For Availability
*24054
WCI G169332-01 WCI G169332-01 Contact Us For Availability
*24055
WCI G176210 WCI G176210 Contact Us For Availability
1
WCI G159377 WCI G159377 Contact Us For Availability
1
WCI G175393-01 WCI G175393-01 Contact Us For Availability
1
SUPORT, COIL COVER (2) WCI G163669 Contact Us For Availability
2
LABLE, NAMEPLATE, UPPER WCI G175118-02 Contact Us For Availability
2
HINGE, UPPER DOOR WCI G183714 Contact Us For Availability
2D
WCI G174747-01 WCI G174747-01 Contact Us For Availability
3
WCI G159904 WCI G159904 Contact Us For Availability
3
NAMEPLATE WCI G175117-02 Contact Us For Availability
3
SHIM, UPPER HINGE WCI G183861 Contact Us For Availability
3
EVAPORATOR WCI G162506 Contact Us For Availability
3A
WCI G141624-04 WCI G141624-04 Contact Us For Availability
4
PANEL, EXTERIOR DOOR, TEXTURED (NOT ILLUSTRA WCI G178690 Contact Us For Availability
4
HINGE, CENTER DOOR WCI G163207 Contact Us For Availability
4A
WCI G103903 No Longer Available
4B
SCREW, 10, 24 X 3/4 (4) WCI G183103 Contact Us For Availability
4C
WCI G142220 WCI G142220 Contact Us For Availability
4D
WASHER (NYLON) WCI G164355 Contact Us For Availability
5
SCREW WCI G159901 Contact Us For Availability
5
WCI G179684 WCI G179684 Contact Us For Availability
5
HEAT EXCHANGER WCI G177532 Contact Us For Availability
6
WCI G164772 WCI G164772 Contact Us For Availability
6
HANDLE, REFRIGERATOR DOOR WCI G170495-24 Contact Us For Availability
6
HINGE, LOWER DOOR WCI G181019 Contact Us For Availability
6
WCI G101747 WCI G101747 Contact Us For Availability
6A
WCI G185566 WCI G185566 Contact Us For Availability
6A
PLATE, TAPPING (2) WCI G157591 Contact Us For Availability
7
CLAMP, HARNESS & INLET TUBE MOUNTING WCI G161655 Contact Us For Availability
7
WCI G137735 WCI G137735 Contact Us For Availability
7
GASKET, FREEZER DOOR WCI G186932-12 Contact Us For Availability
7
SHIM, LOWER HINGE WCI G163203 Contact Us For Availability
7
CLIP, OVERLOAD WCI G166053 Contact Us For Availability
8
WCI G159909 WCI G159909 Contact Us For Availability
8
WCI G184903-01 WCI G184903-01 Contact Us For Availability
8
SPOUT DRAIN TUBE WCI G162179 Contact Us For Availability
8
WCI G150618-32 WCI G150618-32 Contact Us For Availability
8A
WCI G185279 WCI G185279 Contact Us For Availability
9
WCI G159905 WCI G159905 Contact Us For Availability
9
WCI G152888-04 WCI G152888-04 Contact Us For Availability
9
WCI G185912 WCI G185912 Contact Us For Availability
10
CLIP, HARNESS LOCATION WCI G163706 Contact Us For Availability
10
SPACER, HOLDING SWITCH WCI G137737 Contact Us For Availability
10
WCI G152887-04 WCI G152887-04 Contact Us For Availability
10
WCI G174714 WCI G174714 Contact Us For Availability
10A
SCREW, 8 X 1, 3/4 (3) WCI G490021-02 Contact Us For Availability
11
WCI G154167 WCI G154167 Contact Us For Availability
11
WCI G137738 WCI G137738 Contact Us For Availability
11
WCI G162887-23 WCI G162887-23 Contact Us For Availability
11
DIVIDER, COMPARTMENT WCI G176777 Contact Us For Availability
11
OVERLOAD WCI G176001 Contact Us For Availability
12
NUT, INLET TO SOLENOID VALVE WCI G143689 Contact Us For Availability
12
WCI G137739 WCI G137739 Contact Us For Availability
12
SWITCH, SLIDE WCI G177727-05 Contact Us For Availability
12
CORD, SERVICE WCI G162549-01 Contact Us For Availability
13
WCI G171079 WCI G171079 Contact Us For Availability
13
WCI G137740 WCI G137740 Contact Us For Availability
13
DOOR, DAIRY WCI G178500-21 Contact Us For Availability
13
WCI G185865 WCI G185865 Contact Us For Availability
14
SCREW 4, 40 X 1 WCI G137741 Contact Us For Availability
14
PANEL, EXTERIOR DOOR, TEXTURED (NOT ILLUSTRA WCI G178694 Contact Us For Availability
14
KNOB, DAMPER CONTROL (2) WCI G162747-06 Contact Us For Availability
14A
BEARING, HINGE (4) WCI G183138 Contact Us For Availability
14B
WASHER, NO. 10 WCI G164820 Contact Us For Availability
15
WCI G160347 WCI G160347 Contact Us For Availability
15
WCI G137742 WCI G137742 Contact Us For Availability
15
STOP, DOOR (2) WCI G155072 Contact Us For Availability
15
DAMPER FAN COVER WCI G162661 Contact Us For Availability
15
WCI G162739 WCI G162739 Contact Us For Availability
16
WCI G165773 WCI G165773 Contact Us For Availability
16
SCREW 8, 32 X 1 WCI G137743 Contact Us For Availability
16
GASKET, REFRIG. DOOR WCI G186932-13 Contact Us For Availability
16
SOCKET LIGHT WCI G168302 Contact Us For Availability
16
WCI G164637 WCI G164637 Contact Us For Availability
17
SCREW 4, 40 X 3/4 WCI G137744 Contact Us For Availability
17
TRIM, REFRIG. DOOR SIDE WCI G167150-12 Contact Us For Availability
17
BLOCK EVAP, L.H. WCI G162807 Contact Us For Availability
18
WCI G159906 WCI G159906 Contact Us For Availability
18
WCI G184896-01 WCI G184896-01 Contact Us For Availability
18
THERMOSTAT, CONTROL WCI G162667-10 Contact Us For Availability
18
WASHER-COMP MTG (4) WCI G164634 Contact Us For Availability
18A
WCI G107080 WCI G107080 Contact Us For Availability
19
BRACKET, VALVE TO REAR PANEL WCI G163309 Contact Us For Availability
19
WCI G137745 WCI G137745 Contact Us For Availability
19
WCI G162887-22 WCI G162887-22 Contact Us For Availability
19
BOX, CONTROL WCI G174765-03 Contact Us For Availability
19
CLIP-COMP MTG (4) WCI G163204 Contact Us For Availability
20
WCI G159907 WCI G159907 Contact Us For Availability
20
WCI G170507-01 WCI G170507-01 Contact Us For Availability
20
WCI G182757 WCI G182757 Contact Us For Availability
21
WCI G159415 WCI G159415 Contact Us For Availability
21
WCI G179800 WCI G179800 Contact Us For Availability
21
KNOB, CONTROL WCI G174759-01 Contact Us For Availability
21
COMPRESSOR WCI G179327 Contact Us For Availability
22
WCI G163311 WCI G163311 Contact Us For Availability
22
WCI G159898 WCI G159898 Contact Us For Availability
22
WCI G179801 WCI G179801 Contact Us For Availability
22A
WCI G163105 WCI G163105 Contact Us For Availability
22B
SCREW, SUPPORTS (2) WCI G163104 Contact Us For Availability
23
WCI G163312 WCI G163312 Contact Us For Availability
23
WCI G137748 WCI G137748 Contact Us For Availability
23
WCI G177529 WCI G177529 Contact Us For Availability
23
PAN, DEFROST WCI G184715 Contact Us For Availability
24
SCREW, SHOULDER WCI G159913 Contact Us For Availability
24
BRACKET, REAR MOTOR MOUNTING WCI G162048 Contact Us For Availability
24
NUT, LOCK WCI G164958 Contact Us For Availability
25
ARM, SHUT OFF WCI G164767 Contact Us For Availability
25
BRACKET, FRONT MOTOR MOUNTING WCI G162049 Contact Us For Availability
25
BLOCK, EVAPORATOR, RH WCI G185299 Contact Us For Availability
26
PLUG EVAP, INSUL R.H. WCI G185276 Contact Us For Availability
27
WCI G137753 WCI G137753 Contact Us For Availability
27
RING, FAN ORIFICE WCI G167217 Contact Us For Availability
27A
NUT, ORIFICE (2) WCI G167542 Contact Us For Availability
28
WCI G159911 WCI G159911 Contact Us For Availability
29
WCI G137756 WCI G137756 Contact Us For Availability
29
WCI G163061-76 WCI G163061-76 Contact Us For Availability
29A
LABEL, FAN COVER WCI G186232 Contact Us For Availability
30
STRIPPER-ICE WCI G159910 Contact Us For Availability
31
WCI G159900 WCI G159900 Contact Us For Availability
31
GLASS, CANTILEVER SHELF (3) WCI G171654-51 Contact Us For Availability
32
MOLD AND HEATER ASSEMBLY (INCLUDES ILLUSTRATI WCI G159912 Contact Us For Availability
32
TRIM, SNAP ON (2) WCI G172410-17 Contact Us For Availability
33
WCI G137760 WCI G137760 Contact Us For Availability
33
FRAME, CANTILEVER SHELVES (2) WCI G171608-14 Contact Us For Availability
34
WIRE ASSEMBLY WCI G185809 Contact Us For Availability
34
COVER, TOP HINGE (NOT ILLUSTRATED) WCI G183558-01 Contact Us For Availability
35
WCI G159902 WCI G159902 Contact Us For Availability
35
WCI G177534 WCI G177534 Contact Us For Availability
36
WCI G159908 WCI G159908 Contact Us For Availability
36
PAD FOAM WCI G168866 Contact Us For Availability
36A
WCI G187182 WCI G187182 Contact Us For Availability
37
SHIELD WCI G164769 Contact Us For Availability
38
WCI G164766 WCI G164766 Contact Us For Availability
38
STRAP, MULLION MTG WCI G490087 Contact Us For Availability
39
MULLION (NOT ILLUSTRATED) WCI G180373 Contact Us For Availability
40
WCI G177254 WCI G177254 Contact Us For Availability
41
TUBE, IN FERRULE (2) WCI G85642 Contact Us For Availability
42
WCI G174734 WCI G174734 Contact Us For Availability
43
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
45
COVER, CRISPER WCI G490064-01 Contact Us For Availability
47
WCI G175878-07 WCI G175878-07 Contact Us For Availability
48
TRIM, MEAT SHELF REAR WCI G172436-13 Contact Us For Availability
49
WCI G184716 WCI G184716 Contact Us For Availability
50
WCI G176639-19 WCI G176639-19 Contact Us For Availability
51
GASKET, CRISPER WCI G180108-04 Contact Us For Availability
52
WCI G174365-03 WCI G174365-03 Contact Us For Availability
52A
WCI G174366-03 WCI G174366-03 Contact Us For Availability
53
ROLLER ASSEMBLY, FRONT (2) WCI G177021 Contact Us For Availability
54
CHANNEL, SHELF (2) WCI G170695 Contact Us For Availability
54B
CENT WCI G175612 Contact Us For Availability
55
WCI G176918-13 WCI G176918-13 Contact Us For Availability
56
WCI G171654-52 WCI G171654-52 Contact Us For Availability
57
WCI G162178 WCI G162178 Contact Us For Availability
58
WCI G162675 WCI G162675 Contact Us For Availability
60
WCI G183407 WCI G183407 Contact Us For Availability
60A
WCI G162662 WCI G162662 Contact Us For Availability
61
WCI G177059-09 WCI G177059-09 Contact Us For Availability
61A
WCI G166495-01 WCI G166495-01 Contact Us For Availability
63
WCI G172436-14 WCI G172436-14 Contact Us For Availability
63A
WCI G172436-18 WCI G172436-18 Contact Us For Availability
64
WCI G172410-07 WCI G172410-07 Contact Us For Availability
65
WCI G163022-03 WCI G163022-03 Contact Us For Availability
66
WCI G166310-02 WCI G166310-02 Contact Us For Availability
67
WCI G490015-37 WCI G490015-37 Contact Us For Availability
68
WCI G171608-15 WCI G171608-15 Contact Us For Availability
69
WCI G174733 WCI G174733 Contact Us For Availability
74
WCI G164571 WCI G164571 Contact Us For Availability
24040
WCI G183584 WCI G183584 Contact Us For Availability
24041
WCI G186765 WCI G186765 Contact Us For Availability
24042
WCI G162659 WCI G162659 Contact Us For Availability
24043
WCI G162827-12 WCI G162827-12 Contact Us For Availability
24044
WCI G174813 WCI G174813 Contact Us For Availability
24045
WCI G162892-01 WCI G162892-01 Contact Us For Availability
24046
WCI G185324 WCI G185324 Contact Us For Availability
24047
WCI G183100-54 WCI G183100-54 Contact Us For Availability
24048
WCI G490004-02 WCI G490004-02 Contact Us For Availability
× ![]()
