Model Electrolux RT19F9DX3B REFRIGERATOR – Common Parts & Diagrams

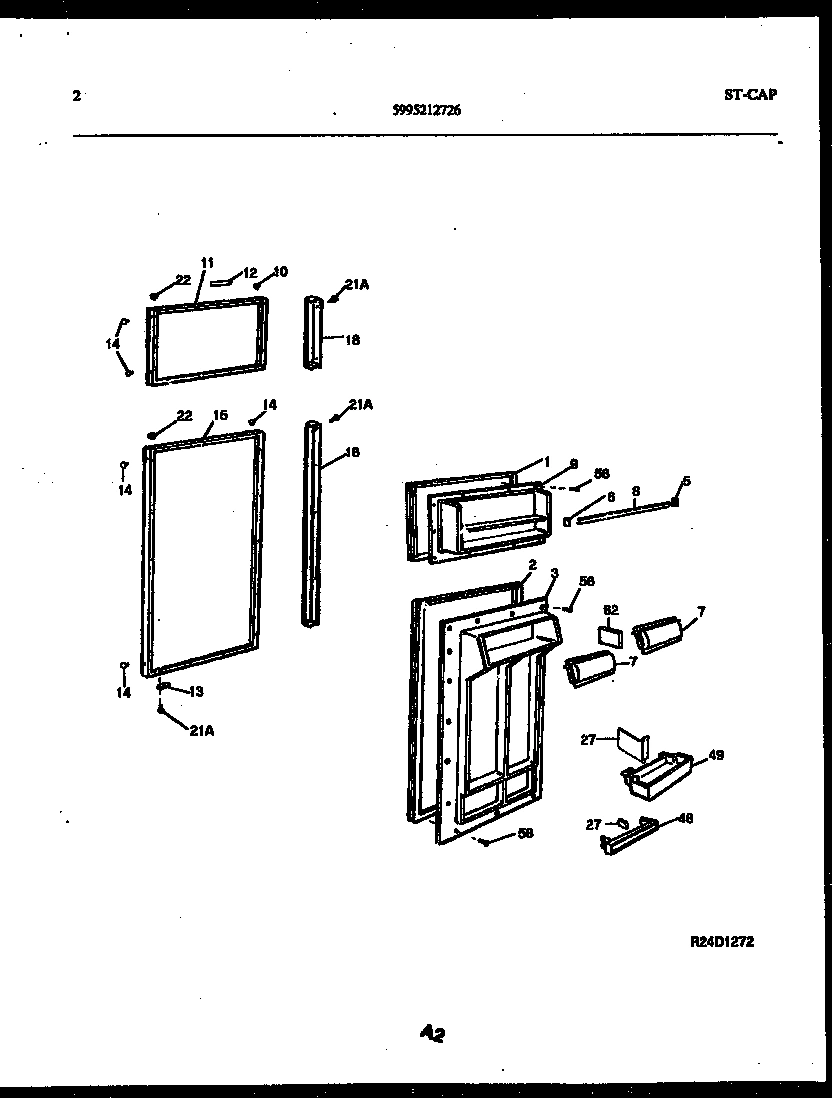

02 - DOOR PARTS

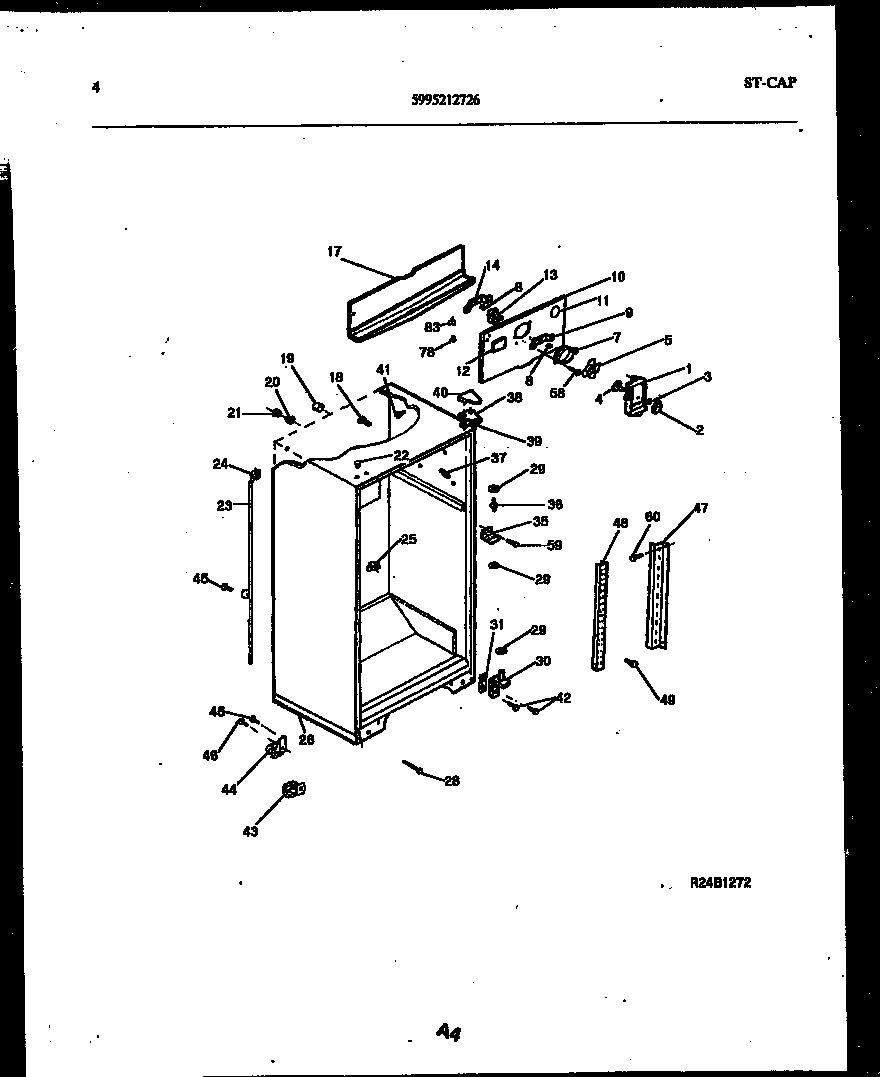

03 - CABINET PARTS

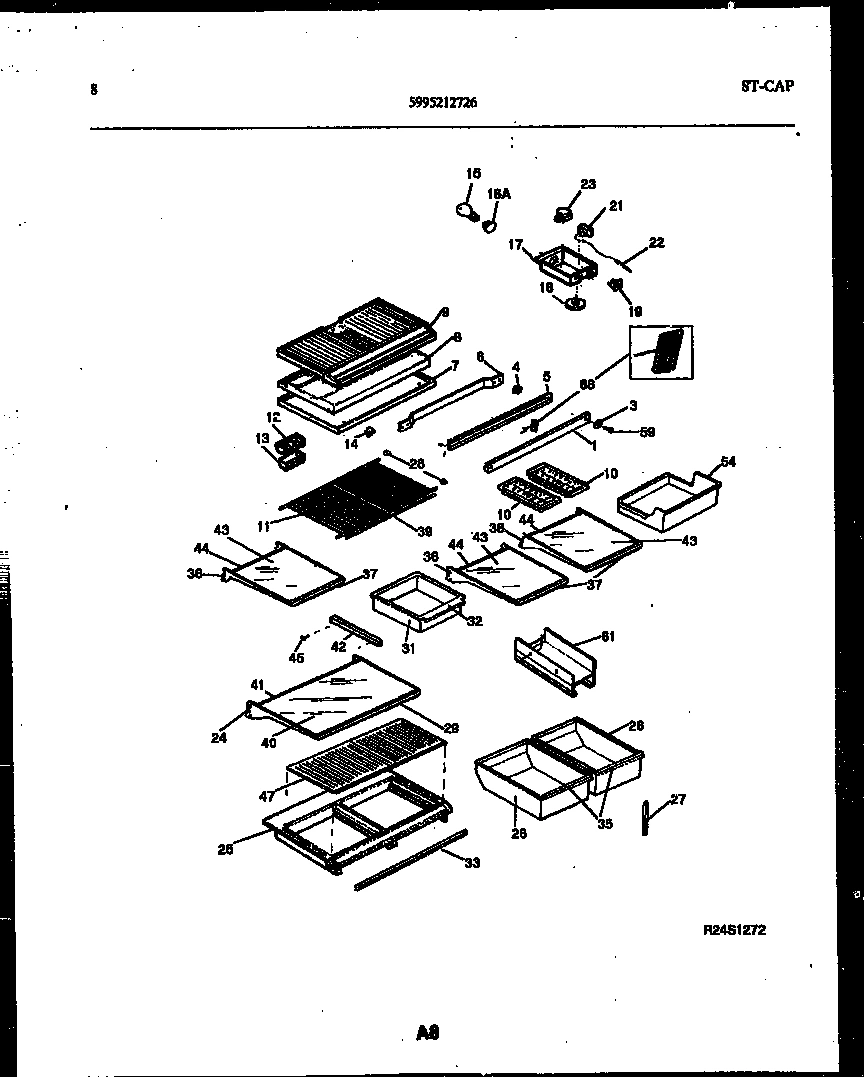

05 - SHELVES AND SUPPORTS

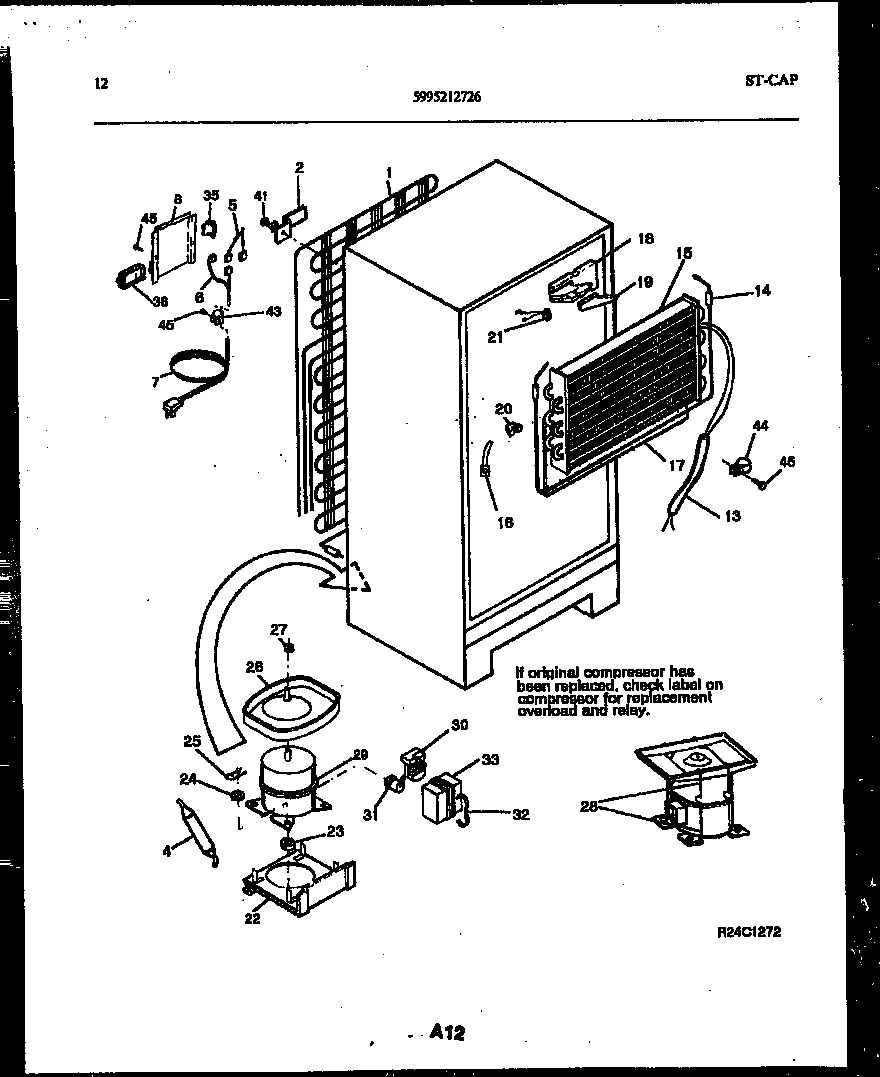

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT19F9DX3B REFRIGERATOR
1
WCI 5303275059 WCI 5303275059 Contact Us For Availability
1
WCI 5303211922 WCI 5303211922 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
1A
WCI 5303275150 WCI 5303275150 Contact Us For Availability
2
WCI 3206381 WCI 3206381 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
4
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
WIRING HARNESS, CONT/DOOR AJAR WCI 5303211926 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3018993 WCI 3018993 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 3018994 WCI 3018994 Contact Us For Availability
8
WCI 5303211914 WCI 5303211914 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
BOTTOM PANEL, FREEZER WCI 5303211427 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 5308009771 WCI 5308009771 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
11
WCI 5303209597 WCI 5303209597 Contact Us For Availability
12
WCI 5303272494 WCI 5303272494 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
12B
WCI 5303200590 WCI 5303200590 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
WCI 5303271578 WCI 5303271578 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
17
WCI 5303272507 WCI 5303272507 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
WCI 5303209251 WCI 5303209251 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303207249 WCI 5303207249 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
HOUSING, CONT CAP TUB WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 5303276776 WCI 5303276776 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
24A
CLIP-CANTILEVER SHLF (NON-ILLUSTRATED) WCI 5300170910 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
WCI 5303279634 WCI 5303279634 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
25A
WCI 5303279636 WCI 5303279636 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
WCI 5303274981 WCI 5303274981 Contact Us For Availability
26
WCI 5303275274 WCI 5303275274 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26A
WCI 5303279635 WCI 5303279635 Contact Us For Availability
27
WCI 5303206505 WCI 5303206505 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
WCI 5303271412 WCI 5303271412 Contact Us For Availability
29
WASHER, .28 X .62 X .19, NYLON WCI 5303001038 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
TRIM-FRZR SHELF WCI 5303276021 Contact Us For Availability
29
COMPRESSOR-W/ ELEC, SERVICE WCI 5303916004 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 5303212489 Contact Us For Availability
30A
WCI 5303212597 WCI 5303212597 Contact Us For Availability
30B
WCI 5303212596 WCI 5303212596 Contact Us For Availability
31
WCI 5303212488 WCI 5303212488 Contact Us For Availability
31
WCI 5303279511 WCI 5303279511 Contact Us For Availability
31
WCI 5303274700 WCI 5303274700 Contact Us For Availability
33
GASKET-COVER CRISPER WCI 5303200329 Contact Us For Availability
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
35
WCI 5303274986 WCI 5303274986 Contact Us For Availability
35
WCI 5303274987 WCI 5303274987 Contact Us For Availability
35
WCI 5303211915 WCI 5303211915 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
WCI 5303279431 WCI 5303279431 Contact Us For Availability
36
WCI 5303211916 WCI 5303211916 Contact Us For Availability
36A
SCREW-TRANSFORMER, CR PAN HEAD, 6-20(AB) X 1/ WCI 5303212893 Contact Us For Availability
37
WCI 5303202340 WCI 5303202340 Contact Us For Availability
37
TRIM-HALF SHELF, SNAP-ON, (2) WCI 5303279765 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
WCI 5303279767 WCI 5303279767 Contact Us For Availability
40
COVER-UPPR HINGE, ALMOND WCI 5308012933 Contact Us For Availability
40
SHELF-GLASS, FULL SHELF WCI 5303279783 Contact Us For Availability
40A
WCI 5303209274 WCI 5303209274 Contact Us For Availability
41
WCI 5303276023 WCI 5303276023 Contact Us For Availability
41A
WCI 5303211351 WCI 5303211351 Contact Us For Availability
42
WCI 5303279817 WCI 5303279817 Contact Us For Availability
42A
WCI 5303279816 WCI 5303279816 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
43
SHELF-GLASS, HALF SHELF, (3) WCI 5303279784 Contact Us For Availability
43A
RETAINER-GLASS (2) (NON-ILLUSTRATED) WCI 5303209263 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
44
TRIM-MEAT KPR SHELF, REAR WCI 5303279768 Contact Us For Availability
45
WCI 08014528 WCI 08014528 Contact Us For Availability
46
WCI 5308009762 WCI 5308009762 Contact Us For Availability
47
WCI 5308000302 WCI 5308000302 Contact Us For Availability
47
WCI 5303279700 WCI 5303279700 Contact Us For Availability
48
WCI 5303279795 WCI 5303279795 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER WCI 5303015409 Contact Us For Availability
49
WCI 5303279793 WCI 5303279793 Contact Us For Availability
49
WCI 5308016568 WCI 5308016568 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
61
WCI 5318609501 WCI 5318609501 Contact Us For Availability
62
WCI 5303279801 WCI 5303279801 Contact Us For Availability
68
WCI 5303211924 WCI 5303211924 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
44170
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
44178
WCI 5303211925 WCI 5303211925 Contact Us For Availability
44178
WCI 5303279879 WCI 5303279879 Contact Us For Availability
44183
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
× ![]()
