Model Electrolux RT19F9DU3B REFRIGERATOR – Common Parts & Diagrams

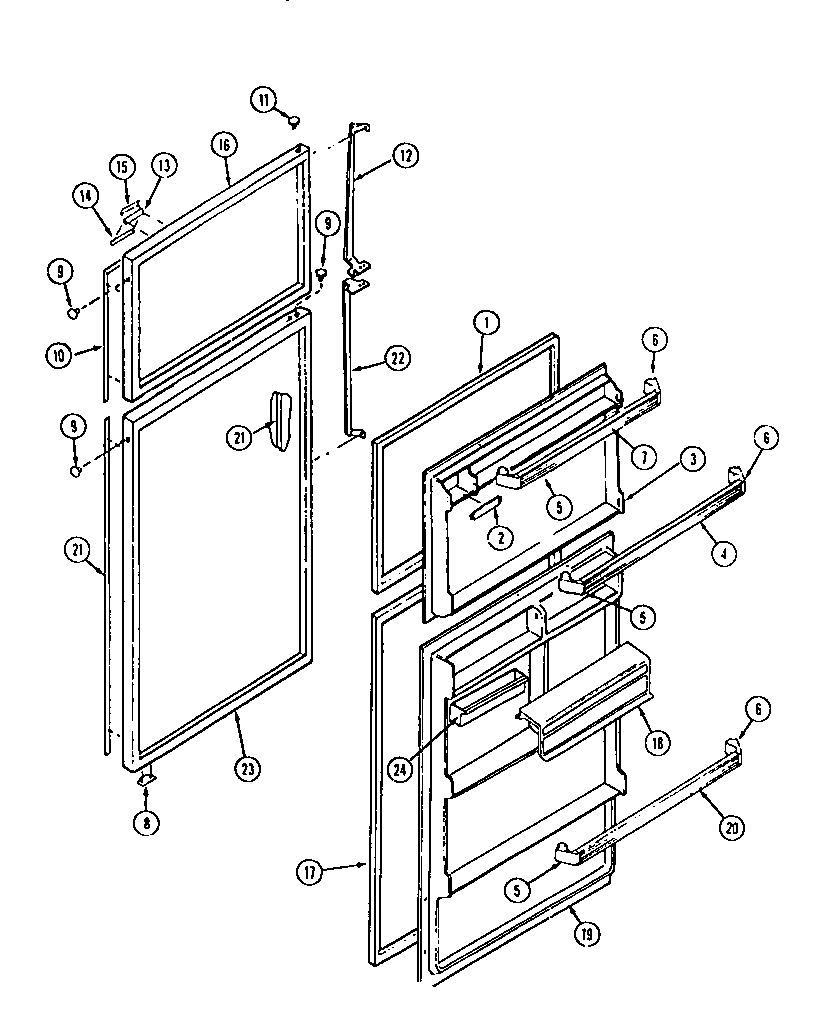

02 - DOOR

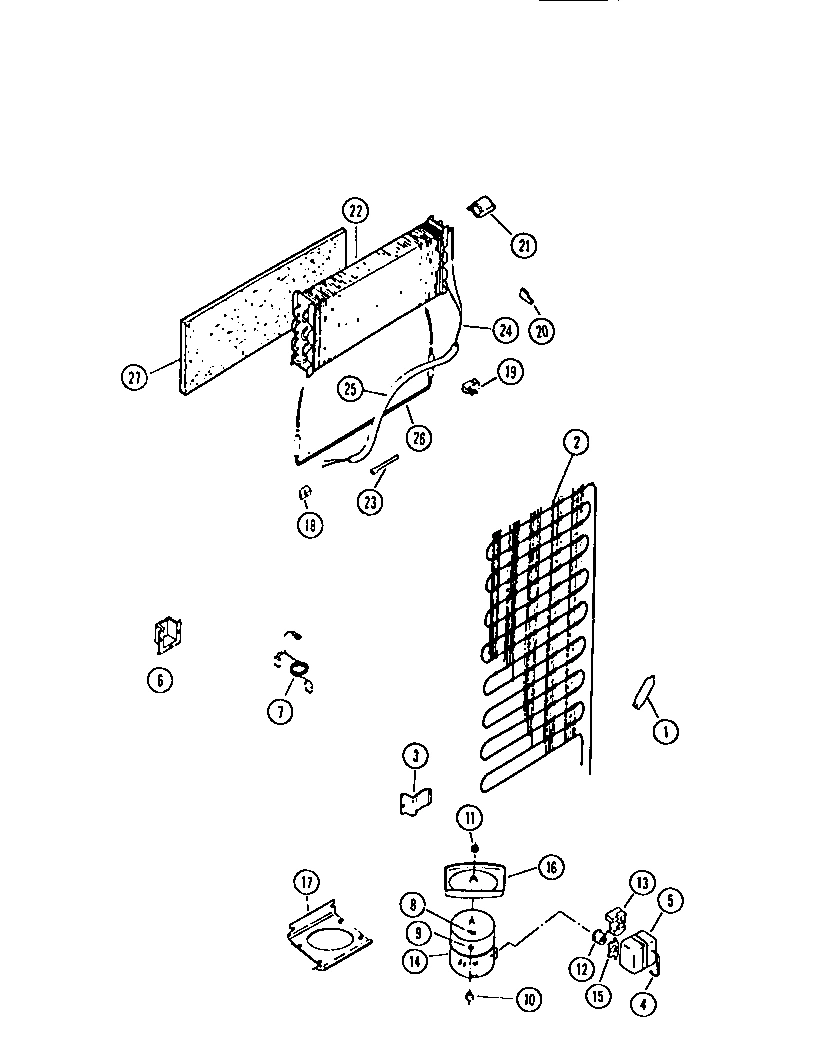

03 - COOLING SYSTEM

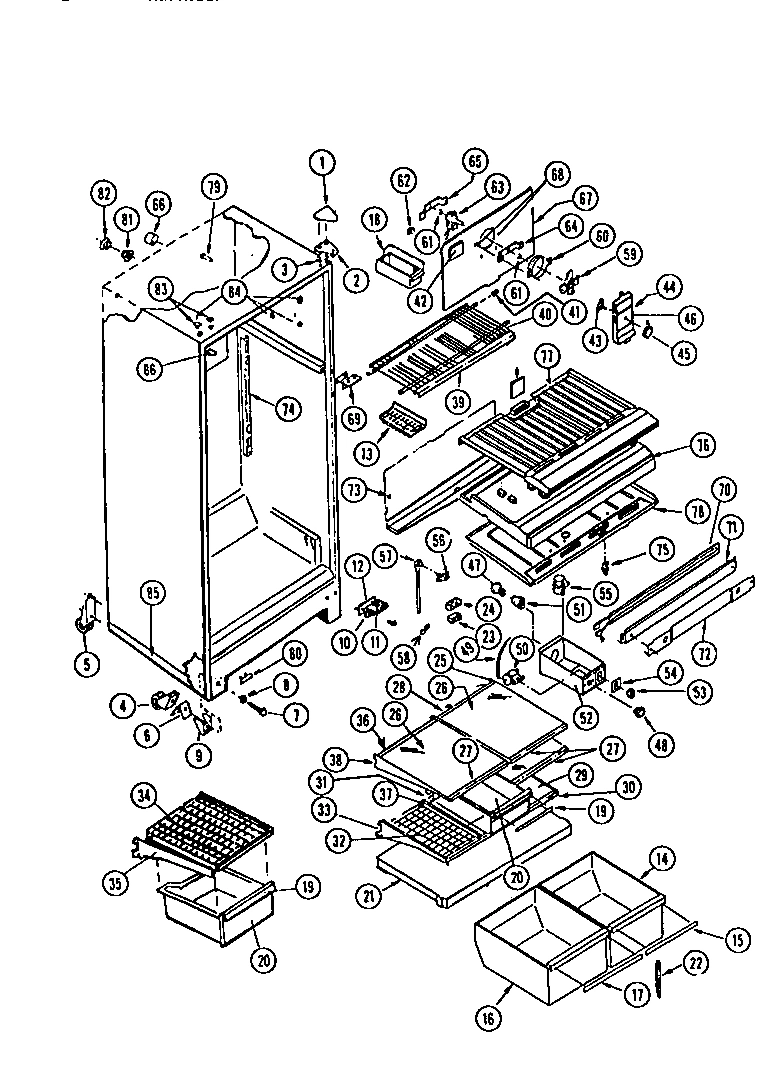

04 - CABINET, SHELVES
Common parts from model Electrolux RT19F9DU3B REFRIGERATOR
*23565
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
*23566
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
*23567
WCI G189229-07 WCI G189229-07 Contact Us For Availability
1
GASKET WCI G186932-12 Contact Us For Availability
1
COVER HINGE, ALMOND WCI G183558-11 Contact Us For Availability
2
RACK, JUICE CAN WCI G187492-02 Contact Us For Availability
2
WCI G162739 WCI G162739 Contact Us For Availability
2
HINGE WCI G183714 Contact Us For Availability
3
PANEL, INNER WCI G187493-02 Contact Us For Availability
3
BRACKET (4) WCI G164637 Contact Us For Availability
3
SHIM WCI G183861 Contact Us For Availability
3B
WCI G103903 No Longer Available
3C
WASHER, 5/16 X 5/8 (NON-ILLUSTRATED) WCI G164355 Contact Us For Availability
4
WCI G177021 WCI G177021 Contact Us For Availability
5
SUPPORT, LEFT HAND WCI G178284-02 Contact Us For Availability
5
WCI G183407 WCI G183407 Contact Us For Availability
5B
BOLT, 1/4-28 X 1/2 (NON-ILLUSTRATED) WCI G177025 Contact Us For Availability
6
SUPPORT, RIGHT HAND WCI G178287-02 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
6
SPRING WCI G178494 Contact Us For Availability
7
WCI G161019-61 WCI G161019-61 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
7
BOLT, 1/4-20 WCI G177024 Contact Us For Availability
8
STOP,DOOR WCI G155072 Contact Us For Availability
8
CLIP (4) WCI G163205 Contact Us For Availability
8
WASHER, NYLON WCI G182799 Contact Us For Availability
9
WCI G162977-11 WCI G162977-11 Contact Us For Availability
9
WASHER (4) WCI G164634 Contact Us For Availability
9
SUPPORT WCI G177302 Contact Us For Availability
10
WCI G167404-12 WCI G167404-12 Contact Us For Availability
10
BRACKET, HINGE WCI G181019 Contact Us For Availability
11
WCI G169332-11 WCI G169332-11 Contact Us For Availability
11
NUT WCI G164958 Contact Us For Availability
12
HANDLE ASSEMBLY WCI G168506-01 Contact Us For Availability
12
WCI G185810 WCI G185810 Contact Us For Availability
12
SHIM WCI G163203 Contact Us For Availability
13
NAMEPLATE WCI G175117-02 Contact Us For Availability
13
WCI G182225-11 WCI G182225-11 Contact Us For Availability
13
WCI G153376-13 WCI G153376-13 Contact Us For Availability
14
LABEL, LOWER WCI G175393-01 Contact Us For Availability
14
WCI G184569 WCI G184569 Contact Us For Availability
14
WCI G176639-29 WCI G176639-29 Contact Us For Availability
15
LABEL, UPPER WCI G188378-02 Contact Us For Availability
15
RETAINER, OVERLOAD WCI G188957 Contact Us For Availability
15
WCI G177343-18 WCI G177343-18 Contact Us For Availability
16
WCI G189031-11 WCI G189031-11 Contact Us For Availability
16
PAN, DEFROST WCI G184715 Contact Us For Availability
16
WCI G490015-49 WCI G490015-49 Contact Us For Availability
17
GASKET WCI G186932-13 Contact Us For Availability
17
PLATE WCI G184599 Contact Us For Availability
17
WCI G3201093 WCI G3201093 Contact Us For Availability
18
DOOR, DAIRY (2) WCI G187460-02 Contact Us For Availability
18
BLOCK, LEFT SIDE WCI G188375 Contact Us For Availability
18
WCI G163022-03 WCI G163022-03 Contact Us For Availability
19
WCI G187537-02 WCI G187537-02 Contact Us For Availability
19
BLOCK, RIGHT SIDE WCI G185299 Contact Us For Availability
19
WCI G177343-19 WCI G177343-19 Contact Us For Availability
20
RACK, DOOR (2) WCI G161019-62 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
20
WCI G187181-02 WCI G187181-02 Contact Us For Availability
20A
SNUGGER, SHELF (2) (NON-ILLUSTRATED) WCI G187079-01 Contact Us For Availability
21
TRIM (2) WCI G167150-11 Contact Us For Availability
21
COVER, CRISPER WCI G490064-01 Contact Us For Availability
21A
GASKET, COVER WCI G180108-07 Contact Us For Availability
22
HANDLE ASSEMBLY WCI G168505-01 Contact Us For Availability
22
EVAPORATOR WCI G164572 Contact Us For Availability
22
SUPPORT, COVER WCI G166310-02 Contact Us For Availability
22A
WCI G185566 WCI G185566 Contact Us For Availability
23
WCI G188239-11 WCI G188239-11 Contact Us For Availability
23
STRAP, ALUMINUM WCI G165543 Contact Us For Availability
23
WCI G162178 WCI G162178 Contact Us For Availability
23A
BEARING HINGE (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
24
TRAY, UTILITY WCI G187461-01 Contact Us For Availability
24
HEAT, EXCHANGE WCI G147918 Contact Us For Availability
24
DEFLECTOR AIR WCI G162675 Contact Us For Availability
25
WCI G125963-68 WCI G125963-68 Contact Us For Availability
25
WCI G171608-14 WCI G171608-14 Contact Us For Availability
26
WCI G171654-51 WCI G171654-51 Contact Us For Availability
27
INSULATOR WCI G166511-01 Contact Us For Availability
27
TRIM (3) WCI G172410-17 Contact Us For Availability
28
WCI G172436-14 WCI G172436-14 Contact Us For Availability
29
WCI G171654-54 WCI G171654-54 Contact Us For Availability
30
TRIM WCI G172410-07 Contact Us For Availability
31
WCI G172436-19 WCI G172436-19 Contact Us For Availability
32
WCI G186661-02 WCI G186661-02 Contact Us For Availability
33
WCI G186665-02 WCI G186665-02 Contact Us For Availability
36
WCI G172436-13 WCI G172436-13 Contact Us For Availability
37
HANGAR, LEFT SIDE WCI G187215-03 Contact Us For Availability
37A
HANGAR, RIGHT SIDE WCI G187216-03 Contact Us For Availability
38
WCI G187218-10 WCI G187218-10 Contact Us For Availability
39
TRIM WCI G172410-08 Contact Us For Availability
40
SHELF WCI G177059-09 Contact Us For Availability
41
CAPACITOR PROTECTION (2) WCI G166495-01 Contact Us For Availability
42
BUTTON-DECORATIVE WCI G162827-12 Contact Us For Availability
43
DAMPER WCI G162661 Contact Us For Availability
43A
NUT-PUSH (NON-ILLUSTRATED) WCI G162662 Contact Us For Availability
44
WCI G163061-76 WCI G163061-76 Contact Us For Availability
45
KNOB WCI G168702 Contact Us For Availability
46
LABEL, COVER WCI G186232 Contact Us For Availability
48
KNOB WCI G490107-02 Contact Us For Availability
50
CONTROL, TEMPERATURE WCI G162205-11 Contact Us For Availability
50A
WCI G107080 WCI G107080 Contact Us For Availability
51
SOCKET LIGHT WCI G168302 Contact Us For Availability
52
WCI G176722-03 WCI G176722-03 Contact Us For Availability
53
WCI G178402-02 WCI G178402-02 Contact Us For Availability
54
WCI G188379-02 WCI G188379-02 Contact Us For Availability
56
SPOUT, DRAIN WCI G162179 Contact Us For Availability
56A
PIN, PUSH (2) (NON-ILLUSTRATED) WCI G185279 Contact Us For Availability
57
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
57A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
58
WCI G101747 WCI G101747 Contact Us For Availability
60
RING WCI G167217 Contact Us For Availability
62
WCI G164571 WCI G164571 Contact Us For Availability
64
WCI G185302 WCI G185302 Contact Us For Availability
65
WCI G185303 WCI G185303 Contact Us For Availability
66
TUBE, RUBBER WCI G85642 Contact Us For Availability
67
WCI G177529 WCI G177529 Contact Us For Availability
68
NUT, 8 U-TYPE (2) WCI G167542 Contact Us For Availability
69A
WCI G142220 WCI G142220 Contact Us For Availability
69B
WASHER (4) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
69C
SCREW (4) (NON-ILLUSTRATED) WCI G163207 Contact Us For Availability
69D
SPACER, MULLION (NON-ILLUSTRATED) WCI G490082 Contact Us For Availability
70
WCI G177254 WCI G177254 Contact Us For Availability
71
WCI G180373-11 WCI G180373-11 Contact Us For Availability
72
WCI G490087 WCI G490087 Contact Us For Availability
73
TROUGH WCI G177534 Contact Us For Availability
74
CHANNEL, SHELF (2) WCI G170695 Contact Us For Availability
74B
CHANNEL, CENTER (NON-ILLUSTRATED) WCI G175612 Contact Us For Availability
74C
SPACER (2) (NON-ILLUSTRATED) WCI G163201 Contact Us For Availability
74D
SCREW (3) (NON-ILLUSTRATED) WCI G187449 Contact Us For Availability
76
DIVIDER, STYROFOAM WCI G176777 Contact Us For Availability
77
WCI G185912 WCI G185912 Contact Us For Availability
78
WCI G490021-02 WCI G490021-02 Contact Us For Availability
78A
SCREW, 8 X 1 3/4 (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
79
SUPPOR WCI G163669 Contact Us For Availability
80
WCI G166912 WCI G166912 Contact Us For Availability
81
WCI G174733 WCI G174733 Contact Us For Availability
82
WCI G174734 WCI G174734 Contact Us For Availability
83
WCI G174747-11 WCI G174747-11 Contact Us For Availability
85
WCI G490004-02 WCI G490004-02 Contact Us For Availability
86
WCI G169684-11 WCI G169684-11 Contact Us For Availability
86A
WCI G174818 WCI G174818 Contact Us For Availability
86B
WCI G162892-01 WCI G162892-01 Contact Us For Availability
86C
WCI G187599 WCI G187599 Contact Us For Availability
× ![]()
