Model Electrolux RT19F7WU3A REFRIGERATOR – Common Parts & Diagrams

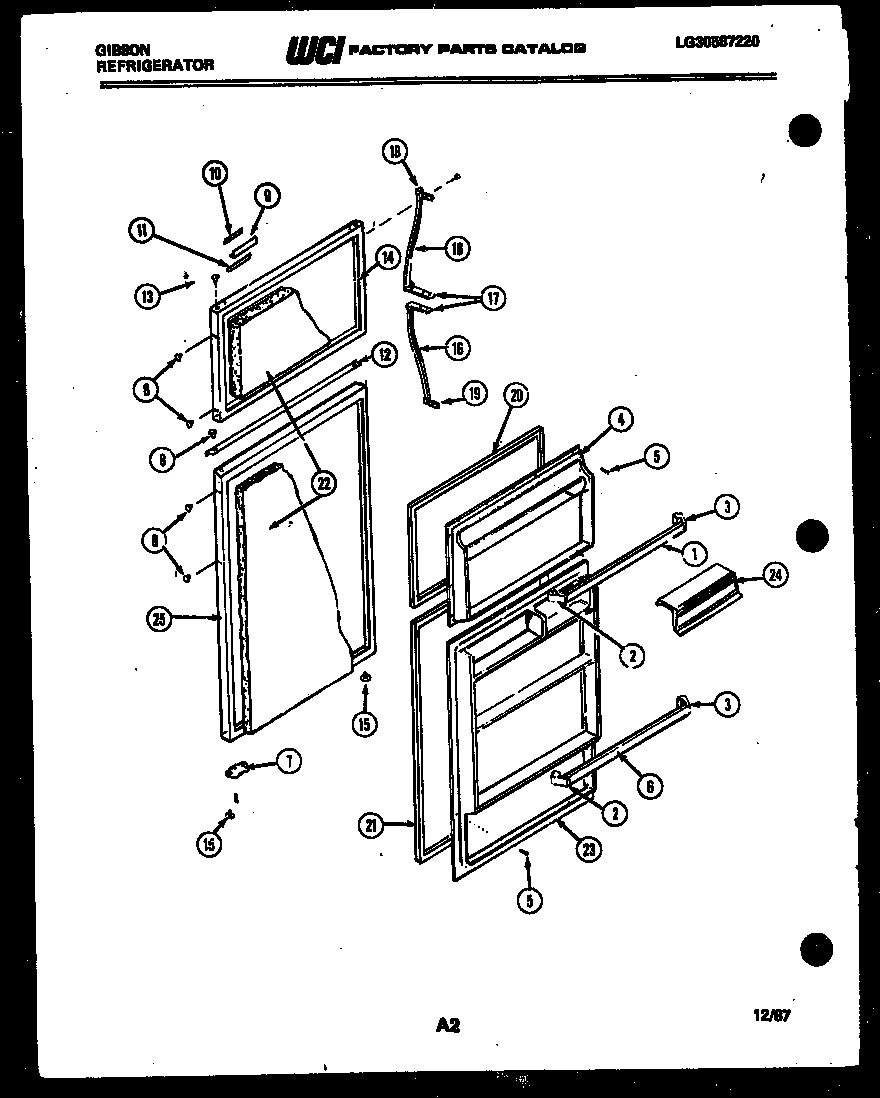

02 - DOOR PARTS

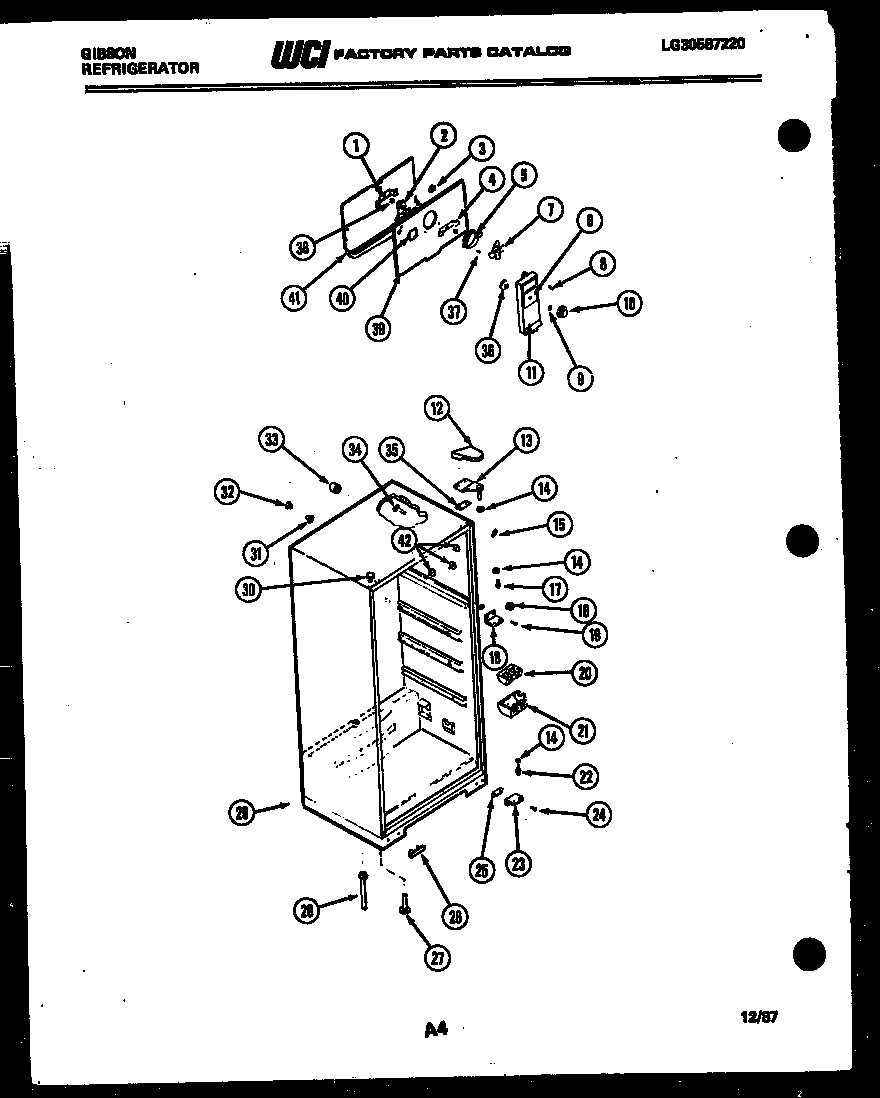

03 - CABINET PARTS

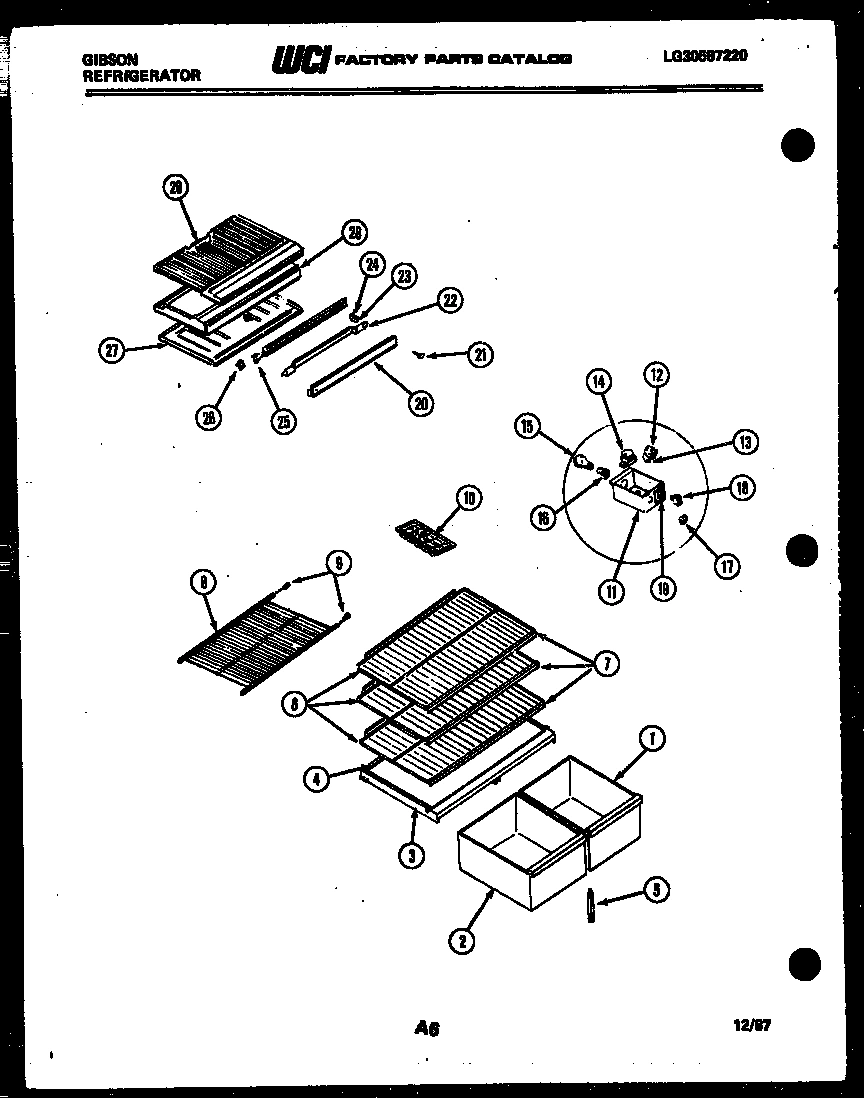

04 - SHELVES AND SUPPORTS

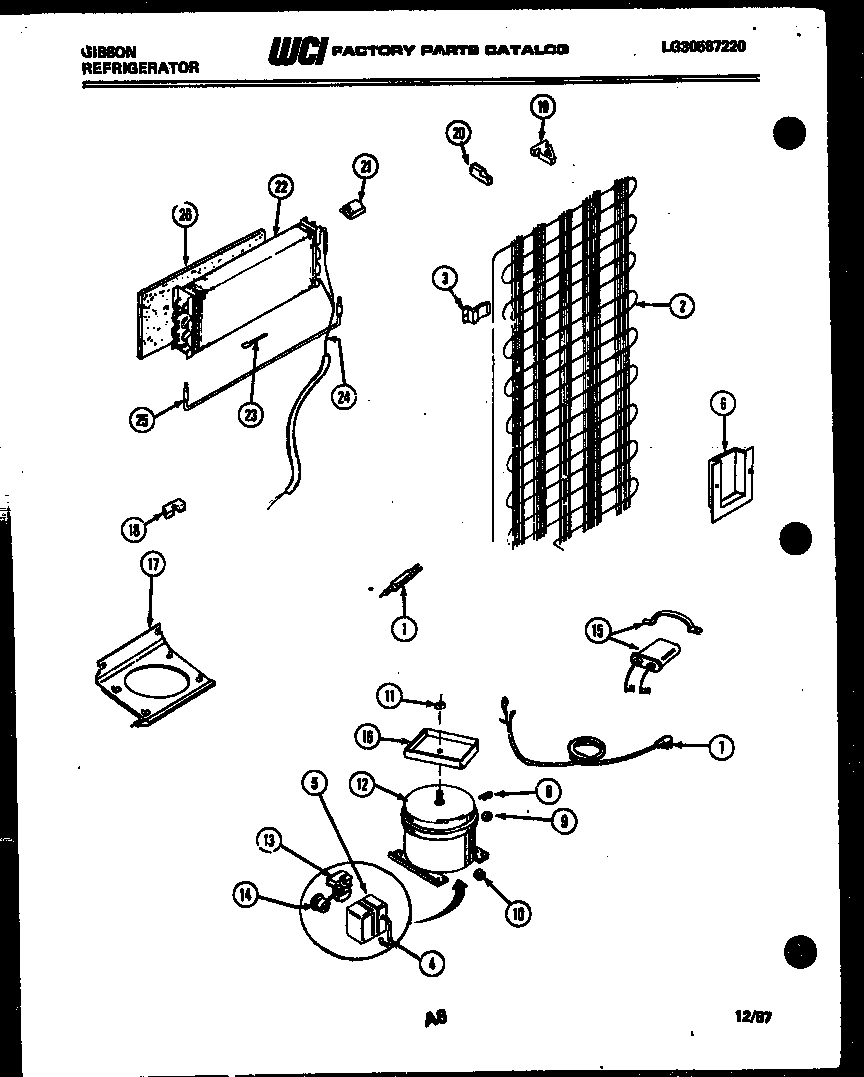

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT19F7WU3A REFRIGERATOR
*36866
PLUG-LINER (2) WCI G162892-01 Contact Us For Availability
*36866
PLUG-ICE MAKER HOLES (3) WCI G187599 Contact Us For Availability
*36941
WIRING HARNESS WCI G174818 Contact Us For Availability
*37008
WCI G167234 WCI G167234 Contact Us For Availability
1
WCI G185303 WCI G185303 Contact Us For Availability
1
PAN-CRISPER RS WCI G490015-34 Contact Us For Availability
2
SUPPORT LS (4) WCI G152887-04 Contact Us For Availability
2
PAN-CRISPER LS WCI G176639-16 Contact Us For Availability
2
WCI G162739 WCI G162739 Contact Us For Availability
3
SUPPORT RS (4) WCI G152888-04 Contact Us For Availability
3
BRKT, CONNECTOR WCI G164571 Contact Us For Availability
3
WCI G490064-01 WCI G490064-01 Contact Us For Availability
3
BRACKET-MTG (4) WCI G164637 Contact Us For Availability
4
INNER PANEL WCI G184903-01 Contact Us For Availability
4
WCI G185302 WCI G185302 Contact Us For Availability
4
GASKET, COVER WCI G180108-04 Contact Us For Availability
5
RING-ORIFICE WCI G167217 Contact Us For Availability
5
SUPPORT, COVER WCI G166310-02 Contact Us For Availability
6
WCI G162887-21 WCI G162887-21 Contact Us For Availability
6
LABEL, FAN COVER WCI G186232 Contact Us For Availability
6
SHELF-REFR (3) WCI G179139-03 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
WCI G141727-44 WCI G141727-44 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
7A
DOOR STOP-FRZR (NON-ILLUSTRATED) WCI G155072 Contact Us For Availability
7A
CLIP-SHELF (NON-ILLUSTRATED) WCI G138399 Contact Us For Availability
8
WCI G162977-08 WCI G162977-08 Contact Us For Availability
8
WCI G162977-09 WCI G162977-09 Contact Us For Availability
8
WCI G162977-10 WCI G162977-10 Contact Us For Availability
8
WCI G162977-11 WCI G162977-11 Contact Us For Availability
8
SHELF-FRZR WCI G184572-04 Contact Us For Availability
8
CLIP (4) WCI G163204 Contact Us For Availability
9
NAMEPLATE WCI G175117-02 Contact Us For Availability
9
WCI G162662 WCI G162662 Contact Us For Availability
9
END CAP (2) WCI G166495-01 Contact Us For Availability
9
WASHER (4) WCI G164634 Contact Us For Availability
9A
TAPE, NAMEPLATE (NON-ILLUSTRATED) WCI G153407-60 Contact Us For Availability
10
LABEL, UPPER WCI G188378-02 Contact Us For Availability
10
KNOB-DAMPR CONT WCI G168702 Contact Us For Availability
10
WCI G156373-13 WCI G156373-13 Contact Us For Availability
11
LABEL, LOWER WCI G175393-01 Contact Us For Availability
11
WCI G163061-76 WCI G163061-76 Contact Us For Availability
11
BOX, CONTROL WCI G174765-03 Contact Us For Availability
11
NUT, LOCK WCI G164958 Contact Us For Availability
12
TRIM-REFR DOOR WCI G167150-12 Contact Us For Availability
12
COVER-HNG WHTE WCI G183558-01 Contact Us For Availability
12
COVER-HNG AVOC. WCI G183558-08 Contact Us For Availability
12
COVER-HNG WEAT WCI G183558-09 Contact Us For Availability
12
COVER-HNG COFE WCI G183558-10 Contact Us For Availability
12
COVER-HNG ALMD WCI G183558-11 Contact Us For Availability
12
CONTROL TEMP. WCI G162205-11 Contact Us For Availability
12
COMPR W/ ELEC WCI G189457 Contact Us For Availability
12A
WCI G107080 WCI G107080 Contact Us For Availability
13
WCI G169332-01 WCI G169332-01 Contact Us For Availability
13
WCI G169332-08 WCI G169332-08 Contact Us For Availability
13
WCI G169332-09 WCI G169332-09 Contact Us For Availability
13
WCI G169332-10 WCI G169332-10 Contact Us For Availability
13
WCI G169332-11 WCI G169332-11 Contact Us For Availability
13
WCI G183714 WCI G183714 Contact Us For Availability
13
WCI G182225-18 WCI G182225-18 Contact Us For Availability
14
WCI G103903 No Longer Available
14
OUTER PANEL-WHTE WCI G178690 Contact Us For Availability
14
OUTER PANEL-AVOC WCI G178690-08 Contact Us For Availability
14
OUTER PANEL-WEAT WCI G178690-09 Contact Us For Availability
14
OUTER PANEL-COFE WCI G178690-10 Contact Us For Availability
14
OUTER PANEL-ALMD WCI G178690-11 Contact Us For Availability
14
WCI G188877 WCI G188877 Contact Us For Availability
15
BEARING-HNG (8) WCI G183138 Contact Us For Availability
15
CORNER TRIM-WHTE WCI G179684-01 Contact Us For Availability
15
CORNER TRIM-AVOC WCI G179684-08 Contact Us For Availability
15
CORNER TRIM-WEAT WCI G179684-09 Contact Us For Availability
15
CORNER TRIM-COFE WCI G179684-10 Contact Us For Availability
15
CORNER TRIM (ALMD) WCI G179684-11 Contact Us For Availability
15
CAPACITOR, RUN WCI G188885-02 Contact Us For Availability
15A
STRAP-CAPACITOR WCI G188897 Contact Us For Availability
16
WCI G170495-24 WCI G170495-24 Contact Us For Availability
16
WASHER-CTR HNG WCI G164355 Contact Us For Availability
16
WCI G168302 WCI G168302 Contact Us For Availability
16
PAN, DEFROST WCI G184715 Contact Us For Availability
17
END, HANDLE (2) WCI G187329-01 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
KNOB, CONTROL WCI G174759-01 Contact Us For Availability
17
WCI G184599 WCI G184599 Contact Us For Availability
18
END-HANDLE WCI G179800 Contact Us For Availability
18
BRACKET-CTR HNG WCI G163207 Contact Us For Availability
18
SWITCH, SLIDE WCI G178402-05 Contact Us For Availability
18
BLOCK-INSUL LS WCI G188375 Contact Us For Availability
19
END-HANDLE WCI G179801 Contact Us For Availability
19
LABEL-CONT BOX WCI G185865 Contact Us For Availability
19
BLOCK-INSUL RS WCI G185299 Contact Us For Availability
19A
WCI G185566 WCI G185566 Contact Us For Availability
20
GASKET-FRZR WCI G186932-12 Contact Us For Availability
20
WCI G162675 WCI G162675 Contact Us For Availability
20
WCI G180373-01 WCI G180373-01 Contact Us For Availability
20
MULLION-AVOC WCI G180373-08 Contact Us For Availability
20
MULLION-WEAT WCI G180373-09 Contact Us For Availability
20
MULLION-COFE WCI G180373-10 Contact Us For Availability
20
MULLION-ALMD WCI G180373-11 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
21
GASKET-REFR WCI G186932-13 Contact Us For Availability
21
SCREW-MTG (4) WCI G183103 Contact Us For Availability
21
WCI G162178 WCI G162178 Contact Us For Availability
22
WCI G89643 WCI G89643 Contact Us For Availability
22
STRAP-MULN-MTG WCI G490087 Contact Us For Availability
22
EVAPORATOR WCI G164572 Contact Us For Availability
23
INNER PANEL WCI G184896-01 Contact Us For Availability
23
WASHER-STEEL (4) WCI G166847 Contact Us For Availability
23
HINGE BRKT-BTM WCI G191474 Contact Us For Availability
24
WCI G178500-21 WCI G178500-21 Contact Us For Availability
24
SPACER (2) WCI G490082 Contact Us For Availability
24
WCI G177531 WCI G177531 Contact Us For Availability
24A
PLATE TAPPING (NON-ILLUSTRATED) WCI G179797 Contact Us For Availability
25
OUTER PANEL-WHTE WCI G178694 Contact Us For Availability
25
OUTER PANEL-AVOC WCI G178694-08 Contact Us For Availability
25
OUTER PANEL-WEAT WCI G178694-09 Contact Us For Availability
25
OUTER PANEL-COFE WCI G178694-10 Contact Us For Availability
25
OUTER PANEL-ALMD WCI G178694-11 Contact Us For Availability
25
SHIM-BTM HNG WCI G163203 Contact Us For Availability
25
WCI G177254 WCI G177254 Contact Us For Availability
26
PLUG-HNG HOLE WCI G166912 Contact Us For Availability
26
INSULATOR WCI G166511-01 Contact Us For Availability
26A
HARNESS-COMPR WCI G166062-01 Contact Us For Availability
26B
HOT TUBE REPR KIT WCI G189383 Contact Us For Availability
27
LEVEL SCREW WCI G185713 Contact Us For Availability
27
TOP-REFR. WCI G490021-02 Contact Us For Availability
27A
ANCHOR NUT (NON-ILLUSTRATED) WCI G183073 Contact Us For Availability
27A
SCREW-MTG (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
28
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
28
WCI G176777 WCI G176777 Contact Us For Availability
28A
SPOUT-DRAIN (NON-ILLUSTRATED) WCI G162179 Contact Us For Availability
28B
PUSH-PIN-MTG (2) (NON-ILLUSTRATED) WCI G185279 Contact Us For Availability
28C
SEAL RING (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
29
BASE, CABINET WCI G490004-02 Contact Us For Availability
29
BOTTOM-FRZR WCI G185912 Contact Us For Availability
30
WCI G174747-01 WCI G174747-01 Contact Us For Availability
30
WCI G174747-08 WCI G174747-08 Contact Us For Availability
30
WCI G174747-09 WCI G174747-09 Contact Us For Availability
30
WCI G174747-10 WCI G174747-10 Contact Us For Availability
30
WCI G174747-11 WCI G174747-11 Contact Us For Availability
31
WCI G174733 WCI G174733 Contact Us For Availability
32
WCI G174734 WCI G174734 Contact Us For Availability
33
TUBE, RUBBER WCI G85642 Contact Us For Availability
34
SPRT-COIL COV (2) WCI G163669 Contact Us For Availability
35
SHIM-TOP HNG WCI G183861 Contact Us For Availability
36
DAMPER WCI G162661 Contact Us For Availability
39
WCI G177529 WCI G177529 Contact Us For Availability
40
WCI G162827-12 WCI G162827-12 Contact Us For Availability
41
WCI G177534 WCI G177534 Contact Us For Availability
× ![]()
