Model Electrolux RT19F6WV3C REFRIGERATOR – Common Parts & Diagrams

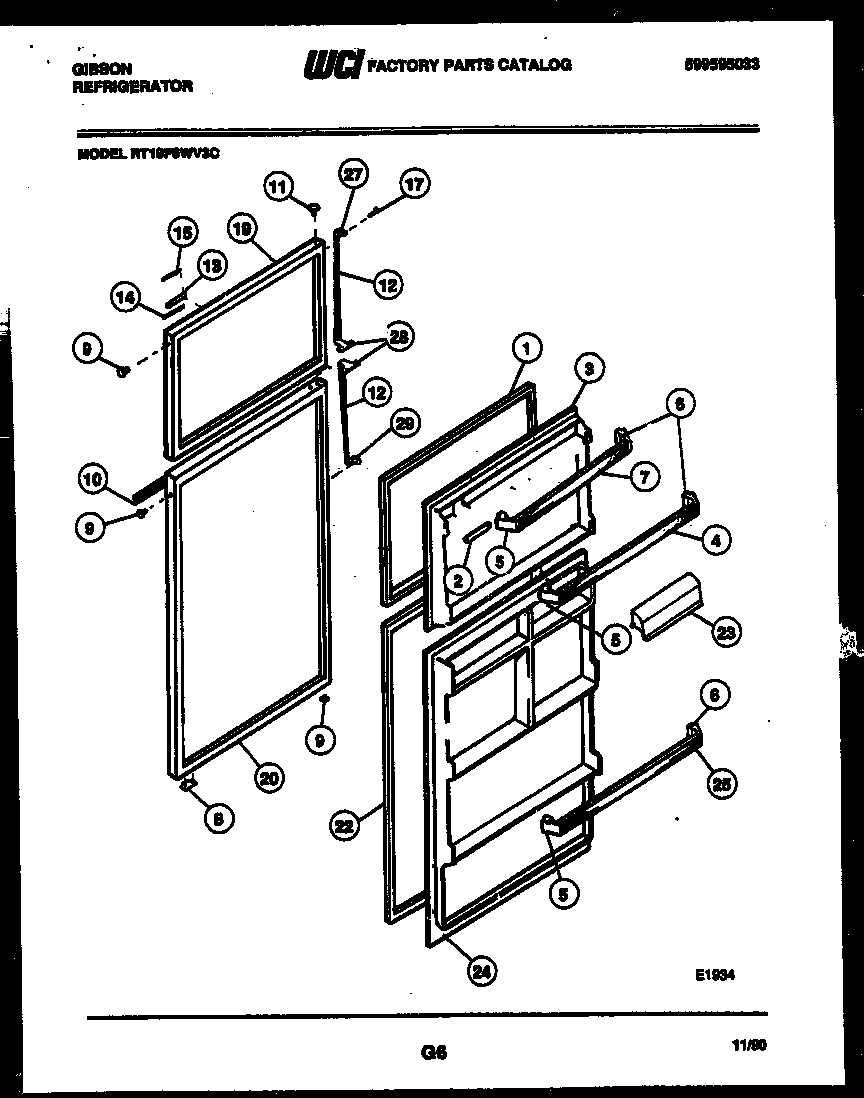

02 - DOOR PARTS

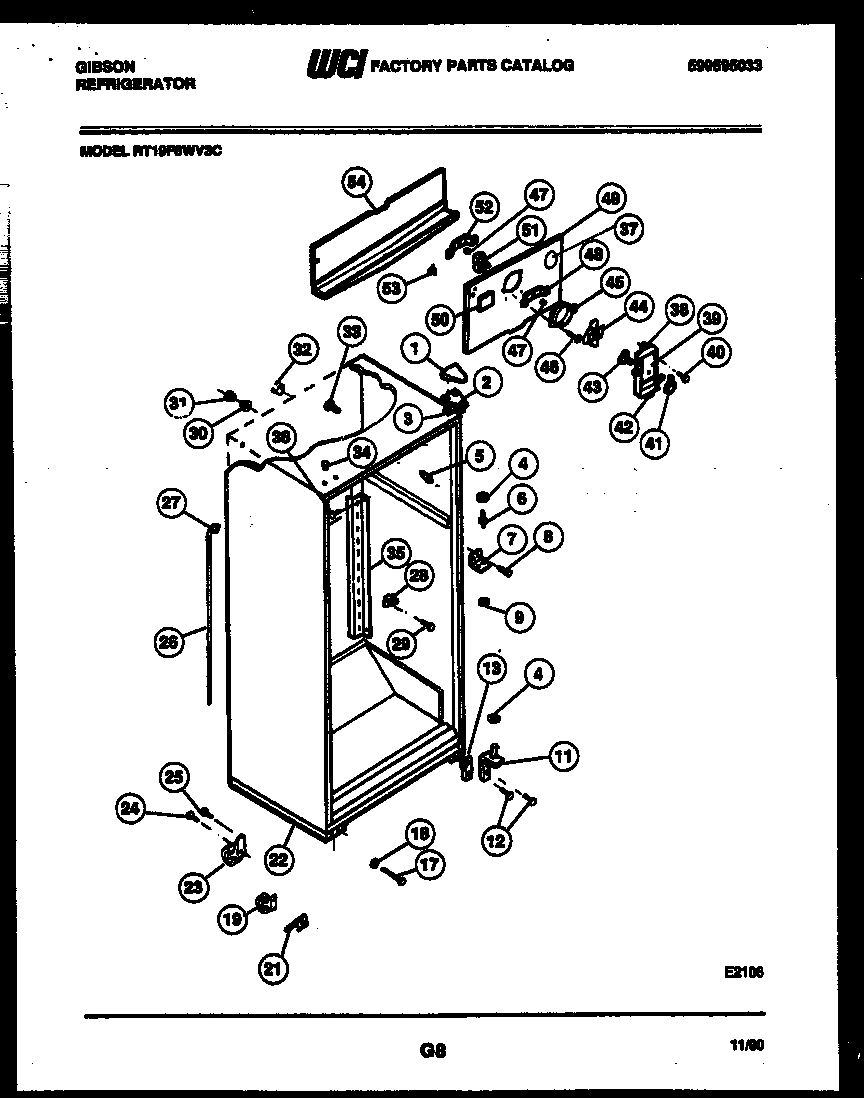

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT19F6WV3C REFRIGERATOR
*34554
PLUG-LINER (5) WCI 5308016571 Contact Us For Availability
*34554
TAPPING - PLATE - UPPER (2) WCI 5308012296 Contact Us For Availability
*34571
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
WCI 5303001664 WCI 5303001664 Contact Us For Availability
1
WCI 5303001665 WCI 5303001665 Contact Us For Availability
1
WCI 5303001666 WCI 5303001666 Contact Us For Availability
1
WCI 5308012820 WCI 5308012820 Contact Us For Availability
1
WCI 5308012933 WCI 5308012933 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308012843 WCI 5308012843 Contact Us For Availability
2
WCI G177059-09 WCI G177059-09 Contact Us For Availability
2
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
2A
CAP-PROTECTOR (2) (NON-ILLUSTRATED) WCI 3201150 No Longer Available
2B
WASHER - NO. 10 EXT TOOTH LOCK (2) (NON-ILLUS WCI 5308009617 Contact Us For Availability
3
WCI 5303001037 WCI 5303001037 Contact Us For Availability
3
WCI 5308002662 WCI 5308002662 Contact Us For Availability
3
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
4
WASHER, 1/4 NYLON (2) WCI 5308000007 Contact Us For Availability
4
FRAME-CANTILEVER (2) WCI 5303210022 Contact Us For Availability
4
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
5
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
5
CORNER TRIM - AVOCADO WCI 5303202337 Contact Us For Availability
5
CORNER TRIM, WHEAT WCI 5303202338 Contact Us For Availability
5
WCI 5303202339 WCI 5303202339 Contact Us For Availability
5
CORNER TRIM-ALMOND WCI 5303202340 Contact Us For Availability
5
WCI 5317663928 WCI 5317663928 Contact Us For Availability
5
WCI 5316254901 WCI 5316254901 Contact Us For Availability
6
WCI 5308000184 WCI 5308000184 Contact Us For Availability
6
WCI 5303001493 WCI 5303001493 Contact Us For Availability
6A
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 5303200329 Contact Us For Availability
7
WCI 5303001369 WCI 5303001369 Contact Us For Availability
7
PAN-CRISPER LH WCI G490015-46 Contact Us For Availability
8
SPACER-MULLION WCI 5303200464 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
9
WASHER-5/16 NYLON WCI 5303001038 Contact Us For Availability
9
DEFROST PAN WCI 5300184715 Contact Us For Availability
10
WCI 5303206574 WCI 5303206574 Contact Us For Availability
10
WCI 5303001348 WCI 5303001348 Contact Us For Availability
11
PLUG, HINGE, ALMOND WCI 5303001308 Contact Us For Availability
11
PLUG, HINGE, WHITE WCI 5308000134 Contact Us For Availability
11
WCI 5303212489 WCI 5303212489 Contact Us For Availability
11
KNOB-TEMPERATURE WCI 5303201777 Contact Us For Availability
11
COMPRESSOR WITH ELECTRICALS WCI 5303916411 Contact Us For Availability
11A
TAPPING PLATE-GUSSET LH-LOWER (NON-ILLUSTRATE WCI 5303212596 Contact Us For Availability
11B
TAPPING PLATE-GUSSET RH-LOWER (NON-ILLUSTRATE WCI 5303212597 Contact Us For Availability
12
WCI 5303206872 WCI 5303206872 Contact Us For Availability
12
CLIP (4) WCI 5308003596 Contact Us For Availability
13
WCI 5308012258 WCI 5308012258 Contact Us For Availability
13
WCI 5303212488 WCI 5303212488 Contact Us For Availability
13
WASHER (4) WCI 5308003633 Contact Us For Availability
14
WCI 5303018894 WCI 5303018894 Contact Us For Availability
14A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
15
HOUSING-CONT CAP TUBE WCI 3018991 Contact Us For Availability
15
MOUNTING PLATE WCI 5308013663 Contact Us For Availability
17
SCREW-ROLLER ADJ (2) WCI 5308009761 Contact Us For Availability
18
WASHER-NYLON (2) WCI 5308011326 Contact Us For Availability
19
FREEZER DOOR - COFFEE WCI 5317869010 Contact Us For Availability
19
FREEZER DOOR - ALMOND WCI 5317869011 Contact Us For Availability
19
ASSY ROLLER-FRONT (2) WCI 5303212490 Contact Us For Availability
20
REFRIGERATOR DOOR - WHITE WCI 5300178694 Contact Us For Availability
20
REFRIGERATOR DOOR-AVOC WCI 5317869408 Contact Us For Availability
20
REFRIGERATOR DOOR - WHEAT WCI 5317869409 Contact Us For Availability
20
REFRIGERATOR DOOR - COFFEE WCI 5317869410 Contact Us For Availability
20
REFRIGERATOR DOOR-ALMD WCI 5317869411 Contact Us For Availability
20
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
20A
BEARING-HINGE (4) (NON-ILLUSTRATED) WCI 5308012007 Contact Us For Availability
20A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
21
SPRING, ROLLER ADJ (2) WCI 5308009790 Contact Us For Availability
22
GASKET-REFRIGERATOR WCI 5308015544 Contact Us For Availability
22
CABINET BASE WCI 5303212487 Contact Us For Availability
22
WCI 5308010008 WCI 5308010008 Contact Us For Availability
22
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
23
DAIRY DOOR WCI G187460-02 Contact Us For Availability
23
ROLLER-REAR (2) WCI 5308009773 Contact Us For Availability
23
WCI 3018994 WCI 3018994 Contact Us For Availability
23
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
24
WCI G187452-02 WCI G187452-02 Contact Us For Availability
24
BOLT-1/4-28 X 1/2 (2) WCI 5308009762 Contact Us For Availability
24
WCI 5303001505 WCI 5303001505 Contact Us For Availability
24
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
25
RACK (2) WCI G161019-65 Contact Us For Availability
25
WCI 5303200366 WCI 5303200366 Contact Us For Availability
25
WCI 5303200367 WCI 5303200367 Contact Us For Availability
25
WCI 5303200368 WCI 5303200368 Contact Us For Availability
25
WCI 5303200369 WCI 5303200369 Contact Us For Availability
25
MULLION, ALMD WCI 5303200370 Contact Us For Availability
25
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
26
DRAIN TUBE-DEFROST-W/SEAL RING WCI 5303210377 Contact Us For Availability
26
MEAT PAN WCI G187181-01 Contact Us For Availability
27
SEAL RING WCI 5303207353 Contact Us For Availability
27
WCI 5303001297 WCI 5303001297 Contact Us For Availability
28
INSULATOR, PLASTIC WCI 5316651102 Contact Us For Availability
28
WCI 5303001296 WCI 5303001296 Contact Us For Availability
28
DRAIN SPOUT WCI 5308000056 Contact Us For Availability
29
WCI 5303001295 WCI 5303001295 Contact Us For Availability
29
PUSHPIN (2) WCI 5303001361 Contact Us For Availability
29
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
30
WCI 5303001286 WCI 5303001286 Contact Us For Availability
31
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
31
WCI 5303001287 WCI 5303001287 Contact Us For Availability
32
WCI 5303001198 WCI 5303001198 Contact Us For Availability
32
FRAME-MEAT KEEPER SHELF WCI 5303210990 Contact Us For Availability
33
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
33
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
33A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
33B
SCREW (2) (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
34
PLUG-ALMOND WCI 5303001389 Contact Us For Availability
34
PLUG, WHITE WCI 5303001388 Contact Us For Availability
34
PLUG-AVOCADO WCI 5303001677 Contact Us For Availability
34
PLUG, WHEAT WCI 5303001678 Contact Us For Availability
34
PLUG, COFFEE WCI 5303001679 Contact Us For Availability
34
GLASS-SHELF (3) WCI 5303210989 Contact Us For Availability
35
CHANNEL, RH & LH WCI 5308000302 Contact Us For Availability
35
TRIM-REAR SHELF RETNR (3) WCI 5303210991 Contact Us For Availability
36
RETAINER-GLASS (3) WCI 5303209274 Contact Us For Availability
37
TRIM-SHELF (3) WCI 5303210988 Contact Us For Availability
38
FAN COVER WCI 5316306176 Contact Us For Availability
39
SUPPORT-CRISPER COVER ADJ WCI 5303205987 Contact Us For Availability
39
LABEL - FAN COVER WCI 5300186232 Contact Us For Availability
40
DEFLECTOR - AIR WCI 3204206 Contact Us For Availability
41
WCI 5303001546 WCI 5303001546 Contact Us For Availability
41
KNOB - DAMPER CONTROL (W/ LABEL) WCI 5308011763 Contact Us For Availability
42
WCI 5303001028 WCI 5303001028 Contact Us For Availability
43
DAMPER WCI 5303001331 Contact Us For Availability
45
WCI 5308000124 WCI 5308000124 Contact Us For Availability
48
WCI 5303001226 WCI 5303001226 Contact Us For Availability
49
WCI 5308009771 WCI 5308009771 Contact Us For Availability
49A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
50
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
52
WCI 5303001227 WCI 5303001227 Contact Us For Availability
53
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
54
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
× ![]()
