Model Electrolux RT19F6WV3A REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

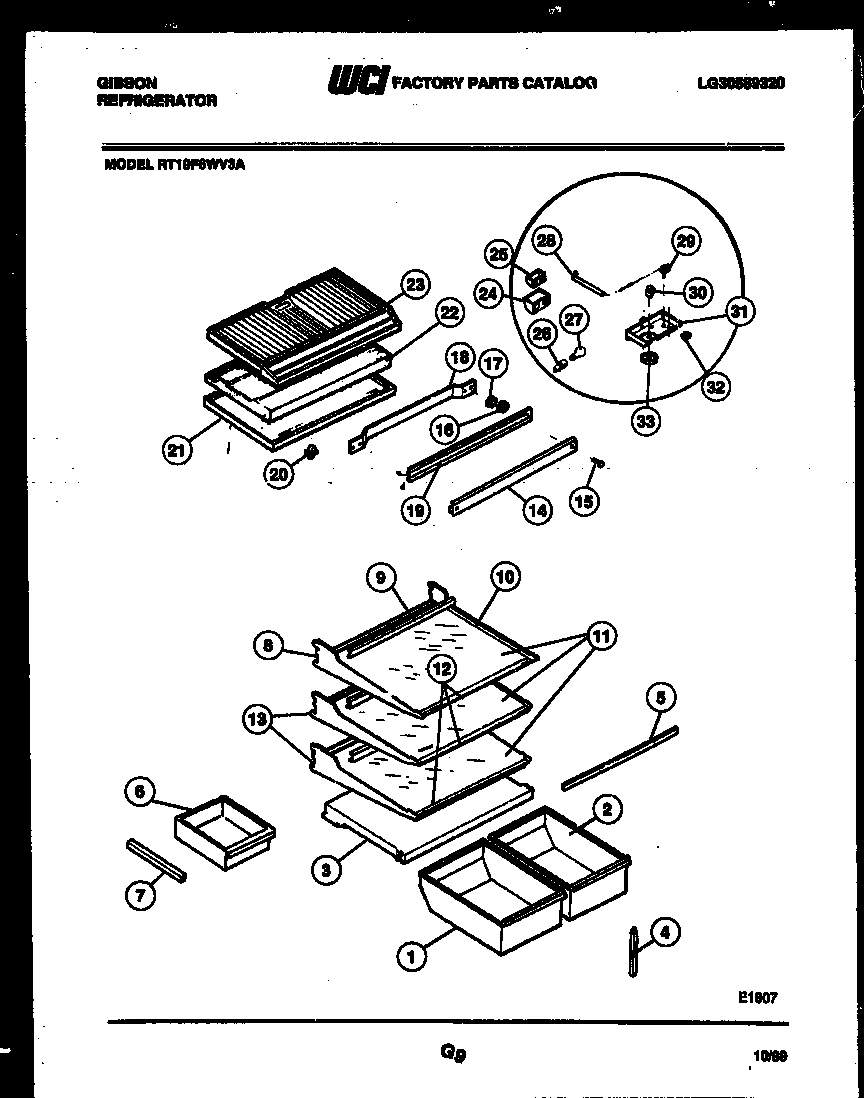

04 - SHELVES AND SUPPORTS

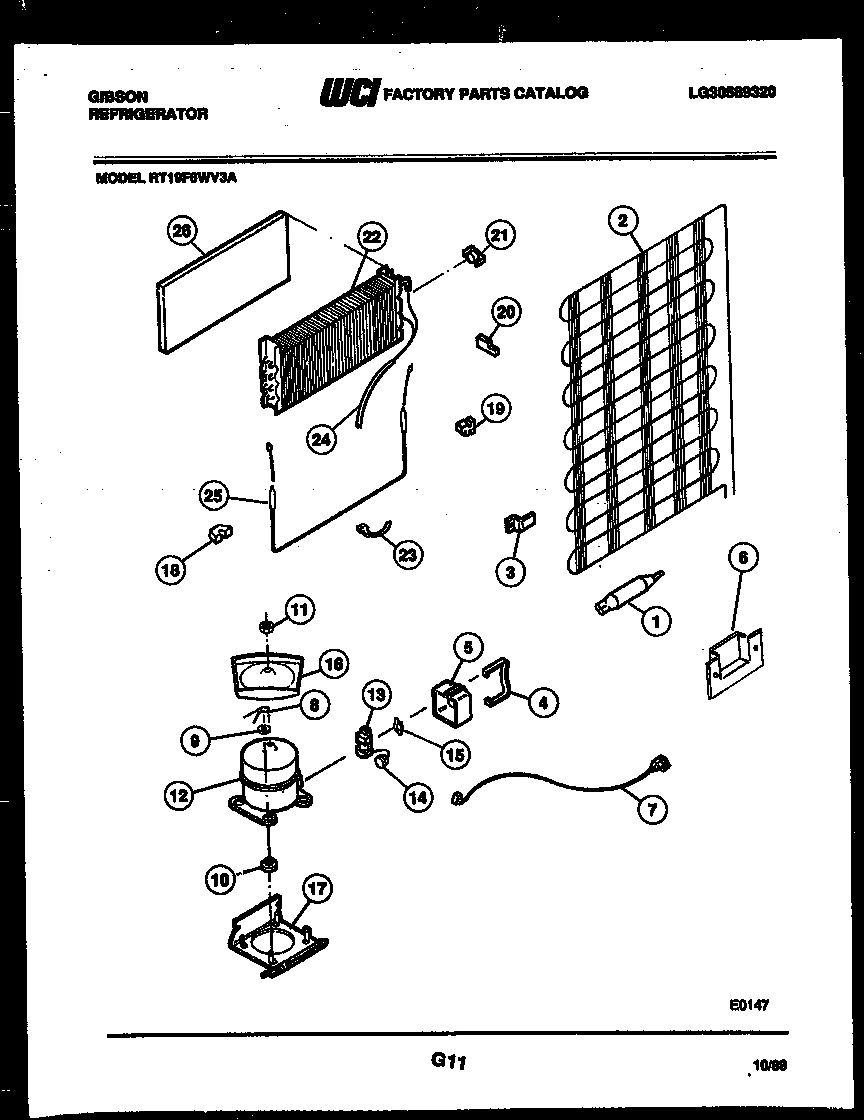

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT19F6WV3A REFRIGERATOR
*16250
TAPPING PLATE (4) WCI G179797 Contact Us For Availability
*16250
BUTTON-LINER (3) WCI G187599 Contact Us For Availability
*16264
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
*16264
HOT TUBE REPAIR KIT WCI G189383 Contact Us For Availability
*16266
HARNESS, DIVIDER WCI G174818 Contact Us For Availability
*16266
SLEEVE-CONNECTOR WCI G103457 Contact Us For Availability
1
COVER HINGE, WHITE WCI G183558-01 Contact Us For Availability
1
COVER HINGE, AVOC. WCI G183558-08 Contact Us For Availability
1
COVER HINGE, WHEAT WCI G183558-09 Contact Us For Availability
1
COVER HINGE, COFFEE WCI G183558-10 Contact Us For Availability
1
COVER HINGE, ALMOND WCI G183558-11 Contact Us For Availability
1
PAN-CRISPER LH WCI G490015-46 Contact Us For Availability
2
GASKET-REFRIGERATOR WCI G186932-13 Contact Us For Availability
2
WCI G183714 WCI G183714 Contact Us For Availability
2
PAN-CRISPER RH WCI G176639-28 Contact Us For Availability
2
WCI G163133 WCI G163133 Contact Us For Availability
3
INNER PANEL-REFRIGERATOR WCI G187452-02 Contact Us For Availability
3
WCI G183861 WCI G183861 Contact Us For Availability
3
COVER, CRISPER WCI G490064-01 Contact Us For Availability
3
BRACKET-MTG (4) WCI G164637 Contact Us For Availability
3A
WASHER (EXT TOOTH LOCK) (NON-ILLUSTRATED) WCI G164820 Contact Us For Availability
4
SUPPORT-COVER WCI 3205987 Contact Us For Availability
5
WCI G103903 WCI G103903 Contact Us For Availability
5
SUPPORT-RS (4) WCI G178287-02 Contact Us For Availability
5
GASKET, COVER WCI G180108-07 Contact Us For Availability
6
WCI G187284-02 WCI G187284-02 Contact Us For Availability
6
WASHER, HINGE WCI G164355 Contact Us For Availability
6
MEAT PAN WCI G187181-01 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
WCI G177021 WCI G177021 Contact Us For Availability
7
HANGER-PAN LH WCI 3018889 Contact Us For Availability
7
WCI G162549-01 WCI G162549-01 Contact Us For Availability
7A
HANGER-PAN RH WCI 3018890 Contact Us For Availability
7B
SCREW (2) (NON-ILLUSTRATED) WCI G184823 Contact Us For Availability
8
WCI G187460-01 WCI G187460-01 Contact Us For Availability
8
WCI G183407 WCI G183407 Contact Us For Availability
8
FRAME-MEAT PAN SHELF WCI 3200327 Contact Us For Availability
8
CLIP (4) WCI G163204 Contact Us For Availability
9
RACK-FREEZER-UPPER WCI G161019-65 Contact Us For Availability
9
TRIM-REAR (3) WCI 5303206854 Contact Us For Availability
9
WASHER (4) WCI G164634 Contact Us For Availability
10
DISPENSER-JUICE CAN WCI 3202032 Contact Us For Availability
10
WCI G177025 WCI G177025 Contact Us For Availability
10
SUPPORT-RAIL WCI 3200901 Contact Us For Availability
10A
RETAINER-SHELF (3) (NON-ILLUSTRATED) WCI 3200321 Contact Us For Availability
11
WCI 3203048 WCI 3203048 Contact Us For Availability
11
WCI G178494 WCI G178494 Contact Us For Availability
11
WCI 5303206856 WCI 5303206856 Contact Us For Availability
11
NUT, LOCK WCI G164958 Contact Us For Availability
12
WCI G169332-01 WCI G169332-01 Contact Us For Availability
12
WCI G169332-08 WCI G169332-08 Contact Us For Availability
12
WCI G169332-09 WCI G169332-09 Contact Us For Availability
12
WCI G169332-10 WCI G169332-10 Contact Us For Availability
12
WCI G169332-11 WCI G169332-11 Contact Us For Availability
12
WCI G177024 WCI G177024 Contact Us For Availability
12
WCI 5303206857 WCI 5303206857 Contact Us For Availability
12
COMPRESSOR WCI 3916020 Contact Us For Availability
13
FREEZER PANEL-WHITE WCI G178690 Contact Us For Availability
13
FREEZER PANEL-AVOCADO WCI G178690-08 Contact Us For Availability
13
FREEZER PANEL-WHEAT WCI G178690-09 Contact Us For Availability
13
FREEZER PANEL-COFFEE WCI G178690-10 Contact Us For Availability
13
FREEZER PANEL-ALMOND WCI G178690-11 Contact Us For Availability
13
WCI G182799 WCI G182799 Contact Us For Availability
13
FRAME-GLASS SHELF (2) WCI 3200398 Contact Us For Availability
13
WCI 3007171 WCI 3007171 Contact Us For Availability
14
NAMEPLATE-FRAME WCI G175117-02 Contact Us For Availability
14
WCI G177302 WCI G177302 Contact Us For Availability
14
WCI 3200366 WCI 3200366 Contact Us For Availability
14
WCI 3200367 WCI 3200367 Contact Us For Availability
14
WCI 3200368 WCI 3200368 Contact Us For Availability
14
WCI 3200369 WCI 3200369 Contact Us For Availability
14
WCI 3200370 WCI 3200370 Contact Us For Availability
14
WCI 3007416 WCI 3007416 Contact Us For Availability
14A
TAPE, NAMEPLATE (NON-ILLUSTRATED) WCI G153407-60 Contact Us For Availability
15
LABEL-NAMEPLATE-UPPER WCI G188378-02 Contact Us For Availability
15
HINGE-BRACKET-BOTTOM WCI 3202834 Contact Us For Availability
15
SCREW (4) WCI G183103 Contact Us For Availability
15
WCI 3017762 WCI 3017762 Contact Us For Availability
16
WCI 3019041 WCI 3019041 Contact Us For Availability
16
WCI G163203 WCI G163203 Contact Us For Availability
16
WASHER (2) WCI G166847 Contact Us For Availability
16
DEFROST PAN WCI G184715 Contact Us For Availability
17
WCI G162977-08 WCI G162977-08 Contact Us For Availability
17
WCI G162977-09 WCI G162977-09 Contact Us For Availability
17
WCI G162977-10 WCI G162977-10 Contact Us For Availability
17
WCI G162977-11 WCI G162977-11 Contact Us For Availability
17
SPACER (2) WCI 3200464 Contact Us For Availability
17
COMPRESSOR MTG PLATE WCI G184599 Contact Us For Availability
18
REFRIGERATOR PANEL-WHITE WCI G178694 Contact Us For Availability
18
REFRIGERATOR PANEL-AVOCADO WCI G178694-08 Contact Us For Availability
18
REFRIGERATOR PANEL-WHEAT WCI G178694-09 Contact Us For Availability
18
REFRIGERATOR PANEL-COFFEE WCI G178694-10 Contact Us For Availability
18
REFRIGERATOR PANEL-ALMOND WCI G178694-11 Contact Us For Availability
18
WCI G490087 WCI G490087 Contact Us For Availability
18
BLOCK-INSUL LS WCI G188375 Contact Us For Availability
18A
BEARING, HINGE (4) (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
19
DOOR STOP (2) WCI G155072 Contact Us For Availability
19
WCI 3018916 WCI 3018916 Contact Us For Availability
19
BLOCK-INSUL RS WCI G185299 Contact Us For Availability
20
WCI G179801 WCI G179801 Contact Us For Availability
20
DEFLECTOR AIR WCI G162675 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
21
WCI G170495-24 WCI G170495-24 Contact Us For Availability
21
TOP-REFRIGERATOR WCI 3018893 Contact Us For Availability
21A
SCREW (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
22
WCI G187329-01 WCI G187329-01 Contact Us For Availability
22
WCI G177059-09 WCI G177059-09 Contact Us For Availability
22
WCI 3018994 WCI 3018994 Contact Us For Availability
22
EVAPORATOR WCI G162506 Contact Us For Availability
23
WCI G179800 WCI G179800 Contact Us For Availability
23
WCI G185912 WCI G185912 Contact Us For Availability
24
CAP - PROTECTOR SHELF (2) WCI 3201150 No Longer Available
24
WCI G185566 WCI G185566 Contact Us For Availability
24
WCI G162178 WCI G162178 Contact Us For Availability
24
HEAT EXCHANGER WCI 3001465 Contact Us For Availability
25
TRIM TOP REFR DOOR WCI G167150-12 Contact Us For Availability
25
WCI G162827-13 WCI G162827-13 Contact Us For Availability
25
DEFLECTOR - AIR WCI 3204206 Contact Us For Availability
26
DAIRY DOOR WCI G187460-02 Contact Us For Availability
26
DAMPER WCI G162661 Contact Us For Availability
26
INSULATOR WCI G166511-02 Contact Us For Availability
27
NUT, PUSH WCI G162662 Contact Us For Availability
28
KNOB-DAMPER CONTROL WCI G168702 Contact Us For Availability
28
HOUSING-CONTROL TUBE WCI 3018891 Contact Us For Availability
29
WCI G163061-76 WCI G163061-76 Contact Us For Availability
29
CONTROL-TEMP WCI 3018894 Contact Us For Availability
29A
LABEL - FAN COVER (NON-ILLUSTRATED) WCI G186232 Contact Us For Availability
31
SPOUT, DRAIN WCI G162179 Contact Us For Availability
31
BOX-CONTROL WCI 5303206574 Contact Us For Availability
32
WCI G185279 WCI G185279 Contact Us For Availability
32
SWITCH-ENERGY WCI 5303206872 Contact Us For Availability
33
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
33
KNOB-CONTROL WCI 3201777 Contact Us For Availability
33A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
35
RING-ORIFICE WCI G167217 Contact Us For Availability
38
WCI 3205118 WCI 3205118 Contact Us For Availability
39
WCI 3205119 WCI 3205119 Contact Us For Availability
39B
BRACKET-CONNECTOR (NON-ILLUSTRATED) WCI G164571 Contact Us For Availability
40
TUBE, RUBBER WCI G85642 Contact Us For Availability
41
WCI G177529 WCI G177529 Contact Us For Availability
41A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
41B
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 3203044 Contact Us For Availability
42
HINGE-BRACKET CENTER WCI G163207 Contact Us For Availability
44
WCI G142220 WCI G142220 Contact Us For Availability
45
WCI G177534 WCI G177534 Contact Us For Availability
46
CHANNEL RH & LH WCI 08000302 Contact Us For Availability
50
WCI G163669 WCI G163669 Contact Us For Availability
51
BUTTON-PLUG WCI G166912 Contact Us For Availability
52
WCI G174733 WCI G174733 Contact Us For Availability
53
WCI G174734 WCI G174734 Contact Us For Availability
54
WCI G174747-01 WCI G174747-01 Contact Us For Availability
54
WCI G174747-08 WCI G174747-08 Contact Us For Availability
54
WCI G174747-09 WCI G174747-09 Contact Us For Availability
54
WCI G174747-10 WCI G174747-10 Contact Us For Availability
54
WCI G174747-11 WCI G174747-11 Contact Us For Availability
56
WCI G490004-02 WCI G490004-02 Contact Us For Availability
57
WCI 3202336 WCI 3202336 Contact Us For Availability
57
CORNER TRIM-AVOCADO WCI 3202337 Contact Us For Availability
57
WCI 3202338 WCI 3202338 Contact Us For Availability
57
WCI 3202339 WCI 3202339 Contact Us For Availability
57
WCI 3202340 WCI 3202340 Contact Us For Availability
58
WCI G183073 WCI G183073 Contact Us For Availability
59
LEVELING SCREW WCI G185713 Contact Us For Availability
× ![]()
