Model Electrolux RT19F6WU3A REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

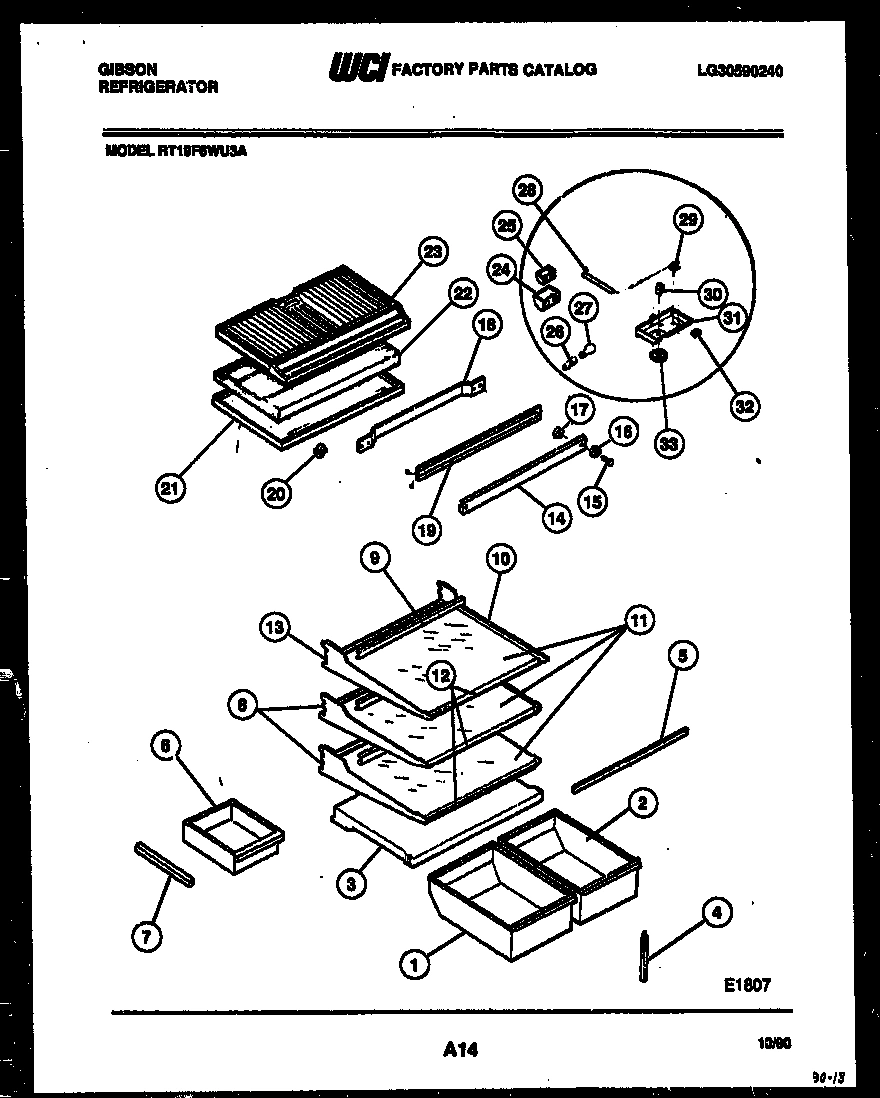

04 - SHELVES AND SUPPORTS

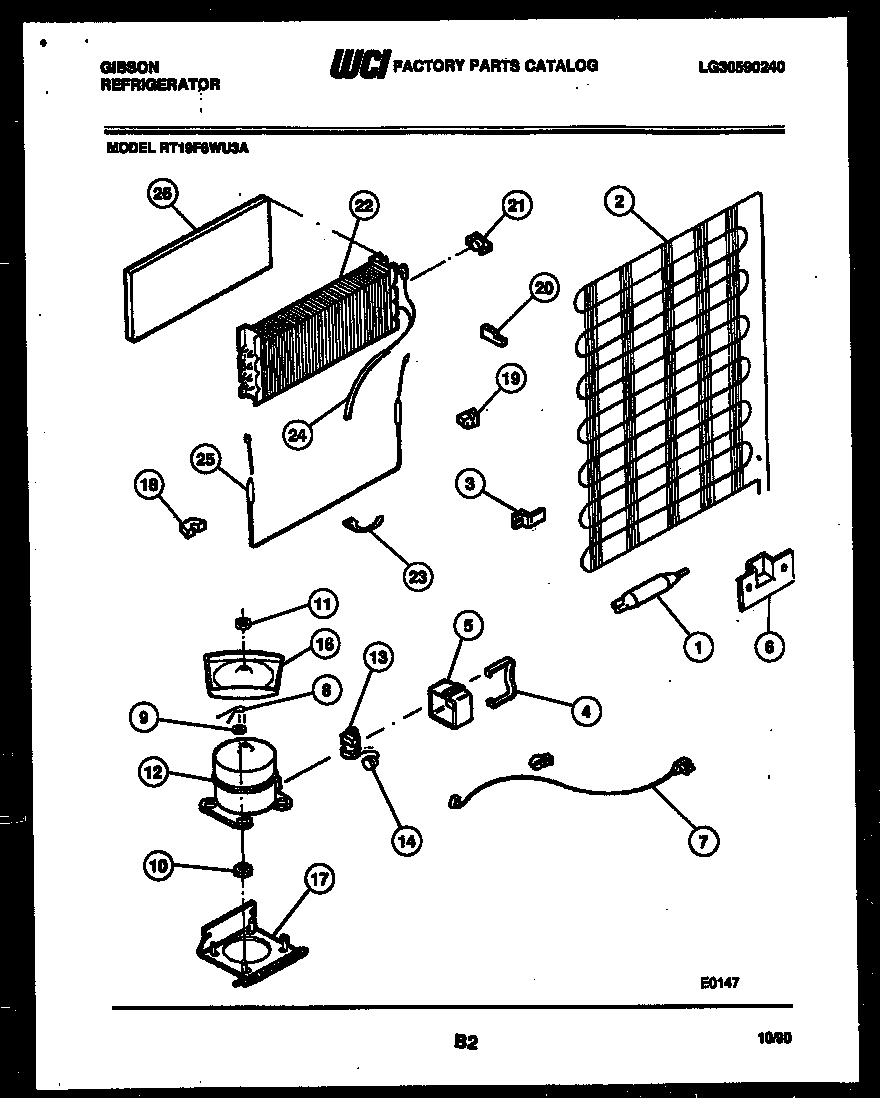

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT19F6WU3A REFRIGERATOR
*32907
BUTTON - LINER (3) WCI 5308016571 Contact Us For Availability
*32907
TAPPING PLATE (4) WCI 5308012296 Contact Us For Availability
*32919
HARNESS - WIRING DIVIDER WCI 3018900 Contact Us For Availability
*32927
HOT TUBE REPAIR KIT WCI 530189383 Contact Us For Availability
*32927
HARNESS-COMPRESSOR WCI 5303001347 Contact Us For Availability
*32928
CAPICITOR RUN COMP WCI 5303916391 Contact Us For Availability
*32928
SLEEVE-CONNECTOR WCI G103457 Contact Us For Availability
1
COVER - HINGE-AVOC WCI 5303001664 Contact Us For Availability
1
COVER - HINGE-WHEAT WCI 5303001665 Contact Us For Availability
1
COVER - HINGE-COFFEE WCI 5303001666 Contact Us For Availability
1
COVER - HINGE-WHITE WCI 5308012820 Contact Us For Availability
1
COVER - HINGE-ALMD WCI 5308012933 Contact Us For Availability
1
PAN-CRISPER LH WCI G490015-46 Contact Us For Availability
2
WCI 5308012843 WCI 5308012843 Contact Us For Availability
2
WCI 5317663928 WCI 5317663928 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
WCI 5303001037 WCI 5303001037 Contact Us For Availability
3
WCI 5303001493 WCI 5303001493 Contact Us For Availability
3
BRACKET-MTG (4) WCI 5303001342 Contact Us For Availability
3A
WASHER-EXT TOOTH LOCK (NON-ILLUSTRATED) WCI 5308009617 Contact Us For Availability
4
WCI 5303205987 WCI 5303205987 Contact Us For Availability
5
WASHER-HINGE (3) WCI 5308000007 Contact Us For Availability
5
GASKET, COVER WCI 5303200329 Contact Us For Availability
6
WASHER HINGE (2) WCI 5303001038 Contact Us For Availability
6
MEAT PAN WCI G187181-01 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
ROLLER ASSEMBLY WCI 5308009760 Contact Us For Availability
7
HANGER-PAN LH WCI 5303210016 Contact Us For Availability
7
WCI 5316254901 WCI 5316254901 Contact Us For Availability
7A
HANGER-PAN RH (NON-ILLUSTRATED) WCI 5303210017 Contact Us For Availability
7B
SCREW (2) (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
8
ROLLER ASSEMBLY WCI 5308009773 Contact Us For Availability
8
FRAME - GLASS SHELF (2) WCI 3200327 Contact Us For Availability
8
CLIP (4) WCI 5308003596 Contact Us For Availability
9
TRIM-REAR (3) WCI 5303206854 Contact Us For Availability
9
WASHER (4) WCI 5308003633 Contact Us For Availability
10
BOLT - REAR ROLLER (2) WCI 5308009762 Contact Us For Availability
10
SUPPORT-RAIL WCI 3200901 Contact Us For Availability
10A
RETAINER-SHELF (3) (NON-ILLUSTRATED) WCI 3200321 Contact Us For Availability
11
SPRING - ADJ (2) WCI 5308009790 Contact Us For Availability
11
WCI 5303206856 WCI 5303206856 Contact Us For Availability
11
NUT-LOCK WCI 5303001348 Contact Us For Availability
12
WCI 5303001308 WCI 5303001308 Contact Us For Availability
12
WCI 5308000134 WCI 5308000134 Contact Us For Availability
12
WCI 5308009761 WCI 5308009761 Contact Us For Availability
12
WCI 5303206857 WCI 5303206857 Contact Us For Availability
12
COMPRESSOR WCI 5303916004 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WASHER (2) WCI 5308011326 Contact Us For Availability
13
FRAME - MEAT PAN SHELF WCI 3200398 Contact Us For Availability
14
SUPPORT, BASE (2) WCI 5308013678 Contact Us For Availability
14
WCI 5303200366 WCI 5303200366 Contact Us For Availability
14
WCI 5303200367 WCI 5303200367 Contact Us For Availability
14
WCI 5303200368 WCI 5303200368 Contact Us For Availability
14
WCI 5303200369 WCI 5303200369 Contact Us For Availability
14
WCI 5303200370 WCI 5303200370 Contact Us For Availability
14
WCI 5303001713 WCI 5303001713 Contact Us For Availability
15
HINGE BRACKET - BOTTOM WCI 5303202834 Contact Us For Availability
15
WCI 5308012258 WCI 5308012258 Contact Us For Availability
16
WCI 5303001323 WCI 5303001323 Contact Us For Availability
16
WASHER (2) WCI 5303206754 Contact Us For Availability
16
DEFROST PAN WCI 5300184715 Contact Us For Availability
17
WCI 5303001321 WCI 5303001321 Contact Us For Availability
17
SPACER (2) WCI 5303200464 Contact Us For Availability
17
COMPRESSOR MTG PLATE WCI 5308013663 Contact Us For Availability
18
REFRIGERATOR PANEL - WHEAT WCI 5317869409 Contact Us For Availability
18
REFRIGERATOR PANEL - COFFEE WCI 5317869410 Contact Us For Availability
18
REFRIGERATOR PANEL - ALMOND WCI 5317869411 Contact Us For Availability
18
STRAP-MULLION WCI 5308010008 Contact Us For Availability
18
BLOCK INSUL LH WCI 5308017227 Contact Us For Availability
18A
BEARING-HINGE (4) (NON-ILLUSTRATED) WCI 5308012007 Contact Us For Availability
19
DOOR STOP (2) WCI 5308000255 Contact Us For Availability
19
WCI 5303210351 WCI 5303210351 Contact Us For Availability
19
BLOCK INSUL RH WCI 5308013648 Contact Us For Availability
20
WCI 5303001295 WCI 5303001295 Contact Us For Availability
20
PLUG-BLOCK RH WCI 5303007287 Contact Us For Availability
21
GRIP - HANDLE WCI 5317049526 Contact Us For Availability
21
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
21A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
22
WCI 5303001296 WCI 5303001296 Contact Us For Availability
22
WCI G177059-09 WCI G177059-09 Contact Us For Availability
22
WCI 3018994 WCI 3018994 Contact Us For Availability
22
WCI 5300162506 WCI 5300162506 Contact Us For Availability
23
WCI 5303001297 WCI 5303001297 Contact Us For Availability
23
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
24
CAP - PROTECTOR SHELF (2) WCI 3201150 No Longer Available
24
WCI 5303001546 WCI 5303001546 Contact Us For Availability
24
WCI 5308011745 WCI 5308011745 Contact Us For Availability
24
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
25
TRIM TOP REFR DOOR WCI G167150-12 Contact Us For Availability
25
BUTTON - DECORATIVE PLUG WCI 5308013636 Contact Us For Availability
25
DEFLECTOR - AIR WCI 3204206 Contact Us For Availability
26
INSULATOR WCI 5316651102 Contact Us For Availability
26
DAIRY DOOR WCI G187460-02 Contact Us For Availability
26
DAMPER WCI 5303001331 Contact Us For Availability
27
NUT, PUSH WCI 5303001028 Contact Us For Availability
28
WCI 5308011763 WCI 5308011763 Contact Us For Availability
28
HOUSING-CONTROL TUBE WCI 3018891 Contact Us For Availability
29
WCI 5316306176 WCI 5316306176 Contact Us For Availability
29
CONTROL-TEMP WCI 5303018894 Contact Us For Availability
29A
WCI 5300186232 WCI 5300186232 Contact Us For Availability
29A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
31
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
31
BOX-CONTROL WCI 5303206574 Contact Us For Availability
32
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
32
SWITCH-ENERGY WCI 5303206872 Contact Us For Availability
33
TUBE - DRAIN AND RING SEAL WCI 5303210377 Contact Us For Availability
33
KNOB - CONTROL WCI 5303201777 Contact Us For Availability
33A
RING SEAL (NON-ILLUSTRATED) WCI 5303207353 Contact Us For Availability
35
RING, ORIFICE WCI 5308000124 Contact Us For Availability
36
WCI 5300157666 WCI 5300157666 Contact Us For Availability
38
WCI 5303001226 WCI 5303001226 Contact Us For Availability
39
WCI 5303001227 WCI 5303001227 Contact Us For Availability
39B
BRACKET-CONNECTOR (NON-ILLUSTRATED) WCI 5308000107 Contact Us For Availability
40
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
41
COVER, COIL WCI 5308009771 Contact Us For Availability
41A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
42
HINGE-BRACKET CENTER WCI 5303001369 Contact Us For Availability
43A
WASHER - STEEL (NON-ILLUSTRATED) WCI 5308003607 Contact Us For Availability
44
WCI 5308000184 WCI 5308000184 Contact Us For Availability
45
WCI 5303001470 WCI 5303001470 Contact Us For Availability
46
CHANNEL, RH AND LH WCI 5308000302 Contact Us For Availability
50
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
51
BUTTON-PLUG WCI 5303001478 Contact Us For Availability
52
WCI 5303001286 WCI 5303001286 Contact Us For Availability
53
WCI 5303001287 WCI 5303001287 Contact Us For Availability
54
BUTTON-HINGE-ALMOND WCI 5303001389 Contact Us For Availability
54
BUTTON-HINGE (WHITE) WCI 5303001388 Contact Us For Availability
54
BUTTON-HINGE-AVOCADO WCI 5303001677 Contact Us For Availability
54
BUTTON-HINGE-WHEAT WCI 5303001678 Contact Us For Availability
54
BUTTON-HINGE (COFFEE) WCI 5303001679 Contact Us For Availability
56
CABINET BASE WCI 5308010092 Contact Us For Availability
57
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
57
CORNER TRIM - AVOCADO WCI 5303202337 Contact Us For Availability
57
CORNER TRIM, WCI 5303202338 Contact Us For Availability
57
WCI 5303202339 WCI 5303202339 Contact Us For Availability
57
WCI 5303202340 WCI 5303202340 Contact Us For Availability
58
WCI 5308003584 WCI 5308003584 Contact Us For Availability
59
WCI 5303205540 WCI 5303205540 Contact Us For Availability
× ![]()
