Model Electrolux RT19F6FT3B REFRIGERATOR – Common Parts & Diagrams
02 - DOOR
03 - CABINET

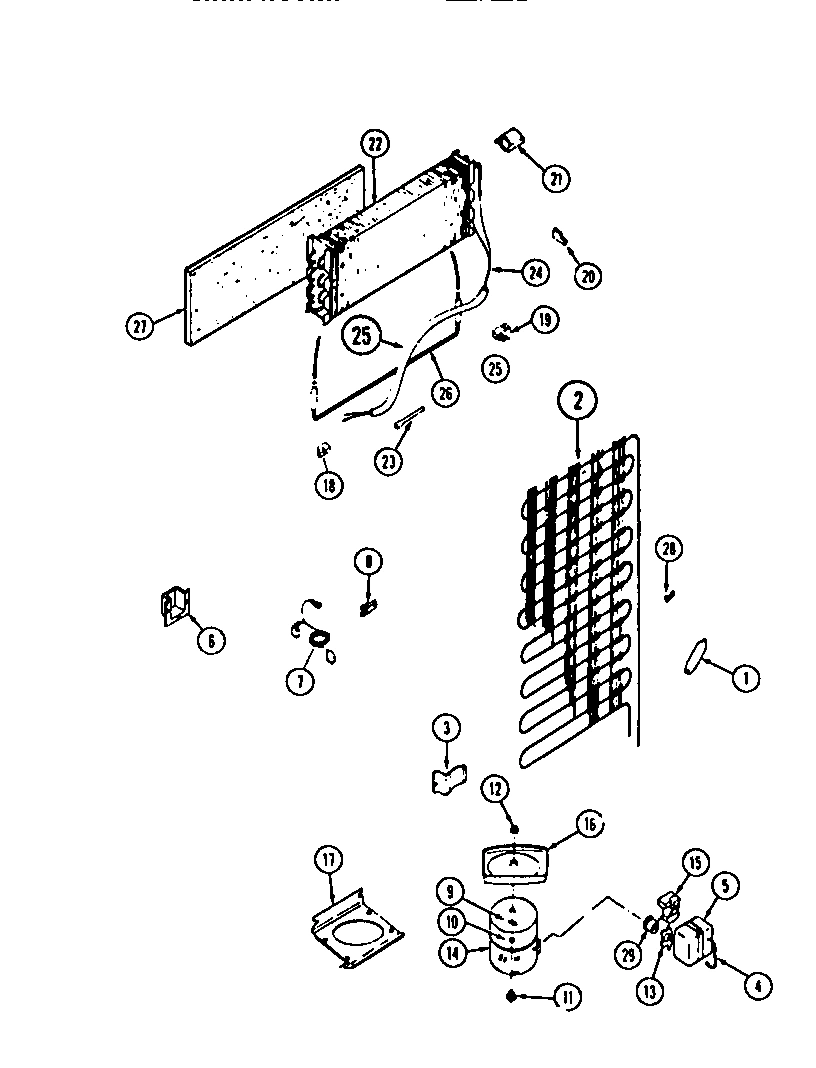

04 - SYSTEM
Common parts from model Electrolux RT19F6FT3B REFRIGERATOR
*62044
KIT, DOOR CONVERSION, AVOCADO WCI G168981-08 Contact Us For Availability
*62046
BUTTON, LINER (5) WCI G187599 Contact Us For Availability
*62047
BUTTON, LINER (2) WCI G162892-01 Contact Us For Availability
*62048
HARNESS, DIVIDER WCI G174818 Contact Us For Availability
*62049
WCI G189229-01 WCI G189229-01 Contact Us For Availability
*62050
HOT TUBE REPAIR KIT WCI G189377 Contact Us For Availability
*62051
HARNESS-COMPRESSOR WCI G166062-01 Contact Us For Availability
1
WCI G186923-12 WCI G186923-12 Contact Us For Availability
1
COVER HINGE, AVOCADO WCI G183558-08 Contact Us For Availability
2
WCI G187492-02 WCI G187492-02 Contact Us For Availability
2
BRACKET, HINGE WCI G183714 Contact Us For Availability
2
WCI G162739 WCI G162739 Contact Us For Availability
3
PANEL, INNER WCI G187493-02 Contact Us For Availability
3
SHIM, HINGE WCI G183861 Contact Us For Availability
3
BRACKET (4) WCI G164637 Contact Us For Availability
3A
WCI G103903 No Longer Available
3B
WASHER-NYLON 5/16 X 5/8 (NON-ILLUSTRATED) WCI G164355 Contact Us For Availability
4
WCI G161019-62 WCI G161019-62 Contact Us For Availability
4
WCI G177021 WCI G177021 Contact Us For Availability
5
SUPPORT, LS WCI G178284-02 Contact Us For Availability
5
ROLLER ASSEMBLY, REAR WCI G183407 Contact Us For Availability
5B
BOLT, 1/4-28 X 1/2 (2) (NON-ILLUSTRATED) WCI G177025 Contact Us For Availability
6
SUPPORT, RS WCI G178287-02 Contact Us For Availability
6
SPRING WCI G178494 Contact Us For Availability
6
WCI G183584 WCI G183584 Contact Us For Availability
7
WCI G161019-61 WCI G161019-61 Contact Us For Availability
7
BOLT, 1/4-20 (2) WCI G177024 Contact Us For Availability
7
CORD, SERVICE WCI G162549-01 Contact Us For Availability
7A
WASHER, NYLON WCI G182799 Contact Us For Availability
8
STOP,DOOR WCI G155072 Contact Us For Availability
9
WCI G162977-08 WCI G162977-08 Contact Us For Availability
9
SUPPORT WCI G177302 Contact Us For Availability
9
CLIP (4) WCI G163204 Contact Us For Availability
10
BRACKET, LOWER HINGE WCI G181019 Contact Us For Availability
10
WASHER (4) WCI G164634 Contact Us For Availability
11
WCI G169332-08 WCI G169332-08 Contact Us For Availability
12
GRIP-HANDLE WCI G170495-24 Contact Us For Availability
12
SHIM WCI G163203 Contact Us For Availability
12
NUT WCI G164958 Contact Us For Availability
13
NAMEPLATE WCI G175117-02 Contact Us For Availability
13
RETAINER, OVERLOAD WCI G166053 Contact Us For Availability
14
LABEL, LOWER WCI G175393-01 Contact Us For Availability
14
PAN, CRISPER WCI G490015-46 Contact Us For Availability
14
COMPRESSOR WITH ELECTRICALS WCI G184669 Contact Us For Availability
15
LABEL, UPPER WCI G188378-02 Contact Us For Availability
15
WCI G176639-28 WCI G176639-28 Contact Us For Availability
15
WCI G182225-11 WCI G182225-11 Contact Us For Availability
16
PANEL, OUTER, AVOCADO WCI G178690-08 Contact Us For Availability
16
COVER, CRISPER WCI G490064-01 Contact Us For Availability
16
PAN, DEFROST WCI G184715 Contact Us For Availability
16A
GASKET, CRISPER COVER (NON-ILLUSTRATED) WCI G180108-07 Contact Us For Availability
17
END-HANDLE WCI G179800 Contact Us For Availability
17
SUPPORT, CRISPER COVER WCI G166310-02 Contact Us For Availability
17
PLATE WCI G184599 Contact Us For Availability
18
WCI G185566 WCI G185566 Contact Us For Availability
18
WCI G187181-01 WCI G187181-01 Contact Us For Availability
18
BLOCK, LEFT SIDE WCI G162807 Contact Us For Availability
19
END, HANDLE (2) WCI G187329-01 Contact Us For Availability
19
WCI G187195-01 WCI G187195-01 Contact Us For Availability
19
BLOCK, RIGHT SIDE WCI G185299 Contact Us For Availability
20
WCI G167150-12 WCI G167150-12 Contact Us For Availability
20
WCI G187213-03 WCI G187213-03 Contact Us For Availability
20
PLUG, BLOCK WCI G185276 Contact Us For Availability
20A
WCI G187214-03 WCI G187214-03 Contact Us For Availability
21
PANEL, OUTER, AVOCADO WCI G178694-08 Contact Us For Availability
21
WCI G162178 WCI G162178 Contact Us For Availability
21A
BEARING HINGE (NON-ILLUSTRATED) WCI G183138 Contact Us For Availability
22
END-HANDLE WCI G179801 Contact Us For Availability
22
DEFLECTOR AIR WCI G162675 Contact Us For Availability
22
EVAPORATOR WCI G164572 Contact Us For Availability
23
GASKET WCI G186932-13 Contact Us For Availability
23
WCI G172410-07 WCI G172410-07 Contact Us For Availability
24
PANEL, INNER WCI G187452-02 Contact Us For Availability
24
WCI G177390-14 WCI G177390-14 Contact Us For Availability
24
WCI G149718 WCI G149718 Contact Us For Availability
25
DOOR, DAIRY WCI G187460-02 Contact Us For Availability
25
WCI G172410-17 WCI G172410-17 Contact Us For Availability
25
WCI G125963-68 WCI G125963-68 Contact Us For Availability
26
WCI G187461-01 WCI G187461-01 Contact Us For Availability
26
WCI G177390-15 WCI G177390-15 Contact Us For Availability
27
CAP, PROTECTION (2) WCI G166495-01 Contact Us For Availability
27
INSULATION, PLASTIC WCI G166511-01 Contact Us For Availability
28
WCI G172410-08 WCI G172410-08 Contact Us For Availability
28
WCI G101747 WCI G101747 Contact Us For Availability
29
WCI G177059-09 WCI G177059-09 Contact Us For Availability
29
WCI G185810 WCI G185810 Contact Us For Availability
30
BUTTON-DECORATIVE WCI G162827-12 Contact Us For Availability
31
WCI G163061-76 WCI G163061-76 Contact Us For Availability
32
DAMPER WCI G162661 Contact Us For Availability
32A
NUT-PUSH (NON-ILLUSTRATED) WCI G162662 Contact Us For Availability
33
KNOB WCI G168702 Contact Us For Availability
34
WCI G185232 WCI G185232 Contact Us For Availability
35
PAD WCI G168866 Contact Us For Availability
37
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
39
CONTROL, TEMPERATURE WCI G162205-11 Contact Us For Availability
39A
WCI G107080 WCI G107080 Contact Us For Availability
40
SOCKET LIGHT WCI G168302 Contact Us For Availability
41
WCI G176722-03 WCI G176722-03 Contact Us For Availability
42
WCI G178402-02 WCI G178402-02 Contact Us For Availability
43
WCI G188379-02 WCI G188379-02 Contact Us For Availability
45
SPOUT, DRAIN WCI G162179 Contact Us For Availability
45A
PIN, PUSH (NON-ILLUSTRATED) WCI G185279 Contact Us For Availability
46
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
46A
RING, SEAL (NON-ILLUSTRATED) WCI G176853 Contact Us For Availability
48
RING-ORIFICE WCI G167217 Contact Us For Availability
49
WCI G157668 WCI G157668 Contact Us For Availability
50
BRACKET WCI G164571 Contact Us For Availability
52
WCI G185302 WCI G185302 Contact Us For Availability
53
WCI G185303 WCI G185303 Contact Us For Availability
54
TUBE, RUBBER WCI G85642 Contact Us For Availability
55
WCI G177529 WCI G177529 Contact Us For Availability
55A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
56
BRACKET, HINGE WCI G163207 Contact Us For Availability
56A
WASHER (4) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
56B
SCREW (4) (NON-ILLUSTRATED) WCI G183103 Contact Us For Availability
56C
WCI G142220 WCI G142220 Contact Us For Availability
57
WCI G177254 WCI G177254 Contact Us For Availability
58
WCI G180373-08 WCI G180373-08 Contact Us For Availability
59
WCI G490087 WCI G490087 Contact Us For Availability
60
SPACER, MULLION (2) WCI G490082 Contact Us For Availability
61
WCI G177534 WCI G177534 Contact Us For Availability
63
WCI G185912 WCI G185912 Contact Us For Availability
64
DIVIDER, STYROFOAM WCI G176777 Contact Us For Availability
65
WCI G490021-02 WCI G490021-02 Contact Us For Availability
65A
SCREW, 8 X 1 3/4 (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
66
WCI G163669 WCI G163669 Contact Us For Availability
67
CHANNEL, RIGHT AND LEFT SIDE WCI G170695 Contact Us For Availability
67B
WCI G175612 WCI G175612 Contact Us For Availability
67C
WCI G187449 WCI G187449 Contact Us For Availability
67D
WCI G163201 WCI G163201 Contact Us For Availability
68
WCI G164733 WCI G164733 Contact Us For Availability
69
WCI G164734 WCI G164734 Contact Us For Availability
70
WCI G174747-08 WCI G174747-08 Contact Us For Availability
71
WCI G166912 WCI G166912 Contact Us For Availability
72
WCI G179684-08 WCI G179684-08 Contact Us For Availability
74
WCI G490004-02 WCI G490004-02 Contact Us For Availability
× ![]()
