Model Electrolux RT199MCW2 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

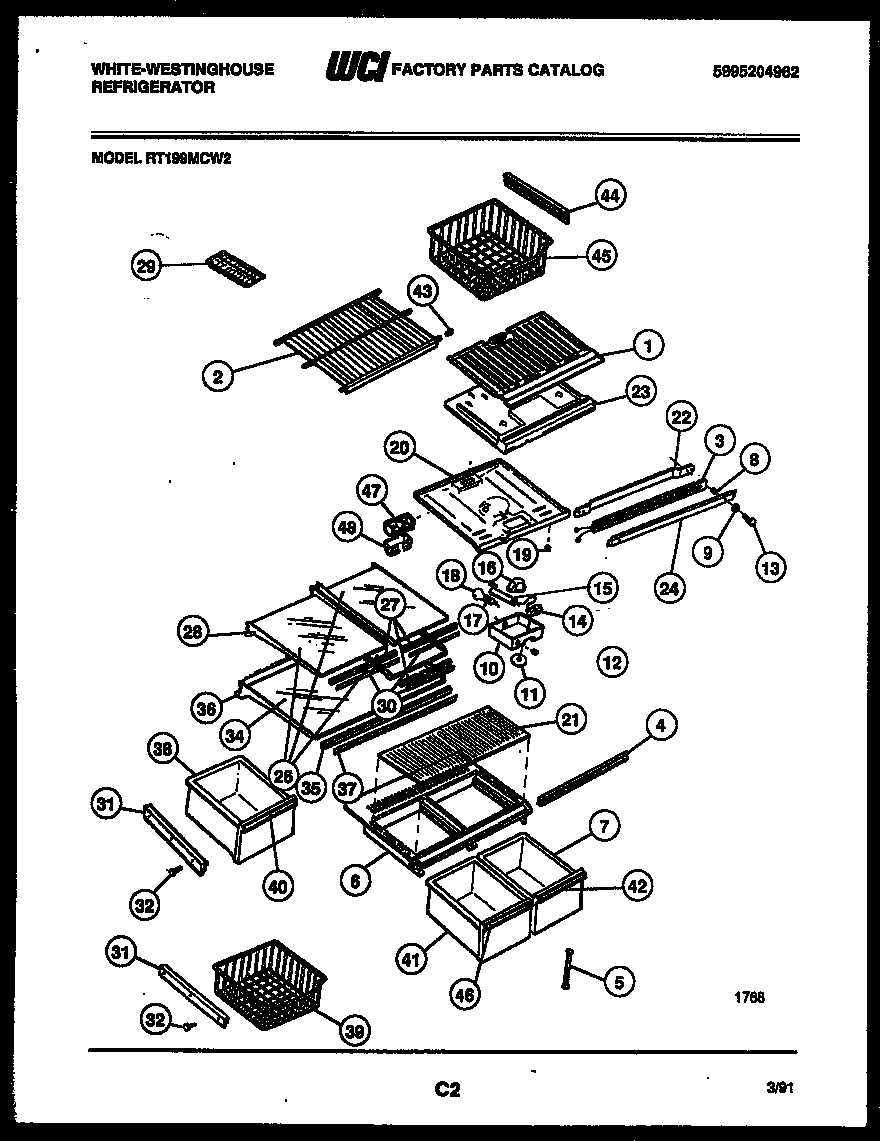

04 - SHELVES AND SUPPORTS

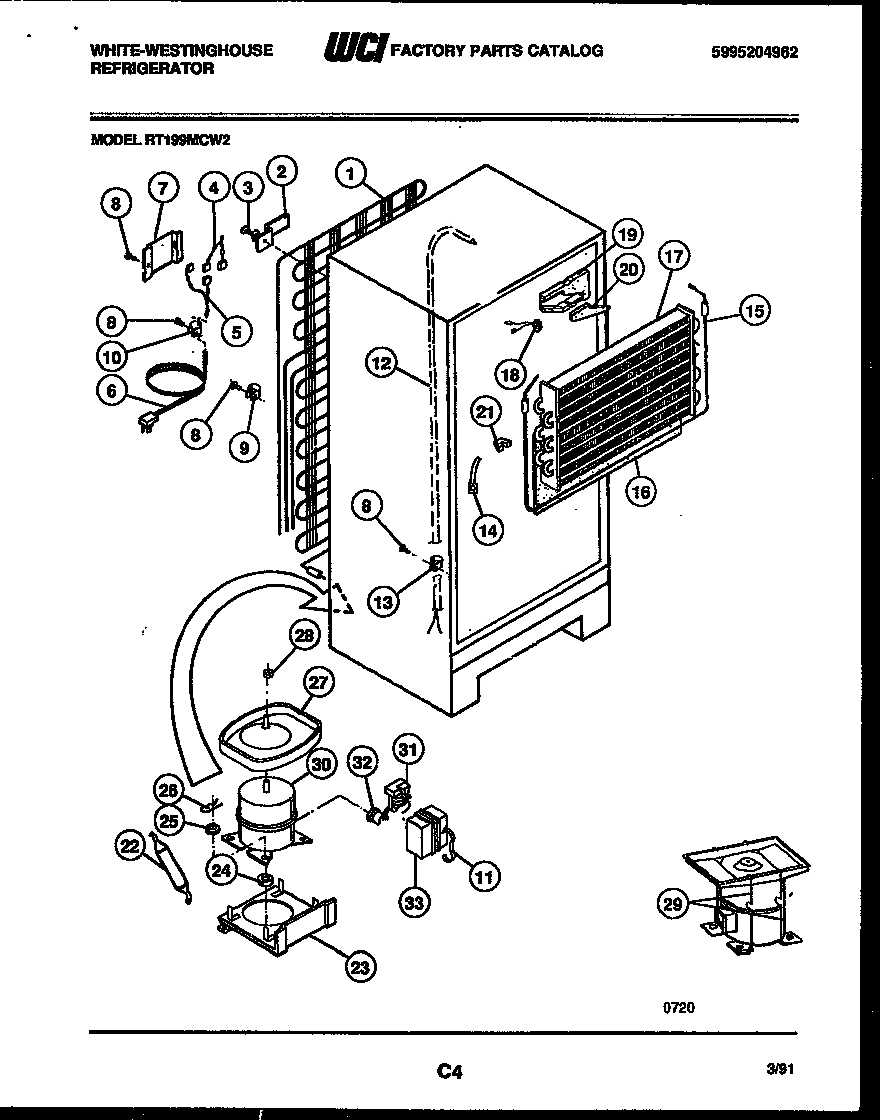

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT199MCW2 REFRIGERATOR
*42682
PLUG - LINER (3) WCI 5308016571 Contact Us For Availability
*42683
WCI 5303001286 WCI 5303001286 Contact Us For Availability
*42683
WCI 5303001287 WCI 5303001287 Contact Us For Availability
*42683
TAPPING PLATE (4) WCI 5308012296 Contact Us For Availability
*42693
EXTENSION & INSULATION AIR DEFLECTOR WCI 5303200590 Contact Us For Availability
*42693
WCI 5303206525 WCI 5303206525 Contact Us For Availability
*42693
RACK - HANGING - EGG WCI 5303206533 Contact Us For Availability
*42693
WCI 5318609501 WCI 5318609501 Contact Us For Availability
*42699
WCI 530189383 WCI 530189383 Contact Us For Availability
1
WCI 5303205119 WCI 5303205119 Contact Us For Availability
1
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
PLUG BUTTON, WHITE (2) WCI 5308000134 Contact Us For Availability
2
WCI 5303001342 WCI 5303001342 Contact Us For Availability
2A
WCI 5303206609 WCI 5303206609 Contact Us For Availability
3
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
3
WCI 5303210351 WCI 5303210351 Contact Us For Availability
3A
WCI 5308009617 WCI 5308009617 Contact Us For Availability
4
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
4
TRIM-CRISPER COVER WCI 3205547 Contact Us For Availability
4
WIRING HARN - CONTROL WCI 3018900 Contact Us For Availability
5
SUPPORT-CRISPER COVER ADJ WCI 5303205987 Contact Us For Availability
5
WCI 5308000124 WCI 5308000124 Contact Us For Availability
5
WCI 5303001347 WCI 5303001347 Contact Us For Availability
6
COVER - CRISPER WCI 5303206606 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
6A
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 5303200329 Contact Us For Availability
7
WCI 5303206534 WCI 5303206534 Contact Us For Availability
7
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
DAMPER WCI 5303001331 Contact Us For Availability
8
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
9
PUSH NUT - DAMPER WCI 5303001028 Contact Us For Availability
9
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
10
GASKET-FREEZER WCI 5303018791 Contact Us For Availability
10
WCI 3206381 WCI 3206381 Contact Us For Availability
10
CONTROL BOX WCI 3206130 Contact Us For Availability
11
WCI 3206318 WCI 3206318 Contact Us For Availability
11
WCI 5303201777 WCI 5303201777 Contact Us For Availability
11B
LABEL - FAN COVER (NON-ILLUSTRATED) WCI 3206362 Contact Us For Availability
12
WCI 5308012820 WCI 5308012820 Contact Us For Availability
12
WCI 3206129 WCI 3206129 Contact Us For Availability
12
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
13
WCI 5308012843 WCI 5308012843 Contact Us For Availability
13
WCI 5308012258 WCI 5308012258 Contact Us For Availability
13A
GUSSET-TAPPING PLATE RH (NON-ILLUSTRATED) WCI 5303212597 Contact Us For Availability
13B
GUSSET-TAPPING PLATE (LH) (NON-ILLUSTRATED) WCI 5303212596 Contact Us For Availability
14
WASHER-HINGE (2) WCI 5308000007 Contact Us For Availability
14
WCI 5303018894 WCI 5303018894 Contact Us For Availability
14A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
15
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
15
WCI 3018891 WCI 3018891 Contact Us For Availability
16
WCI 5316651102 WCI 5316651102 Contact Us For Availability
16
WASHER - HINGE WCI 5308000186 Contact Us For Availability
17
WCI 5308000184 WCI 5308000184 Contact Us For Availability
17
WCI 5303271578 WCI 5303271578 Contact Us For Availability
18
WCI 5303001369 WCI 5303001369 Contact Us For Availability
19
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
20
DECORATIVE PLUG WCI 5303018193 Contact Us For Availability
20
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
20
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
21
SHIM-LOWER HINGE BRKT WCI 5303212488 Contact Us For Availability
21
GLASS SHELF-CRISPER CVR WCI 5303206539 Contact Us For Availability
21
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
22
WCI 5303212487 WCI 5303212487 Contact Us For Availability
22
WCI 5308010008 WCI 5308010008 Contact Us For Availability
23
BRACKET, BOTTOM HINGE WCI 5303212489 Contact Us For Availability
23
WCI 3018994 WCI 3018994 Contact Us For Availability
23
WCI 5308013663 WCI 5308013663 Contact Us For Availability
24
WCI 5303200366 WCI 5303200366 Contact Us For Availability
25
WASHER (4) WCI 5308003633 Contact Us For Availability
26
WCI 5303211202 WCI 5303211202 Contact Us For Availability
26
CLIP (4) WCI 5308003596 Contact Us For Availability
27
RACK-REFR WCI 3206300 Contact Us For Availability
27
ROLLER-REAR (2) WCI 5308009773 Contact Us For Availability
27
RETAINER, GLASS (3) WCI 5303209263 Contact Us For Availability
27
PAN-DEFROST WCI 5300184715 Contact Us For Availability
27A
SCREW-ROLLER MTG (2) (NON-ILLUSTRATED) WCI 5308009762 Contact Us For Availability
28
DRAIN TUBE WCI 5303210377 Contact Us For Availability
28
FRAME-MK, BASKET & HALF SHELF (3) WCI 5303209869 Contact Us For Availability
28
WCI 5303001348 WCI 5303001348 Contact Us For Availability
29
PAN RETAINER KIT-SERVICE COMPR WCI 5303916001 Contact Us For Availability
29
WCI 5300177142 WCI 5300177142 Contact Us For Availability
29
BOLT-ROLLER ADJ (2) WCI 5303271412 Contact Us For Availability
29A
CLIP-DOOR HANDLE WCI 5300177144 Contact Us For Availability
29B
TRIM-HANDLE END (NON-ILLUSTRATED) WCI 5300179270 Contact Us For Availability
30
WCI 5300177143 WCI 5300177143 Contact Us For Availability
30
PLUG - HINGE - WHITE (2) WCI 5303001388 Contact Us For Availability
30
TRIM-MK, BASKET & HALF SHELF (3) WCI 5303206528 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS - SERVICE WCI 5303916004 Contact Us For Availability
30A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
31
WCI 5303007173 WCI 5303007173 Contact Us For Availability
31
WCI 5308000056 WCI 5308000056 Contact Us For Availability
31
HANGER - MEAT PAN & BASKET - LH (2) WCI 5303210016 Contact Us For Availability
31A
HANGER - MEAT PAN & BASKET - RH (2) (NON-ILLU WCI 5303210017 Contact Us For Availability
32
PUSH PIN - DRAIN SPOUT WCI 5303001361 Contact Us For Availability
32
SCREW - HANGER (12) WCI 08014528 Contact Us For Availability
32
WCI 5303272031 WCI 5303272031 Contact Us For Availability
33
WCI 5303001198 WCI 5303001198 Contact Us For Availability
34
COVER, EVAPORATOR COIL WCI 5308009771 Contact Us For Availability
34
WCI 5303211203 WCI 5303211203 Contact Us For Availability
34B
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
35
SUPPORT, COVER (2) WCI 5308000097 Contact Us For Availability
35
RETAINER-GLASS-FULL SHELF WCI 5303209274 Contact Us For Availability
36
FRAME-FULL SHELF WCI 5303210022 Contact Us For Availability
37
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
37
TRIM-FULL SHELF WCI 5303206523 Contact Us For Availability
38
WCI 5303001037 WCI 5303001037 Contact Us For Availability
38
WCI 5303206542 WCI 5303206542 Contact Us For Availability
39
WCI 5303212490 WCI 5303212490 Contact Us For Availability
39
WCI 5303206543 WCI 5303206543 Contact Us For Availability
40
RING - SEAL WCI 5303207353 Contact Us For Availability
40
WCI 3201414 WCI 3201414 Contact Us For Availability
41
PAN - CRISPER - LH WCI 3206311 Contact Us For Availability
42
WCI 5308000302 WCI 5308000302 Contact Us For Availability
42
WCI 3201409 WCI 3201409 Contact Us For Availability
43
WCI 3201150 No Longer Available
44
CHANNEL-SHELF MTG, CENTER WCI 5303015409 Contact Us For Availability
44
HANGER-FRZR BASKET-RH WCI 5303206521 Contact Us For Availability
44A
HANGER-FRZR BASKET-LH WCI 5303206522 Contact Us For Availability
45
SCREW-CTR CHNL MTG (3) WCI 5308016568 Contact Us For Availability
45
WCI 5303206610 WCI 5303206610 Contact Us For Availability
46
WCI 3201411 WCI 3201411 Contact Us For Availability
47
WCI 5308014667 WCI 5308014667 Contact Us For Availability
48
WCI 5303001448 WCI 5303001448 Contact Us For Availability
× ![]()
