Model Electrolux RT199MCD0 REFRIGERATOR – Common Parts & Diagrams

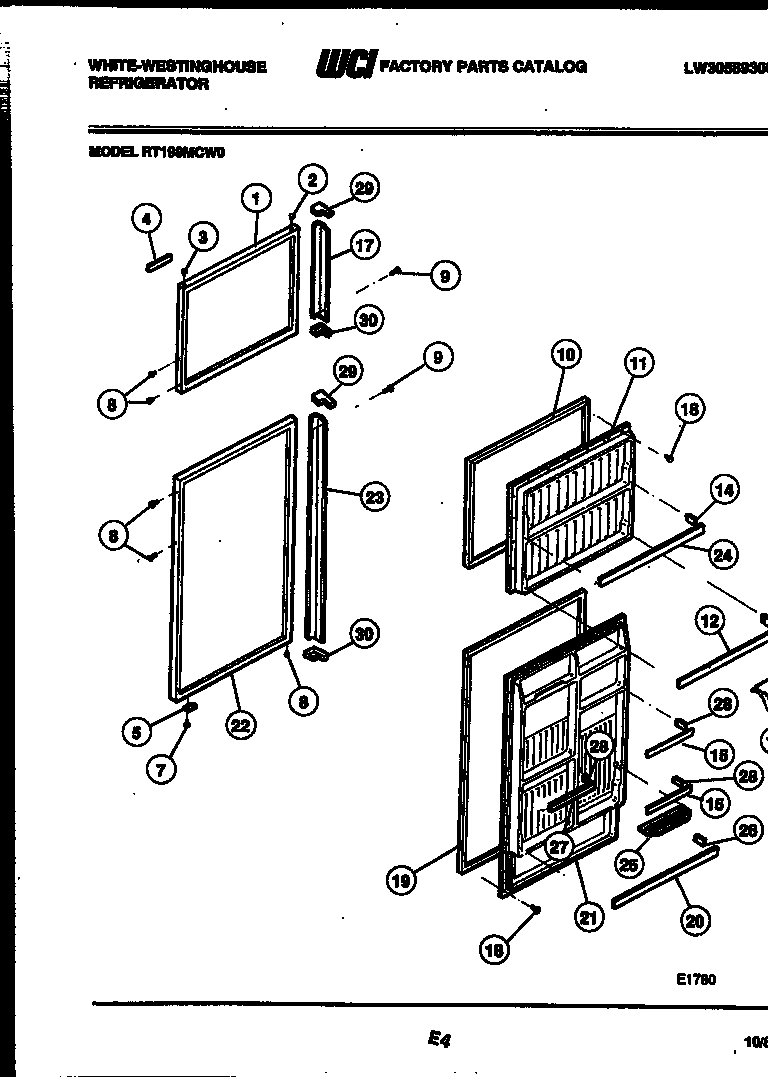

02 - DOOR PARTS

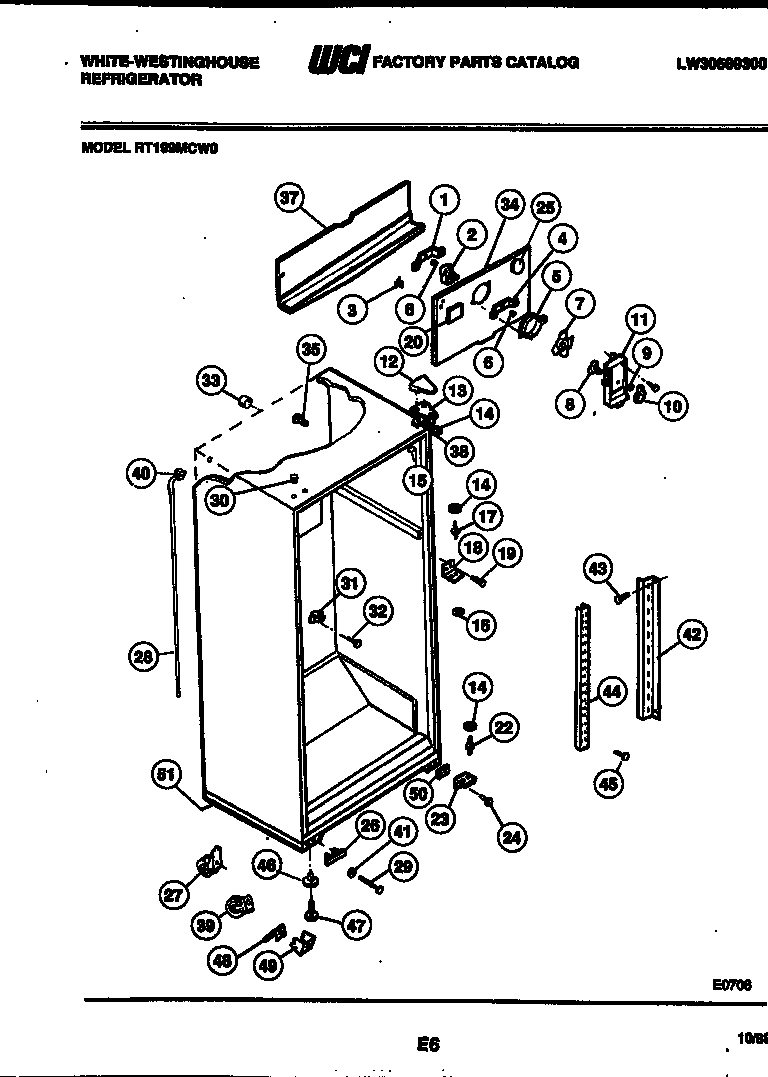

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT199MCD0 REFRIGERATOR
*24586
TAPPING PLATE (4) WCI 08012296 Contact Us For Availability
*24586
WCI G174733 WCI G174733 Contact Us For Availability
*24586
WCI G174734 WCI G174734 Contact Us For Availability
*24586
PLUG-LINER (2) WCI G187599 Contact Us For Availability
*24592
WCI 5303206525 WCI 5303206525 Contact Us For Availability
*24592
RACK - HANGING - EGG WCI 5303206533 Contact Us For Availability
*24592
CLIP-CANTI SHELF (8) WCI G170910 Contact Us For Availability
*24592
WCI G186095-01 WCI G186095-01 Contact Us For Availability
*24597
HOT TUBE REPAIR KIT-SVCE WCI G189383 Contact Us For Availability
1
WCI 3916056 WCI 3916056 Contact Us For Availability
1
WCI 3205119 WCI 3205119 Contact Us For Availability
1
BOTTOM-FREEZER WCI 3001505 Contact Us For Availability
1
WCI G163133 WCI G163133 Contact Us For Availability
2
WCI G169332-11 WCI G169332-11 Contact Us For Availability
2
WCI 5303206608 WCI 5303206608 Contact Us For Availability
2
BRACKET-CONDENSER MTG (4) WCI 3001342 Contact Us For Availability
2A
WCI 5303206609 WCI 5303206609 Contact Us For Availability
3
BEARING HINGE (8) WCI G183138 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
WCI 3018916 WCI 3018916 Contact Us For Availability
3A
WCI G164820 WCI G164820 Contact Us For Availability
4
NAMEPLATE WCI 3206159 Contact Us For Availability
4
WCI 3205118 WCI 3205118 Contact Us For Availability
4
WCI 5303206540 WCI 5303206540 Contact Us For Availability
4
WIRING HARN - CONTROL WCI 3018900 Contact Us For Availability
5
DOOR STOP (2) WCI 08000255 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
SUPPORT-CRISPER COVER-ADJ WCI 3205987 Contact Us For Availability
5
WIRING HARNESS-COMPR WCI G166062-01 Contact Us For Availability
6
COVER - CRISPER WCI 5303206606 Contact Us For Availability
6
WCI G162549-01 WCI G162549-01 Contact Us For Availability
6A
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 3200329 Contact Us For Availability
7
WCI 5303206534 WCI 5303206534 Contact Us For Availability
7
WCI G183584 WCI G183584 Contact Us For Availability
8
WCI G162977-11 WCI G162977-11 Contact Us For Availability
8
WCI 3001331 WCI 3001331 Contact Us For Availability
8
WCI 3200464 WCI 3200464 Contact Us For Availability
9
WCI G185566 WCI G185566 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
WCI G166847 WCI G166847 Contact Us For Availability
10
GASKET-FREEZER WCI 3018791 Contact Us For Availability
10
WCI 3206381 WCI 3206381 Contact Us For Availability
10
CONTROL BOX WCI 3206130 Contact Us For Availability
11
PANEL-FREEZER INNER WCI 3206284 Contact Us For Availability
11
WCI 3206318 WCI 3206318 Contact Us For Availability
11
KNOB-TEMPERATURE CONTROL WCI 3201777 Contact Us For Availability
11B
LABEL - FAN COVER (NON-ILLUSTRATED) WCI 3206362 Contact Us For Availability
12
WCI G183558-11 WCI G183558-11 Contact Us For Availability
12
WCI 3206129 WCI 3206129 Contact Us For Availability
12
WCI G177531 WCI G177531 Contact Us For Availability
13
SUPPORT-RACK RH WCI 3206161 Contact Us For Availability
13
WCI G183714 WCI G183714 Contact Us For Availability
13
WCI 08012258 WCI 08012258 Contact Us For Availability
13A
SUPPORT-RACK-LH WCI 3206162 Contact Us For Availability
14
WCI G103903 No Longer Available
14
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
14A
WCI G107080 WCI G107080 Contact Us For Availability
15
WCI 3206191 WCI 3206191 Contact Us For Availability
15
WCI 3202340 WCI 3202340 Contact Us For Availability
15
WCI 3018891 WCI 3018891 Contact Us For Availability
16
DOOR-DAIRY-W/ TRIM WCI 3206304 Contact Us For Availability
16
WASHER, HINGE WCI G164355 Contact Us For Availability
16
WCI G166511-02 WCI G166511-02 Contact Us For Availability
16A
TRIM-DAIRY DOOR (NON-ILLUSTRATED) WCI 3206302 Contact Us For Availability
17
HANDLE-FREEZER WCI 3206217 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
WCI G162506 WCI G162506 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
19
GASKET-REFRIGERATOR WCI 3018792 Contact Us For Availability
19
INSULATION BLOCK-RH WCI G185299 Contact Us For Availability
20
RACK-REFRIGERATOR WCI 3206289 Contact Us For Availability
20
DECORATIVE PLUG WCI 3018193 Contact Us For Availability
20
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
20
INSULATION PLUG-RH WCI G185276 Contact Us For Availability
20A
WCI G162673 WCI G162673 Contact Us For Availability
21
PANEL-REFRIGERATOR INNER WCI 3206357 Contact Us For Availability
21
GLASS SHELF-CRISPER CVR WCI 5303206539 Contact Us For Availability
21
INSULATION BLOCK-LH WCI G188375 Contact Us For Availability
22
WCI G187356-11 WCI G187356-11 Contact Us For Availability
22
STRAP-MULLION MTG WCI 08010008 Contact Us For Availability
23
HANDLE-REF WCI 3206418 Contact Us For Availability
23
WCI 3202834 WCI 3202834 Contact Us For Availability
23
WCI 3018994 WCI 3018994 Contact Us For Availability
23
PLATE-COMPR MTG WCI 08013663 Contact Us For Availability
24
RACK-FRZR WCI 3206288 Contact Us For Availability
24
WCI 3200370 WCI 3200370 Contact Us For Availability
25
WCI 3206189 WCI 3206189 Contact Us For Availability
25
WCI 3203044 WCI 3203044 Contact Us For Availability
25
WCI 5303206844 WCI 5303206844 Contact Us For Availability
25
WASHER (4) WCI G164634 Contact Us For Availability
25A
TRIM - REAR SHELF RETAINER - MK & BASKET SHEL WCI 5303206526 Contact Us For Availability
26
WCI 5303206516 No Longer Available
26
COVER-HINGE WCI G166912 Contact Us For Availability
26
GLASS - MK & BASKET SHELF (2) WCI 5303206527 Contact Us For Availability
26
CLIP (4) WCI G163204 Contact Us For Availability
26A
WCI 5303206517 No Longer Available
26A
WCI 5303206845 WCI 5303206845 Contact Us For Availability
27
RACK-REFR WCI 3206300 Contact Us For Availability
27
ROLLER, REAR (2) WCI G183407 Contact Us For Availability
27
RETAINER - GLASS (3) WCI 3200316 Contact Us For Availability
27
PAN, DEFROST WCI G184715 Contact Us For Availability
27A
SCREW-ROLLER MTG (2) (NON-ILLUSTRATED) WCI G177025 Contact Us For Availability
28
WCI 3001458 WCI 3001458 Contact Us For Availability
28
FRAME - MK & BASKET SHELF (2) WCI 3200328 Contact Us For Availability
28
WCI G164958 WCI G164958 Contact Us For Availability
28A
FRAME - 1/2 SHELF WCI 3200318 Contact Us For Availability
29
WCI G177142 WCI G177142 Contact Us For Availability
29
WCI G177024 WCI G177024 Contact Us For Availability
29
PAN RETAINER KIT-SERVICE COMPR WCI 3916001 Contact Us For Availability
29A
WCI G000177144 WCI G000177144 Contact Us For Availability
29B
WCI G000179270 WCI G000179270 Contact Us For Availability
30
WCI G000177143 WCI G000177143 Contact Us For Availability
30
WCI G174747-11 WCI G174747-11 Contact Us For Availability
30
TRIM - MK & BASKET SHELF (2) WCI 5303206528 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS-SERVICE WCI 3916004 Contact Us For Availability
30A
WCI 5303206846 WCI 5303206846 Contact Us For Availability
30A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 3916391 Contact Us For Availability
31
SPOUT DRAIN TUBE WCI G162179 Contact Us For Availability
31
HANGER-MEAT PAN & BASKET-LH (2) WCI 3018889 Contact Us For Availability
31
WCI 3007173 WCI 3007173 Contact Us For Availability
31A
HANGER-MEAT PAN & BASKET-RH (2) (NON-ILLUSTRA WCI 3018890 Contact Us For Availability
32
PUSH PIN-DRAIN SPOUT WCI 3001361 Contact Us For Availability
32
SCREW - HANGER (12) WCI 08014528 Contact Us For Availability
32
WCI 3001713 WCI 3001713 Contact Us For Availability
33
WCI G85642 WCI G85642 Contact Us For Availability
33
WCI 5303206611 WCI 5303206611 Contact Us For Availability
34
WCI 08009771 WCI 08009771 Contact Us For Availability
34
WCI 5303206612 WCI 5303206612 Contact Us For Availability
34A
RAIL - GLASS SUPPORT (2) (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
34B
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
35
RETAINER - GLASS - FULL SHELF WCI 3200321 Contact Us For Availability
36
WCI 3200327 WCI 3200327 Contact Us For Availability
37
DRAIN TROUGH WCI 3001470 Contact Us For Availability
37
WCI 5303206613 WCI 5303206613 Contact Us For Availability
38
WCI G183861 WCI G183861 Contact Us For Availability
38
WCI 5303206542 WCI 5303206542 Contact Us For Availability
39
ROLLER ASSY-FRONT (2) WCI G177021 Contact Us For Availability
39
WCI 5303206543 WCI 5303206543 Contact Us For Availability
40
RING, SEAL WCI G176853 Contact Us For Availability
40
WCI 5303206541 WCI 5303206541 Contact Us For Availability
41
WASHER NYLON (2) WCI G182799 Contact Us For Availability
41
PAN - CRISPER - LH WCI 3206311 Contact Us For Availability
42
CHANNEL-SHELF MTG-SIDE (2) WCI 08000302 Contact Us For Availability
42
TRIM-CRISPER PAN-RH WCI 3206317 Contact Us For Availability
43
WCI 3201150 No Longer Available
44
CHANNEL-SHELF MTG-CENTER WCI 3015409 Contact Us For Availability
44
HANGER-FRZR BASKET-RH WCI 5303206521 Contact Us For Availability
44A
HANGER-FRZR BASKET-LH WCI 5303206522 Contact Us For Availability
45
SCREW-CTR CHNL MTG (3) WCI 08016568 Contact Us For Availability
45
WCI 5303206610 WCI 5303206610 Contact Us For Availability
46
NUT, ANCHOR (2) WCI G183073 Contact Us For Availability
46
TRIM-CRISPER PAN-LH WCI 3206308 Contact Us For Availability
47
SCREW, LEVELING (2) WCI G185713 Contact Us For Availability
47
DEFLECTOR - AIR WCI 3204206 Contact Us For Availability
48
SPRING-ROLLER ADJ (2) WCI G178494 Contact Us For Availability
48
COVER, AIR DEFLECTOR WCI G162178 Contact Us For Availability
49
SUPPORT-CABINET BASE (2) WCI G177302 Contact Us For Availability
50
SHIM-LOWER HINGE BRKT WCI G163203 Contact Us For Availability
51
BASE, CABINET WCI G490004-02 Contact Us For Availability
× ![]()
