Model Electrolux RT196MCF0 REFRIGERATOR – Common Parts & Diagrams

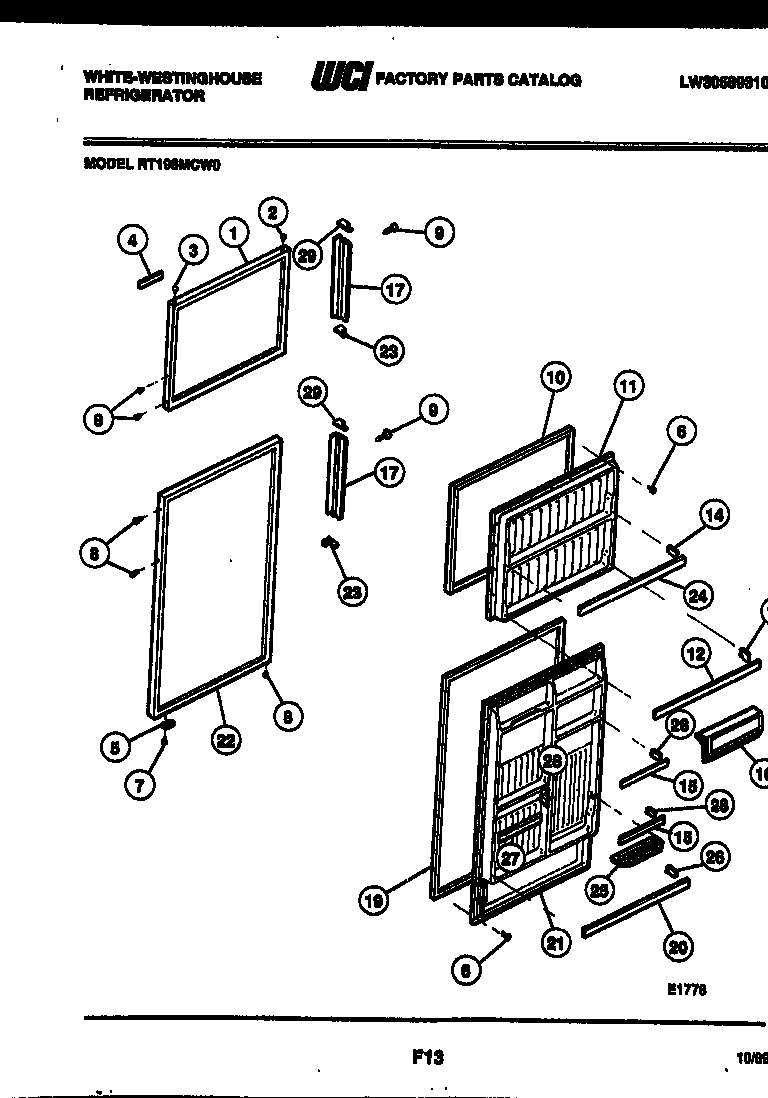

02 - DOOR PARTS

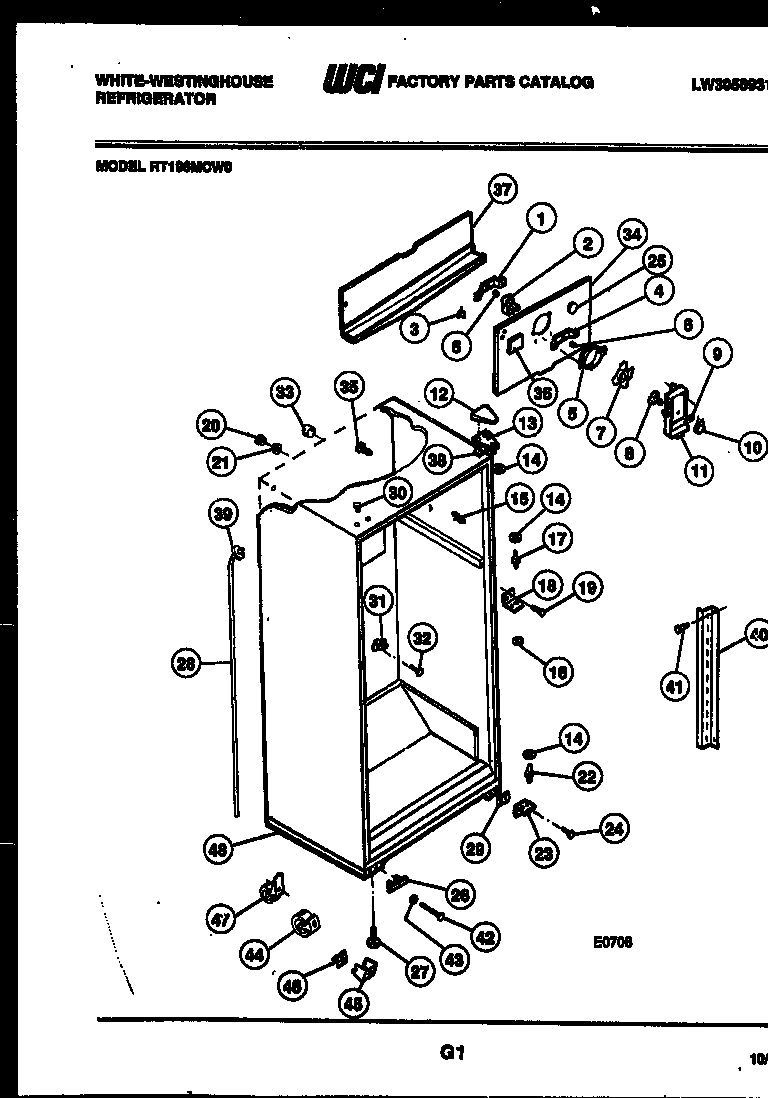

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT196MCF0 REFRIGERATOR
*24766
TAPPING PLATE (4) WCI 08012296 Contact Us For Availability
*24766
PLUG-LINER (3) WCI G187599 Contact Us For Availability
*24771
ICE TRAY COMPARTMENT WCI 08009824 Contact Us For Availability
*24771
WCI 5303206525 WCI 5303206525 Contact Us For Availability
*24771
RACK - HANGING - EGG WCI 5303206533 Contact Us For Availability
*24774
HOT TUBE REPAIR KIT-SVCE WCI G189383 Contact Us For Availability
1
WCI 3916055 WCI 3916055 Contact Us For Availability
1
WCI 3205119 WCI 3205119 Contact Us For Availability
1
WCI G182536-01 WCI G182536-01 Contact Us For Availability
1
WCI G163133 WCI G163133 Contact Us For Availability
2
WCI G169332-10 WCI G169332-10 Contact Us For Availability
2
WCI 5303206608 WCI 5303206608 Contact Us For Availability
2
BRACKET-CONDENSER MTG (4) WCI 3001342 Contact Us For Availability
3
WCI 08012007 WCI 08012007 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
WCI 3018916 WCI 3018916 Contact Us For Availability
3A
WASHER-NO. 10 EXT TOOTH LOCK (NON-ILLUSTRATED WCI G164820 Contact Us For Availability
4
WCI 3206159 WCI 3206159 Contact Us For Availability
4
WCI 3205118 WCI 3205118 Contact Us For Availability
4
SHELF-REFR (3) WCI 3018981 Contact Us For Availability
4
WIRING HARN - CONTROL WCI 3018900 Contact Us For Availability
4A
CLIP-SHELF-``SHIPPING`` (6) WCI G170910 Contact Us For Availability
5
DOOR STOP (2) WCI 08000255 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
CRISPER PAN-LH WCI 3206311 Contact Us For Availability
5
WCI 3001347 WCI 3001347 Contact Us For Availability
6
COVER - CRISPER WCI 5303206606 Contact Us For Availability
6
WCI G162549-01 WCI G162549-01 Contact Us For Availability
6A
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 3200329 Contact Us For Availability
7
WCI 5303206534 WCI 5303206534 Contact Us For Availability
7
WCI G183584 WCI G183584 Contact Us For Availability
8
WCI G162977-10 WCI G162977-10 Contact Us For Availability
8
WCI 3001331 WCI 3001331 Contact Us For Availability
8
WCI 3200464 WCI 3200464 Contact Us For Availability
9
WCI G185566 WCI G185566 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
WCI G166847 WCI G166847 Contact Us For Availability
10
GASKET-FREEZER WCI 3018791 Contact Us For Availability
10
KNOB-DAMPER CONTROL WCI 3206109 Contact Us For Availability
10
CONTROL BOX WCI 3206130 Contact Us For Availability
11
PANEL-FREEZER INNER WCI 3206284 Contact Us For Availability
11
WCI 3206318 WCI 3206318 Contact Us For Availability
11
KNOB-TEMPERATURE CONTROL WCI 3201777 Contact Us For Availability
11B
LABEL - FAN COVER (NON-ILLUSTRATED) WCI 3206362 Contact Us For Availability
12
HINGE COVER-COFFEE WCI 3001666 Contact Us For Availability
12
WCI 3206129 WCI 3206129 Contact Us For Availability
12
WCI G177531 WCI G177531 Contact Us For Availability
13
SUPPORT-RACK RH WCI 3206161 Contact Us For Availability
13
WCI 08012843 WCI 08012843 Contact Us For Availability
13
WCI 08012258 WCI 08012258 Contact Us For Availability
13A
SUPPORT-RACK-LH WCI 3206162 Contact Us For Availability
14
WCI G103903 WCI G103903 Contact Us For Availability
14
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
14A
WCI G107080 WCI G107080 Contact Us For Availability
15
WCI 3206191 WCI 3206191 Contact Us For Availability
15
WCI 3202339 WCI 3202339 Contact Us For Availability
15
WCI 3018891 WCI 3018891 Contact Us For Availability
16
DOOR-DAIRY-W/ TRIM WCI 3206304 Contact Us For Availability
16
WASHER-HINGE WCI 3001038 Contact Us For Availability
16
WCI G166511-02 WCI G166511-02 Contact Us For Availability
16A
WCI 3206302 WCI 3206302 Contact Us For Availability
17
WCI 3206217 WCI 3206217 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
WCI G162506 WCI G162506 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
19
GASKET-REFR WCI 3018792 Contact Us For Availability
19
INSULATION BLOCK-RH WCI G185299 Contact Us For Availability
20
RACK-REFR WCI 3206289 Contact Us For Availability
20
WCI G174734 WCI G174734 Contact Us For Availability
20
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
20
INSULATION PLUG-RH WCI G185276 Contact Us For Availability
20A
WCI G162673 WCI G162673 Contact Us For Availability
21
PANEL-REFR-INNER WCI 3206357 Contact Us For Availability
21
WCI G174733 WCI G174733 Contact Us For Availability
21
BASKET-FREEZER WCI 5303206610 Contact Us For Availability
21
INSULATION BLOCK-LH WCI G188375 Contact Us For Availability
22
WCI 3916060 WCI 3916060 Contact Us For Availability
22
STRAP-MULLION MTG WCI 08010008 Contact Us For Availability
23
WCI G000177143 WCI G000177143 Contact Us For Availability
23
WCI 3202834 WCI 3202834 Contact Us For Availability
23
WCI 3018994 WCI 3018994 Contact Us For Availability
23
PLATE-COMPR MTG WCI 08013663 Contact Us For Availability
23A
CLIP-DOOR HANDLE (2) (NON-ILLUSTRATED) WCI G177144 Contact Us For Availability
23B
WCI G000179271 WCI G000179271 Contact Us For Availability
24
RACK-FRZR WCI 3206288 Contact Us For Availability
24
BOTTOM-FREEZER WCI 3001505 Contact Us For Availability
25
WCI 3206189 WCI 3206189 Contact Us For Availability
25
WCI 3203044 WCI 3203044 Contact Us For Availability
25
WCI 3200369 WCI 3200369 Contact Us For Availability
25
WASHER (4) WCI G164634 Contact Us For Availability
26
WCI 5303206516 WCI 5303206516 Contact Us For Availability
26
COVER-HINGE HOLES WCI 3001478 Contact Us For Availability
26
WCI 5303206773 WCI 5303206773 Contact Us For Availability
26
CLIP (4) WCI G163204 Contact Us For Availability
26A
WCI 5303206517 WCI 5303206517 Contact Us For Availability
27
RACK-REFR WCI 3206300 Contact Us For Availability
27
SCREW-LEVELING (2) WCI 3205540 Contact Us For Availability
27
WCI 5303206542 WCI 5303206542 Contact Us For Availability
27
PAN, DEFROST WCI G184715 Contact Us For Availability
27A
NUT-ANCHOR (2) (NON-ILLUSTRATED) WCI 08003584 Contact Us For Availability
28
WCI 3001458 WCI 3001458 Contact Us For Availability
28
SUPPORT-CRISPER COVER WCI 3205987 Contact Us For Availability
28
WCI G164958 WCI G164958 Contact Us For Availability
29
WCI G177142 WCI G177142 Contact Us For Availability
29
SHIM-LOWER HINGE BRKT WCI 3001323 Contact Us For Availability
29
WCI 5303206541 WCI 5303206541 Contact Us For Availability
29
PAN RETAINER KIT-INCLUDED W/ SERVICE COMPR WCI 3916001 Contact Us For Availability
30
CAP PROTECTOR (2) WCI 3201150 No Longer Available
30
WCI G174747-10 WCI G174747-10 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS-SERVICE WCI 3916004 Contact Us For Availability
30A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 3916391 Contact Us For Availability
31
WCI 08000056 WCI 08000056 Contact Us For Availability
31
WCI 5303206891 WCI 5303206891 Contact Us For Availability
31
WCI 3007173 WCI 3007173 Contact Us For Availability
32
PUSH PIN-DRAIN SPOUT WCI 3001361 Contact Us For Availability
32
WCI 5303206540 WCI 5303206540 Contact Us For Availability
32
WCI 3001713 WCI 3001713 Contact Us For Availability
33
WCI G85642 WCI G85642 Contact Us For Availability
33
TRIM-CRISPER PAN-RH WCI 3206317 Contact Us For Availability
34
WCI 08009771 WCI 08009771 Contact Us For Availability
34
TRIM-CRISPER PAN-LH WCI 3206308 Contact Us For Availability
34A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
35
WCI 3204206 WCI 3204206 Contact Us For Availability
36
WCI 3018193 WCI 3018193 Contact Us For Availability
36
COVER, AIR DEFLECTOR WCI 3001546 Contact Us For Availability
37
DRAIN TROUGH WCI 3001470 Contact Us For Availability
37
HANGER-FRZR BASKET-RH WCI 5303206521 Contact Us For Availability
37A
HANGER-FRZR BASKET-LH (NON-ILLUSTRATED) WCI 5303206522 Contact Us For Availability
38
WCI G183861 WCI G183861 Contact Us For Availability
38
TRIM-FRZR SHELF WCI 5303206609 Contact Us For Availability
39
RING, SEAL WCI G176853 Contact Us For Availability
39
GLASS-CRISPER COVER WCI 5303206539 Contact Us For Availability
40
CHANNEL-SHELF MTG (2) WCI 08000302 Contact Us For Availability
42
SCREW-ADJ (2) WCI G177024 Contact Us For Availability
43
WASHER NYLON (2) WCI G182799 Contact Us For Availability
44
ROLLER ASSY-FRONT (2) WCI 08009760 Contact Us For Availability
45
SUPPORT-CAB BASE WCI 08013678 Contact Us For Availability
46
WCI G178494 WCI G178494 Contact Us For Availability
47
WCI 08009773 WCI 08009773 Contact Us For Availability
47A
SCREW-ROLLER MTG (2) (NON-ILLUSTRATED) WCI 08009762 Contact Us For Availability
48
BASE-CABINET WCI 08010092 Contact Us For Availability
× ![]()
