Model Electrolux RT196GCF4 REFRIGERATOR – Common Parts & Diagrams

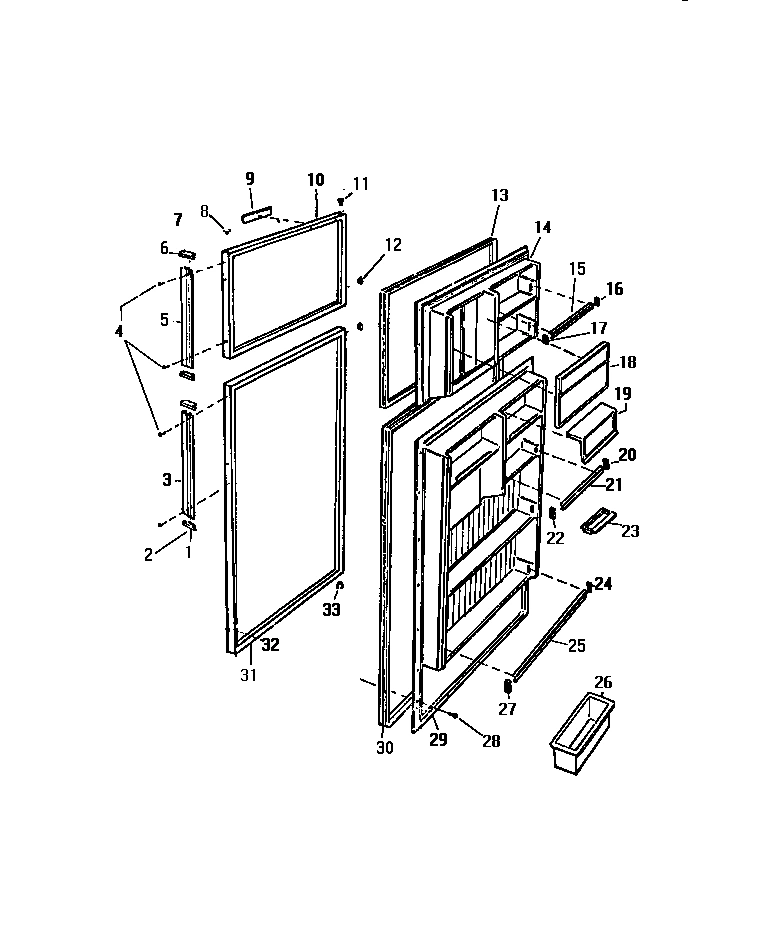

02 - DOORS

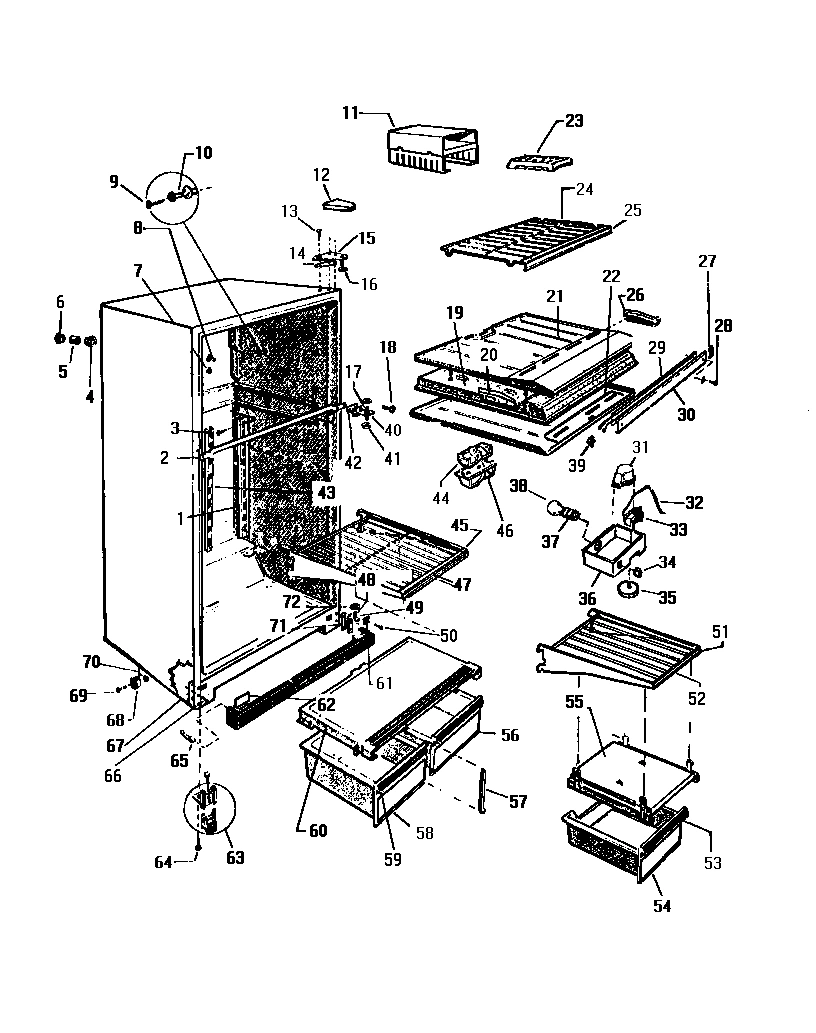

03 - CABINET, SHELVES, DIVIDER

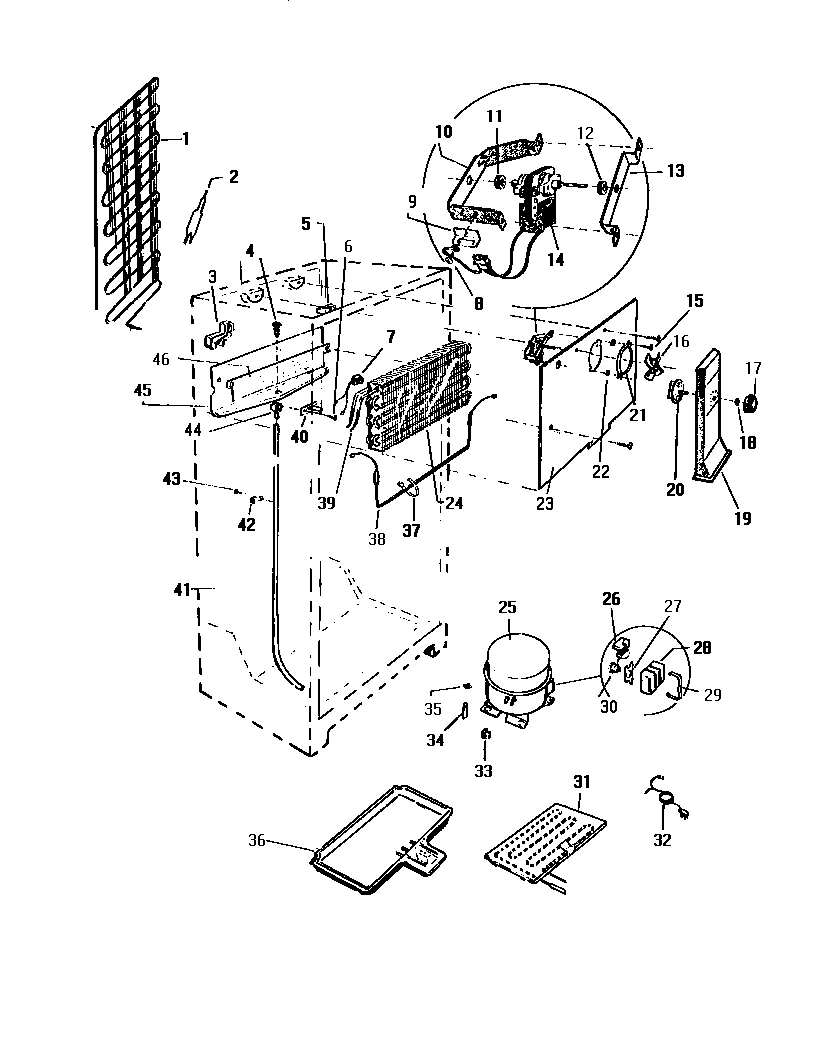

04 - EVAPORATOR, FAN ASSY.
Common parts from model Electrolux RT196GCF4 REFRIGERATOR
*81480
INSULATION, FIBERGLASS CUT TO SIZE-34`` X 48` WCI C69109 Contact Us For Availability
*81481
INSULATION FIBERGLASS CUT TO SIZE-34`` X 48`` WCI C69110 Contact Us For Availability
*81482
INSULATION, FIBERGLASS, CUT TO SIZE - 34`` X WCI C69111 Contact Us For Availability
*81483
PLASTIC BAG WCI C35536 Contact Us For Availability
*81485
WCI G168338 WCI G168338 Contact Us For Availability
*81486
TOE GRILL, LESS CLIPS WCI G163080-02 Contact Us For Availability
*81487
GASKET, PAN WCI G180108-02 Contact Us For Availability
1
STRINGER (RT OR L SIDE) WCI G170695 Contact Us For Availability
1
CONDENSER WCI G175437 Contact Us For Availability
1A
WCI G176210 WCI G176210 Contact Us For Availability
2
TRIM, BOTTOM WCI G179271 Contact Us For Availability
2
DRIER-REGULAR WCI C101601 Contact Us For Availability
2A
WCI R900125 WCI R900125 Contact Us For Availability
3
WCI G162715 WCI G162715 Contact Us For Availability
3A
CLIP, HANDLE WCI G177144 Contact Us For Availability
4
WCI G155660 WCI G155660 Contact Us For Availability
4
FERRULE WCI G174733 Contact Us For Availability
4
WCI G101620 WCI G101620 Contact Us For Availability
5
HANDLE, 18 1/2`` LONG WCI G177141-07 Contact Us For Availability
5
TUBE WCI G85642 Contact Us For Availability
5
BLOCK, RH WCI G163099 Contact Us For Availability
6
END CAP, TOP WCI G177142 Contact Us For Availability
6
FERRULE WCI G174734 Contact Us For Availability
6A
END CAP, BOTTOM WCI G177143 Contact Us For Availability
7
TRIM, TOP WCI G179270 Contact Us For Availability
7
PLUG BUTTON WCI G162659 Contact Us For Availability
8
WCI G169332-10 WCI G169332-10 Contact Us For Availability
8
SUPPORT, EVAPORATOR COVER WCI G163669 Contact Us For Availability
9
WCI R304001 WCI R304001 Contact Us For Availability
9
SCREW (8) WCI G163104 Contact Us For Availability
9
BRACKET WCI G164571 Contact Us For Availability
10
PANEL OUTER DOOR, COFFEE WCI G180260-10 Contact Us For Availability
10
SUPPORT (8) WCI G163105 Contact Us For Availability
10
BRACKET WCI G162048 Contact Us For Availability
11
ICE TRAY COMPT WCI G178316-01 Contact Us For Availability
11A
WCI G152473 WCI G152473 Contact Us For Availability
13
GASKET WCI G180547-08 Contact Us For Availability
13
BRACKET WCI G162049 Contact Us For Availability
14
WCI G179823-01 WCI G179823-01 Contact Us For Availability
14
SHIM WCI G158344 Contact Us For Availability
15
FRONT WCI G490079-08 Contact Us For Availability
15
HINGE WCI G162385 Contact Us For Availability
16
WASHER, NYLON WCI G101970 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
WCI G162663-13 WCI G162663-13 Contact Us For Availability
17A
LABEL WCI G180298 Contact Us For Availability
18
WCI G179939-01 WCI G179939-01 Contact Us For Availability
18
SCREW WCI G183103 Contact Us For Availability
18
CLIP WCI G162662 Contact Us For Availability
19
DOOR (2) WCI G179967-02 Contact Us For Availability
19
CENTER (STYRO) WCI G170078 Contact Us For Availability
19
COVER WCI G179793-02 Contact Us For Availability
20
END CAP, RH WCI G177221-01 Contact Us For Availability
20
FILLETT, LH WCI G162177 Contact Us For Availability
20
DAMPER (AIR FLOW) WCI G162661 Contact Us For Availability
21
WCI G177220-03 WCI G177220-03 Contact Us For Availability
21
DIVIDER, BTM (STYRO) WCI G161919-02 Contact Us For Availability
21
RING WCI G167217 Contact Us For Availability
22
END CAP, LH WCI G177222-01 Contact Us For Availability
22
DIVIDER, TOP OF REF-METAL WCI G174715 Contact Us For Availability
22
WCI G162701 WCI G162701 Contact Us For Availability
23
TRAY, ICE WCI C74025 Contact Us For Availability
23
COVER WCI G162050-02 Contact Us For Availability
24
END CAP RH WCI G176891-01 Contact Us For Availability
24
WCI G177415-02 WCI G177415-02 Contact Us For Availability
24
EVAPORATOR L/HEATER WCI G162506 Contact Us For Availability
25
FRONT (2) WCI G490079-07 Contact Us For Availability
25
COMPRESSOR W/OVLD. RELAY (4`` X 6 1/2`` MTG) WCI C620102 Contact Us For Availability
26
WCI G173948-19 WCI G173948-19 Contact Us For Availability
26
FILLETT, RH WCI G162176 Contact Us For Availability
26
RELAY (4) WCI G182225-12 Contact Us For Availability
27
END CAP LH WCI G176892-01 Contact Us For Availability
27
CLIP WCI G165781 Contact Us For Availability
28
COVER (4) WCI G185792 Contact Us For Availability
29
WCI G179810-07 WCI G179810-07 Contact Us For Availability
29
HEATER WCI G177254 Contact Us For Availability
29
CLAMP (4) WCI G185790 Contact Us For Availability
30
GASKET WCI G180547-09 Contact Us For Availability
30
WCI G162051-10 WCI G162051-10 Contact Us For Availability
30
OVERLOAD (4) WCI G185797 Contact Us For Availability
31
WCI R901044 WCI R901044 Contact Us For Availability
31
WCI G172513 WCI G172513 Contact Us For Availability
32
DOOR STOP, UPPER & LOWER DOOR WCI G155072 Contact Us For Availability
32
WCI G162549-01 WCI G162549-01 Contact Us For Availability
33
WCI G162889 WCI G162889 Contact Us For Availability
33
CONTROL WCI G162667-10 Contact Us For Availability
34
SWITCH WCI G177727-02 Contact Us For Availability
34
SLEEVE WCI G154588 Contact Us For Availability
35
KNOB WCI G490107-02 Contact Us For Availability
35
WASHER WCI G164634 Contact Us For Availability
36
BOX WCI G176722-01 Contact Us For Availability
36
PAN WCI G162890 Contact Us For Availability
37
WCI G163802 WCI G163802 Contact Us For Availability
38
WCI Q63749 WCI Q63749 Contact Us For Availability
39
WCI G162545 WCI G162545 Contact Us For Availability
39A
HEAT EXCH. REPAIR KIT WCI G161672 Contact Us For Availability
40
HINGE WCI G162384 Contact Us For Availability
40
CUP WCI G162179 Contact Us For Availability
41
TUBE REAR OF CAB WCI G155529-04 Contact Us For Availability
42
SHIM WCI G162683 Contact Us For Availability
42
WCI G101747 WCI G101747 Contact Us For Availability
43
STRINGER CTR WCI G175612 Contact Us For Availability
43
WCI Q401601 WCI Q401601 Contact Us For Availability
44
BAFFLE WCI G162675 Contact Us For Availability
44
WCI G162180 WCI G162180 Contact Us For Availability
45
TROUGH WCI G170071 Contact Us For Availability
46
COVER WCI G162178 Contact Us For Availability
46
INSULATION, FOAM WCI G166511-01 Contact Us For Availability
47
SHELF, FULL WIDTH WIRE WCI G180195-02 Contact Us For Availability
49
HINGE WCI G162383 Contact Us For Availability
50
SCREW WCI G162656 Contact Us For Availability
51
TRIM (CUT TO SIZE) WCI G177060-03 Contact Us For Availability
52
HALF SHELF WIRE (3) WCI G180195-03 Contact Us For Availability
54
PAN, MEAT WCI G176918-03 Contact Us For Availability
55
WCI G177106-04 WCI G177106-04 Contact Us For Availability
56
PAN, FRUIT WCI G179706-03 Contact Us For Availability
57
SUPPORT WCI G166310-01 Contact Us For Availability
58
PAN, MOIST WCI G179706-02 Contact Us For Availability
59
TRIM (CUT TO SIZE) WCI G177343-06 Contact Us For Availability
60
COVER WCI G162840-01 Contact Us For Availability
61
NUT WCI G77210 Contact Us For Availability
62
PLUG WCI G154397 Contact Us For Availability
63
ROLLER, COMPLETE WCI G166138 Contact Us For Availability
64
BOLT (2) WCI G145103 Contact Us For Availability
65
CLIP WCI G162994 Contact Us For Availability
66
WCI G142361 WCI G142361 Contact Us For Availability
67
TAP PLATE WCI G157591 Contact Us For Availability
68
ROLLER, REAR WCI G162808 Contact Us For Availability
69
PIN WCI G162809 Contact Us For Availability
71
SHIM WCI G162903 Contact Us For Availability
72
WASHER (NYLON) WCI G164355 Contact Us For Availability
× ![]()
