Model Electrolux RT195SLD0 REFRIGERATOR – Common Parts & Diagrams

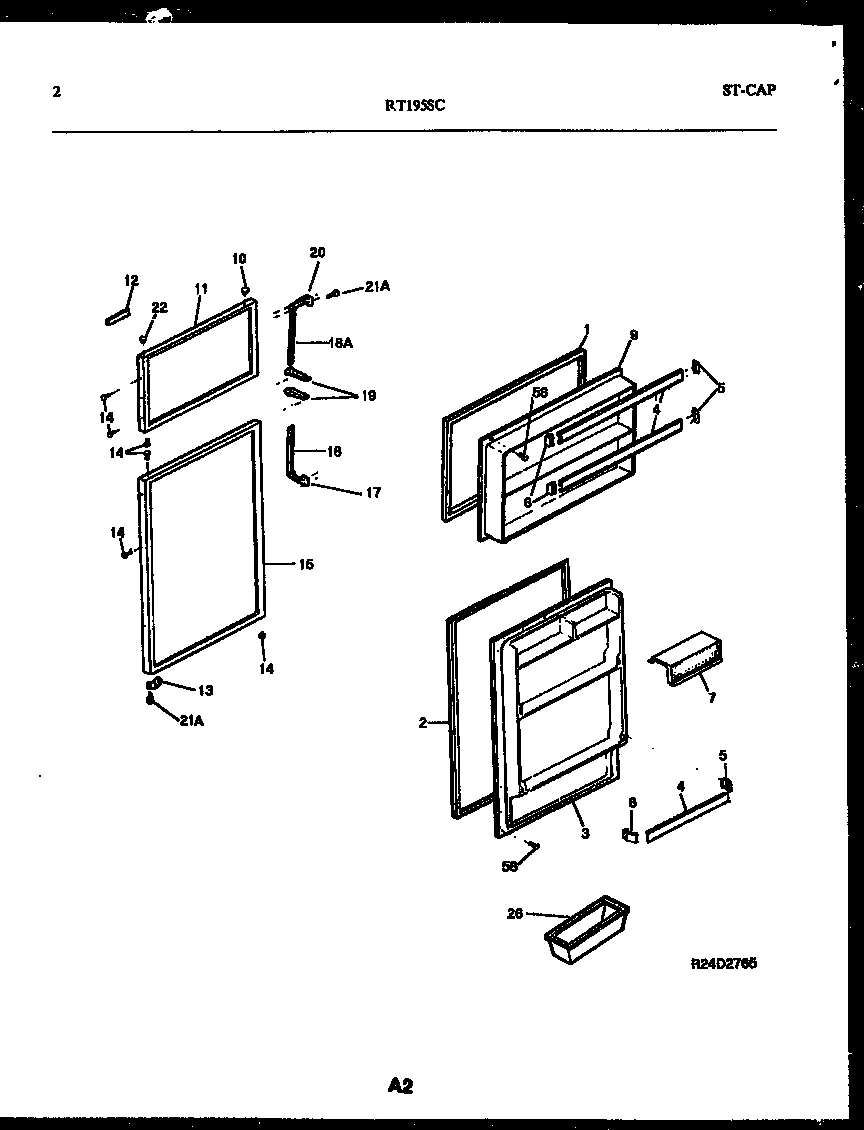

02 - DOOR PARTS

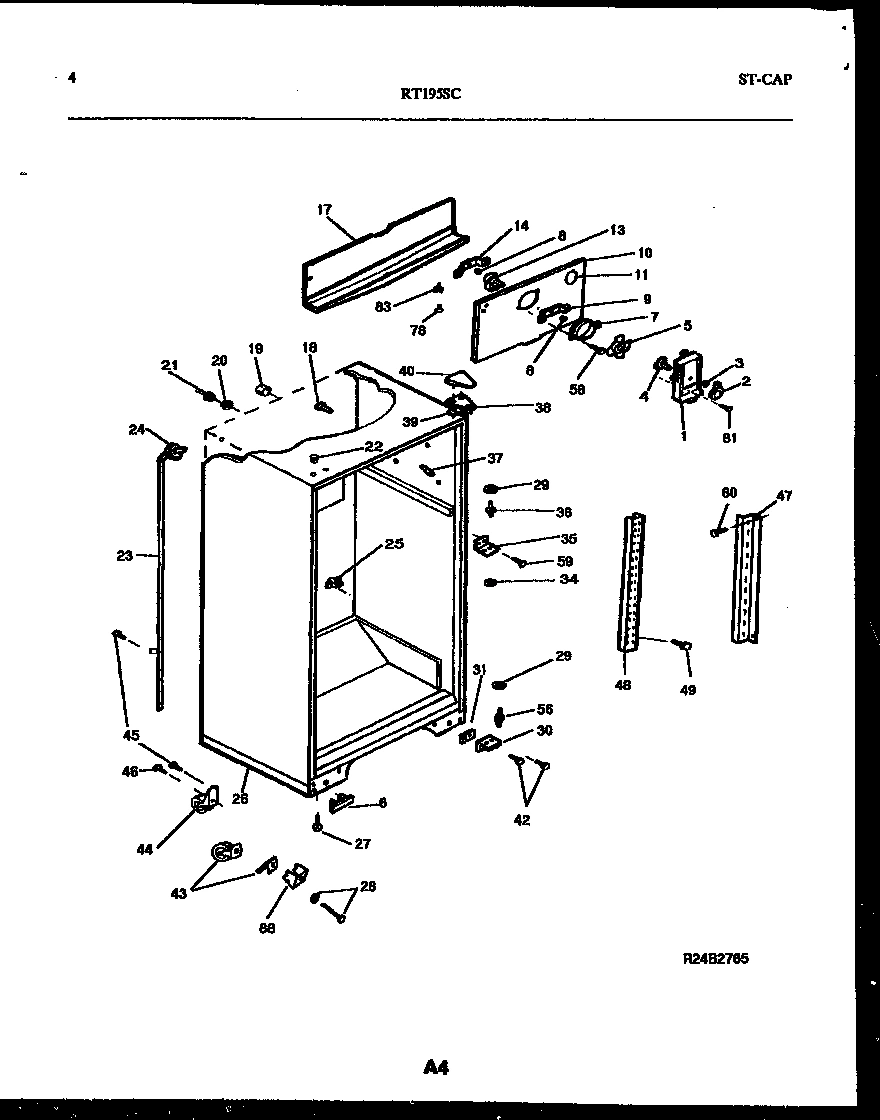

03 - CABINET PARTS

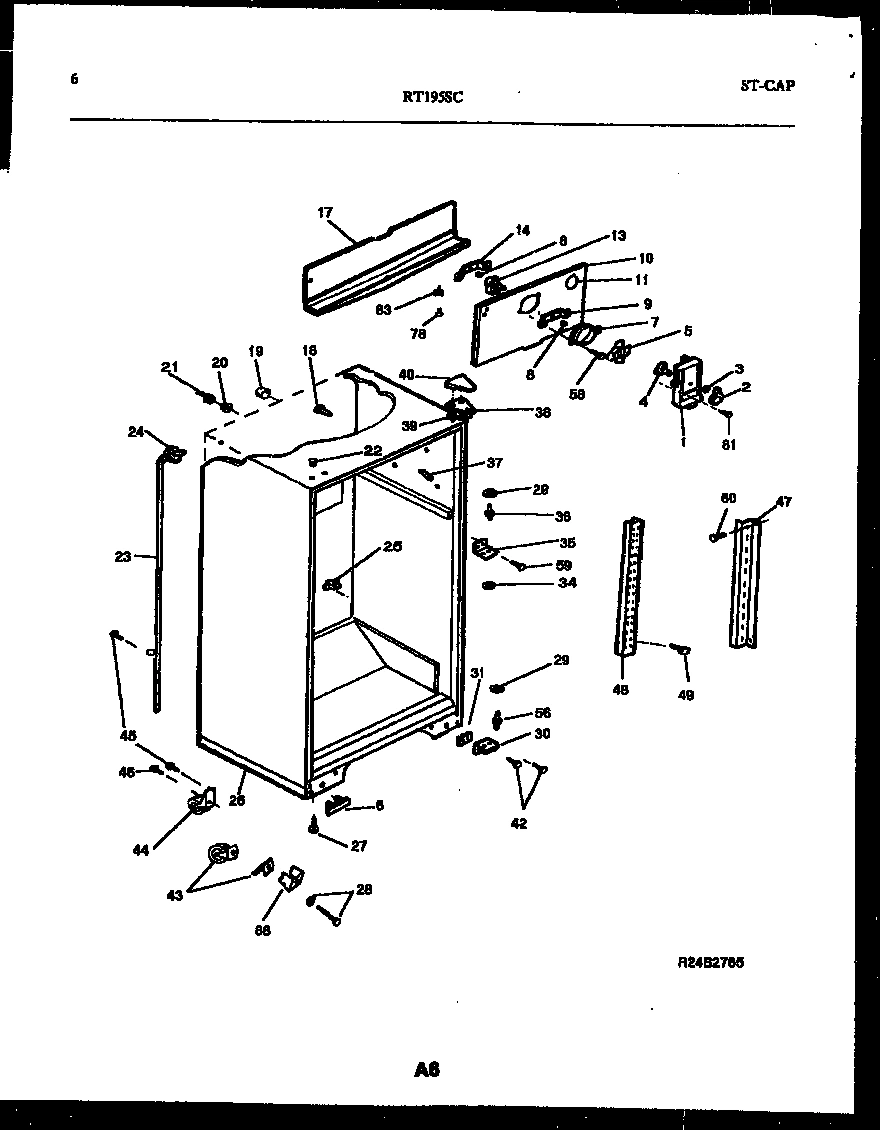

04 - CABINET PARTS
05 - SHELVES AND SUPPORTS

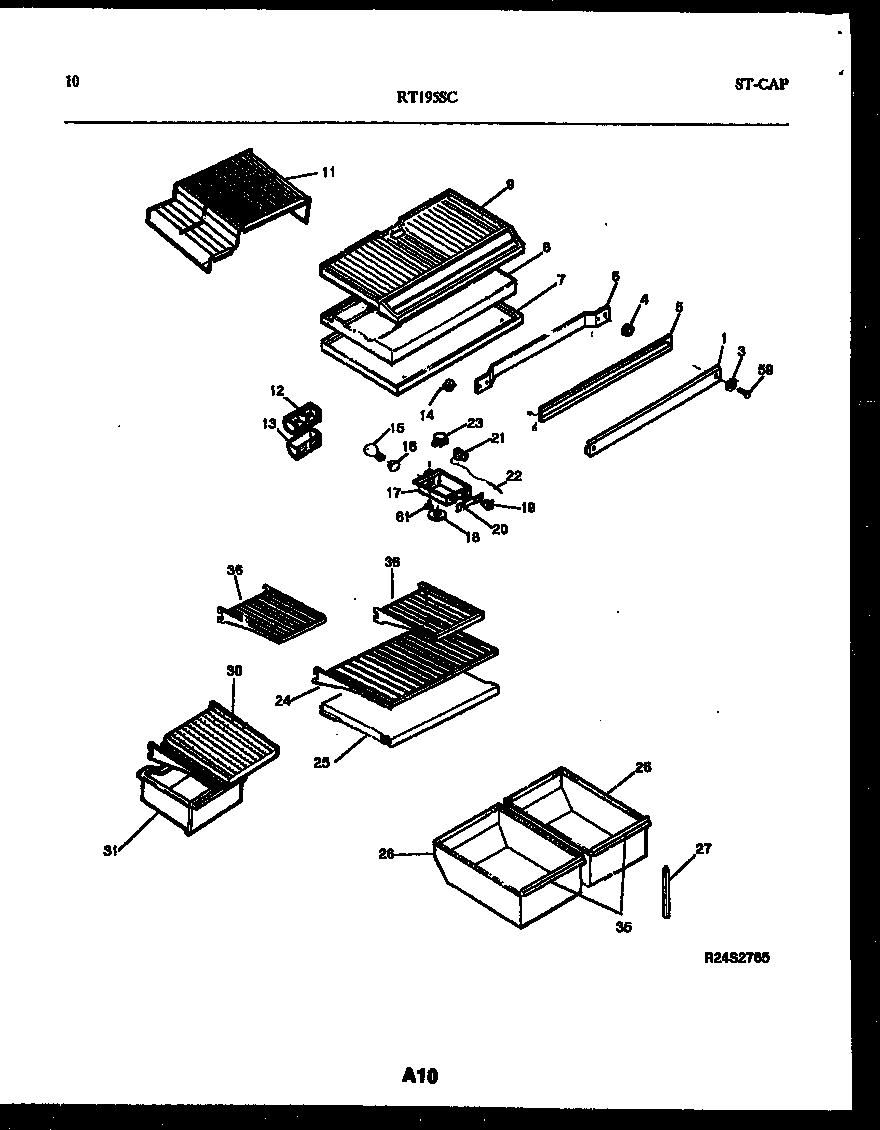

06 - SHELVES AND SUPPORTS

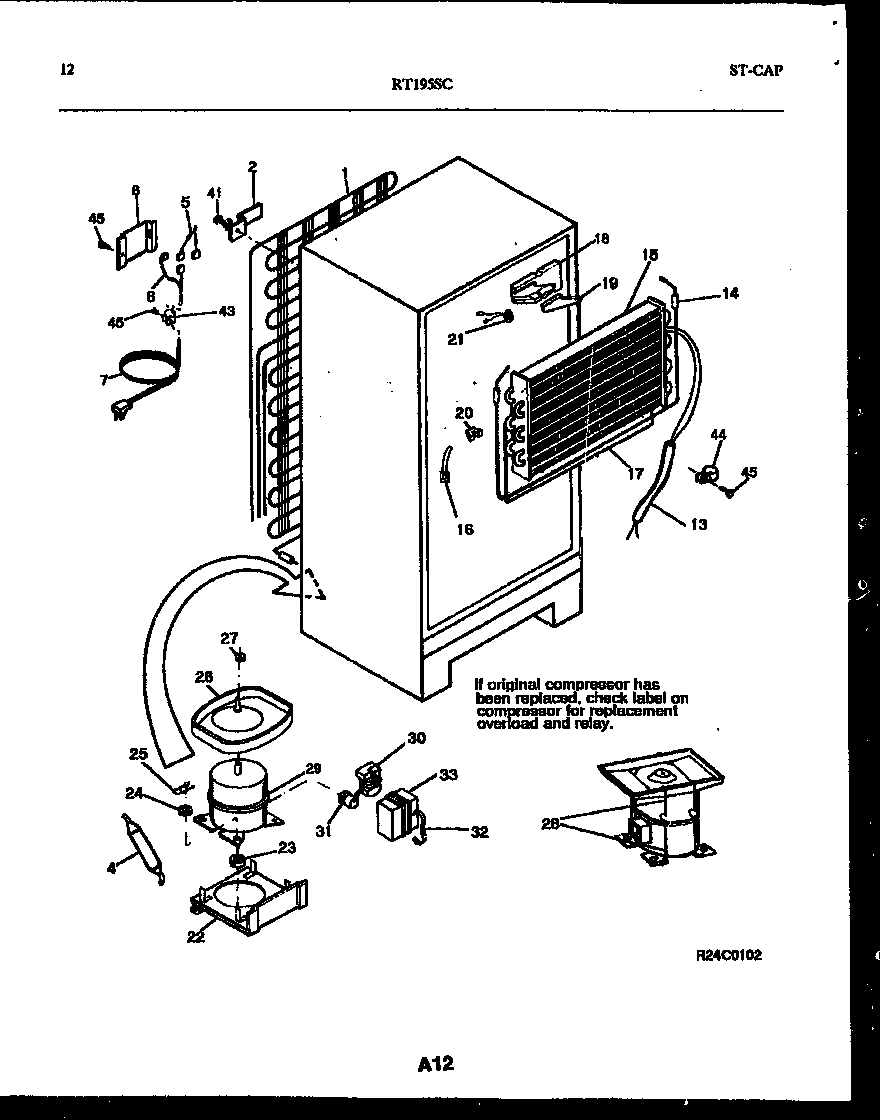

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
08 - ICE MAKER AND INSTALLATION PARTS

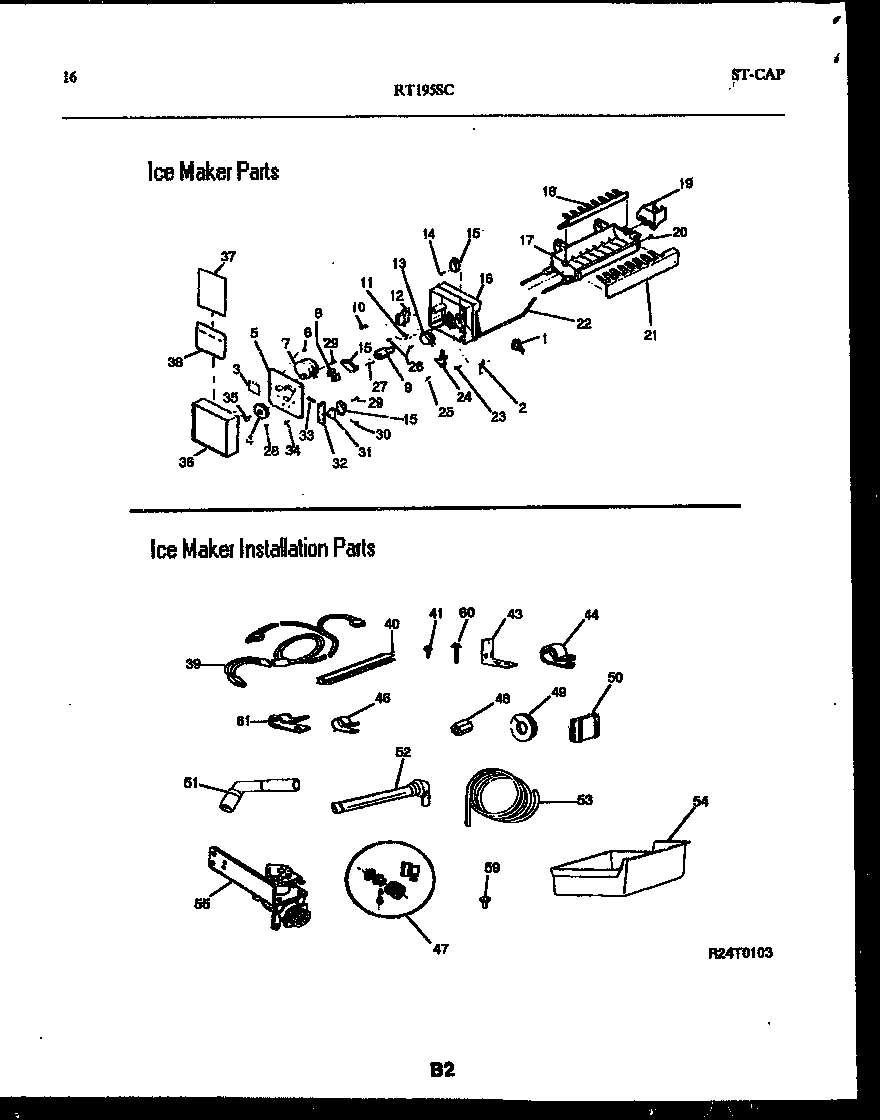

09 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux RT195SLD0 REFRIGERATOR
*67545
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*67557
WCI 5300170910 WCI 5300170910 Contact Us For Availability
*67568
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
*67582
WCI 5308000247 WCI 5308000247 Contact Us For Availability
1
GASKET-FRZR DOOR, MAGNETIC WCI 5303018791 Contact Us For Availability
1
HARNESS-WIRING, ICE MAKER WCI 3206349 Contact Us For Availability
1
WCI 5303200370 WCI 5303200370 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308000081 WCI 5308000081 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 3001383 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
SUPPORT-DOOR RACK, LH, (4) WCI 5303007297 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WCI 5303271882 WCI 5303271882 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
TOP PANEL-REFR, W/SNAP BUSHING WCI 5303016367 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
7B
BUSHING, SNAP-IN, PLASTIC (NON-ILLUSTRATED) WCI 5303212518 Contact Us For Availability
8
DIVIDER, STYROFOAM WCI 5303001504 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 5303211427 WCI 5303211427 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 3018562 WCI 3018562 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
13
WCI 3206322 WCI 3206322 Contact Us For Availability
13
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
SCREW-SW TO SUPPORT, 4-24 X 3/4, (2) WCI 3206323 Contact Us For Availability
15
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
16
SOCKET-LIGHT/LAMP WCI 5308000129 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
HANDLE END WCI 5303001015 Contact Us For Availability
17
WCI 5303015152 WCI 5303015152 Contact Us For Availability
18
WCI 5308010011 WCI 5308010011 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18A
WCI 5303207221 WCI 5303207221 Contact Us For Availability
19
WCI 5303001296 WCI 5303001296 Contact Us For Availability
19
WCI 5303001670 WCI 5303001670 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 3202523 WCI 3202523 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303200810 WCI 5303200810 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 5303273221 WCI 5303273221 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
WCI 5308010006 WCI 5308010006 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVR/SUPT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
WCI 5303207577 WCI 5303207577 Contact Us For Availability
26
WCI 5303207637 WCI 5303207637 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26
SCREW-THERMO/SUPT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
SUPPORT-CRISPER CVR, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
27A
ANCHOR-NUT (NON-ILLUSTRATED) WCI 5308003584 Contact Us For Availability
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
WASHER-ADJ. BOLT, NYLON WCI 5308011326 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 5303916411 WCI 5303916411 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
30
WCI 5303202834 WCI 5303202834 Contact Us For Availability
30
WCI 5318719503 WCI 5318719503 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
30A
WCI 5318721302 WCI 5318721302 Contact Us For Availability
30B
WCI 5318721402 WCI 5318721402 Contact Us For Availability
30C
SCREW-MEAT COVER RAIL (NON-ILLUSTRATED) WCI 5300115932 Contact Us For Availability
31
WCI 5303270406 WCI 5303270406 Contact Us For Availability
31
WCI 5303207481 WCI 5303207481 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
34
SCREW-MTG PLATE/SUPT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
WCI 5303292008 WCI 5303292008 Contact Us For Availability
35
WCI 5303292009 WCI 5303292009 Contact Us For Availability
35
SCREW-GEAR/CAM, 6-20 X .437 WCI 3206346 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
WCI 5303273222 WCI 5303273222 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
HARNESS-WIRING, ICE MAKER WCI 3206358 Contact Us For Availability
46
WCI 5308009762 WCI 5308009762 Contact Us For Availability
47
ADAPTER-WATER SPLY WCI 3206360 Contact Us For Availability
47
WCI 5308000302 WCI 5308000302 Contact Us For Availability
48
WCI 3916030 WCI 3916030 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
49
WCI 5308016568 WCI 5308016568 Contact Us For Availability
51
EXTENSION-INLET TUBE, S X S & SD ONLY WCI 5308000239 Contact Us For Availability
55
VALVE-SOLENOID/WTR WCI 3206356 Contact Us For Availability
55A
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
88
SUPPORT-CAB. BASE WCI 5308013678 Contact Us For Availability
× ![]()
