Model Electrolux RT195MCD1 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

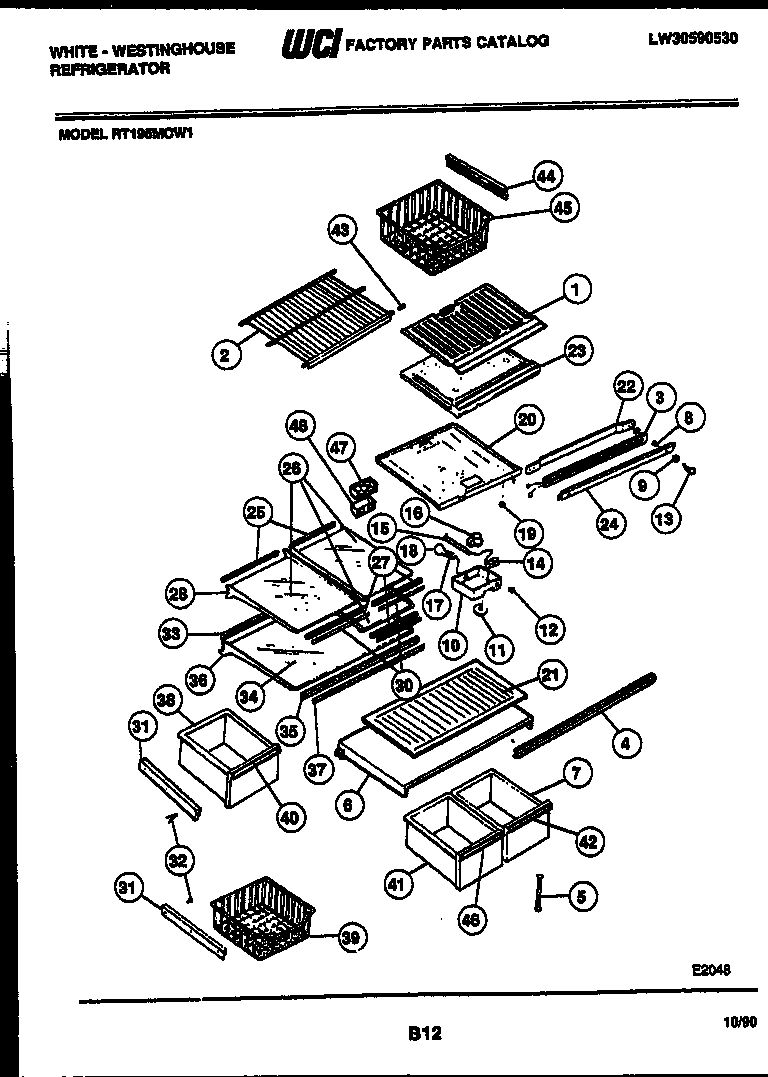

04 - SHELVES AND SUPPORTS

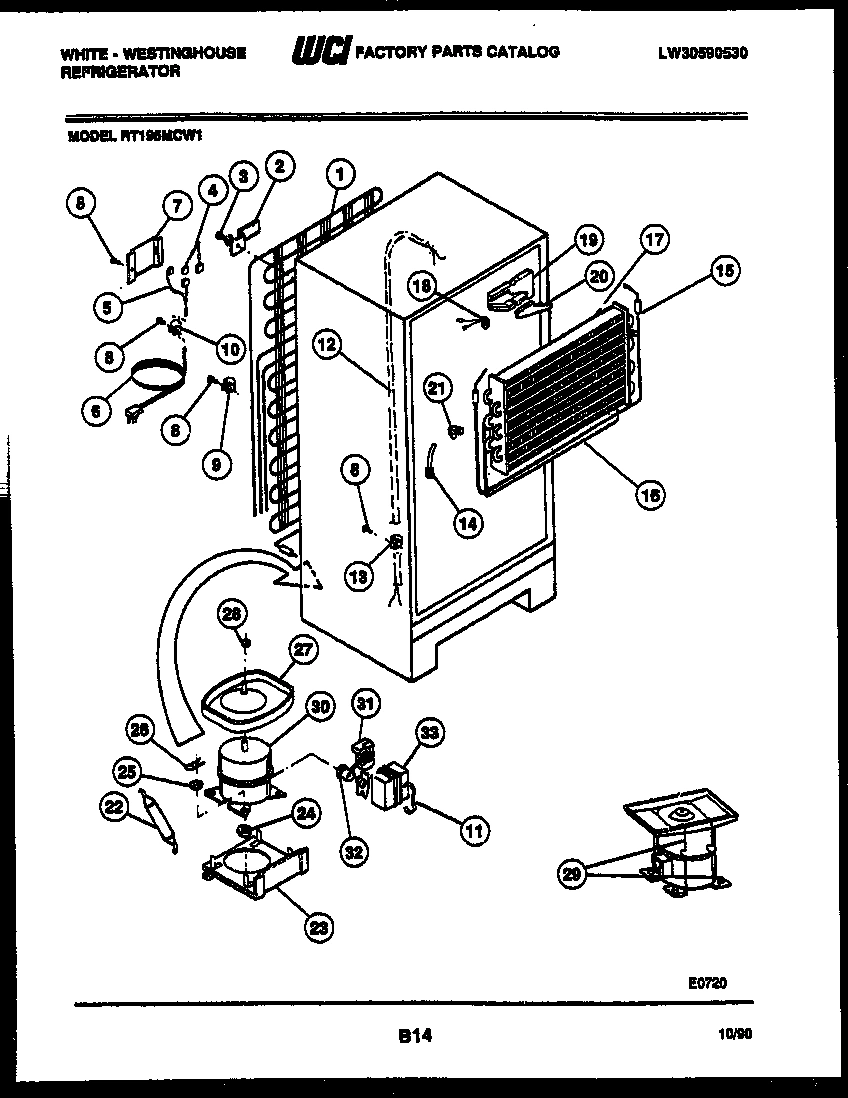

05 - SYSTEM AND AUTOMATIC DEFROST PARTS

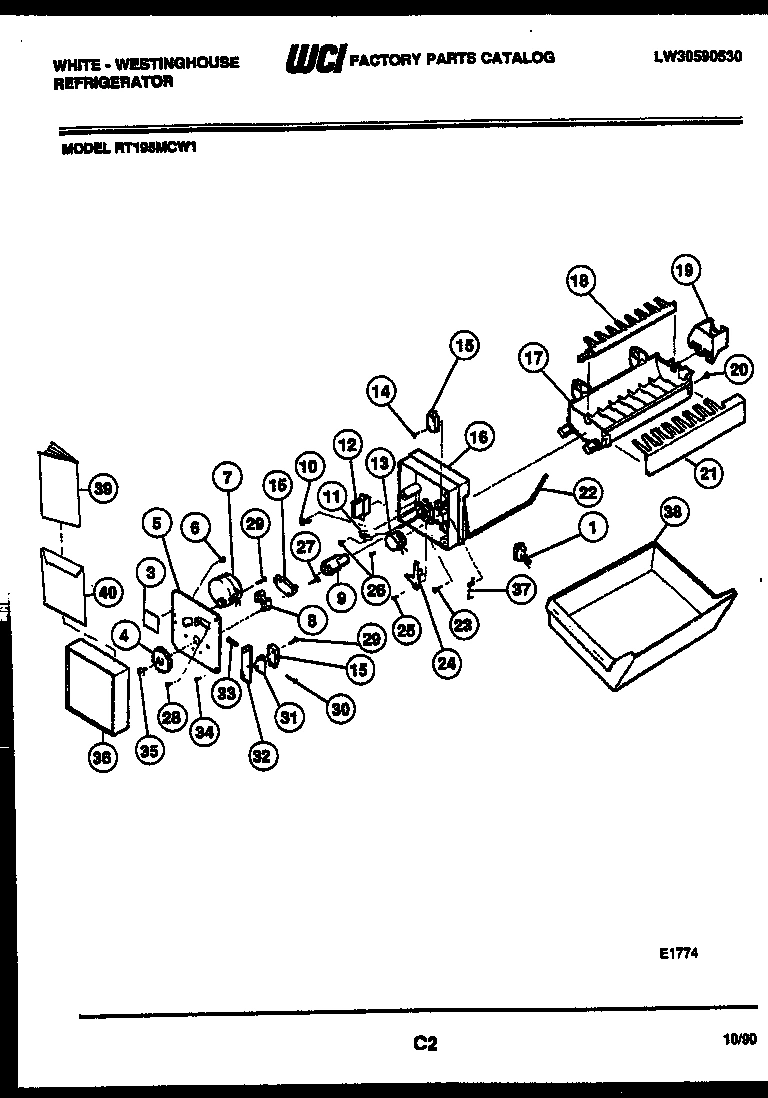

06 - ICE MAKER PARTS

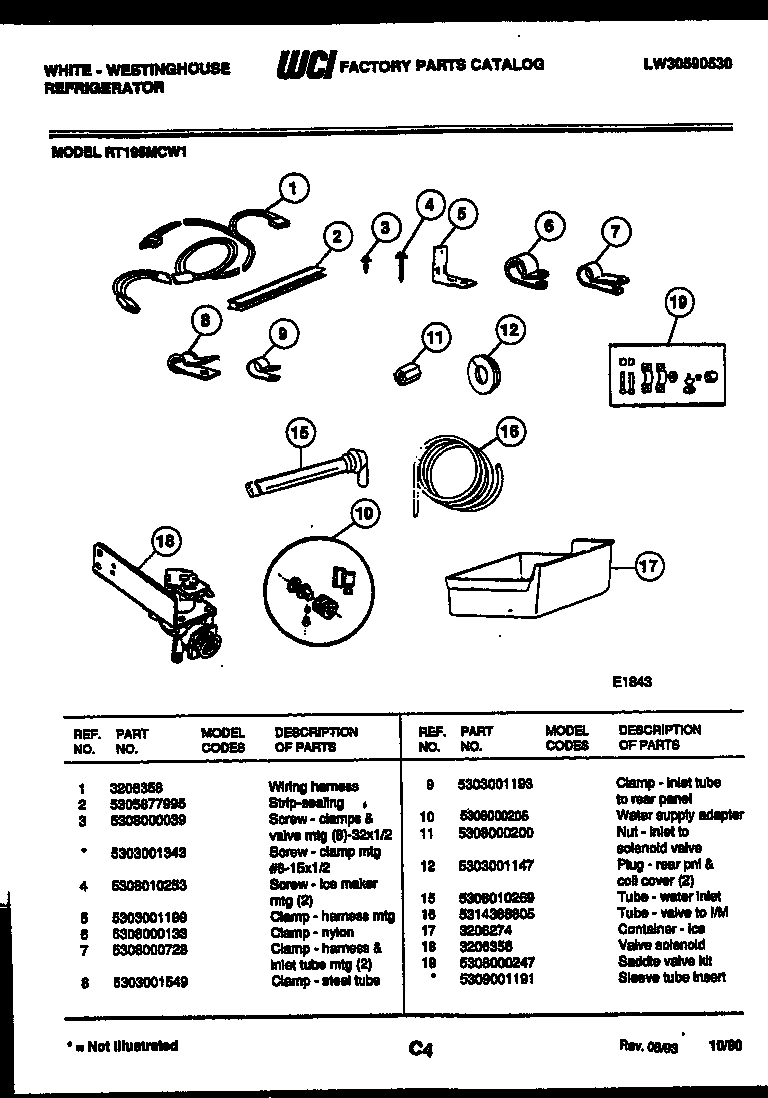

07 - ICE MAKER INSTALLATION PARTS
Common parts from model Electrolux RT195MCD1 REFRIGERATOR
*31744
PLUG - LINER (3) WCI 5308016571 Contact Us For Availability
*31744
TAPPING - PLATE - UPPER (2) WCI 5308012296 Contact Us For Availability
*31753
CLIP - CANTI SHELF (8) WCI 5300170910 Contact Us For Availability
*31753
RACK - HANGING - EGG WCI 5303206533 Contact Us For Availability
*31757
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
*31757
CAPACITOR-RUN WCI 5303916391 Contact Us For Availability
*31774
WCI 5309001191 WCI 5309001191 Contact Us For Availability
1
WCI 3206349 WCI 3206349 Contact Us For Availability
1
WCI 5303205119 WCI 5303205119 Contact Us For Availability
1
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
1
WCI 3206358 WCI 3206358 Contact Us For Availability
2
PLUG BUTTON-ALMOND (2) WCI 5303001308 Contact Us For Availability
2
WCI 530158289 WCI 530158289 Contact Us For Availability
2
WCI 5303206608 WCI 5303206608 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI 5303001342 Contact Us For Availability
2A
WCI 5303206609 WCI 5303206609 Contact Us For Availability
3
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
3
WCI 5303210351 WCI 5303210351 Contact Us For Availability
3
WCI 3206299 WCI 3206299 Contact Us For Availability
3A
WASHER - NO. 10 EXT TOOTH WCI 5308009617 Contact Us For Availability
4
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
4
WCI 5303206540 WCI 5303206540 Contact Us For Availability
4
WIRING HARN - CONTROL WCI 3018900 Contact Us For Availability
5
SUPPORT - CRISPER COVER - ADJUSTMENT WCI 5303205987 Contact Us For Availability
5
WCI 5308000124 WCI 5308000124 Contact Us For Availability
5
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 530157666 WCI 530157666 Contact Us For Availability
6
COVER - CRISPER WCI 5303206606 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
6A
GASKET - CRISPER COVER WCI 5303200329 Contact Us For Availability
7
WCI 5303206534 WCI 5303206534 Contact Us For Availability
7
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
CLAMP - HARNESS & INLET TUBE MTG (2) WCI 5308000728 Contact Us For Availability
8
DAMPER WCI 5303001331 Contact Us For Availability
8
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
8
WCI 3206312 WCI 3206312 Contact Us For Availability
9
PUSH NUT - DAMPER WCI 5303001028 Contact Us For Availability
9
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
GASKET-FREEZER WCI 5303018791 Contact Us For Availability
10
WCI 3206381 WCI 3206381 Contact Us For Availability
10
CONTROL BOX WCI 3206130 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
10
WATER SUPPLY ADAPTER WCI 5308000205 Contact Us For Availability
11
WCI 3206318 WCI 3206318 Contact Us For Availability
11
WCI 5303201777 WCI 5303201777 Contact Us For Availability
11
WCI 5308000200 WCI 5308000200 Contact Us For Availability
11B
LABEL - FAN COVER (NON-ILLUSTRATED) WCI 3206362 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
WCI 5308012933 WCI 5308012933 Contact Us For Availability
12
WCI 3206129 WCI 3206129 Contact Us For Availability
13
WCI 5308012843 WCI 5308012843 Contact Us For Availability
13
THERMOSTAT ASSEMBLY WCI 3206322 Contact Us For Availability
13
WCI 08012258 WCI 08012258 Contact Us For Availability
14
WASHER-HINGE (2) WCI 5308000007 Contact Us For Availability
14
WCI 5303018894 WCI 5303018894 Contact Us For Availability
14
WCI 3206323 WCI 3206323 Contact Us For Availability
14A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
15
CORNER TRIM-ALMOND WCI 5303202340 Contact Us For Availability
15
HOUSING - CONTROL CAP TUBE WCI 3018891 Contact Us For Availability
16
WASHER - HINGE WCI 5308000186 No Longer Available
16
WCI 5316651102 WCI 5316651102 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
WCI 5308000184 WCI 5308000184 Contact Us For Availability
17
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
18
WCI 5303001369 WCI 5303001369 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18
WCI 3206356 WCI 3206356 Contact Us For Availability
19
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
19
WCI 5308000247 WCI 5308000247 Contact Us For Availability
20
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
20
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
20A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
21
GLASS SHELF - CRISPER COVER WCI 5303206539 Contact Us For Availability
21
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 3206332 WCI 3206332 Contact Us For Availability
22
STRAP, MULLION MOUNTING WCI 5308010008 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
BRACKET - LOWER HINGE WITH PIN WCI 5303212489 Contact Us For Availability
23
WCI 3018994 WCI 3018994 Contact Us For Availability
23
PLATE, COMPRESSOR MOUNTING WCI 5308013663 Contact Us For Availability
23
SCREW - 8-18 X 1 SUPPORT TO MOLD BODY (4) WCI 3206334 Contact Us For Availability
24
WCI 5303200370 WCI 5303200370 Contact Us For Availability
25
TRIM - REAR SHELF RETAINER - MK & BASKET SHEL WCI 5303206526 Contact Us For Availability
25
WCI 5303206844 WCI 5303206844 Contact Us For Availability
25
WASHER (4) WCI 5308003633 Contact Us For Availability
25
WCI 3206336 WCI 3206336 Contact Us For Availability
26
GLASS - MK & BASKET SHELF (2) WCI 5303206527 Contact Us For Availability
26
WCI 5303206845 WCI 5303206845 Contact Us For Availability
26
CLIP (4) WCI 5308003596 Contact Us For Availability
26
WCI 3206337 WCI 3206337 Contact Us For Availability
27
ROLLER-REAR (2) WCI 5308009773 Contact Us For Availability
27
RETAINER - GLASS (3) WCI 3200316 Contact Us For Availability
27
WCI 530184715 WCI 530184715 Contact Us For Availability
27
WCI 3206338 WCI 3206338 Contact Us For Availability
27A
SCREW - ROLLER MOUNTING (2) (NON-ILLUSTRATED) WCI 5308009762 Contact Us For Availability
28
DRAIN TUBE WCI 5303210377 Contact Us For Availability
28
FRAME - MK & BASKET SHELF (2) WCI 3200328 Contact Us For Availability
28
LOCK NUT-PAN MOUNTING WCI 5303001348 Contact Us For Availability
28
WCI 3206339 WCI 3206339 Contact Us For Availability
28A
FRAME - 1/2 SHELF WCI 3200318 Contact Us For Availability
29
PAN RETAINER KIT - SERVICE COMPRESSOR WCI 5303916001 Contact Us For Availability
29
BOLT - ROLLER ADJUSTMENT (2) WCI 5303212598 Contact Us For Availability
29
SCREW-4-40 X 3/4 MOTOR SWITCH TO PLATE (4) WCI 3206340 Contact Us For Availability
30
PLUG - HINGE - ALMOND (2) WCI 5303001389 Contact Us For Availability
30
TRIM - MK & BASKET SHELF (2) WCI 5303206528 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS - SERVICE WCI 5303916004 Contact Us For Availability
30
SCREW - 8-32 X 1 TIMING SCREW WCI 3206341 Contact Us For Availability
30A
WCI 5303206846 WCI 5303206846 Contact Us For Availability
31
WCI 5303007173 WCI 5303007173 Contact Us For Availability
31
WCI 5308000056 WCI 5308000056 Contact Us For Availability
31
HANGER - MEAT PAN & BASKET - LH (2) WCI 5303210016 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
31A
HANGER - MEAT PAN & BASKET - RH (2) (NON-ILLU WCI 5303210017 Contact Us For Availability
32
PUSH PIN - DRAIN SPOUT WCI 5303001361 Contact Us For Availability
32
SCREW - HANGER (12) WCI 08014528 Contact Us For Availability
32
WCI 5303001713 WCI 5303001713 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 5303001198 WCI 5303001198 Contact Us For Availability
33
WCI 5303206611 WCI 5303206611 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
COVER, EVAPORATOR COIL WCI 5308009771 Contact Us For Availability
34
WCI 5303206612 WCI 5303206612 Contact Us For Availability
34
WCI 3206345 WCI 3206345 Contact Us For Availability
34A
RAIL - GLASS SUPPORT (2) (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
34B
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
35
SUPPORT, COVER (2) WCI 5308000097 Contact Us For Availability
35
RETAINER - GLASS - FULL SHELF WCI 3200321 Contact Us For Availability
35
WCI 3206346 WCI 3206346 Contact Us For Availability
36
WCI 3200327 WCI 3200327 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
36A
LABEL - I/M WCI 3206277 Contact Us For Availability
37
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
37
WCI 5303206613 WCI 5303206613 Contact Us For Availability
37
WCI 3206348 WCI 3206348 Contact Us For Availability
38
WCI 5303001037 WCI 5303001037 Contact Us For Availability
38
WCI 5303206542 WCI 5303206542 Contact Us For Availability
39
ROLLER ASSEMBLY, FRONT (2) WCI 5303212490 Contact Us For Availability
39
BASKET - SLIDING - REFR WCI 5303206543 Contact Us For Availability
39
WCI 5303207442 WCI 5303207442 Contact Us For Availability
40
RING - SEAL WCI 5303207353 Contact Us For Availability
40
WCI 5303206541 WCI 5303206541 Contact Us For Availability
40
WCI 5303207445 WCI 5303207445 Contact Us For Availability
41
WASHER-NYLON (2) WCI 5308011326 Contact Us For Availability
41
PAN - CRISPER - LH WCI 3206311 Contact Us For Availability
42
CHANNEL - SHELF MOUNTING SIDE (2) WCI 5308000302 Contact Us For Availability
42
TRIM - RH CRISPER PAN WCI 3206317 Contact Us For Availability
43
WCI 3201150 No Longer Available
44
CHANNEL - SHELF MOUNTING CENTER WCI 5303015409 Contact Us For Availability
44
HANGER - FREEZER BASKET - RH WCI 5303206521 Contact Us For Availability
44A
HANGER - FREEZER BASKET - L WCI 5303206522 Contact Us For Availability
45
SCREW - CENTER CHANNEL MOUNTING (3) WCI 5308016568 Contact Us For Availability
45
WCI 5303206610 WCI 5303206610 Contact Us For Availability
46
WCI 3206308 WCI 3206308 Contact Us For Availability
47
WCI 3204206 WCI 3204206 Contact Us For Availability
48
WCI 5303001546 WCI 5303001546 Contact Us For Availability
48
SPRING-ROLLER ADJUSTMENT (2) WCI 5308009790 Contact Us For Availability
50
SHIM - LOWER HINGE BRACKET WCI 5303212488 Contact Us For Availability
51
WCI 5303212487 WCI 5303212487 Contact Us For Availability
× ![]()
