Model Electrolux RT195KCD0 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR PARTS

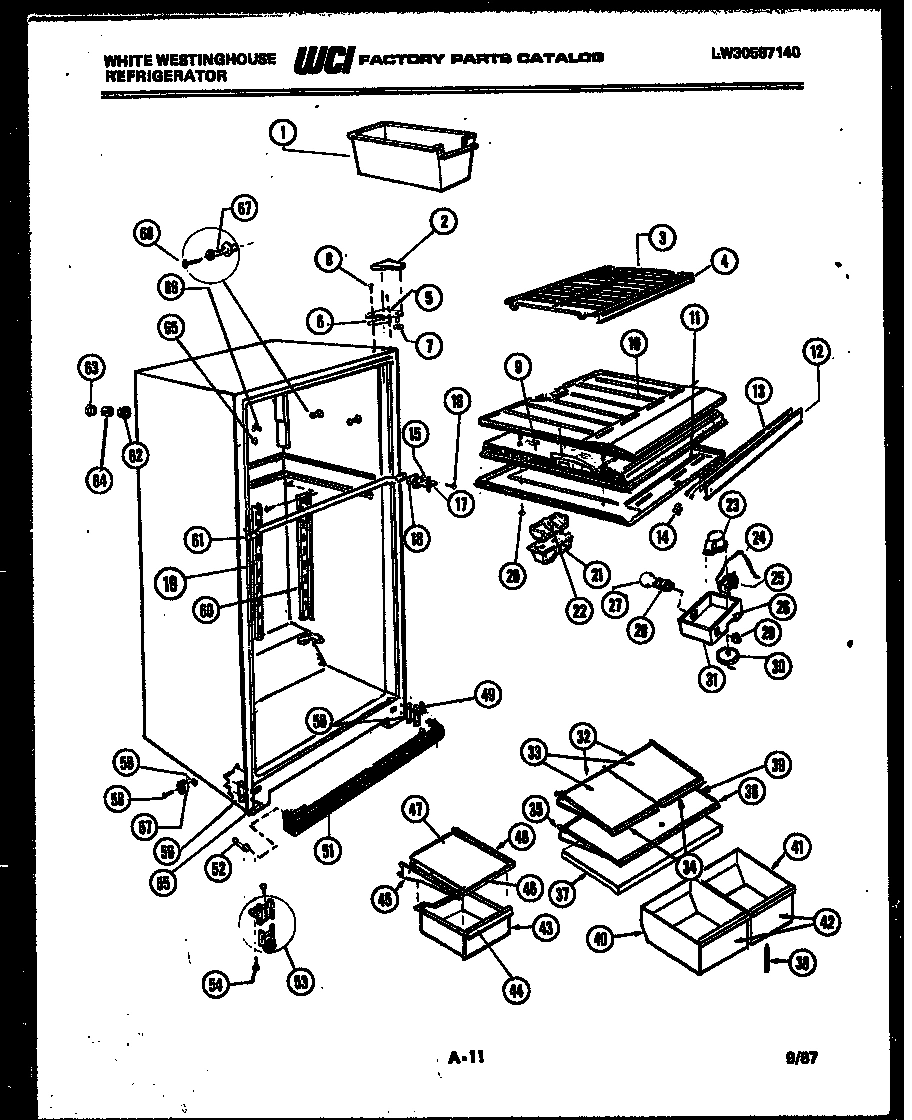

03 - CABINET PARTS

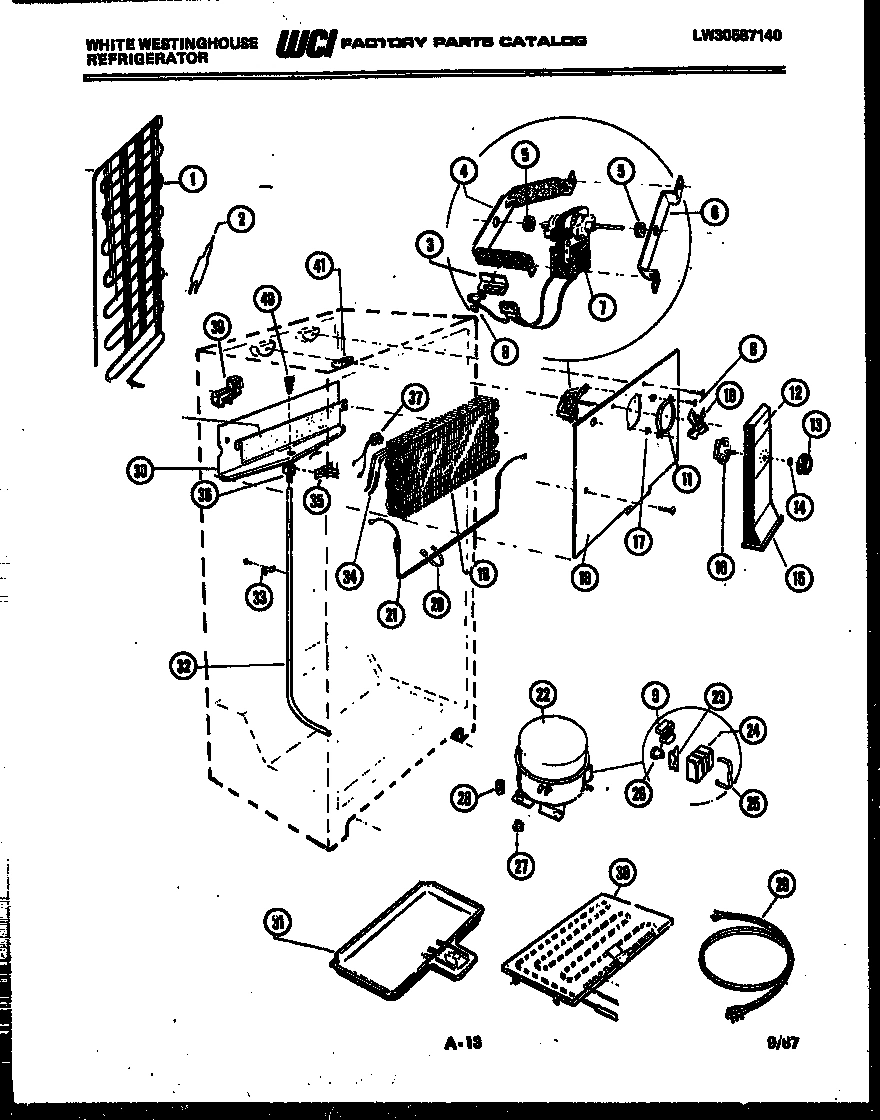

04 - SYSTEM AND AUTOMATIC DEFROST PARTS

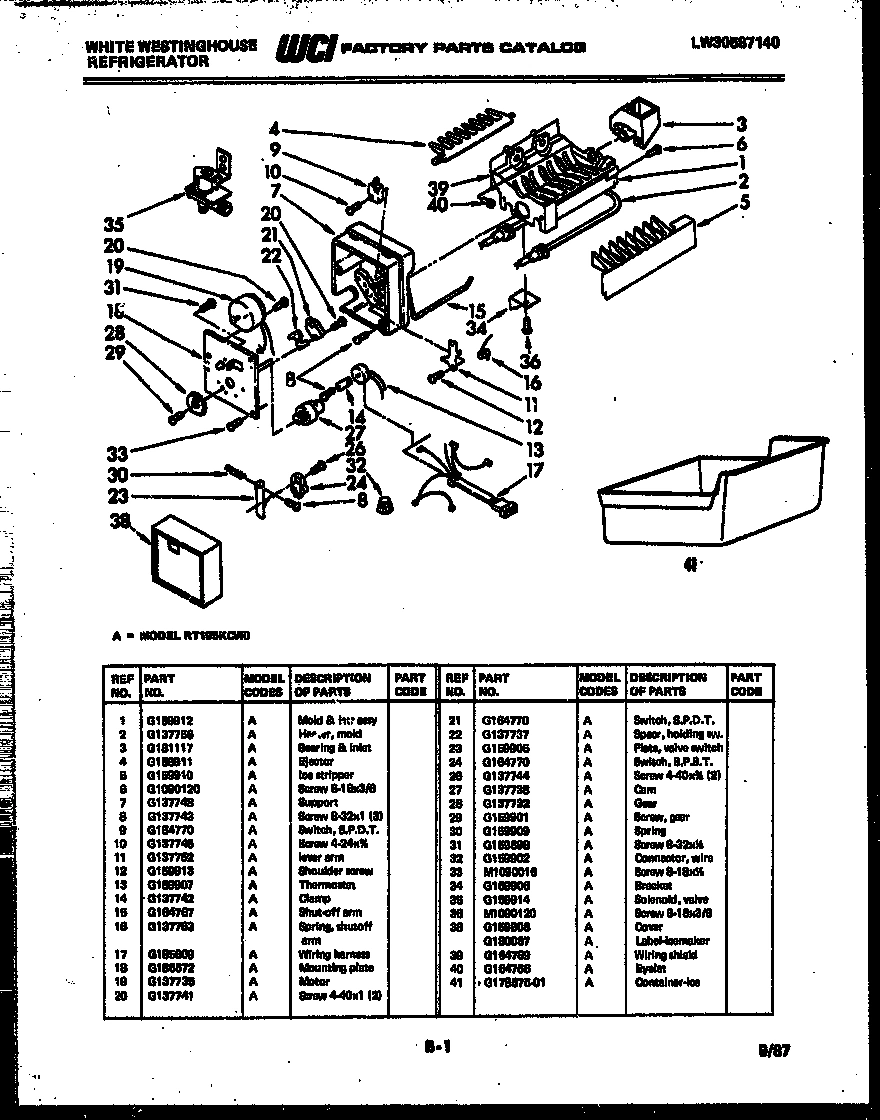

05 - ICE MAKER PARTS

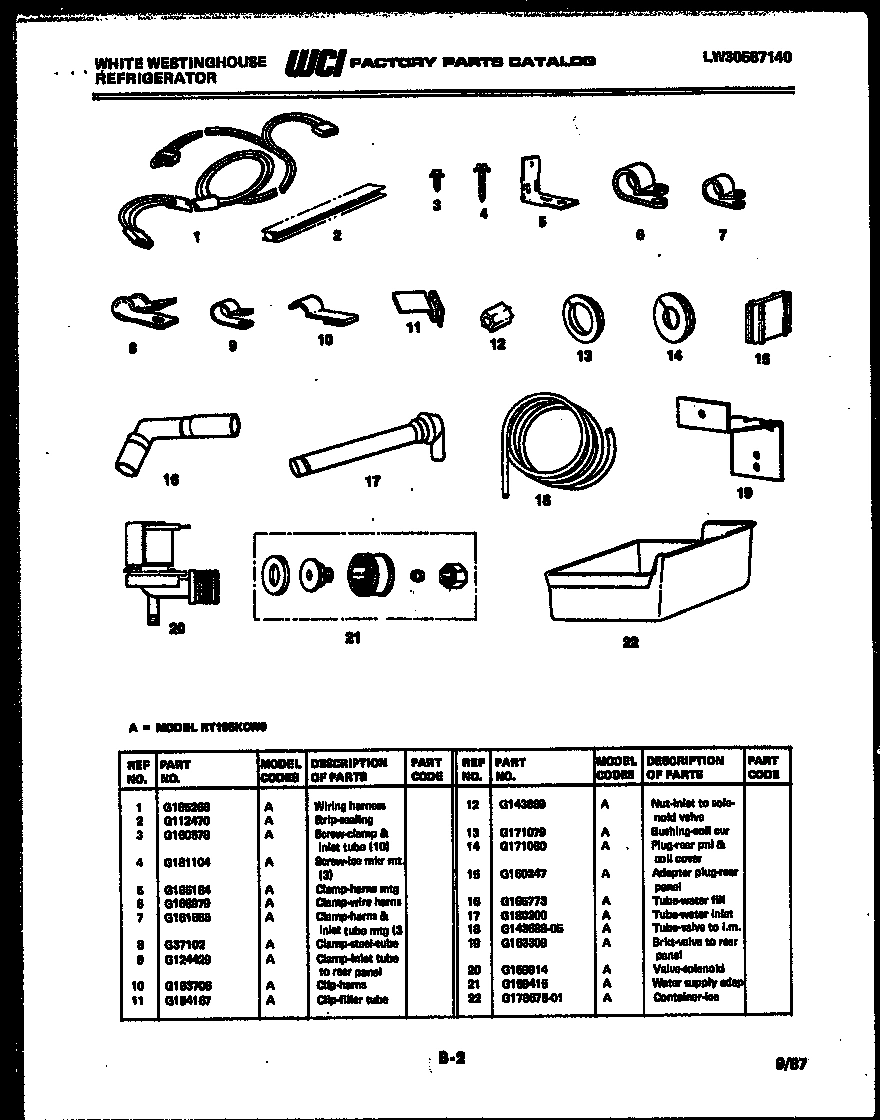

06 - ICE MAKER INSTALLATION PARTS
Common parts from model Electrolux RT195KCD0 REFRIGERATOR
*18417
HOT TUBE REPAIR KIT WCI G189377 Contact Us For Availability
*18444
HEAT EXCH. REP KIT WCI G161672 Contact Us For Availability
1
PANEL-FRZR ALMD WCI G180260-11 Contact Us For Availability
1
WCI G189768 WCI G189768 Contact Us For Availability
1
MOLD & HTR ASSY WCI G159912 Contact Us For Availability
1
WCI G185266 WCI G185266 Contact Us For Availability
2
BEARING (4) WCI G183138 Contact Us For Availability
2
CVR-TOP HNG-ALMD WCI G183558-11 Contact Us For Availability
2
WCI G137756 WCI G137756 Contact Us For Availability
3
WCI G162977-11 WCI G162977-11 Contact Us For Availability
3
SHELF-FRZR WCI G177415-04 Contact Us For Availability
3
BRACKET WCI G164571 Contact Us For Availability
3
WCI G181117 WCI G181117 Contact Us For Availability
4
TRIM WCI G178328-02 Contact Us For Availability
4
TRIM WCI G187267-03 Contact Us For Availability
4
BRACKET-MTR REAR WCI G185303 Contact Us For Availability
4
WCI G159911 WCI G159911 Contact Us For Availability
5
GASKET-FRZR WCI G186932-08 Contact Us For Availability
5
HINGE-UPR WCI G183714 Contact Us For Availability
5
WCI G159910 WCI G159910 Contact Us For Availability
6
WCI G179979-01 WCI G179979-01 Contact Us For Availability
6
SHIM-UPR WCI G183861 Contact Us For Availability
6
BRKT-MTR FRNT WCI G185302 Contact Us For Availability
6
WCI G1090120 WCI G1090120 Contact Us For Availability
7
RACK-DOOR WCI G490079-09 Contact Us For Availability
7
WASHER, NYLON WCI G101970 Contact Us For Availability
7
WCI G137748 WCI G137748 Contact Us For Availability
7
CLAMP-HARNS & INLET TUBE MTG (3) WCI G161655 Contact Us For Availability
8
SUPPT-RACK RH (3) WCI G176891-01 Contact Us For Availability
8
WCI G137743 WCI G137743 Contact Us For Availability
9
SUPPT-RACK LH (3) WCI G176892-01 Contact Us For Availability
9
DIVIDER-STYRO WCI G170078 Contact Us For Availability
9
WCI G182225-18 WCI G182225-18 Contact Us For Availability
10
DOOR (2) WCI G179967-02 Contact Us For Availability
10
DIVIDER-BTM WCI G161919-02 Contact Us For Availability
10
WCI G137745 WCI G137745 Contact Us For Availability
10
CLIP-HARNS WCI G163706 Contact Us For Availability
11
DIVIDER-TOP WCI G174715 Contact Us For Availability
11
RING-ORIFICE WCI G167217 Contact Us For Availability
11
WCI G154167 WCI G154167 Contact Us For Availability
12
RACK-DOOR (2) WCI G490079-14 Contact Us For Availability
12
MULLION-ALMD WCI G162051-11 Contact Us For Availability
12
LABEL-FAN CVR WCI G180298 Contact Us For Availability
12
WCI G159913 WCI G159913 Contact Us For Availability
12
NUT, INLET TO SOLENOID VALVE WCI G143689 Contact Us For Availability
13
WCI G173948-22 WCI G173948-22 Contact Us For Availability
13
HEATER WCI G177254 Contact Us For Availability
13
KNOB DAMPER WCI G162663-15 Contact Us For Availability
13
WCI G159907 WCI G159907 Contact Us For Availability
13
BUSHING-COIL CVR WCI G171079 Contact Us For Availability
14
WCI G179874-01 WCI G179874-01 Contact Us For Availability
14
CLIP WCI G162662 Contact Us For Availability
14
WCI G137742 WCI G137742 Contact Us For Availability
15
WCI G142220 WCI G142220 Contact Us For Availability
15
WCI G179793-02 WCI G179793-02 Contact Us For Availability
15
WCI G164767 WCI G164767 Contact Us For Availability
15
WCI G160347 WCI G160347 Contact Us For Availability
16
GASKET-REF WCI G186932-09 Contact Us For Availability
16
SCREW (4) WCI G183103 Contact Us For Availability
16
DAMPER WCI G162661 Contact Us For Availability
16
WCI G137753 WCI G137753 Contact Us For Availability
16
TUBE WATER FILL WCI G165773 Contact Us For Availability
17
PANEL-REF ALMD WCI G180265-11 Contact Us For Availability
17
HINGE-CTR. WCI G162384 Contact Us For Availability
17
NUT-SPEED (2) WCI G167542 Contact Us For Availability
17
WCI G185809 WCI G185809 Contact Us For Availability
18
STOP, DOOR (2) WCI G155072 Contact Us For Availability
18
SHIM-CTR. WCI G162683 Contact Us For Availability
18
COVER WCI G162050-02 Contact Us For Availability
18
WCI G186572 WCI G186572 Contact Us For Availability
19
HANDLE-REF WCI G177141-08 Contact Us For Availability
19
STRINGER CTR WCI G175612 Contact Us For Availability
19
EVAPORATOR WCI G162506 Contact Us For Availability
19
WCI G137735 WCI G137735 Contact Us For Availability
19
BRKT-VALVE TO REAR PANEL WCI G163309 Contact Us For Availability
20
CLIP-HANDLE (NON-ILLUSTRATED) WCI G177144 Contact Us For Availability
20
SCREW WCI G162673 Contact Us For Availability
20
WCI G137741 WCI G137741 Contact Us For Availability
20
VALVE SOLENOID WCI G159914 Contact Us For Availability
21
TRIM, BOTTOM WCI G179271 Contact Us For Availability
21
COVER AIR DEFL WCI G162178 Contact Us For Availability
21
WATER SUPPLY ADAP WCI G159415 Contact Us For Availability
22
CAP-END BTM (2) WCI G177143 Contact Us For Availability
22
BAFFLE WCI G162675 Contact Us For Availability
22
WCI G190374 WCI G190374 Contact Us For Availability
22
SPACR HOLDING SW WCI G137737 Contact Us For Availability
23
CAP-END TOP (2) WCI G177142 Contact Us For Availability
23
RETAINER WCI G188957 Contact Us For Availability
23
WCI G159905 WCI G159905 Contact Us For Availability
24
WCI G185566 WCI G185566 Contact Us For Availability
24
SWITCH-SPST WCI G164770 Contact Us For Availability
25
HANDLE-FRZR WCI G177141-07 Contact Us For Availability
25
CONTROL-COLD WCI G162667-11 Contact Us For Availability
26
TRIM, TOP WCI G179270 Contact Us For Availability
26
LABEL-CONT BOX WCI G180197 Contact Us For Availability
26
WCI G188877 WCI G188877 Contact Us For Availability
26
WCI G137744 WCI G137744 Contact Us For Availability
27
WCI G169332-11 WCI G169332-11 Contact Us For Availability
27
WCI G137738 WCI G137738 Contact Us For Availability
28
WCI R304001 WCI R304001 Contact Us For Availability
28
SOCKET LIGHT WCI G168302 Contact Us For Availability
28
WCI G151192 WCI G151192 Contact Us For Availability
29
SWITCH WCI G178402-01 Contact Us For Availability
29
WCI G162549-01 WCI G162549-01 Contact Us For Availability
29
WCI G159901 WCI G159901 Contact Us For Availability
30
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
30
WCI G187294 WCI G187294 Contact Us For Availability
30
WCI G159909 WCI G159909 Contact Us For Availability
31
WCI G176722-01 WCI G176722-01 Contact Us For Availability
31
PAN WCI G162890 Contact Us For Availability
31
SCREW 8-32 X 1/4 WCI G159898 Contact Us For Availability
32
FRAME-CANT. SHELF (2) WCI G178323-03 Contact Us For Availability
32
TUBE-DRAIN WCI G155529-02 Contact Us For Availability
32
WCI G159902 WCI G159902 Contact Us For Availability
33
WCI M1090016 WCI M1090016 Contact Us For Availability
34
WCI G149013 WCI G149013 Contact Us For Availability
34
WCI G159906 WCI G159906 Contact Us For Availability
34A
TRIM-REAR (NON-ILLUSTRATED) WCI G172409-10 Contact Us For Availability
35
WCI G178323-05 WCI G178323-05 Contact Us For Availability
35
CUP WCI G162179 Contact Us For Availability
36
TRIM-FRONT WCI G187267-10 Contact Us For Availability
36
WCI G162180 WCI G162180 Contact Us For Availability
36
WCI M1090120 WCI M1090120 Contact Us For Availability
36A
TRIM-REAR (NON-ILLUSTRATED) WCI G172409-11 Contact Us For Availability
37
WCI G162840-01 WCI G162840-01 Contact Us For Availability
37A
GASKET (NON-ILLUSTRATED) WCI G180108-02 Contact Us For Availability
38
SUPT-CRISP. CVR. WCI G166310-01 Contact Us For Availability
38
TROUGH WCI G170071 Contact Us For Availability
38
WCI G159908 WCI G159908 Contact Us For Availability
38A
WCI G180067 WCI G180067 Contact Us For Availability
39
GLASS-SHELF WCI G171654-29 Contact Us For Availability
39
BLOCK, LH WCI G185298 Contact Us For Availability
39
WCI G164769 WCI G164769 Contact Us For Availability
40
PAN-STORAGE WCI G179706-02 Contact Us For Availability
40
WCI G101620 WCI G101620 Contact Us For Availability
40
WCI G164766 WCI G164766 Contact Us For Availability
41
PAN-STORAGE WCI G179706-03 Contact Us For Availability
41
BLOCK, RH WCI G163099 Contact Us For Availability
43
PAN, MEAT WCI G176918-03 Contact Us For Availability
44
TRIM-MEAT PAN WCI G177343-06 Contact Us For Availability
45
FRAME-CANT. MEAT WCI G187217-01 Contact Us For Availability
46
TRIM-FRONT WCI G187267-11 Contact Us For Availability
46A
TRIM-REAR (NON-ILLUSTRATED) WCI G172409-09 Contact Us For Availability
47
GLASS-SHELF WCI G171654-27 Contact Us For Availability
48
HANGER-MEAT RH WCI G187216-01 Contact Us For Availability
48A
HANGER-MEAT LH (NON-ILLUSTRATED) WCI G187215-01 Contact Us For Availability
49
HINGE-LWR WCI G162383 Contact Us For Availability
50
SHIM-LWR WCI G162903 Contact Us For Availability
51
GRILL-FRONT WCI G163080-03 Contact Us For Availability
52
CLIP-GRILL WCI G162994 Contact Us For Availability
53
ROLLER-FRONT (2) WCI G186731 Contact Us For Availability
54
BOLT WCI G166171 Contact Us For Availability
55
WCI G142361 WCI G142361 Contact Us For Availability
56
PLATE, TAPPING WCI G179797 Contact Us For Availability
57
ROLLER, REAR WCI G162808 Contact Us For Availability
58
PIN WCI G162809 Contact Us For Availability
60
STRINGER WCI G170695 Contact Us For Availability
61
STRAP WCI G165781 Contact Us For Availability
62
WCI G174733 WCI G174733 Contact Us For Availability
63
WCI G174734 WCI G174734 Contact Us For Availability
64
TUBE WCI G85642 Contact Us For Availability
65
BUTTON-PLUG (6) WCI G187599 Contact Us For Availability
66
SUPT-EVAP. CVR WCI G163669 Contact Us For Availability
67
SUPPORT (4) WCI G163105 Contact Us For Availability
68
SCREW WCI G187527 Contact Us For Availability
× ![]()
