Model Electrolux RT194KCF0 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR PARTS

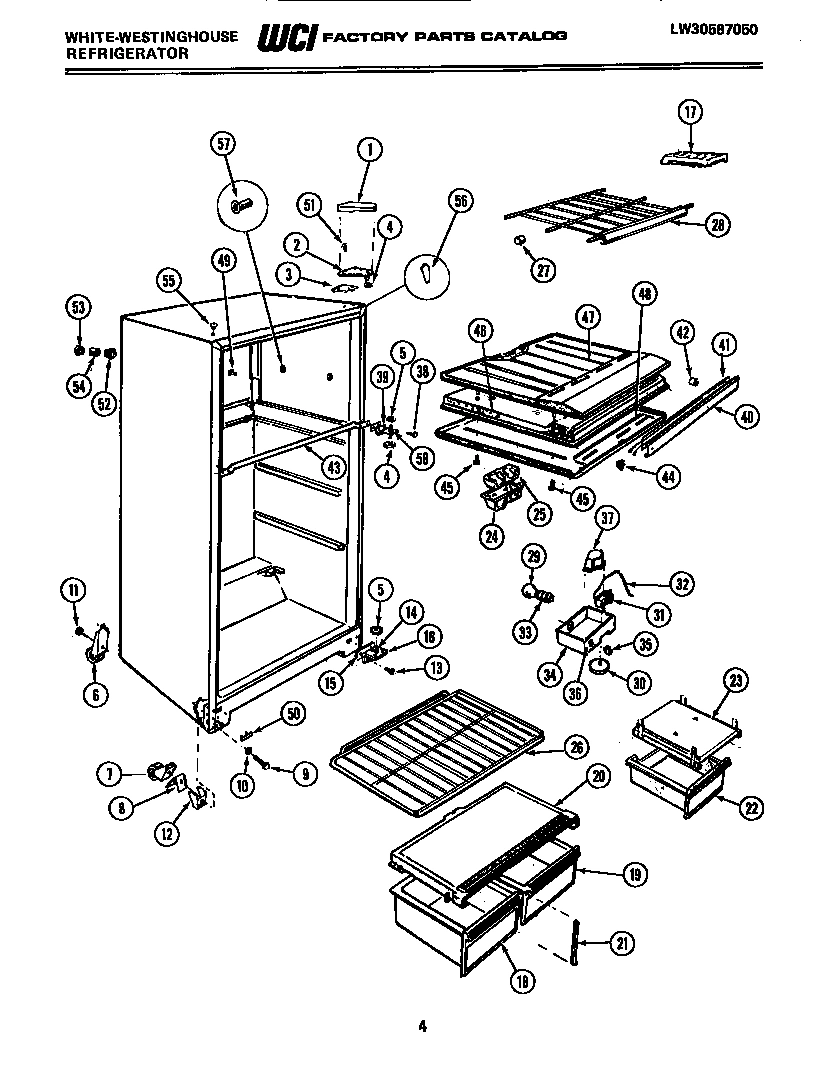

03 - CABINET PARTS

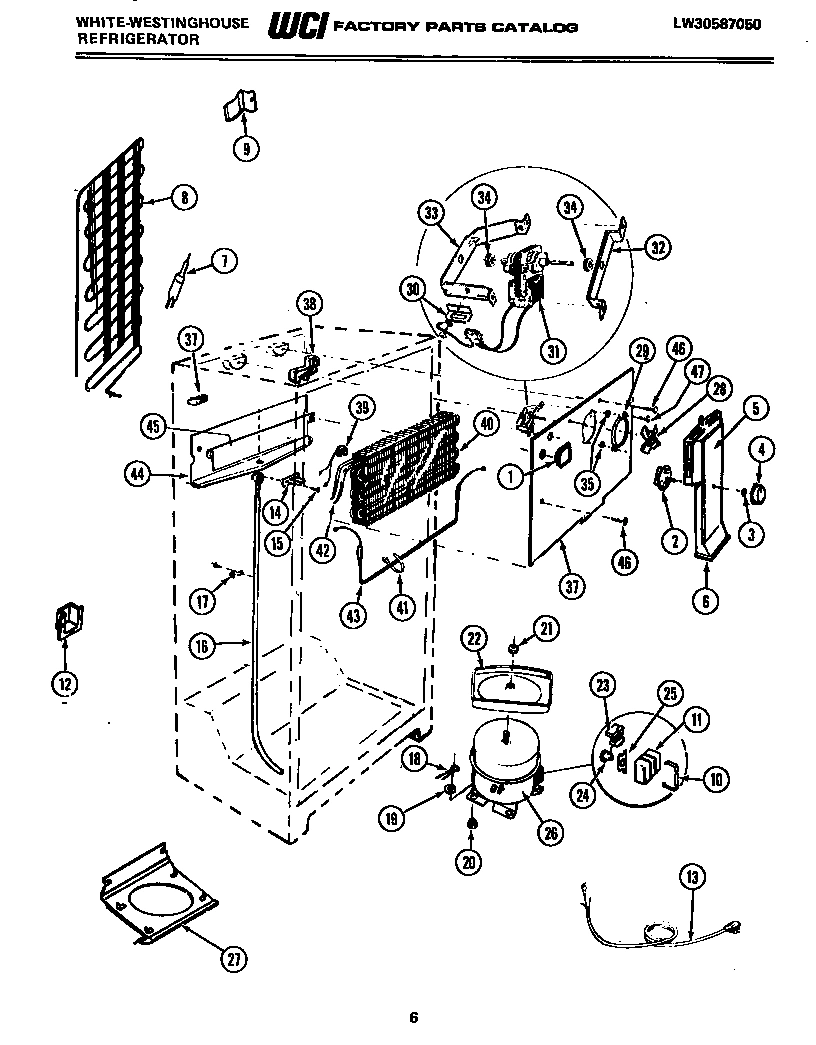

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT194KCF0 REFRIGERATOR
1
COVER-HNG COFE WCI G183558-10 Contact Us For Availability
1
PLUG-DECOR. WCI G162827-13 Contact Us For Availability
2
HINGE WCI G183714 Contact Us For Availability
2
DAMPER-AIR WCI G162661 Contact Us For Availability
3
GASKET WCI G186932-12 Contact Us For Availability
3
SHIM WCI G183861 Contact Us For Availability
3
NUT, PUSH WCI G162662 Contact Us For Availability
4
WCI G103903 No Longer Available
4
RACK-FRONT WCI G161019-56 Contact Us For Availability
4
WCI G162663-13 WCI G162663-13 Contact Us For Availability
5
SUPT-RH WCI G185363-01 Contact Us For Availability
5
WASHER (NYLON) WCI G164355 Contact Us For Availability
5
LABEL WCI G187640 Contact Us For Availability
6
SUPT-LH WCI G185364-01 Contact Us For Availability
6
ROLLER ASSY WCI G183407 Contact Us For Availability
6
COVER WCI G490076-01 Contact Us For Availability
7
WCI G162977-10 WCI G162977-10 Contact Us For Availability
7
ROLLER ASSY WCI G177021 Contact Us For Availability
7
WCI R900983 WCI R900983 Contact Us For Availability
7A
DRIER-BURNED SYS. WCI R900125 Contact Us For Availability
8
WCI G169332-10 WCI G169332-10 Contact Us For Availability
8
SPRING WCI G178494 Contact Us For Availability
8
WCI G163133 WCI G163133 Contact Us For Availability
9
GRIP-HNDL WCI G175666-18 Contact Us For Availability
9
BOLT WCI G177024 Contact Us For Availability
9
BRACKET-COND. WCI G164637 Contact Us For Availability
10
END-HNDL WCI G175809 Contact Us For Availability
10
WASHER, NYLON WCI G182799 Contact Us For Availability
11
WCI R304001 WCI R304001 Contact Us For Availability
11
BOLT WCI G177025 Contact Us For Availability
12
WCI G185566 WCI G185566 Contact Us For Availability
12
SUPT.-BASE TO CAB. WCI G177302 Contact Us For Availability
12
WCI G183584 WCI G183584 Contact Us For Availability
13
END (2) WCI G187329-01 Contact Us For Availability
13
WCI G162549-01 WCI G162549-01 Contact Us For Availability
14
WCI R2001045 WCI R2001045 Contact Us For Availability
14
SPOUT, DRAIN WCI G162179 Contact Us For Availability
15
BEARING-HNG WCI G183138 Contact Us For Availability
15
SHIM WCI G163203 Contact Us For Availability
15
WCI G185279 WCI G185279 Contact Us For Availability
16
DOOR-DAIRY (2) WCI G178500-09 Contact Us For Availability
16
BRACKET-HNG. WCI G181019 Contact Us For Availability
16
TUBE, DRAIN WCI G184920-01 Contact Us For Availability
17
PANEL-INNER WCI G185397-03 Contact Us For Availability
17
WCI R2901 WCI R2901 Contact Us For Availability
17
WCI G101747 WCI G101747 Contact Us For Availability
18
GASKET WCI G186932-13 Contact Us For Availability
18
PAN-CRSPR. WCI G490015-01 Contact Us For Availability
18
CLIP WCI G163204 Contact Us For Availability
19
RACK-FRONT (2) WCI G161019-52 Contact Us For Availability
19
WCI G176639-22 WCI G176639-22 Contact Us For Availability
19
WASHER WCI G164634 Contact Us For Availability
20
END-HNDL WCI G175810 Contact Us For Availability
20
WCI G490064-03 WCI G490064-03 Contact Us For Availability
21
WCI R2001052 WCI R2001052 Contact Us For Availability
21
SUPT CRSPR. WCI G166310-02 Contact Us For Availability
21
NUT WCI G164958 Contact Us For Availability
22
WCI G173948-17 WCI G173948-17 Contact Us For Availability
22
WCI G176918-22 WCI G176918-22 Contact Us For Availability
22
PAN-DEFR. WCI G184716 Contact Us For Availability
23
WCI G177106-06 WCI G177106-06 Contact Us For Availability
23
WCI G182225-11 WCI G182225-11 Contact Us For Availability
23A
INSUL. 34`` X 48`` X 1/2`` (NON-ILLUSTRATED) WCI C69109 Contact Us For Availability
23B
INSUL. 34`` X 48`` X 1`` (NON-ILLUSTRATED) WCI C69110 Contact Us For Availability
23C
INSUL. 34`` X 48`` X 2`` (NON-ILLUSTRATED) WCI C69111 Contact Us For Availability
24
COVER WCI G162178 Contact Us For Availability
24
WCI G185810 WCI G185810 Contact Us For Availability
25
DEFL. WCI G162675 Contact Us For Availability
25
RETAINER-O.L. WCI G188957 Contact Us For Availability
26
WCI G179415-02 WCI G179415-02 Contact Us For Availability
26
COMPR. W/ ELECT. WCI C620106 Contact Us For Availability
27
CAP-PROT. WCI G166495-01 Contact Us For Availability
27
PLATE-MTG WCI G184599 Contact Us For Availability
28
SHELF WCI G184193-02 Contact Us For Availability
29
WCI Q63749 WCI Q63749 Contact Us For Availability
29
RING-ORIFICE WCI G167217 Contact Us For Availability
30
KNOB WCI G490107-02 Contact Us For Availability
30
BRACKET WCI G164571 Contact Us For Availability
31
WCI G162205-11 WCI G162205-11 Contact Us For Availability
31A
WCI G107080 WCI G107080 Contact Us For Availability
32
WCI G185302 WCI G185302 Contact Us For Availability
33
SOCKET WCI G168302 Contact Us For Availability
33
WCI G185303 WCI G185303 Contact Us For Availability
34
BOX WCI G176722-01 Contact Us For Availability
35
WCI G178402-02 WCI G178402-02 Contact Us For Availability
35
BUSHING-MTR. WCI G187599 Contact Us For Availability
36
LABEL WCI G180105 Contact Us For Availability
36
COVER WCI G177529 Contact Us For Availability
37
WCI G162807 WCI G162807 Contact Us For Availability
38
SCREW (4) WCI G183103 Contact Us For Availability
38
BLOCK R.S. WCI G185299 Contact Us For Availability
38A
PLUG-BLOCK R.S. (NON-ILLUSTRATED) WCI G185276 Contact Us For Availability
39
BRACKET-HNG WCI G163207 Contact Us For Availability
40
EVAPORATOR WCI G164572 Contact Us For Availability
41
WCI G177254 WCI G177254 Contact Us For Availability
42
SPACER (2) WCI G490082 Contact Us For Availability
42
WCI G147918 WCI G147918 Contact Us For Availability
42A
WASHER (4) (NON-ILLUSTRATED) WCI G166847 Contact Us For Availability
43
WCI G490087 WCI G490087 Contact Us For Availability
44
TROUGH WCI G177534 Contact Us For Availability
45
SCREW (3) WCI G162673 Contact Us For Availability
45
INSULATOR WCI G166511-01 Contact Us For Availability
46
DIVIDER, STYRO WCI G176777 Contact Us For Availability
47
BTM. FZR. WCI G185912 Contact Us For Availability
48
TOP-REFR. WCI G490021-02 Contact Us For Availability
49
SUPPORT (2) WCI G163669 Contact Us For Availability
50
BTN-PLUG WCI G166912 Contact Us For Availability
52
WCI G174733 WCI G174733 Contact Us For Availability
53
WCI G174734 WCI G174734 Contact Us For Availability
54
TUBE WCI G85642 Contact Us For Availability
55
WCI G174747-10 WCI G174747-10 Contact Us For Availability
56
TRIM-CRNR. COFE WCI G179684-10 Contact Us For Availability
57B
HARNESS-DIVIDER (NON-ILLUSTRATED) WCI G174818 Contact Us For Availability
57C
BTN-PLUG (2) (NON-ILLUSTRATED) WCI G162892-01 Contact Us For Availability
58
WCI G142220 WCI G142220 Contact Us For Availability
× ![]()
