Model Electrolux RT193GCV5 REFRIGERATOR – Common Parts & Diagrams

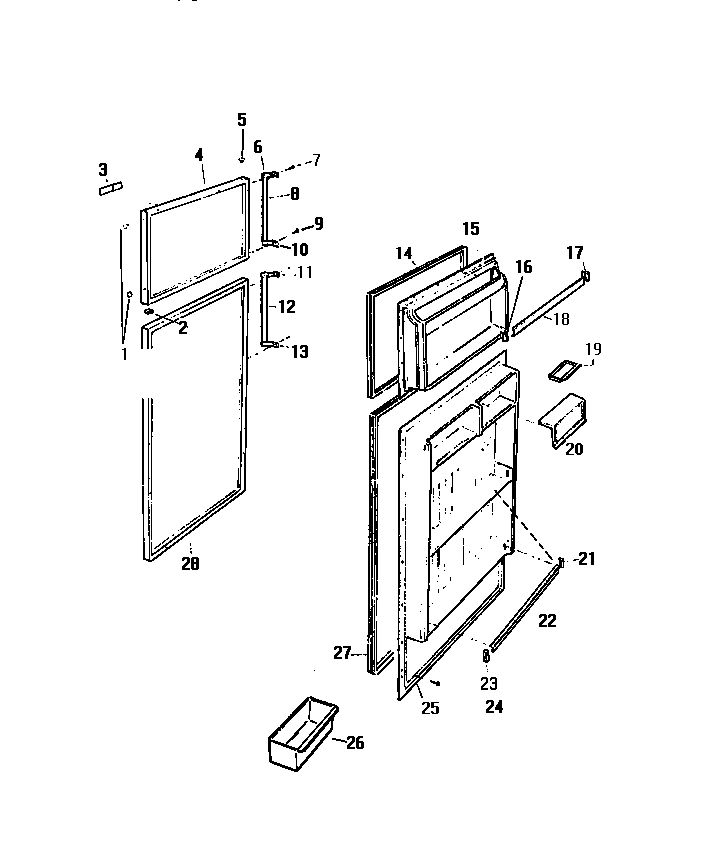

02 - DOOR

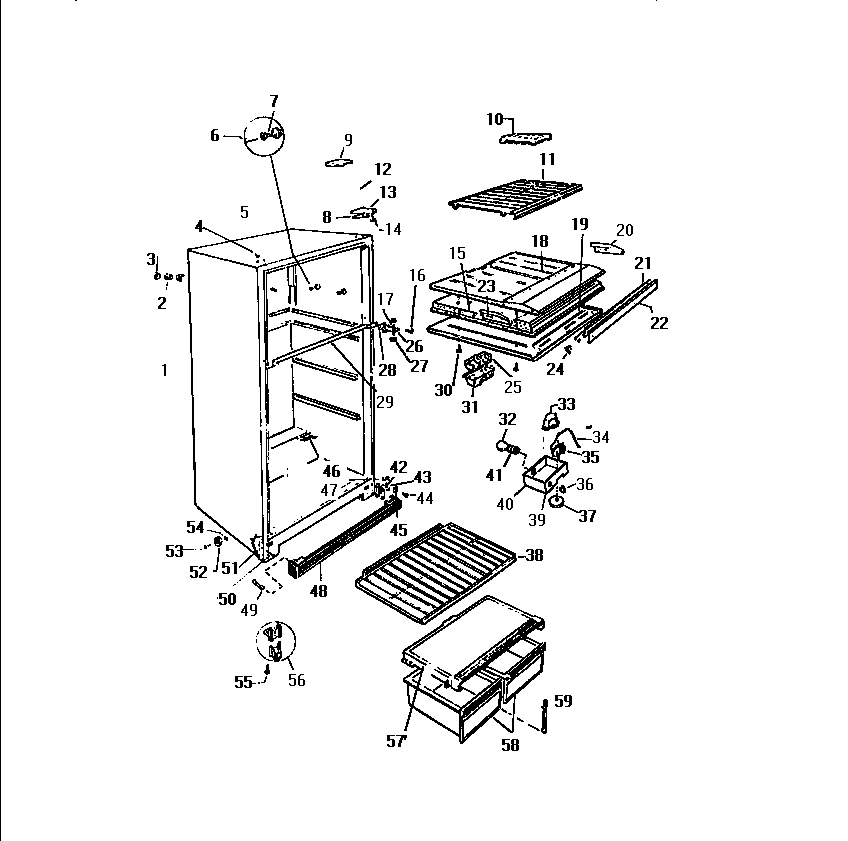

03 - CABINET, SHELVES, DIVIDER, FAN ASSE
04 - COOLING SYSTEM
Common parts from model Electrolux RT193GCV5 REFRIGERATOR
*65520
INSULATION, 34`` X 48`` X 1`` WCI C69110 Contact Us For Availability
*65521
INSULATON 34`` X 48`` X 1/2`` WCI C69109 Contact Us For Availability
*65523
INSULATION, 34 `` X 48`` X 2`` WCI C69111 Contact Us For Availability
*65524
HARNESS WIRE, DIVIDER WCI G174831 Contact Us For Availability
*65525
BUTTON PLUG (2) WCI G162892-01 Contact Us For Availability
*65526
BUTTON, PLUG (3) WCI G187599 Contact Us For Availability
*65528
HARNESS, COMPRESSOR WIRING WCI G162733-02 Contact Us For Availability
1
WCI G162977-08 WCI G162977-08 Contact Us For Availability
1
FERRULE WCI G174733 Contact Us For Availability
1
DRAIN TUBE (CUT TO LENGTH) WCI G155529-05 Contact Us For Availability
2
BEARING, HINGE WCI G183138 Contact Us For Availability
2
TUBE WCI G85642 Contact Us For Availability
2
WCI G101747 WCI G101747 Contact Us For Availability
3
WCI R304001 WCI R304001 Contact Us For Availability
3
FERRULE WCI G174734 Contact Us For Availability
4
WCI G180062-08 WCI G180062-08 Contact Us For Availability
4
WCI G174747-08 WCI G174747-08 Contact Us For Availability
4
WCI G183584 WCI G183584 Contact Us For Availability
5
WCI G169332-08 WCI G169332-08 Contact Us For Availability
5
SUPPORT WCI G163669 Contact Us For Availability
5
WCI G162180 WCI G162180 Contact Us For Availability
6
SCREW WCI G163104 Contact Us For Availability
6
TROUGH WCI G170071 Contact Us For Availability
7
SUPPORT WCI G163105 Contact Us For Availability
7
INSULATION, FOAM WCI G166511-01 Contact Us For Availability
8
WCI 183861 WCI 183861 Contact Us For Availability
8
PLUG, BLOCK WCI G185277 Contact Us For Availability
9
WCI G185566 WCI G185566 Contact Us For Availability
9
COVER HINGE, AVOCADO WCI G183558-08 Contact Us For Availability
9
BLOCK, LH WCI G185298 Contact Us For Availability
10
ICE TRAY WCI R2901 Contact Us For Availability
10
WCI G101620 WCI G101620 Contact Us For Availability
11
END CAP WCI G175809 Contact Us For Availability
11
SHELF WCI G163002-01 Contact Us For Availability
11
BLOCK WCI G163099 Contact Us For Availability
12
HANDLE WCI G175666-18 Contact Us For Availability
12
DRIER, REGULAR WCI R900983 Contact Us For Availability
12A
DRIER, BURNED SYSTEM WCI R900125 Contact Us For Availability
13
END CAP WCI G175810 Contact Us For Availability
13
HINGE WCI G183714 Contact Us For Availability
13
WCI G189768 WCI G189768 Contact Us For Availability
13A
HOT TUBE REPAIR KIT WCI G189377 Contact Us For Availability
14
GASKET WCI G186932-08 Contact Us For Availability
14
WASHER, NYLON WCI G101970 Contact Us For Availability
14
BRACKET, CONDENSER (4) WCI G164637 Contact Us For Availability
15
INNER PANEL WCI G179979-01 Contact Us For Availability
15
CENTER (STYRO) WCI G170078 Contact Us For Availability
15
WCI G185279 WCI G185279 Contact Us For Availability
16
SCREW WCI G183103 Contact Us For Availability
16
BRACKET WCI G164571 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
BRACKET WCI G185303 Contact Us For Availability
18
DIVIDER, BOTTOM WCI G161919-02 Contact Us For Availability
19
DIVIDER, TOP OF REF-METAL WCI G174715 Contact Us For Availability
20
DAIRY DOOR WCI G179967-01 Contact Us For Availability
20
WCI G162176 WCI G162176 Contact Us For Availability
20
BRACKET WCI G185302 Contact Us For Availability
21
END CAP RH WCI G176891-01 Contact Us For Availability
21
HEATER WCI G177254 Contact Us For Availability
22
FRONT (CUT TO SIZE) WCI G490079-09 Contact Us For Availability
22
WCI G162051-08 WCI G162051-08 Contact Us For Availability
23
END CAP LH WCI G176892-01 Contact Us For Availability
23
WCI G162177 WCI G162177 Contact Us For Availability
24
CUP WCI G162179 Contact Us For Availability
24A
WCI G162545 WCI G162545 Contact Us For Availability
24B
HEAT EXCHANGER REPAIR KIT WCI G161672 Contact Us For Availability
25
INNER PANEL WCI G179874-01 Contact Us For Availability
25
BAFFLE WCI G162675 Contact Us For Availability
26
EGG CONTAINER WCI G173948-17 Contact Us For Availability
26
HINGE WCI G162384 Contact Us For Availability
27
GASKET WCI G186932-09 Contact Us For Availability
27
EVAPORATOR L/HEATER WCI G164572 Contact Us For Availability
28
WCI G180149-08 WCI G180149-08 Contact Us For Availability
28
WCI G000162683 WCI G000162683 Contact Us For Availability
28
BUTTON DECOR WCI G162827-13 Contact Us For Availability
29
STRAP WCI G165781 Contact Us For Availability
29
COVER WCI G162050-02 Contact Us For Availability
30
SCREW WCI G162673 Contact Us For Availability
30
SPEED NUT (2) WCI G167542 Contact Us For Availability
31
COVER WCI G162178 Contact Us For Availability
31
RING WCI G167217 Contact Us For Availability
32
WCI Q63749 WCI Q63749 Contact Us For Availability
34
LABEL WCI G180137 Contact Us For Availability
35
CONTROL WCI G162667-11 Contact Us For Availability
35
WCI G162663-13 WCI G162663-13 Contact Us For Availability
36
SWITCH WCI G178402-02 Contact Us For Availability
36
CLIP WCI G162662 Contact Us For Availability
37
KNOB WCI G490107-02 Contact Us For Availability
37
COVER WCI G179793-02 Contact Us For Availability
38
SHELF WCI G169226-02 Contact Us For Availability
38
DAMPER (AIR FLOW) WCI G162661 Contact Us For Availability
39
LABEL WCI G180105 Contact Us For Availability
39
COMPRESSOR W/ ELECT. WCI G188879 Contact Us For Availability
40
BOX WCI G176722-01 Contact Us For Availability
40
WCI G182225-18 WCI G182225-18 Contact Us For Availability
41
SOCKET WCI G168302 Contact Us For Availability
43
HINGE WCI G162383 Contact Us For Availability
44
SCREW WCI G162656 Contact Us For Availability
44
WCI G188877 WCI G188877 Contact Us For Availability
45
NUT WCI G77210 Contact Us For Availability
45
PLATE DEFR. WCI G172513 Contact Us For Availability
46
WASHER (NYLON) WCI G164355 Contact Us For Availability
46
CLIP PAN WCI G164354 Contact Us For Availability
47
SHIM WCI G162903 Contact Us For Availability
47
WCI G162549-01 WCI G162549-01 Contact Us For Availability
48
WCI G162080-02 WCI G162080-02 Contact Us For Availability
48
STRAP WCI G188897 Contact Us For Availability
49
CLIP (2) WCI G162994 Contact Us For Availability
49
PAN WCI G162890 Contact Us For Availability
50
WCI G142361 WCI G142361 Contact Us For Availability
50
CAPACITOR WCI G188885-01 Contact Us For Availability
51
TAP PLATE WCI G157591 Contact Us For Availability
52
WCI G162808 WCI G162808 Contact Us For Availability
52
WCI G154888 WCI G154888 Contact Us For Availability
53
PIN WCI G162809 Contact Us For Availability
53
WASHER WCI G164634 Contact Us For Availability
54
SCREW WCI G183344 Contact Us For Availability
55
BOLT WCI G145103 Contact Us For Availability
56
ROLLER COMPL (2) WCI G186731 Contact Us For Availability
57
WCI G16284001 WCI G16284001 Contact Us For Availability
58
PAN CRISPER WCI G179706-01 Contact Us For Availability
59
SUPPORT WCI G166310-01 Contact Us For Availability
× ![]()
