Model Electrolux RT192GCHC REFRIGERATOR – Common Parts & Diagrams

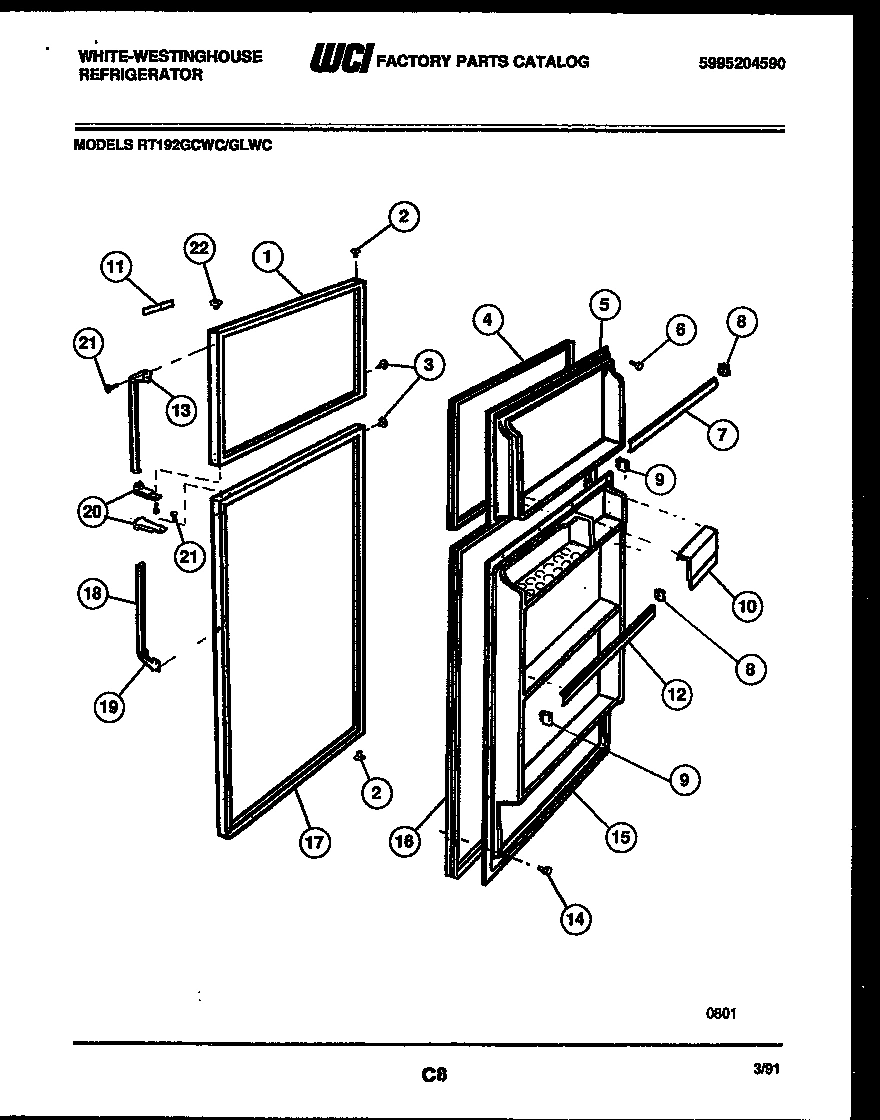

02 - DOOR PARTS

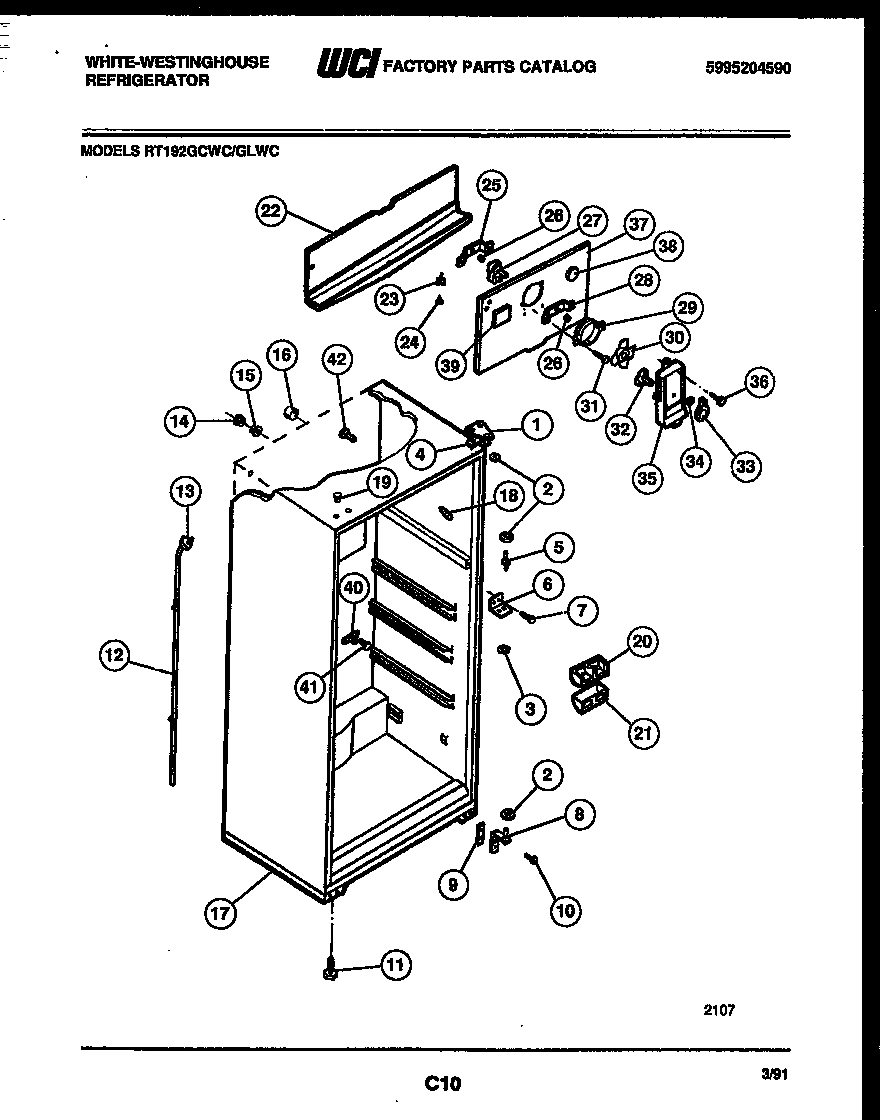

03 - CABINET PARTS

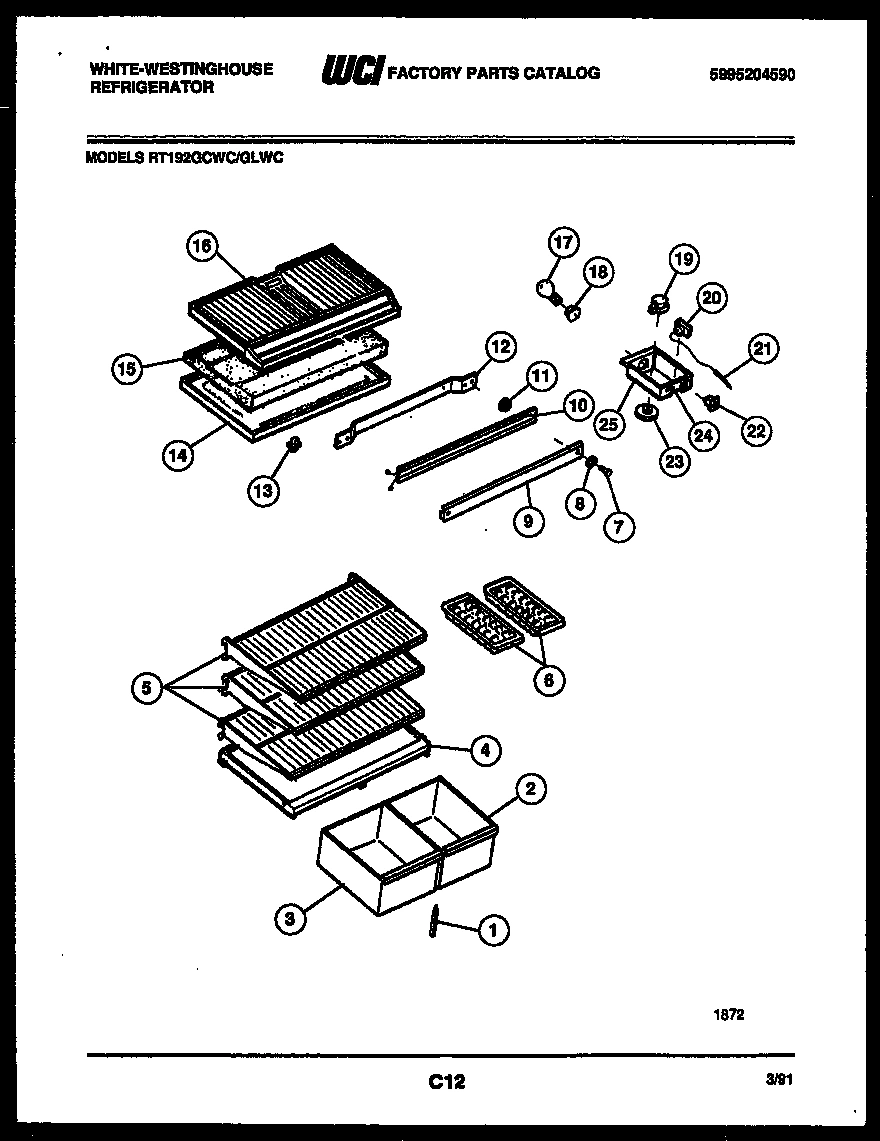

04 - SHELVES AND SUPPORTS

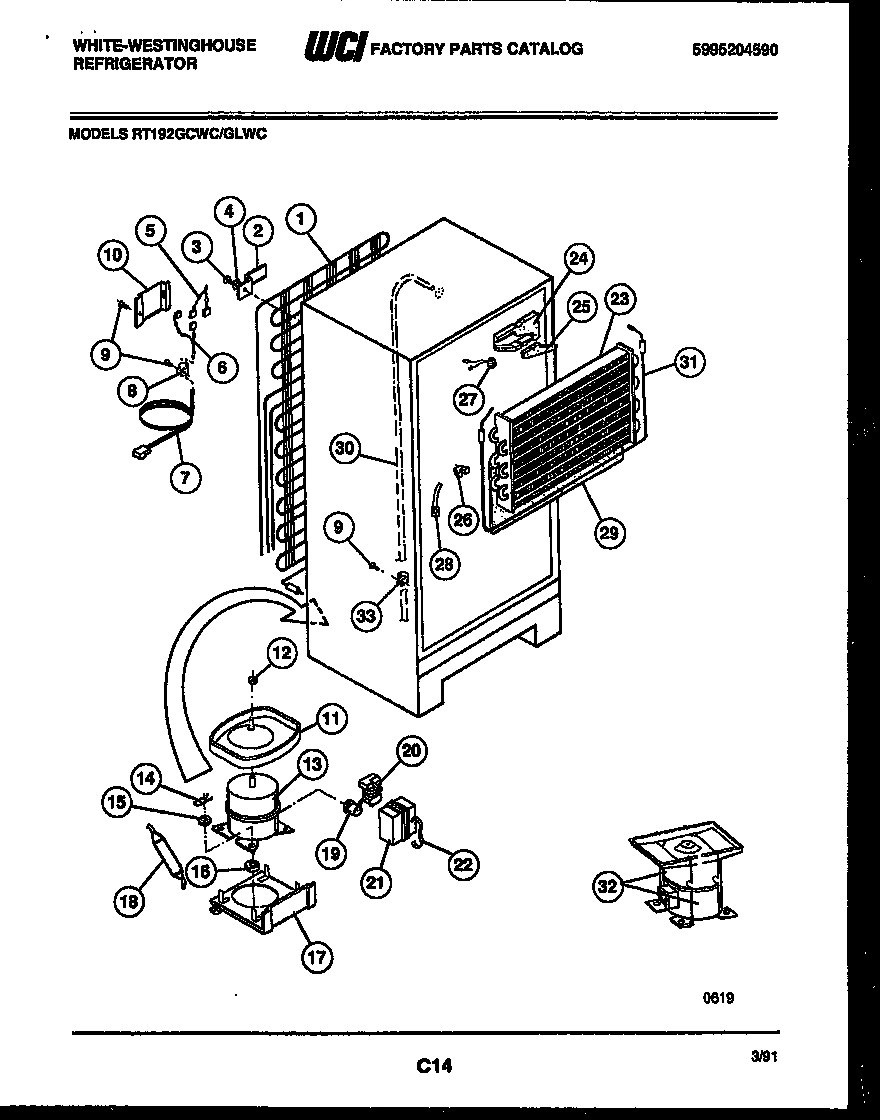

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT192GCHC REFRIGERATOR
*42772
PLUG - LINER (3) WCI 5308016571 Contact Us For Availability
*42778
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
SUPPORT-CRISPER COVER WCI 5303205987 Contact Us For Availability
1
BRACKET-TOP-HINGE WCI 5308012843 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
3
WASHER-NYLON (2) WCI 5308000186 No Longer Available
3
WCI 3016366 WCI 3016366 Contact Us For Availability
4
COVER-CRISPER WCI 3015045 Contact Us For Availability
4
WASHER-NO. 10 EXT TOOTH LOCK WCI 5308009617 Contact Us For Availability
5
HINGE PIN-CENTER WCI 5308000184 Contact Us For Availability
5
SHELF - SLIDING (3) WCI 08009921 Contact Us For Availability
5
WIRING HARNESS-DIVIDER WCI 3001383 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
WCI 5308012258 WCI 5308012258 Contact Us For Availability
7
WCI 5316254901 WCI 5316254901 Contact Us For Availability
8
WASHER-MULLION MTG (2) WCI 5303206754 Contact Us For Availability
9
SUPT-RACK LH (4) WCI 5303007297 Contact Us For Availability
9
WCI 5303200368 WCI 5303200368 Contact Us For Availability
10
MULLON HEATER WCI 5303210351 Contact Us For Availability
10
WCI 5303001197 WCI 5303001197 Contact Us For Availability
11
SCREW-LEVELING (4) WCI 5303212922 Contact Us For Availability
11
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
11
DEFROST PAN WCI 5300184715 Contact Us For Availability
12
DRAIN TUBE W/ RING SEAL WCI 5303210377 Contact Us For Availability
12
STRAP-MULLION WCI 5308010008 Contact Us For Availability
12
WCI 5303001348 WCI 5303001348 Contact Us For Availability
13
RING - SEAL WCI 5303207353 Contact Us For Availability
13
COMPRESSOR W/ ELECTRICALS WCI 5303916411 Contact Us For Availability
14
WCI 5303016367 WCI 5303016367 Contact Us For Availability
14
CLIP (4) WCI 5308003596 Contact Us For Availability
14A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
15
WCI 5303001504 WCI 5303001504 Contact Us For Availability
15
WASHER (4) WCI 5308003633 Contact Us For Availability
16
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
17
MOUNTING PLATE WCI 5308013663 Contact Us For Availability
18
LIGHT SOCKET WCI 5308000129 Contact Us For Availability
18
TRIM - CAB CORNER - WHEAT (4) WCI 5303202338 Contact Us For Availability
19
WCI 5303270406 WCI 5303270406 Contact Us For Availability
19
WCI 5303001015 WCI 5303001015 Contact Us For Availability
19
PLUG BUTTON-HINGE-WHEAT WCI 5303001678 Contact Us For Availability
20
CONTROL-TEMP WCI 5303200810 Contact Us For Availability
20
END-HANDLE (2) WCI 5303001296 Contact Us For Availability
20
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
20A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
21
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
22
WCI 5303001470 WCI 5303001470 Contact Us For Availability
22
SWITCH-SLIDE WCI 5303001670 Contact Us For Availability
23
WCI 5308000107 WCI 5308000107 Contact Us For Availability
23
KNOB-CONTROL WCI 5308010011 Contact Us For Availability
23
WCI 5303271578 WCI 5303271578 Contact Us For Availability
24
WCI G000180105 WCI G000180105 Contact Us For Availability
24
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
25
BRACKET - MTR MTG REAR WCI 5303205119 Contact Us For Availability
25
WCI 5317672201 WCI 5317672201 Contact Us For Availability
25
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
26
WCI 5300157666 WCI 5300157666 Contact Us For Availability
26
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
28
BRACKET-MTR MTG FRONT WCI 5303205118 Contact Us For Availability
29
INSULATOR, PLASTIC WCI 5316651102 Contact Us For Availability
29
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
30
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
32
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
32
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
33
KNOB-DAMPER CONT W/ LABEL WCI 5316266315 Contact Us For Availability
34
NUT, PUSH WCI 5303001028 Contact Us For Availability
35
WCI 5349007601 WCI 5349007601 Contact Us For Availability
35A
WCI G000187640 WCI G000187640 Contact Us For Availability
37
COVER, COIL WCI 5308009771 Contact Us For Availability
37A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
39
WCI 5303018193 WCI 5303018193 Contact Us For Availability
40
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
41
PUSH PIN-SPOUT WCI 5303001361 Contact Us For Availability
× ![]()
