Model Electrolux RT192GCHB REFRIGERATOR – Common Parts & Diagrams

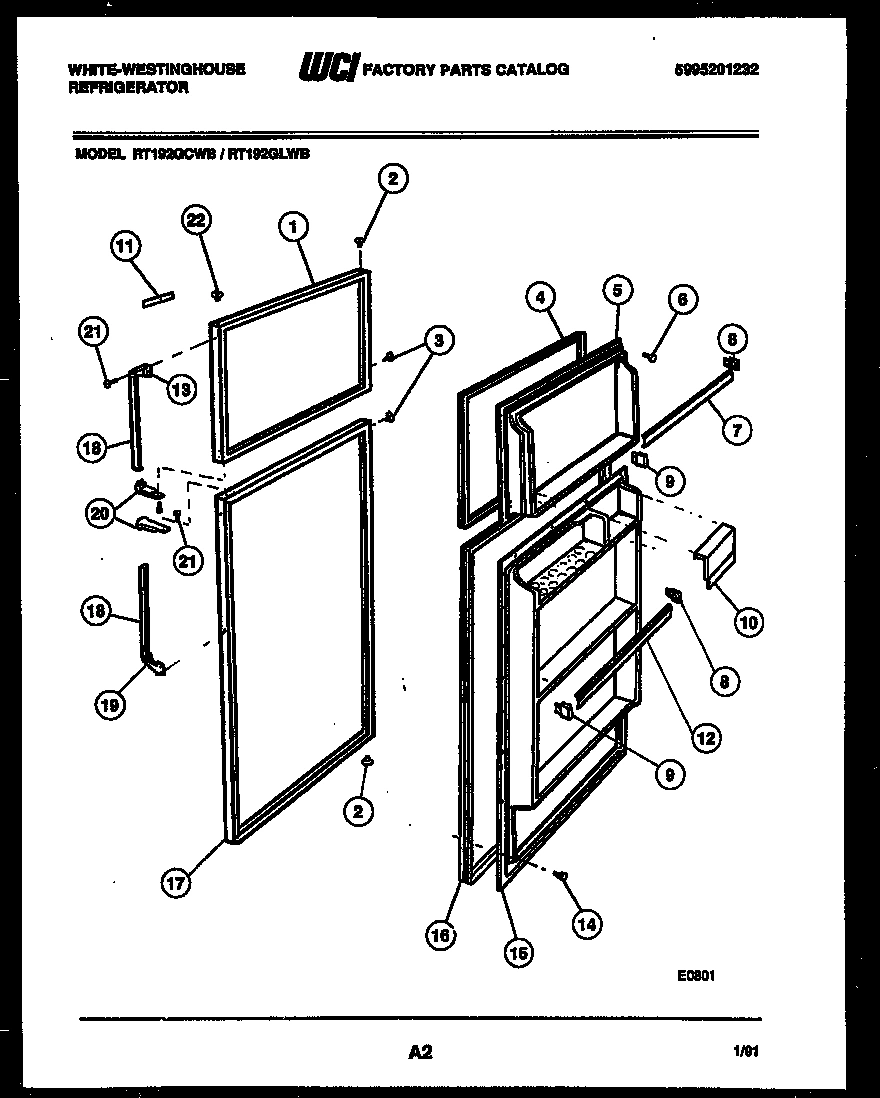

02 - DOOR PARTS

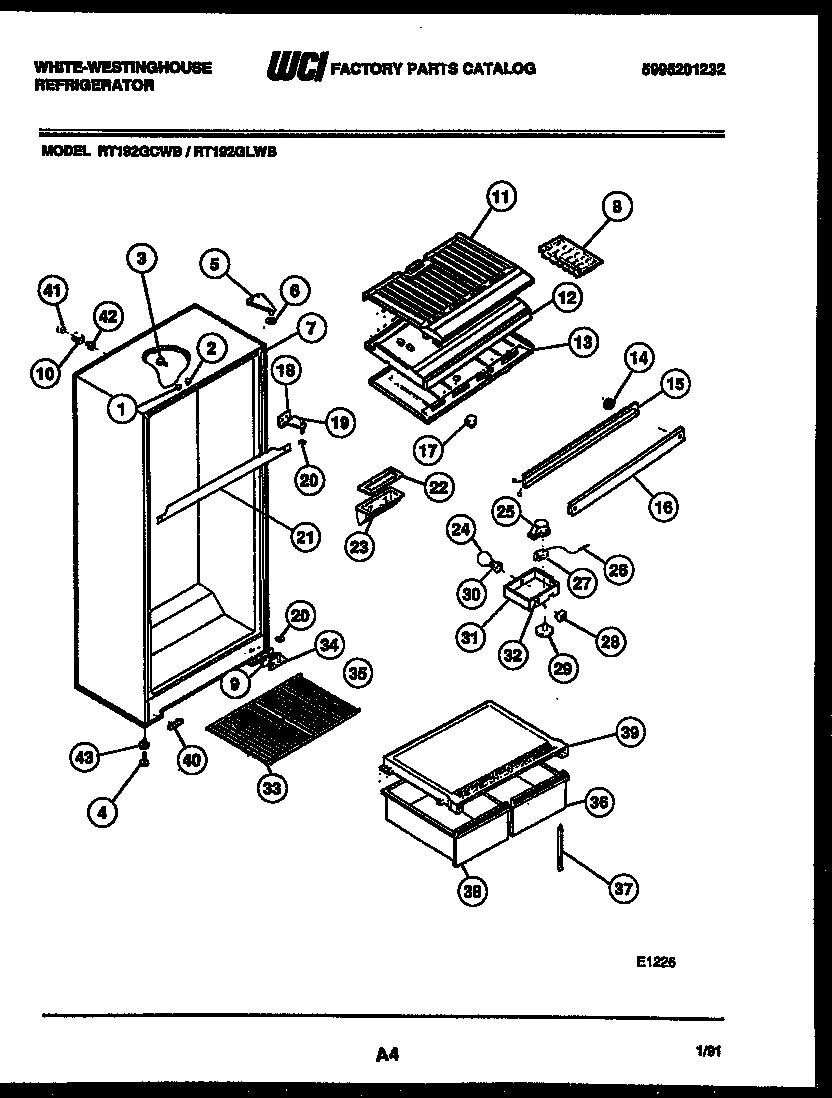

03 - CABINET PARTS

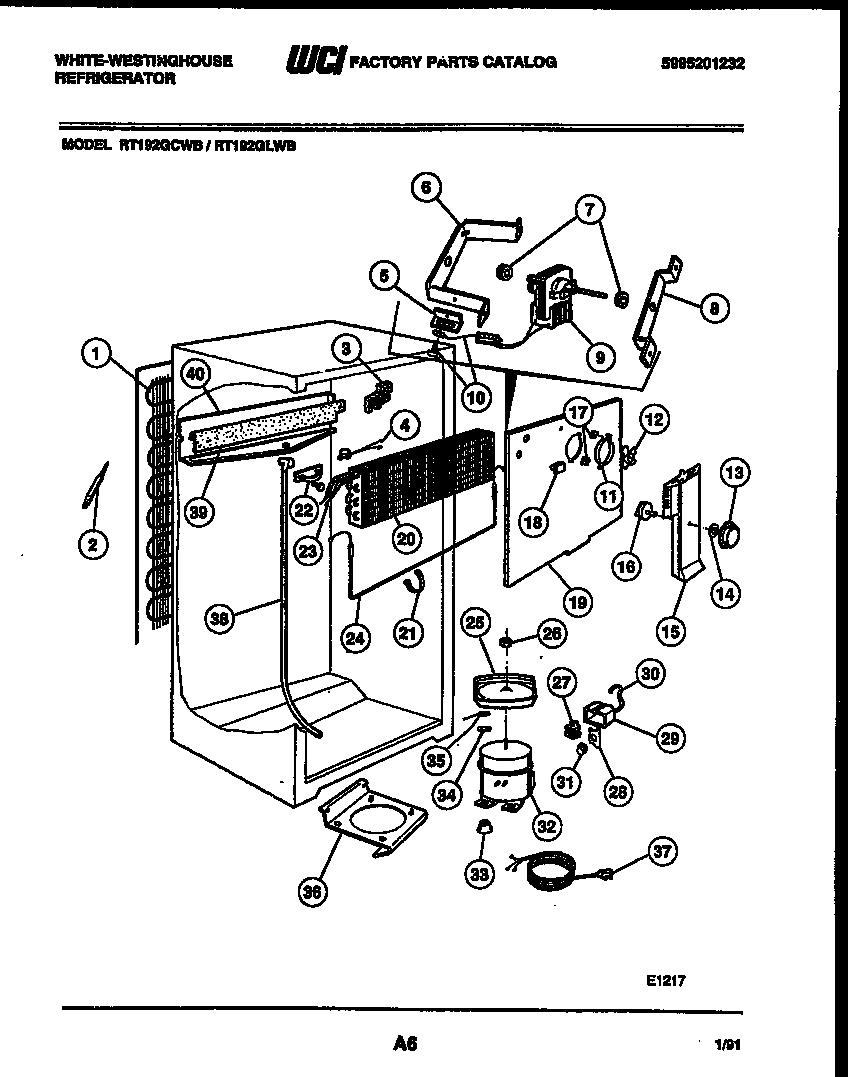

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT192GCHB REFRIGERATOR
*34232
LABEL REAR PANEL IM WCI 08016565 Contact Us For Availability
*34233
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*34241
WCI 3001383 WCI 3001383 Contact Us For Availability
1
WCI G174747-09 WCI G174747-09 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
1
WCI G164637 WCI G164637 Contact Us For Availability
2
SUPPORT-COIL CVR (2) WCI G163669 Contact Us For Availability
3
BLOCK, EVAPORATOR, RH WCI G185299 Contact Us For Availability
3A
BLOCK-EVAPORATOR LH WCI G188375 Contact Us For Availability
4
SCREW, LEVELING (2) WCI 5303205540 Contact Us For Availability
5
BRACKET-TOP-HINGE WCI 5308012843 Contact Us For Availability
5
WCI G164571 WCI G164571 Contact Us For Availability
6
SHIM HINGE WCI 5303001037 Contact Us For Availability
6
BRACKET - MTR MTG REAR WCI 5303205119 Contact Us For Availability
7
TRIM - CAB CORNER - WHEAT (4) WCI 5303202338 Contact Us For Availability
7
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
BRACKET-MTR MTG FRONT WCI G185302 Contact Us For Availability
9
SHIM-LOWER HINGE WCI 5303001323 Contact Us For Availability
10
WCI G85642 WCI G85642 Contact Us For Availability
11
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
11
WCI G185912 WCI G185912 Contact Us For Availability
12
WCI G176777 WCI G176777 Contact Us For Availability
13
TOP-REFRIGERATOR WCI 3016367 Contact Us For Availability
13
KNOB - DAMPR CONT WCI 5316266315 Contact Us For Availability
13
LABEL-FAN COVER WCI G187640 Contact Us For Availability
14
WCI 5303200464 WCI 5303200464 Contact Us For Availability
14
NUT, PUSH WCI G162662 Contact Us For Availability
15
WCI 5308002662 WCI 5308002662 Contact Us For Availability
15
WCI G490076-01 WCI G490076-01 Contact Us For Availability
16
WCI 5303200368 WCI 5303200368 Contact Us For Availability
16
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
17
NUT-SPEED WCI G167542 Contact Us For Availability
18
WCI G142220 WCI G142220 Contact Us For Availability
18
PLUG-DECORATIVE WCI G162827-18 Contact Us For Availability
19
HINGE-CENTER WCI G163207 Contact Us For Availability
19
COVER, COIL WCI 5308009771 Contact Us For Availability
20
WASHER-NYLON (3) WCI 5308000186 No Longer Available
20
END-HANDLE (2) WCI 5303001296 Contact Us For Availability
20
WCI 5300162506 WCI 5300162506 Contact Us For Availability
21
STRAP, MULLION MTG WCI G490087 Contact Us For Availability
21A
WASHER STEEL MULLION (NON-ILLUSTRATED) WCI 5303206754 Contact Us For Availability
22
DEFLECTOR-AIR WCI 5308000071 Contact Us For Availability
22
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
22
PLUG BUTTON - WHEAT (2) WCI 5308000176 Contact Us For Availability
23
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
23
EXCHANGER - HEAT WCI 5308000728 Contact Us For Availability
25
PAN-DRAIN WCI G184715 Contact Us For Availability
26
NUT-LOCK WCI 5303001348 Contact Us For Availability
27
CONTROL-TEMP WCI 5303200810 Contact Us For Availability
28
SWITCH-SLIDE WCI 5303001670 Contact Us For Availability
28
RETAINER, OVERLOAD WCI G188957 Contact Us For Availability
29
KNOB-CONTROL WCI 5308010011 Contact Us For Availability
30
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
31
BOX-CONTROL WCI 5317672201 Contact Us For Availability
32
WCI G000180105 WCI G000180105 Contact Us For Availability
32
COMPRESSOR WCI 5303916411 Contact Us For Availability
33
SHELF - SLIDING (3) WCI 08009921 Contact Us For Availability
34
PIN-LOWER HINGE WCI 5303001321 Contact Us For Availability
34
WASHER-COMP MTG (4) WCI 5308003633 Contact Us For Availability
35
HINGE - LOWER WCI 5303202834 Contact Us For Availability
35
CLIP-COMP MTG (4) WCI 5308003596 Contact Us For Availability
36
PLATE COMP. MTG WCI G184599 Contact Us For Availability
37
SUPPORT-CRISPER COVER WCI 5303205987 Contact Us For Availability
37
CORD-SERVICE WCI 5316254901 Contact Us For Availability
38
TUBE-DRAIN WCI 5303210377 Contact Us For Availability
38
WCI 3016366 WCI 3016366 Contact Us For Availability
39
COVER-CRISPER WCI 3015045 Contact Us For Availability
39
WCI 5303001470 WCI 5303001470 Contact Us For Availability
40
INSULATION - PLASTIC WCI 5316651102 Contact Us For Availability
40
PLUG-BUTTON WCI G166912 Contact Us For Availability
40A
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
40B
WCI G183584 WCI G183584 Contact Us For Availability
40C
HARNESS-COMPRESSOR WCI 5303001347 Contact Us For Availability
41
WCI G174734 WCI G174734 Contact Us For Availability
42
WCI G174733 WCI G174733 Contact Us For Availability
43
NUT-ANCHOR (2) WCI 5308003584 Contact Us For Availability
× ![]()
