Model Electrolux RT190GCW5 REFRIGERATOR – Common Parts & Diagrams

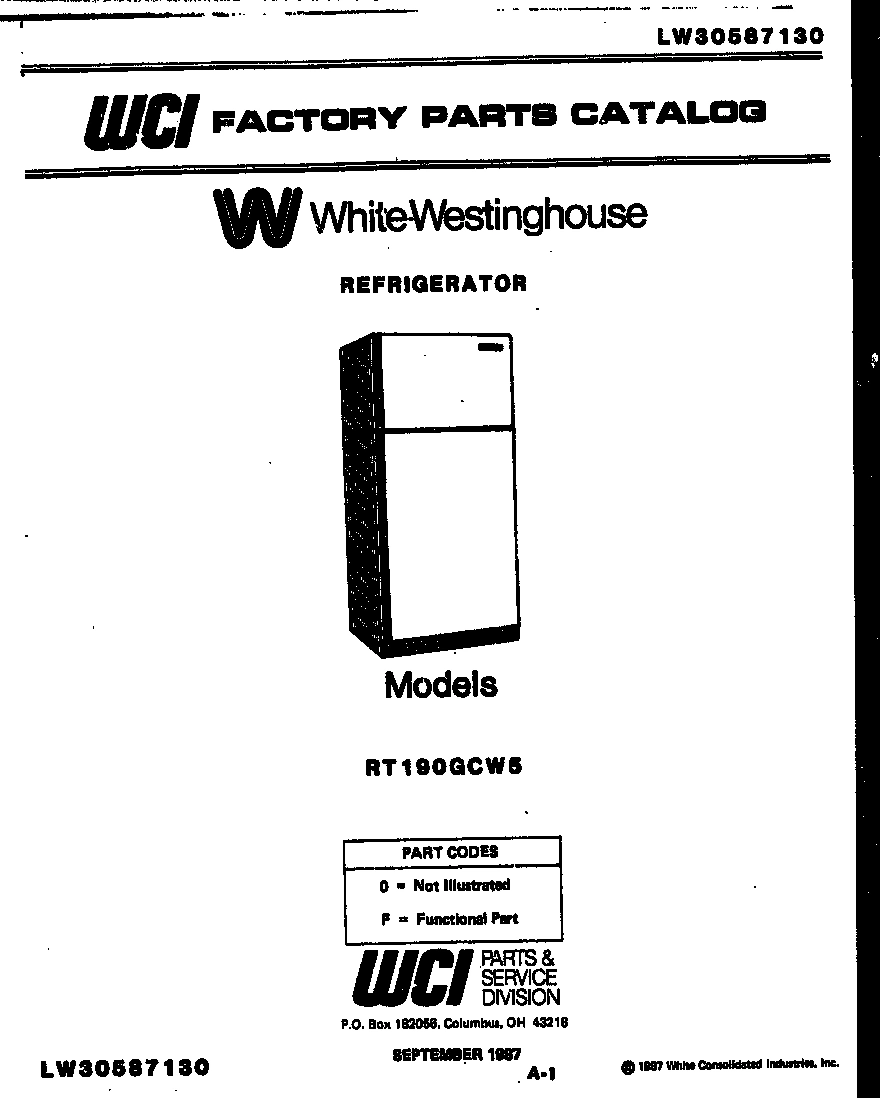

01 - COVER

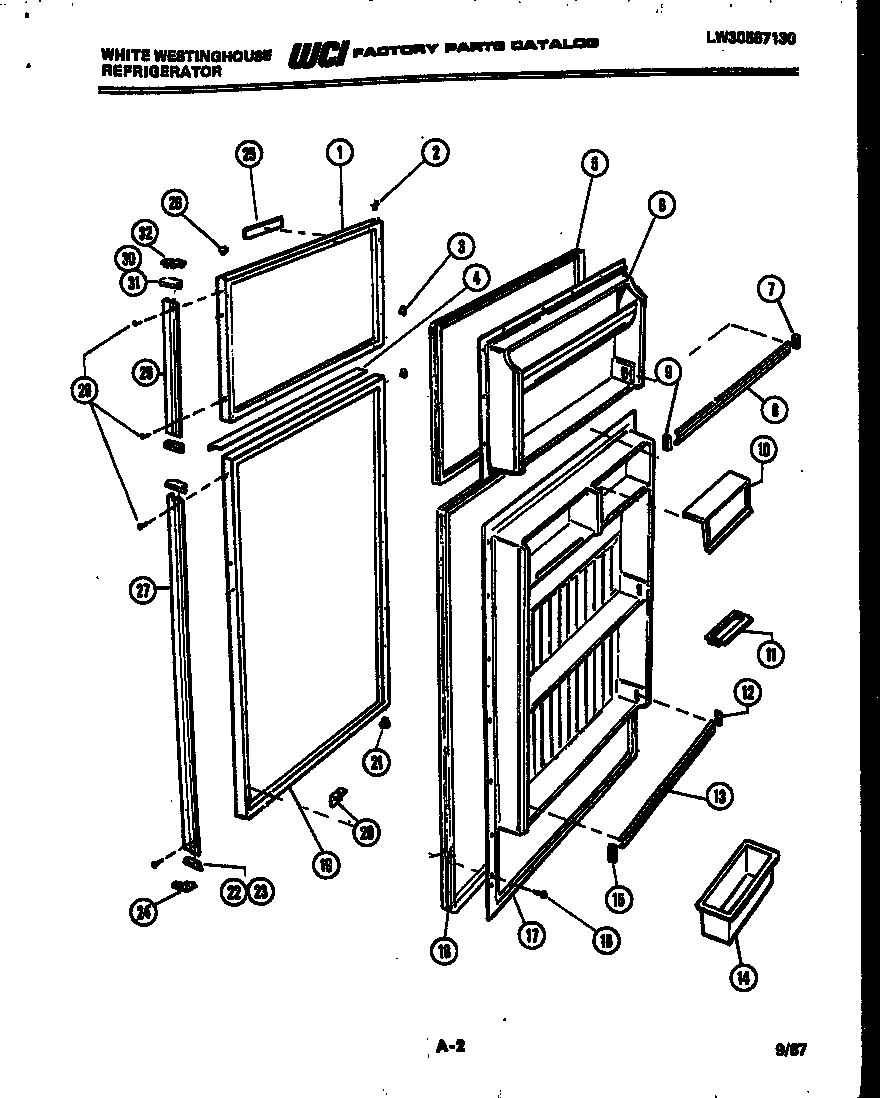

02 - DOOR PARTS

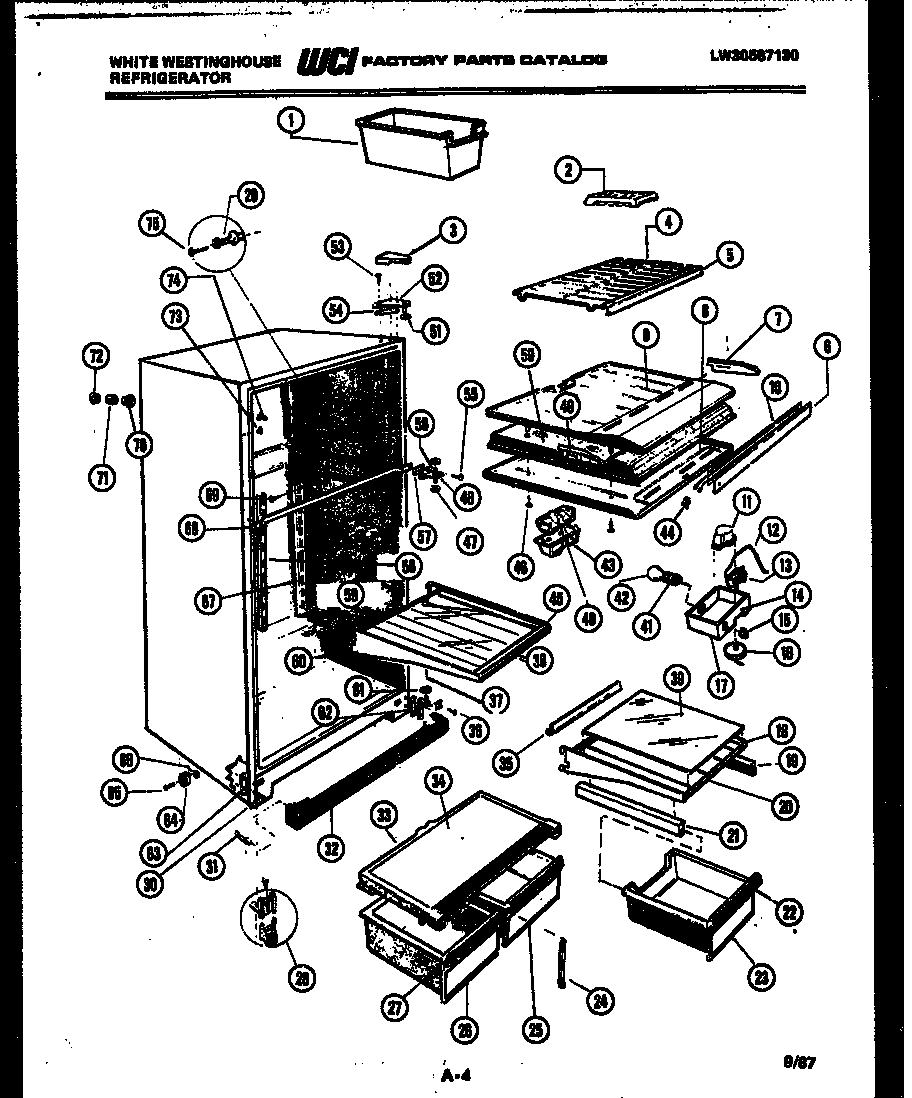

03 - CABINET PARTS

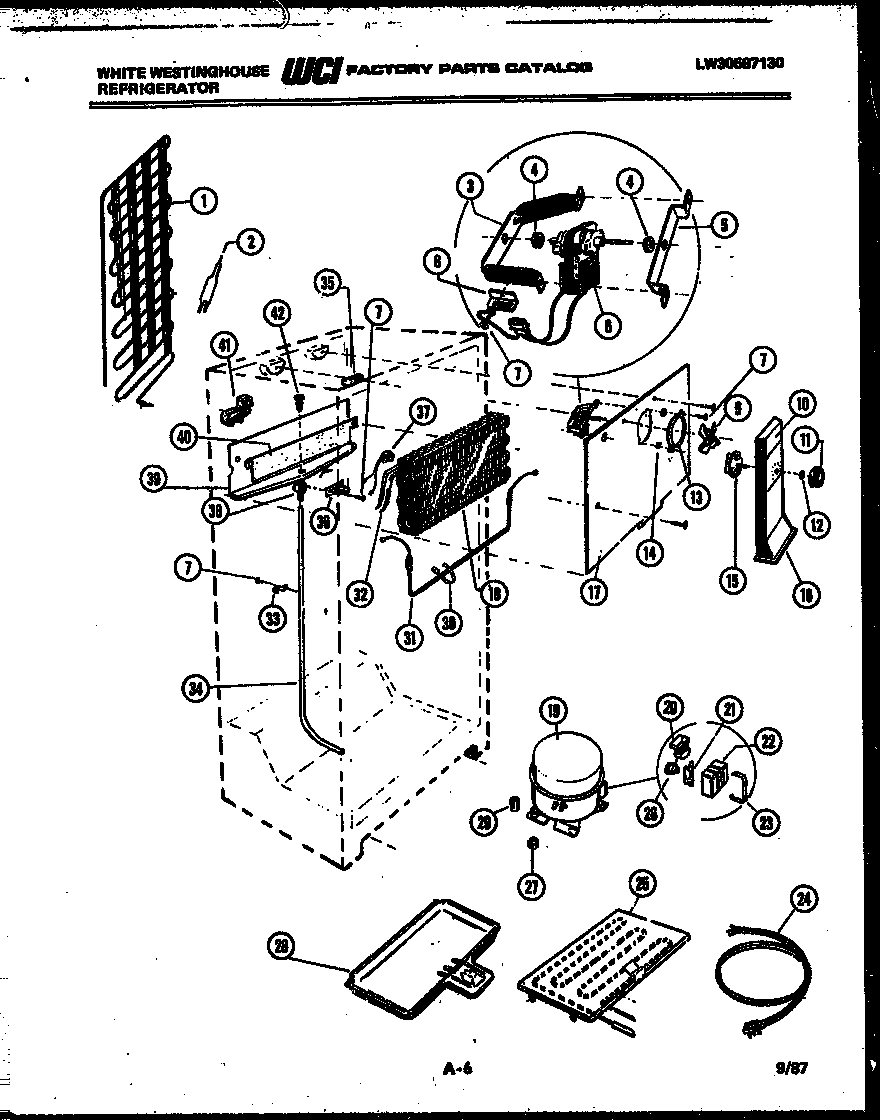

04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT190GCW5 REFRIGERATOR
*17784
HOT TUBE REP. KIT WCI G189377 Contact Us For Availability
1
PANEL-FRZR WHITE WCI G180260-01 Contact Us For Availability
1
CONTAINER ICE WCI G161015-13 Contact Us For Availability
1
WCI G189768 WCI G189768 Contact Us For Availability
3
CVR-TOP HNG-WHTE WCI G183558-01 Contact Us For Availability
3
BRACKET-MTR REAR WCI G185303 Contact Us For Availability
4
TRIM WCI G178328-02 Contact Us For Availability
4
WCI G177415-02 WCI G177415-02 Contact Us For Availability
5
GASKET-FRZR WCI G186932-08 Contact Us For Availability
5
BRACKT-MTR FRNT WCI G185302 Contact Us For Availability
6
WCI G179979-01 WCI G179979-01 Contact Us For Availability
6
MULLION-WHTE WCI G162051 Contact Us For Availability
7
WCI G162176 WCI G162176 Contact Us For Availability
8
RACK-DOOR WCI G490079-09 Contact Us For Availability
8
DIVIDER-TOP WCI G174715 Contact Us For Availability
8
BRACKET WCI G164571 Contact Us For Availability
9
DIVIDER-BTM WCI G161919-02 Contact Us For Availability
10
DOOR (2) WCI G179967-02 Contact Us For Availability
10
HEATER WCI G177254 Contact Us For Availability
10
LABEL-FAN CVR WCI G180298 Contact Us For Availability
11
KNOB-DAMPER WCI G162663-13 Contact Us For Availability
12
SUPPT-RACK RH WCI G176891-01 Contact Us For Availability
12
SLEEVE-PLASTIC WCI G103457 Contact Us For Availability
12
CLIP WCI G162662 Contact Us For Availability
13
RACK-DOOR (2) WCI G490079-07 Contact Us For Availability
13
CONTROL-COLD WCI G162667-11 Contact Us For Availability
13
RING-ORIFICE WCI G167217 Contact Us For Availability
14
CONTAINER-EGG WCI G173948-19 Contact Us For Availability
14
LABEL-CONT BOX WCI G180197 Contact Us For Availability
14
NUT-SPEED (2) WCI G167542 Contact Us For Availability
15
SUPPT-RACK LH WCI G176892-01 Contact Us For Availability
15
SWITCH WCI G178402-01 Contact Us For Availability
15
DAMPER WCI G162661 Contact Us For Availability
16
KNOB, CONTROL WCI G490107-02 Contact Us For Availability
16
WCI G179793-02 WCI G179793-02 Contact Us For Availability
17
WCI G179874-01 WCI G179874-01 Contact Us For Availability
17
WCI G176722-01 WCI G176722-01 Contact Us For Availability
17
WCI G162050-02 WCI G162050-02 Contact Us For Availability
18
GASKET-REF WCI G186932-09 Contact Us For Availability
18
FRAME, SHELF WCI G187217-01 Contact Us For Availability
18
EVAPORATOR WCI G162506 Contact Us For Availability
19
PANEL-REF WHITE WCI G180265-01 Contact Us For Availability
19
HANGER, R.H. WCI G187216-01 Contact Us For Availability
19
WCI G190374 WCI G190374 Contact Us For Availability
20
STOP, DOOR (2) WCI G155072 Contact Us For Availability
20
TRIM-SHELF WCI G187267-03 Contact Us For Availability
20
WCI G182225-18 WCI G182225-18 Contact Us For Availability
21
BEARING (4) WCI G183138 Contact Us For Availability
21
HANGER, LH WCI G187215-01 Contact Us For Availability
21
RETAINER WCI G188957 Contact Us For Availability
23
PAN, MEAT WCI G176918-03 Contact Us For Availability
24
TRIM, BOTTOM WCI G179271 Contact Us For Availability
24
SUPPORT-PAN WCI G166310-01 Contact Us For Availability
24
CORD, SERVICE WCI G162549-01 Contact Us For Availability
24A
TAPE-VINYL WOOD (NON-ILLUSTRATED) WCI R900622 Contact Us For Availability
25
NAMEPLATE WCI G176986 Contact Us For Availability
25
PAN, FRUIT WCI G179706-03 Contact Us For Availability
25
WCI G172513 WCI G172513 Contact Us For Availability
26
WCI G169332-01 WCI G169332-01 Contact Us For Availability
26
PAN, CRISPER WCI G179706-02 Contact Us For Availability
26
WCI G188877 WCI G188877 Contact Us For Availability
27
HANDLE-DOOR WCI G177141-08 Contact Us For Availability
27
WCI G177343-06 WCI G177343-06 Contact Us For Availability
27A
CLIP-HANDLE (NON-ILLUSTRATED) WCI G177144 Contact Us For Availability
28
WCI G185566 WCI G185566 Contact Us For Availability
28
ROLLER-FRONT (2) WCI G166138 Contact Us For Availability
28
PAN WCI G162890 Contact Us For Availability
29
HANDLE-DOOR WCI G177141-07 Contact Us For Availability
29
SUPPORT (8) WCI G163105 Contact Us For Availability
29
SLEEVE WCI G154588 Contact Us For Availability
30
CAP-TOP WCI G177142 Contact Us For Availability
30
WCI G142361 WCI G142361 Contact Us For Availability
31
CAP-BOTTOM WCI G177143 Contact Us For Availability
31
CLIP-GRILL WCI G162994 Contact Us For Availability
32
TRIM, TOP WCI G179270 Contact Us For Availability
32
GRILL-FRONT WCI G163080-03 Contact Us For Availability
32
EXCHANGER-HEAT WCI G162545 Contact Us For Availability
33
GASKET - CRISPER WCI G180108-02 Contact Us For Availability
33
WCI G101747 WCI G101747 Contact Us For Availability
34
WCI G162840-01 WCI G162840-01 Contact Us For Availability
34
TUBE-DRAIN WCI G155529-02 Contact Us For Availability
35
TRIM, REAR WCI G172409-09 Contact Us For Availability
35
BLOCK, RH WCI G163099 Contact Us For Availability
36
SCREW WCI G162656 Contact Us For Availability
36
SPOUT WCI G162179 Contact Us For Availability
37
HINGE-LWR WCI G162383 Contact Us For Availability
38
WCI G162180 WCI G162180 Contact Us For Availability
39
GLASS-SHELF WCI G171654-27 Contact Us For Availability
39
TROUGH WCI G170071 Contact Us For Availability
40
DEFLECTOR AIR WCI G162675 Contact Us For Availability
40
INSULATION WCI G166511-01 Contact Us For Availability
41
SOCKET LIGHT WCI G168302 Contact Us For Availability
41
BLOCK, LH WCI G185298 Contact Us For Availability
42
WCI G101620 WCI G101620 Contact Us For Availability
42A
HEAT EXCH. REPAIR KIT WCI G161672 Contact Us For Availability
43
COVER AIR DEFL WCI G162178 Contact Us For Availability
45
TRIM-SHELF WCI G187267-11 Contact Us For Availability
46
SCREW WCI G162673 Contact Us For Availability
48
HINGE-CTR. WCI G162384 Contact Us For Availability
49
WCI G162177 WCI G162177 Contact Us For Availability
50
DIVIDER-STYRO WCI G170078 Contact Us For Availability
51
WASHER, NYLON WCI G101970 Contact Us For Availability
52
HINGE-UPR WCI G183714 Contact Us For Availability
54
SHIM-UPR WCI G183861 Contact Us For Availability
55
SCREW WCI G183103 Contact Us For Availability
56
WCI G142220 WCI G142220 Contact Us For Availability
57
SHIM-CTR. WCI G162683 Contact Us For Availability
58
STRINGER CTR WCI G175612 Contact Us For Availability
59
TRIM, REAR WCI G172409-10 Contact Us For Availability
60
FRAME-SHELF WCI G178323-03 Contact Us For Availability
60A
FRAME-SHELF FULL (NON-ILLUSTRATED) WCI G178323-05 Contact Us For Availability
60B
TRIM-FRONT (NON-ILLUSTRATED) WCI G187267-10 Contact Us For Availability
60C
TRIM-REAR (NON-ILLUSTRATED) WCI G172409-11 Contact Us For Availability
60D
GLASS-SHELF (NON-ILLUSTRATED) WCI G171654-29 Contact Us For Availability
61
WASHER (NYLON) WCI G164355 Contact Us For Availability
62
SHIM-LWR WCI G162903 Contact Us For Availability
63
PLATE, TAPPING WCI G179797 Contact Us For Availability
64
WCI G162808 WCI G162808 Contact Us For Availability
65
PIN WCI G162809 Contact Us For Availability
67
STRINGER (2) WCI G170695 Contact Us For Availability
68
STRAP WCI G165781 Contact Us For Availability
70
WCI G174733 WCI G174733 Contact Us For Availability
71
TUBE WCI G85642 Contact Us For Availability
72
WCI G174734 WCI G174734 Contact Us For Availability
73
BUTTON-PLUG (4) WCI G187599 Contact Us For Availability
74
SUPT-EVAP. CVR WCI G163669 Contact Us For Availability
75
SCREW WCI G187527 Contact Us For Availability
× ![]()
