Model Electrolux RT190GCF3 REFRIGERATOR – Common Parts & Diagrams

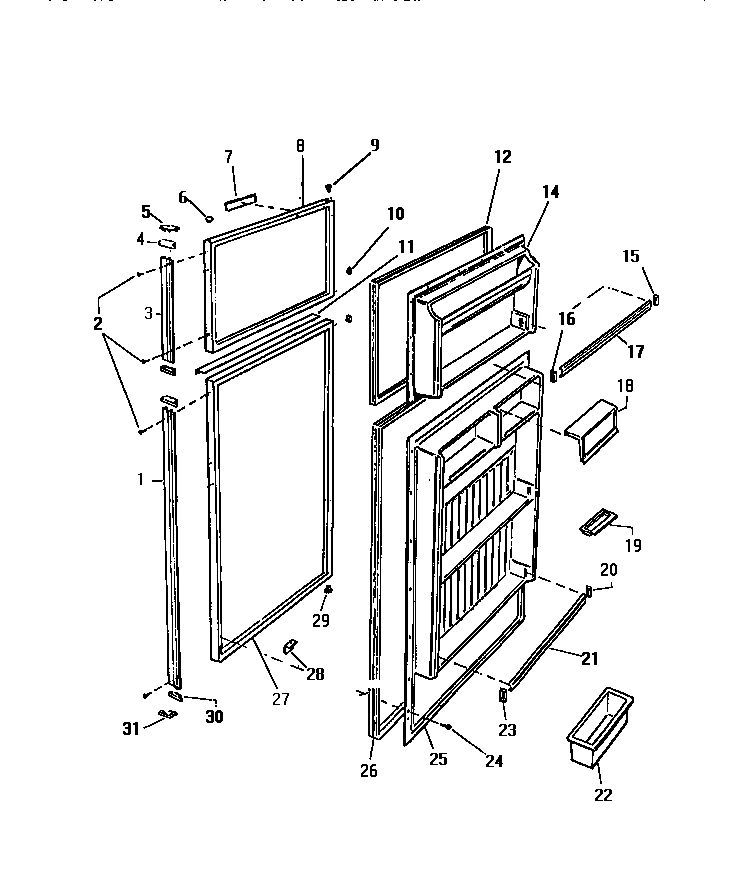

02 - DOOR

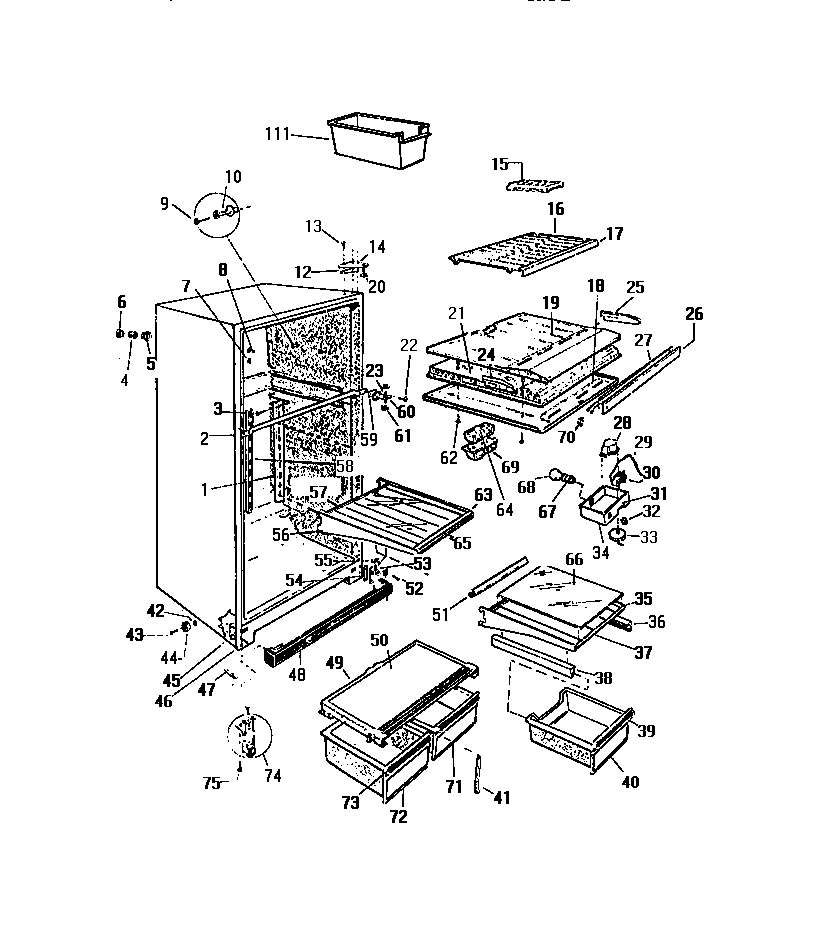

03 - CABINET, SHELVES, DIVIDER, FAN ASSE

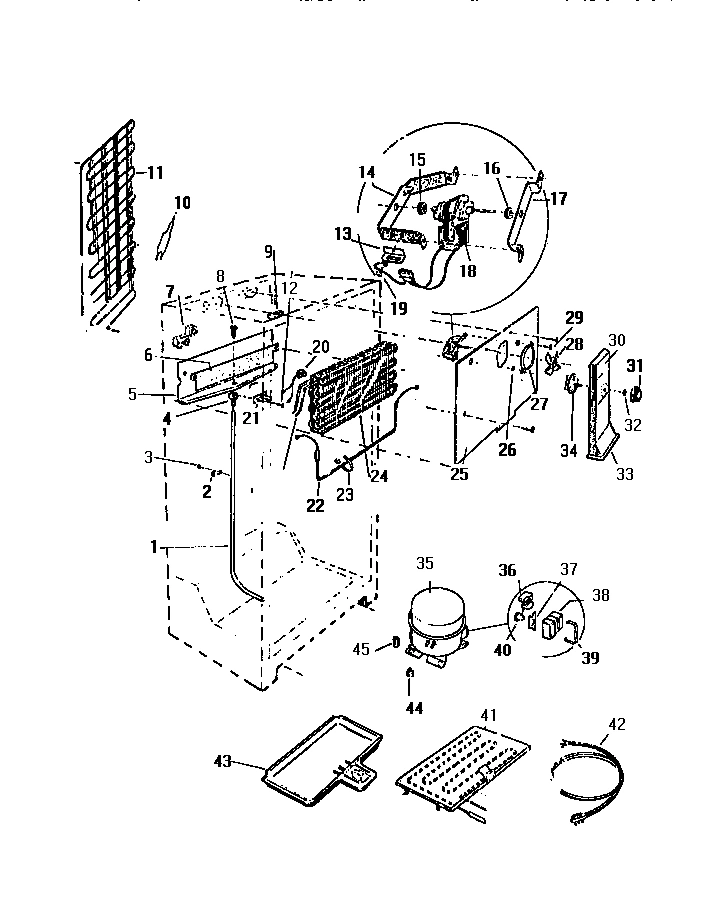

04 - COOLING SYSTEM
Common parts from model Electrolux RT190GCF3 REFRIGERATOR
*02280
PLASTIC BAG WCI C35536 Contact Us For Availability
*02281
WCI G176210 WCI G176210 Contact Us For Availability
*02283
COVER, TOP HINGE, COFFEE WCI G183558-10 Contact Us For Availability
*02287
INSULATION FIBERGLASS, 34`` X 48`` X 2``-CUT WCI C69111 Contact Us For Availability
*02288
INSULATION, FIBERGLASS, 34`` X 48`` X 1/2`` T WCI C69109 Contact Us For Availability
*02289
INSULATION, FIBERGLASS, 34`` X 48`` X 1`` THI WCI C69110 Contact Us For Availability
*02290
WCI CR32X WCI CR32X Contact Us For Availability
*02291
FULL WIDTH SHELF,TRIM, REAR WCI G172409-11 Contact Us For Availability
*02293
FULL WIDTH SHELF, FRAME WCI G178323-05 Contact Us For Availability
*02294
SHELF, FULL WIDTH, GLASS WCI G171654-29 Contact Us For Availability
*02295
WCI G166001 WCI G166001 Contact Us For Availability
*02296
HEAT EXCHANGE REPAIR KIT WCI G161672 Contact Us For Availability
1
WCI G177141-08 WCI G177141-08 Contact Us For Availability
1
STRINGER (RIGHT OR LEFT SIDE) WCI G170695 Contact Us For Availability
1
DRAIN TUBE (CUT TO SIZE) WCI G155529-04 Contact Us For Availability
1A
CLIP, HANDLE WCI G177144 Contact Us For Availability
1A
SCREW, STRINGER WCI G163989 Contact Us For Availability
1B
VINYL TAPE, DOOR HANDLE, ELM BURL WCI R900622 Contact Us For Availability
2
WCI G155660 WCI G155660 Contact Us For Availability
2
STRAP WCI G165781 Contact Us For Availability
2
WCI G101747 WCI G101747 Contact Us For Availability
3
HANDLE, 18.5`` LONG WCI G177141-07 Contact Us For Availability
4
TUBE WCI G85642 Contact Us For Availability
4
WCI G162180 WCI G162180 Contact Us For Availability
5
TRIM, TOP WCI G179270 Contact Us For Availability
5
FERRULE WCI G174733 Contact Us For Availability
5
TROUGH WCI G170071 Contact Us For Availability
6
WCI G169332-10 WCI G169332-10 Contact Us For Availability
6
FERRULE WCI G174734 Contact Us For Availability
6
INSULATION, FOAM WCI G166511-01 Contact Us For Availability
7
WCI R304001 WCI R304001 Contact Us For Availability
7
PLUG BUTTON (6) WCI G162659 Contact Us For Availability
7
TROUGH WCI G162715 Contact Us For Availability
8
WCI G180260-10 WCI G180260-10 Contact Us For Availability
8
SUPPORT, EVAPORATOR COVER WCI G163669 Contact Us For Availability
8
WCI G101620 WCI G101620 Contact Us For Availability
9
SCREW WCI G163104 Contact Us For Availability
9
BLOCK, RH WCI G163099 Contact Us For Availability
10
WCI G162977-10 WCI G162977-10 Contact Us For Availability
10
SUPPORT (8) WCI G163105 Contact Us For Availability
10
DRIER-REGULAR WCI C101601 Contact Us For Availability
10A
WCI R900125 WCI R900125 Contact Us For Availability
11
TRIM WCI G178328-02 Contact Us For Availability
11
WCI G161015-09 WCI G161015-09 Contact Us For Availability
11
WCI G163133 WCI G163133 Contact Us For Availability
12
GASKET WCI G180547-08 Contact Us For Availability
12
SHIM WCI G158344 Contact Us For Availability
13
BRACKET WCI G164571 Contact Us For Availability
14
INNER PANEL WCI G179979-01 Contact Us For Availability
14
HINGE WCI G183714 Contact Us For Availability
14
BRACKET WCI G162048 Contact Us For Availability
15
ICE TRAY WCI R2901 Contact Us For Availability
16
WCI G176892-02 WCI G176892-02 Contact Us For Availability
16
SHELF (1) WCI G177415-02 Contact Us For Availability
17
FRONT WCI G490079-09 Contact Us For Availability
17
BRACKET WCI G162049 Contact Us For Availability
18
DOOR (2) WCI G179967-02 Contact Us For Availability
18
DIVIDER, TOP OF REFRIGERATOR METAL WCI G174715 Contact Us For Availability
19
DIVIDER, BOTTOM WCI G161919-02 Contact Us For Availability
20
END CAP RH WCI G176891-01 Contact Us For Availability
20
WASHER, NYLON WCI G101970 Contact Us For Availability
21
FRONT (2) WCI G490079-07 Contact Us For Availability
21
WCI G170078 WCI G170078 Contact Us For Availability
21
CUP WCI G162179 Contact Us For Availability
22
WCI G173948-19 WCI G173948-19 Contact Us For Availability
22
SCREW WCI G183103 Contact Us For Availability
23
END CAP LH WCI G176892-01 Contact Us For Availability
23
WCI G142220 WCI G142220 Contact Us For Availability
24
WCI G162177 WCI G162177 Contact Us For Availability
24
EVAPORATOR L/HEATER WCI G162506 Contact Us For Availability
25
INNER PANEL WCI G179874-01 Contact Us For Availability
25
WCI G162176 WCI G162176 Contact Us For Availability
25
COVER WCI G162050-02 Contact Us For Availability
26
GASKET WCI G180547-09 Contact Us For Availability
26
WCI G162051-10 WCI G162051-10 Contact Us For Availability
26
SPEED NUT (2) WCI G162701 Contact Us For Availability
27
WCI G180265-10 WCI G180265-10 Contact Us For Availability
27
HEATER WCI G177254 Contact Us For Availability
27
RING WCI G167217 Contact Us For Availability
28
DOOR STOP, LOWER AND UPPER DOOR WCI G155072 Contact Us For Availability
29
BEARING WCI G183138 Contact Us For Availability
29
SCREW (2) WCI Q401601 Contact Us For Availability
30
END CAP, TOP WCI G177142 Contact Us For Availability
30
CONTROL WCI G162667-10 Contact Us For Availability
30
WCI G180296 WCI G180296 Contact Us For Availability
30A
END CAP, BOTTOM WCI G177143 Contact Us For Availability
31
TRIM, BOTTOM WCI G179271 Contact Us For Availability
31
WCI G180197 WCI G180197 Contact Us For Availability
31
WCI G162663-13 WCI G162663-13 Contact Us For Availability
32
SWITCH WCI G177727-02 Contact Us For Availability
32
CLIP WCI G162662 Contact Us For Availability
33
KNOB WCI G490107-01 Contact Us For Availability
33
COVER WCI G179793-02 Contact Us For Availability
34
BOX WCI G176722-01 Contact Us For Availability
34
DAMPER (AIR FLOW) WCI G162661 Contact Us For Availability
35
FRAME, SHELF WCI G178324-02 Contact Us For Availability
35
COMPRESSOR WITH OVERLOAD-RELAY (SEE NOTES 1 A WCI C620102 Contact Us For Availability
36
WCI G174366-01 WCI G174366-01 Contact Us For Availability
36
WCI G150618-26 WCI G150618-26 Contact Us For Availability
37
RETAINER WCI G147941 Contact Us For Availability
38
WCI G174365-01 WCI G174365-01 Contact Us For Availability
38
COVER WCI G147942 Contact Us For Availability
40
PAN, MEAT WCI G176918-03 Contact Us For Availability
40
WCI G176981 WCI G176981 Contact Us For Availability
41
SUPPORT WCI G166310-01 Contact Us For Availability
41
DEFROST PLATE WCI G172513 Contact Us For Availability
42
WCI G162549-01 WCI G162549-01 Contact Us For Availability
43
PIN WCI G162809 Contact Us For Availability
43
PAN WCI G162890 Contact Us For Availability
44
WCI G162808 WCI G162808 Contact Us For Availability
45
TAP PLATE WCI G157591 Contact Us For Availability
45
SLEEVE WCI G154588 Contact Us For Availability
46
WCI G142361 WCI G142361 Contact Us For Availability
46
WCI G162545 WCI G162545 Contact Us For Availability
47
CLIP WCI G162994 Contact Us For Availability
48
TOE GRILL (LESS CLIPS) WCI G163080-03 Contact Us For Availability
49
GASKET WCI G180108-02 Contact Us For Availability
50
COVER WCI G162840-01 Contact Us For Availability
51
TRIM, REAR WCI G172409-09 Contact Us For Availability
52
SCREW WCI G162656 Contact Us For Availability
53
HINGE WCI G162383 Contact Us For Availability
54
SHIM WCI G162903 Contact Us For Availability
56
FRAME WCI G178323-03 Contact Us For Availability
57
TRIM, REAR WCI G172409-10 Contact Us For Availability
58
STRINGER, CENTER WCI G175612 Contact Us For Availability
59
SHIM WCI G162683 Contact Us For Availability
60
HINGE WCI G162384 Contact Us For Availability
61
BEARING, TOP/BOTTOM WCI G164355 Contact Us For Availability
62
SCREW WCI G162673 Contact Us For Availability
63
TRIM, SHELF, CUT TO SIZE WCI G177060-03 Contact Us For Availability
64
BAFFLE WCI G162675 Contact Us For Availability
66
SHELF, GLASS (1) WCI G171654-27 Contact Us For Availability
67
SOCKET WCI G168302 Contact Us For Availability
68
WCI Q63749 WCI Q63749 Contact Us For Availability
69
COVER WCI G162178 Contact Us For Availability
71
PAN, FRUIT WCI G179706-03 Contact Us For Availability
72
PAN, CRISPER WCI G179706-02 Contact Us For Availability
73
TRIM, PANS (CUT TO SIZE) WCI G177343-06 Contact Us For Availability
74
ROLLER, COMPLETE WCI G166138 Contact Us For Availability
75
BOLT WCI G145103 Contact Us For Availability
× ![]()
