Model Whirlpool RT18EKRBW00 – Common Parts & Diagrams

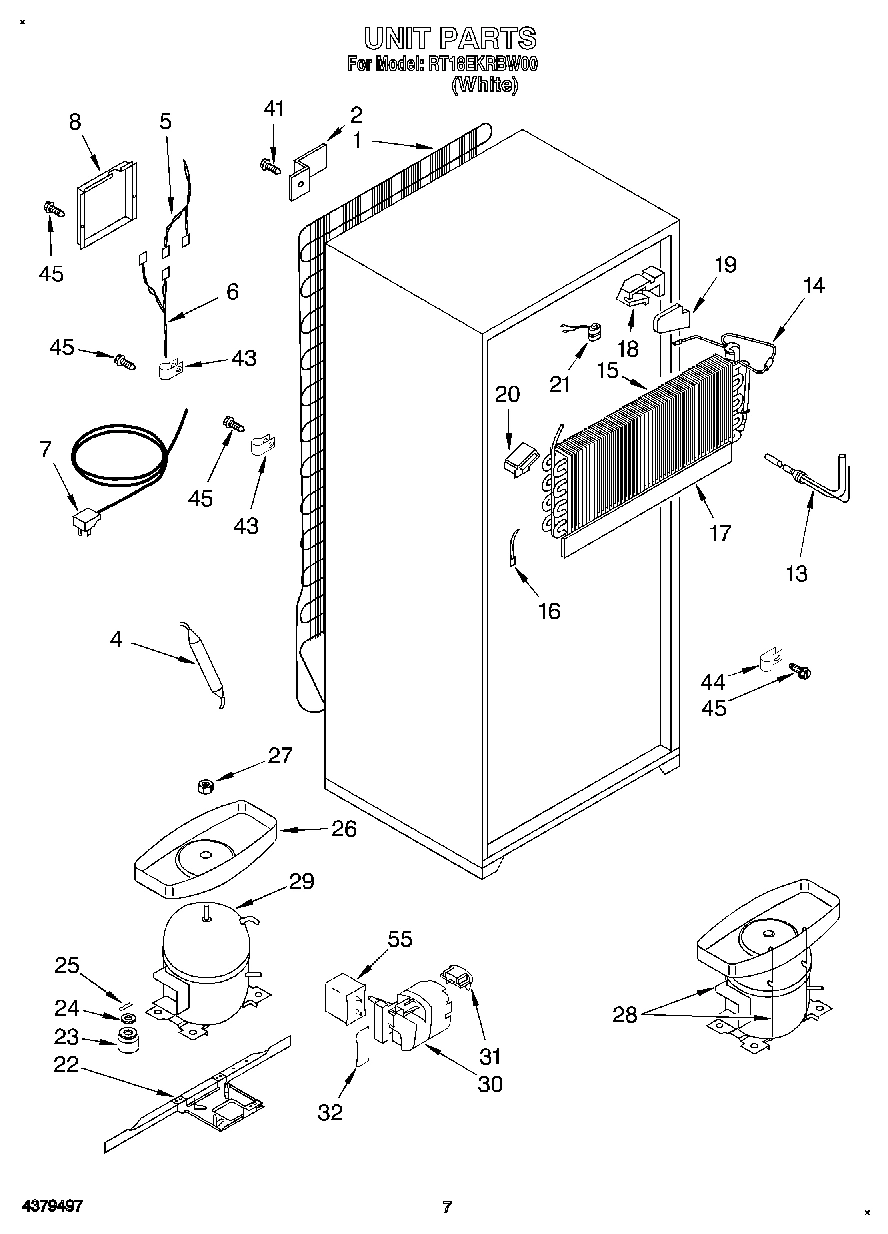

04 - UNIT, LIT/OPTIONAL

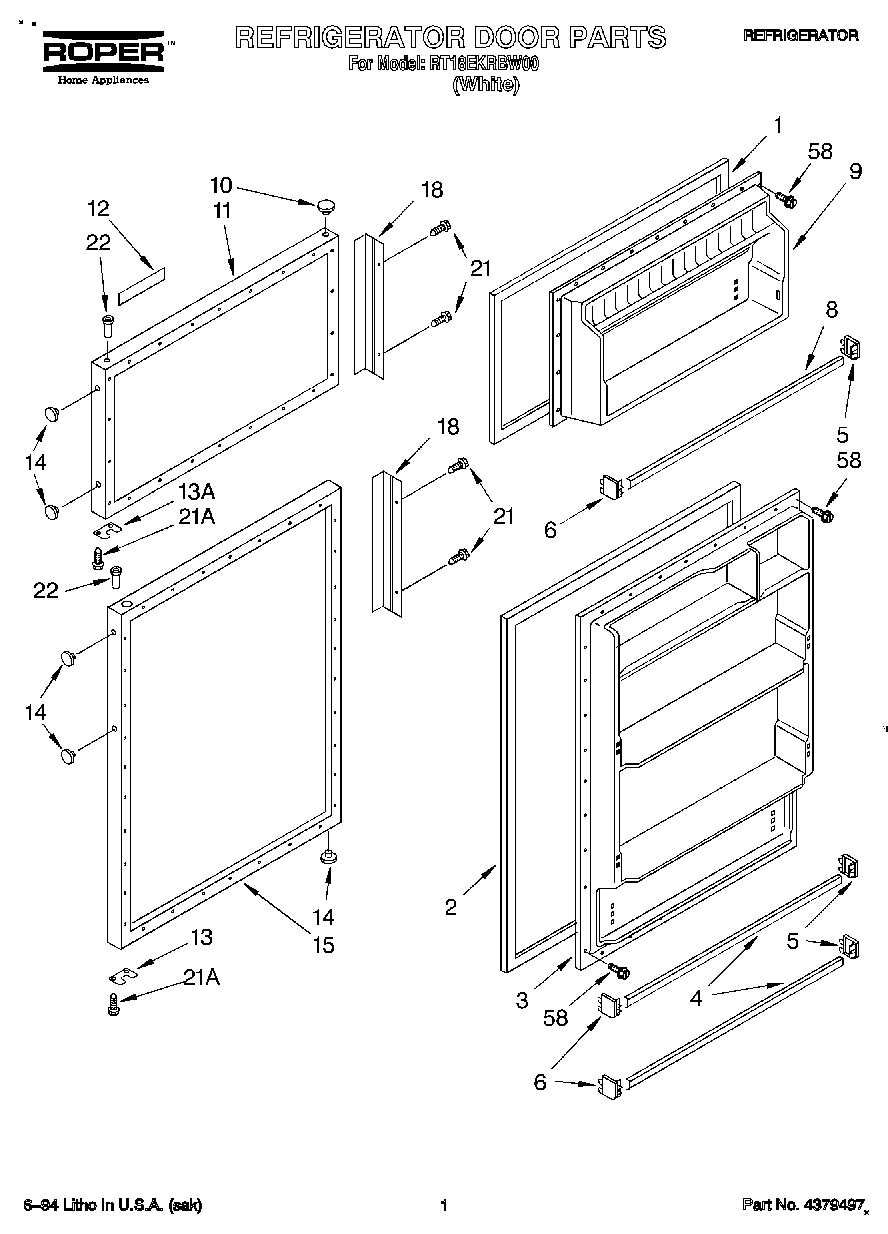

01 - REFRIGERATOR DOOR

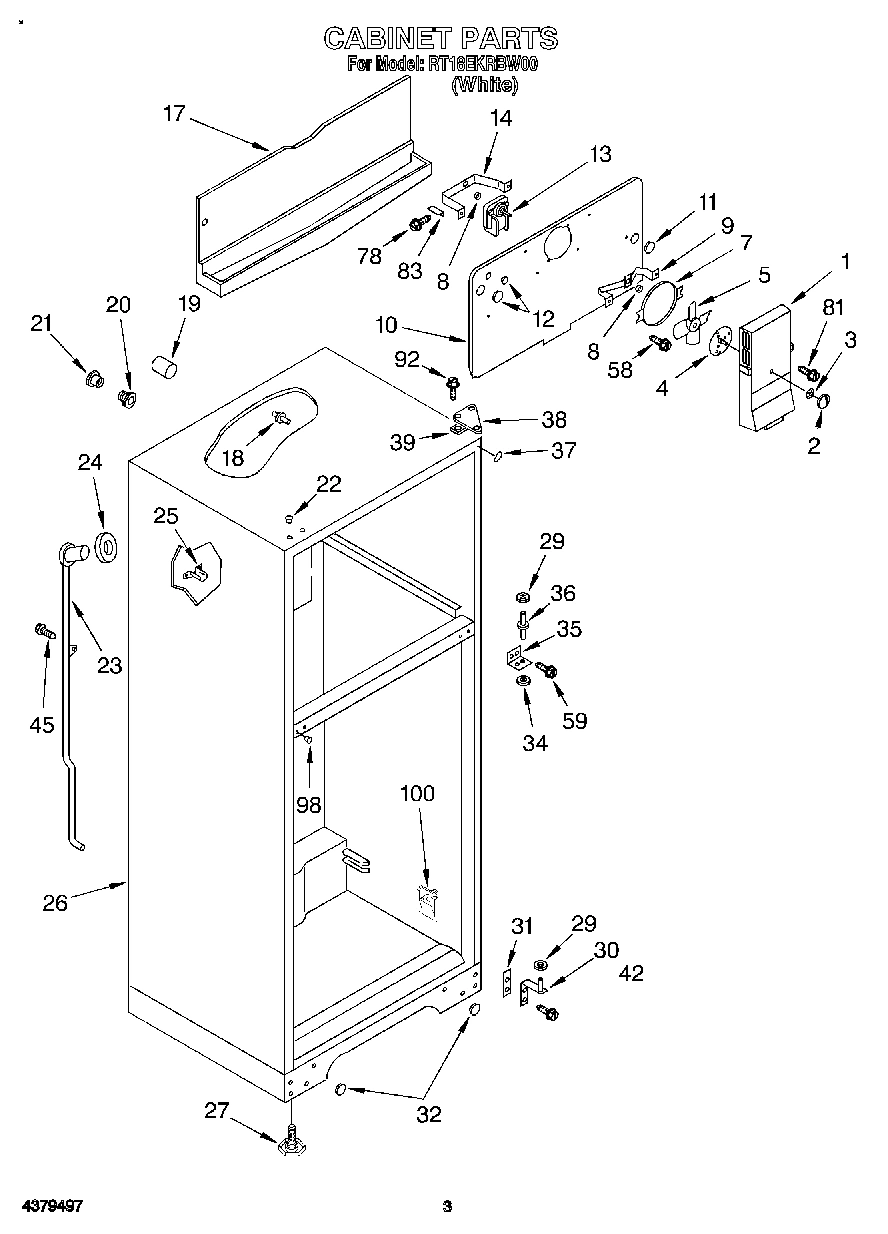

02 - CABINET

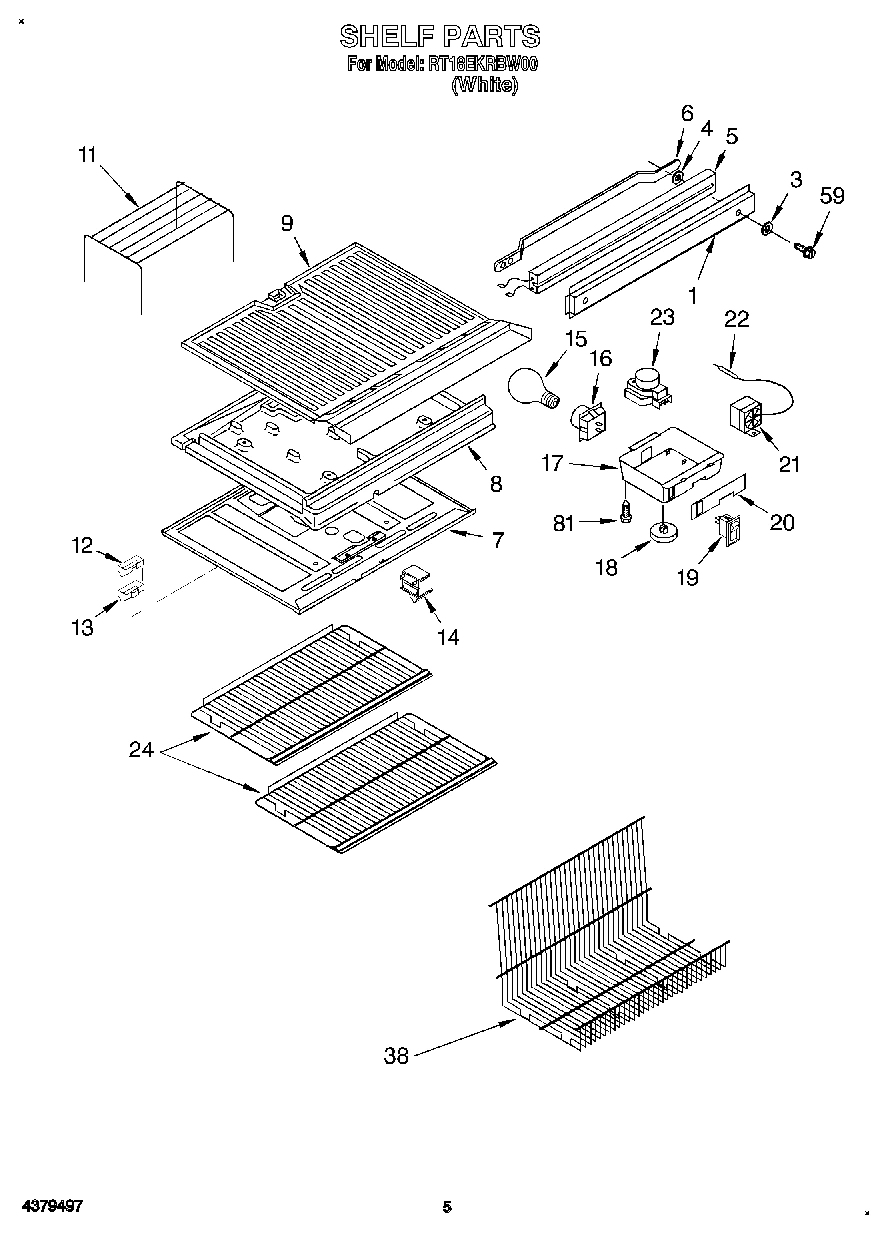

03 - SHELF
Common parts from model Whirlpool RT18EKRBW00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Gasket, Freezer Door (Magnetic) WPL 4343266 Contact Us For Availability
1
Cover, Fan WPL 4343292 Contact Us For Availability
1
Mullion (White) WPL 4343333 Contact Us For Availability
2
Gasket, Refrig. Door (Magnetic) WPL 4343267 Contact Us For Availability
2
Knob, Damper Control WPL 4343293 Contact Us For Availability
3
Panel, Inner Door Refrigerator WPL 4343410 Contact Us For Availability
3
Nut, Push-On WPL 4339467 Contact Us For Availability
3
Washer WPL 4343401 Contact Us For Availability
4
Rack, Door (2) WPL 4343383 Contact Us For Availability
4
Damper, Fan Cover WPL 4339466 Contact Us For Availability
4
Spacer, Mullion Mounting (2) WPL 4343334 Contact Us For Availability
5
Support, Door Rack (Right Hand) WPL 4343384 Contact Us For Availability
5
Fan Blade WPL 4343294 Contact Us For Availability
5
Heater, Mullion WPL 4343335 Contact Us For Availability
6
Support, Door Rack (Left Hand) WPL 4343385 Contact Us For Availability
6
Strap, Mullion Mounting WPL 4339736 Contact Us For Availability
7
Ring, Fan Orifice WPL 4339482 Contact Us For Availability
7
Top Panel, Refr., With Snap Bushing WPL 4343336 Contact Us For Availability
8
Rack, Door WPL 4343386 Contact Us For Availability
8
Bushing, Motor Mounting (2) WPL 4339504 Contact Us For Availability
8
Divider, Styrofoam WPL 4339733 Contact Us For Availability
9
Panel, Inner Door (Freezer) WPL 4343274 Contact Us For Availability
9
Bracket, Motor Mounting (Front) WPL 4343295 Contact Us For Availability
9
Bottom Panel, Frz. WPL 4343338 Contact Us For Availability
10
Hole Plug, Bearing Hinge (White) WPL 4339439 Contact Us For Availability
10
Cover, Evap. Coil WPL 4339734 Contact Us For Availability
11
Panel, Freezer Door (With Insulation) (White) WPL 4343387 Contact Us For Availability
11
Hole Plug WPL 4343297 Contact Us For Availability
11
Shelf, Freezer (Table Type) WPL 4343403 Contact Us For Availability
12
Nameplate WPL 4343277 Contact Us For Availability
12
Hole Plug, Harness (Round) WPL 4343298 Contact Us For Availability
12
Plug, Water Inlet Tube (Round) WPL 4343299 Contact Us For Availability
12
Deflector, Air WPL 4343404 Contact Us For Availability
13
Door Stop (Frzr.) WPL 4339573 Contact Us For Availability
13
Door Stop (Refr.) 13A WPL 4343278 Contact Us For Availability
13
Motor, Evap. Fan WPL 4343300 Contact Us For Availability
13
Cover, Air Deflector WPL 4343405 Contact Us For Availability
14
Plug-Button, Handle/Dr Stop (White) WPL 4339438 Contact Us For Availability
14
Bracket, Motor Mounting (Rear) WPL 4343301 Contact Us For Availability
15
Panel, Refr. Door (With Insulation) (White) WPL 4343388 Contact Us For Availability
16
Socket, Light/Lamp WPL 4343346 Contact Us For Availability
17
Trough, Drain WPL 4343361 Contact Us For Availability
17
Box, Control WPL 4343347 Contact Us For Availability
18
Handle, Door WPL 4343389 Contact Us For Availability
18
Support, Evap. Cover (2) WPL 4343302 Contact Us For Availability
18
Knob, Temp. Control WPL 4343406 Contact Us For Availability
19
Tube, Rubber WPL 4343303 Contact Us For Availability
19
Switch, Energy Saver WPL 4339968 Contact Us For Availability
20
Insulation Block, Left Hand WPL 4343371 Contact Us For Availability
20
Ferrule, Inner WPL 4339457 Contact Us For Availability
20
Label, Control Box WPL 4343351 Contact Us For Availability
21
Thermostat, Defrost WPL 4339520 Contact Us For Availability
21
Screw, Cr Oval Hd. 10-24 D x 5/8 WPL 4339425 Contact Us For Availability
21
Screw, Handle Mtg., 10 D x 1/2 21A WPL 4343390 Contact Us For Availability
21
Ferrule, Outer WPL 4339458 Contact Us For Availability
21
Control, Temperature WPL 4342851 Contact Us For Availability
22
Plate, Compressor Mounting WPL 4343372 Contact Us For Availability
22
Bearing, Hinge WPL 4343391 Contact Us For Availability
22
Plug Button, Upper Hinge Holes (White) WPL 4343304 Contact Us For Availability
22
Sleeve, Plastic Tube WPL 4343353 Contact Us For Availability
23
Grommet, Compressor Mounting WPL 4343398 Contact Us For Availability
23
Drain Tube, With Seal Ring WPL 4343305 Contact Us For Availability
23
Timer WPL 4343402 Contact Us For Availability
24
Washer, Compressor Mounting WPL 4339534 Contact Us For Availability
24
Seal Ring, Drain Tube WPL 4343306 Contact Us For Availability
24
Wire Shelf, Sliding WPL 4343407 Contact Us For Availability
25
Clip, Compressor Mounting WPL 4339535 Contact Us For Availability
25
Spout, Drain Tube (With Mtg. Pins) WPL 4343307 Contact Us For Availability
26
Pan-Defrost Drain, Orig/Svce Compr WPL 4339579 Contact Us For Availability
26
Base, Cabinet WPL 4343308 Contact Us For Availability
27
Nut-Lock, 1/4-20 Drain Pan Mounting WPL 4339540 Contact Us For Availability
27
Screw WPL 4343392 Contact Us For Availability
28
Pan Retainer Kit, Service WPL 4343375 Contact Us For Availability
29
Nylon Washer, .34 x .62 x .05 WPL 4343310 Contact Us For Availability
30
Starter-PTC WPL 4343377 Contact Us For Availability
30
Bracket, Lower Hng. (With Hinge Pin) WPL 4343311 Contact Us For Availability
31
Shim, Lower Hinge WPL 4343314 Contact Us For Availability
32
Wire-Bale WPL 4343379 Contact Us For Availability
32
Plug Button WPL 4343393 Contact Us For Availability
34
Nylon Washer, .34 x .62 x .10 WPL 4343315 Contact Us For Availability
35
Bracket, Center Hinge WPL 4343316 Contact Us For Availability
36
Pin, Center Hinge WPL 4339450 Contact Us For Availability
37
Trim, Cabinet Corner (White) WPL 4343318 Contact Us For Availability
38
Bracket, Upper Hinge WPL 4339442 Contact Us For Availability
38
Trivet WPL 4343409 Contact Us For Availability
39
Shim, Upper Hinge WPL 4343320 Contact Us For Availability
42
Screw, Hng/Gusset (1/4-20 x 5/8) WPL 4339455 Contact Us For Availability
43
Clamp, Wiring Harness WPL 4343380 Contact Us For Availability
44
Clamp, Nylon WPL 4339657 Contact Us For Availability
45
Screw, 8-15 A x 1 WPL 4343327 Contact Us For Availability
55
WPL 876029 WPL 876029 Contact Us For Availability
55
WPL 479502 WPL 479502 Contact Us For Availability
55
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
55
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
55
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
55
WPL 4343365 WPL 4343365 Contact Us For Availability
55
WPL 4343366 WPL 4343366 Contact Us For Availability
55
WPL 4343374 WPL 4343374 Contact Us For Availability
55
WPL 4343382 WPL 4343382 Contact Us For Availability
55
WPL 4343399 WPL 4343399 Contact Us For Availability
55
WPL 542639 WPL 542639 Contact Us For Availability
55
WPL 799833 WPL 799833 Contact Us For Availability
55
WPL 978883 WPL 978883 Contact Us For Availability
58
Screw, 8-15 A x 1/2 WPL 4343394 Contact Us For Availability
59
Screw, 10-24 x 7/8 WPL 4343395 Contact Us For Availability
78
Screw, Bracket 8-32 CA x 1/2 WPL 4343291 Contact Us For Availability
81
Screw, 8-15 A x 5/8 WPL 4343328 Contact Us For Availability
81
Screw, CR Truss Head, 8-10 x 1-3/4 WPL 4339461 Contact Us For Availability
81
Screw, Control Mtg., CR Pan Head 6-32 x 1/4 WPL 4339471 Contact Us For Availability
81
Screw, Timer Mtg., Cr Pan Head 6-20 x 7/16 WPL 4339498 Contact Us For Availability
81
Wiring Harness, Control/Divider WPL 4339515 Contact Us For Availability
81
Bushing, Snap-In (Plastic) WPL 4343337 Contact Us For Availability
81
Plug-Button, Control Box WPL 4343348 Contact Us For Availability
81
Nut-Anchor WPL 4343349 Contact Us For Availability
81
Stop Clip, Shelf WPL 4343408 Contact Us For Availability
83
Bracket, Connector WPL 4339926 Contact Us For Availability
92
Screw, Hinge Mtg., 1/4-20 x 7/8 WPL 4339444 Contact Us For Availability
98
Plug-Button, Center Hinge Hole (White) WPL 4343330 Contact Us For Availability
100
Plug Button, Liner WPL 4339512 Contact Us For Availability
100
Screw, Coil Cover 8-15 A x 5/ WPL 4343296 Contact Us For Availability
100
WPL 4343312 WPL 4343312 Contact Us For Availability
100
WPL 4343313 WPL 4343313 Contact Us For Availability
100
WPL 4343319 WPL 4343319 Contact Us For Availability
100
WPL 4343331 WPL 4343331 Contact Us For Availability
× ![]()
