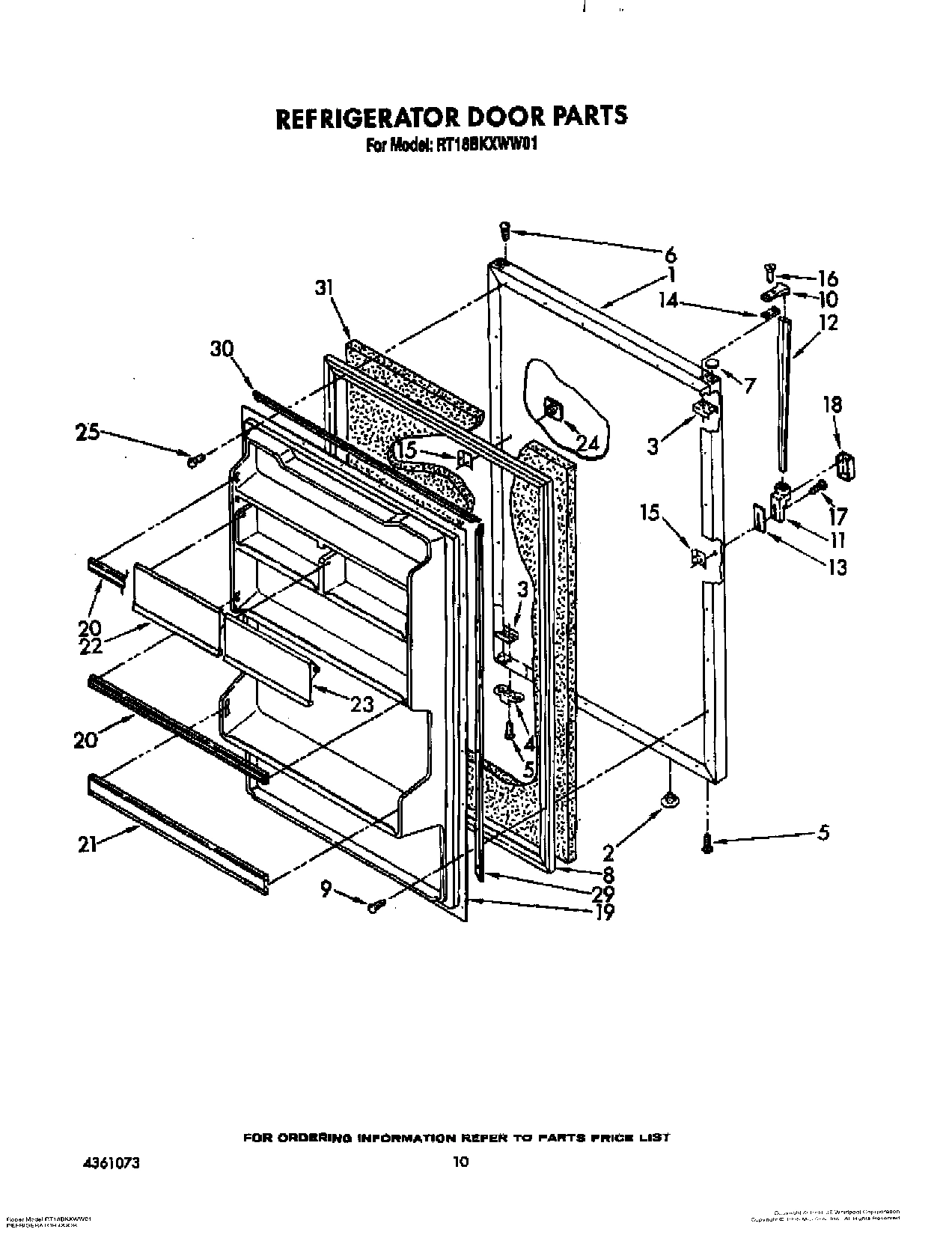

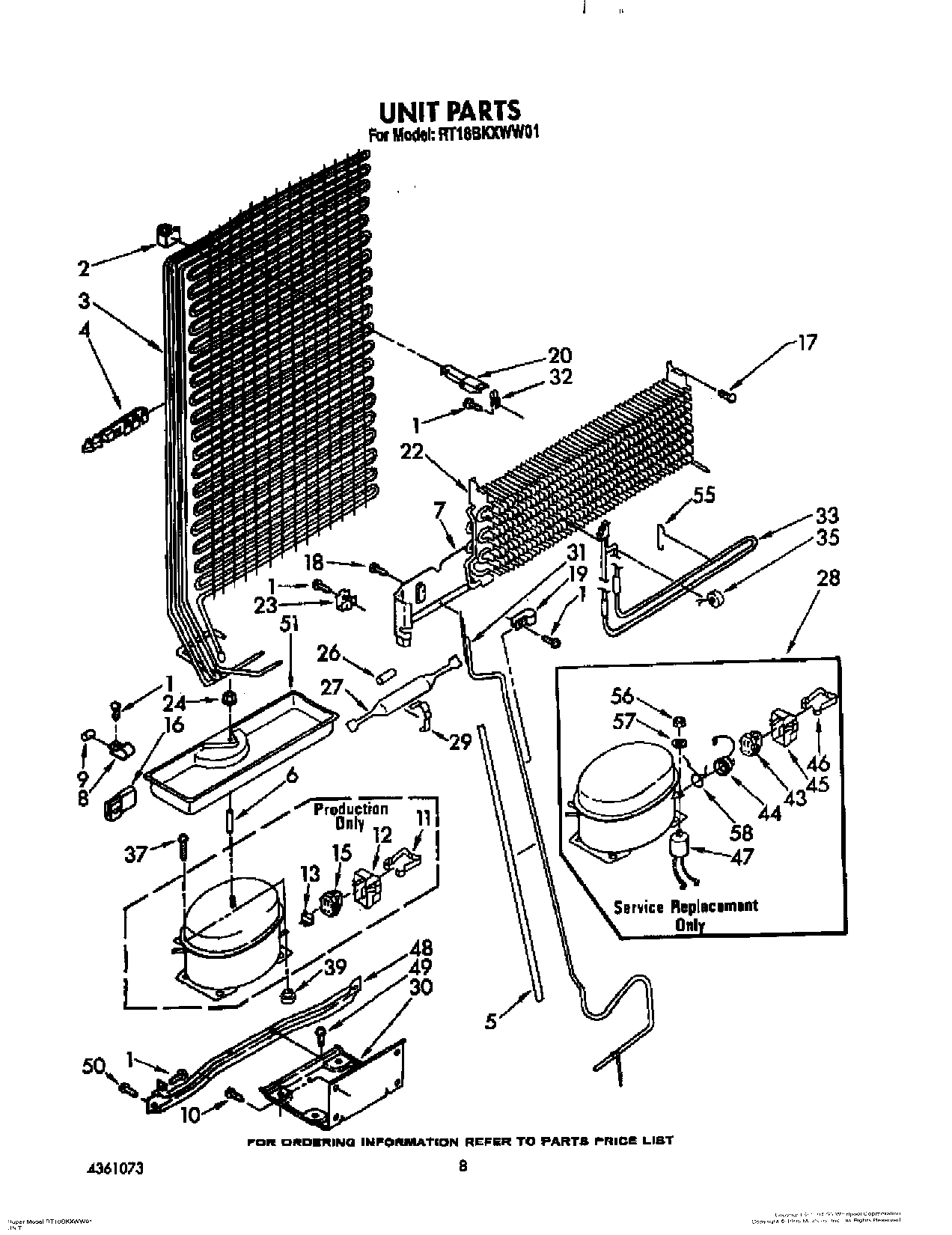

Model Whirlpool RT18BKXWL01 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 1117510 WPL 1117510 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT2148886 WPL LIT2148886 Contact Us For Availability

WPL LIT2149679 WPL LIT2149679 Contact Us For Availability

WPL LIT2150256 WPL LIT2150256 Contact Us For Availability

WPL LIT4361073 WPL LIT4361073 Contact Us For Availability

1

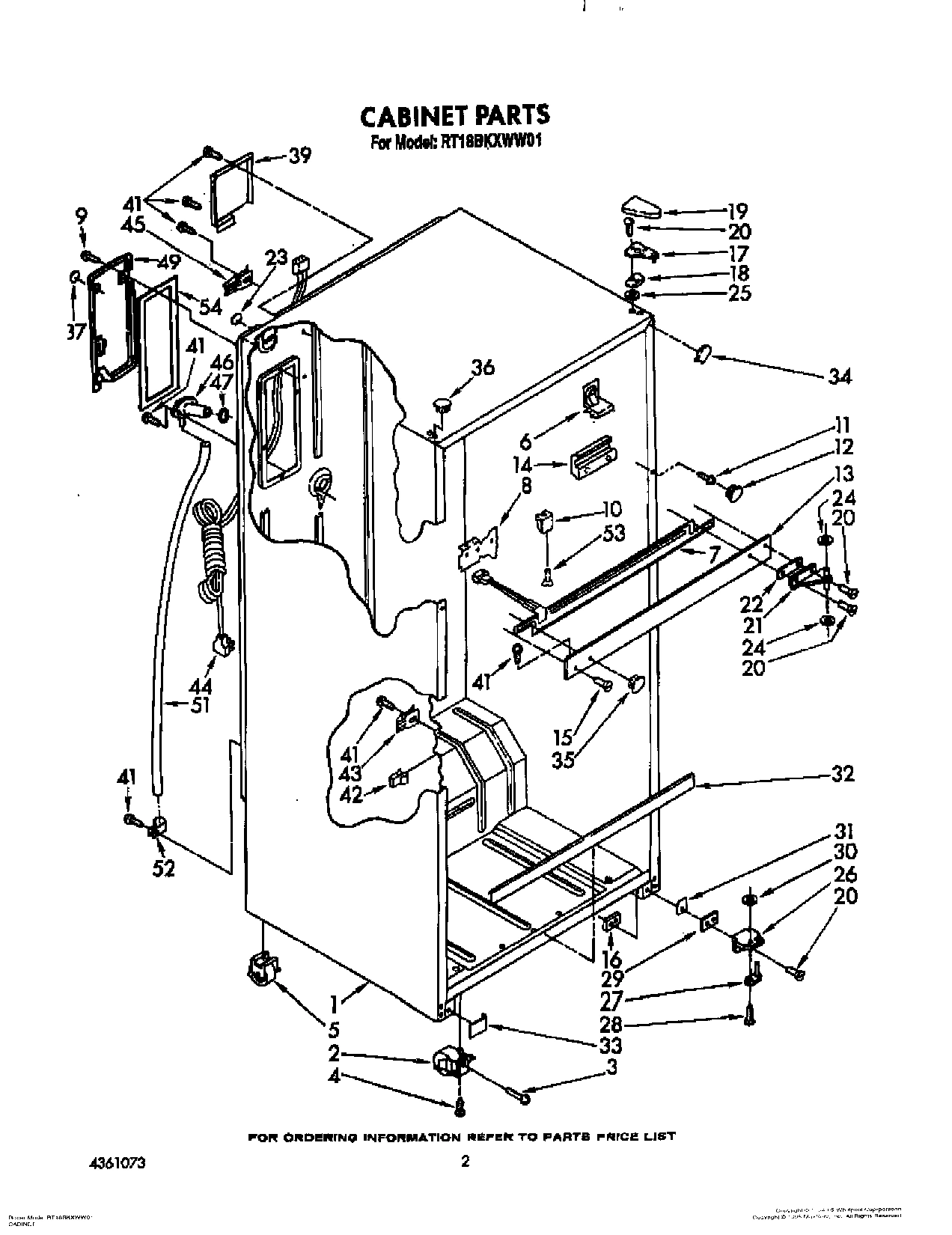

Cabinet (Not A Serviceable Part) WPL ARI126784A Contact Us For Availability

1

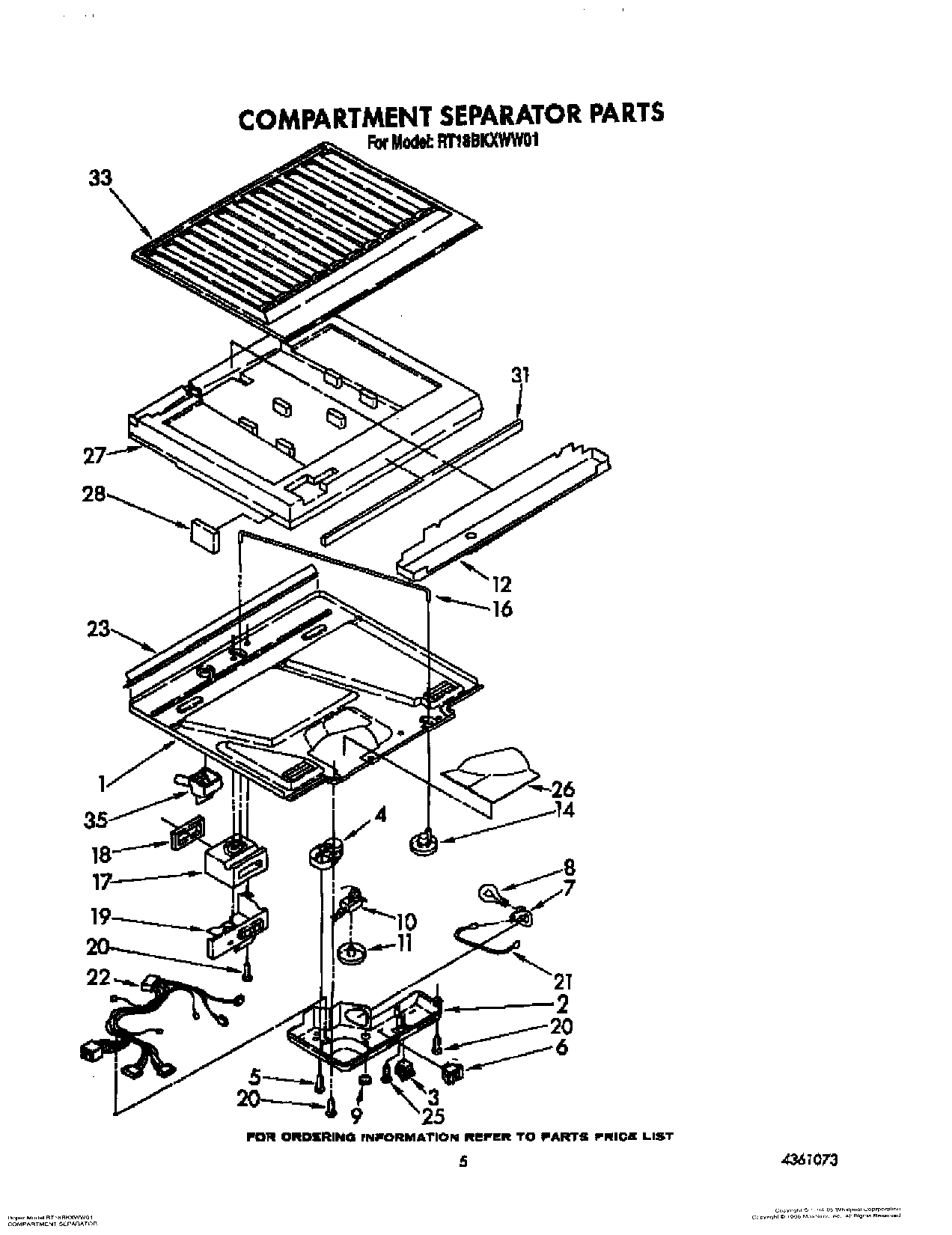

Bottom, Compartment Separator WPL 1111796 Contact Us For Availability

1

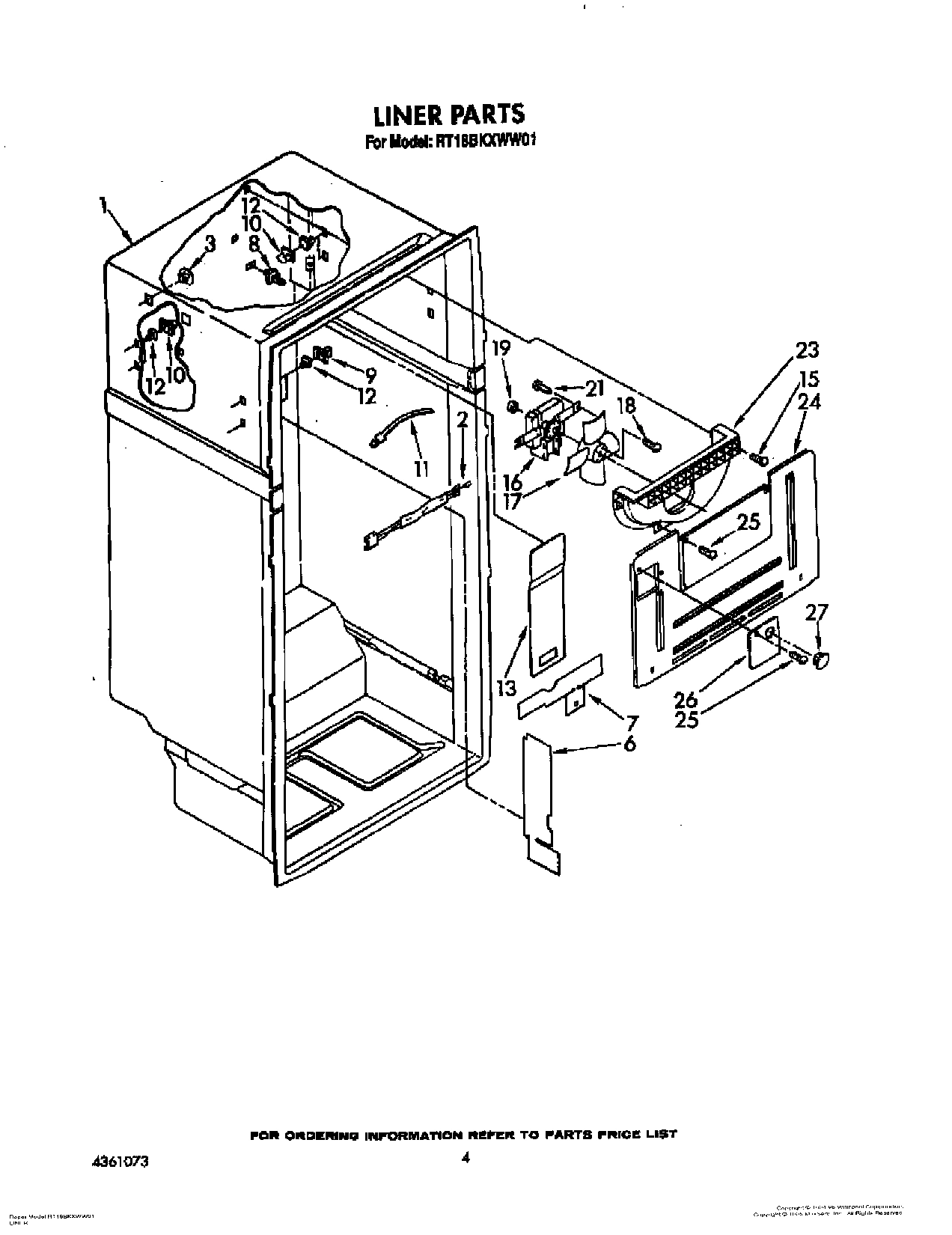

Liner (Not A Serviceable Part) WPL ARI126785A Contact Us For Availability

1

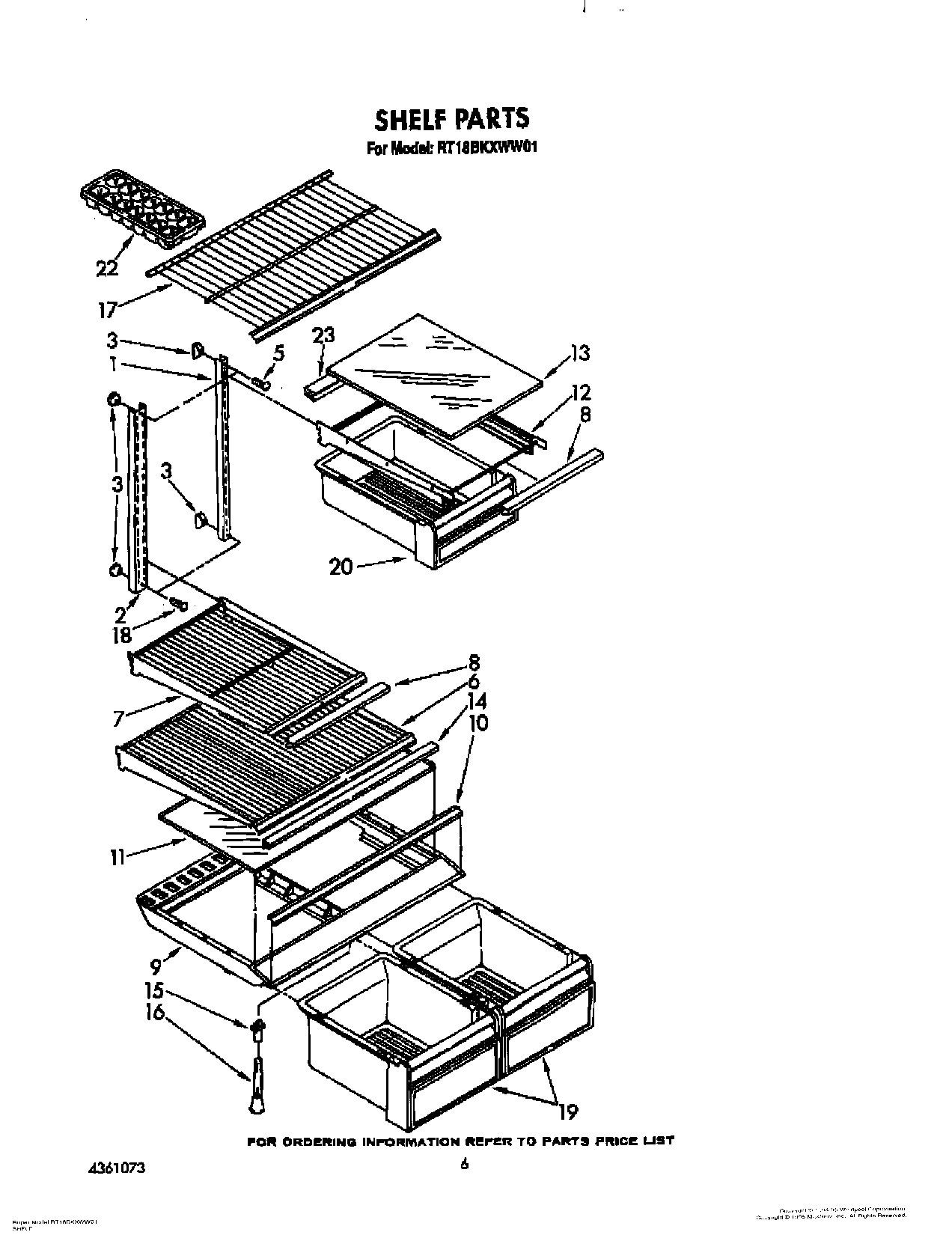

Shelf, Ladder (2) WPL 1111807 Contact Us For Availability

1

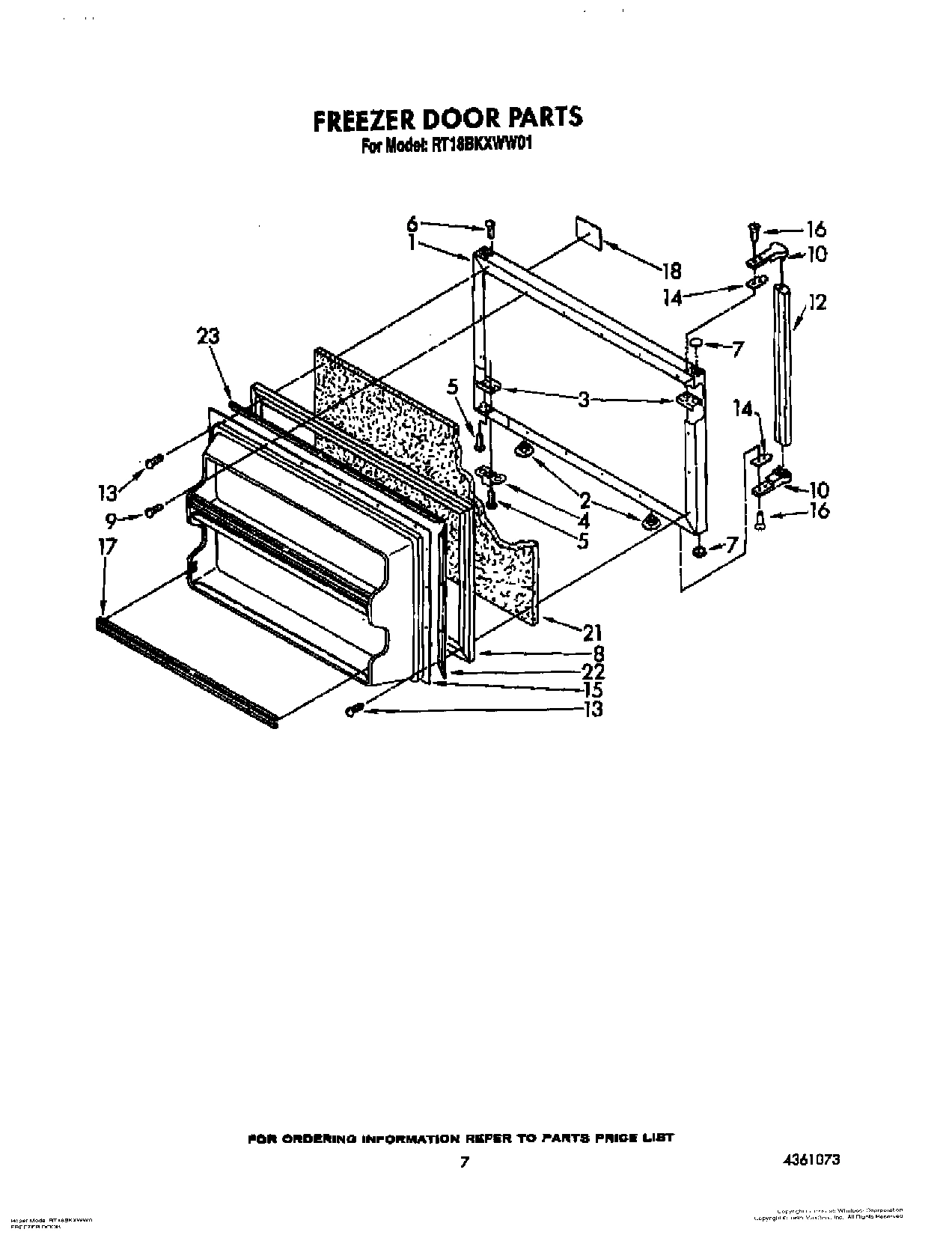

Panel, Freezer Door (Also Order Item 21) (Whi WPL 1104640 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Gol WPL 1104642 Contact Us For Availability

1

Panel, Freezer Door (Also Order Item 21) (Alm WPL 1104644 Contact Us For Availability

1

Panel, Refrigerator Door (White) WPL 1104632 Contact Us For Availability

1

Panel, Refrigerator Door (Golden Harvest) WPL 1104634 Contact Us For Availability

1

Panel, Refrigerator Door (Almond) (Also Order WPL 1104636 Contact Us For Availability

2

Wiring, Fan Motor WPL 1127626 Contact Us For Availability

2

Roller, Front WPL 2152013 Contact Us For Availability

2

Box, Control WPL 1126703 Contact Us For Availability

2

Shelf, Ladder Center WPL 1114465 Contact Us For Availability

2

Hole Plug (2) WPL 534927 Contact Us For Availability

2

Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability

2

Hole Plug (2) (Golden Harvest) WPL 989879 Contact Us For Availability

3

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

3

W10833053 Whirlpool Refrigerator Plate Backorder WPL W10833053 $6.31

3

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

3

Screw WPL 489333 Contact Us For Availability

4

Screw WPL 488448 Contact Us For Availability

4

Timer, Defrost (8 Hour) WPL 1127571 Contact Us For Availability

4

Bracket, Door Stop WPL 944035 Contact Us For Availability

4

Bracket, Door Stop WPL 1115910 Contact Us For Availability

5

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

5

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

5

Roller, Rear WPL 2152014 Contact Us For Availability

5

Screw, WPL 489345 Contact Us For Availability

6

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

6

WP938213 Whirlpool Refrigerator Power Switch Backorder WPL WP938213 $13.76

6

Clip, Center Rail (4) WPL 1129018 Contact Us For Availability

6

Side, Electric Shield WPL 942751 Contact Us For Availability

6

Shelf, Wire Cantilever Full Shelf WPL 1120766 Contact Us For Availability

7

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

7

Heater, Mullion WPL 1108139 Contact Us For Availability

7

Top, Electric Shield WPL 1129068 Contact Us For Availability

7

Shelf, Cantilever WPL 1111778 Contact Us For Availability

7

Hole Plug (Almond) WPL 989196 Contact Us For Availability

8

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

8

Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability

8

Stud, Evaporator (2) WPL 942750 Contact Us For Availability

8

Trim, Shelf WPL 1124402 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1122830 Contact Us For Availability

8

Door Gasket, Magnetic WPL 1122827 Contact Us For Availability

9

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

9

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

9

Stud (2) WPL 946356 Contact Us For Availability

9

Crisper Cover WPL 1124326 Contact Us For Availability

1123394 Whirlpool Refrigerator Cold Control T Backorder WPL 1123394 $89.70

819091 Whirlpool Refrigerator Shelf Stud Backorder WPL 819091 $13.89

Spacer (2) WPL 2149077 Contact Us For Availability

Trim, Crisper Cover WPL 1109419 Contact Us For Availability

Handle End WPL 944157 Contact Us For Availability

Screw, WPL 489370 Contact Us For Availability

Knob, Thermostat WPL 943798 Contact Us For Availability

Clip, Strap WPL 1123230 Contact Us For Availability

Glass, Crisper Cover WPL 1124327 Contact Us For Availability

Handle End, Side WPL 935105 Contact Us For Availability

Hole Plug (2) (White) WPL 1122929 Contact Us For Availability

Hole Plug (2) (Golden Harvest) WPL 1126569 Contact Us For Availability

Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability

Drain Pan WPL 1108358 Contact Us For Availability

support stud (8) WPL 946355 Contact Us For Availability

Pan Shelf, Cantilever WPL 1111774 Contact Us For Availability

Handle, Center WPL 1109183 Contact Us For Availability

Handle, Center WPL 1109181 Contact Us For Availability

Center Rail (White) WPL 1110343 Contact Us For Availability

Center Rail (Golden Harvest) WPL 1110344 Contact Us For Availability

Center Rail (Almond) WPL 1110345 Contact Us For Availability

Cover, Air Duct WPL 1118775 Contact Us For Availability

Glass, Shelf WPL 1124406 Contact Us For Availability

Shim, Handle End (Side) WPL 935076 Contact Us For Availability

Spacer, Handle Door (2) WPL 943188 Contact Us For Availability

Center, Rail Shim (2) WPL 2151428 Contact Us For Availability

Knob, Air Control WPL 1126710 Contact Us For Availability

Trim, Shelf WPL 1124404 Contact Us For Availability

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

Screw WPL 489319 Contact Us For Availability

Support, Crisper Cover WPL 1103731 Contact Us For Availability

Interior Door Panel WPL 1120635 Contact Us For Availability

482731 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482731 $47.13

WP488920 Whirlpool Refrigerator Screw Backorder WPL WP488920 $2.51

Post, Cripser Cover WPL 836410 Contact Us For Availability

Tap Plate (2) WPL 2147312 Contact Us For Availability

Rod, Connecting WPL 1111272 Contact Us For Availability

WP1100938 Whirlpool Refrigerator Fan Blade Backorder WPL WP1100938 $27.58

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Hinge, Top WPL 1129045 Contact Us For Availability

Air Diffuser Assembly WPL 1118774 Contact Us For Availability

Shelf, Freezer WPL 944734 Contact Us For Availability

Trim, Door Shelf (2) WPL 1120784 Contact Us For Availability

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Shim, Hinge Top WPL 1100511 Contact Us For Availability

Gasket, Air Diffuser WPL 1114325 Contact Us For Availability

Nameplate WPL 1124315 Contact Us For Availability

Screw, Cover WPL 987873 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

Hinge Cover (Golden Harvest) WPL 989896 Contact Us For Availability

Cover, Air Diffuser WPL 1108176 Contact Us For Availability

Grommet (2) WPL 531933 Contact Us For Availability

Pan, Crisper WPL 1124328 Contact Us For Availability

Interior Door Panel WPL 1120634 Contact Us For Availability

20

Screw WPL 489327 Contact Us For Availability

20

Pan, Meat WPL 1124336 Contact Us For Availability

20

Trim, Door (2) WPL 1120775 Contact Us For Availability

Kit, Foam Slab WPL 876029 Contact Us For Availability

Hinge, Center WPL 1129047 Contact Us For Availability

Wiring Assembly WPL 937078 Contact Us For Availability

Screw (2) WPL 489168 Contact Us For Availability

Trim, Door WPL 1120776 Contact Us For Availability

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $3.92

Shim, Hinge Center WPL 836155 Contact Us For Availability

Wiring Assembly, Control Box & Cabinet WPL 2149659 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability

Compartment Door, Utility WPL 1124410 Contact Us For Availability

Hole Seal WPL 1129056 Contact Us For Availability

Gasket, Bottom Separator WPL 1123915 Contact Us For Availability

Scroll, Fan WPL 1122814 Contact Us For Availability

Retainer, Glass Shelf WPL 1111810 Contact Us For Availability

Compartment, Butter Door WPL 1124409 Contact Us For Availability

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP488296 Whirlpool Washer Refrigerator In Stock WPL WP488296 $3.70

Evaporator Cover WPL 2151658 Contact Us For Availability

Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability

Hole Plug, Handle (Golden Harvest) WPL 1122694 Contact Us For Availability

25

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

25

Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability

26

WP2217784 Whirlpool Refrigerator Cover Backorder WPL WP2217784 $15.98

26

Hinge Butt, Bottom WPL 1123882 Contact Us For Availability

26

Insulation, Filler WPL 1108196 Contact Us For Availability

27

Hinge Pin, Bottom WPL 654366 Contact Us For Availability

27

Insulation, Compartment Separator WPL 1123391 Contact Us For Availability

27

Hole Plug WPL 1103725 Contact Us For Availability

28

Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability

28

Pad (2) WPL 946367 Contact Us For Availability

29

Shim, Bottom WPL 943708 Contact Us For Availability

29

Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability

30

Washer, 7/64 WPL 489201 Contact Us For Availability

30

Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 2151423 Contact Us For Availability

Insulation, Center Rail WPL 1111503 Contact Us For Availability

Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

32

Cover, Deck Rail (White) WPL 1109364 Contact Us For Availability

32

Cover, Deck Rail (Golden Harvest) WPL 1109366 Contact Us For Availability

32

Cover, Deck Rail (Almond) WPL 1109368 Contact Us For Availability

Cover, Glider Rail (White) WPL 943552 Contact Us For Availability

Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability

Cover, Glider Rail (Golden Harvest) WPL 944833 Contact Us For Availability

Separator, Compartment (Top) WPL 1119325 Contact Us For Availability

34

Filler, Wrap Corner (White) WPL 1110684 Contact Us For Availability

34

Filler, Wrap Corner (Golden Harvest) WPL 1110685 Contact Us For Availability

34

Filler, Wrap Corner (Almond) WPL 1110686 Contact Us For Availability

Cup, Drain WPL 939191 Contact Us For Availability

Hole Plug (White) WPL 1119707 Contact Us For Availability

Hole Plug (Golden Harvest) WPL 1119708 Contact Us For Availability

Hole Pl WPL 1119709 Contact Us For Availability

36

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

36

WPL 2151653 WPL 2151653 Contact Us For Availability

36

WPL 2151654 WPL 2151654 Contact Us For Availability

37

WPL 1120224 WPL 1120224 Contact Us For Availability

39

WPL 942845 WPL 942845 Contact Us For Availability

42

W10812038 Whirlpool Refrigerator Clip Backorder WPL W10812038 $4.08

43

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

44

WPL 937360 WPL 937360 Contact Us For Availability

45

WPL 937357 WPL 937357 Contact Us For Availability

46

WPL 942813 WPL 942813 Contact Us For Availability

47

WPL 1106507 WPL 1106507 Contact Us For Availability

49

WPL 1106511 WPL 1106511 Contact Us For Availability

51

8316810 Whirlpool Refrigerator Drain Tube Backorder WPL 8316810 $36.64

52

WPL 519405 WPL 519405 Contact Us For Availability

53

WP489174 Whirlpool Refrigerator Screw Backorder WPL WP489174 $3.70

54

WPL 1106510 WPL 1106510 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
