Model Whirlpool RT18BKXAW01 – Common Parts & Diagrams
02 - LINER
05 - FREEZER DOOR

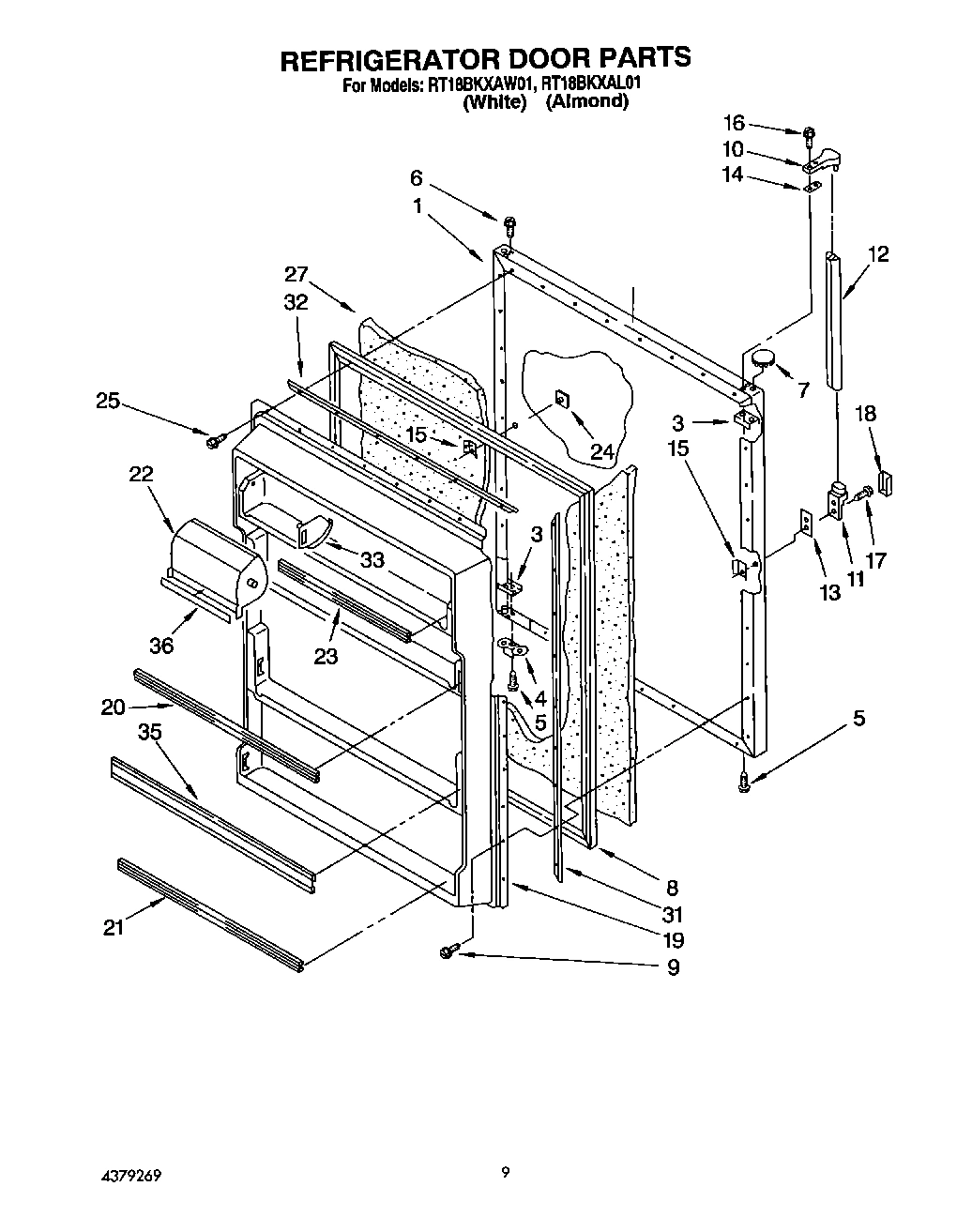

07 - REFRIGERATOR DOOR, LIT/OPTIONAL

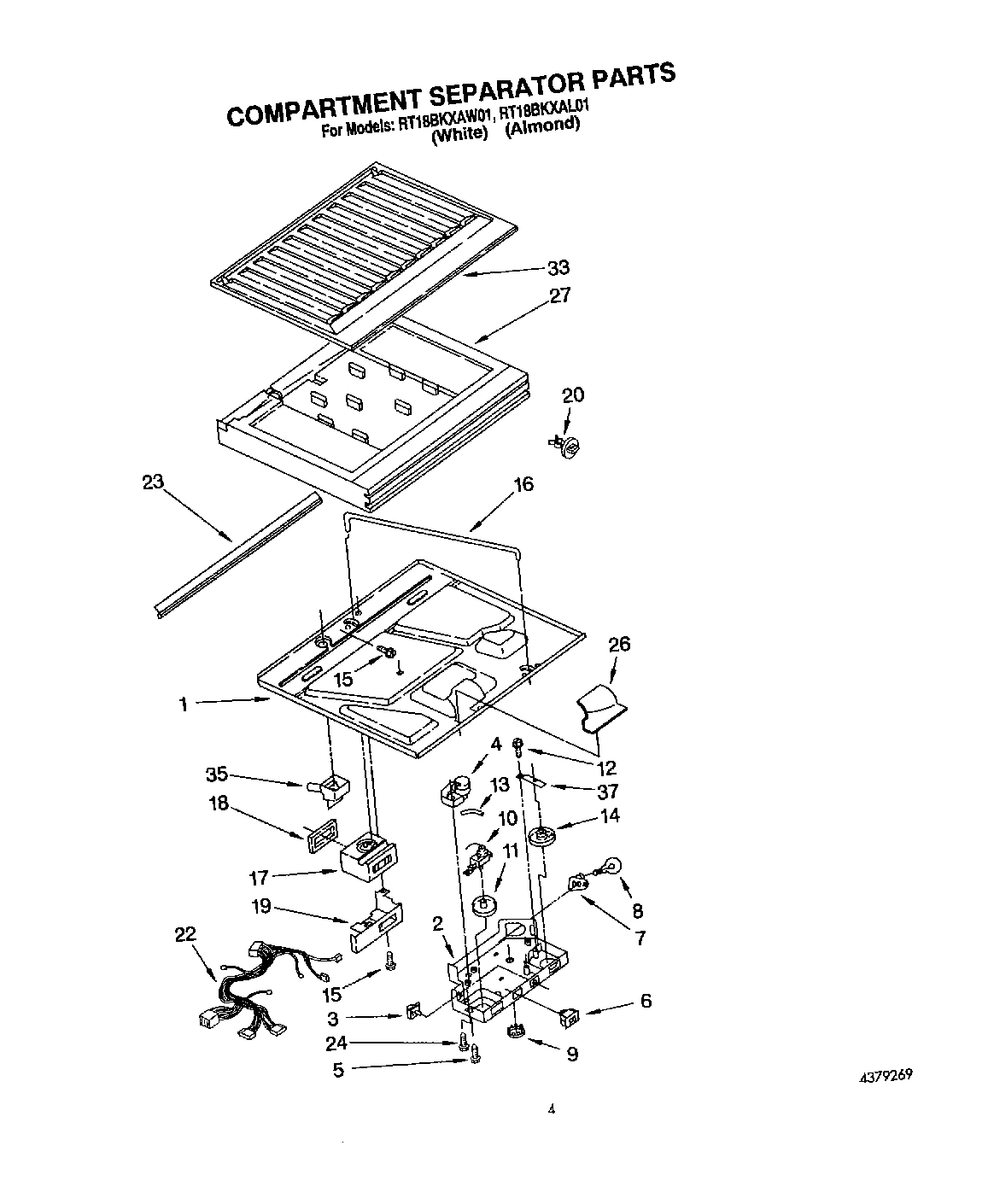

03 - COMPARTMENT SEPARATOR

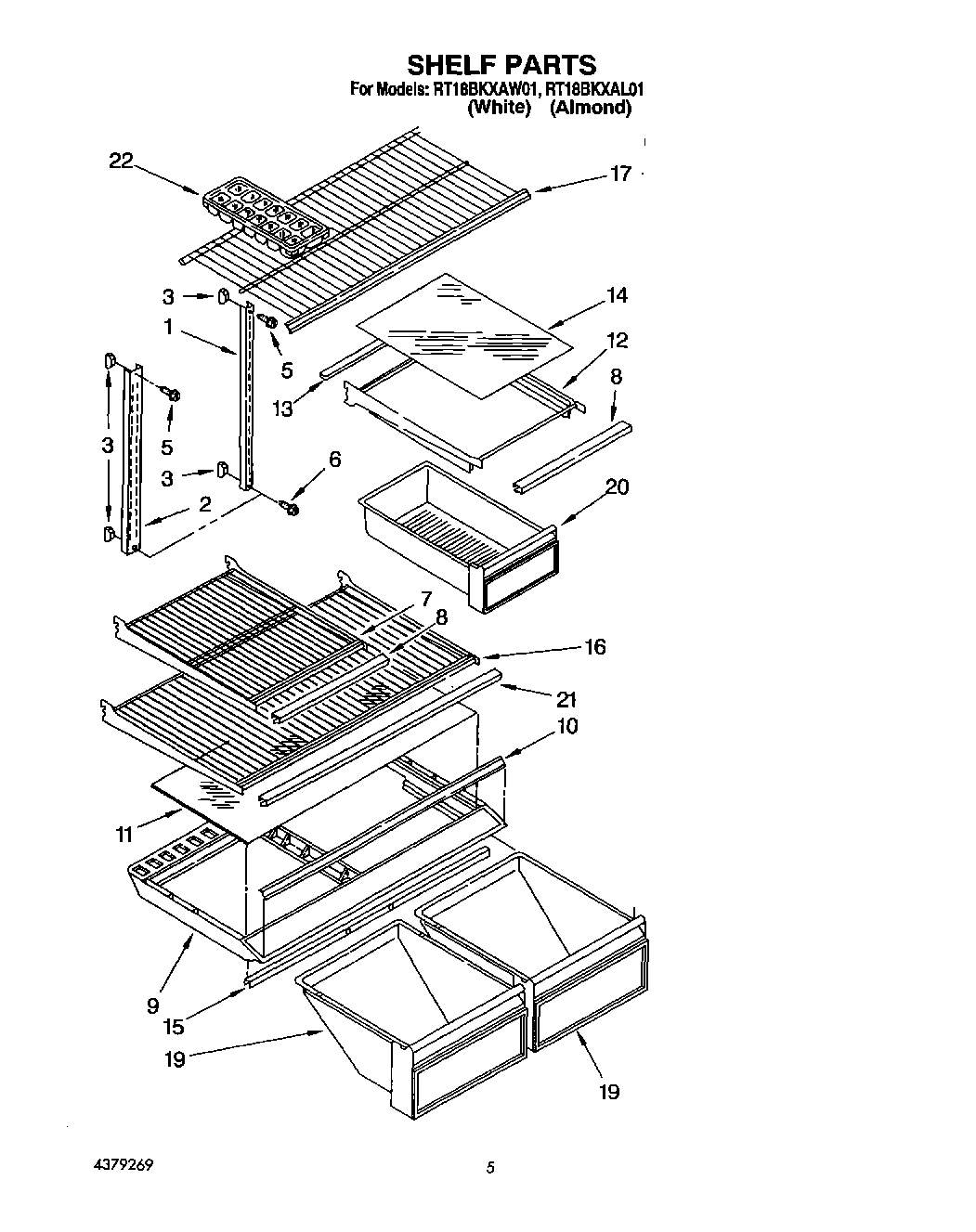

04 - SHELF

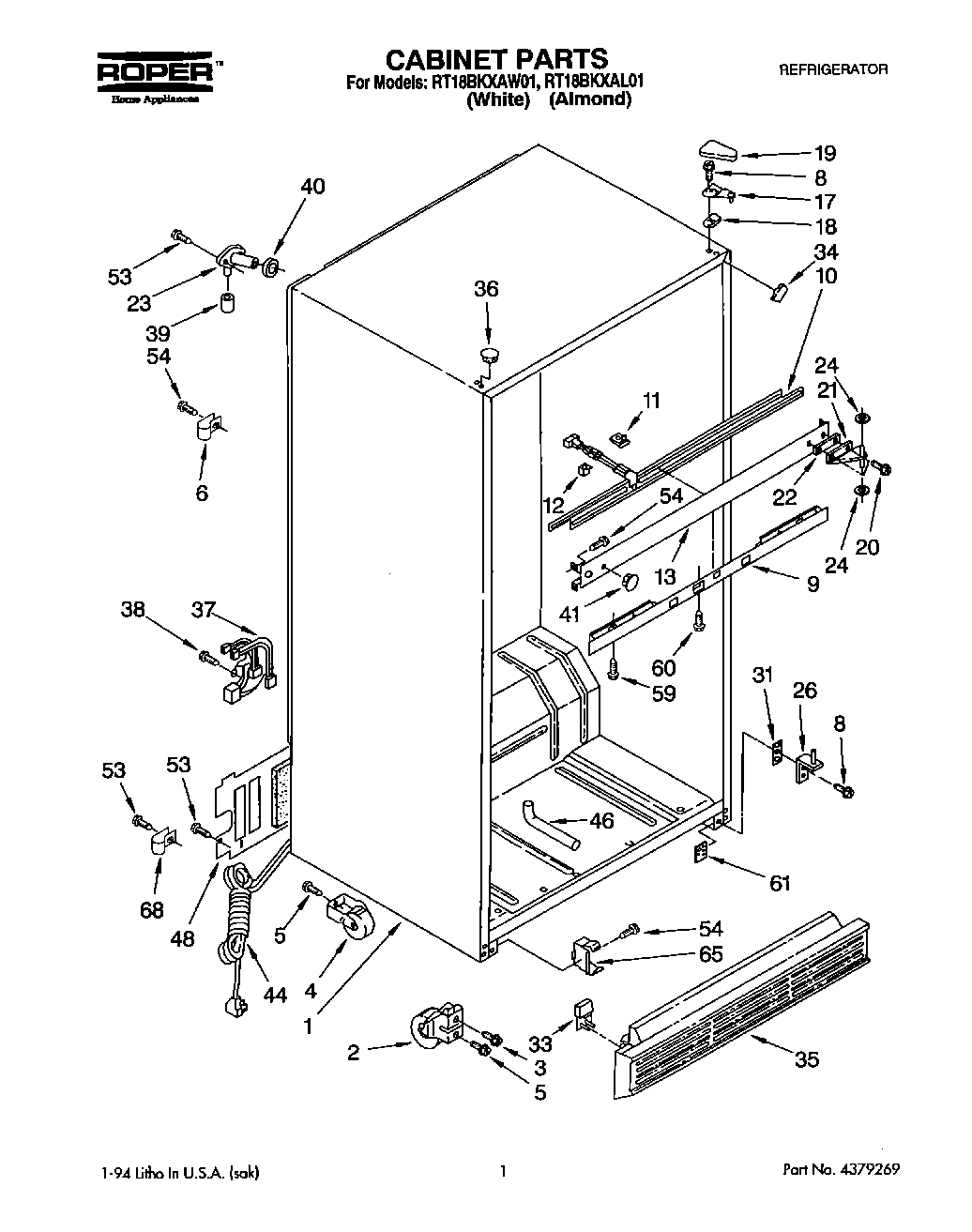

01 - CABINET

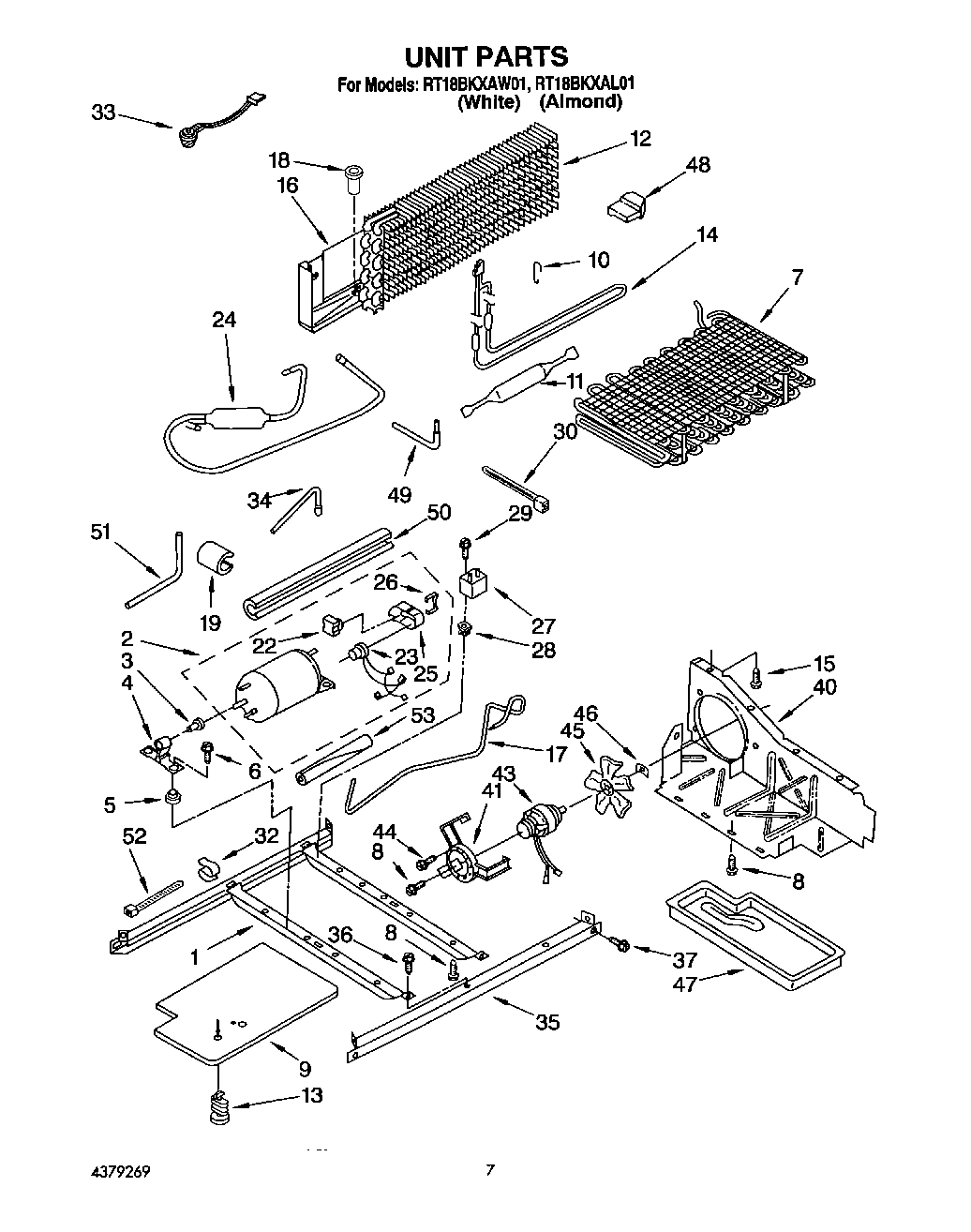

06 - UNIT
Common parts from model Whirlpool RT18BKXAW01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
1
Bottom, Compartment Separator WPL 2172814 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI126701A Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
2
Compressor KIt Includes Items 22 (23, 25, 26 WPL 2154564 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
5
Grommet, Compressor WPL 1105200 Contact Us For Availability
6
Screw WPL 489334 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Shelf, Cantilever WPL 2163920 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116734 Contact Us For Availability
8
Trim, Shelf WPL 1124330 Contact Us For Availability
9
Crisper Cover WPL 2163205 Contact Us For Availability
9
Control, Front Cover WPL 2163213 Contact Us For Availability
9
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Trim, Crisper Cover WPL 2172715 Contact Us For Availability
10
Heater, Mullion WPL 2154064 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
11
Handle End, WPL 935105 Contact Us For Availability
11
Knob, Thermostat WPL 2148150 Contact Us For Availability
11
Glass, Crisper Cover WPL 2163208 Contact Us For Availability
11
Clip, Center Rail (3) WPL 1129018 Contact Us For Availability
12
Handle, Center WPL 1109181 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1116703 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
13
Shim, Handle WPL 935076 Contact Us For Availability
13
Retainer, Glass WPL 1118119 Contact Us For Availability
13
Center Rail WPL 2172701 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 2148151 Contact Us For Availability
14
Glass, Meat Cover WPL 2163210 Contact Us For Availability
14
Heater, Defrost WPL 2162020 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2160873 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
17
Shelf, Freezer WPL 1116722 Contact Us For Availability
17
Tube, Discharge WPL 2154028 Contact Us For Availability
18
Cover, End Cap WPL 987873 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
19
Interior Door Panel WPL 2160165 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Pan, Crisper WPL 2163207 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
20
Trim, Door Shelf WPL 2163226 Contact Us For Availability
20
Clip, Thermostat Tube Retention WPL 2172812 Contact Us For Availability
20
Pan, Meat WPL 2163212 Contact Us For Availability
21
Trim, Door Shelf WPL 2163227 Contact Us For Availability
21
Trim, Full Shelf WPL 1124333 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
22
EndCap, Trim (4) WPL 1106862 Contact Us For Availability
22
Compartment Door, Utility WPL 2163223 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Relay (See Overload) WPL ARI126703A Contact Us For Availability
23
Trim, Door Shelf WPL 2163235 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability
24
Muffler WPL 2154033 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
32
Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability
32
Clip, Wire WPL 548745 Contact Us For Availability
33
Hinge Pin, Center WPL 2160051 Contact Us For Availability
33
Separator, Compartment (Top) WPL 2157398 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
34
Tube, Process WPL 2154090 Contact Us For Availability
35
Trim, Door Shelf WPL 2163224 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
36
WPL 876029 WPL 876029 Contact Us For Availability
36
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
36
WPL 799344 WPL 799344 Contact Us For Availability
36
Trim, Compartment Door WPL 1124347 Contact Us For Availability
36
Door Reversal Instructions WPL 2148984 Contact Us For Availability
36
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
36
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
36
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
36
WPL 542639 WPL 542639 Contact Us For Availability
36
WPL 799833 WPL 799833 Contact Us For Availability
36
WPL 978883 WPL 978883 Contact Us For Availability
36
Hole Plug (6) (Almond) WPL 2151653 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Hole Plug WPL 1129062 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
46
Fitting, Drain WPL 2154118 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Cover, Unit WPL 2160514 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
49
Tube, Process WPL 2154040 Contact Us For Availability
51
Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability
53
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
53
Sleeve WPL 2159751 Contact Us For Availability
53
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
