Model Whirlpool RT18AKXZW00 REFRIGERATOR – Common Parts & Diagrams
04 - COMPARTMENT SEPARATOR
03 - LINER

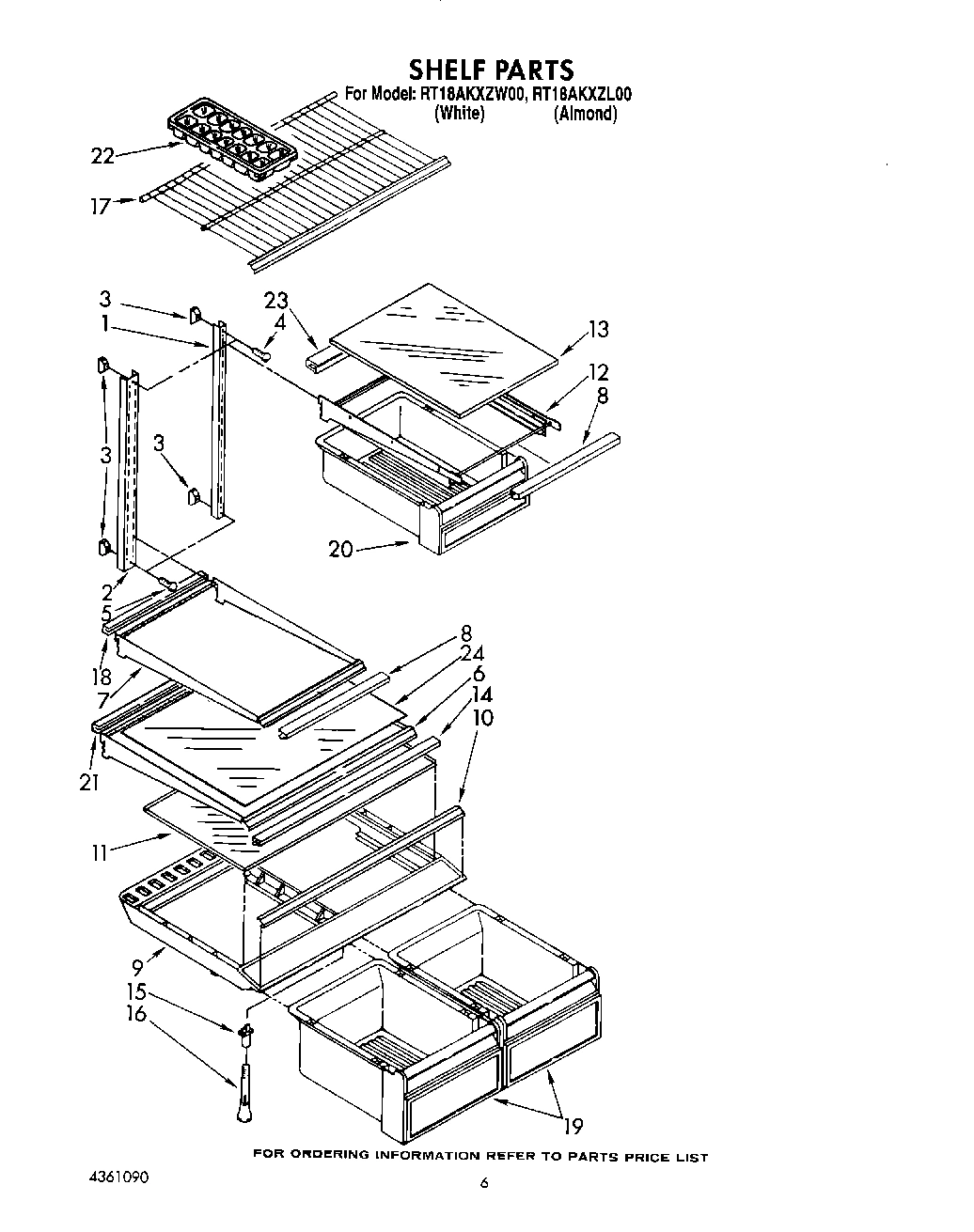

05 - SHELF

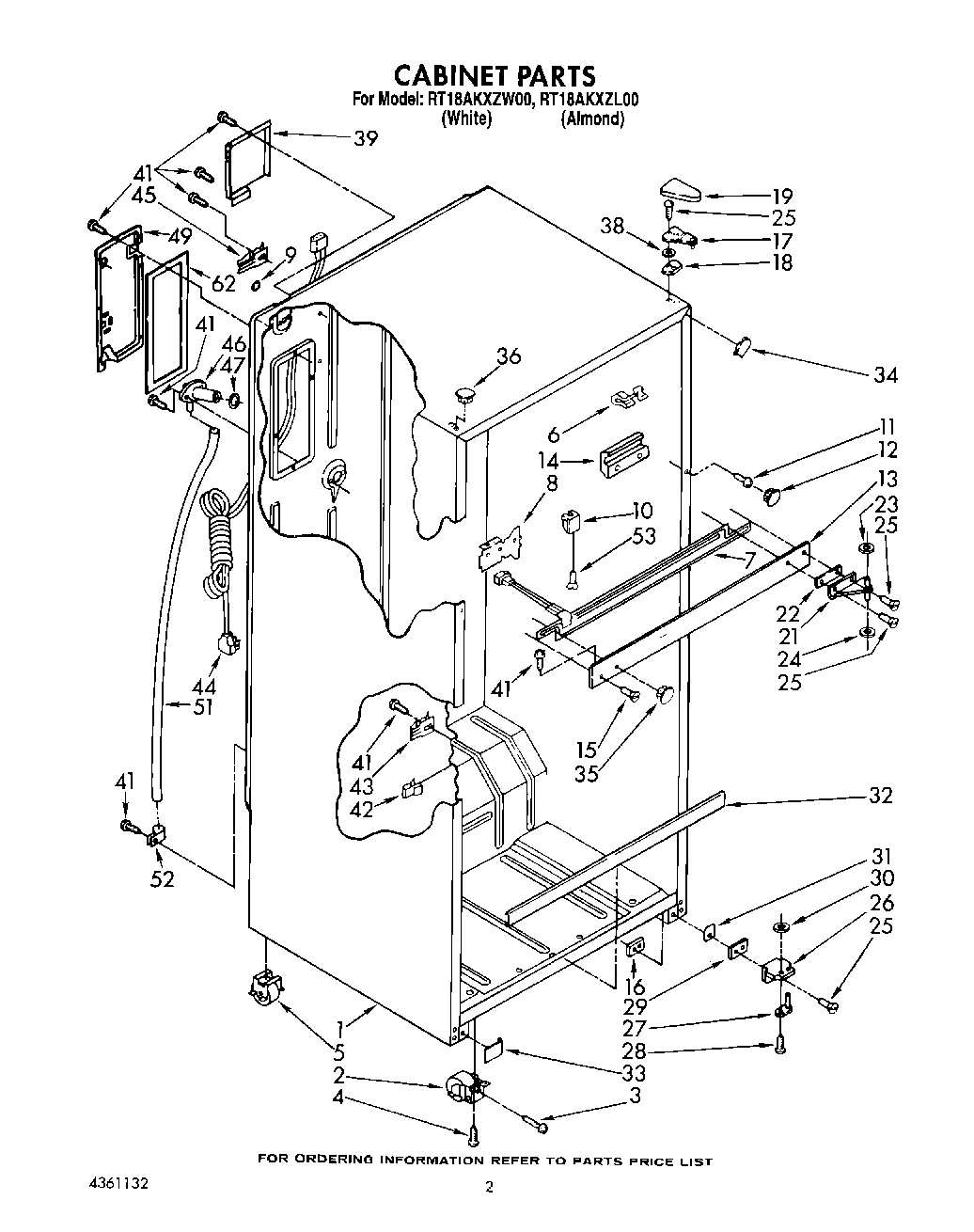

02 - CABINET

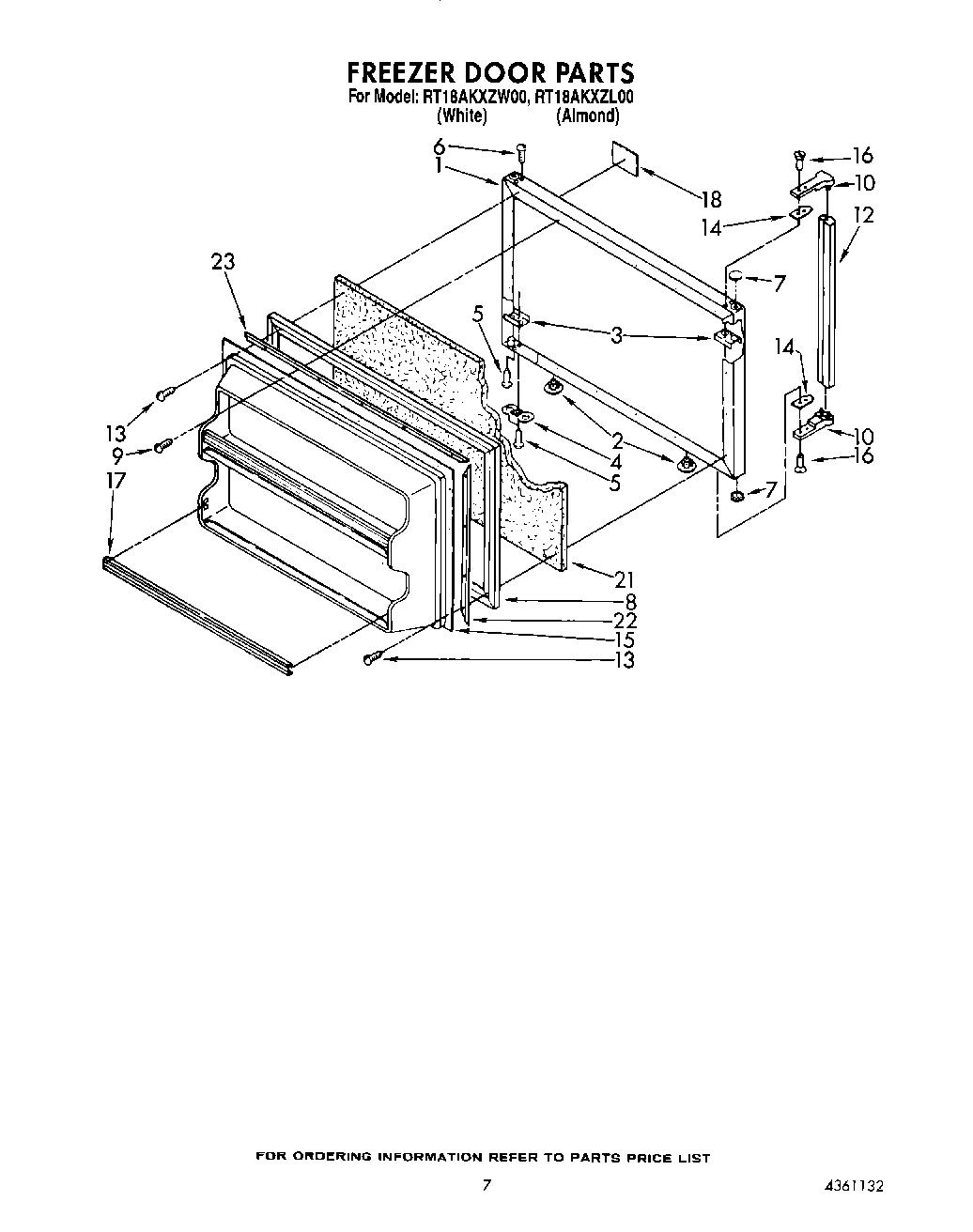

06 - FREEZER DOOR

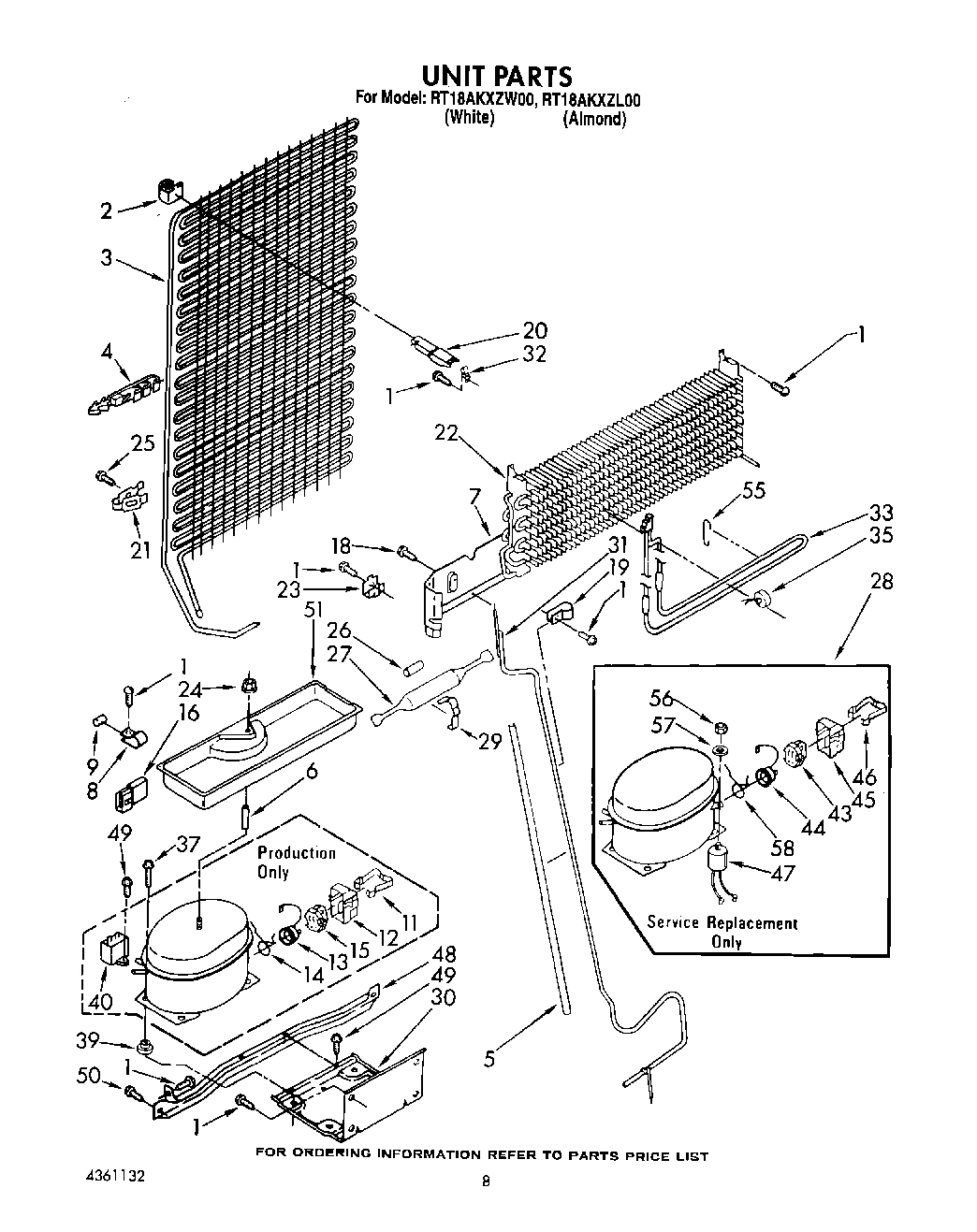

07 - UNIT

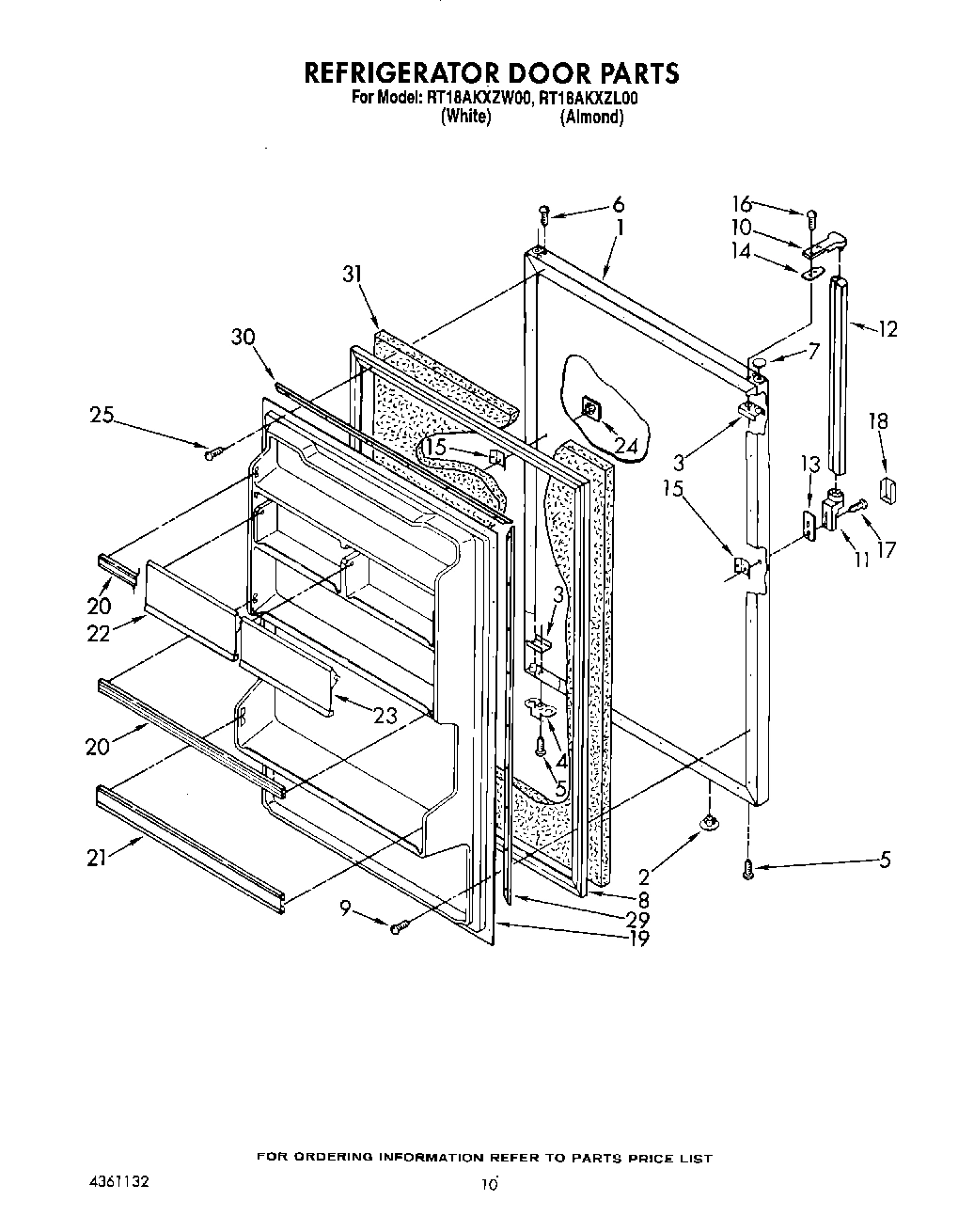

08 - REFRIGERATOR DOOR, LIT/OPTIONAL
Common parts from model Whirlpool RT18AKXZW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2150256 WPL LIT2150256 Contact Us For Availability
WPL LIT2152525 WPL LIT2152525 Contact Us For Availability
WPL LIT2154703 WPL LIT2154703 Contact Us For Availability
WPL LIT4361132 WPL LIT4361132 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1111807 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI126693A Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Whi WPL 1104640 Contact Us For Availability
1
Panel, Freezer Door (Also Order Item 21) (Alm WPL 1104644 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1104632 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) (Also Order WPL 1104636 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Roller, Front WPL 2152013 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Bumper (2) WPL 1103640 Contact Us For Availability
3
Screw WPL 489333 Contact Us For Availability
3
Condenser WPL 2154844 Contact Us For Availability
4
Screw, WPL 489345 Contact Us For Availability
4
Screw WPL 488448 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Clip, Tube (2) WPL 1118652 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Roller, Rear WPL 2152014 Contact Us For Availability
6
Shelf, Wire Cantilever Full Shelf WPL 1111848 Contact Us For Availability
6
Breaker, Trim Clip (3) WPL 1129018 Contact Us For Availability
6
Spacer WPL 2154438 Contact Us For Availability
7
Shelf, Cantilever WPL 1111846 Contact Us For Availability
7
Heater, Mullion WPL 1108139 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Heat Shield Evaporator WPL 1108359 Contact Us For Availability
8
Trim, Shelf WPL 1124402 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1122830 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1122827 Contact Us For Availability
9
Crisper Cover WPL 1124326 Contact Us For Availability
9
Hole Seal WPL 1120224 Contact Us For Availability
9
Hole Seal WPL 1129056 Contact Us For Availability
9
Dampener WPL 945593 Contact Us For Availability
10
Trim, Crisper Cover WPL 1109419 Contact Us For Availability
10
Spacer (2) WPL 2149077 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124327 Contact Us For Availability
11
Screw (2) WPL 489370 Contact Us For Availability
11
Handle End, Side WPL 935105 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1111774 Contact Us For Availability
12
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
12
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
12
Handle, Center WPL 1109183 Contact Us For Availability
12
Case, Relay WPL 1108115 Contact Us For Availability
12
Handle, Center WPL 1109181 Contact Us For Availability
13
Glass, Shelf WPL 1124406 Contact Us For Availability
13
Center Rail (White) WPL 1110343 Contact Us For Availability
13
Center Rail (Almond) WPL 1110345 Contact Us For Availability
13
Overload WPL 1108114 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935076 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Trim, Shelf WPL 1124404 Contact Us For Availability
14
Center, Rail Shim (2) WPL 2151428 Contact Us For Availability
15
Support, Crisper Cover WPL 1103731 Contact Us For Availability
15
Screw WPL 489378 Contact Us For Availability
15
Interior Door Panel WPL 1120635 Contact Us For Availability
16
Post, Cripser Cover WPL 836410 Contact Us For Availability
16
Tap Plate (2) WPL 2147312 Contact Us For Availability
17
Shelf, Freezer WPL 944734 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 1120784 Contact Us For Availability
18
Reflector WPL 1120791 Contact Us For Availability
18
Shim, Hinge Top WPL 2151698 Contact Us For Availability
18
Nameplate WPL 2160005 Contact Us For Availability
18
Screw, Cover WPL 987873 Contact Us For Availability
19
Pan, Crisper WPL 1124328 Contact Us For Availability
19
Tube, Clamp WPL 489151 Contact Us For Availability
19
Interior Door Panel WPL 1120634 Contact Us For Availability
20
Pan, Meat WPL 1124336 Contact Us For Availability
20
Condenser, Stand-Off WPL 1100637 Contact Us For Availability
20
Trim, Door (2) WPL 1120775 Contact Us For Availability
21
Reflector WPL 1120794 Contact Us For Availability
21
Hinge, Center WPL 1129047 Contact Us For Availability
21
Clip, Tube WPL 1105406 Contact Us For Availability
21
Trim, Door WPL 1120776 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Gasket Retainer, Side (2) WPL 1120613 Contact Us For Availability
22
Evaporator WPL 943762 Contact Us For Availability
22
Compartment Door, Utility WPL 1124410 Contact Us For Availability
23
Retainer, Glass Shelf WPL 1111810 Contact Us For Availability
23
Compartment, Butter Door WPL 1124409 Contact Us For Availability
24
Evaporator Cover WPL 2151658 Contact Us For Availability
24
Shelf, Glass WPL 2152401 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Screw WPL 489327 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
26
Restrictor Sleeve WPL 510446 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
28
Screw WPL 488714 Contact Us For Availability
28
Compressor (Includes Items 43, 44, 45, 46, 47 WPL 482981 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
29
Clamp, Dryer WPL 1127590 Contact Us For Availability
29
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
30
Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability
30
Unit Mounting Plate WPL 1118781 Contact Us For Availability
31
WPL 876029 WPL 876029 Contact Us For Availability
31
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability
31
Exchanger, Heat WPL 1127721 Contact Us For Availability
31
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
31
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
31
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
31
CEMENT, ALUMI WPL 542639 Contact Us For Availability
31
WPL 799833 WPL 799833 Contact Us For Availability
31
WPL 978883 WPL 978883 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109364 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109368 Contact Us For Availability
32
Clip, Stand Off WPL 1100707 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
33
Heater, Defrost WPL 1127660 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1110684 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1110685 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Hole Plug (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
36
Hole Plug (3) (Almond) WPL 2151653 Contact Us For Availability
39
Cover, Wiring WPL 942845 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
44
Overload WPL 483037 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
46
Fitting, Drain WPL 942813 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
47
Seal, Gasket WPL 1106507 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
48
Unit Mounting Rail WPL 1118783 Contact Us For Availability
49
Plug Assembly WPL 1106511 Contact Us For Availability
51
Evaporator Tray WPL 1101002 Contact Us For Availability
52
Clamp WPL 519405 Contact Us For Availability
55
Support, Heater WPL 1108172 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
62
Seal, Gasket WPL 1106510 Contact Us For Availability
× ![]()
