Model Whirlpool RT18AKXBW01 REFRIGERATOR – Common Parts & Diagrams

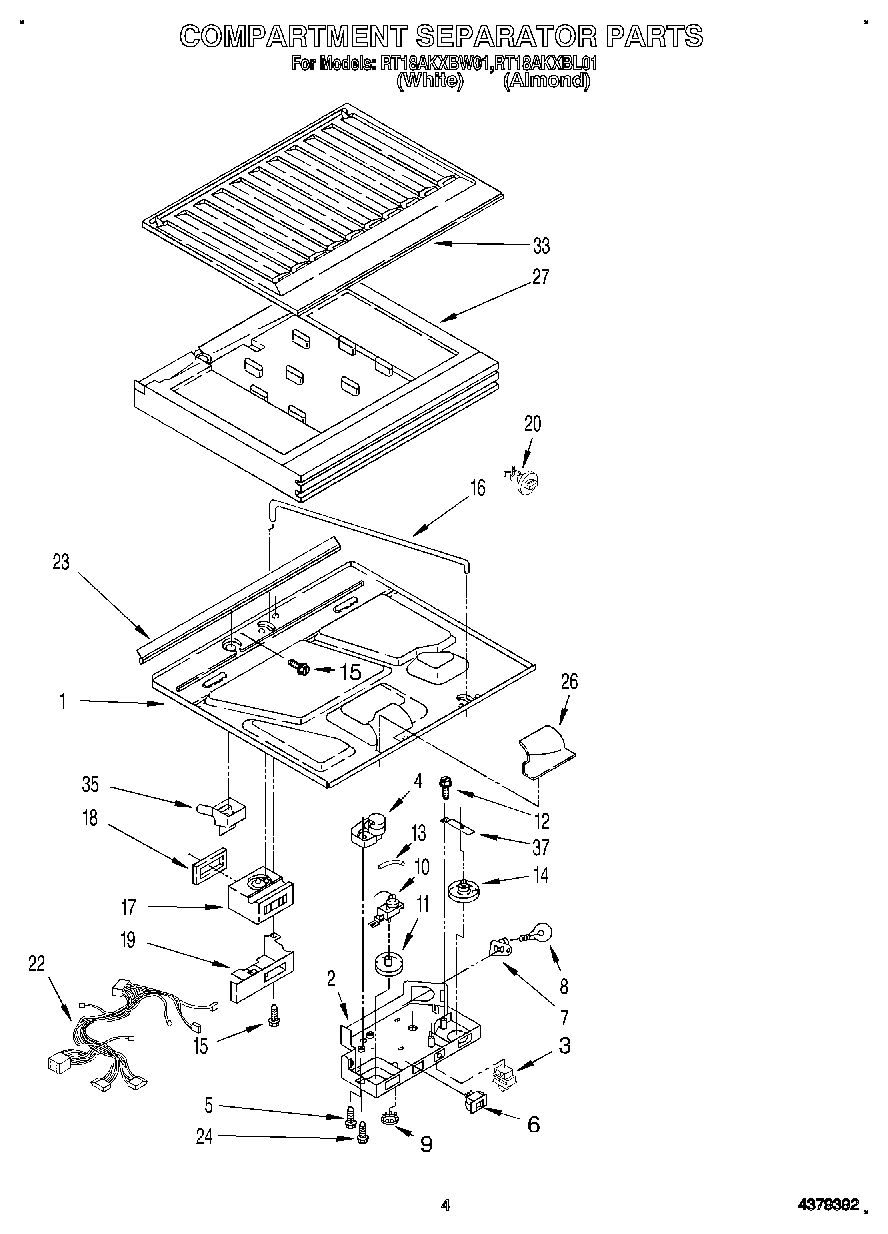

03 - COMPARTMENT SEPARATOR

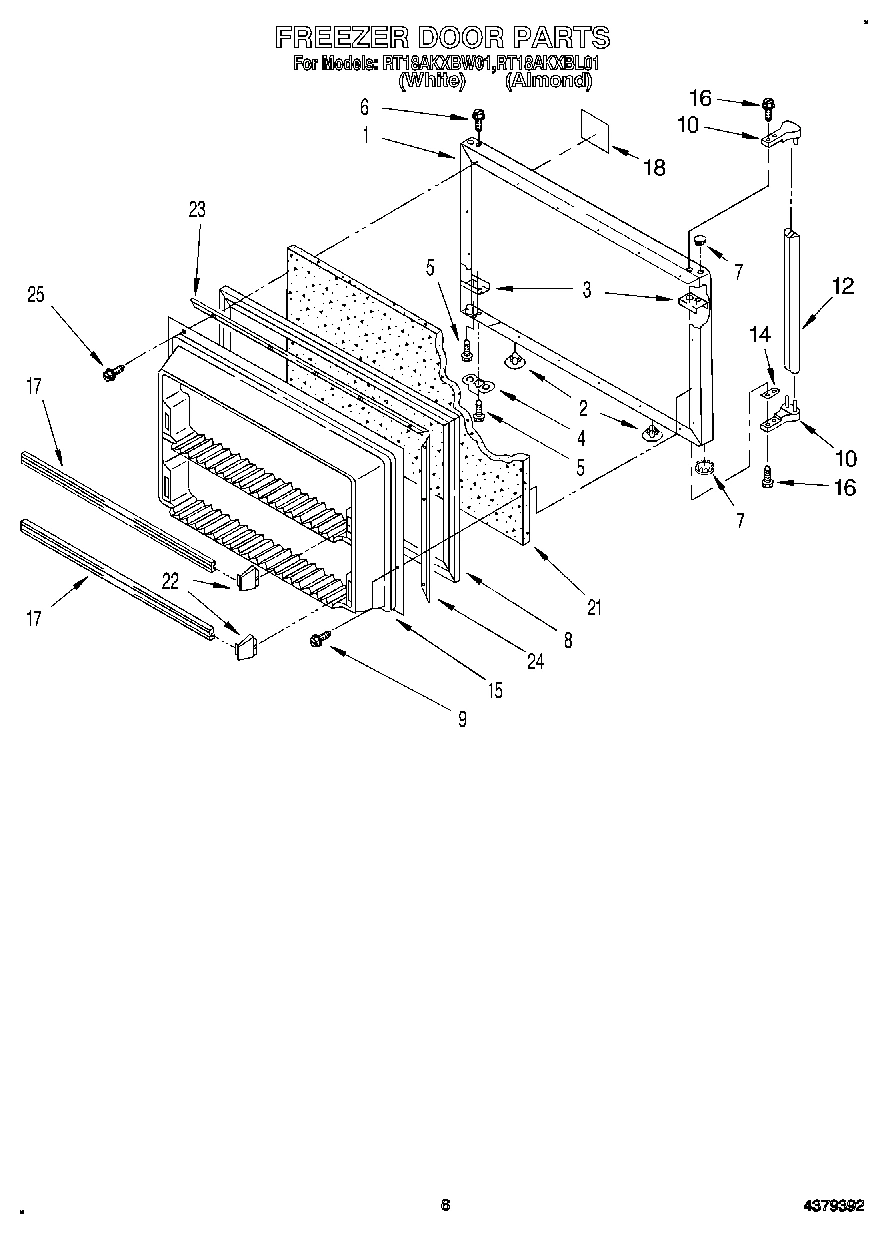

05 - FREEZER DOOR

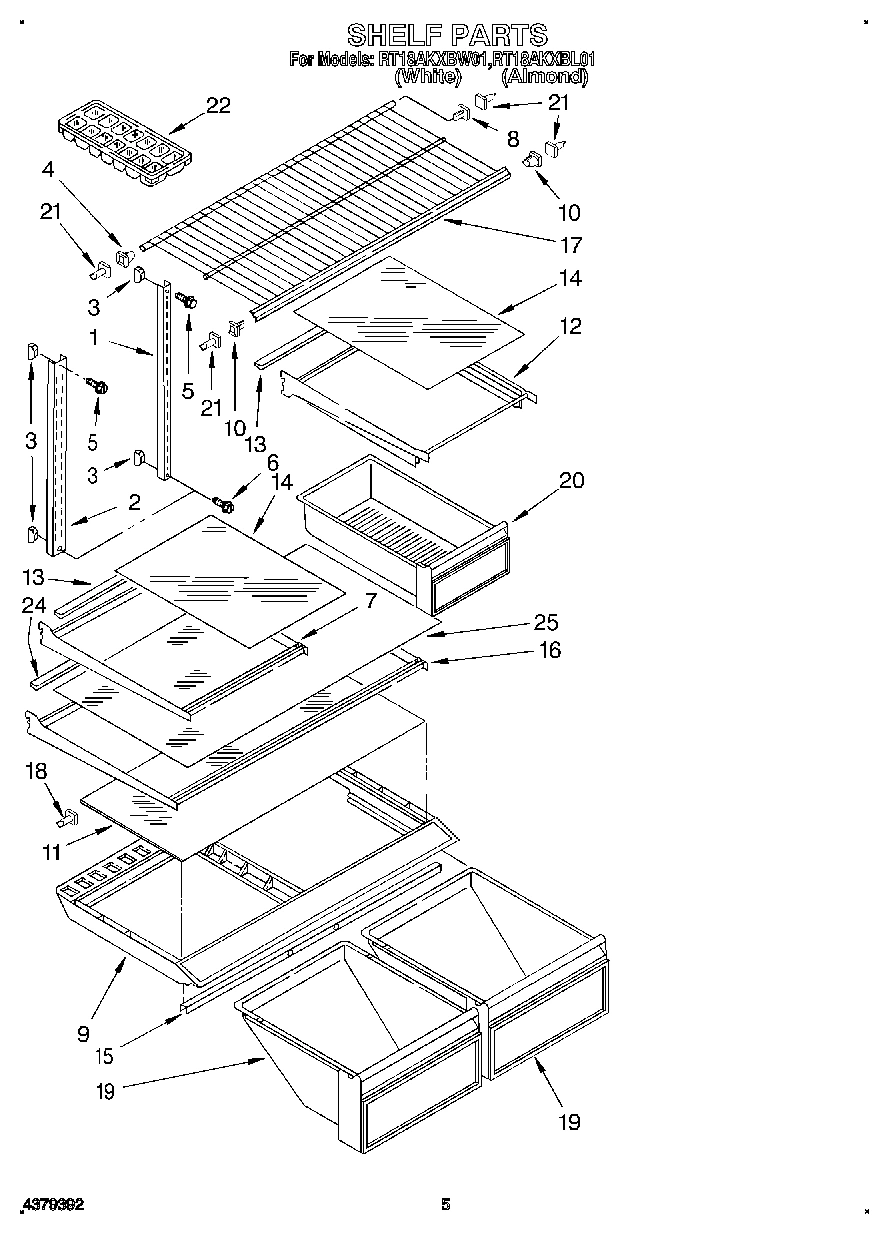

04 - SHELF

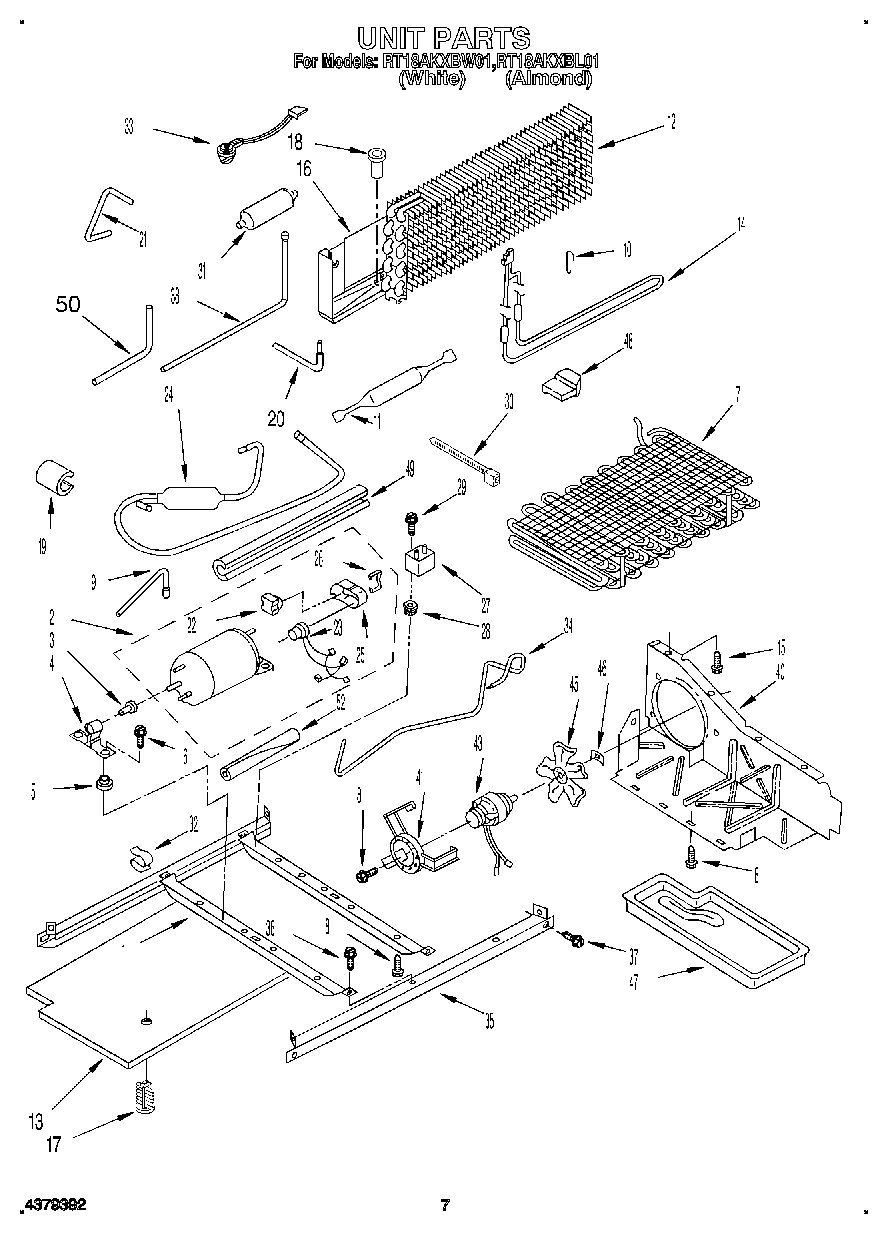

06 - UNIT

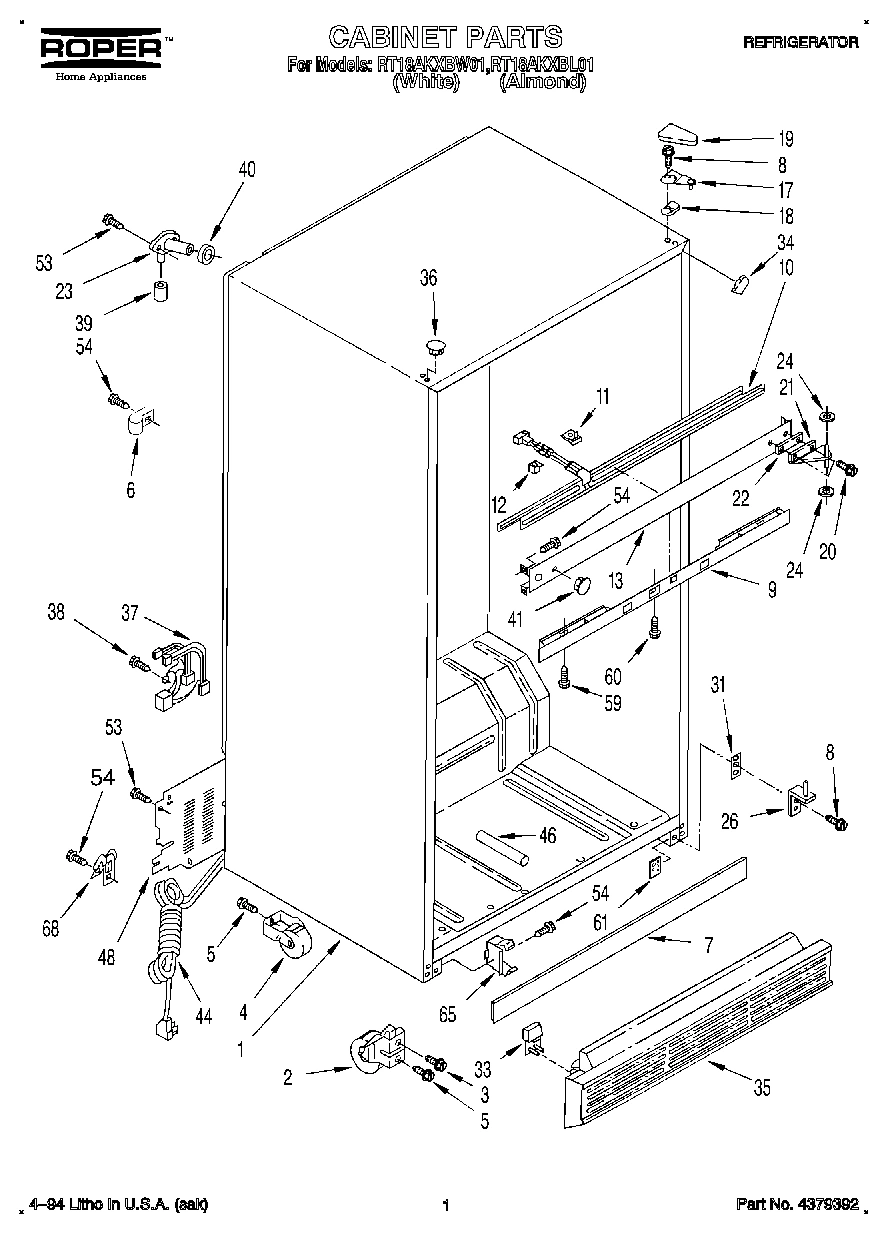

01 - CABINET

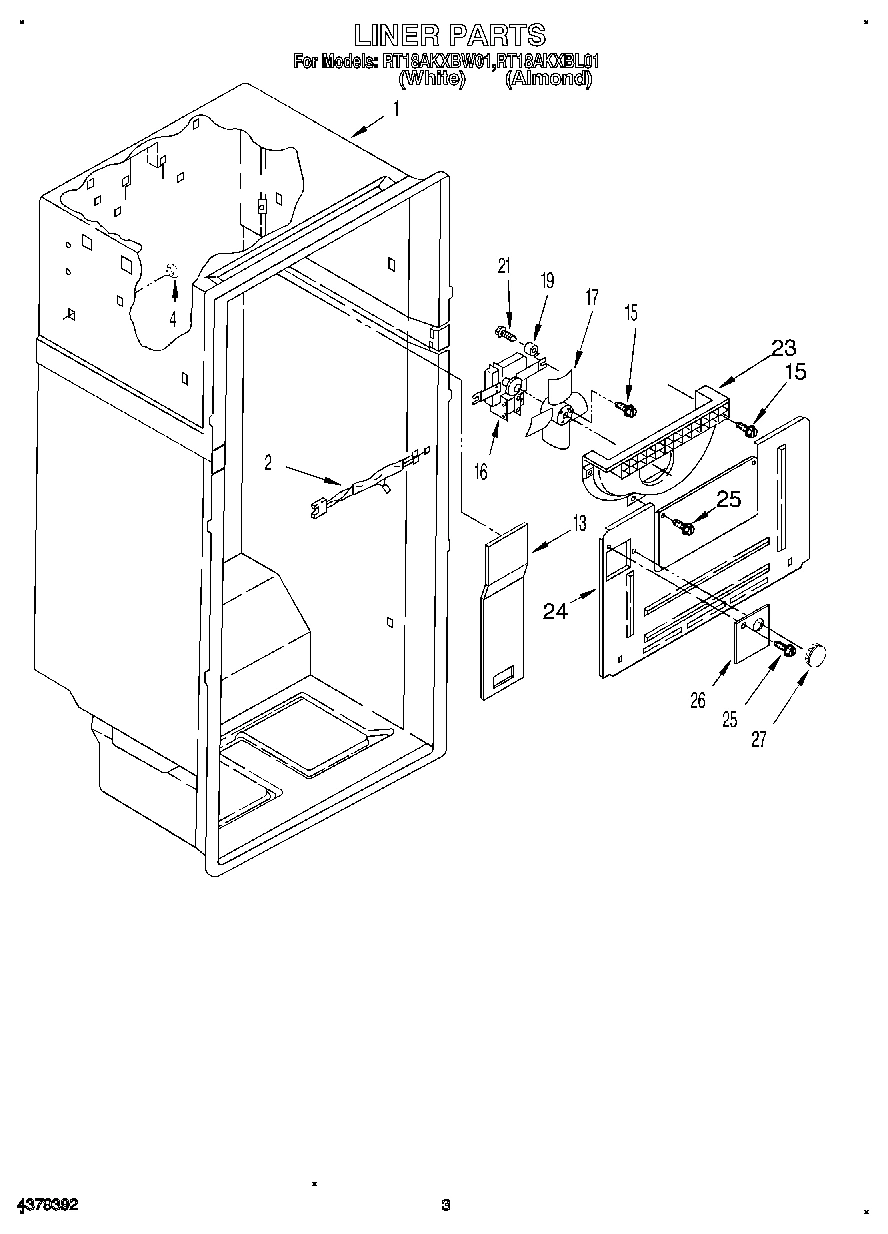

02 - LINER

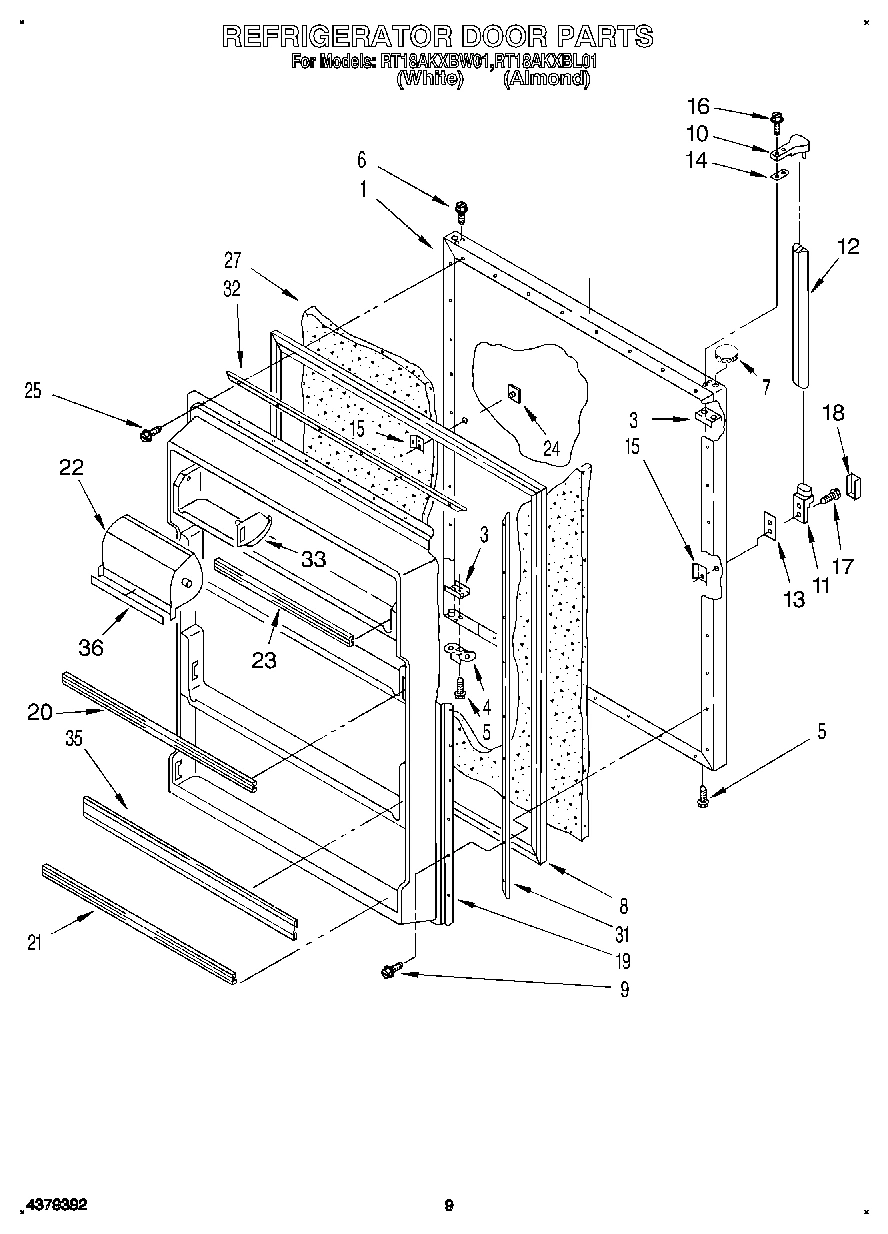

07 - REFRIGERATOR DOOR, LIT/OPTIONAL
Common parts from model Whirlpool RT18AKXBW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2154075 WPL LIT2154075 Contact Us For Availability
WPL LIT2157983 WPL LIT2157983 Contact Us For Availability
WPL LIT2173250 WPL LIT2173250 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1114466 Contact Us For Availability
1
Unit, Frame WPL 2159747 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI126369A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI126370A Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116575 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 27) WPL 1116578 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Compressor KIt Includes Items 22 (23, 25, 26 WPL 2154564 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
3
Grommet, Compressor Bracket WPL 1105219 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Mounting WPL 1105220 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 WPL 489345 Contact Us For Availability
5
Grommet, Compressor WPL 1105200 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
6
Screw WPL 489334 Contact Us For Availability
7
Shelf, Cantilever WPL 2163583 Contact Us For Availability
7
Condenser Assembly WPL 2154008 Contact Us For Availability
7
Deck Rail Cover WPL 2172703 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1116734 Contact Us For Availability
9
Crisper Cover WPL 2163655 Contact Us For Availability
9
Tube, Process WPL 2154090 Contact Us For Availability
9
Control, Front Cover WPL 2148582 Contact Us For Availability
10
Shelf Stud (2) WPL 946356 Contact Us For Availability
10
Support, Heater WPL 2149120 Contact Us For Availability
10
Heater, Mullion WPL 2154064 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
11
Glass, Crisper Cover WPL 2163596 Contact Us For Availability
11
Clip, Center Rail (6) WPL 1129018 Contact Us For Availability
11
Handle End, WPL 935105 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2163595 Contact Us For Availability
12
Evaporator WPL 2153977 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
12
Handle, Center WPL 1109181 Contact Us For Availability
13
Retainer, Glass WPL 1118119 Contact Us For Availability
13
Cover, Unit Bottom WPL 2160517 Contact Us For Availability
13
Center Rail WPL 2172701 Contact Us For Availability
13
Cover, Air Duct WPL 1116558 Contact Us For Availability
13
Shim, Handle WPL 935076 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Glass, Shelf WPL 2163584 Contact Us For Availability
14
Heater, Defrost WPL 2162020 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163589 Contact Us For Availability
16
Drain Pan & Heat Shield WPL 2153973 Contact Us For Availability
17
Shelf, Freezer WPL 2163241 Contact Us For Availability
18
Nameplate WPL 2163676 Contact Us For Availability
18
Drain Fitting WPL 2172811 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Cover, End Cap WPL 987873 Contact Us For Availability
19
Pan, Crisper WPL 2163652 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Interior Door Panel WPL 2160165 Contact Us For Availability
20
Pan, Meat WPL 2157976 Contact Us For Availability
20
Tube, Process WPL 2154040 Contact Us For Availability
21
Support Stud (4) WPL 946355 Contact Us For Availability
21
Tube, Muffler & Reservoir WPL 2169348 Contact Us For Availability
21
Hinge, Center WPL 2151453 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
22
EndCap, Trim (4) WPL 1106862 Contact Us For Availability
22
Relay (See Overload) WPL ARI126371A Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Compartment Door, Utility WPL 2163223 Contact Us For Availability
23
Overload (Service (Includes Relay)) WPL 2154945 Contact Us For Availability
23
Overload (Production (Includes Relay)) WPL 2159611 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
24
Retainer, Gasket Side (2) WPL 1115138 Contact Us For Availability
24
Reflector WPL 2163585 Contact Us For Availability
24
Muffler WPL 2159588 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
25
Glass, Shelf Full WPL 2163590 Contact Us For Availability
25
Terminal Cover WPL 2154452 Contact Us For Availability
26
Strap, Cover WPL 1105222 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
28
Screw Grommet WPL 509812 Contact Us For Availability
31
Reservoir WPL 2169343 Contact Us For Availability
31
Spacer WPL 2172744 Contact Us For Availability
31
Retainer, Gasket Side (2) WPL 1115136 Contact Us For Availability
32
Retainer, Gasket Top & Bottom (2) WPL 1115137 Contact Us For Availability
32
Clip, Wire WPL 548745 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Hinge Pin, Center WPL 2160051 Contact Us For Availability
34
Tube, Discharge WPL 2154028 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
35
Trim, Door Shelf WPL 2163635 Contact Us For Availability
36
WPL 876029 WPL 876029 Contact Us For Availability
36
TAP WPL 479502 Contact Us For Availability
36
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
36
Trim, Compartment Door WPL 2157988 Contact Us For Availability
36
Door Reversal Instructions WPL 2172761 Contact Us For Availability
36
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
36
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
36
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
36
WPL 542639 WPL 542639 Contact Us For Availability
36
WPL 799833 WPL 799833 Contact Us For Availability
36
WPL 978883 WPL 978883 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
38
Tube, Reservoir & Heat Exchanger WPL 2169346 Contact Us For Availability
40
Air, Baffle WPL 2169432 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
41
Hole Plug WPL 1129062 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan Blade WPL 2169191 Contact Us For Availability
46
Fitting, Drain WPL 2172888 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
48
Cover, Unit WPL 2160514 Contact Us For Availability
50
Tube, Condenser To Heat Loop WPL 2154031 Contact Us For Availability
52
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
52
Sleeve WPL 2159751 Contact Us For Availability
52
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2157315 Contact Us For Availability
× ![]()
