Model Electrolux RT181MLW0 REFRIGERATOR – Common Parts & Diagrams

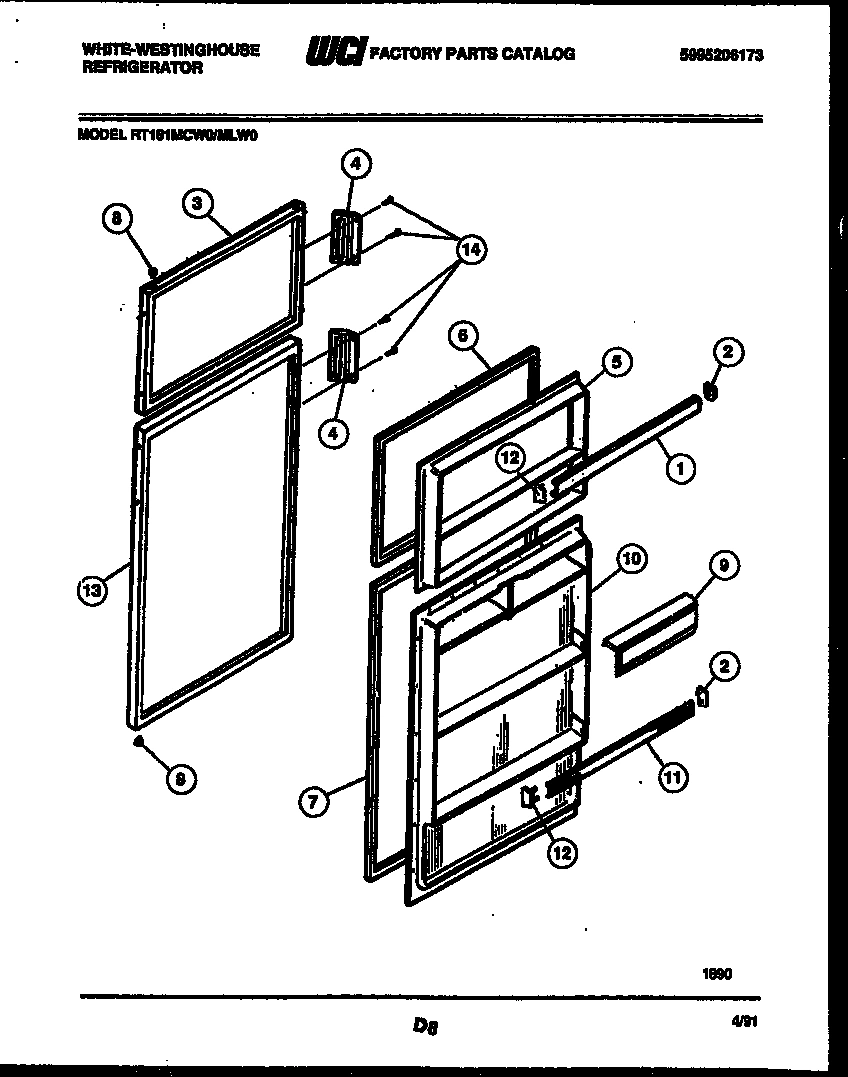

02 - DOOR PARTS

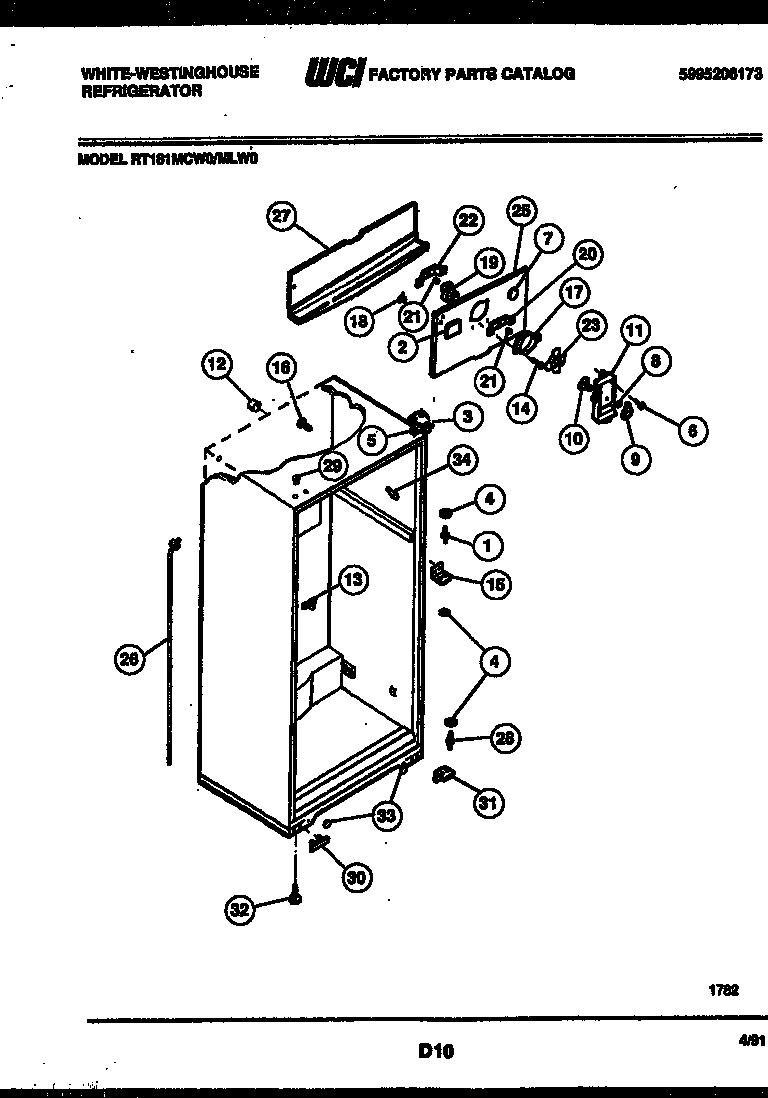

03 - CABINET PARTS

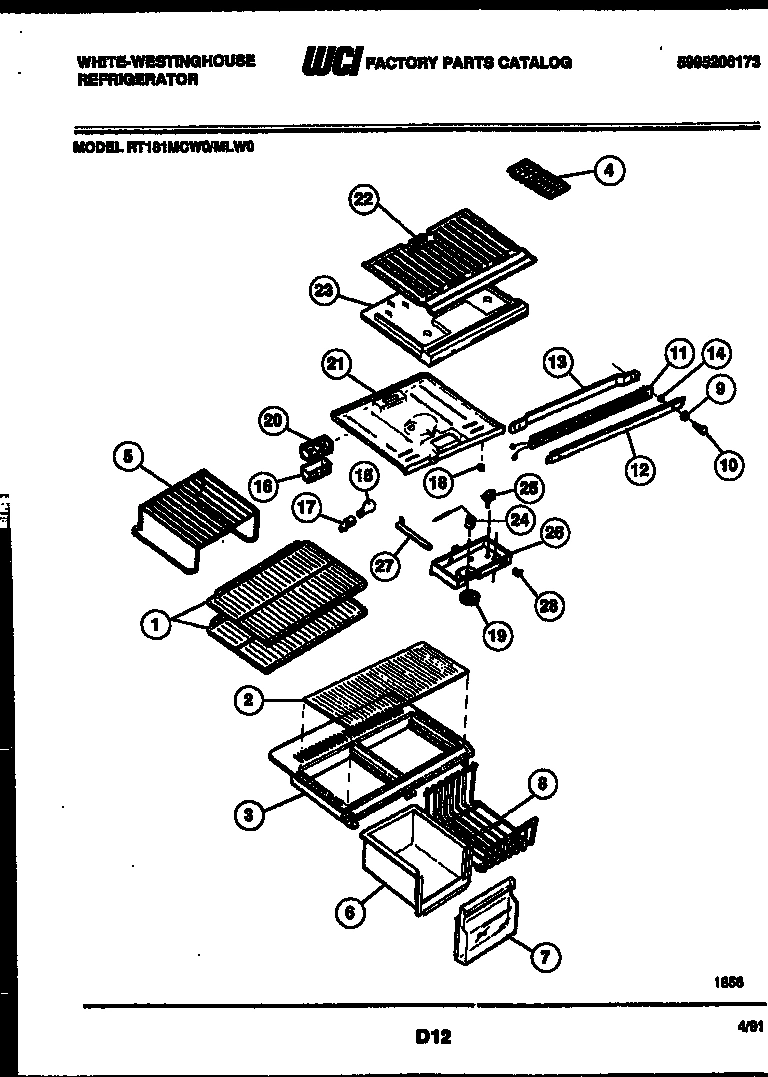

04 - SHELVES AND SUPPORTS

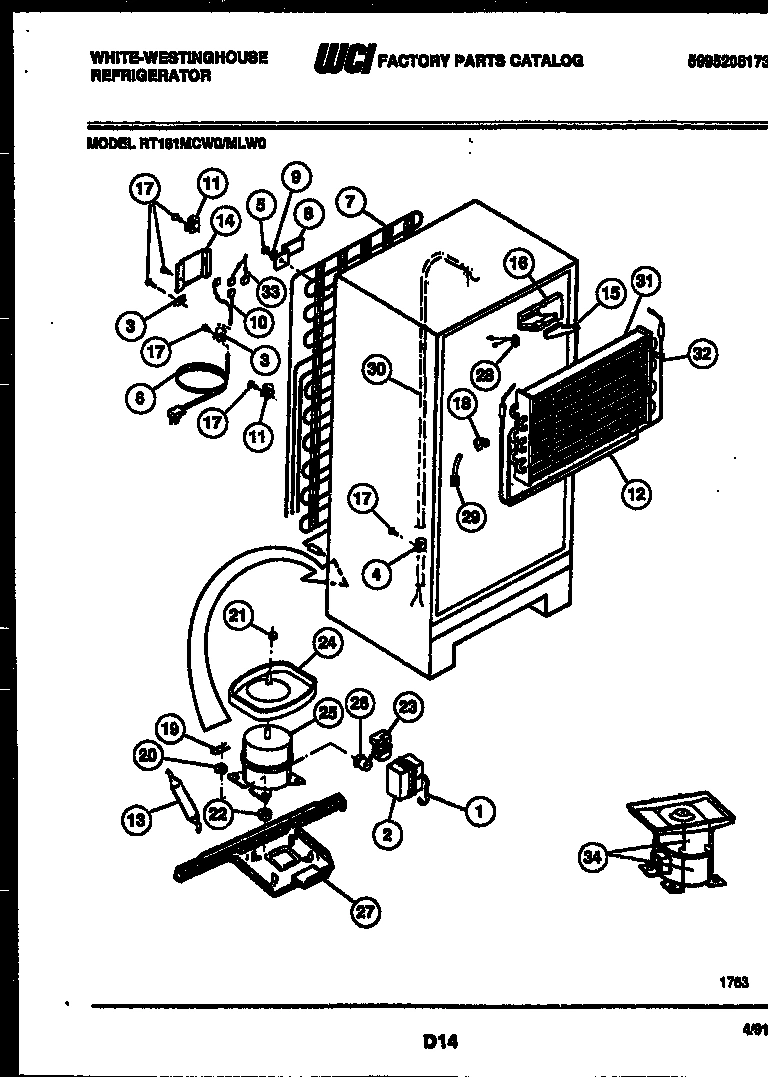

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT181MLW0 REFRIGERATOR
*43692
PLUG (3) WCI 5308016571 Contact Us For Availability
*43705
WCI 3916657 WCI 3916657 Contact Us For Availability
1
WCI 5308000184 WCI 5308000184 Contact Us For Availability
1
WCI 5303207457 WCI 5303207457 Contact Us For Availability
2
INSERT-CRISPER COVER WCI 5303207339 Contact Us For Availability
3
CRISPER COVER WCI 5303207340 Contact Us For Availability
6
GASKET-FREEZER DOOR WCI 5303207342 Contact Us For Availability
6
CORD-SERVICE WCI 5316254901 Contact Us For Availability
7
FRONT, CRISPER PAN WCI 5303207489 Contact Us For Availability
7
WCI 5300163133 WCI 5300163133 Contact Us For Availability
8
WCI 5303207491 WCI 5303207491 Contact Us For Availability
8
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
9
WCI 5308000081 WCI 5308000081 Contact Us For Availability
9
WASHER MULLION (2) WCI 5308003607 Contact Us For Availability
9
WASHER-NO. 10 EXT TOOTH LOCK (2) WCI 5308009617 Contact Us For Availability
10
SCREW - MULLION (2) WCI 3206134 Contact Us For Availability
10
HARNESS-COMPRESSOR WIRING WCI 3206113 Contact Us For Availability
11
WCI 3206445 WCI 3206445 Contact Us For Availability
12
WCI 3206446 WCI 3206446 Contact Us For Availability
12
INSULATOR-PLASTIC WCI 5303207493 Contact Us For Availability
13
WCI 5308000056 WCI 5308000056 Contact Us For Availability
13
WCI 5303206752 WCI 5303206752 Contact Us For Availability
13A
PUSHPIN (2) WCI 5303001361 Contact Us For Availability
14
SPACER-MULLION MTG WCI 5303206753 Contact Us For Availability
14
WCI 5303001197 WCI 5303001197 Contact Us For Availability
14A
BUTTON-PLUG-WHITE (2) (NON-ILLUSTRATED) WCI 5308000134 Contact Us For Availability
15
WCI 5303001369 WCI 5303001369 Contact Us For Availability
15
PLUG-INSULATION RH WCI 5303007287 Contact Us For Availability
16
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
16
WCI 5303001448 WCI 5303001448 Contact Us For Availability
16
BLOCK WCI 5308013648 Contact Us For Availability
17
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
BLOCK INSULATION-LH WCI 5308017227 Contact Us For Availability
19
KNOB-CONTROL WCI 5303209251 Contact Us For Availability
19
CLIP-COMPRESSOR MTG, (3) WCI 5308003596 Contact Us For Availability
20
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
20
WCI 5308014667 WCI 5308014667 Contact Us For Availability
20
WASHER-COMPRESSOR MTG (3) WCI 5308003633 Contact Us For Availability
20A
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
21
WCI 5300157666 WCI 5300157666 Contact Us For Availability
21
TOP-REFRIGERATOR WCI 3206454 Contact Us For Availability
21
NUT-LOCK WCI 5303001348 Contact Us For Availability
21A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
22
WCI 5303205119 WCI 5303205119 Contact Us For Availability
22
BOTTOM-FREEZER WCI 3206455 Contact Us For Availability
23
DIVIDER WCI 3206456 Contact Us For Availability
24
CONTROL-TEMP WCI 5303018894 Contact Us For Availability
24
DRAIN PAN WCI 5300184715 Contact Us For Availability
24A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
25
COVER-COIL WCI 3206451 Contact Us For Availability
25
COMPRESSOR WCI 5303916411 Contact Us For Availability
25B
NUT-``U`` TYPE (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
26
WCI 5303270406 WCI 5303270406 Contact Us For Availability
26
TUBE-DRAIN WCI 5303269702 Contact Us For Availability
26
WCI 5303207248 WCI 5303207248 Contact Us For Availability
27
TROUGH-DRAIN WCI 3206444 Contact Us For Availability
27
HOUSING - CONTROL CAP TUBE WCI 3018891 Contact Us For Availability
27
MOUNTING PLATE & RAIL COMPR WCI 3206126 Contact Us For Availability
28
PIN-LOWER HINGE WCI 5303001321 Contact Us For Availability
28
SWITCH-MULLION HEATER WCI 5303207249 Contact Us For Availability
29
PLUG - HINGE - WHITE WCI 5303001388 Contact Us For Availability
30
COVER-LOWER HINGE SCREW WCI 3206135 Contact Us For Availability
30
HEAT-EXCHANGER WCI 530800728 Contact Us For Availability
31
WCI 3206136 WCI 3206136 Contact Us For Availability
31
EVAPORATOR WCI 3206452 Contact Us For Availability
32
SCREW-LEVELING, (2) WCI 3206141 Contact Us For Availability
33
PLUG-BUTTON (2) WCI 3206142 Contact Us For Availability
33
HARNESS-CONTROL WIRING WCI 3018900 Contact Us For Availability
34
DRAIN PAN-RETAINER KIT WCI 5303916001 Contact Us For Availability
34
TRIM-CABINET CORNER (2)-WHITE WCI 5303202336 Contact Us For Availability
× ![]()
