Model Electrolux RT181MLD0 REFRIGERATOR – Common Parts & Diagrams

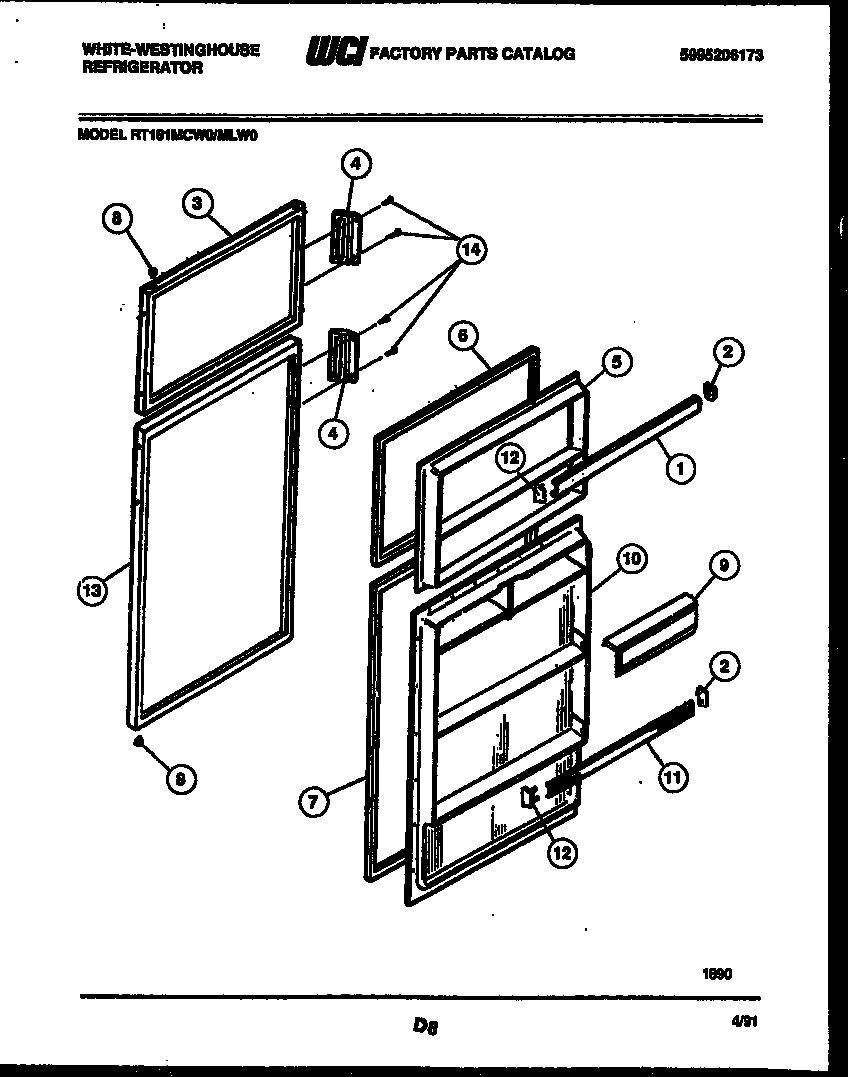

02 - DOOR PARTS

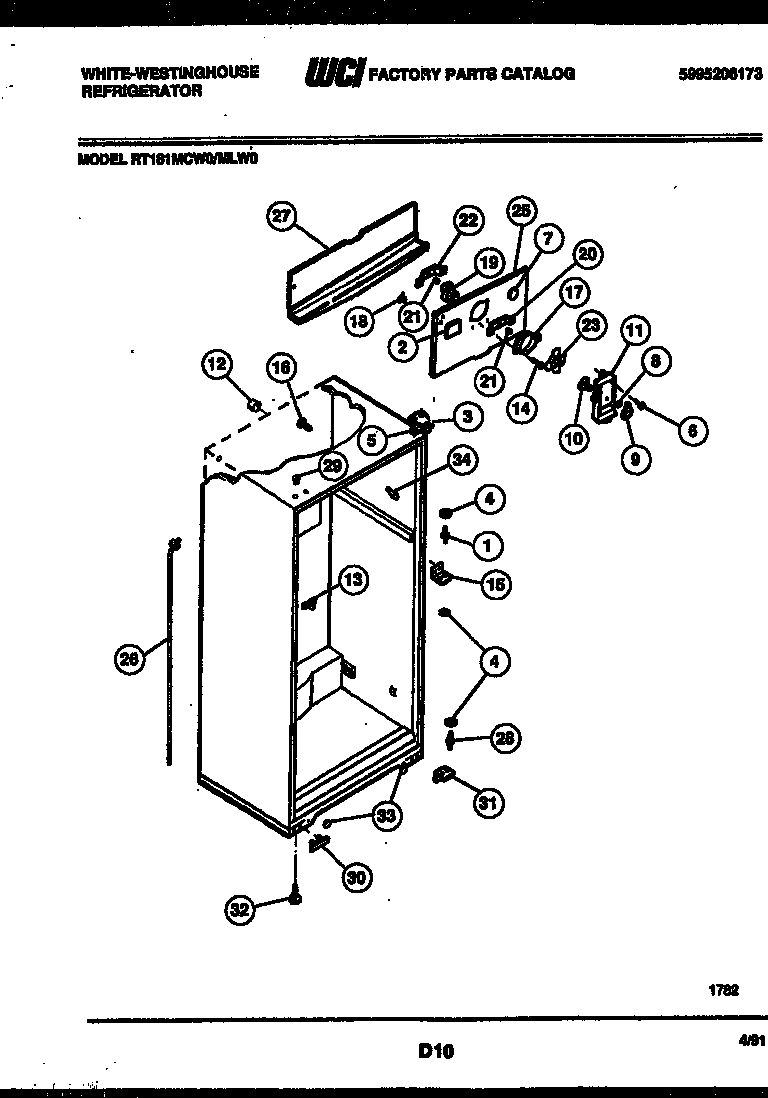

03 - CABINET PARTS

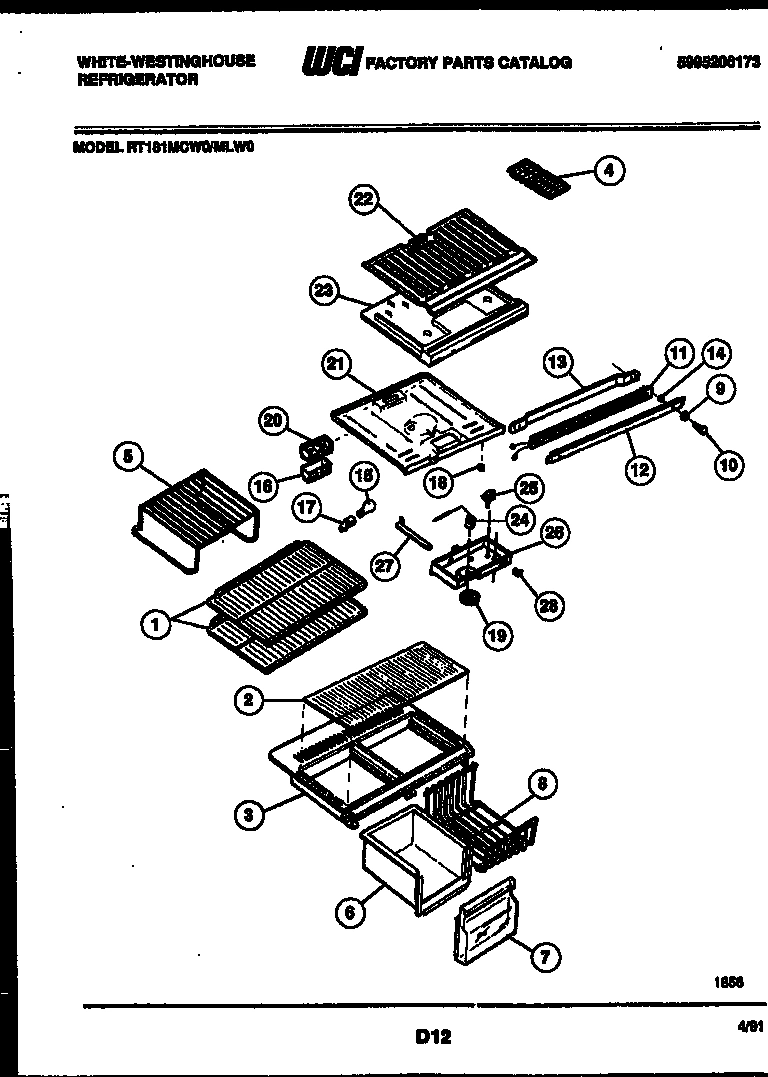

04 - SHELVES AND SUPPORTS

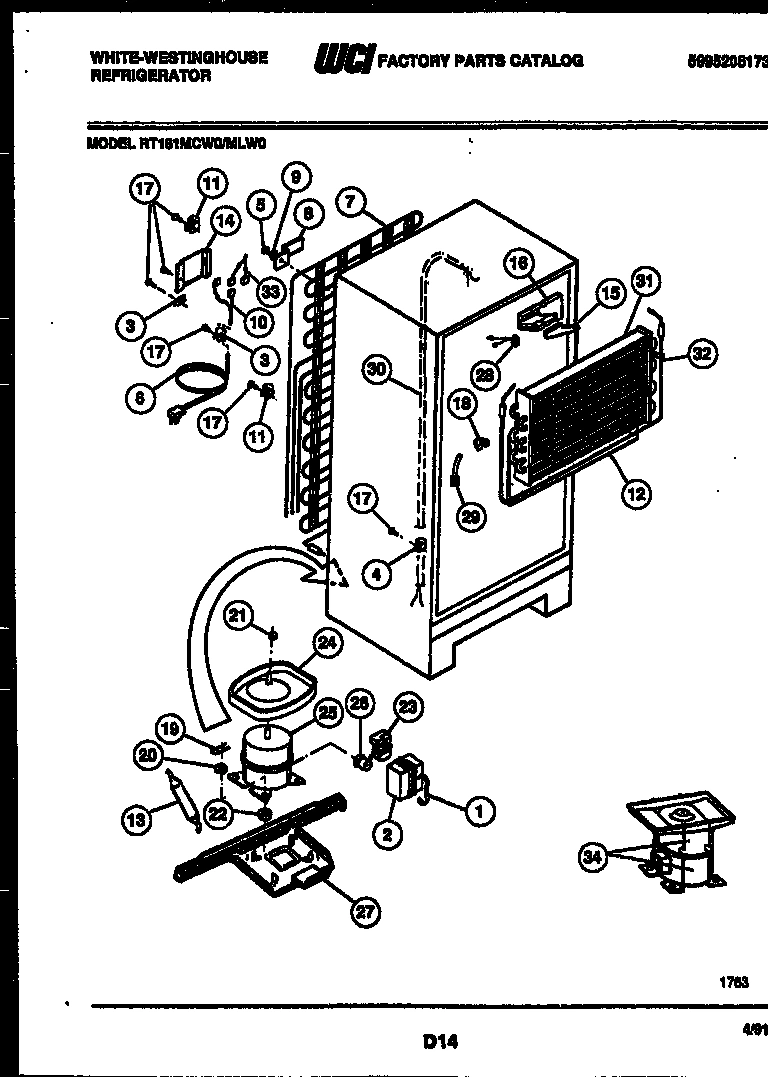

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT181MLD0 REFRIGERATOR
*43692
PLUG (3) WCI 5308016571 Contact Us For Availability
*43705
WCI 3916657 WCI 3916657 Contact Us For Availability
1
WCI 5308000184 WCI 5308000184 Contact Us For Availability
1
WCI 5303207457 WCI 5303207457 Contact Us For Availability
2
INSERT-CRISPER COVER WCI 5303207339 Contact Us For Availability
3
CRISPER COVER WCI 5303207340 Contact Us For Availability
6
GASKET-FREEZER DOOR WCI 5303207342 Contact Us For Availability
6
CORD-SERVICE WCI 5316254901 Contact Us For Availability
7
FRONT, CRISPER PAN WCI 5303207489 Contact Us For Availability
7
WCI 5300163133 WCI 5300163133 Contact Us For Availability
8
WCI 5303207491 WCI 5303207491 Contact Us For Availability
8
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
9
WCI 5308000081 WCI 5308000081 Contact Us For Availability
9
WASHER MULLION (2) WCI 5308003607 Contact Us For Availability
9
WASHER-NO. 10 EXT TOOTH LOCK (2) WCI 5308009617 Contact Us For Availability
10
SCREW - MULLION (2) WCI 3206134 Contact Us For Availability
10
HARNESS-COMPRESSOR WIRING WCI 3206113 Contact Us For Availability
11
WCI 3206445 WCI 3206445 Contact Us For Availability
12
WCI 3206450 WCI 3206450 Contact Us For Availability
12
INSULATOR-PLASTIC WCI 5303207493 Contact Us For Availability
13
WCI 5308000056 WCI 5308000056 Contact Us For Availability
13
WCI 5303206752 WCI 5303206752 Contact Us For Availability
14
SPACER-MULLION MTG WCI 5303206753 Contact Us For Availability
14
WCI 5303001197 WCI 5303001197 Contact Us For Availability
14A
BUTTON-PLUG-ALMOND (2) WCI 5303001308 Contact Us For Availability
15
WCI 5303001369 WCI 5303001369 Contact Us For Availability
15
PLUG-INSULATION RH WCI 5303007287 Contact Us For Availability
16
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
16
WCI 5303001448 WCI 5303001448 Contact Us For Availability
16
BLOCK WCI 5308013648 Contact Us For Availability
17
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
BLOCK INSULATION-LH WCI 5308017227 Contact Us For Availability
19
KNOB-CONTROL WCI 5303209251 Contact Us For Availability
19
CLIP-COMPRESSOR MTG, (3) WCI 5308003596 Contact Us For Availability
20
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
20
WCI 5308014667 WCI 5308014667 Contact Us For Availability
20
WASHER-COMPRESSOR MTG (3) WCI 5308003633 Contact Us For Availability
20A
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
21
WCI 5300157666 WCI 5300157666 Contact Us For Availability
21
TOP-REFRIGERATOR WCI 3206454 Contact Us For Availability
21
NUT-LOCK WCI 5303001348 Contact Us For Availability
21A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
22
WCI 5303205119 WCI 5303205119 Contact Us For Availability
22
BOTTOM-FREEZER WCI 3206455 Contact Us For Availability
23
DIVIDER WCI 3206456 Contact Us For Availability
24
CONTROL-TEMP WCI 5303018894 Contact Us For Availability
24
DRAIN PAN WCI 5300184715 Contact Us For Availability
24A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
25
COVER-COIL WCI 3206451 Contact Us For Availability
25
COMPRESSOR WCI 5303916411 Contact Us For Availability
25B
NUT-``U`` TYPE (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
26
WCI 5303270406 WCI 5303270406 Contact Us For Availability
26
TUBE-DRAIN WCI 5303269702 Contact Us For Availability
26
WCI 5303207248 WCI 5303207248 Contact Us For Availability
27
TROUGH-DRAIN WCI 3206444 Contact Us For Availability
27
HOUSING - CONTROL CAP TUBE WCI 3018891 Contact Us For Availability
27
MOUNTING PLATE & RAIL COMPR WCI 3206126 Contact Us For Availability
28
PIN-LOWER HINGE WCI 5303001321 Contact Us For Availability
28
SWITCH-MULLION HEATER WCI 5303207249 Contact Us For Availability
29
PLUG - HINGE - ALMOND (2) WCI 5303001389 Contact Us For Availability
30
COVER-LOWER HINGE SCREW WCI 3206135 Contact Us For Availability
30
HEAT-EXCHANGER WCI 530800728 Contact Us For Availability
31
WCI 3206136 WCI 3206136 Contact Us For Availability
31
EVAPORATOR WCI 3206452 Contact Us For Availability
32
SCREW-LEVELING, (2) WCI 3206141 Contact Us For Availability
33
PLUG-BUTTON (2) WCI 3206142 Contact Us For Availability
33
HARNESS-CONTROL WIRING WCI 3018900 Contact Us For Availability
34
DRAIN PAN-RETAINER KIT WCI 5303916001 Contact Us For Availability
34
TRIM-CABINET CORNER (2)-ALMOND WCI 5303202340 Contact Us For Availability
× ![]()
