Model Electrolux RT17F9WU3B REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

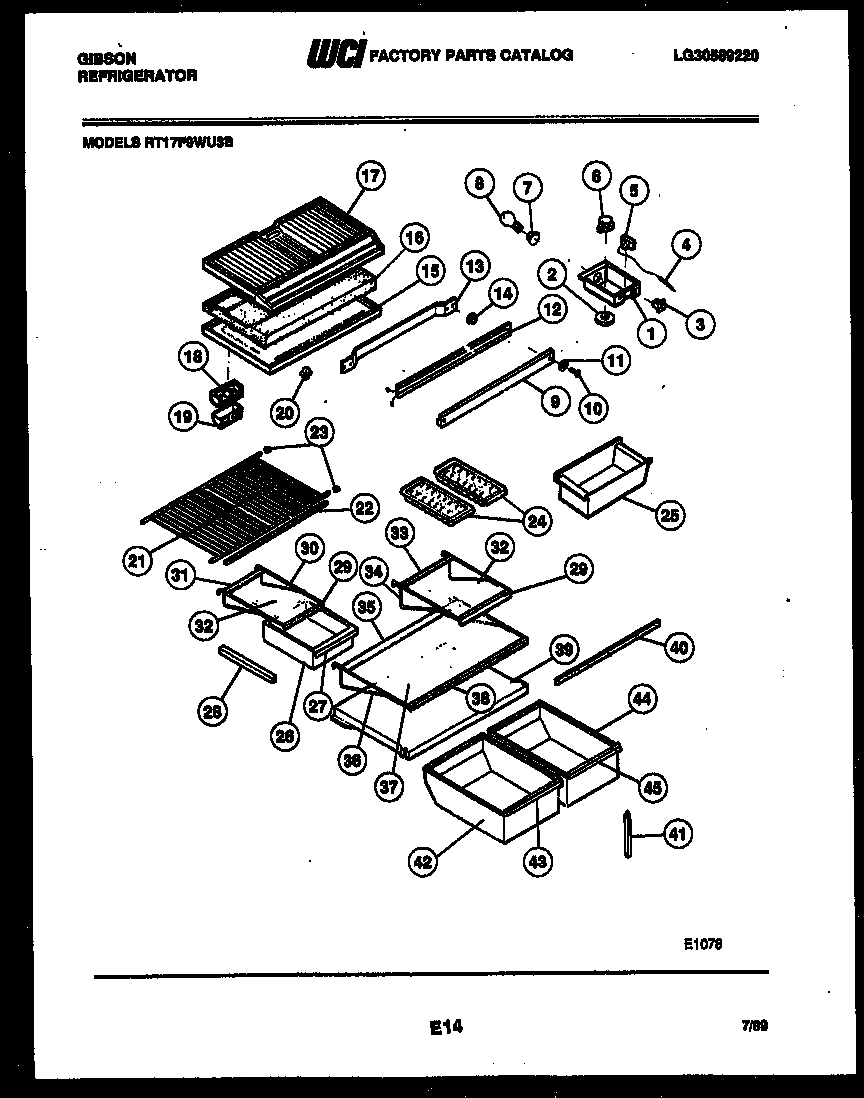

04 - SHELVES AND SUPPORTS

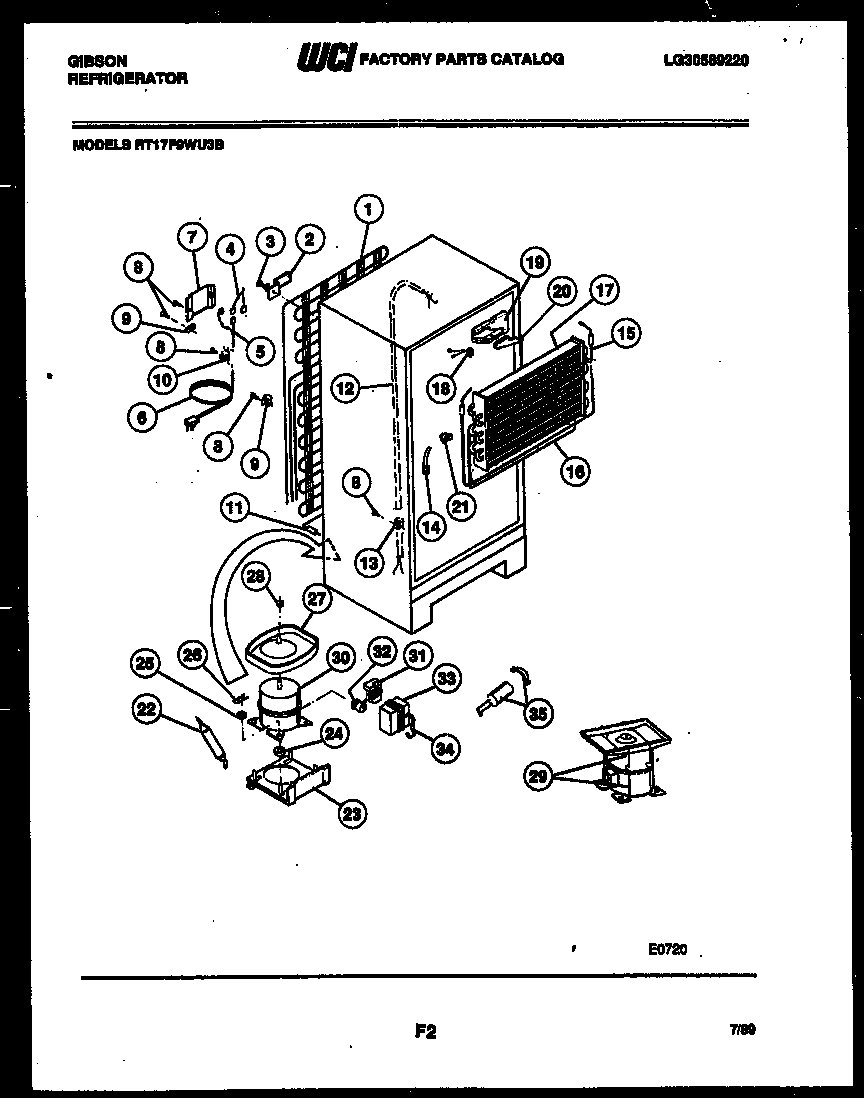

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux RT17F9WU3B REFRIGERATOR
*21130
PLUG-LINER (5) WCI G187599 Contact Us For Availability
*21146
HOT TUBE REPAIR KIT-SVCE WCI G189383 Contact Us For Availability
1
WCI G169332-09 WCI G169332-09 Contact Us For Availability
1
WCI G169332-10 WCI G169332-10 Contact Us For Availability
1
WCI G169332-11 WCI G169332-11 Contact Us For Availability
1
WCI G163061-76 WCI G163061-76 Contact Us For Availability
1
CONTROL BOX WCI G176722-03 Contact Us For Availability
1
WCI G178225 WCI G178225 Contact Us For Availability
1A
LABEL - FAN COVER (NON-ILLUSTRATED) WCI G186232 Contact Us For Availability
1A
LABEL-CONTROL BOX (NON-ILLUSTRATED) WCI G188379-02 Contact Us For Availability
2
FREEZER DOOR-WHITE WCI G189018 Contact Us For Availability
2
FREEZER DOOR-AVOC WCI G189018-08 Contact Us For Availability
2
FREEZER DOOR-WHEAT WCI G189018-09 Contact Us For Availability
2
FREEZER DOOR-COFFEE WCI G189018-10 Contact Us For Availability
2
FREEZER DOOR-ALMOND WCI G189018-11 Contact Us For Availability
2
KNOB-DAMPER CONTROL WCI G168702 Contact Us For Availability
2
KNOB-TEMP CONTROL WCI G490107-02 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI G164637 Contact Us For Availability
3
FRAME-NAMEPLATE WCI G175117-02 Contact Us For Availability
3
WCI G162662 WCI G162662 Contact Us For Availability
3
SWITCH-ENERGY SAVER WCI G178402-02 Contact Us For Availability
3A
TAPE-FRAME MTG (NON-ILLUSTRATED) WCI G153407-12 Contact Us For Availability
3A
WCI G164820 WCI G164820 Contact Us For Availability
4
LABEL-NAMEPLATE UPR WCI G188378-02 Contact Us For Availability
4
WCI G162661 WCI G162661 Contact Us For Availability
4
WCI G174818 WCI G174818 Contact Us For Availability
5
LABEL-NAMEPLATE LWR WCI 3019041 Contact Us For Availability
5
WCI 3200810 WCI 3200810 Contact Us For Availability
5
WIRING HARNESS-COMPR WCI G166062-01 Contact Us For Availability
5A
WCI G107080 WCI G107080 Contact Us For Availability
6
BEARING HINGE (8) WCI G183138 Contact Us For Availability
6
WCI G162549-01 WCI G162549-01 Contact Us For Availability
7
WCI G162977-08 WCI G162977-08 Contact Us For Availability
7
WCI G162977-09 WCI G162977-09 Contact Us For Availability
7
WCI G162977-10 WCI G162977-10 Contact Us For Availability
7
WCI G162977-11 WCI G162977-11 Contact Us For Availability
7
WCI G167217 WCI G167217 Contact Us For Availability
7
WCI G168302 WCI G168302 Contact Us For Availability
7
WCI G183584 WCI G183584 Contact Us For Availability
8
BUSHING-FAN ASSY (2) WCI G187559 Contact Us For Availability
8
TRIM-FRZR DOOR WCI G167404-01 Contact Us For Availability
9
TRIM-REFR DOOR (2) WCI G167150-11 Contact Us For Availability
9
WCI G185302 WCI G185302 Contact Us For Availability
9
WCI 3200465 WCI 3200465 Contact Us For Availability
9
WCI 3916132 WCI 3916132 Contact Us For Availability
9
WCI 3916133 WCI 3916133 Contact Us For Availability
9
WCI 3916134 WCI 3916134 Contact Us For Availability
9
WCI 3916135 WCI 3916135 Contact Us For Availability
10
DOOR STOP-REFR/FRZR (2) WCI G155072 Contact Us For Availability
10
COVER-EVAPORATOR COIL WCI G176797 Contact Us For Availability
10
SCREW-MULLION (4) WCI G183103 Contact Us For Availability
10A
WCI G185566 WCI G185566 Contact Us For Availability
10A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
11
REFR DOOR-WHITE WCI G189020 Contact Us For Availability
11
REFR DOOR-AVOCADO WCI G189020-08 Contact Us For Availability
11
REFR DOOR-WHEAT WCI G189020-09 Contact Us For Availability
11
REFR DOOR-COFFEE WCI G189020-10 Contact Us For Availability
11
REFR DOOR-ALMOND WCI G189020-11 Contact Us For Availability
11
WCI 3203044 WCI 3203044 Contact Us For Availability
11
WASHER-NO. 10 STEEL (3) WCI G166847 Contact Us For Availability
12
WCI G162827-12 WCI G162827-12 Contact Us For Availability
12
WCI G177255 WCI G177255 Contact Us For Availability
12
WCI G177531 WCI G177531 Contact Us For Availability
13
PANEL-REFR INNER DOOR WCI G187494-02 Contact Us For Availability
13
WCI G166709 WCI G166709 Contact Us For Availability
14
RACK-REFR/FRZR (3) WCI 3201071 Contact Us For Availability
14
WCI G185303 WCI G185303 Contact Us For Availability
14
WCI 3200464 WCI 3200464 Contact Us For Availability
15
SUPPORT-RS (4) WCI G178287-02 Contact Us For Availability
15
WCI G164571 WCI G164571 Contact Us For Availability
15
WCI 3016378 WCI 3016378 Contact Us For Availability
15
HEATER, DEFROST WCI G176807-01 Contact Us For Availability
15A
SCREW-PANEL MTG (3) (NON-ILLUSTRATED) WCI G162673 Contact Us For Availability
16
SUPPORT-LS (4) WCI G178284-02 Contact Us For Availability
16
DRAIN TROUGH WCI G490043 Contact Us For Availability
16
WCI G176774 WCI G176774 Contact Us For Availability
16
INSULATOR-EVAPORATOR WCI G169024-03 Contact Us For Availability
17
RETAINER-BOTTLE SNUGGER WCI 3017719 Contact Us For Availability
17
WCI G163669 WCI G163669 Contact Us For Availability
17
BOTTOM PANEL-FRZR WCI G490022-01 Contact Us For Availability
17
WCI G176909 WCI G176909 Contact Us For Availability
17A
TAPE PAD-VENT (NON-ILLUSTRATED) WCI G168866 Contact Us For Availability
18
DAIRY DOOR-SMALL WCI G187490-02 Contact Us For Availability
18
WCI G85642 WCI G85642 Contact Us For Availability
18
WCI G162675 WCI G162675 Contact Us For Availability
19
DAIRY DOOR-LARGE WCI G187460-02 Contact Us For Availability
19
WCI G174733 WCI G174733 Contact Us For Availability
19
WCI G162178 WCI G162178 Contact Us For Availability
19
WCI G185299 WCI G185299 Contact Us For Availability
20
UTILITY BIN WCI G187461-01 Contact Us For Availability
20
WCI G174734 WCI G174734 Contact Us For Availability
20
WCI G185276 WCI G185276 Contact Us For Availability
21
DISPENSER-JUICE CAN WCI 3202032 Contact Us For Availability
21
SEAL RING-DRAIN TUBE WCI G176853 Contact Us For Availability
21
WCI G177059-10 WCI G177059-10 Contact Us For Availability
21
WCI G188375 WCI G188375 Contact Us For Availability
22
RACK-FRZR UPPER WCI 3201070 Contact Us For Availability
22
WCI G184920-01 WCI G184920-01 Contact Us For Availability
22
TRIM-FRZR SHELF WCI G172410-09 Contact Us For Availability
23
END CAP (2) WCI 3201150 No Longer Available
23
PANEL-FREEZER UPR WCI 3204553 Contact Us For Availability
23
SPOUT DRAIN TUBE WCI G162179 Contact Us For Availability
23
PLATE-COMPRESSOR MTG WCI G184599 Contact Us For Availability
24
GASKET-FRZR DOOR WCI G186932-03 Contact Us For Availability
24
PUSH PIN-SPOUT (2) WCI G185279 Contact Us For Availability
25
HANDLE-REFR DOOR WCI G168505-01 Contact Us For Availability
25
WCI G170695 WCI G170695 Contact Us For Availability
25
ICE CONTAINER WCI G163022-03 Contact Us For Availability
25
WASHER (4) WCI G164634 Contact Us For Availability
26
HANDLE-FRZR DOOR WCI G168506-01 Contact Us For Availability
26
WCI G189341 WCI G189341 Contact Us For Availability
26
MEAT PAN WCI G176918-12 Contact Us For Availability
26
CLIP (4) WCI G163204 Contact Us For Availability
26A
SCREW-CHANNEL (3) (NON-ILLUSTRATED) WCI G187449 Contact Us For Availability
27
WCI G177343-10 WCI G177343-10 Contact Us For Availability
27
PAN-DEFROST DRAIN WCI G184715 Contact Us For Availability
28
BOLT-1/4-28 X 1/2 (2) WCI G177025 Contact Us For Availability
28
HANGER, PAN LS WCI G187215-03 Contact Us For Availability
28
WCI G164958 WCI G164958 Contact Us For Availability
28A
HANGER, PAN RS (NON-ILLUSTRATED) WCI G187216-03 Contact Us For Availability
28B
WCI G184823 WCI G184823 Contact Us For Availability
29
TRIM-SHELF FRONT (3) WCI G172410-18 Contact Us For Availability
29
PAN RETAINER KIT-SERVICE COMPR WCI 3916001 Contact Us For Availability
30
ROLLER, REAR (2) WCI G183407 Contact Us For Availability
30
FRAME-MEAT PAN SHELF WCI G187218-07 Contact Us For Availability
30
COMPRESSOR W/ ELECTRICALS-SERVICE WCI 3916004 Contact Us For Availability
31
CABINET BASE WCI G490004-01 Contact Us For Availability
31
WCI G172436-12 WCI G172436-12 Contact Us For Availability
31
WCI G182225-18 WCI G182225-18 Contact Us For Availability
32
ROLLER-FRONT (2) WCI G177021 Contact Us For Availability
32
GLASS-HALF SHELF (3) WCI G171654-55 Contact Us For Availability
32
WCI G188877 WCI G188877 Contact Us For Availability
33
SPRING-ROLLER ADJ (2) WCI G178494 Contact Us For Availability
33
TRIM-SHELF REAR (2) WCI G172436-11 Contact Us For Availability
34
SUPPORT, ROLLER (2) WCI G177302 Contact Us For Availability
34
FRAME-HALF SHELF (2) WCI G171608-18 Contact Us For Availability
35
WCI G185713 WCI G185713 Contact Us For Availability
35
TRIM-SHELF REAR WCI G172436-17 Contact Us For Availability
35
WCI 3916391 WCI 3916391 Contact Us For Availability
36
WCI G183073 WCI G183073 Contact Us For Availability
36
FRAME-FULL SHELF WCI G171608-19 Contact Us For Availability
37
SCREW-ROLLER ADJ (2) WCI G177024 Contact Us For Availability
37
GLASS-FULL SHELF WCI G171654-56 Contact Us For Availability
38
WASHER NYLON (2) WCI G182799 Contact Us For Availability
38
TRIM-SHELF FRONT WCI G172410-10 Contact Us For Availability
39
WCI G166912 WCI G166912 Contact Us For Availability
39
COVER-PAN WCI G490016-01 Contact Us For Availability
40
WCI G163203 WCI G163203 Contact Us For Availability
40
GASKET-PAN COVER WCI G180108-04 Contact Us For Availability
40A
TAPPING PLATE (NON-ILLUSTRATED) WCI G179797 Contact Us For Availability
41
WCI 3202834 WCI 3202834 Contact Us For Availability
41
WCI G166310-02 WCI G166310-02 Contact Us For Availability
42
PAN-FRUIT LS WCI G490015-46 Contact Us For Availability
43
WCI 3201093 WCI 3201093 Contact Us For Availability
44
WCI G103903 No Longer Available
44
PAN-VEGETABLE RS WCI 3201094 Contact Us For Availability
45
WCI G164355 WCI G164355 Contact Us For Availability
45
WCI 3201092 WCI 3201092 Contact Us For Availability
46
WCI G163207 WCI G163207 Contact Us For Availability
48
WCI G142220 WCI G142220 Contact Us For Availability
49
CORNER TRIM-WHITE (4) WCI 3202336 Contact Us For Availability
49
CORNER TRIM-AVOC (4) WCI 3202337 Contact Us For Availability
49
CORNER TRIM-WHEAT (4) WCI 3202338 Contact Us For Availability
49
CORNER TRIM-COFFEE (4) WCI 3202339 Contact Us For Availability
49
CORNER TRIM-ALMOND (4) WCI 3202340 Contact Us For Availability
50
WCI G183714 WCI G183714 Contact Us For Availability
51
WCI G183861 WCI G183861 Contact Us For Availability
52
WCI G183558-01 WCI G183558-01 Contact Us For Availability
52
WCI G183558-08 WCI G183558-08 Contact Us For Availability
52
WCI G183558-09 WCI G183558-09 Contact Us For Availability
52
WCI G183558-10 WCI G183558-10 Contact Us For Availability
52
WCI G183558-11 WCI G183558-11 Contact Us For Availability
53
WCI G174747-01 WCI G174747-01 Contact Us For Availability
53
WCI G174747-08 WCI G174747-08 Contact Us For Availability
53
WCI G174747-09 WCI G174747-09 Contact Us For Availability
53
WCI G174747-10 WCI G174747-10 Contact Us For Availability
53
WCI G174747-11 WCI G174747-11 Contact Us For Availability
× ![]()
